Jackery Solar Generator 5000 Plus

Jackery Solar Generator 5000 Plus

E5000Plus+500Wxx2

$4,499.00 USD
$5,699.00 USD $4,499.00 USD
Sale Sold out

  • Expandable for Versatile Scenarios: 2-24 kWh of expandable capacity
  • Leaping Performance: Powers Heavy-duty Devices up to 6000W
  • Ultra Fast Solar Charging: Advanced IBC Technology, Fast Solar Charge in 2 Hours

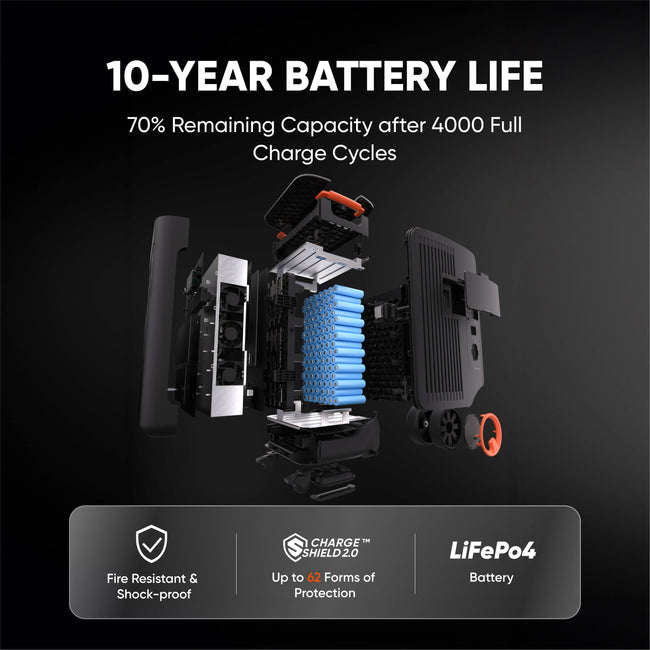

  • Long-lasting Reliability: Outstanding LiFePO4 Battery with 10-Year Lifespan
  • ChargeShield Technology: Using a unique variable-speed charging algorithm, fast charge technology boosts battery life by 50%
  • High Power Output: Maximum 6,000 W power in parallel connection and 120/240V expandable voltage
  • When using the 2 x 2000 Plus bundle, please note: If the power draw is limited to 120V, only one unit will be used to supply power.
  • Warranty Extension: 3-year warranty.

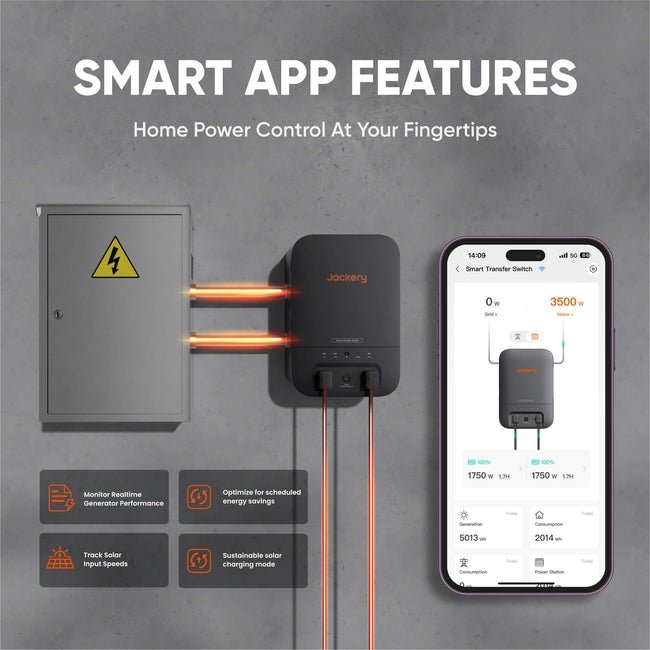

  • Use a transfer switch (Value $399.99) to create a whole-home backup solution.

- What's In The Box? -

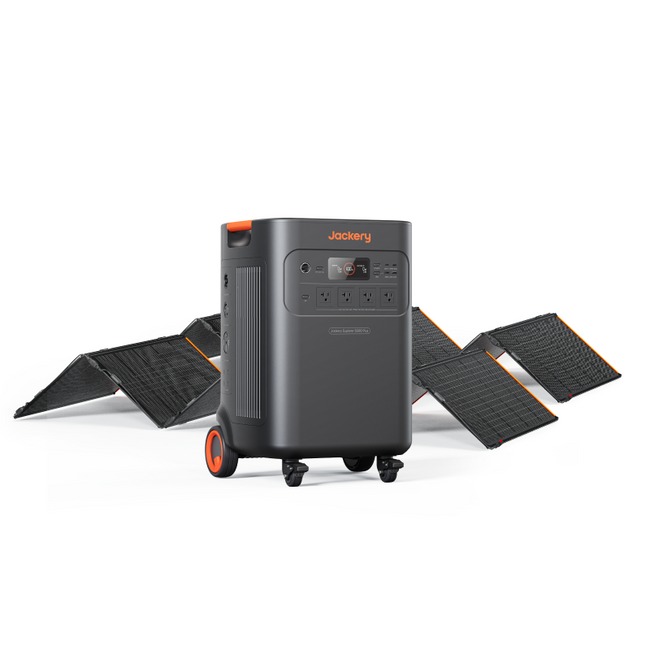

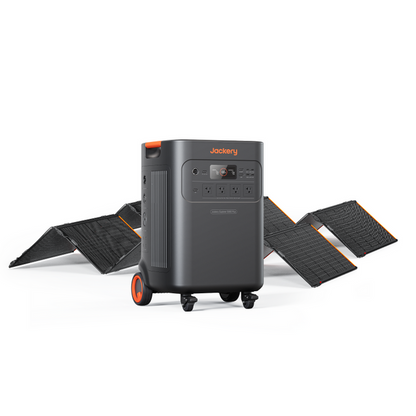

Option: Explorer 5000 Plus + Two Solar Saga 500W Solar Panels

  • Explorer 5000 Plus
  • AC Charging Cable
  • MC4 Wrench
  • Solar Saga 500W - Quantity of 2
    • Solar Charging Cable
    • Storage Bag
    • Hinge x 10
    • Ground Stakes x 8
    • Hex Key
    • Screw x 40
    • Anderson Rubber Plug x 2
    • Compass Carabiner

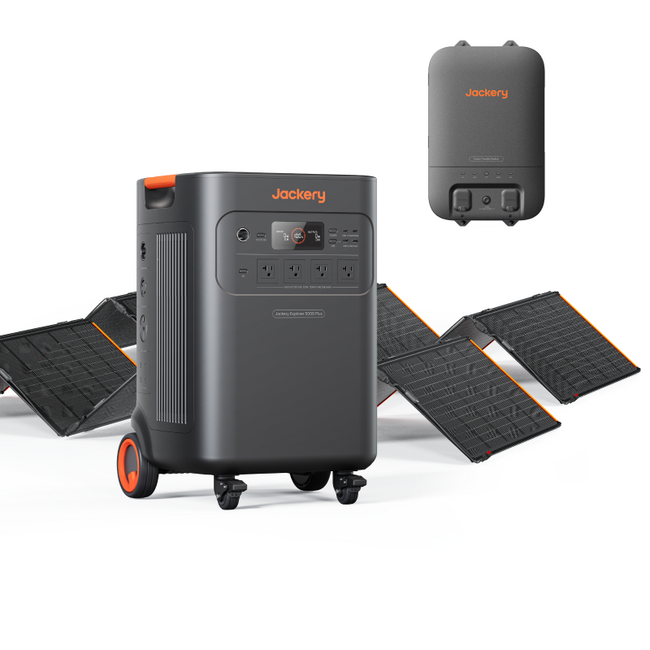

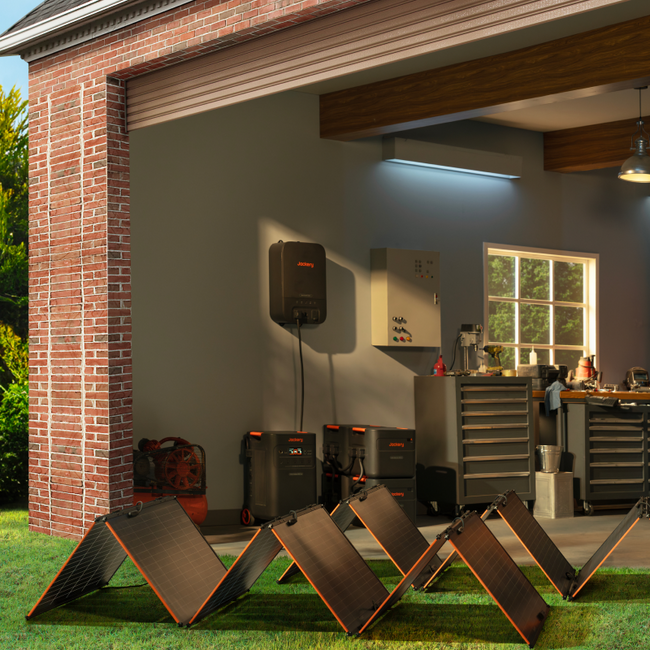

Option: Explorer 5000 Plus + Two Solar Saga 500W Solar Panels + Smart Transfer Switch

  • Explorer 5000 Plus
  • AC Charging Cable
  • MC4 Wrench
  • Solar Saga 500W - Quantity of 2
    • Solar Charging Cable
    • Storage Bag
    • Hinge x 10
    • Ground Stakes x 8
    • Hex Key
    • Screw x 40
    • Anderson Rubber Plug x 2
    • Compass Carabiner
  • Smart Transfer Switch
    • Marking-off Template
    • Power Input/Output Cable
    • 2* Wall Bracket
    • 4*M4 Phillips Flat Head Screw

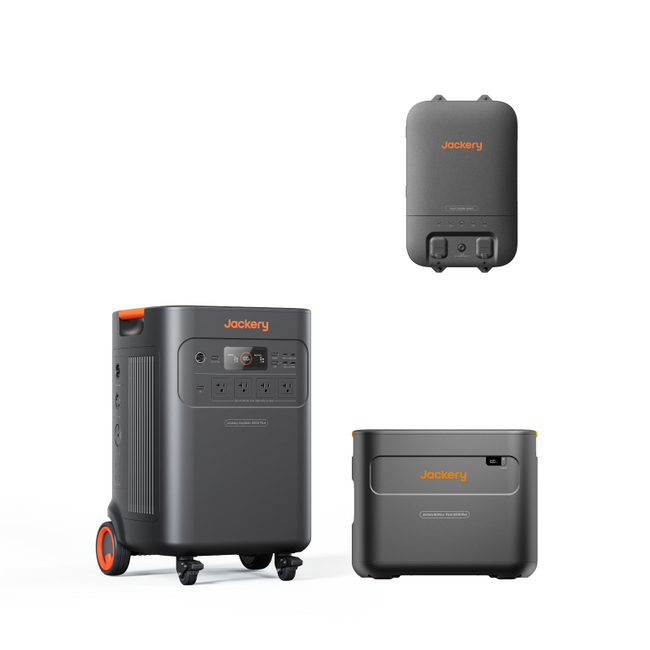

Option: Explorer 5000 Plus (10kWh) + Smart Transfer Switch - Battery Pack Included

  • Explorer 5000 Plus
  • AC Charging Cable
  • MC4 Wrench
  • Smart Transfer Switch
    • Marking-off Template
    • Power Input/Output Cable
    • 2* Wall Bracket
    • 4*M4 Phillips Flat Head Screw
  • Battery Pack 5000 Plus
    • Expansion Cable

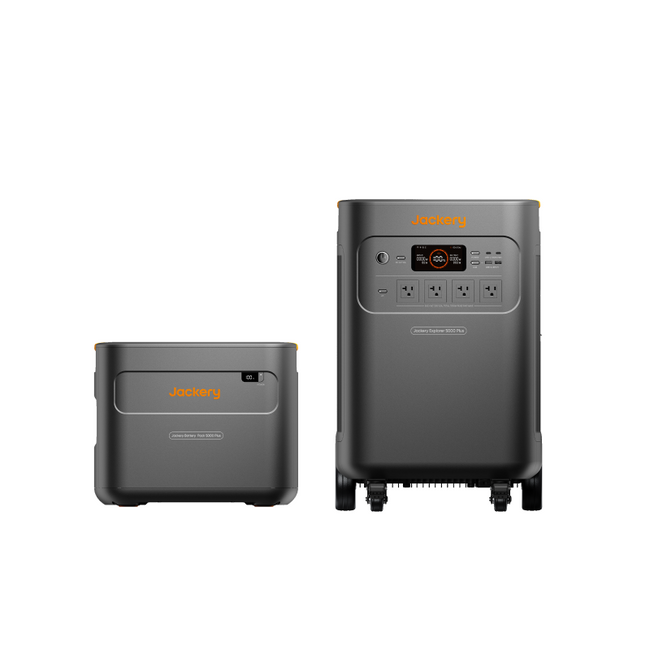

Option:  Explorer 5000 Plus (10kWh) - Battery Pack Included

  • Explorer 5000 Plus
  • AC Charging Cable
  • MC4 Wrench
  • Battery Pack 5000 Plus
    • Expansion Cable

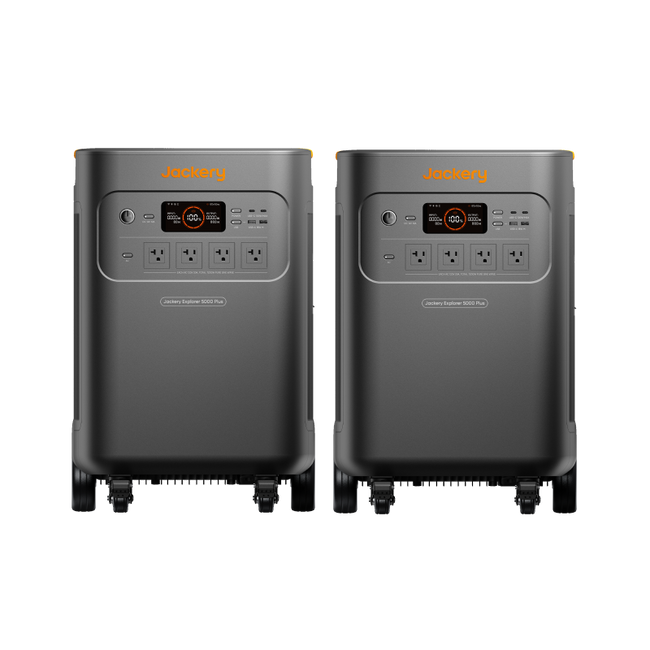

Option: Two Explorer 5000 Plus Power Stations

  • Explorer 5000 Plus - Quantity of 2
  • AC Charging Cable - Quantity of 2
  • MC4 Wrench - Quantity of 2

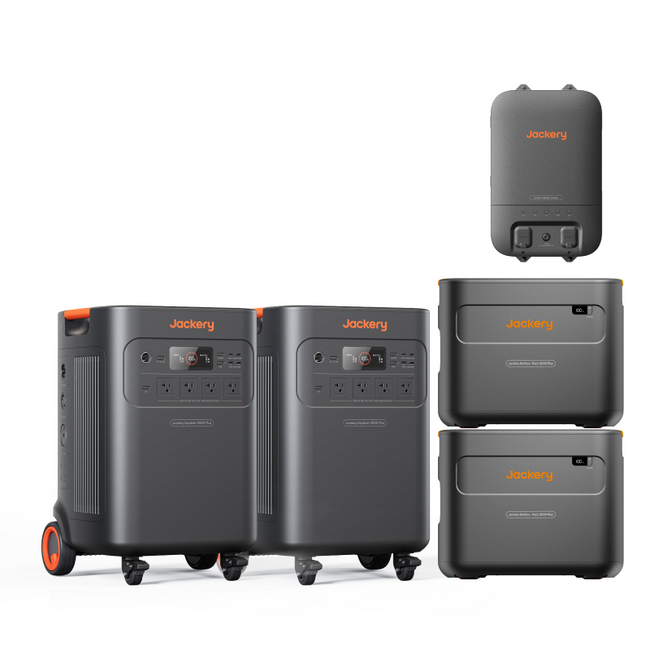

Option: Whole-Home Backup Kit 5000 Plus (20kWh)

  • Explorer 5000 Plus - Quantity of 2
  • AC Charging Cable - Quantity of 2
  • MC4 Wrench - Quantity of 2
  • Smart Transfer Switch
    • Marking-off Template
    • Power Input/Output Cable
    • 2* Wall Bracket
    • 4*M4 Phillips Flat Head Screw
  • Battery Pack 5000 Plus - Quantity of 2
    • Expansion Cable - Quantity of 2

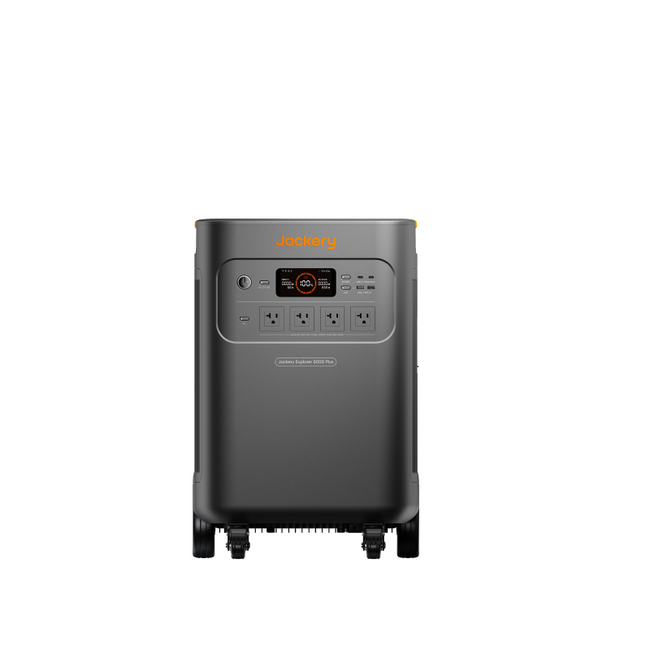

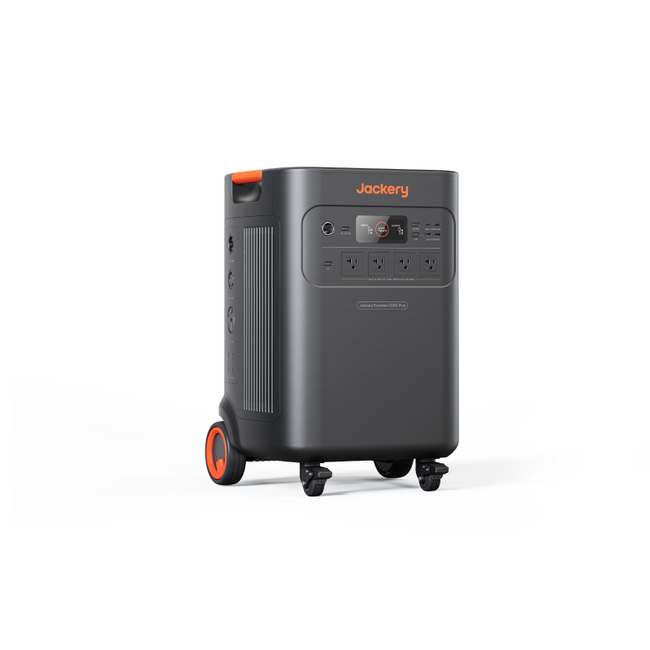

Power Station Specs
General
  • Weight: About 134.5 lbs (61 kg)
  • Dimensions: 16.5×15.5×25 in/41.8×39.5×63.5 cm
  • Charge Temperature: 32~113 °F (0~45°C)
  • Discharge Temperature: 5~113°F (-15~45°C)

Battery

  • Capacity: 45Ah/112V DC (5040 Wh)
  • Cell Chemistry: LiFePO4
  • Cycle Life: 4000 cycles to 70%+ capacity

Output Ports

  • AC Output:
    • (4x) 120V, 20A, 2400W
    • (1x) NEMA L14-30R/14-50：120V/240V~60Hz, 30A, 7200W Max
  • AC Total Output: 7200W Max, 14400W Surge
  • USB-C Output: (2x) 100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A
  • USB-A Output: (2x) 18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A
  • Car Port: 12V⎓10A
  • AC Expansion Port: 240V~60Hz, 30A, 7200W
  • DC Expansion Port: 80.5V-126V⎓41A Max

Input Ports

  • Charge Mode AC Input: 120V~60Hz, 15A Max
  • Bypass Mode AC Input/Output: 120V~60Hz, 12A Max; 240V~60Hz, 16.7A Max
  • AC Expansion Port (Input): 240V~60Hz, 16.7A Max
  • DC Input:
    • DC Expansion Port (Input)：80.5V-126V⎓98A Max
  • High-PV: 135V-450V⎓15A Max
  • Low-PV:
    • (2x) DC 8mm Ports; 16V-60V⎓10.5A Max, Double to 21A/1200W Max
    • 11V-16V(Working Voltage)⎓8A Max, Double to 8A Max

Charging Time

  • AC Adapter: 3.5 Hours
  • Car Adapter: No

Other Specifications

  • UPS: Backup UPS: ＜20ms, Onine UPS: 0ms
  • Inverter Topology: Non-isolated
  • Power Factor: ≥0.98
  • Entire Unit: Type 1

Solar Saga 500W
General
  • Weight: 22.05 lbs ± 2.20 lbs (10.5 kg±0.5 kg)
  • Protection Class Against Electric Shock: Class II
  • Waterproof: IP68
  • Operating Temperature Range: -40~185℉（-40~85℃）
  • Warranty: 5 Years

Solar

  • Maximum System Voltage: 600V DC
  • Maximum Reverse Current: 15A
  • Bifaciality Coefficient (Back/Front): Pmax>80%，Voc>97%，Isc>80%
  • Voltage Temperature Coefficient: -0.26%/℃
  • Power Temperature Coefficient: -0.32%/℃

STC (1000W/㎡, 25℃, AM 1.5)

  • Peak Power (Pmax): 500W±5%
  • Open Circuit Voltage (VOC): 48.5V±5%
  • Short Circuit Current (Isc): 13.02A±5%
  • Power Voltage (Vmp): 41.7V±5%
  • Power Current (Imp): 12.0A±5%

BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)

  • Peak Power (Pmax): 545W±5%
  • Open Circuit Voltage (Voc): 49.2V±5%
  • Short Circuit Current (Isc): 13.86A±5%
  • Power Voltage (Vmp): 42.5V±5%
  • Power Current (Imp): 12.84A±5%

Dimensions

  • Folded: Around 39.21 × 20.71 × 3.82 in (996 × 526 × 97mm)
  • Unfolded: Around 98.15 × 39.21 × 11.57 in (2493 × 996 × 294mm)
Battery Pack 5000 Plus

General

  • Capacity: 45Ah/112V DC (5040Wh)
  • Weight: About 81.57 lbs/37 kg
  • Dimensions: 16.5 x 13.5 x 13.2 in/41.8 x 34.4 x 33.6 cm
  • Battery Lifecycles: 4000 cycles to 70%+ capacity
  • Warranty:  3 Years
  • Charge Temperature: 0°C~45°C (32°F~113°F)
  • Discharge Temperature: -15°C~45°C (5°F~113°F)

Ports

  • DC Expansion Port (Input): 80.5V-126V⎓41A Max
  • DC Extension Ports (Output): 80.5V-126V⎓98A Max
