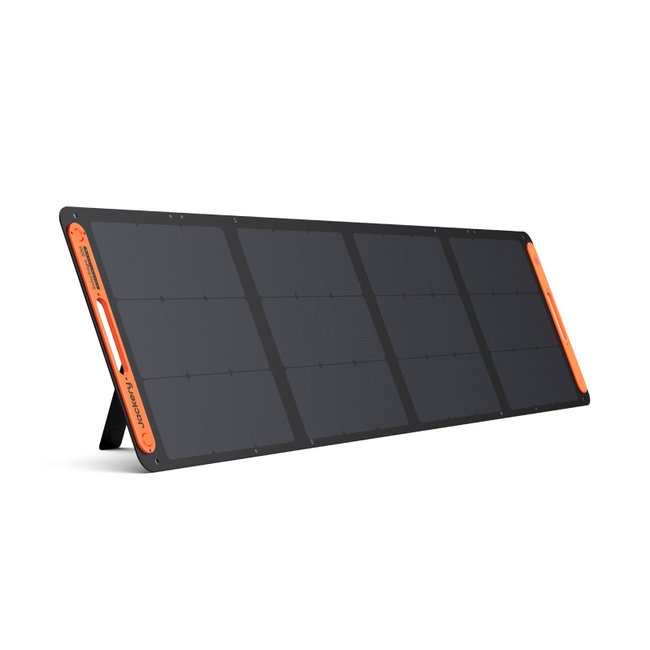

Jackery Solar Saga 200W Solar Panel

Jackery Solar Saga 200W Solar Panel

200W

$479.00 USD
$479.00 USD
Sale Sold out

  • IP68 Waterproof Rating
  • Bifacial Solar Panel, Improved Charging Efficiency
  • Convenient Carrying
  • Built to Last
  • Package list: SolarSaga 200W Solar Panel*1, 3 meters multi-functional cable (with USB charging ports: x1, DC8020 to DC7909 Adapter*1, User Manual*1
  • To connect the SolarSaga with different Explorer portable power stations or other extension functions, please check the accessories it requires.
  • Warranty Extension: 3-year warranty



Solar Saga 200W Specs
General
  • Weight: 13.67 lbs ± 0.66 lbs  (6.2 kg±0.3 kg)
  • Protection Class Against Electric Shock: Class II
  • Waterproof: IP68
  • Operating Temperature Range: -4~149℉（-20~65°C)
  • Warranty: 3 Years

Ports

  • USB-A Output: 5V⎓2.4A
  • USB-C Output: 5V⎓3A

Solar

  • Maximum System Voltage: 60V
  • Maximum Reverse Current: 15A
  • Bifaciality Coefficient (Back/Front): Pmax>30%, Voc>95%, Isc>32%
  • Voltage Temperature Coefficient: -0.268%/°C
  • Power Temperature Coefficient: -0.29%/°C

STC (1000W/㎡, 25℃, AM 1.5)

  • Peak Power (Pmax): 200W±5%
  • Open Circuit Voltage (VOC): 24.8V±5%
  • Short Circuit Current (Isc): 11.2A±5%
  • Power Voltage (Vmp): 20V±5%
  • Power Current (Imp): 10A±5%

BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)

  • Peak Power (Pmax): 200W±5%
  • Open Circuit Voltage (Voc): 25V±5%
  • Short Circuit Current (Isc): 11.4A±5%
  • Power Voltage (Vmp): 20.2V±5%
  • Power Current (Imp): 10.3A±5%

Dimensions

  • Folded: 24.21 x 21.73 x 1.57 in (615 x 552 x 40 mm)
  • Unfolded: 92.13 x 21.73 x 0.98 in (2340 x 552 x 25 mm)
