Jackery

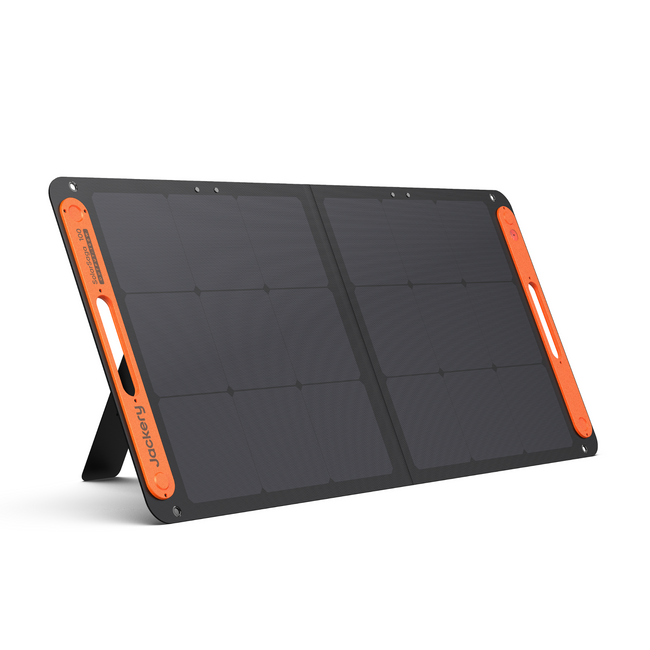

Jackery Solar Saga 100W Solar Panel

Jackery Solar Saga 100W Solar Panel

100W

$209.00 USD
$209.00 USD
Sale Sold out

  • Foldable & Portable
  • Bifacial Solar Panel, Improved Charging Efficiency
  • IP68 Waterproof Rating

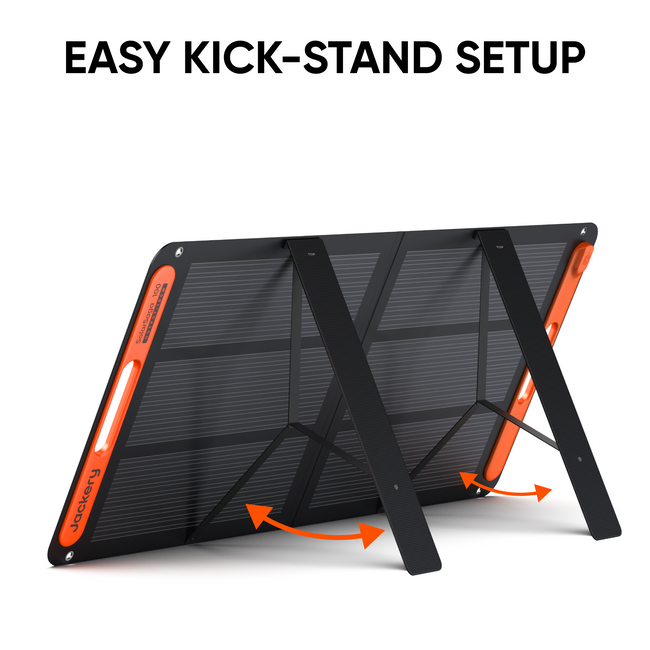

  • Adjustable Kickstands
  • Compact and Lightweight
  • Package list: SolarSaga 100W Solar Panel*1, 3 meters multi-functional cable (with USB charing ports)*1, DC8020 to DC7909 Adapter*1, User Manual*1
  • To connect the SolarSaga with different Explorer portable power stations or other extension functions, please check the accessories it requires.
  • Warranty Extension: 3-year warranty
Solar Saga 100W Specs
General
  • Weight: 7.94 lbs ± 0.66 lbs (3.6 kg ± 0.3 kg)
  • Protection Class Against Electric Shock: Class II
  • Waterproof: IP68
  • Operating Temperature Range: -4~149 ℉（-20℃~65℃）
  • Warranty: 3 Years

Ports

  • USB-A Output: 5V⎓2.4A
  • USB-C Output: 5V⎓3A

Solar

  • Maximum System Voltage: 60V
  • Maximum Reverse Current: 15A
  • Bifaciality Coefficient (Back/Front): Pmax>30%, Voc>95%, Isc>32%
  • Voltage Temperature Coefficient: -0.268%/°C
  • Power Temperature Coefficient: -0.29%/°C

STC (1000W/㎡, 25℃, AM 1.5)

  • Peak Power (Pmax): 100W±5W
  • Open Circuit Voltage (VOC): 24.8V±5%
  • Short Circuit Current (Isc): 5.4A±5%
  • Power Voltage (Vmp): 20.0V±5%
  • Power Current (Imp): 5.0A±5%

BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)

  • Peak Power (Pmax): 104W±5W
  • Open Circuit Voltage (Voc): 25V±5%
  • Short Circuit Current (Isc): 5.8A±5%
  • Power Voltage (Vmp): 20.1V±5%
  • Power Current (Imp): 5.2A±5%

Dimensions

  • Folded: 24.0 x 21.7 x 1.4 in (610 x 552 x 35 mm)
  • Unfolded: 48.03 x 21.73 x 0.79 in (1220 x 552 x 20 mm)



View full details
