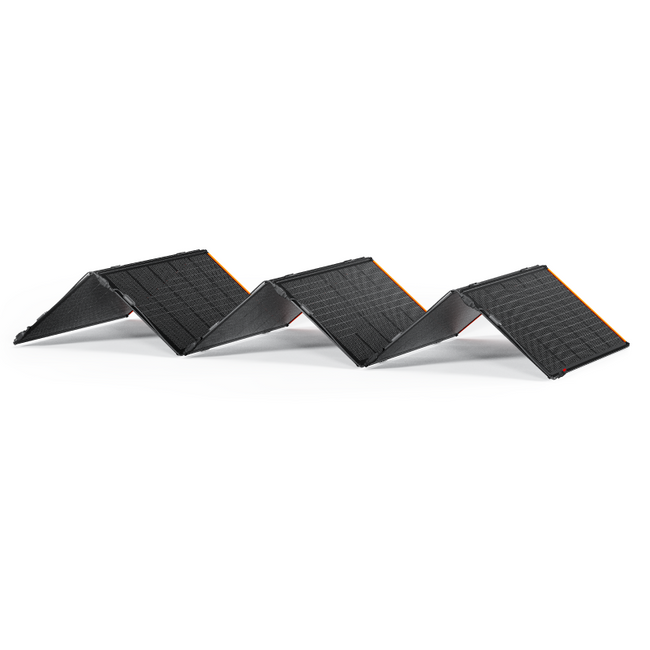

Jackery Solar Saga 500w Solar Panel

Jackery Solar Saga 500w Solar Panel

500Wx

$799.00 USD
$799.00 USD
Sale Sold out

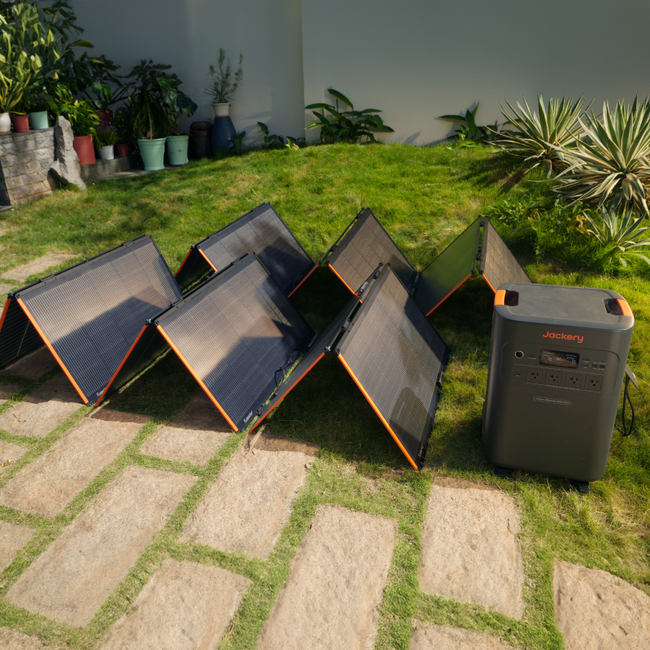

  • Jackery SolarSaga 500 X consists of six SolarSaga 85 panels, each of which can use individually.
  • 500W High Power Output: Stay worry-free with fast solar charging that keeps you powered up at all times.
  • Your DIY quick-setup power station: Easy-to-assemble modular design fits various scenarios for seamless power solutions.
  • Rugged Outdoor Performance: Withstands temperatures from -40°C to 85°C, IP68 waterproof rating for all-weather durability.
  • Portable All-in-One Design: Compact and easy to carry, providing on-the-go convenience wherever you need power.
  • 5-Year Warranty: Enjoy peace of mind with long-lasting, reliable performance backed by a comprehensive warranty.
  • SolarSaga 500X is compatible with the Explorer 5000 Plus, 3000 Pro, 2000 Plus, 1000 Plus, and 1000 V2.
  • To maximize solar panels'power output. Do not connect more than six 85W solar panels in parallel to a single DC8020 input port.
  • To extend the distance between your solar panels and the power station, you can purchase one or multiple Jackery Anderson Extension Cable.
  • To connect the SolarSaga with different Explorer portable power stations or other extension functions, please check the accessories it requires.

Solar Saga 500W Specs
General
  • Weight: 22.05 lbs ± 2.20 lbs (10.5 kg±0.5 kg)
  • Protection Class Against Electric Shock: Class II
  • Waterproof: IP68
  • Operating Temperature Range: -40~185℉（-40~85℃）
  • Warranty: 5 Years

Solar

  • Maximum System Voltage: 600V DC
  • Maximum Reverse Current: 15A
  • Bifaciality Coefficient (Back/Front): Pmax>80%，Voc>97%，Isc>80%
  • Voltage Temperature Coefficient: -0.26%/℃
  • Power Temperature Coefficient: -0.32%/℃

STC (1000W/㎡, 25℃, AM 1.5)

  • Peak Power (Pmax): 500W±5%
  • Open Circuit Voltage (VOC): 48.5V±5%
  • Short Circuit Current (Isc): 13.02A±5%
  • Power Voltage (Vmp): 41.7V±5%
  • Power Current (Imp): 12.0A±5%

BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)

  • Peak Power (Pmax): 545W±5%
  • Open Circuit Voltage (Voc): 49.2V±5%
  • Short Circuit Current (Isc): 13.86A±5%
  • Power Voltage (Vmp): 42.5V±5%
  • Power Current (Imp): 12.84A±5%

Dimensions

  • Folded: Around 39.21 × 20.71 × 3.82 in (996 × 526 × 97mm)
  • Unfolded: Around 98.15 × 39.21 × 11.57 in (2493 × 996 × 294mm)
Battery Pack 2000 Plus

General

  • Capacity: 45.6Ah/44.8V DC (2042.8 Wh)
  • Weight: About 41.9 lbs (19 kg)
  • Dimensions: 18.5 x 13.2 x 9.1 in / 47 x 33.1 x 23.1 cm
  • Battery Lifecycles: 4000 cycles to 70%+ capacity
  • Warranty:  3 Years
  • Charge Temperature: 32~113 °F (0~45°C)
  • Discharge Temperature: 14~113°F (-10~45°C)

Ports

  • DC Expansion Port (Input):
    • (2x) DC 8mm Ports: 11-17.5V (Working Voltage)⎓8A Max,
      Double to 8A Max;
    • 17.5-60V (Working Voltage)⎓12A Max ,Double to 24A/1400W Max
  • DC Extension Ports (Output): (2x) 30.2V-50.4V⎓97A Max
