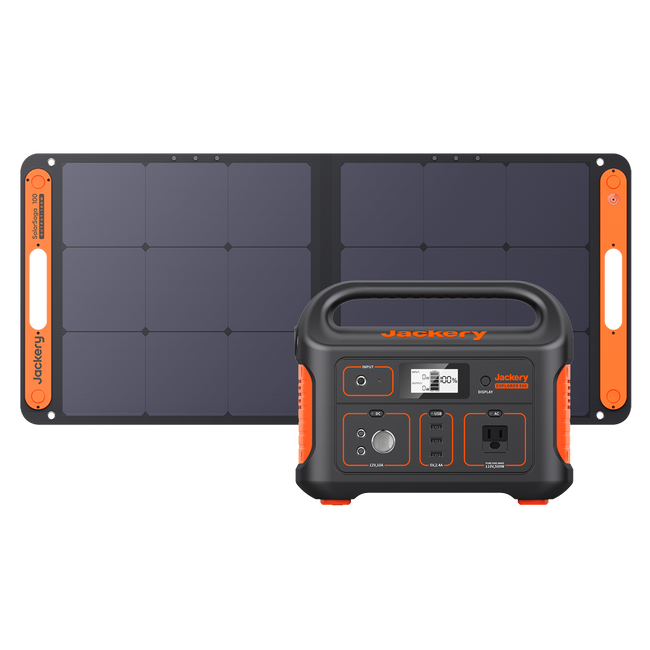

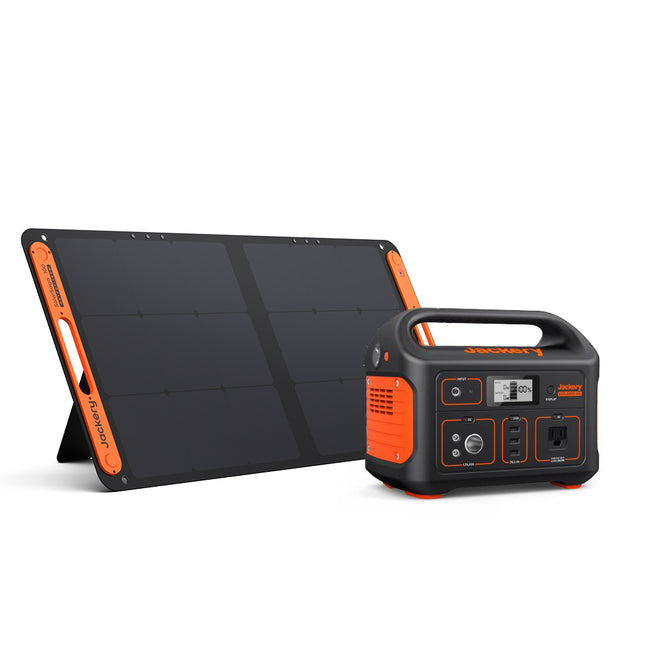

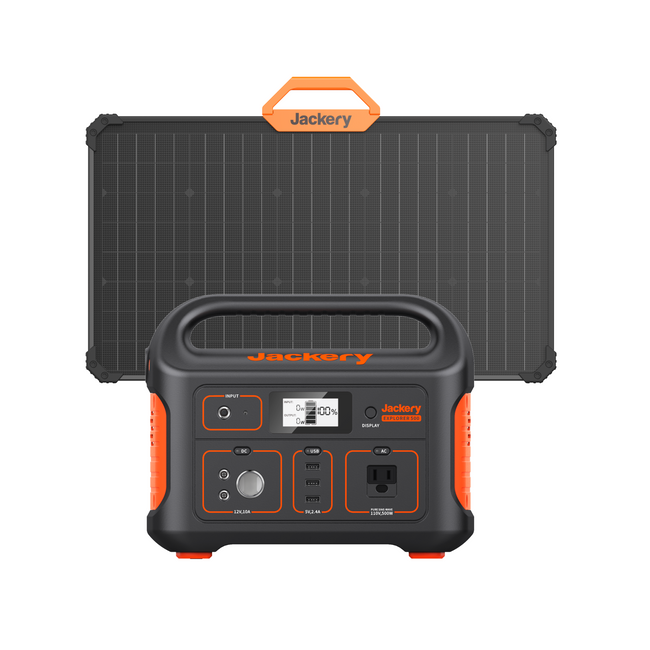

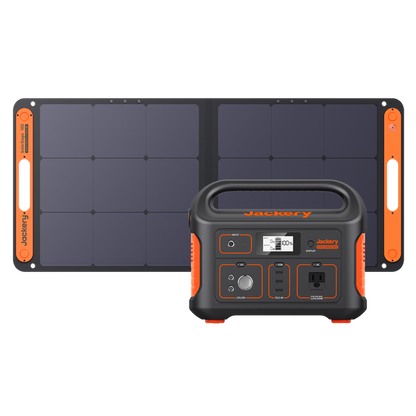

Jackery Solar Generator 500

• Weight: 13.3 lbs (6 kg)

• Dimensions: 11.8 x 7.6 x 9.5 in / 30 x 19.2 x 24.2 cm

• Charge Temperature: 32~104 °F (0~40°C)

• Discharge Temperature: 14℉~104℉(-10°C~40°C)


Battery

• Capacity: 24Ah/21.6V (518.4 Wh)

• Cell Chemistry: Lithium-ion

• Cycle Life: 800 cycles to 80%+ capacity

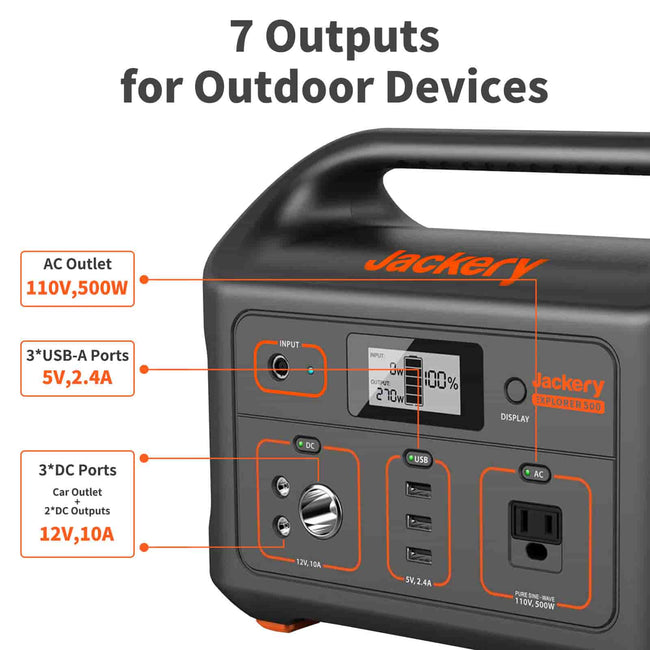

Output Ports

• AC Output: 110V~ 60Hz, 4.54A
• AC Total Output: 500W max continuous, 1000W surge peak
• DC Output: (2x) 12V⎓7A
• USB-A Output: (3x) 5V⎓2.4A (Total 30W max)
• Car Port: 12V⎓10A

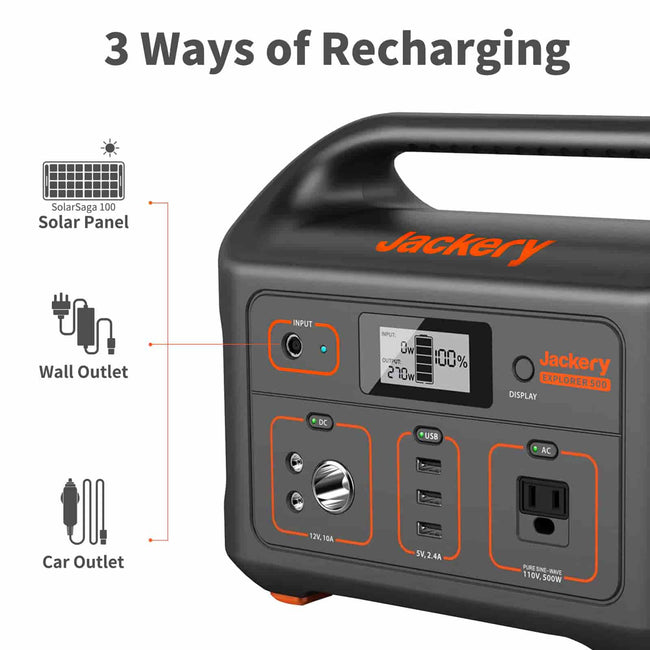

Input Ports

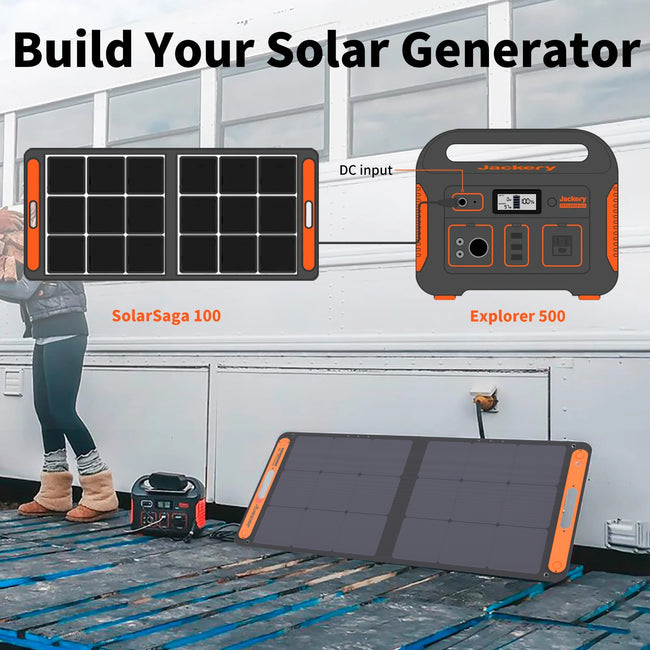

• DC Input: 12-15V⎓7A; 15-30V⎓3.75A

Charging Time

• AC Adapter: 7.5 Hours
• Car Adapter: 7.5 Hours

• Weight: 7.94 lbs ± 0.66 lbs (3.6 kg ± 0.3 kg)

• Protection Class Against Electric Shock: Class II
• Waterproof: IP68
• Operating Temperature Range: -4~149 ℉（-20℃~65℃）
• Warranty: 3 Years

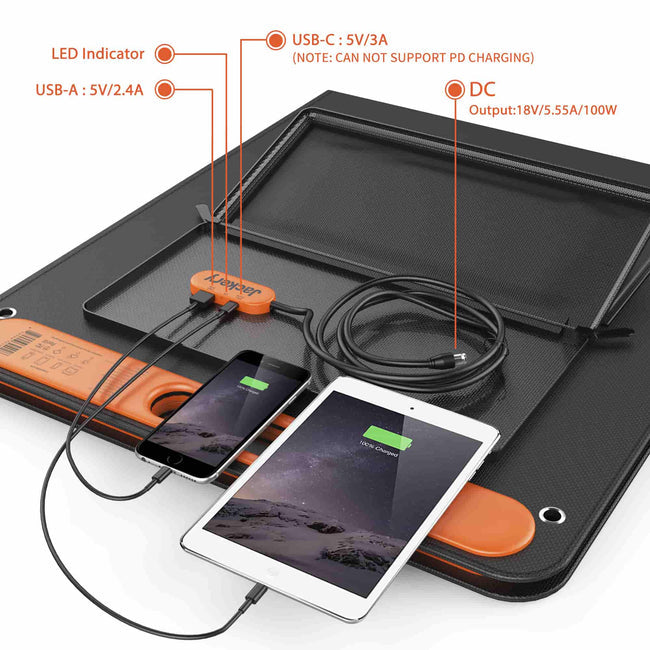

Ports

• USB-A Output: 5V⎓2.4A
• USB-C Output: 5V⎓3A

Solar

• Maximum System Voltage: 60V
• Maximum Reverse Current: 15A
• Bifaciality Coefficient (Back/Front): Pmax>30%, Voc>95%, Isc>32%

• Voltage Temperature Coefficient: -0.268%/°C

• Power Temperature Coefficient: -0.29%/°C


STC (1000W/㎡, 25℃, AM 1.5)

• Peak Power (Pmax): 100W±5W

• Open Circuit Voltage (VOC): 24.8V±5%

• Short Circuit Current (Isc): 5.4A±5%

• Power Voltage (Vmp): 20.0V±5%

• Power Current (Imp): 5.0A±5%


BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)

• Peak Power (Pmax): 104W±5W

• Open Circuit Voltage (Voc): 25V±5%

• Short Circuit Current (Isc): 5.8A±5%

• Power Voltage (Vmp): 20.1V±5%

• Power Current (Imp): 5.2A±5%


Dimensions

• Folded: 24.0 x 21.7 x 1.4 in (610 x 552 x 35 mm)

• Unfolded: 48.03 x 21.73 x 0.79 in (1220 x 552 x 20 mm)
