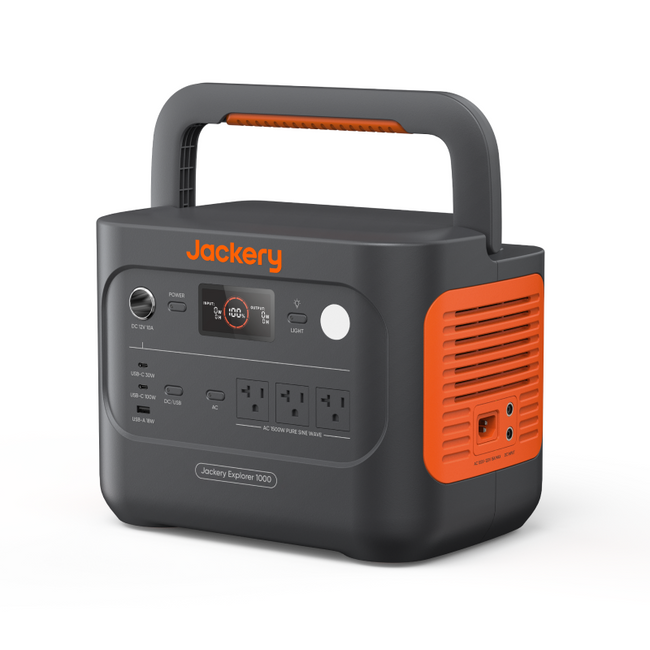

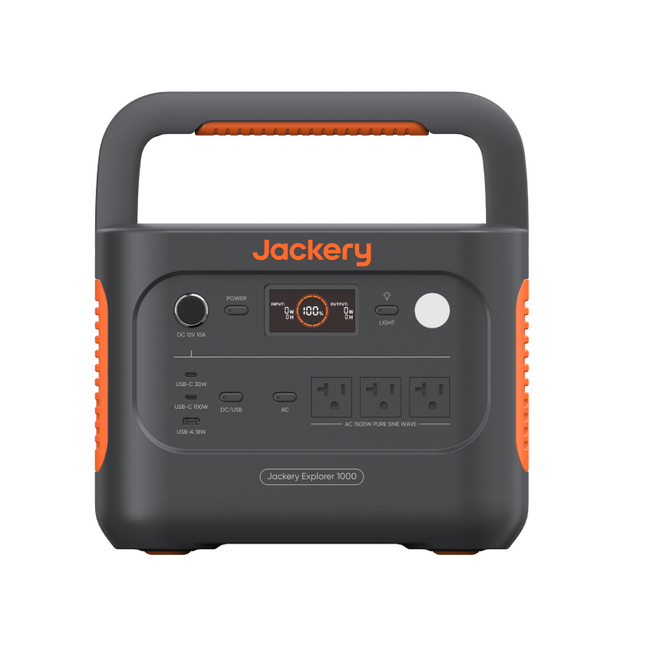

Jackery Explorer 1000 v2 Portable Power Station
Jackery Explorer 1000 v2 Portable Power Station
SKU:E1000v2
Couldn't load pickup availability
- 1070Wh Capacity and 1500W Output with a 50% Boost
- USB-A/C Ports, up to 100W Dual PD Charging
- Next-Gen Chargeshield 2.0 with 62 Forms of All-Round Protection
- Emergency Super Charging Capability from 0% to 100% in Just 1 Hour
- Warranty Extension: 3-Year Warranty
- What's In The Box? -
- Explorer Explorer 1000

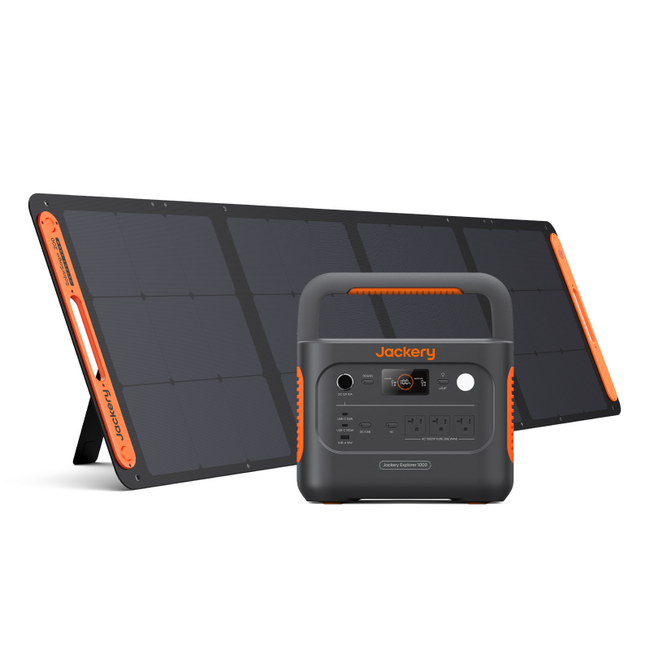

- Solar Saga 200W (If Solar Saga Option Is Selected)
- AC Charging Cable
- Solar Charging Cable (If Solar Saga Option Is Selected)
NOTICE
* This product (portable power supply) can supply power to your device in the temperature range of -10 to 40 degrees Celsius (-10 to 65 degrees Celsius for solar panels). If the operating temperature is outside the above range, this product may not work.
Power Station Specs
- Weight: Around 23.8 lbs (10.8 kg)
- Dimensions: 12.87 × 8.82 × 9.72 in / 32.7 × 22.4 × 24.7 cm
- Charge Temperature: 32~113 °F (0~45°C)
- Discharge Temperature: 14~113°F (-10~45°C)
Battery
- Capacity: 30.4Ah/35.2V DC (1070 Wh)
- Cell Chemistry: LiFePO4
- Cycle Life: 4000 cycles to 70%+ capacity
Output Ports
- AC Output: 1(3x) 120V ~ 60Hz
- AC Total Output 1500W Rated, 3000W Surge peak
- USB-C Output
- (1x) 30W Max, 5V⎓3A, 9V⎓3A, 12V⎓2.5A, 15V⎓2A, 20V⎓1.5A
- (1x) 100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A
- USB-A Output: 18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A
- Car Port: 12V⎓10A
Input Ports
- Charge Mode AC Input: 100-120V~ 60Hz, 15A Max
- Bypass Mode AC Input/Output: 100-120V~ 60Hz, 1500W
- DC Input:
- (2x) DC 8mm Ports: 12-16V(Working Voltage)⎓8A Max,
- Double to 8A Max; 16-60V(Working Voltage)⎓10.5A Max,
- Double to 21A/400W Max
Charging Time
- AC Adapter: 1.58 Hours
- Car Adapter: 12 Hours
Solar Saga 200W
- Weight: 13.67 lbs ± 0.66 lbs (6.2 kg±0.3 kg)
- Protection Class Against Electric Shock: Class II
- Waterproof: IP68
- Operating Temperature Range: -4~149℉（-20~65°C)
- Warranty: 3 Years
Ports
- USB-A Output: 5V⎓2.4A
- USB-C Output: 5V⎓3A
Solar
- Maximum System Voltage: 60V
- Maximum Reverse Current: 15A
- Bifaciality Coefficient (Back/Front): Pmax>30%, Voc>95%, Isc>32%
- Voltage Temperature Coefficient: -0.268%/°C
- Power Temperature Coefficient: -0.29%/°C
STC (1000W/㎡, 25℃, AM 1.5)
- Peak Power (Pmax): 200W±5%
- Open Circuit Voltage (VOC): 24.8V±5%
- Short Circuit Current (Isc): 11.2A±5%
- Power Voltage (Vmp): 20V±5%
- Power Current (Imp): 10A±5%
BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)
- Peak Power (Pmax): 200W±5%
- Open Circuit Voltage (Voc): 25V±5%
- Short Circuit Current (Isc): 11.4A±5%
- Power Voltage (Vmp): 20.2V±5%
- Power Current (Imp): 10.3A±5%
Dimensions
- Folded: 24.21 x 21.73 x 1.57 in (615 x 552 x 40 mm)
- Unfolded: 92.13 x 21.73 x 0.98 in (2340 x 552 x 25 mm)
