Platinum Smart-Heat™ Heater - Electric
Platinum Smart-Heat™ Heater - Electric
SKU:BH0320003
Couldn't load pickup availability

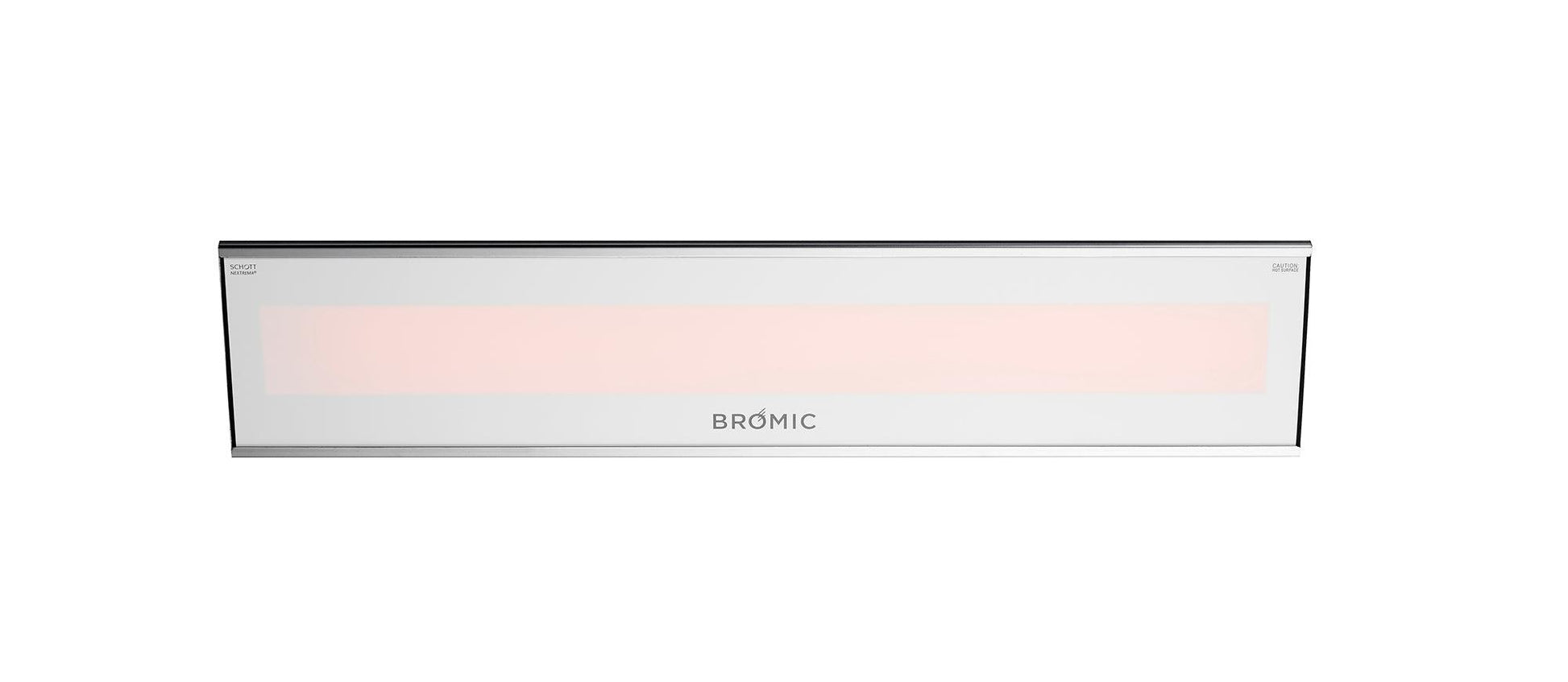

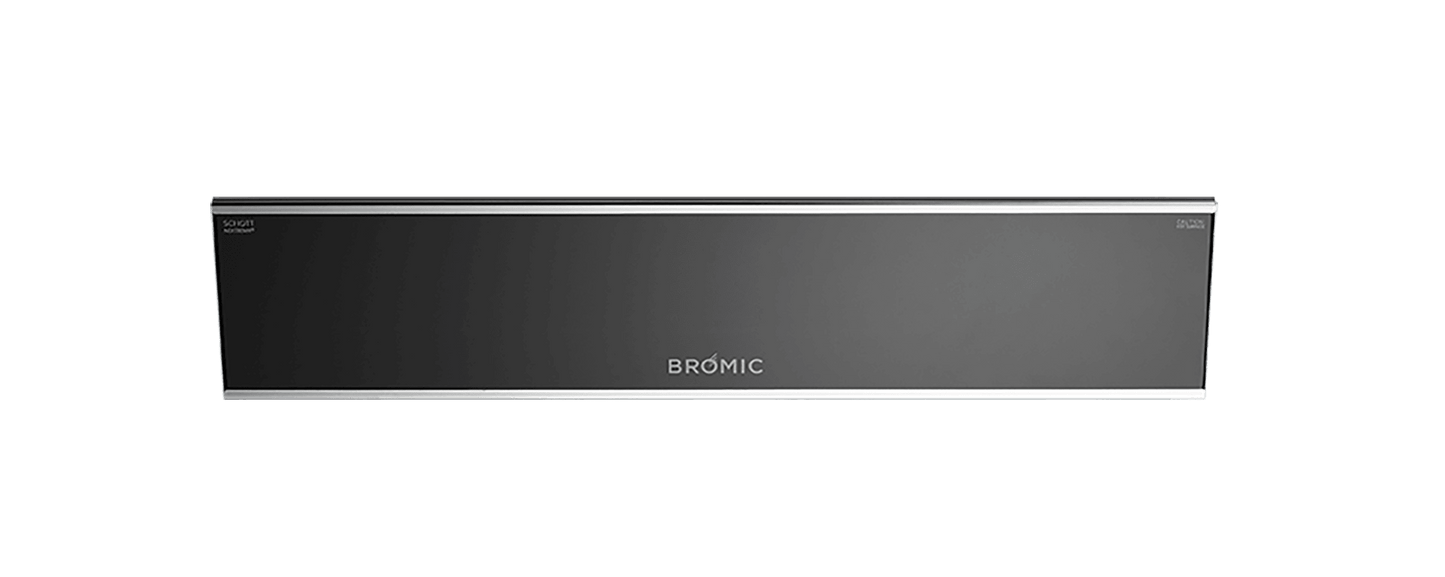

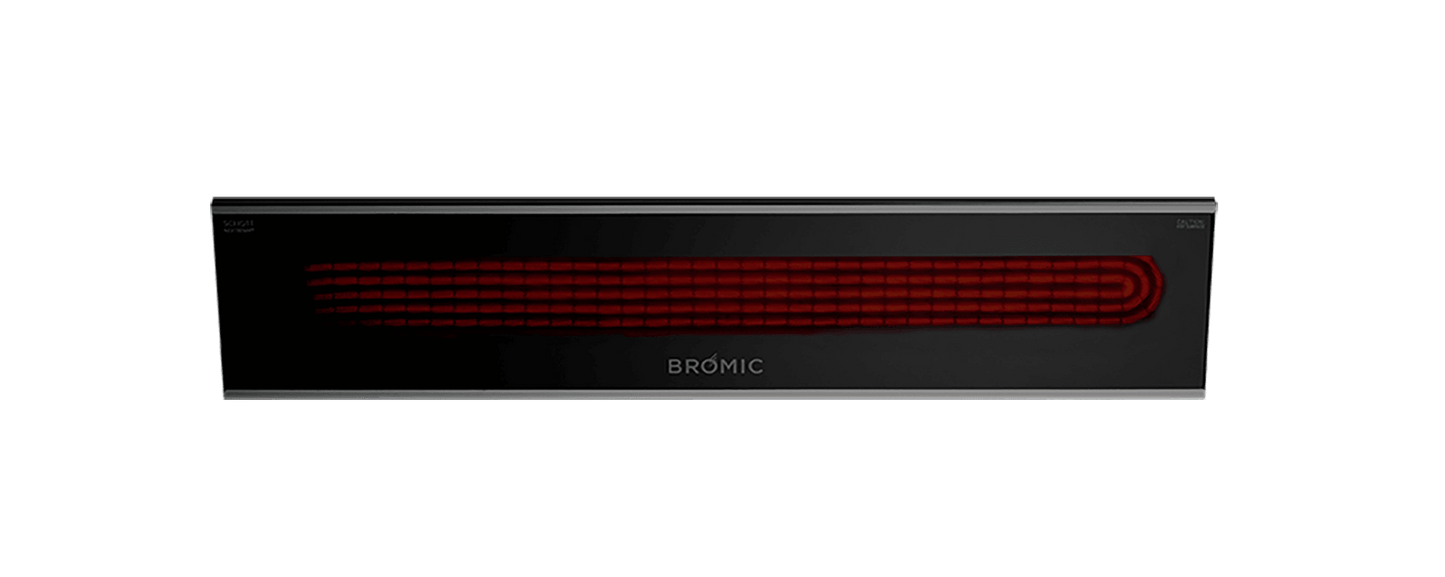

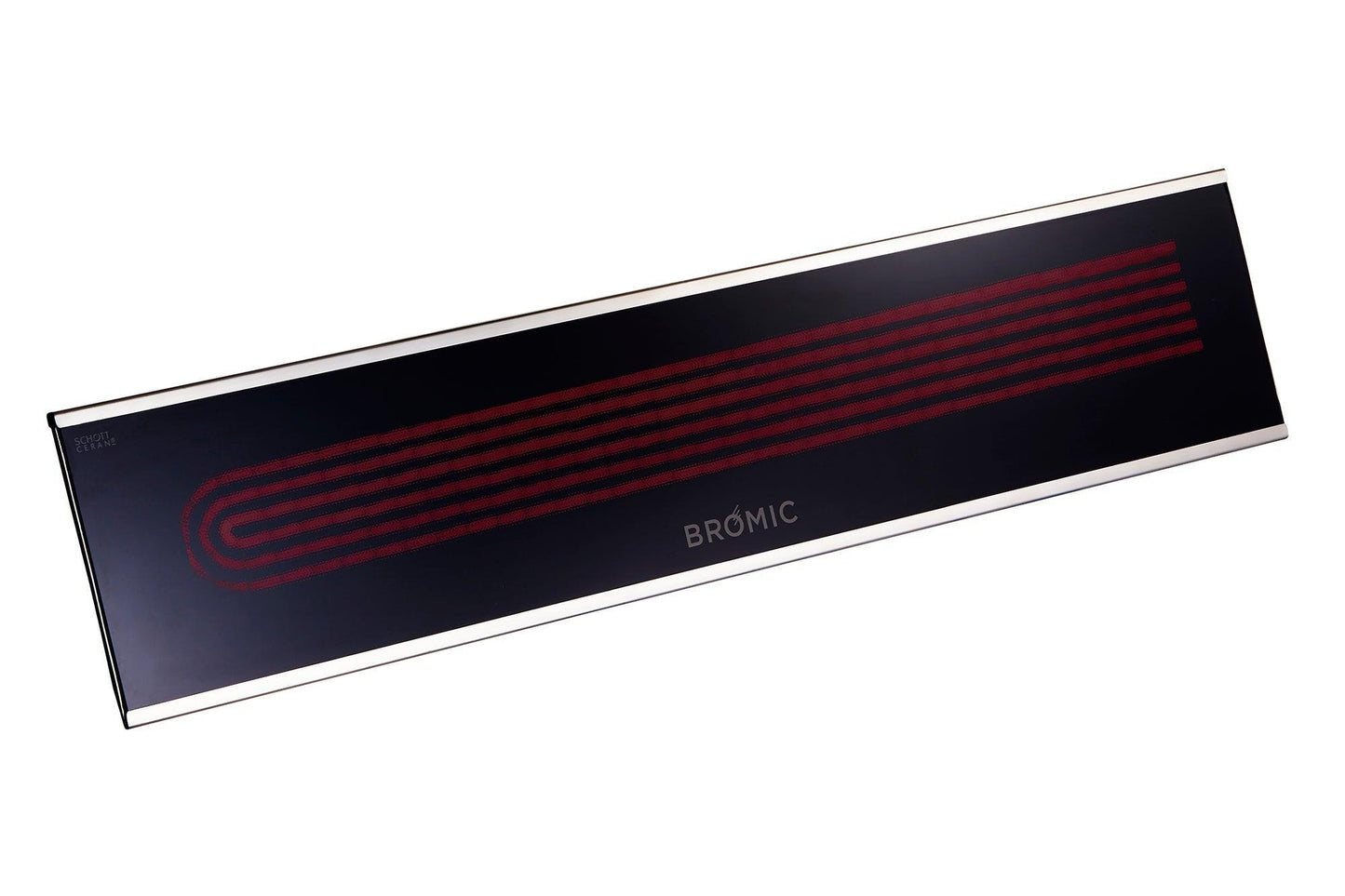

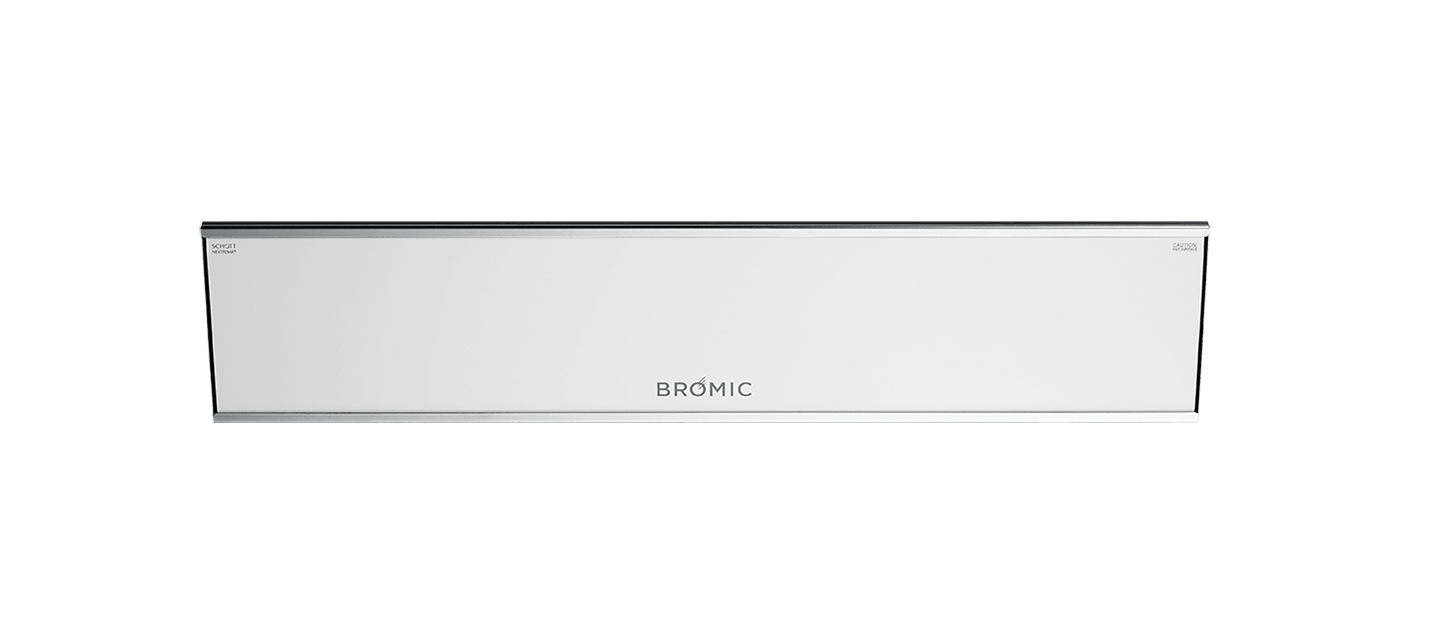

The award-winning Platinum Smart-Heat™ Electric heater.
With its ultra-slim, high-quality 304 stainless steel chassis and Schott tinted ceramic-glass screens, the Platinum Smart-Heat™ Heater virtually disappears into its surroundings while delivering market-leading radiant heat output.
Available in both black and white and in 3 sizes: 2300W, 3400W, and 4500W.

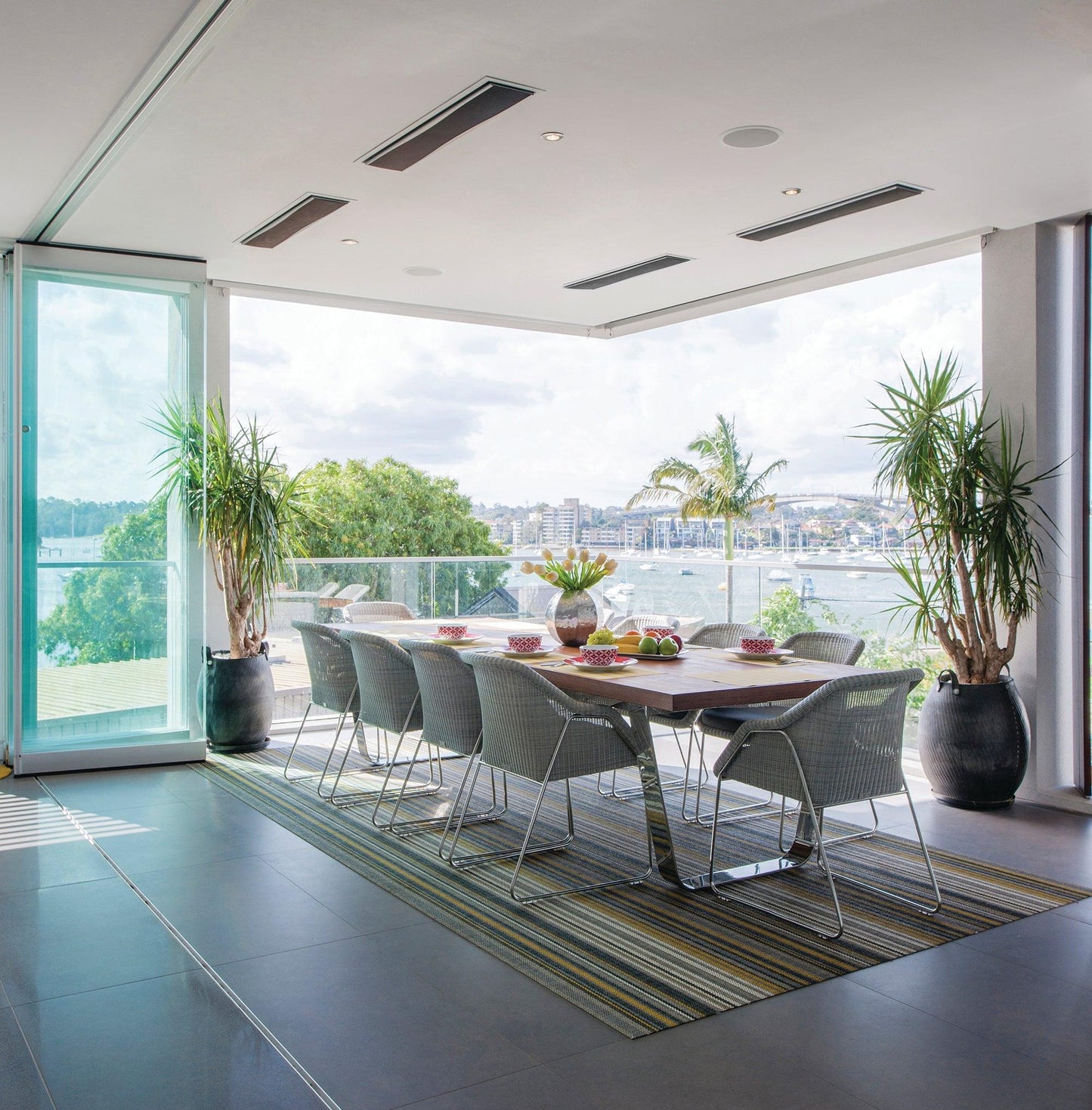

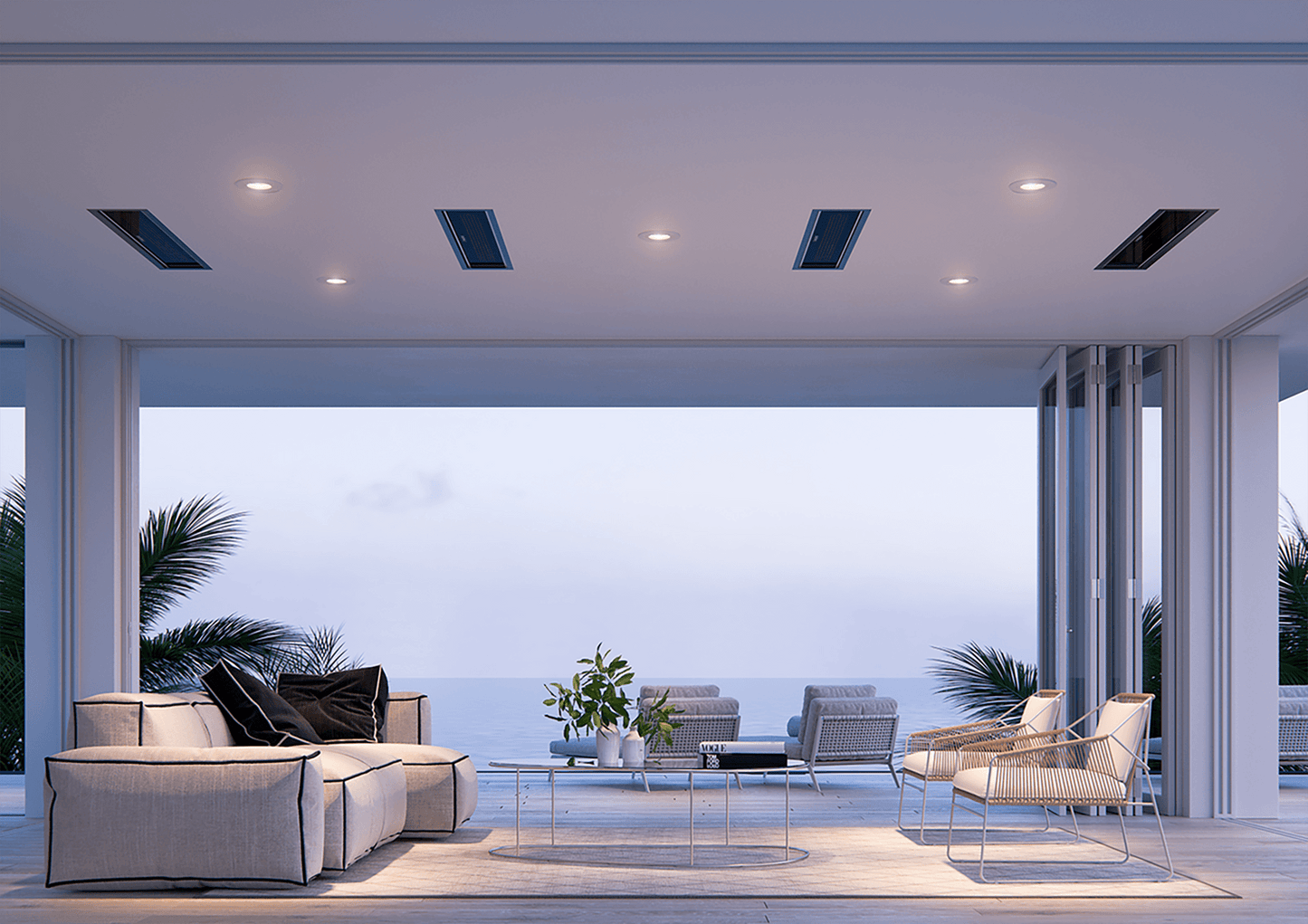

This heater was specifically designed for low-clearance, semi-enclosed spaces and can be mounted with minimal clearance requirements.

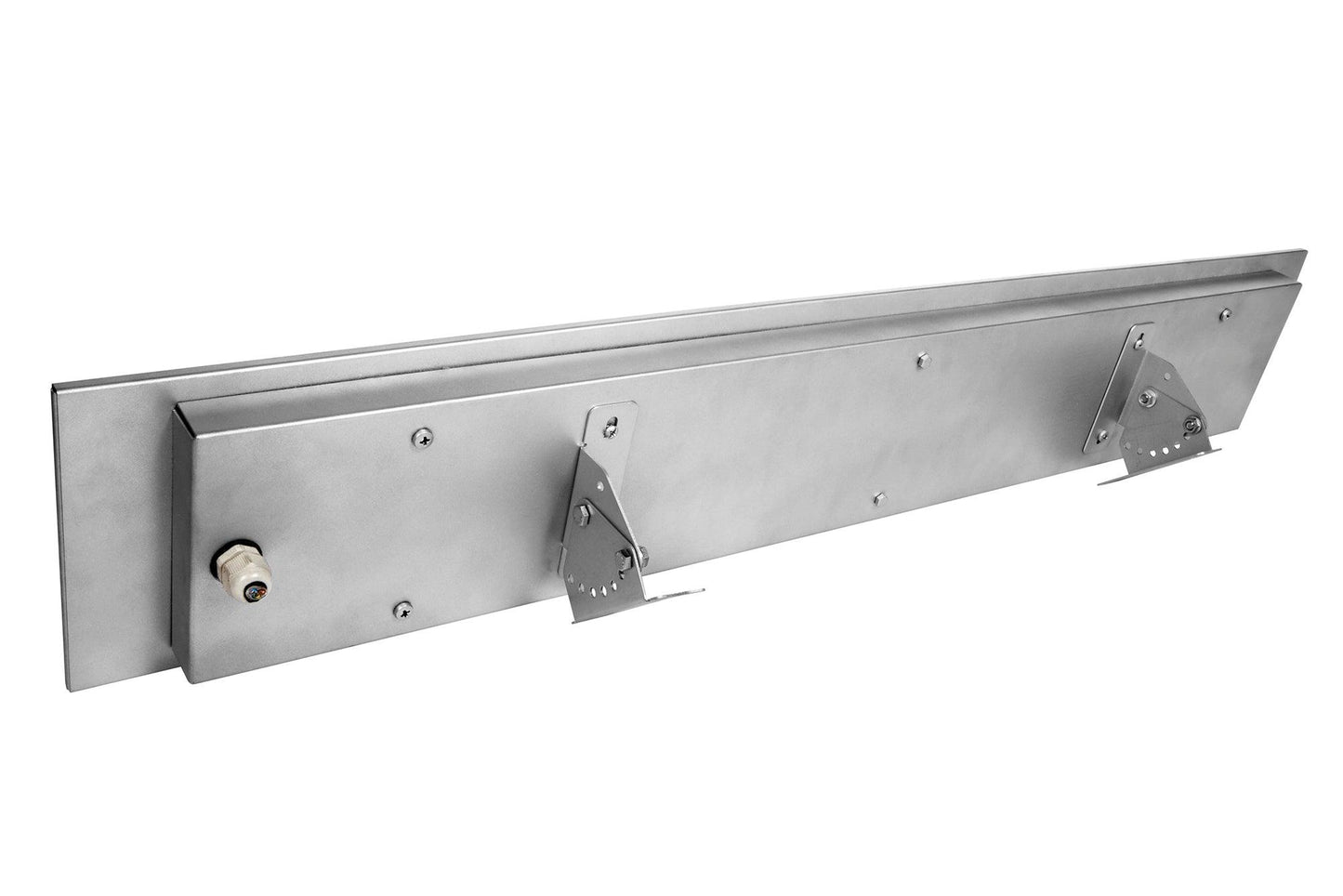

With versatile mounting options, this high performance heater is also compatible with smart-wireless technology.
**208V version recommended for land-based commercial applications only and not Lloyd’s Register Certified.
Specifications
| MODEL | 2300W SERIES | 2300W SERIES | 3400W SERIES | 3400W SERIES | 4500W SERIES | 4500W SERIES |
| FUEL TYPE | ELECTRIC | ELECTRIC | ELECTRIC | ELECTRIC | ELECTRIC | ELECTRIC |
| COLOR | BLACK | WHITE | BLACK | WHITE | BLACK | WHITE |
| WEIGHT | 17lbs | 17lbs | 22lbs | 22lbs | 33lbs | 33lbs |
| MODEL # | BH0320003 | BH0320007 | BH0320005 | BH0320008 | BH3622000 | BH3622001 |
| HEAT AREA | 65ft2 | 65ft2 | 108ft2 | 108ft2 | 143ft2 | 143ft2 |
| RATED CURRENT * | 220-240V/9.6A 208V/11.1A |
220-240V/9.6A 208V/11.1A |
220-240V/14.2A 208V/16.3A |
220-240V/14.2A 208V/16.3A |
220-240V/18.8A 208V/21.6A |
220-240V/18.8A 208V/21.6A |
| MINIMUM FLOOR CLEARANCE | Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
| APPROVAL CERTIFICATION | Intertek ETL / cETL 5001799 | |||||
| WARRANTY | 1 Year Parts | |||||
Marine Model Specifications
| MODEL | 2300W MARINE SERIES | 2300W MARINE SERIES | 3400W MARINE SERIES | 3400W MARINE SERIES | 4500W MARINE SERIES | 4500W MARINE SERIES |
| FUEL TYPE | ELECTRIC | ELECTRIC | ELECTRIC | ELECTRIC | ELECTRIC | ELECTRIC |
| COLOR | BLACK | WHITE | BLACK | WHITE | BLACK | WHITE |
| WEIGHT | 17lbs | 17lbs | 22lbs | 22lbs | 33lbs | 33lbs |
| MODEL # | BH0320015 | BH032001 | BH0320016 | BH0320018 | BH3622002 | BH3622003 |
| HEAT AREA | 65ft2 | 65ft2 | 108ft2 | 108ft2 | 143ft2 | 143ft2 |
| RATED CURRENT * | 220-220V/9.6A 208V/11.1A** |
220-220V/9.6A 208V/11.1A** |
220-240V/14.2A 208V/16.3A** |
220-240V/14.2A 208V/16.3A** |
220-240V/18.8A 208V/21.6A** |
220-240V/18.8A 208V/21.6A** |
| MINIMUM FLOOR CLEARANCE | Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
| WARRANTY | 5 Year Parts (5 year warranty is for land based applications only does not cover installations on marine vessels) | |||||
Available Accessories
Product Documents
⚠️ California Prop 65 Warning - WARNING: This product can expose you to chemicals including Lead, Lead Compounds, and Carbon Monoxide which are known to the state of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
