Bromic Smart-Heat™ Eclipse Electric Pendant Dimmer Control
Bromic Smart-Heat™ Eclipse Electric Pendant Dimmer Control
SKU:BH3230007-1
Regular price
$769.00 USD
Regular price
Sale price
$769.00 USD
Unit price
/
per
Couldn't load pickup availability
BROMIC Smart-Heat™ Control Accessories
Eclipse Electric Pendant Dimmer Control
-

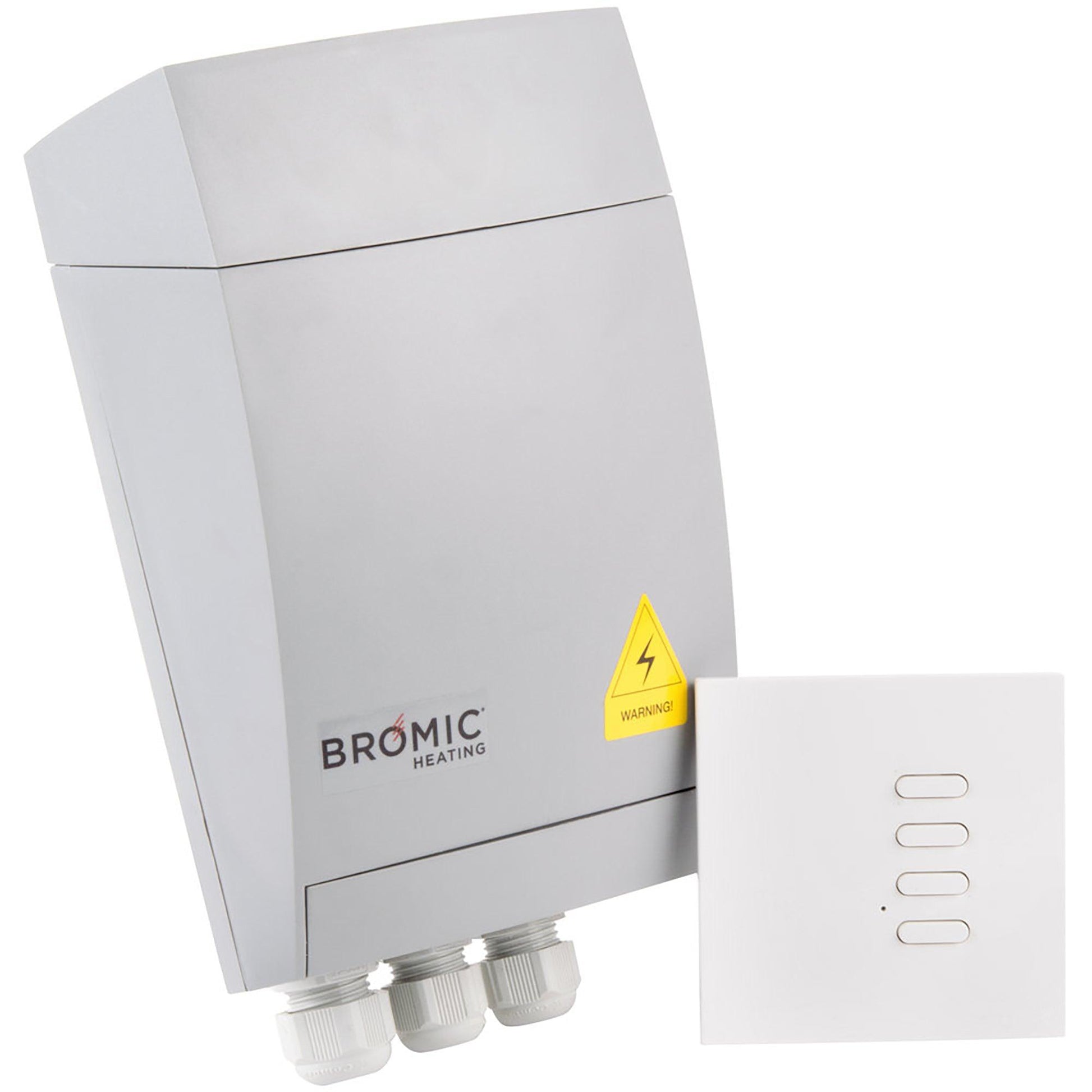

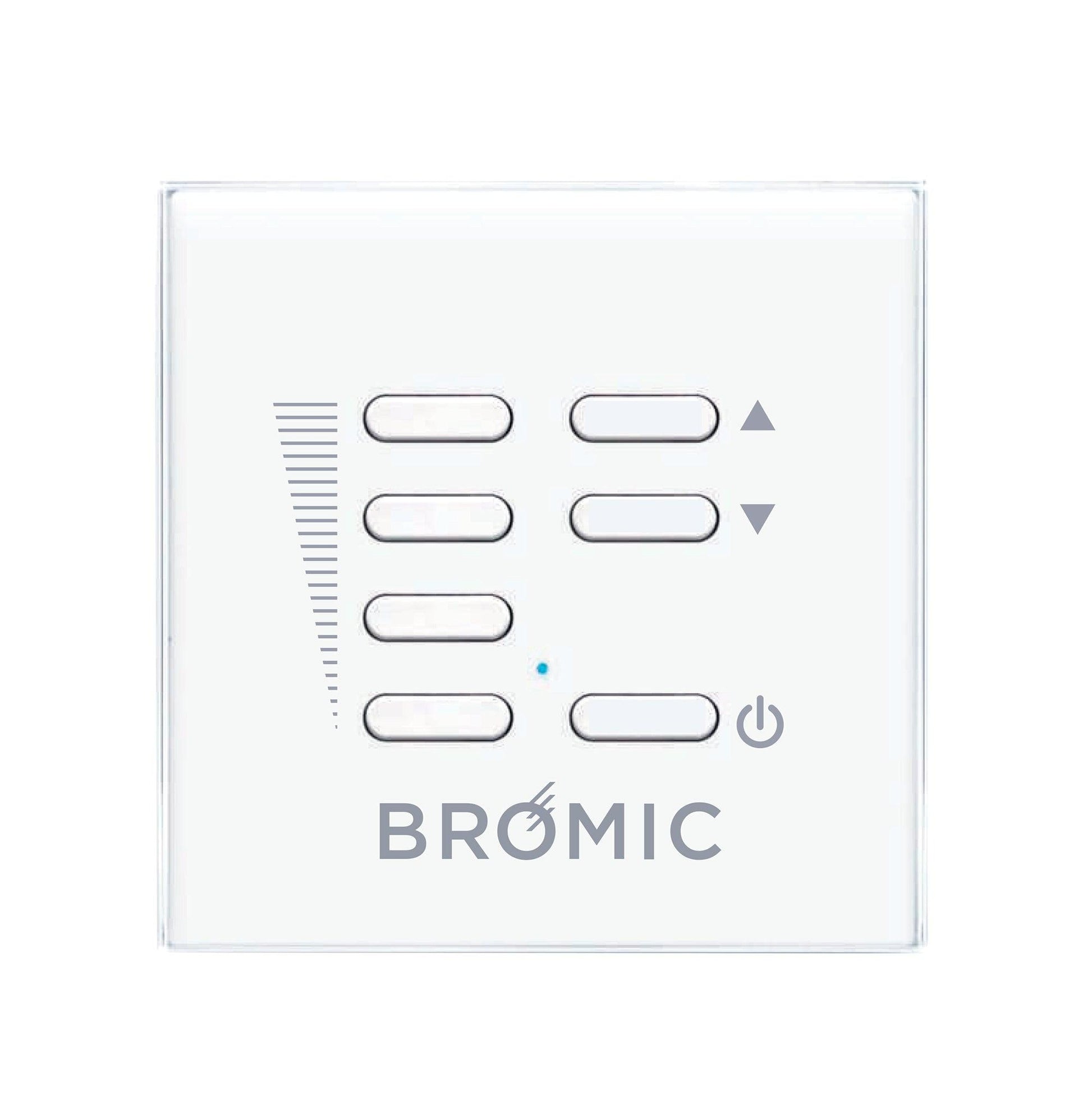

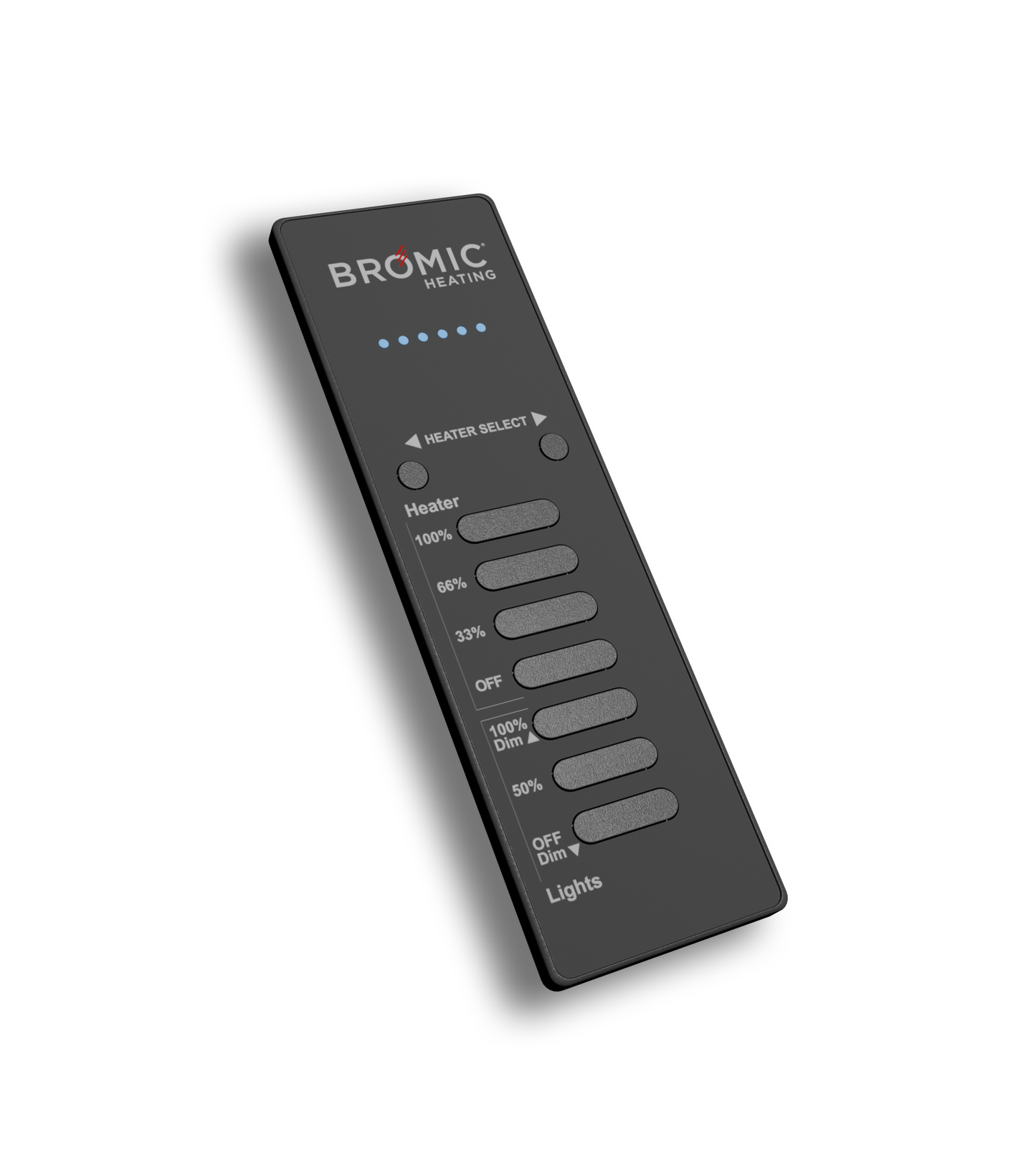

Set up the perfect ambience with the Bromic Eclipse Dimmer Controller and Wireless Remote.
- Suitable for the Eclipse Pendant and Portable Series.
- Quickly dims lighting in 1% increments and heating output (0%, 33%, 66%, 100%) to create the perfect ambience.

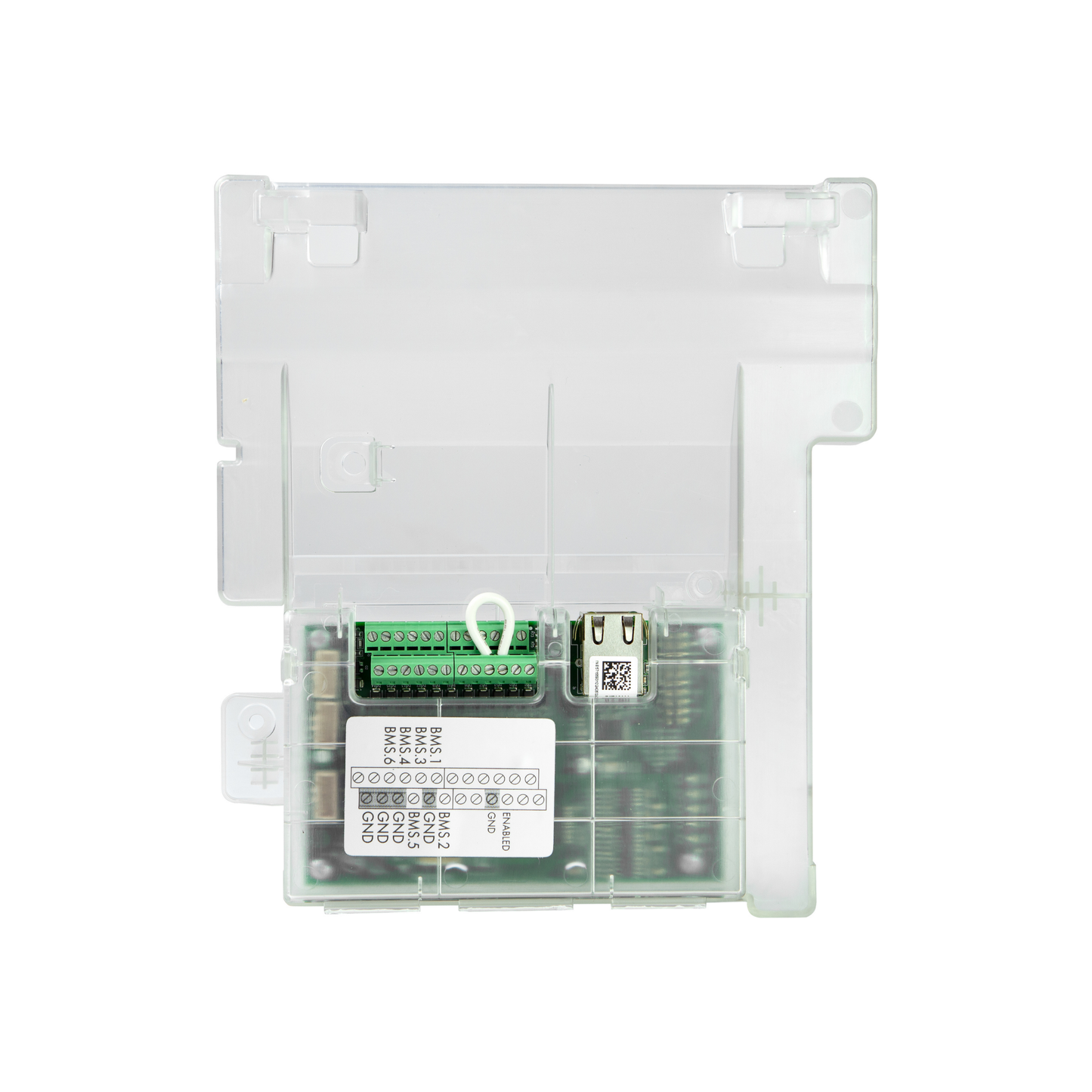

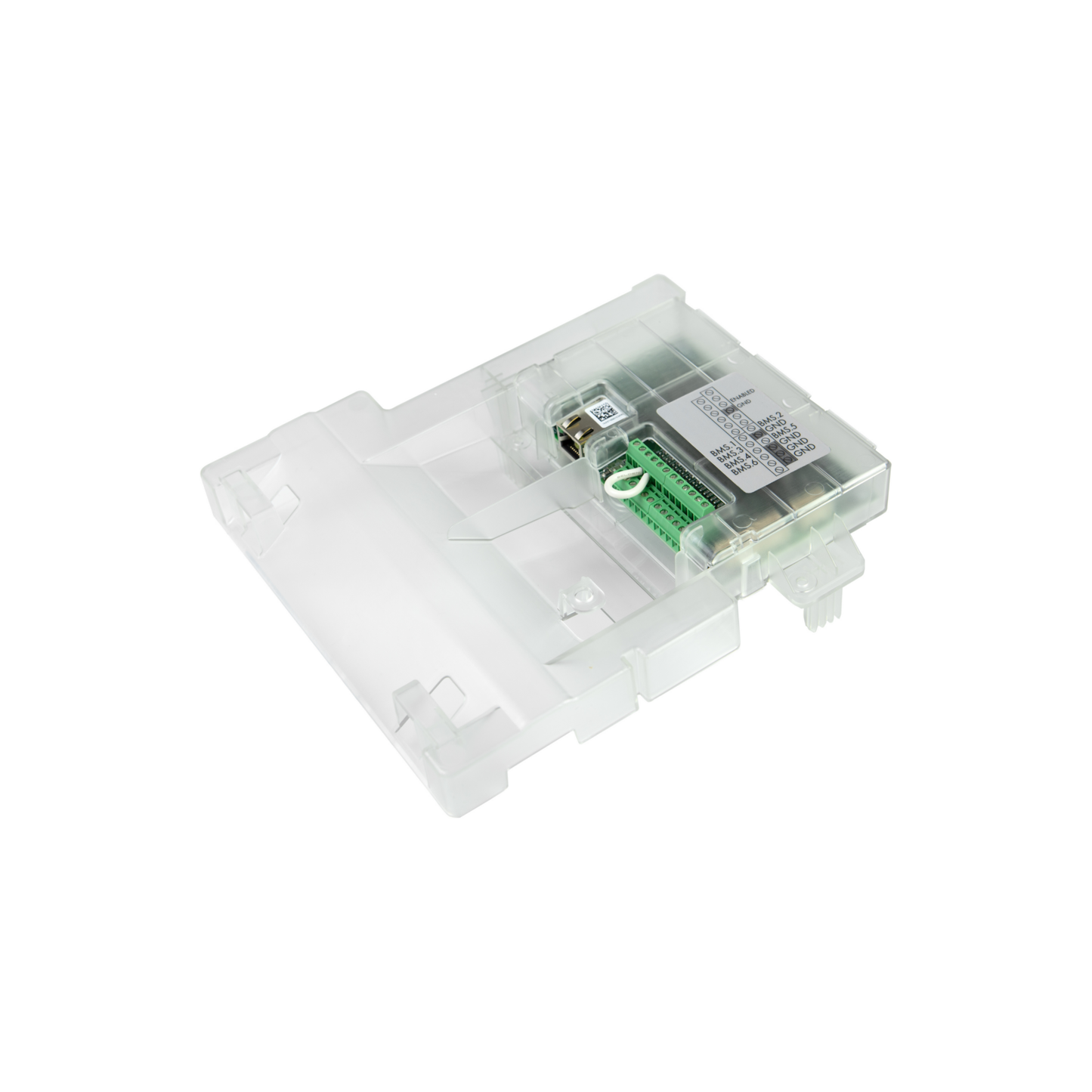

Expansion Board
- Available as an accessory for Bromic’s OnOff and Dimmer controls, 1 and 2 channel models, the Expansion Board option allows for seamless ethernet integration for a full-proof connection to your outdoor heaters.
- Complete with 0-10V connections for your Home Automation System or Business Management System.

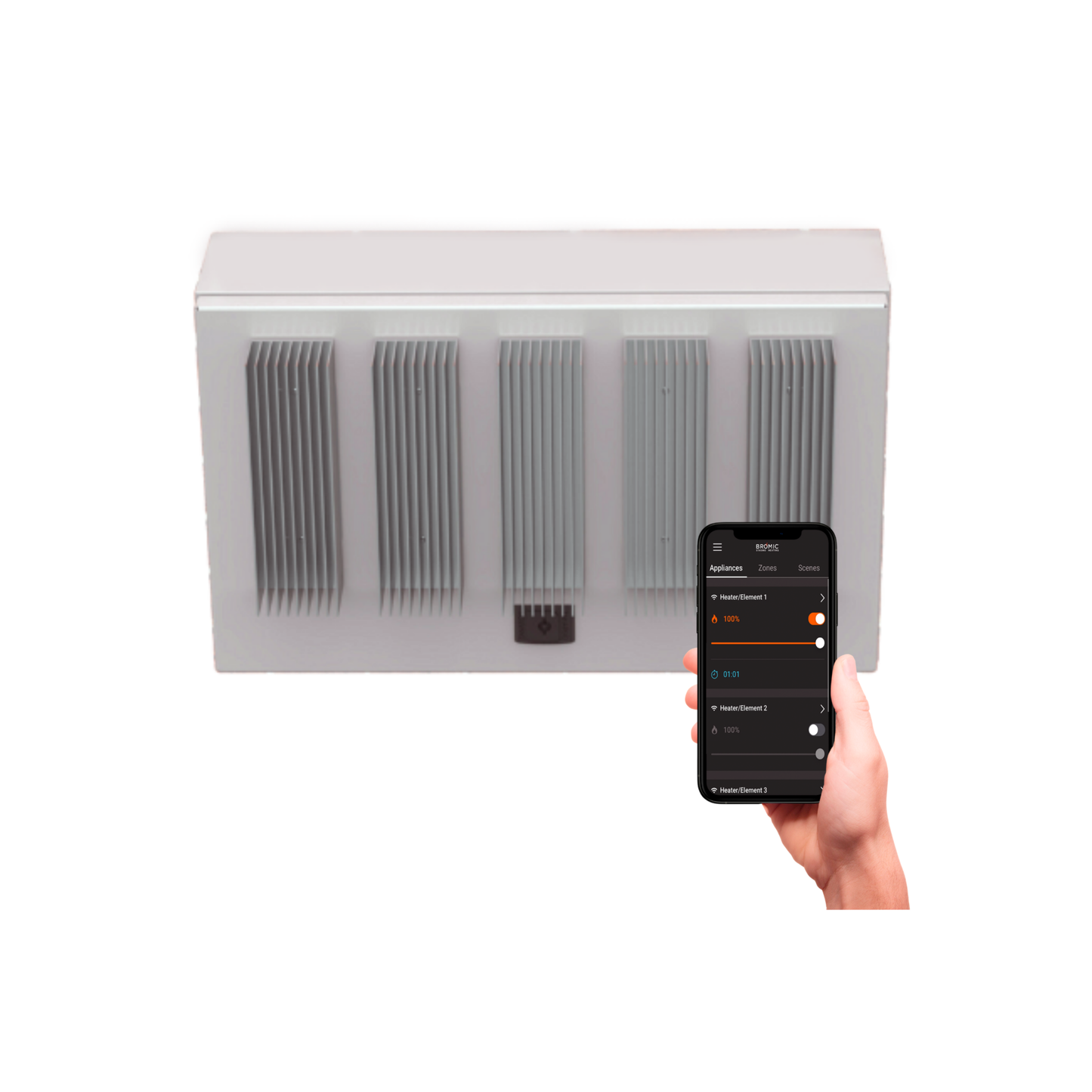

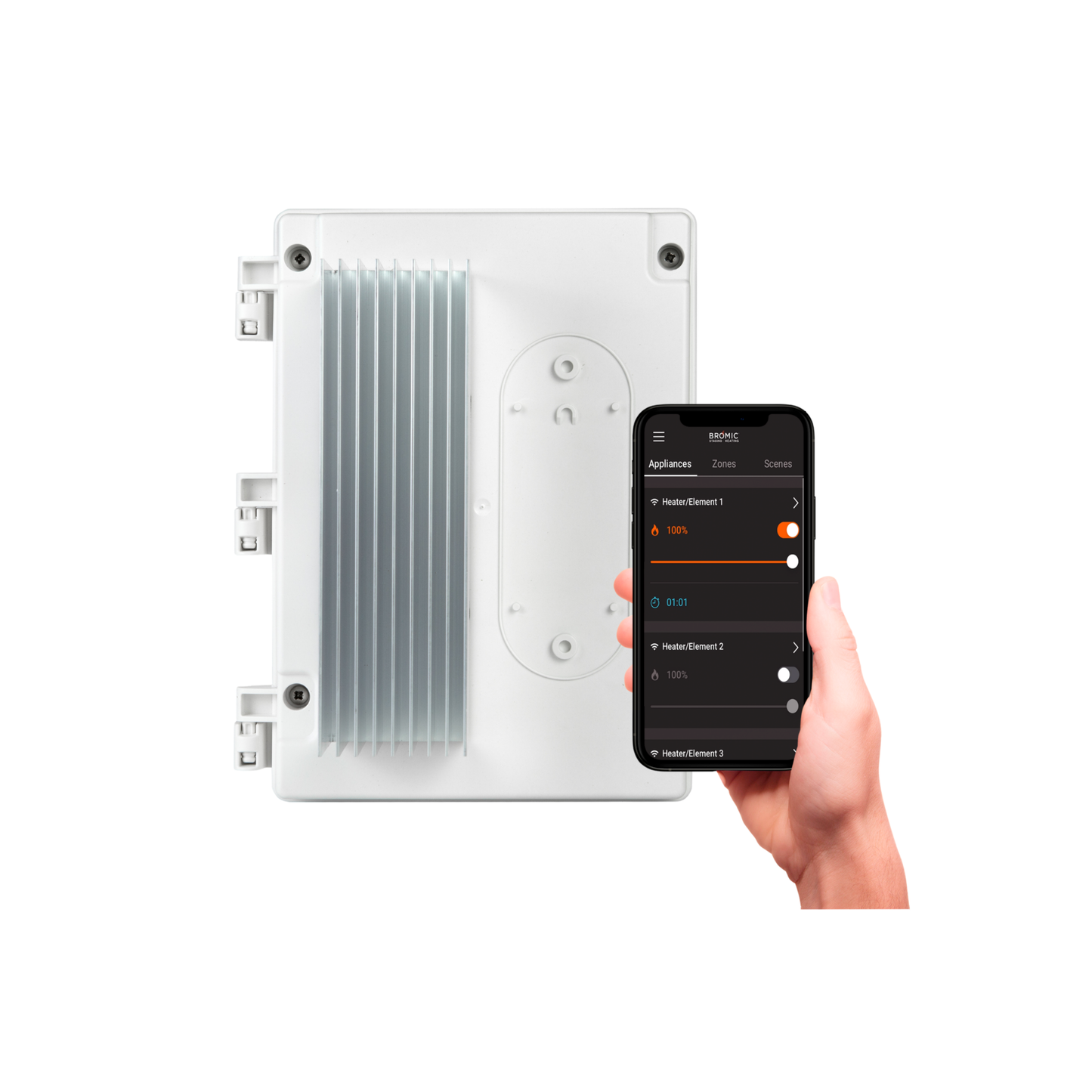

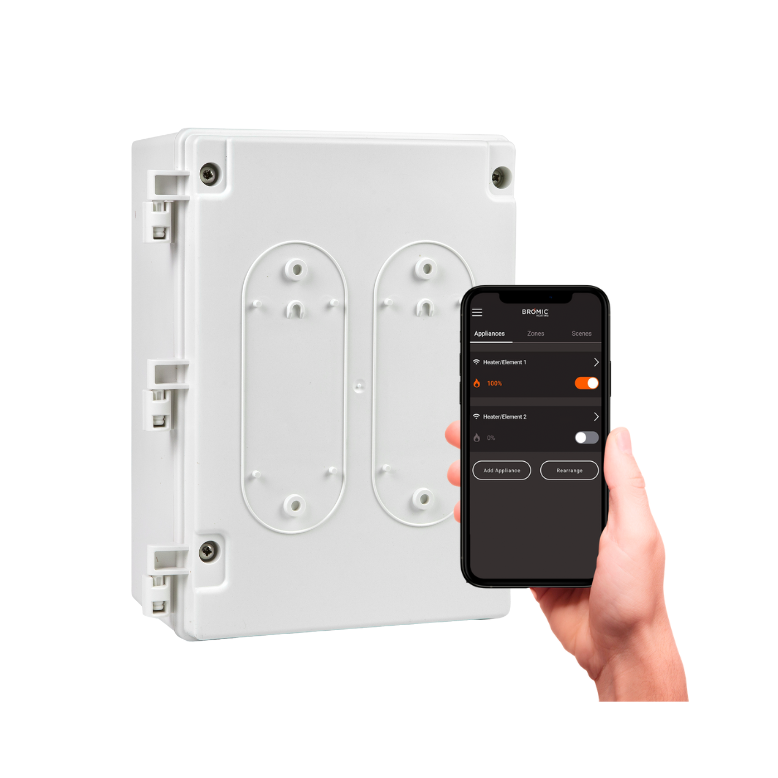

Affinity On/Off Specifications
MODEL | AFFINITY ON/OFF | ||
PART NUMBER | BH3130051 | BH3130052 | BH3130053 |
NUMBER OF CHANNELS | 1 CH | 2 CH | 5 CH |
VOLTAGE-MAX CAPACITY PER CHANNEL | 100-127V – 1kW 208-277V – 6kW |
100-127V – 1kW 208-277V – 6kW |
3N-220/380V – 6kW 3N-230/400V – 6kW 3N-240/415V – 6kW 3N-277/480V – 6kW 3- 120/208V – 6kW |
OPERATING TEMPERATURE RANGE | -4°F to +86°F | -4°F to +86°F | -4°F to +86°F |
NON-OPERATING TEMPERATURE RANGE | -22°F to +158°F | -22°F to +158°F | -22°F to +158°F |
PROTECTION RATING | IP54 | IP54 | IP54 |
DIMENSIONS | 11.4 x 8.0 x 4.4″ | 11.4 x 8.0 x 4.4″ | 19.7 x 13.4 x 8.0″ |
WEIGHT | 3.1 lbs | 3.6 lbs | 24.3 lbs |
WIFI CONNECTIVITY | 2.4GHZ | 2.4GHZ | 2.4GHZ |
WARRANTY | 1 Year Parts | ||
HEATER COMPATIBILITY | Platinum Electric & Tungsten Electric |
Product Documents
- Affinity Smart Heat Instruction Manual
- Affinity Control Dimmer Spec Sheet
- Affinity Control On/Off Spec Sheet
- On/Off Dimmer Instruction Manual

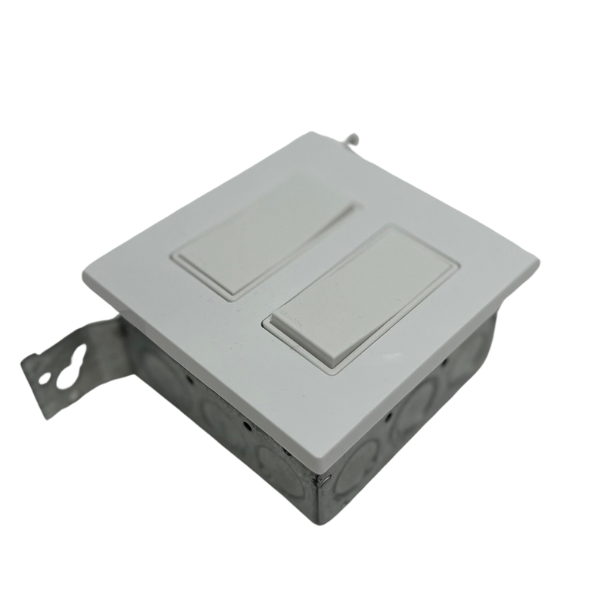

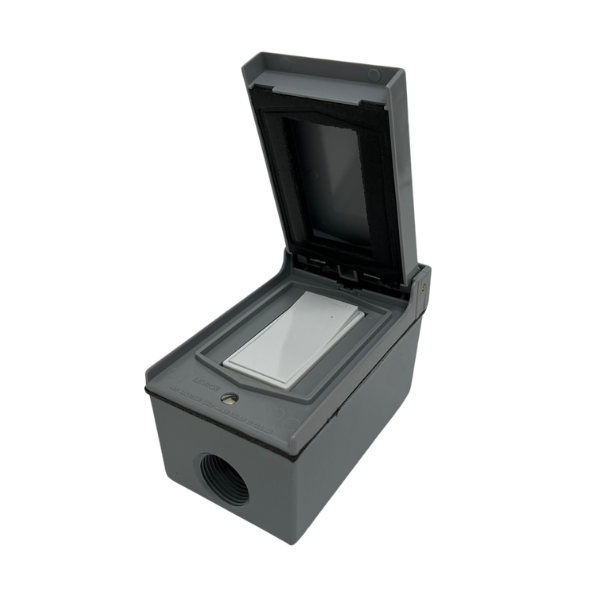

- Manual Wall Switch Wiring Diagram

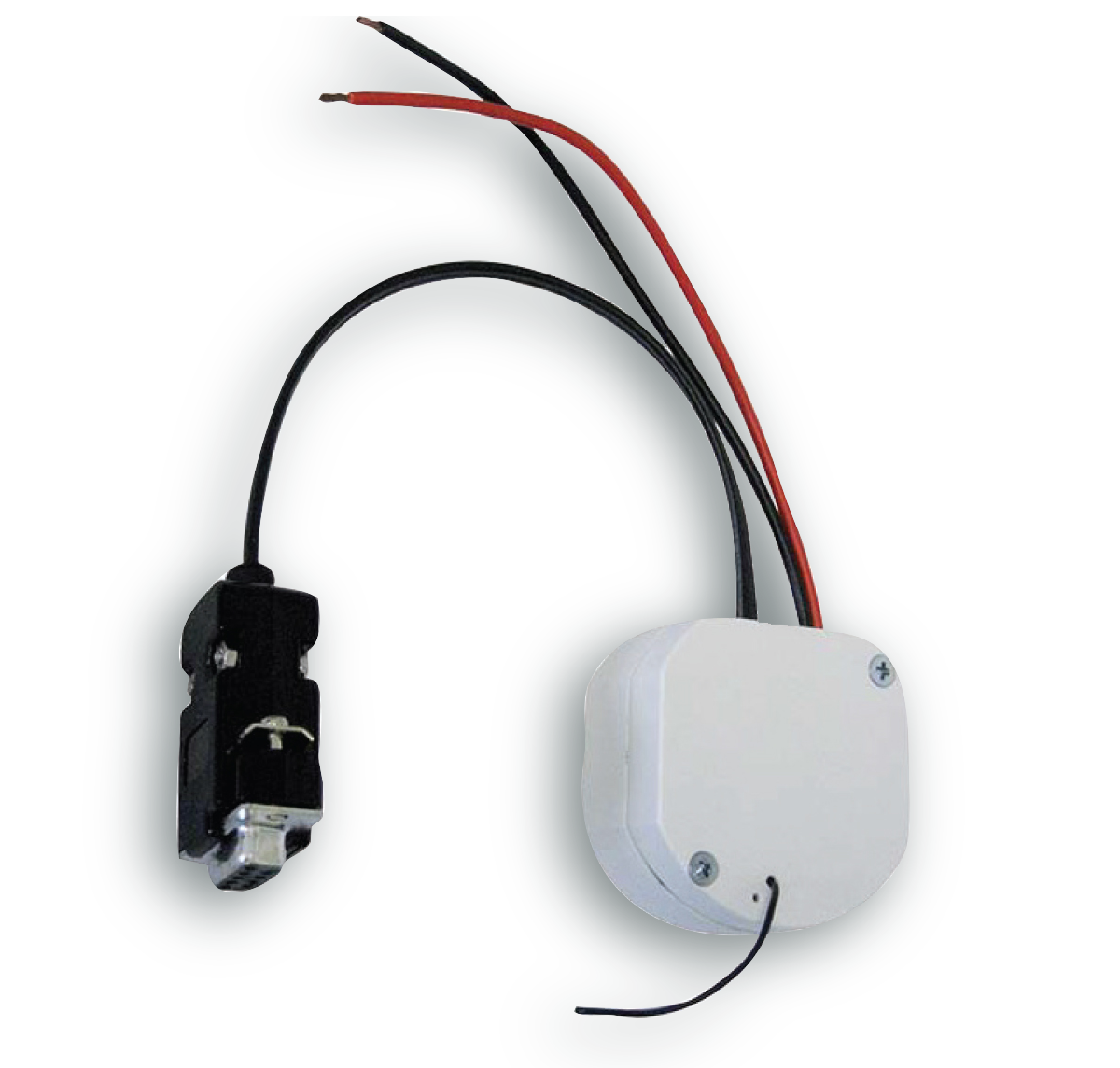

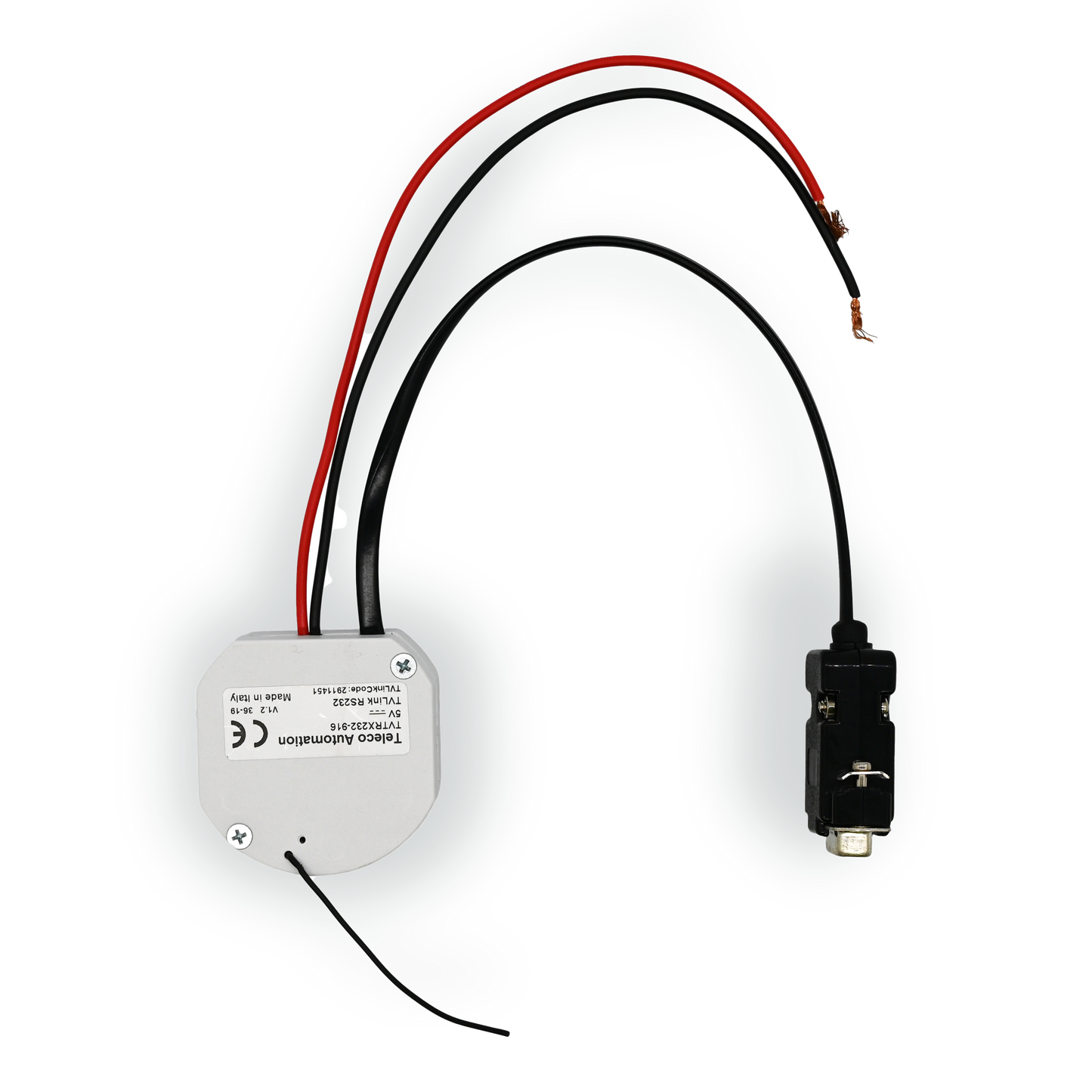

- Smart-Heat Link Installation Manual
