Nature's Generator 125A Automatic Transfer Switch
Nature's Generator 125A Automatic Transfer Switch
SKU:NGA12532448W
Couldn't load pickup availability
Industry-first 125A, 24 space / 48 circuit automatic transfer switch that is completely universal and works with most solar generators on the market!
Current Rating: 30A/50A/100A/125A
System Voltage: 120 V~ (L-N) / 208V~ (L-L) / 240V~ (L-L)
Number of Spaces: 24 spaces
Number of Circuits: Expandable to 48 circuits with tandem breakers

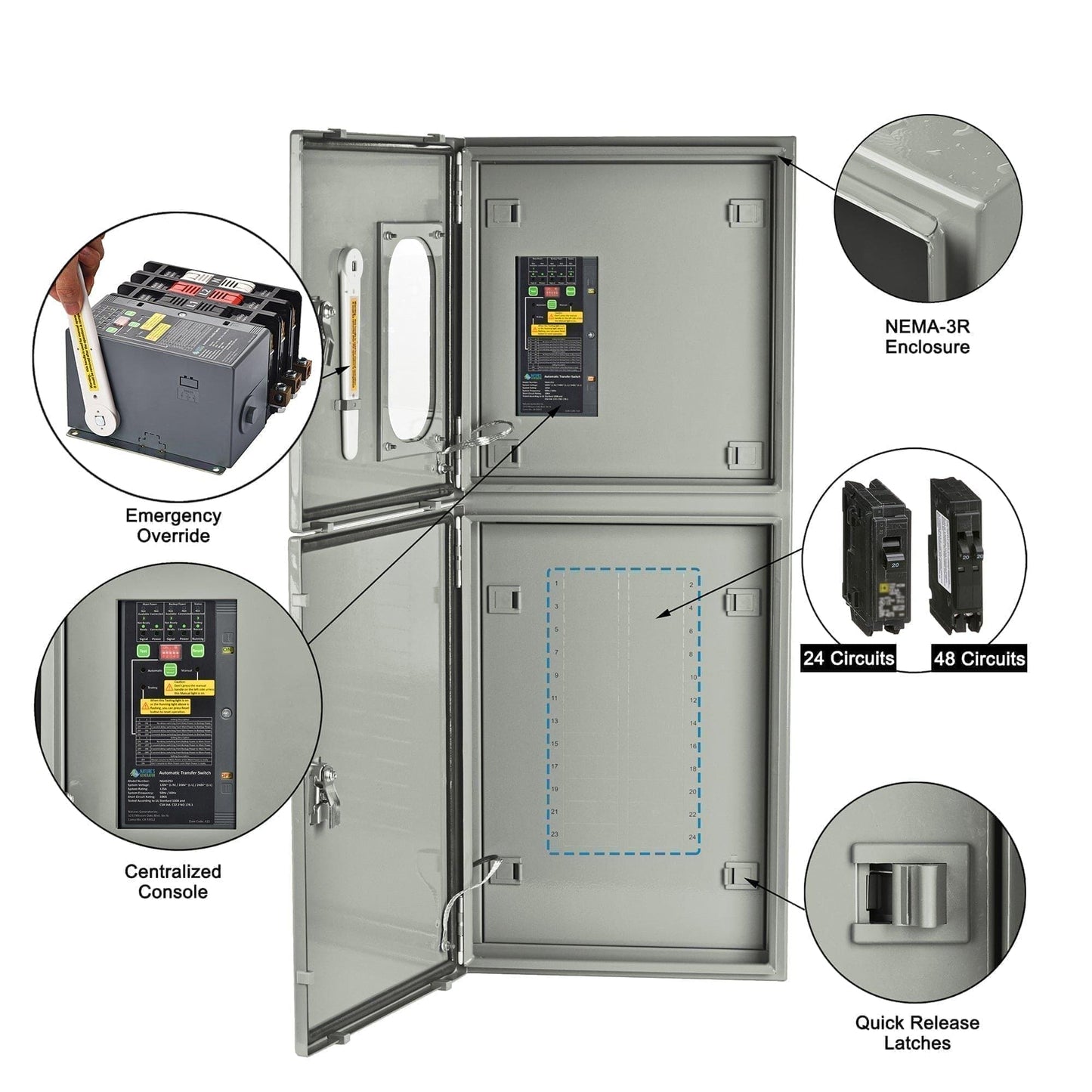

Features
125A, 24-Space / 48-Circuit automatic transfer switch an industry-first, universal model compatible with most solar generators.
Battery Backup Ready – ideal for energy storage solutions (ESS) and backup battery systems as demand rises.
Manual Override – includes a switch for manual control when needed.
Seamless Integration – easily connects with existing home load centers to automatically switch to backup power during grid outages.
NEMA-3R Rated – durable enclosure for both indoor and outdoor use.
Versatile Voltage – supports 120/208V or 120/240V applications.
Optional Semi-Surface Mount Kit – available separately for additional installation flexibility.
Reliable Power – ensures continuous power with the Nature’s Generator 125A automatic transfer switch.
Technical Specifications
General Information
Power Rating: 125A
System Voltage: 120 V~ (L-N) / 208V~ (L-L) / 240V~ (L-L)
Number of Spaces: 24 spaces
Number of Circuits: Expandable to 48 circuits with tandem breakers

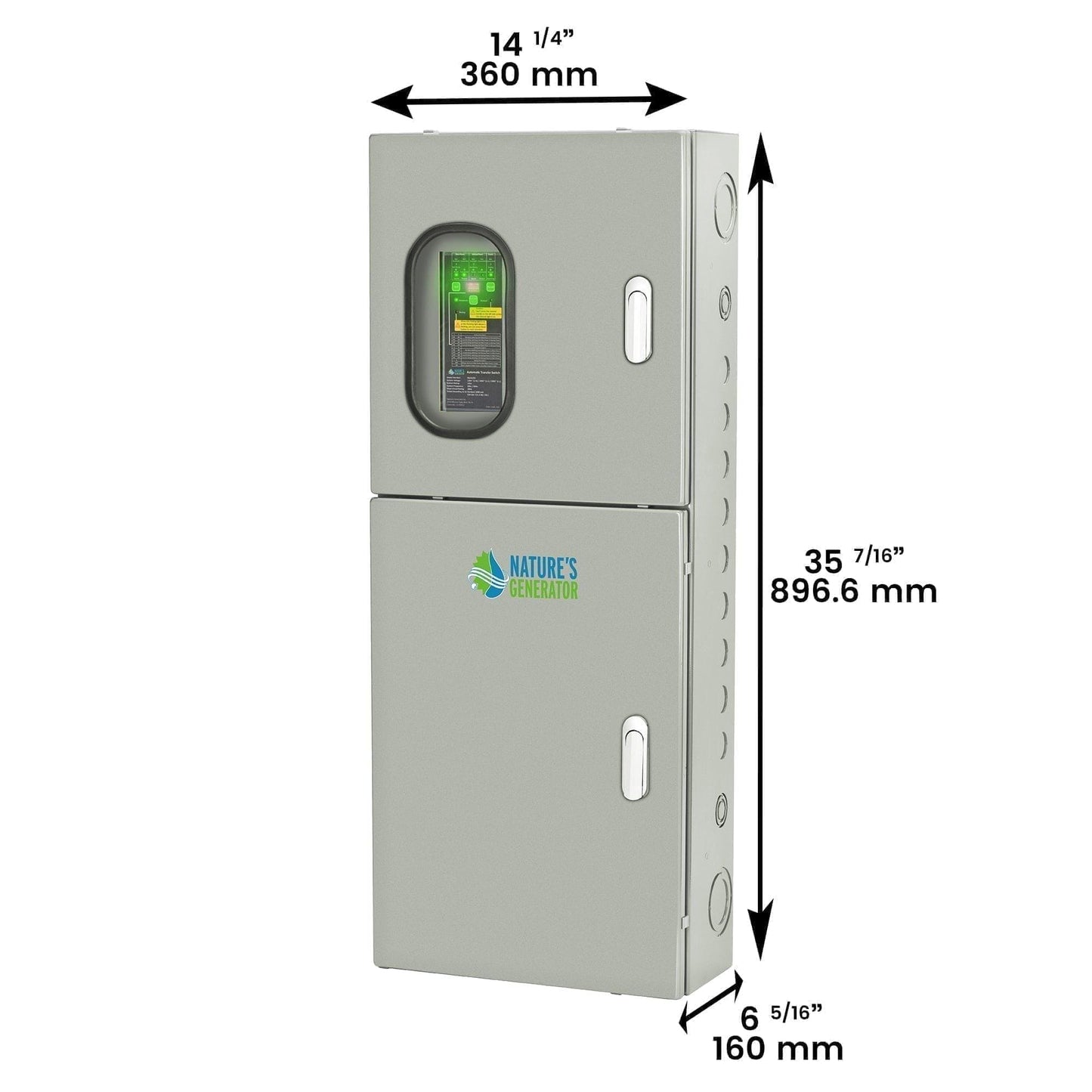

Dimension and Weight
35⁷⁄₁₆*14¼*6⁵⁄₁₆ inches
(900*360*160 mm)
58 lbs(26.3 kg)
