Manhattan 66" Cylinder Fire Pit - 30VDC

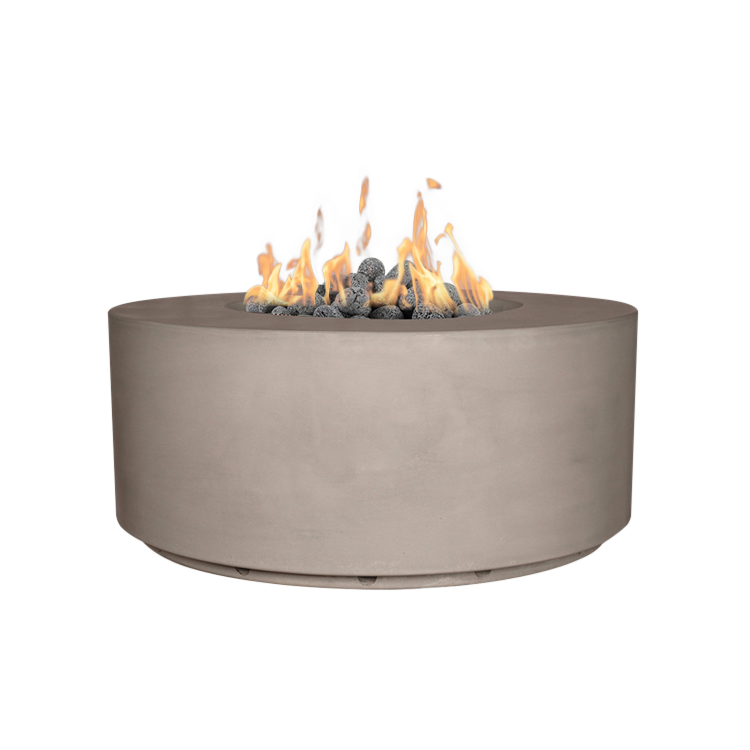

Manhattan 66" Cylinder Fire Pit

Outer Diameter: 66"
Height: 66"
Tabletop Surface: 14.5"
Weight: 450 lbs.
Diameter Spiral Burner: 24"
Base Diameter: 64"
BTU: 170k

Manhattan Fire Pit

• 170K BTU's (316 Stainless Steel) / 1/2 Gas Inlet with NG Orifice or LP Air Mixer

• 30VDC AWEIS Standard Capacity with a Field Serviceable Pilot Burner / Natural Gas or Liquid Propane
• Liquid Propane: Includes 120V Safety Backup Valve
• Includes 30VDC Power Supply
• 24" Whisper Free Flex Gas Line (1/2").
• 37" Round Aluminum Flat Burner Pan (bowl packing & crating included).
• Holds 97 lbs. of Fire Glass, 5 bags of Lava Rock, or 2 bags of Rolled Lava Stone.

Documents

AWEIS Installation Instructions

Automated Fire 101 FBD

AWEIS Troubleshooting Guide

BPAWEIS Installation Instructions

Preinstallation Checklist

24V / 30V Battery Instructions 2024

AWEIS Sequence of Operation

Field Serviceable AWEIS Replacement Parts Install Instructions

NG Orifice Placement on Field Serviceable Box
