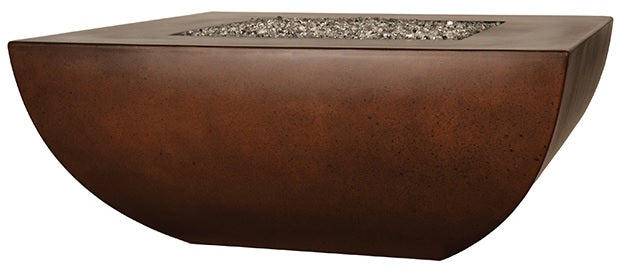

Legacy 42" Square Fire Pit - 30VDC

Legacy 42" Square Fire Pit

Outer Dimension: 42"
Tabletop Surface: 7.5
Height: 19"
Base Dimension: 20.5"
Weight: 300 lbs.
Burner: Diameter Spiral Burner 12"
BTU: 85k"

Legacy Square Fire Pit

• 1/2 Gas Inlet with NG Orifice (Natural Gas)
• 316 Stainless Steel
• 30VDC AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• 30VDC Power Supply.
• 18" Whisper Free Flex Gas Line (1/2").
• 26.25" Square Aluminum Flat Burner Pan (Bowl Packing & Crating Included in Kit Price)
• Holds 62lbs of Fire Glass / 4 Bags of Lava Rock / 1 Bag of Rolled Lava Stone
• Includes 120V Safety Backup Valve (Liquid Propane)
• 1/2 Gas Inlet with LP Air Mixer (Liquid Propane)

Documents

AWEIS Installation Instructions

Automated Fire 101 FBD R3

AWEIS Troubleshooting Guide

BPAWEIS Installation Instructions

Preinstallation Checklist

24V_30V_Battery Instructions 2024

AWEIS Sequence of Operation

Field_Serviceable_AWEIS_Replacement_Parts_Install_Instructions

NG Orifice Placement on Field Servicable Box 1
