Legacy 42" Square Fire Bowl - 30VDC

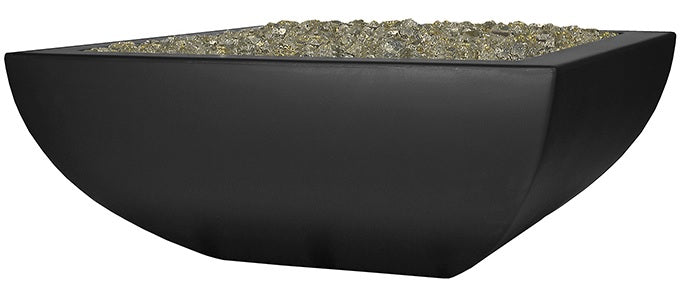

Legacy 42" Square Fire Bowl

Outer Diameter: 42"
Inner Diameter: 36"
Height: 18"
Base Dimension: 20"
Weight: 290 lbs.
Burner: Diameter Spiral Burner 24"
BTU: 170k

Legacy Square Fire bowl

• 170K BTU's (316 Stainless Steel) / 1/2 Gas Inlet with NG Orifice or LP Air Mixer

• 30VDC AWEIS Standard Capacity with a Field Serviceable Pilot Burner / Natural Gas or Liquid Propane
• Liquid Propane: Includes 120V Safety Backup Valve
• Includes 30VDC Power Supply
• 24" Whisper Free Flex Gas Line 1/2"
• 35.5" Square Aluminum Flat Burner Pan (Bowl Packing & Crating Included in Kit Price)
• Holds 114lbs of Fire Glass / 6 Bags of Lava Rock / 2 Bags of Rolled Lava Stone

Documents

AWEIS Installation Instructions

Automated Fire 101 FBD

AWEIS Troubleshooting Guide

BPAWEIS Installation Instructions

Preinstallation Checklist

24V / 30V Battery Instructions 2024

AWEIS Sequence of Operation

Field Serviceable AWEIS Replacement Parts Install Instructions

NG Orifice Placement on Field Serviceable Box
