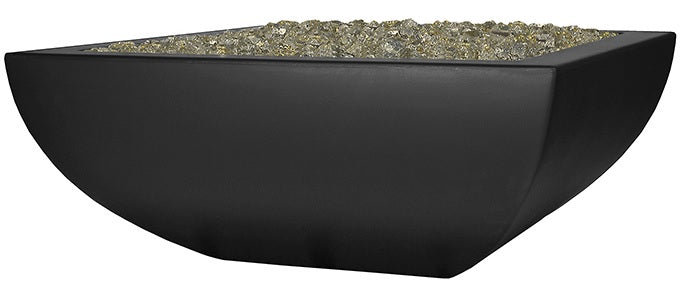

Legacy 36" Square Fire Bowl - 30VDC

Legacy 36" Round Fire Bowl

Outer Dimension: 36"
Inner Dimension: 29.25"
Height: 15"
Base Dimension: 17"
Weight: 230 lbs.
Burner: Diameter Spiral Burner 12"
BTU: 85k

Legacy Round Fire bowl

• 1/2 Gas Inlet with NG Orifice (Natural Gas)
• 316 Stainless Steel
• 30VDC AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• 30VDC Power Supply.
• 18" Whisper Free Flex Gas Line 1/2"
• 29.25" Square Aluminum Flat Burner Pan (Bowl Packing & Crating Included in Kit Price)
• Holds 77lbs of Fire Glass / 4 Bags of Lava Rock / 2 Bags of Rolled Lava Stone
• Includes 120V Safety Backup Valve (Liquid Propane)
• 1/2 Gas Inlet with LP Air Mixer (Liquid Propane)

Documents

AWEIS Installation Instructions

Automated Fire 101 FBD R3

AWEIS Troubleshooting Guide

BPAWEIS Installation Instructions

Preinstallation Checklist

24V_30V_Battery Instructions 2024

AWEIS Sequence of Operation

Field_Serviceable_AWEIS_Replacement_Parts_Install_Instructions

NG Orifice Placement on Field Serviceable Box 1
