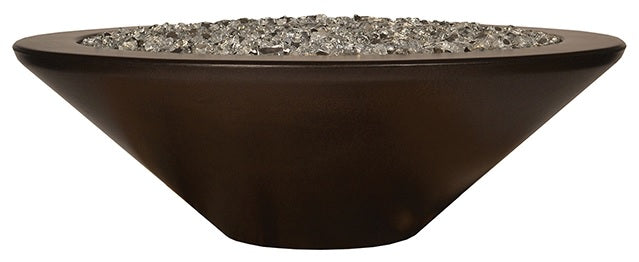

Geo Round Essex 48" Fire Bowl - 30VDC

Geo Round Essex 48" Fire Bowl

Outer Diameter: 48"
Inner Diameter: 42"
Height: 15"
Base Diameter: 16"
Weight: 210 lbs.
Burner: Diameter Spiral Burner 30"
BTU: 221k

Geo Round Essex Fire bowl

• 43K BTU's (316 Stainless Steel) / 1/2 Gas Inlet with NG Orifice or LP Air Mixer

• 30VDC AWEIS Standard Capacity with a Field Serviceable Pilot Burner / Natural Gas or Liquid Propane
• Liquid Propane: Includes 120V Safety Backup Valve
• Includes 30VDC Power Supply
• 36" Flex Line 3/4" with 1/2" x 3/4" Reducer
• 41.5" Round Aluminum Flat Burner Pan (Bowl Packing & Crating Included in Kit Price)
• Holds 122lbs of Fire Glass / 7 Bags of Lava Rock / 2 Bags of Rolled Lava Stone

Documents

AWEIS Installation Instructions

Automated Fire 101 FBD

AWEIS Troubleshooting Guide

BPAWEIS Installation Instructions

Preinstallation Checklist

24V / 30V Battery Instructions 2024

AWEIS Sequence of Operation

Field Serviceable AWEIS Replacement Parts Install Instructions

NG Orifice Placement on Field Serviceable Box
