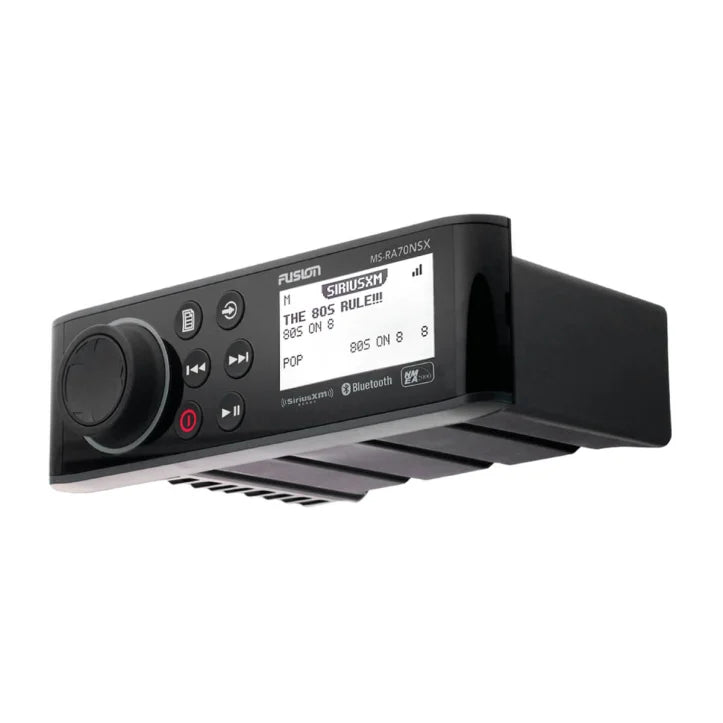

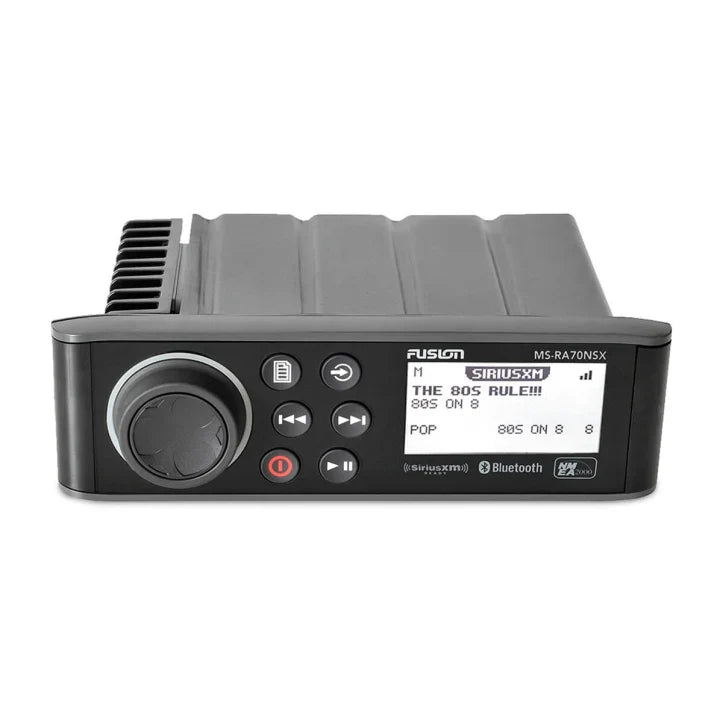

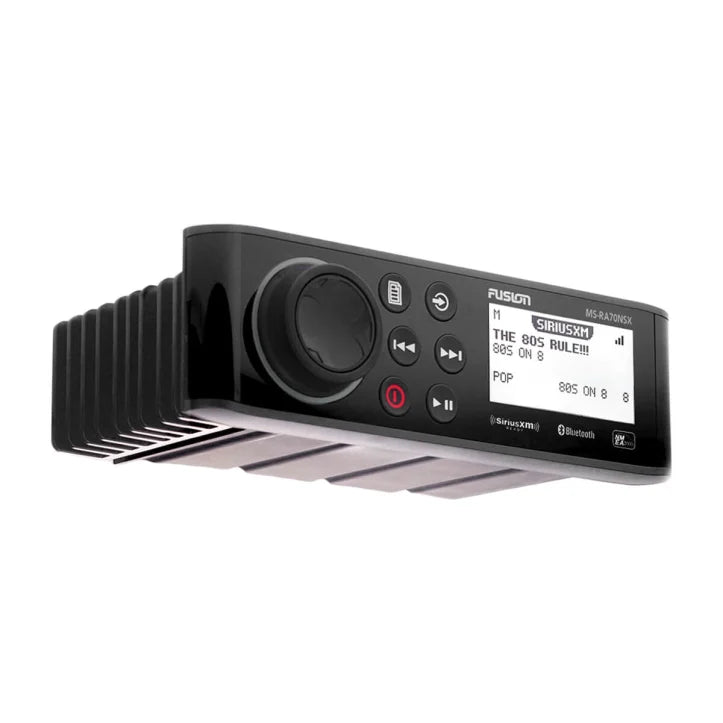

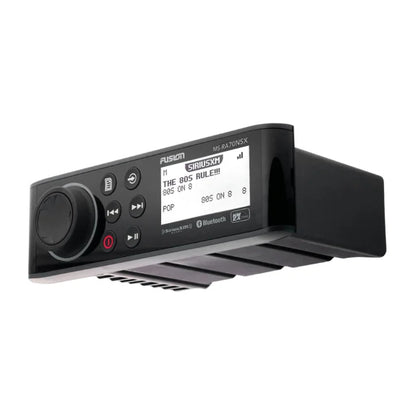

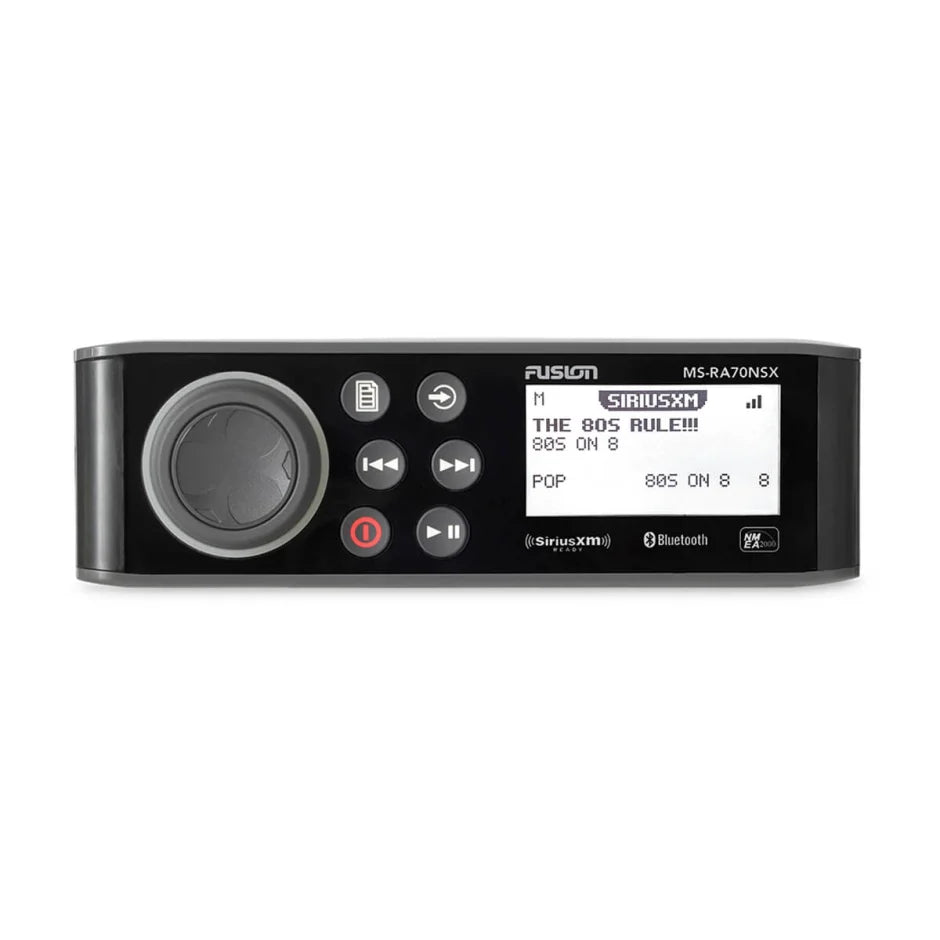

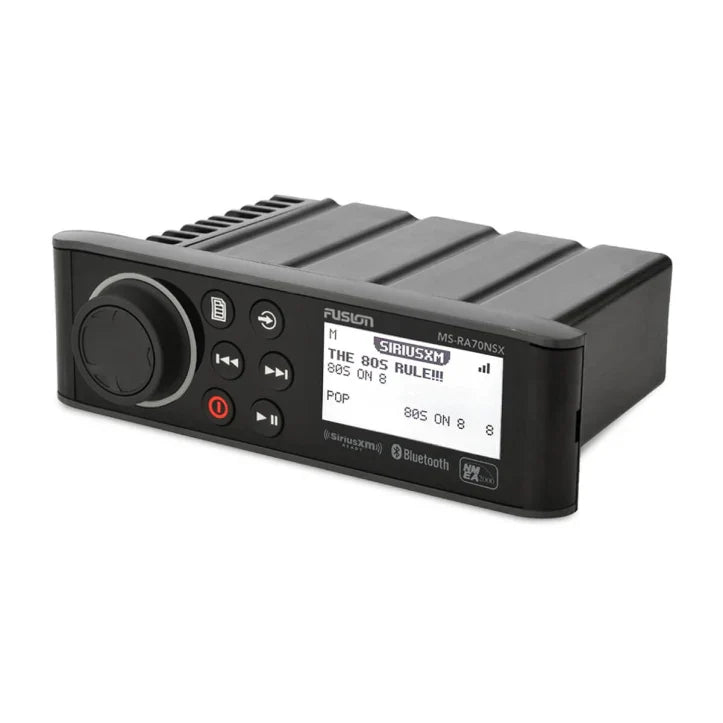

Garmin MS-RA70NSX, NMEA, NA, SiriusXM

Garmin MS-RA70NSX, NMEA, NA, SiriusXM

Amp up your marine entertainment with Garmin Fusion RA70 series MA-RA70NSX NMEA 2000 and SiriusXM ready marine stereo that retrofits your existing DIN-sized stereo eliminating the need to reconfigure your dash space.

Fitted with an optically bonded monochrome LCD, enjoy optimal screen visibility for better player control. While our built-in Class AB amplifier enhances your audio experience to a whole new level with increase clarity in high frequency, the multi-zone technology in place lets you captain two separate audio zones in one go.

Control, monitor and play what best suits the mood of the sail crew with a compatible MFD (multifunction display), any smart device or your Garmin smart watch. When your music is sourced from a plethora of experts via Bluetooth, DAB+ Radio, AM/FM, AUX and USB connections, there is no doubt your on-board parties will indeed be the talk of the sea.

Specifications:

Dimension: 7.4" x 2.36" x 4.87" (188 x 60 x 123.5 mm)

Weight: 1.23 lbs (556 g)

Water rating: IPX7 (front panel only, when properly installed)

Display: 2.6" optically bonded monochrome LCD

Operating temperature: 32° to 122° F (0° to 50° C)

Current (max): 15 A

Networking

BLUETOOTH® wireless range: up to 30 ft

ANT® wireless range: Up to 10 ft

Wireless frequencies/protocols: BLUETOOTH®: 2.4 GHz @ +1.9 dBm nominal ANT®: 2.4 GHz @ +1.9 dBm nominal

Audio Amplifier: Class-AB (4 ohm)

Electrical Features

Power Input: 10.8 - 16 VDC

Compass-safe distance: 5.9" (150 mm)

Stereo Features

Peak power: 200 W

Rated power output (4 ohm): 26 watts RMS x 4 @ 14.4 V input < 10% THD

Fusion-Link™ control: yes (see Additional)

Multi-Zone™ technology: 2 zones BLUETOOTH® wireless technology ANT® wireless technology

Multi-language interface: Dutch, English, French, German, Italian, Spanish

Software updates: USB

Warranty    : 1year

Supported sources: AM, FM, BLUETOOTH®, USB audio, iPhone®, iPod®, AUX x1, AOA, MS-RA70NSX: SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner)

Connections

Auxiliary inputs (RCA): 1

NMEA 2000® ports: 1

SiriusXM ports: 1

USB 2.0 ports: 1

AM/FM ports: (Motorola antenna connector)    1

Speaker connections: 4 (2 zone amplified)

RCA pre-out (left, right and subwoofer): 2 zones (requires external amplification)

Line out: 2 (L + R per zone, requires external amplification)

Subwoofer out: Zone 1 (mono output, requires external amplification)

Additional: NMEA 2000® LEN: 1 (50 mA), MS-RA70N and MS-RA70NSX only, Fusion-Link™ control: MS-RA70: smart device and Garmin watch; MS-RA70 and MS-RA70NSX: MFD, smart device and Garmin watch, SiriusXM-Ready: MS-RA70NSX only, DAB+ Ready: MS-RA70 and MS-RA70N only

Supports NRX wired remote: MS-RA70N and MS-RA70NSX only

What's in the Box:

1 x DIN mounting plate

4 x 8-gauge, self-tapping screws

1 x Power and speaker wiring harness

1 x NMEA 2000® drop cable 6ft. (2m)

1 x Auxiliary-in, line-out, and subwoofer-out wiring harnesses

1 x Documentation
