Square Flat Burner Pan Kit - Battery Ignition Kit

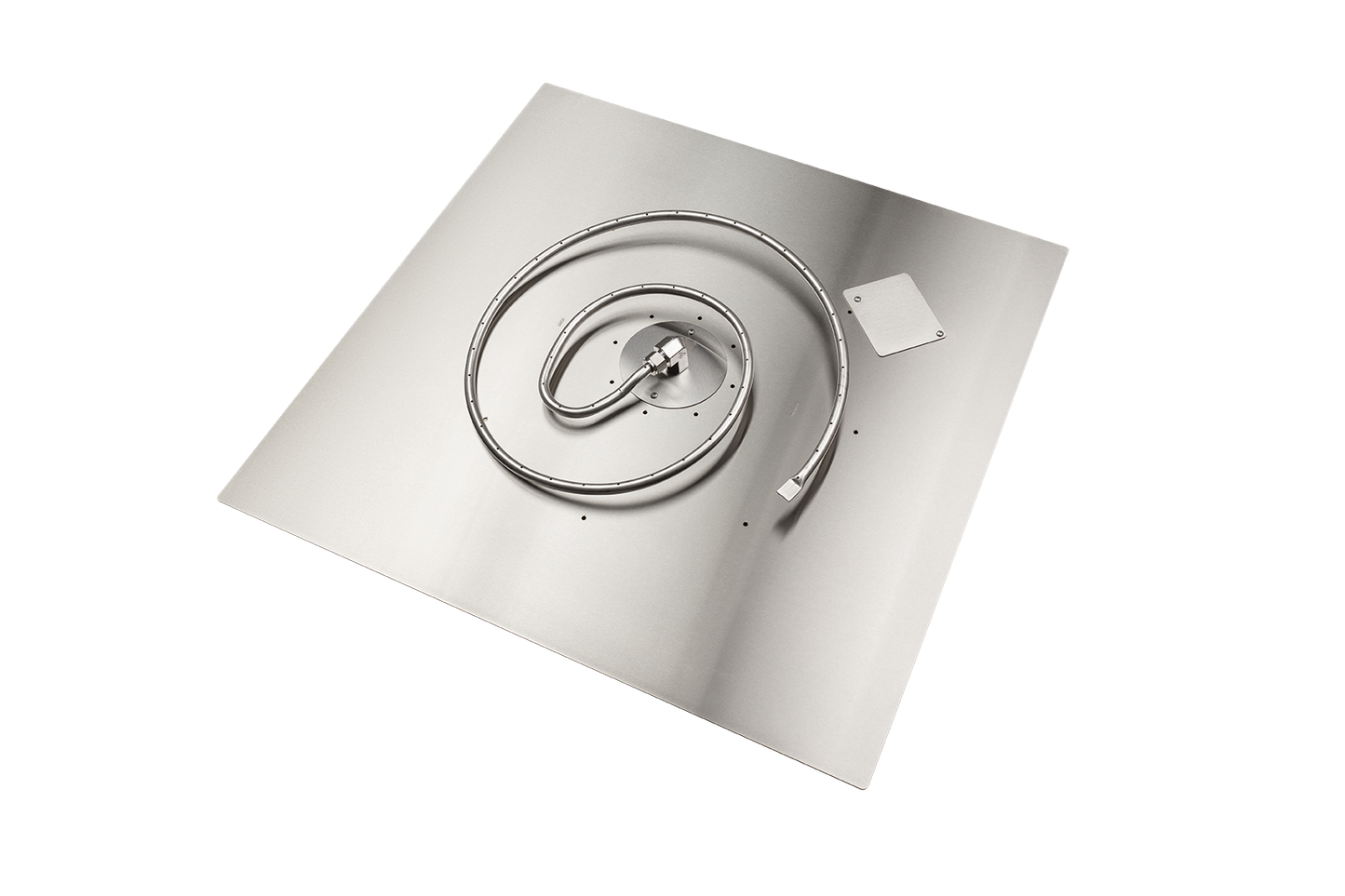

18" Square Aluminum Flat Burner Pan with Opening for Pilot Burner / 6" Diameter Spiral Burner

• 43K BTU's (316 Stainless Steel) / 1/2 Gas Inlet with NG Orifice or LP Air Mixer

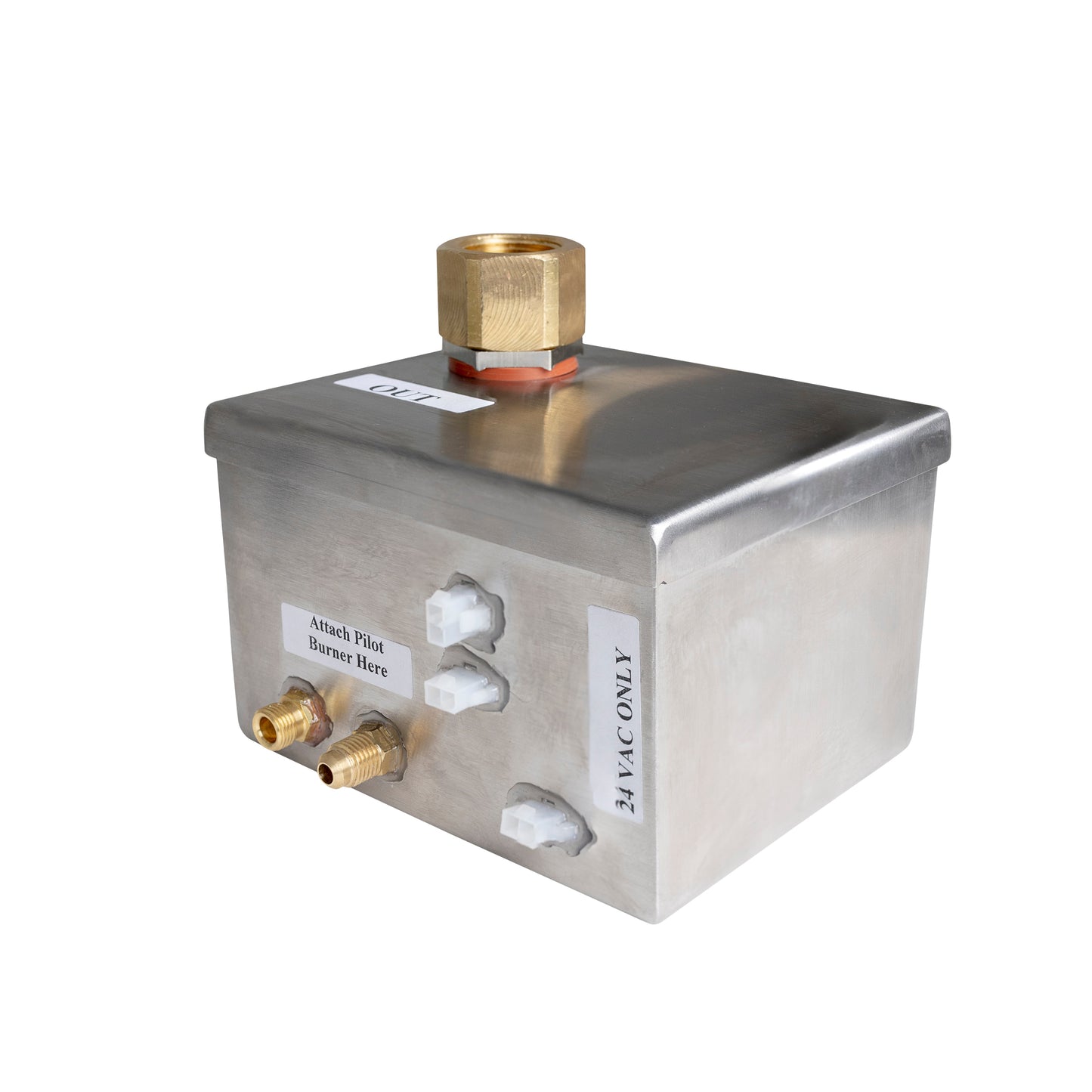

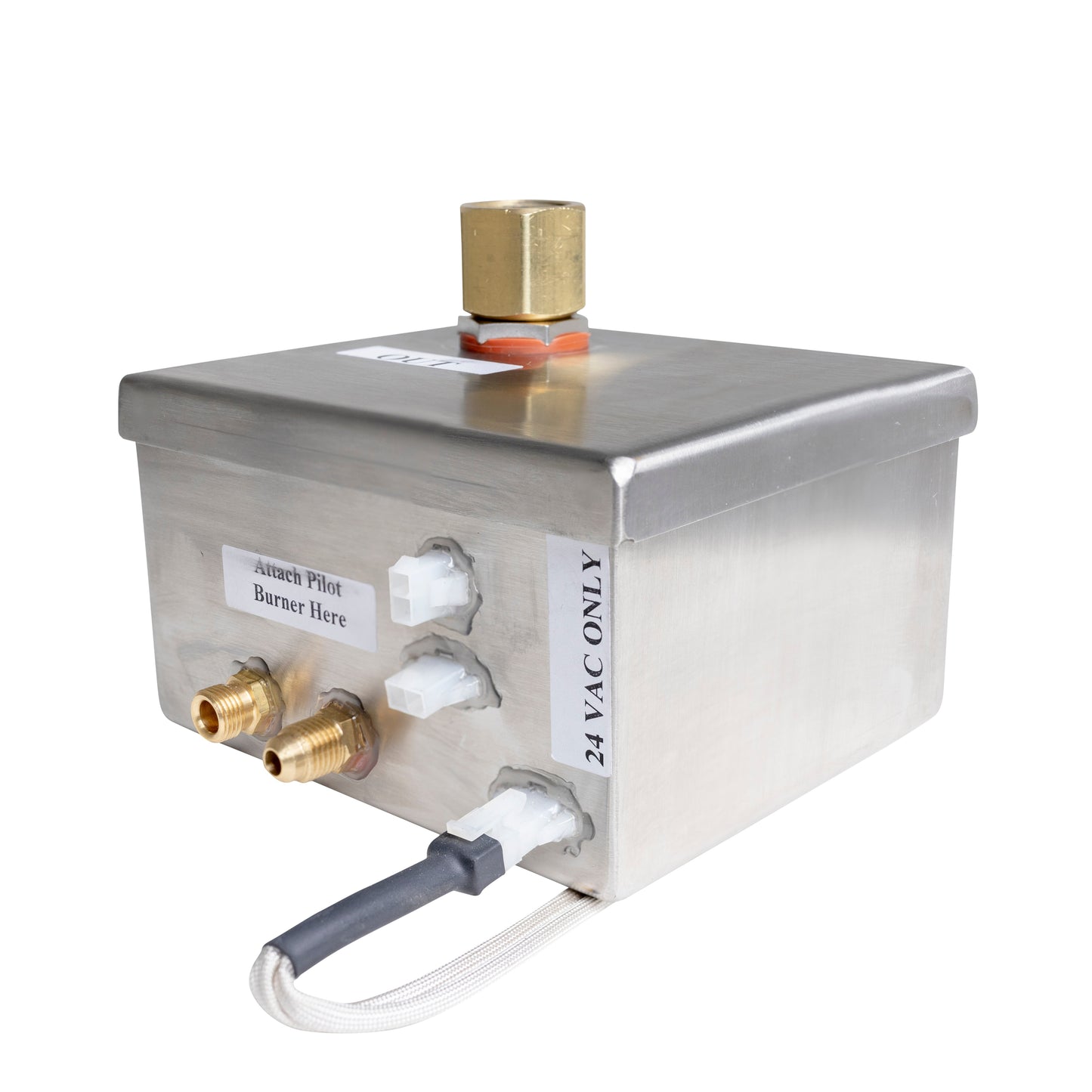

• Battery Powered Ignition System Kit / Natural Gas or Liquid Propane

• Includes (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 23lbs of Fire Glass / 2 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

24" Square Aluminum Flat Burner Pan with Opening for Pilot Burner / 12" Diameter Spiral Burner

• 85K BTU's (316 Stainless Steel) / 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• Battery Powered Ignition System Kit / Natural Gas or Liquid Propane

• Includes (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 41lbs of Fire Glass / 3 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

30" Square Aluminum Flat Burner Pan with Opening for Pilot Burner / 18" Diameter Spiral Burner

• 162K BTU's (316 Stainless Steel) / 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• Battery Powered Ignition System Kit / Natural Gas or Liquid Propane

• Includes (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 64lbs of Fire Glass / 4 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

36" Square Aluminum Flat Burner Pan with Opening for Pilot Burner / 24" Diameter Spiral Burner

• 170K BTU's (316 Stainless Steel) / 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• Battery Powered Ignition System Kit / Natural Gas or Liquid Propane

• Includes (1) 24" Flex Line 3/4" with 1/2" x 3/4" Reducer
• Note: Holds 92lbs of Fire Glass / 5 Bags of Lava Rock / 2 Bags of Rolled Lava Stone

48" Square Aluminum Flat Burner Pan with Opening for Pilot Burner / 36" Diameter Spiral Burner

• 238K BTU's (316 Stainless Steel) / 3/4 Gas Inlet with NG Orifice or LP Air Mixer
• Battery Powered Ignition System Kit / Natural Gas or Liquid Propane

• Includes  (1) 36" Flex Line 3/4"
• Note: Holds 163lbs of Fire Glass / 9 Bags of Lava Rock / 3 Bags of Rolled Lava Stone
