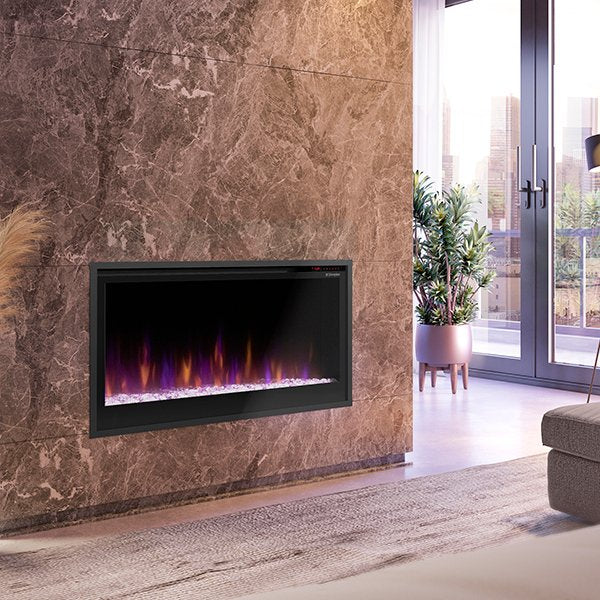

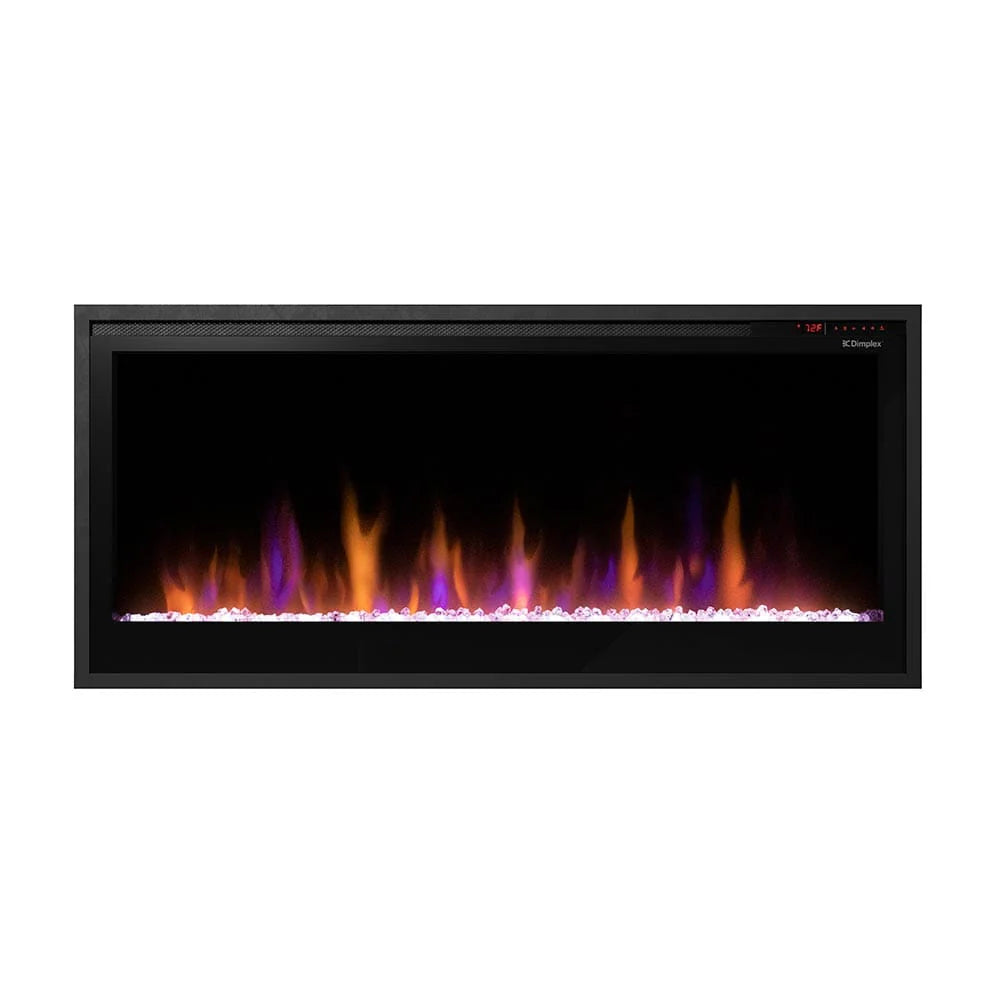

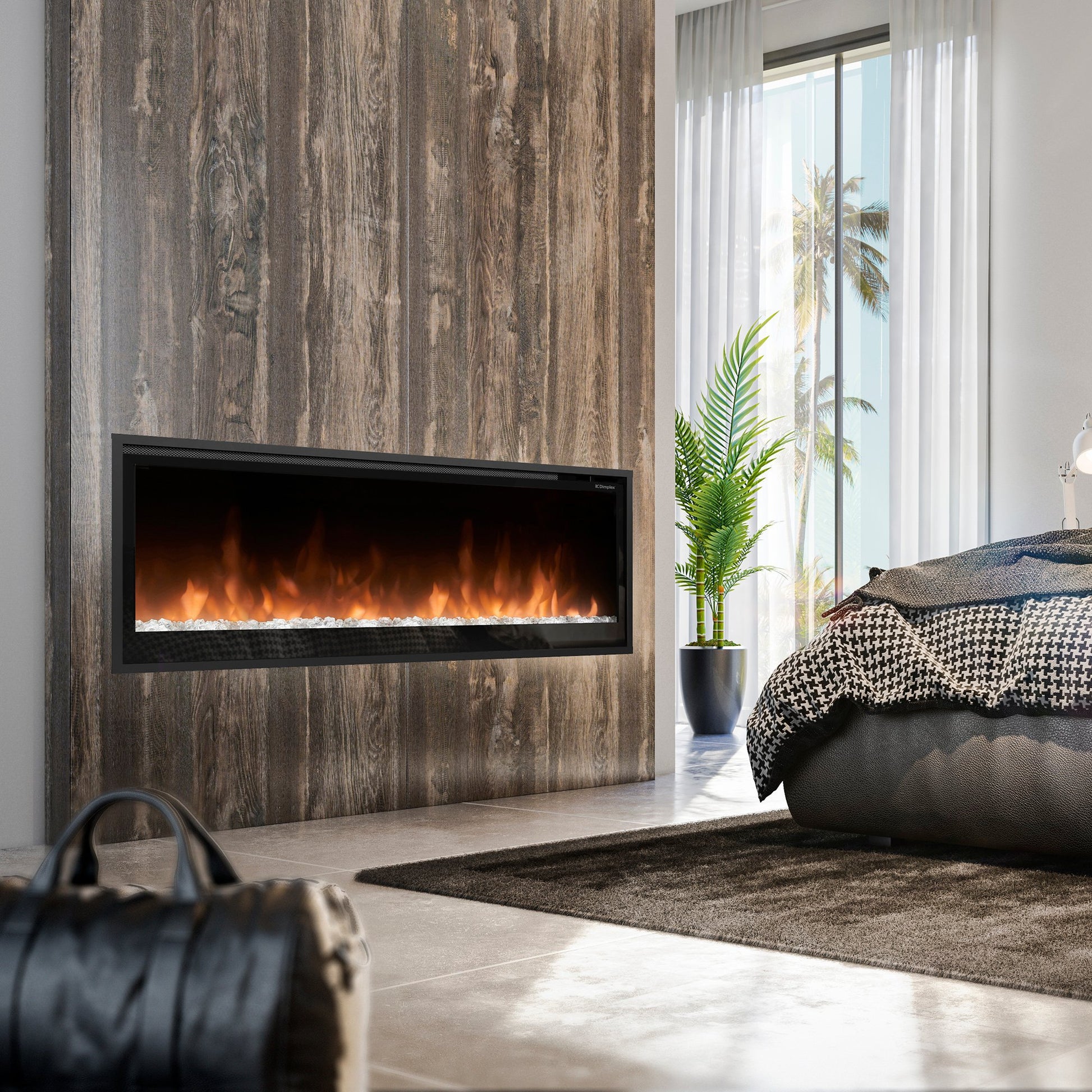

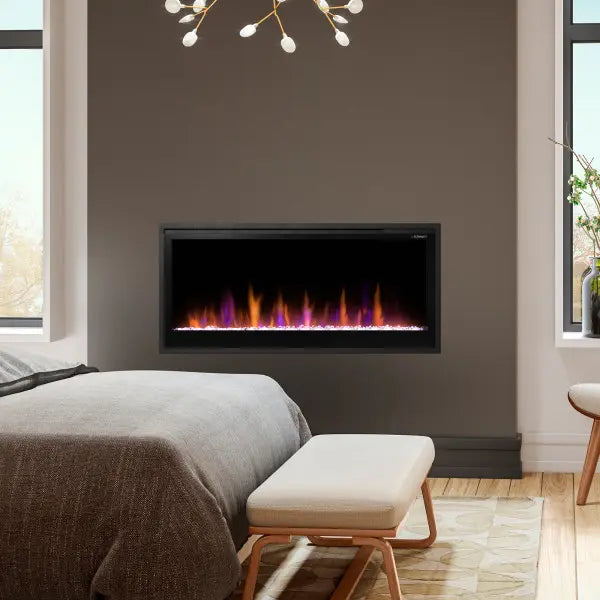

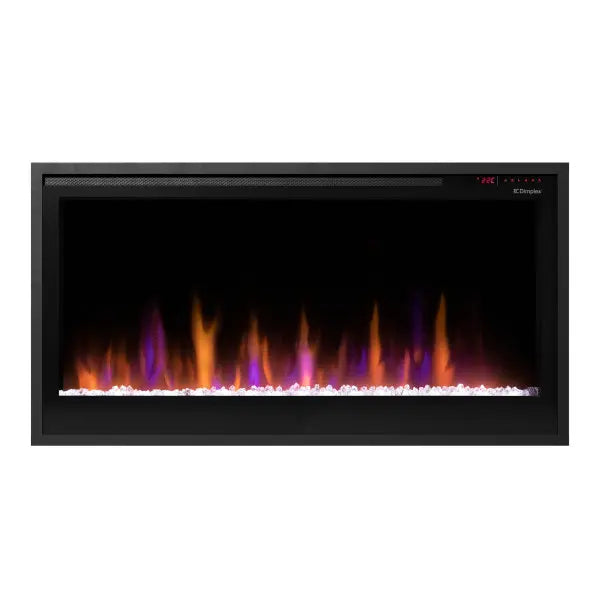

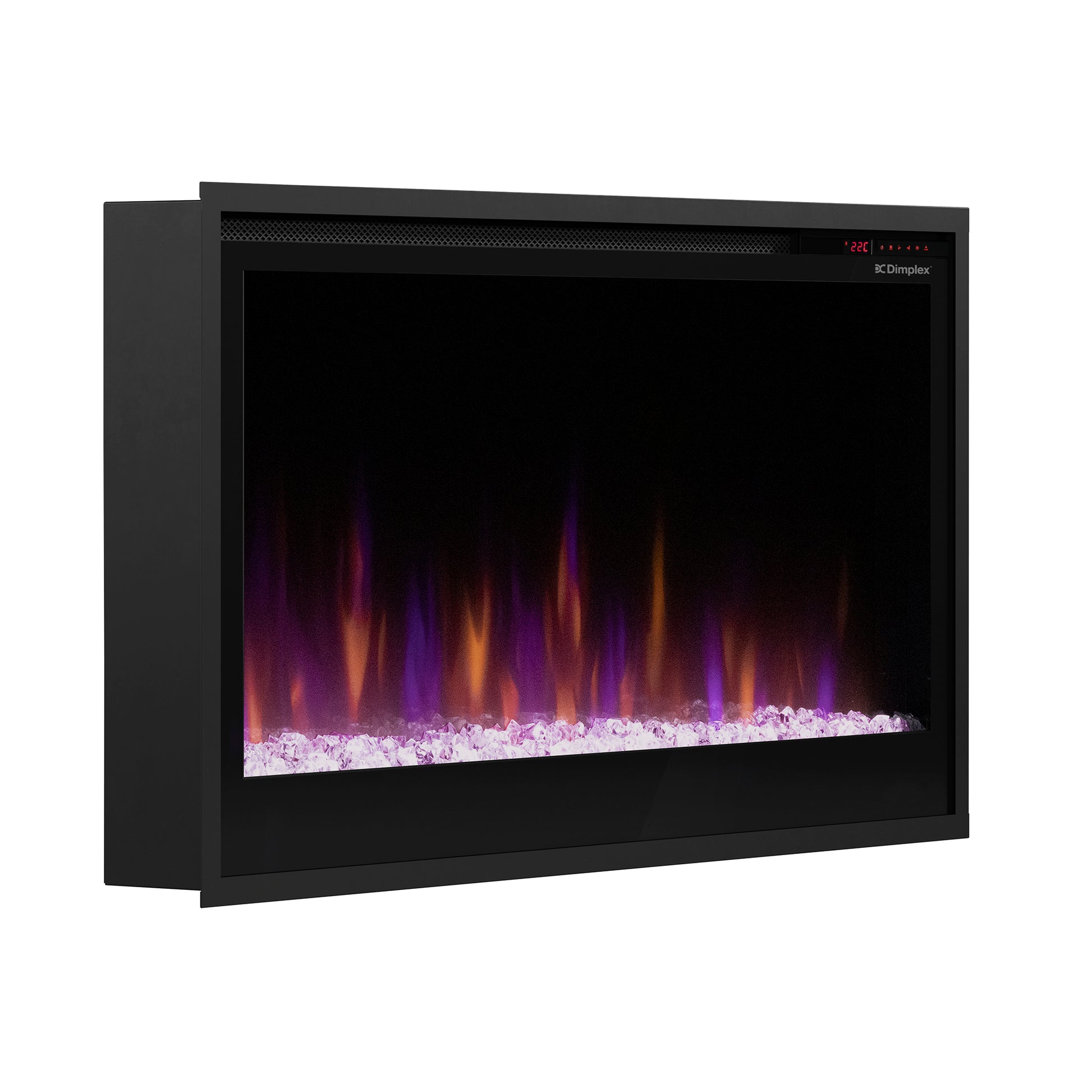

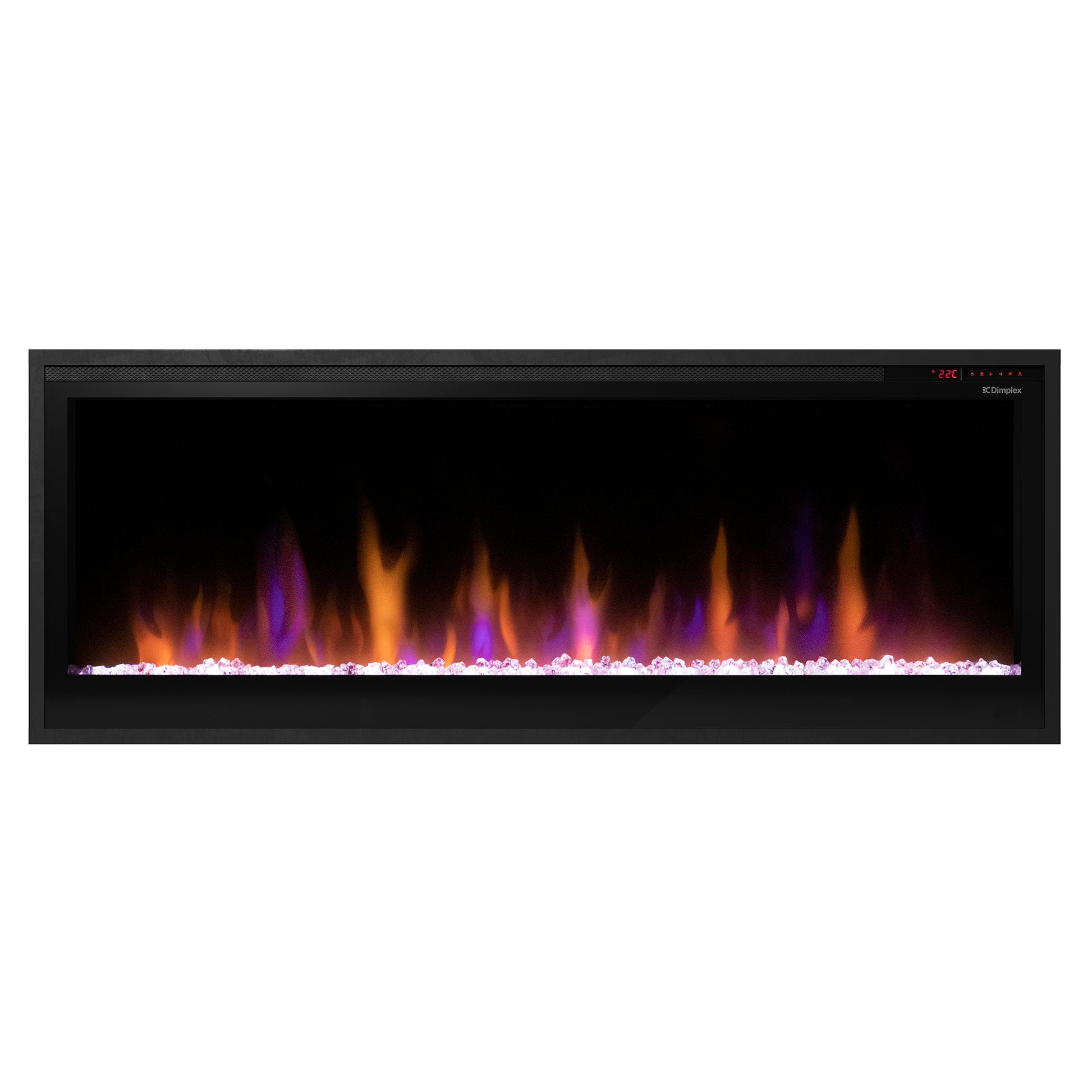

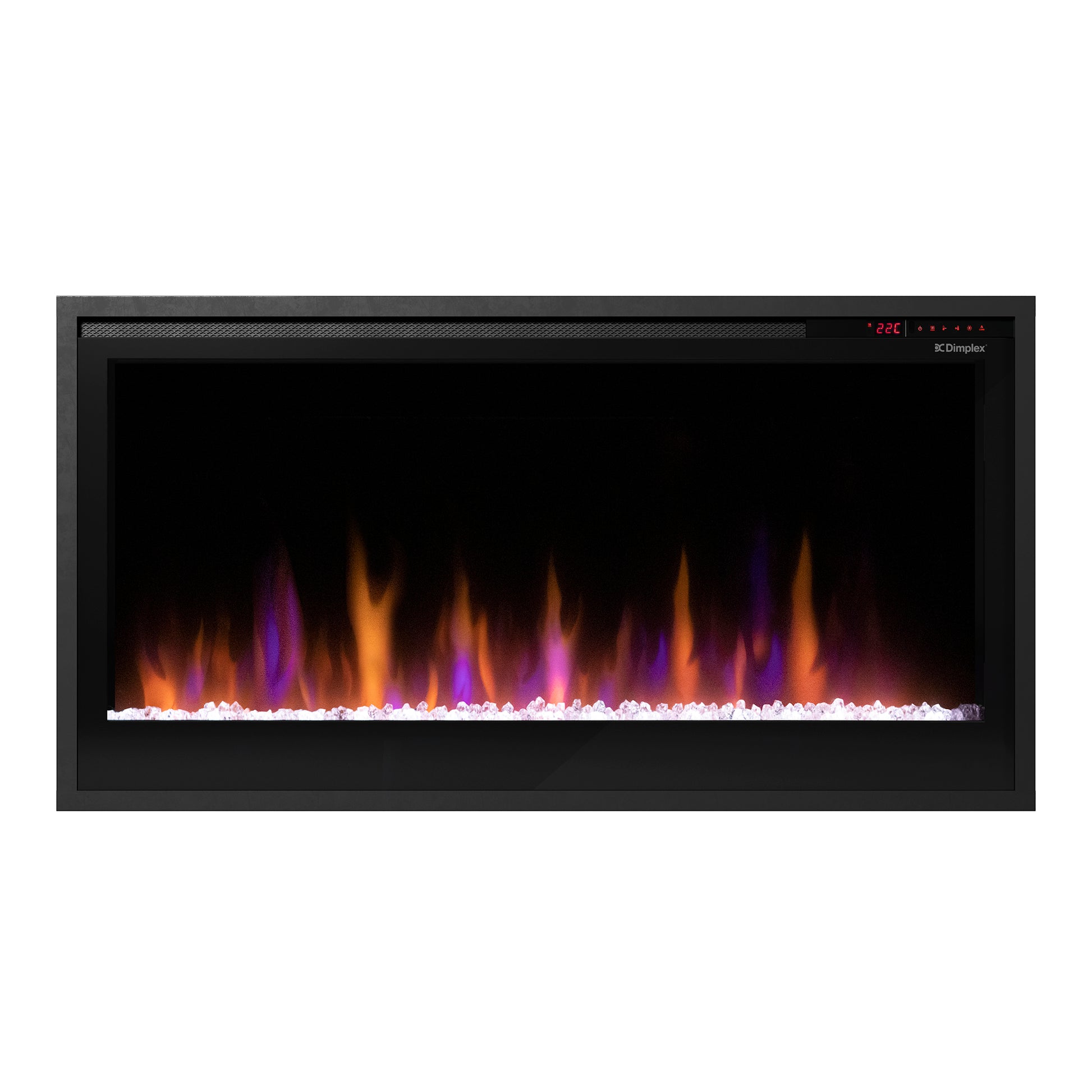

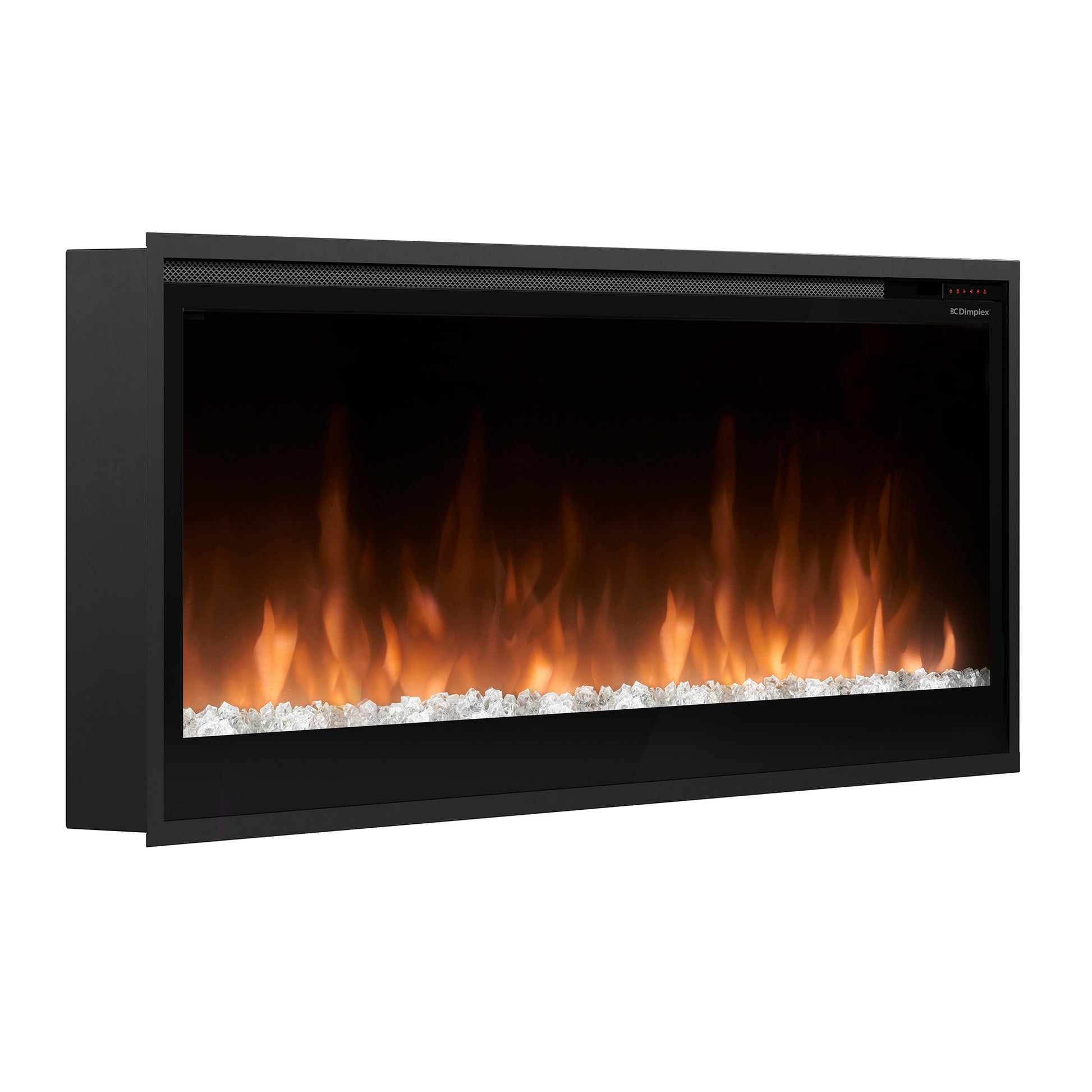

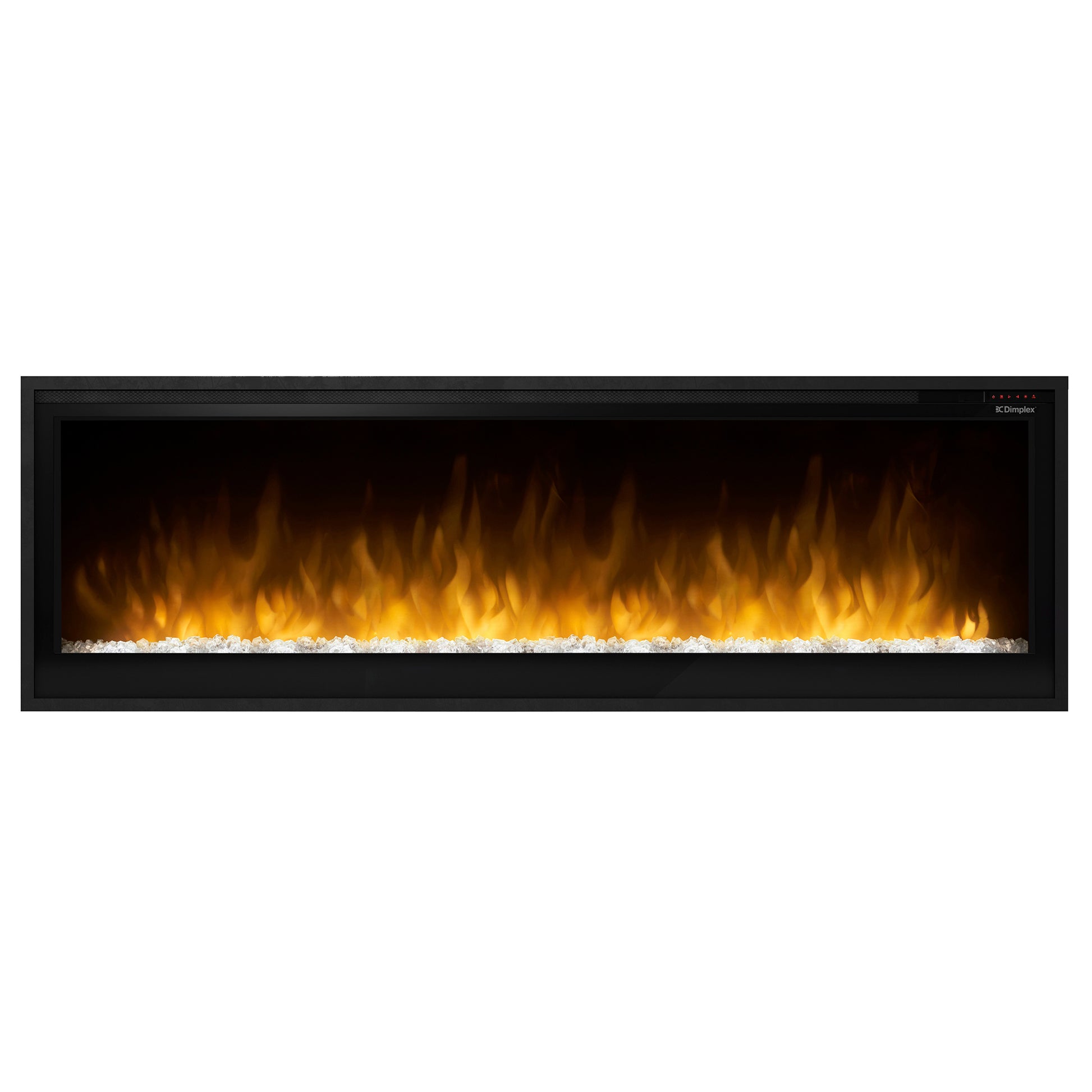

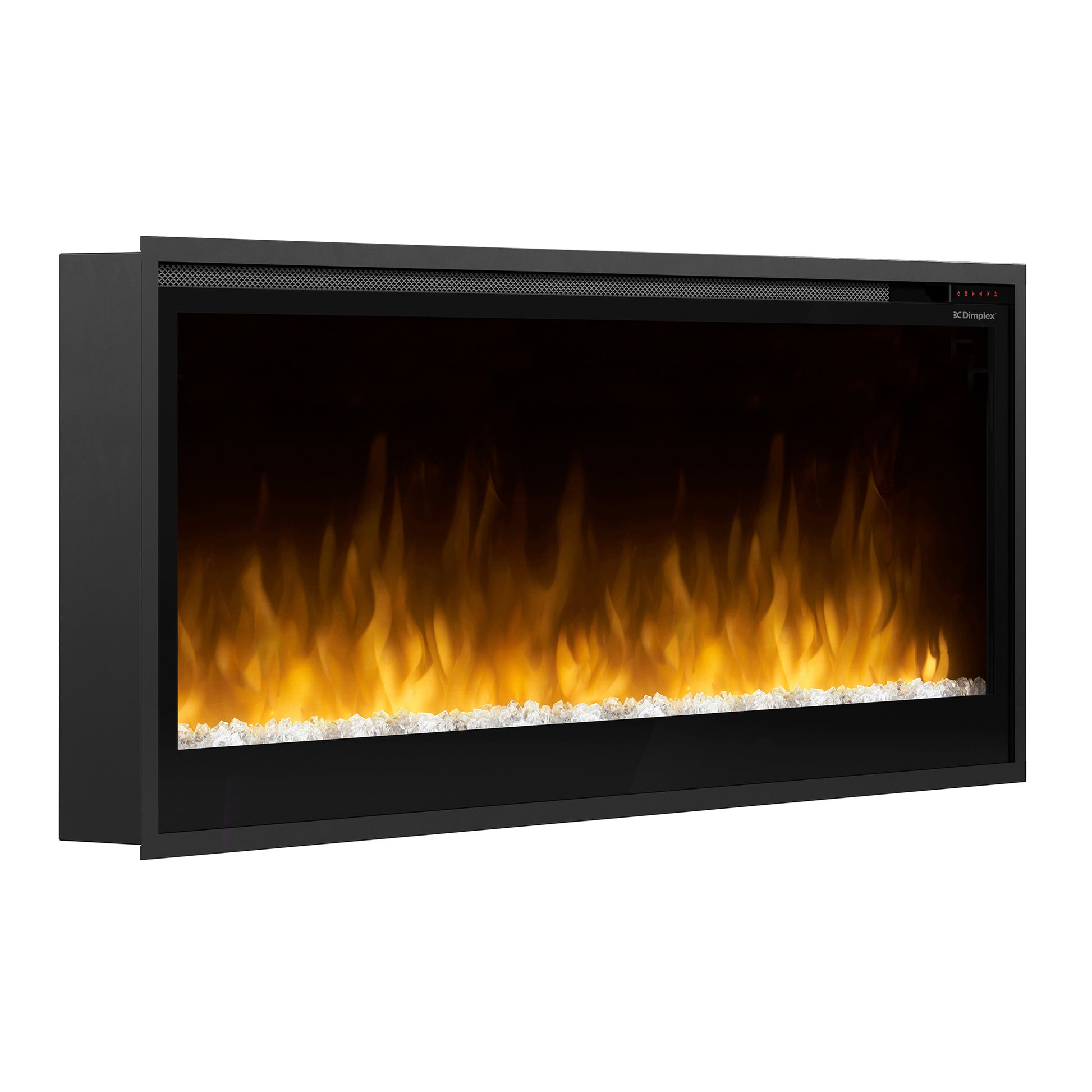

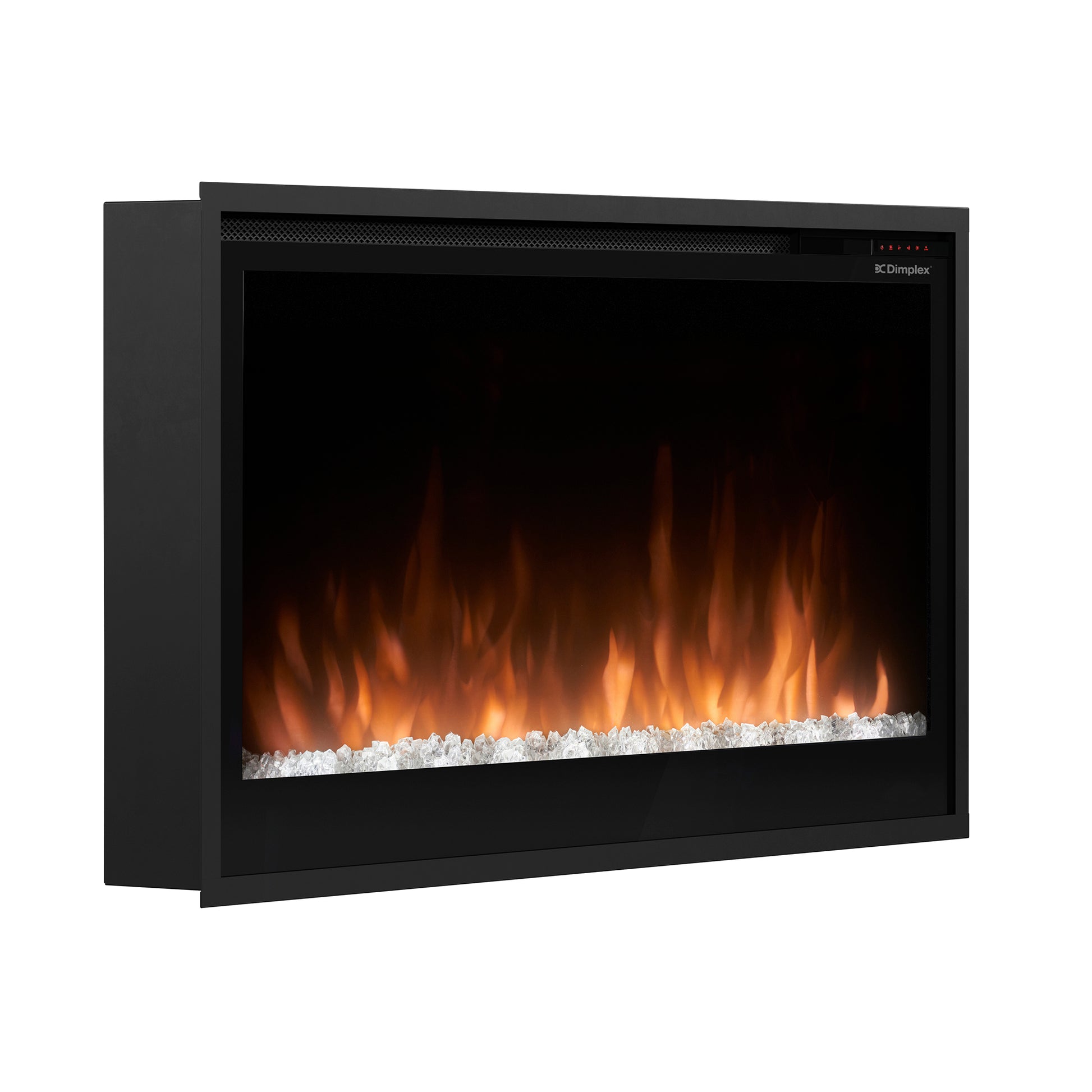

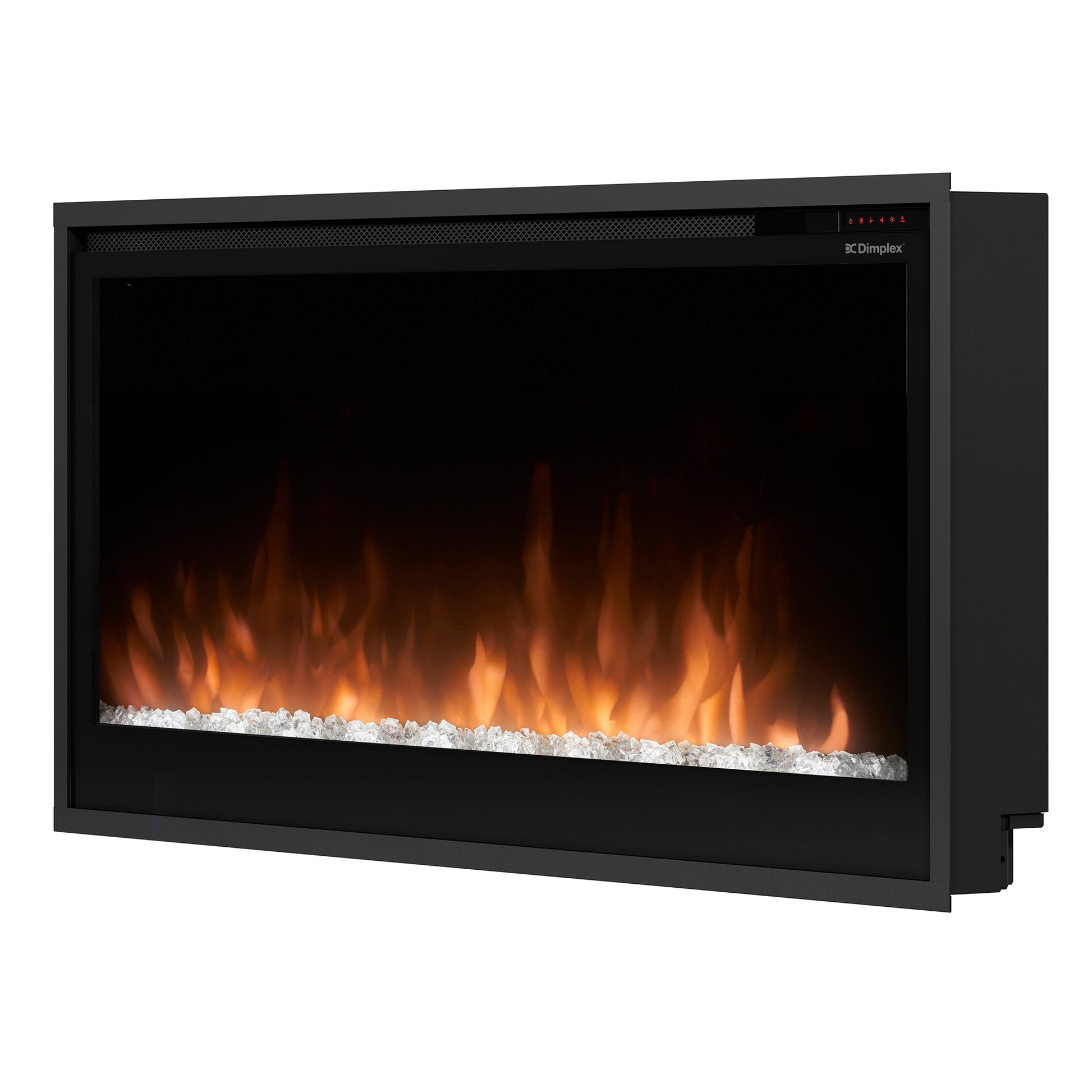

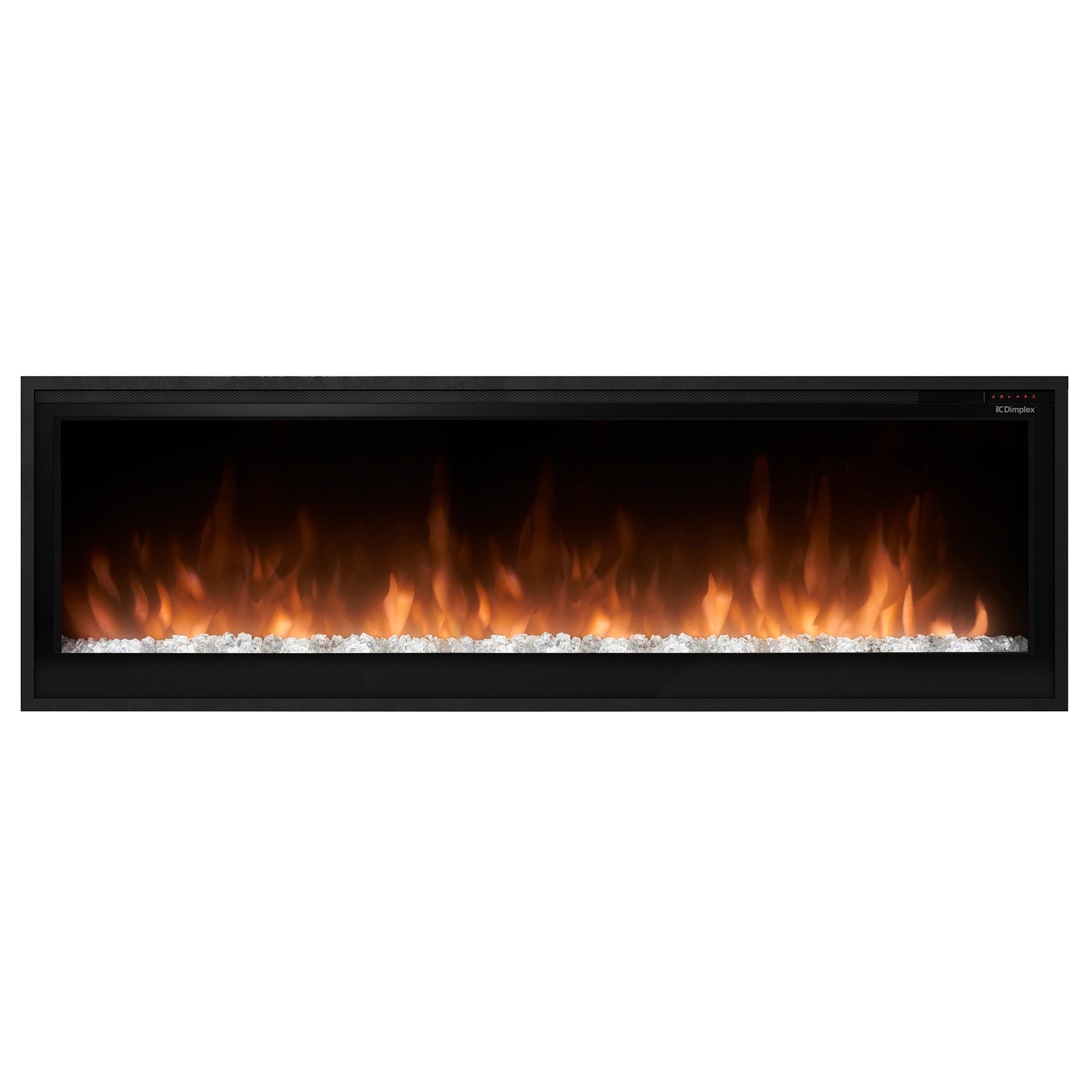

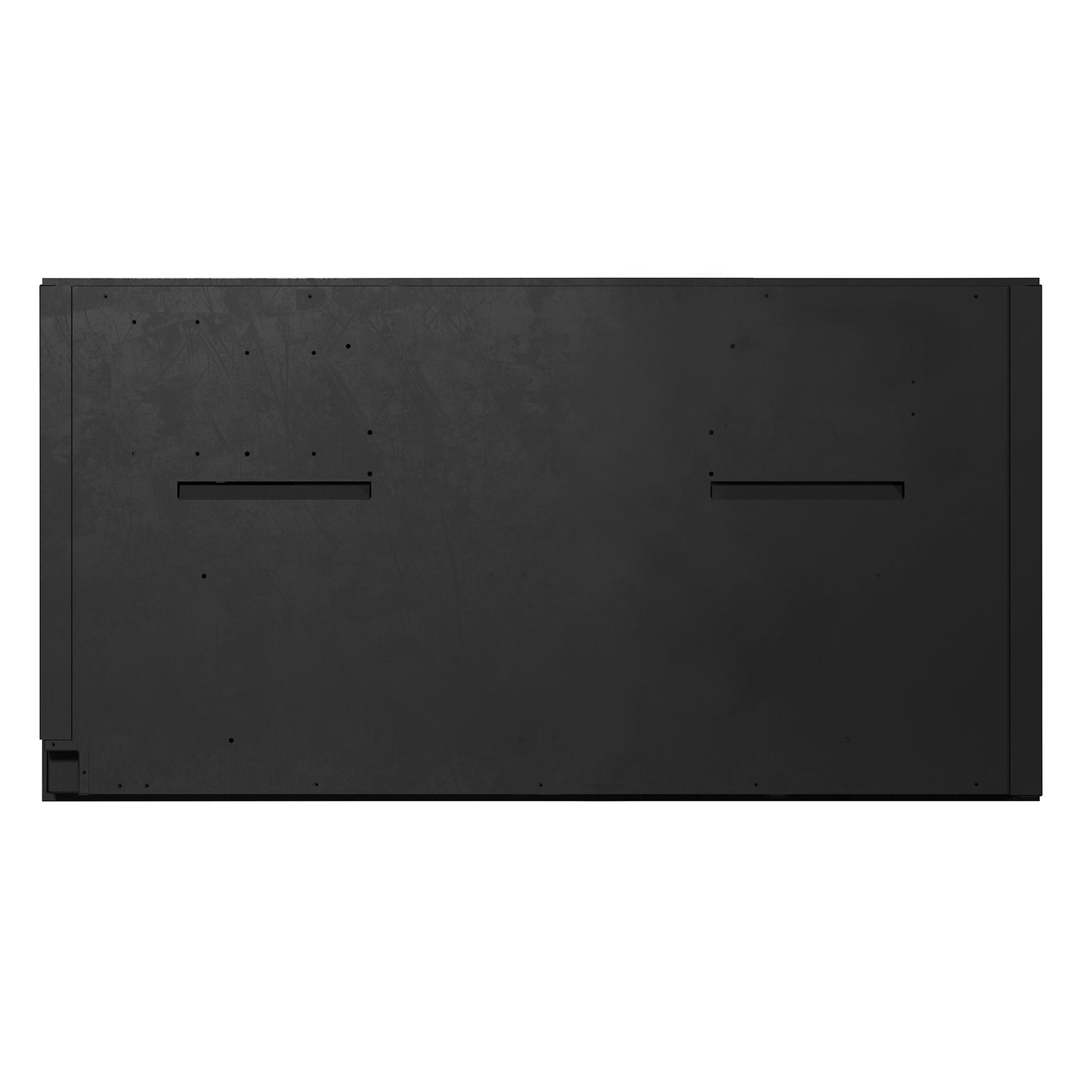

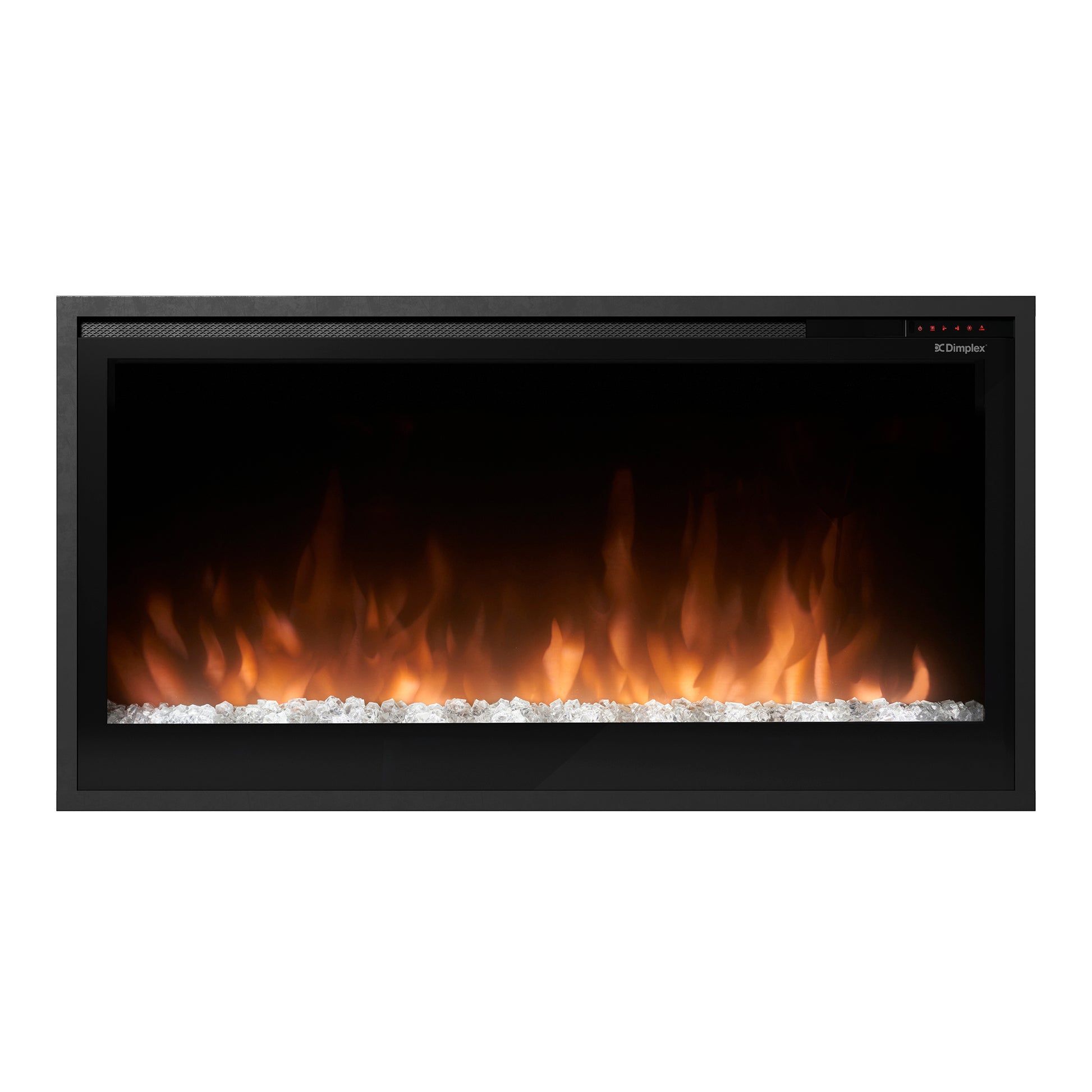

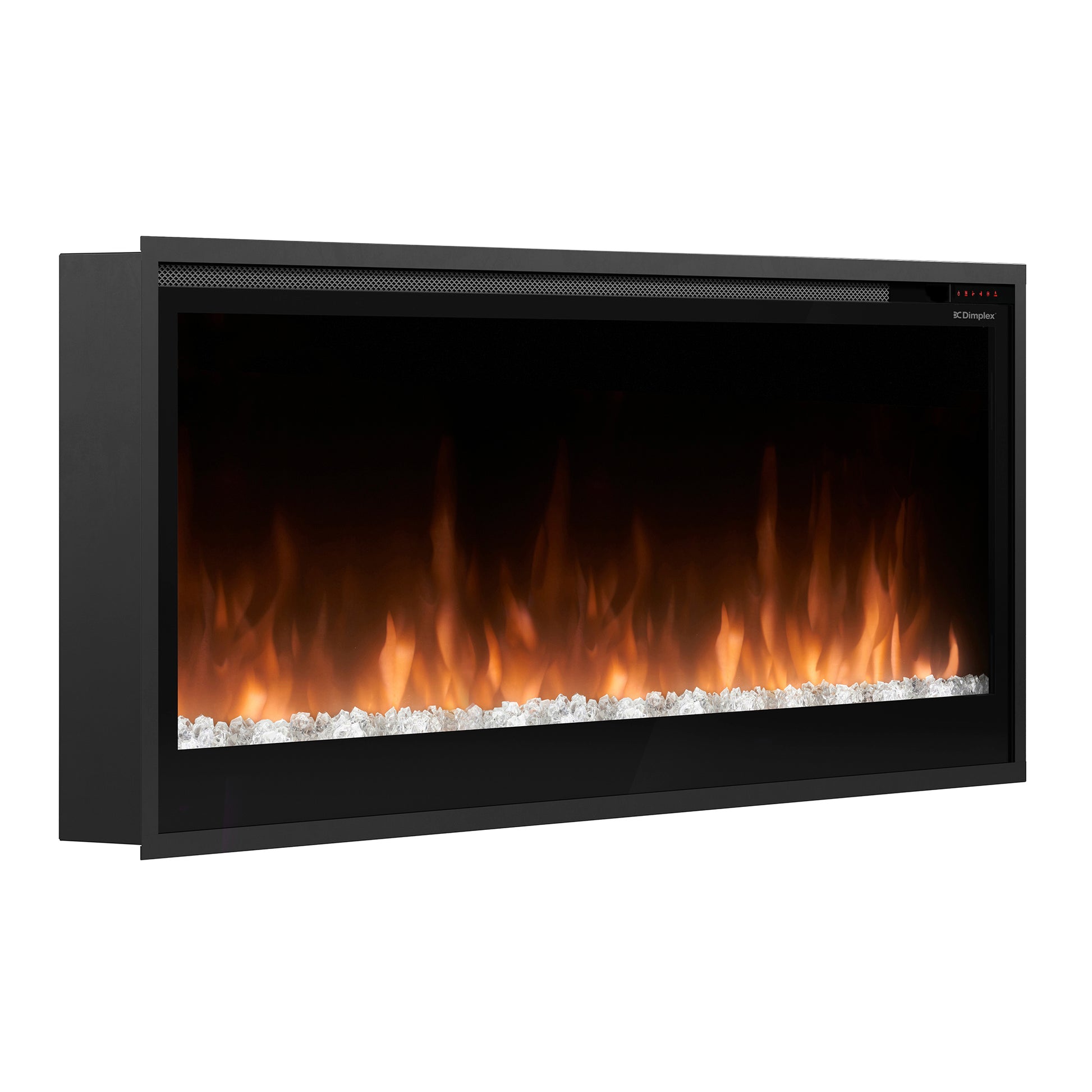

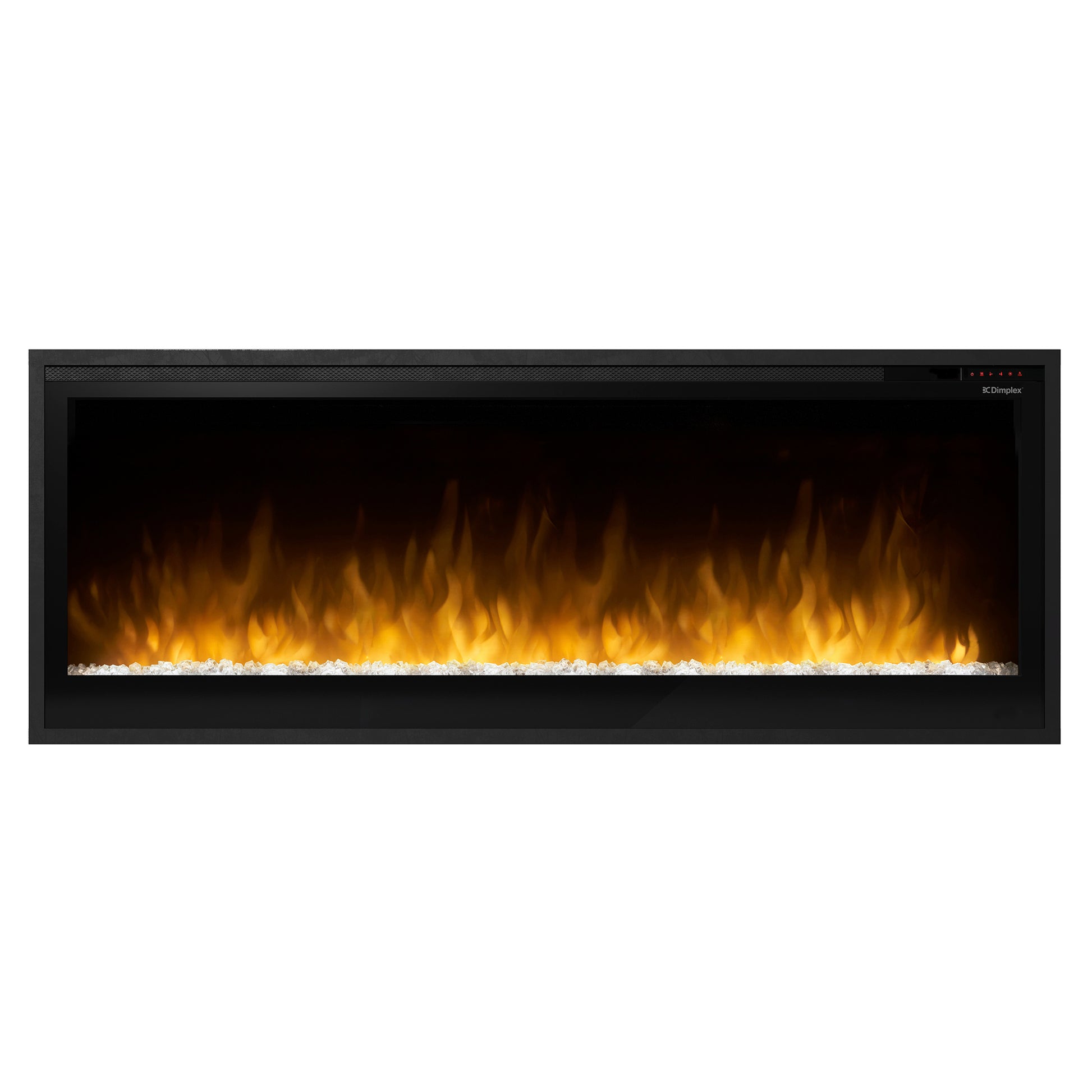

Slim® Linear Electric Fireplace

The Multi-Fire Slim Linear Electric Fireplace is a space-saving wall-mounted or built-in fireplace designed to add tall, high-contrast flames and supplemental warmth to living rooms, bedrooms, and media spaces. Its ultra-slim profile fits flush into standard 2x4 walls and is available in 36–60 inch widths.

Features

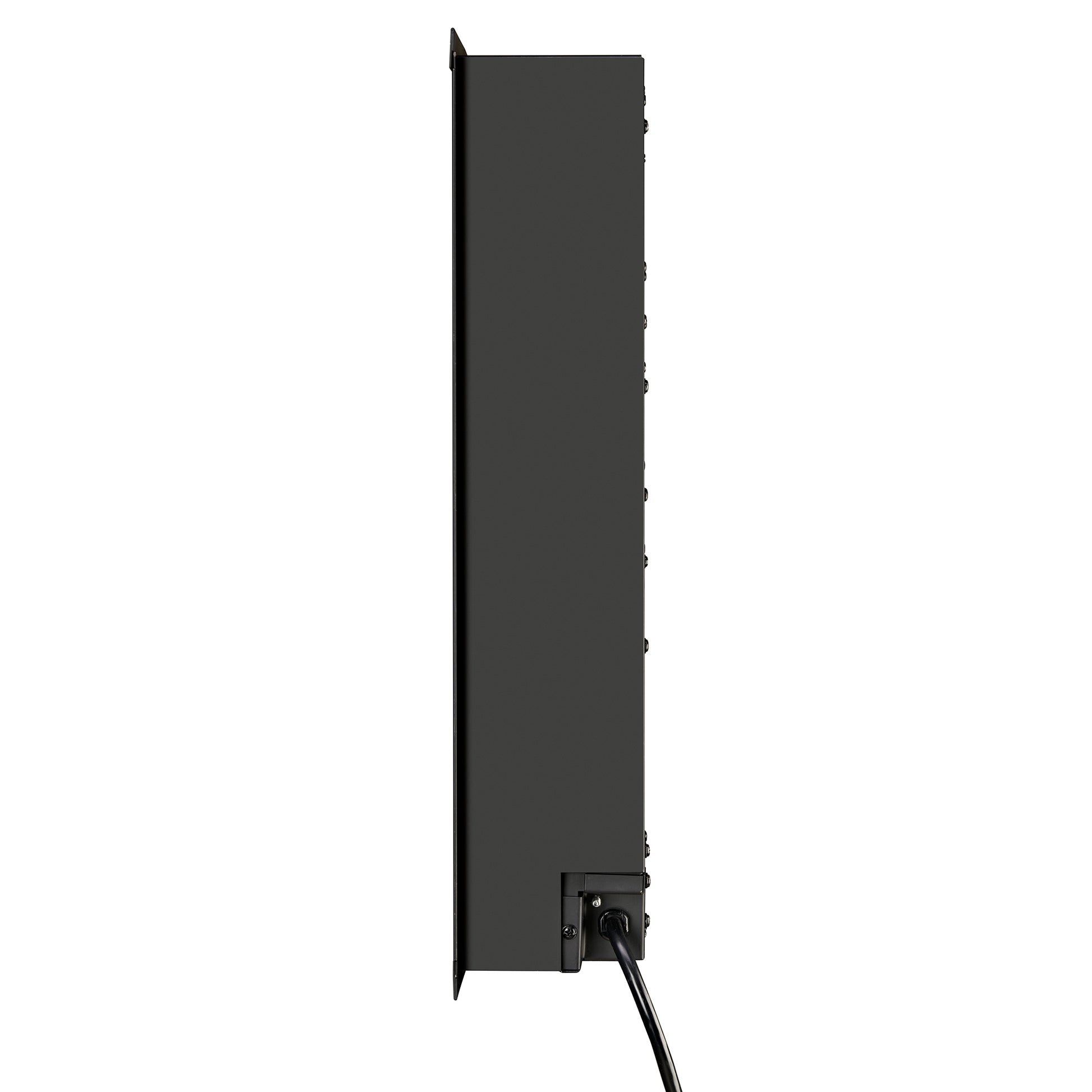

• With a slim depth of less than 4in, this fireplace fits flush into a standard 2x4in wall

• While the profile is slim, the patented Dimplex mirror effect provides the illusion of depth, making the fireplace appear more grand

• Can also be wall-mounted with minimal obtrusion thanks to its slim design

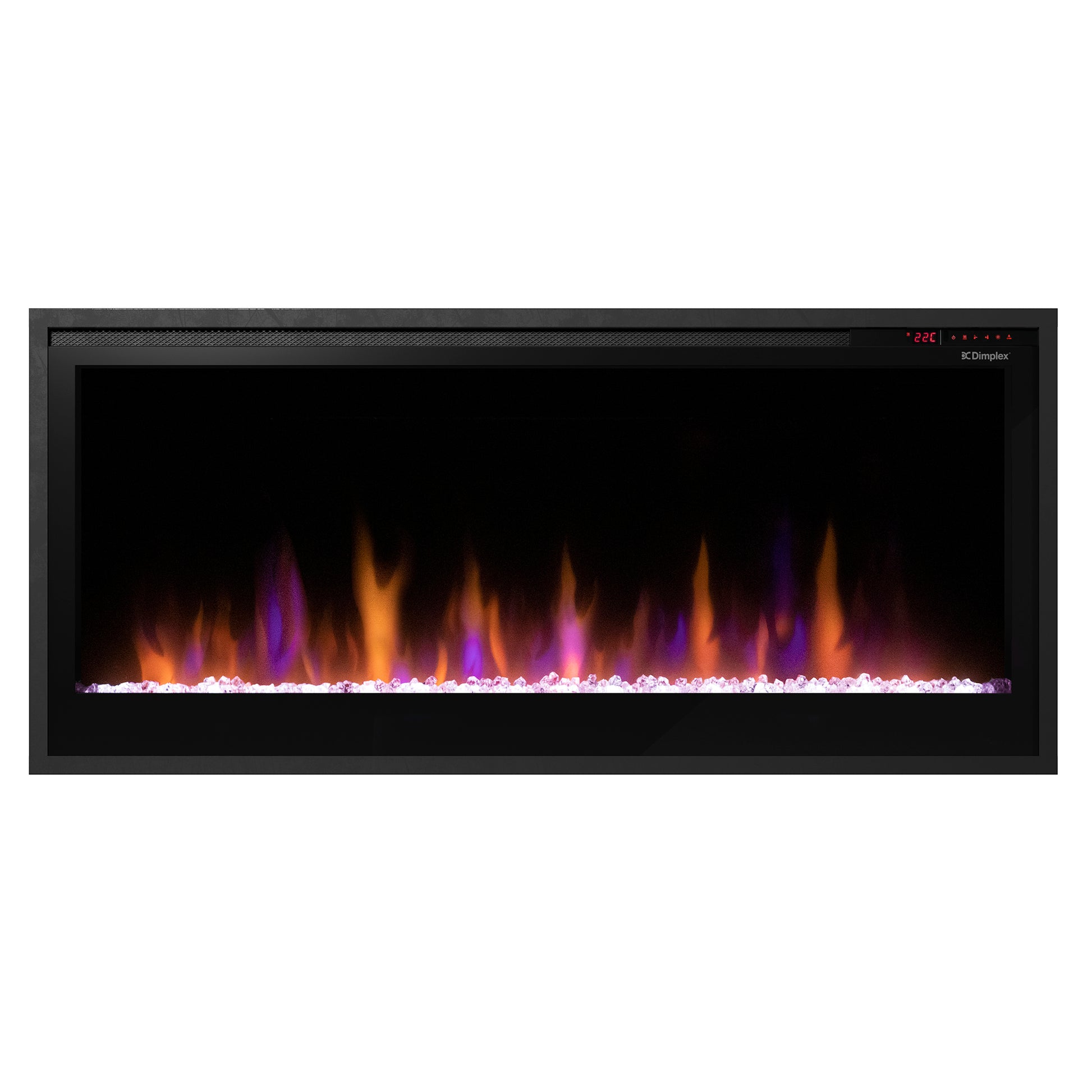

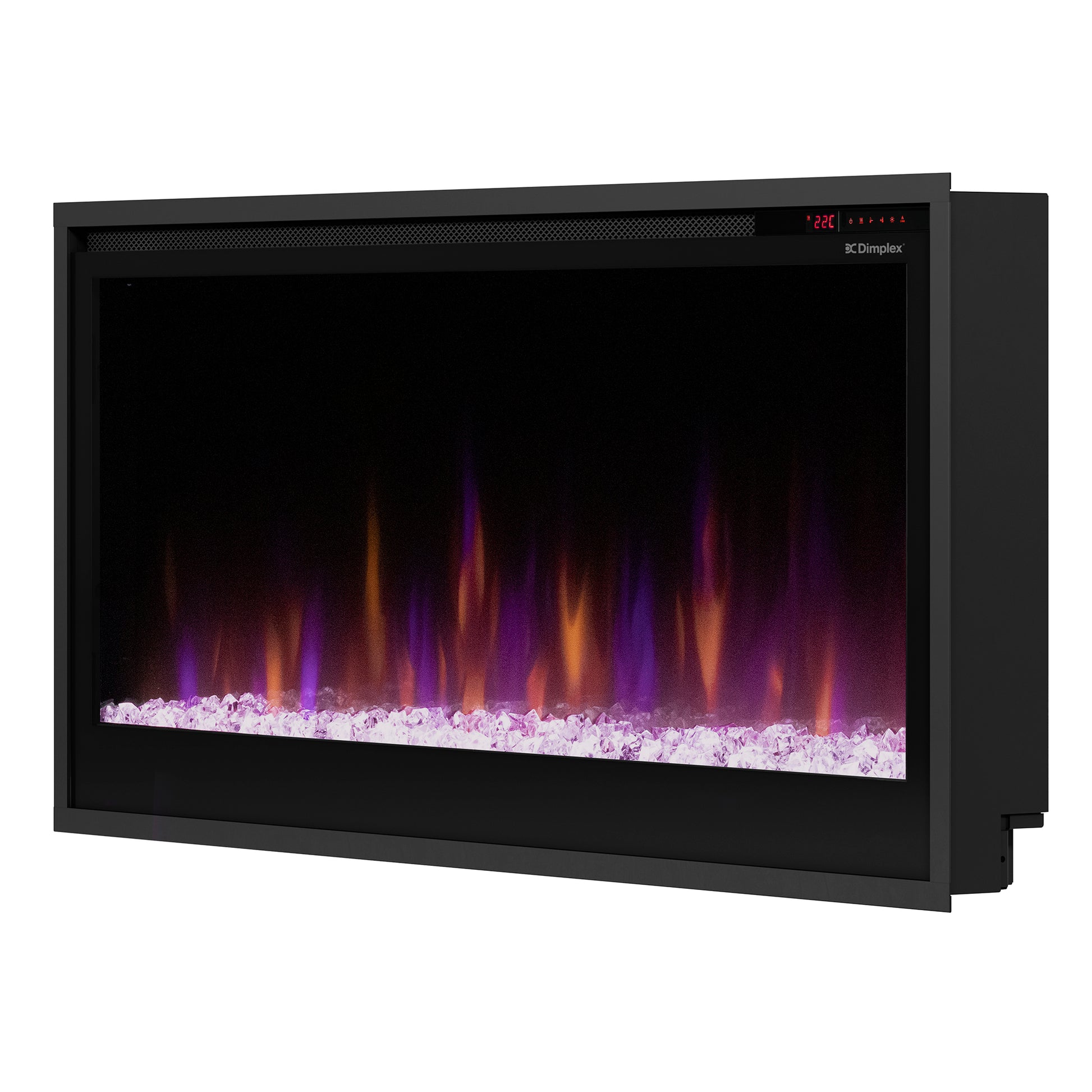

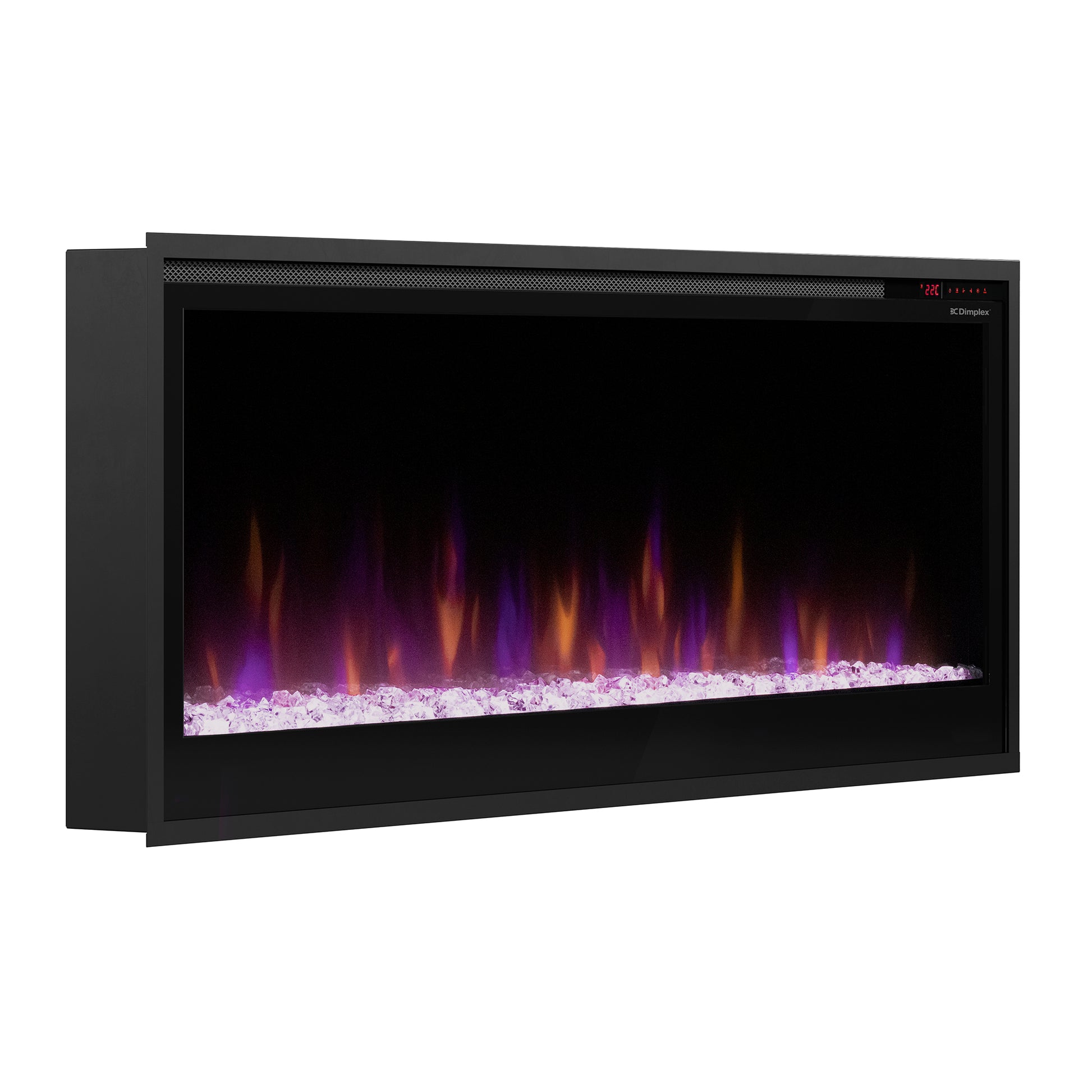

• The Multi-Fire SL effect produces large, high-contrast flames with multi-layered color effects, creating a sense of depth and dimension for a dazzling lifelike effect

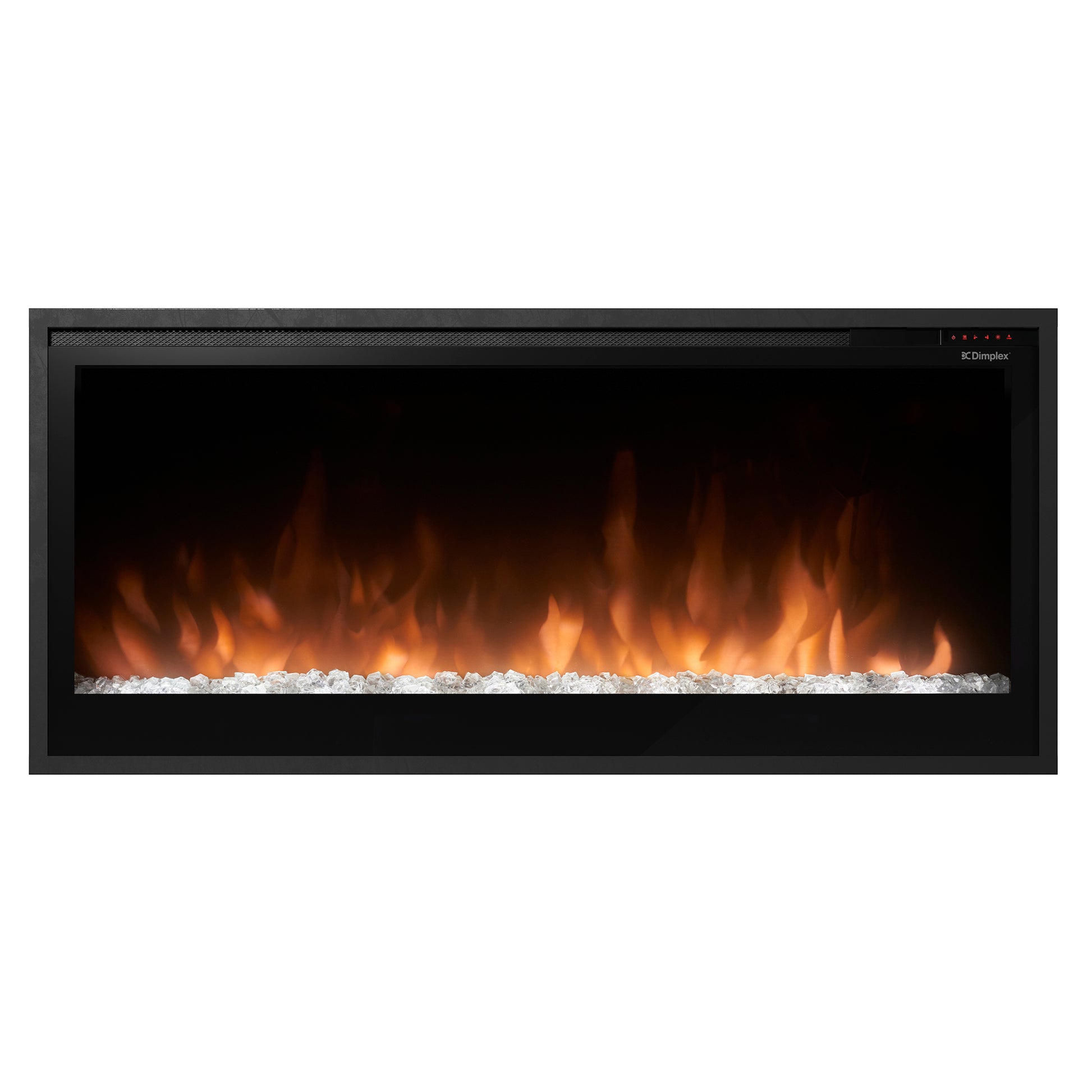

• 7 flame theme options: blue, orange, neutral, neutral with orange and blue accents, neutral with orange accents, neutral with blue accents, orange and blue combined

• Adjust the speed of the flame with 5 speed settings to create the perfect atmosphere to suit your mood or room

• Choose from 5 media color options: white, blue, violet, red, and green.

• Alternate between 3 media modes, including prism (media and overhead lights cycle through colors), kaleidoscope (media and overhead lights cycle through colors at different rates), and midnight mode (media and overhead lights are off)

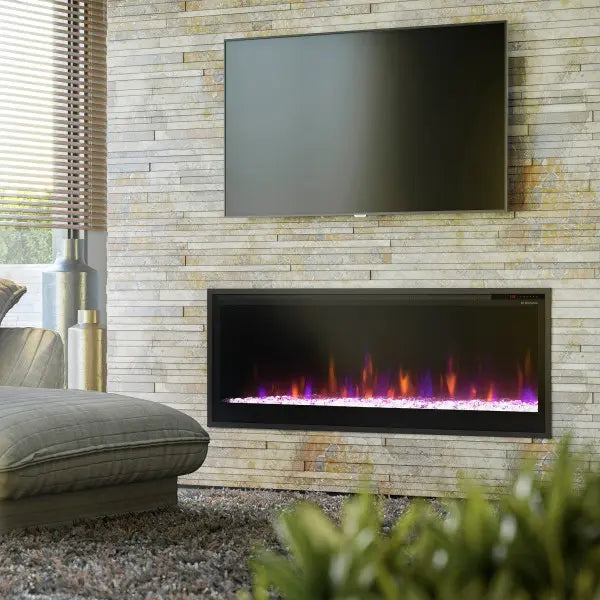

• Activate midnight mode to reduce glare on televisions installed above the fireplace

• Compatible with the Flame Connect app to let you control your fireplace from your phone. The flame connect app takes the remote options and makes the customization endless, including personalized flame and heat controls.

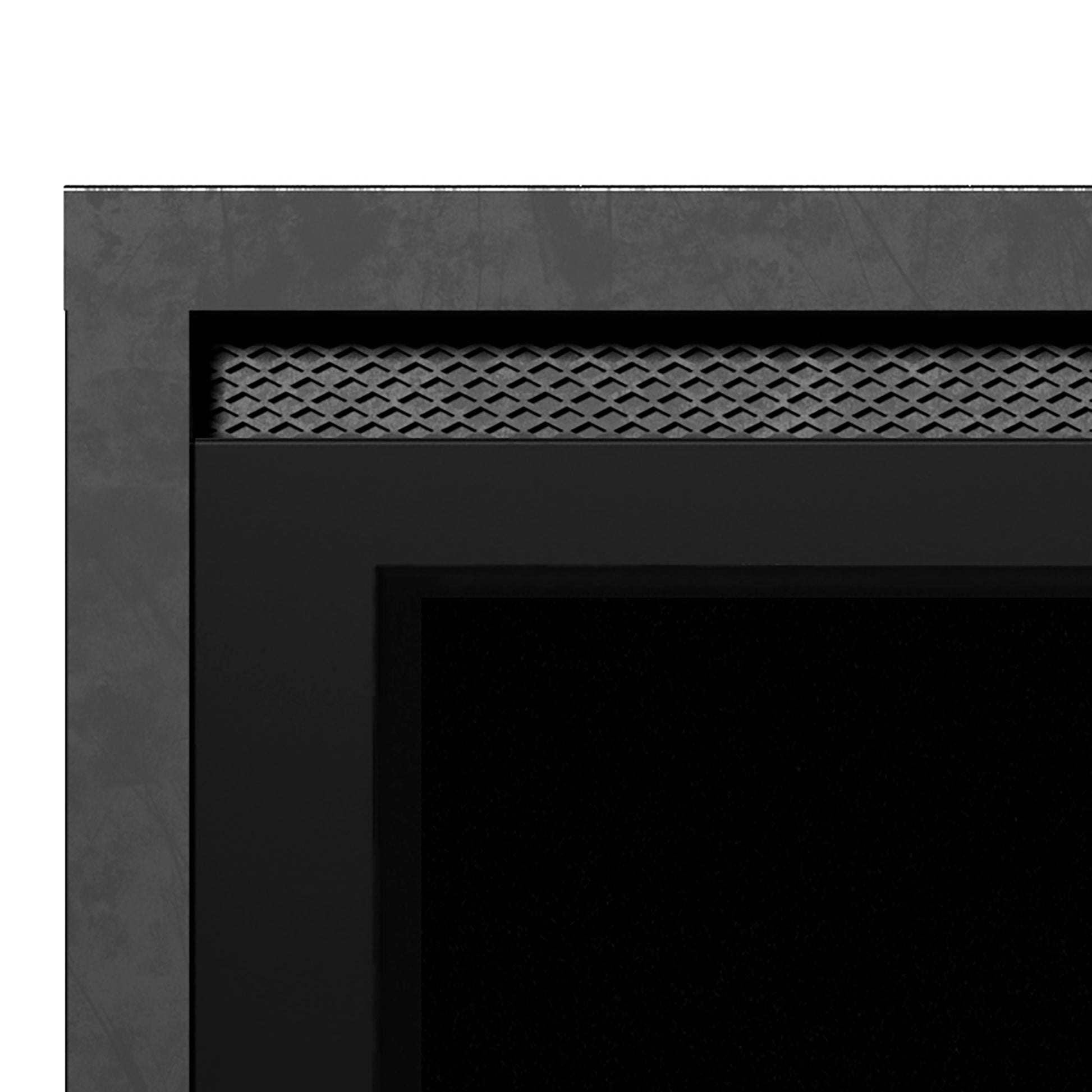

• Removable factory-installed trim allows custom wall finish materials to be placed right up to the edges for a seamless look

• Powerful fan-forced heater provides on-demand heat up to 1,000 square feet

• Enjoy the ambiance of a fire during the warmer months by deactivating the heater via the controls

• Fireplace heater can be permanently disabled by removing the electronic jumper on the main control board

• As the flames do not emit heat, the front glass remains cool to touch, ensuring safety for children and pets

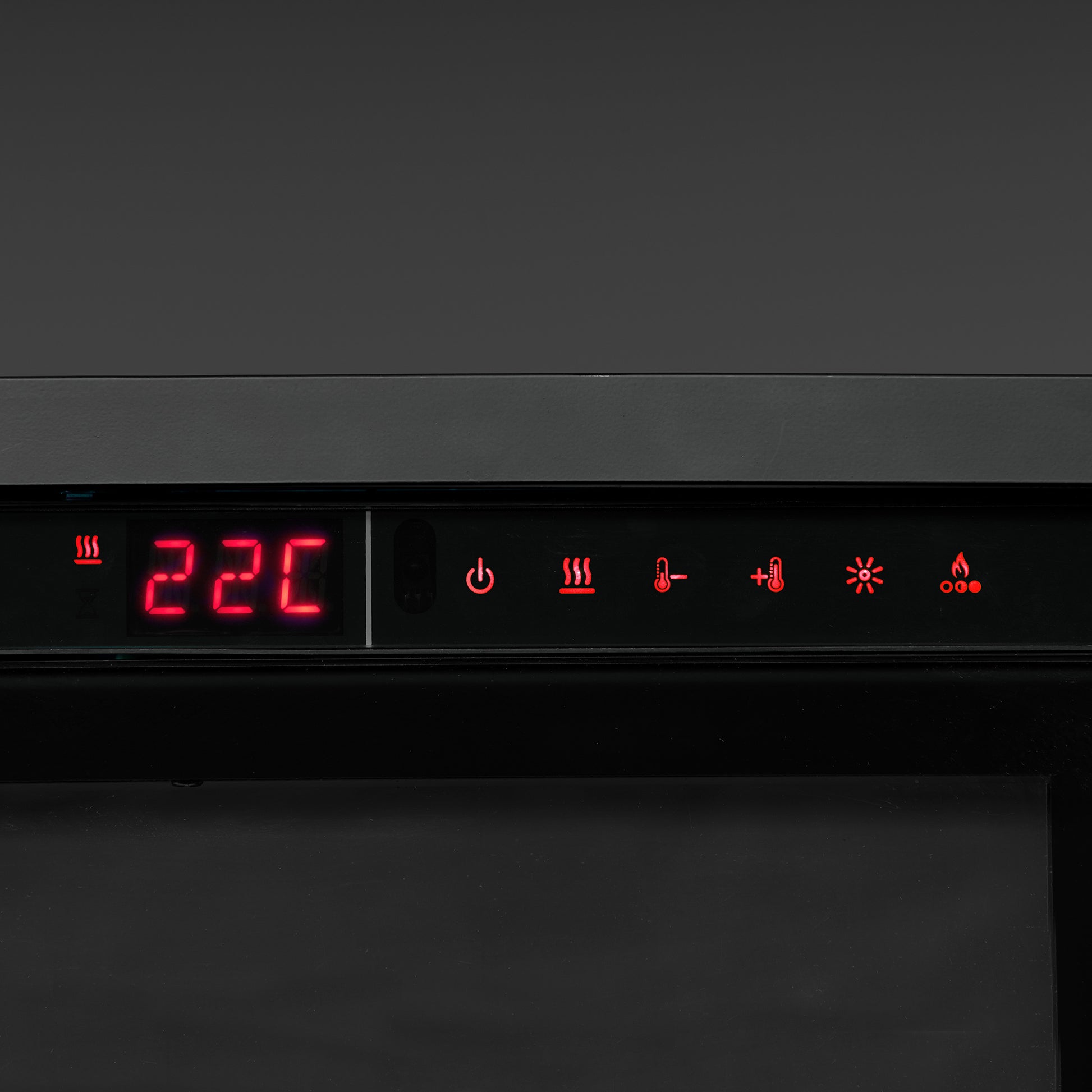

• Integrated smart self-diagnostic technology works behind the scenes to assist in the diagnosing of issues by indicating a particular code on the LED display, which can be provided to service providers or customer experience representatives to assist with problem-solving and ordering parts

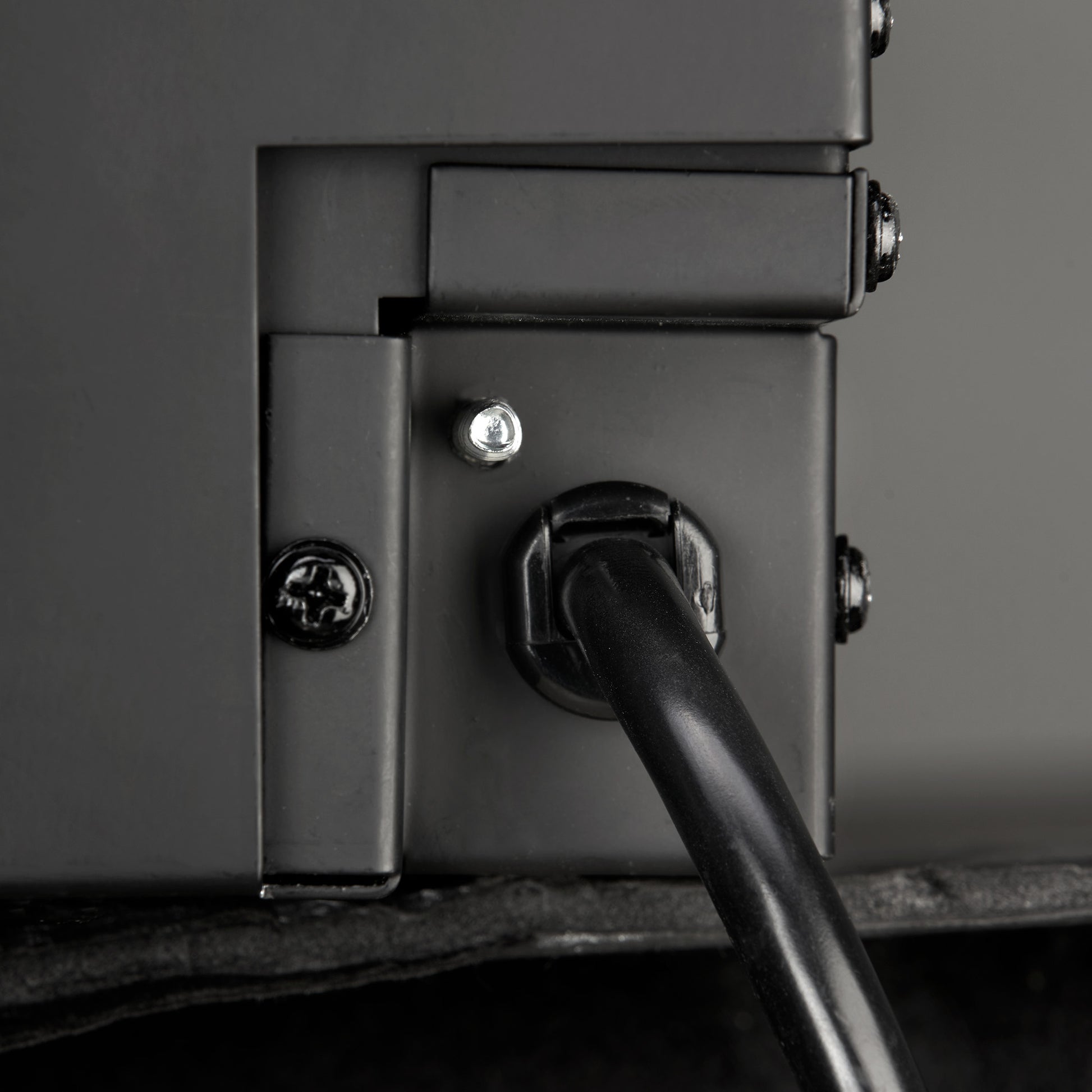

• Hardwire to 120V power supply or purchase an optional 120V plug-in cord kit (PLFXSPLUG)

• 2-year limited warranty


Key Technical Specifications

• Voltage: 120
• BTU: 5118
• Product Height: 19.64"
• Product Depth/Length: 3.88"
• Product Width:
  • 36" Model: 37.25"
  • 42" Model: 43.25"

  • 50" Model: 51.25"

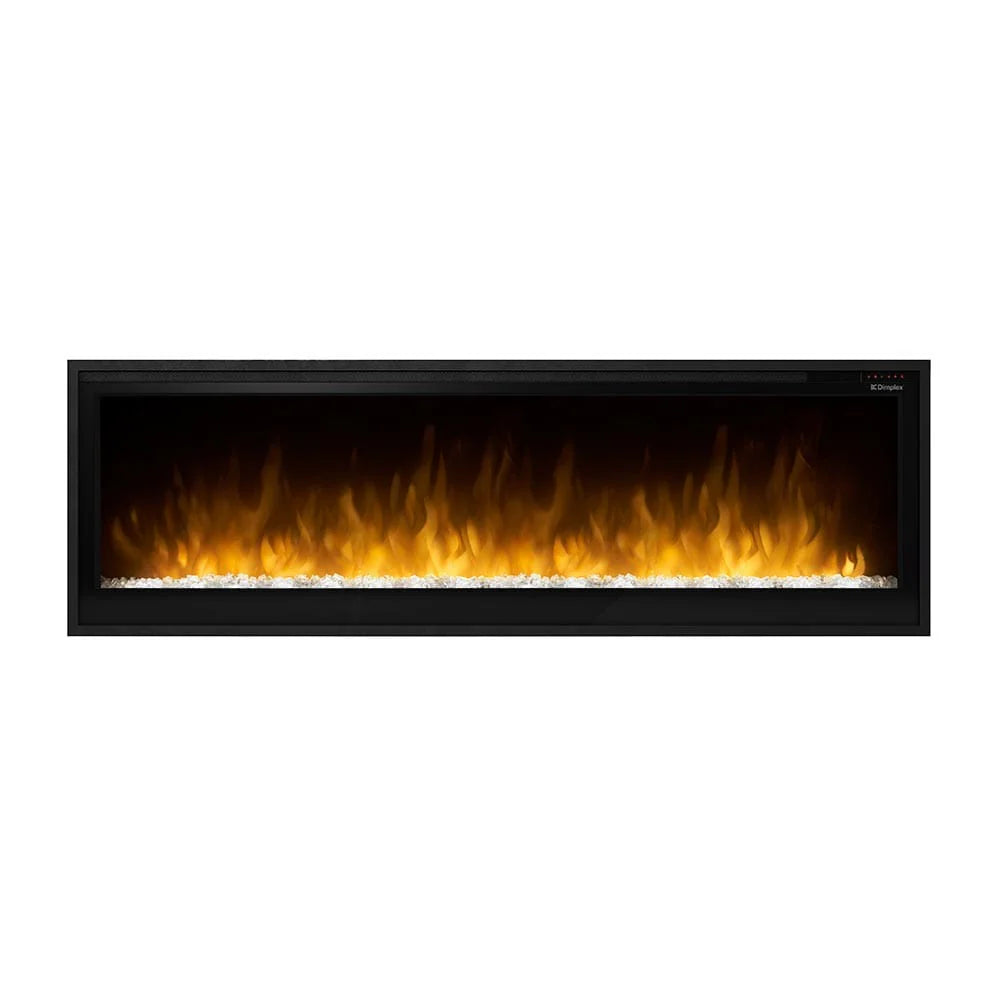

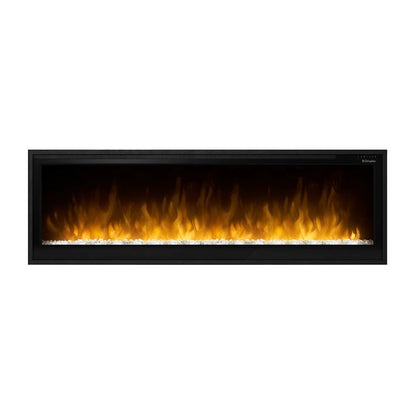

  • 60" Model: 61.25
• Wattage / Amps: 1500 W / 12.5 AMPs
• Timer: Yes
• Heat Vent Location: Front
• Adjustable Brightness: Yes
• Adjustable Flame Speed: Yes

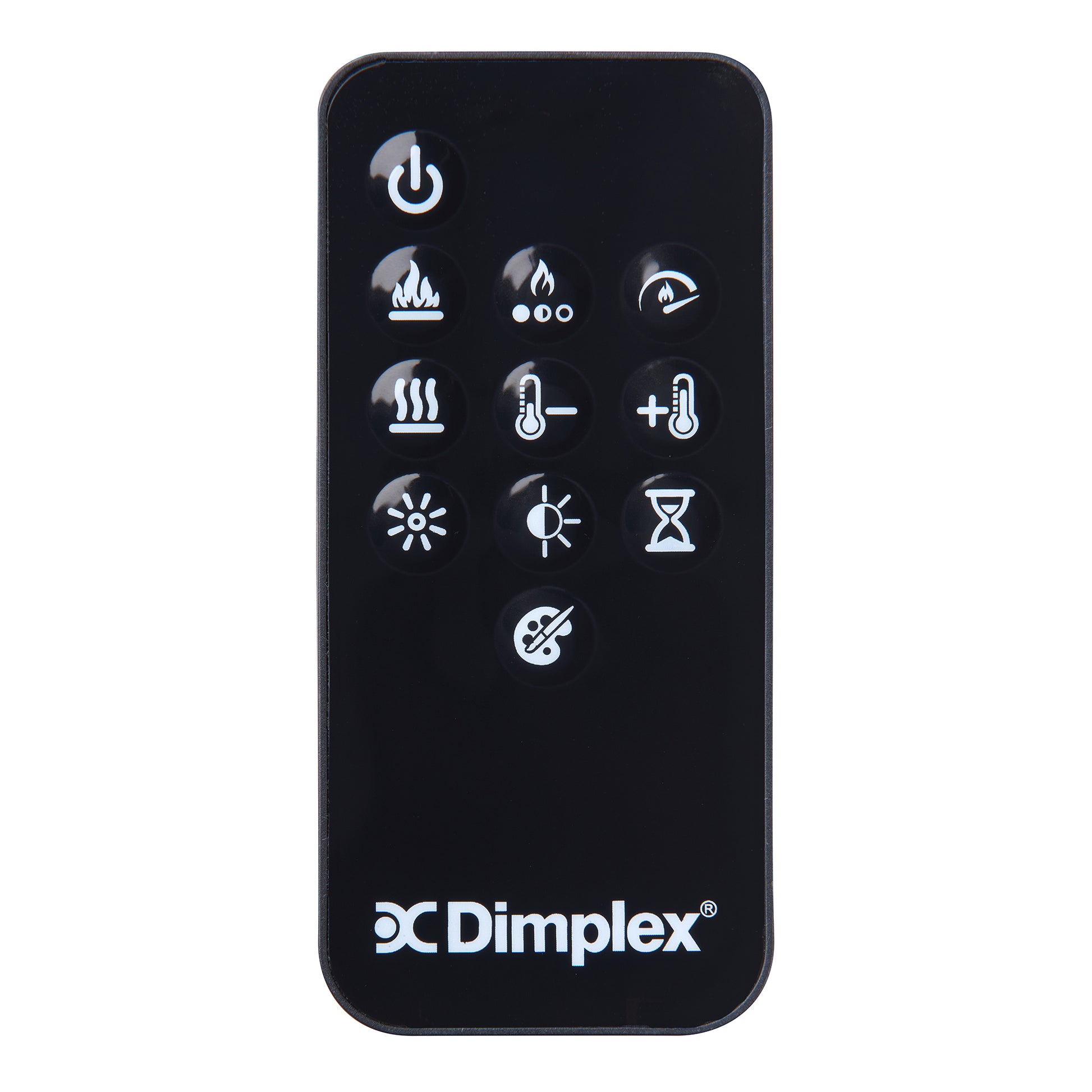

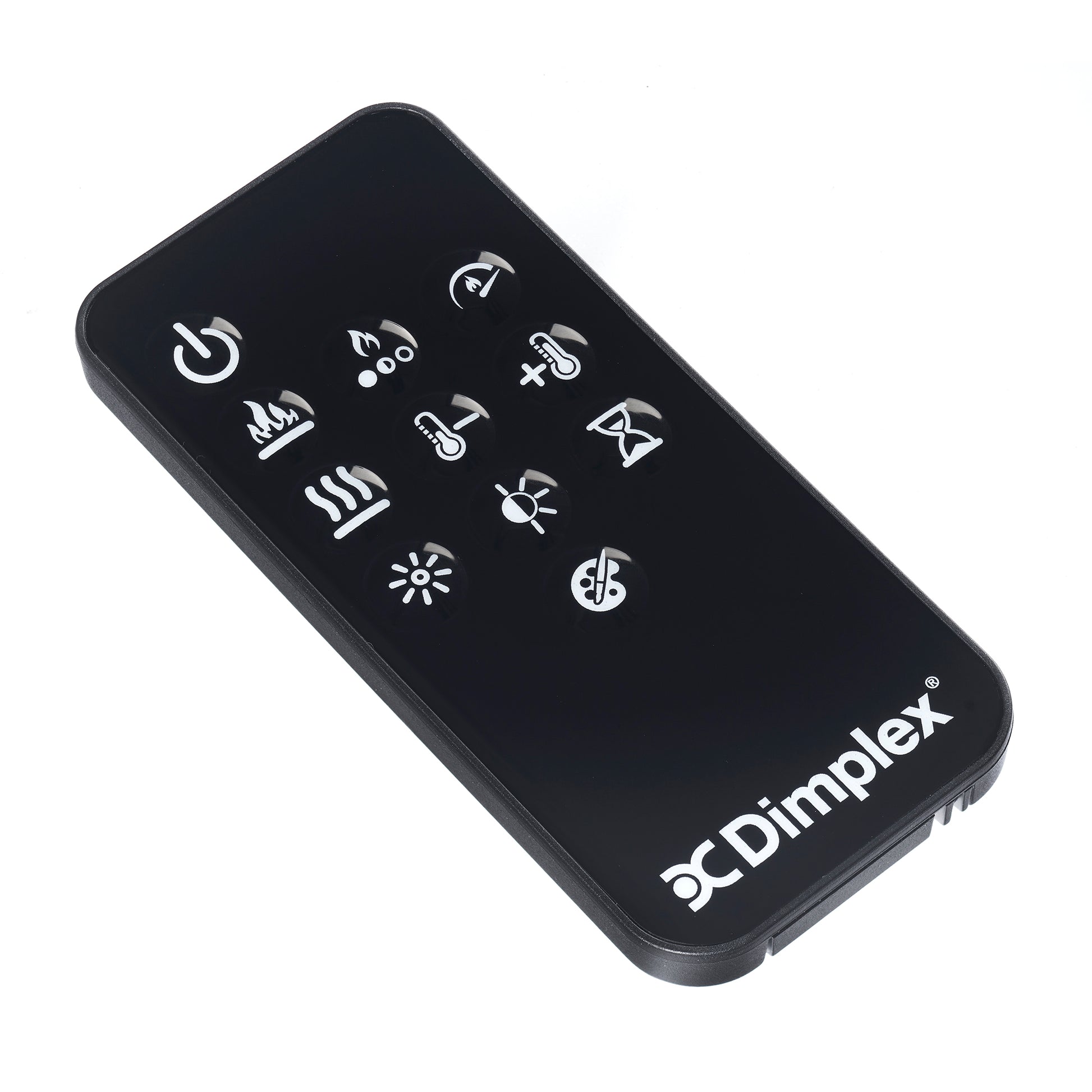

• Remote Control: Yes
• Front Glass Type: Tempered
• Warranty: 2 Yr Limited

Additional Model Fireplace Specifications

• Decibels: 36
• Element Type: Coil Wire
• Battery Size in Remote Control: CR2025
• Battery Technology in Remote Control: Lithium Ion
• Light Bulb Type: LED
• Cut Out Wall Dimensions - Height (in): 19"
