Chery Industrial

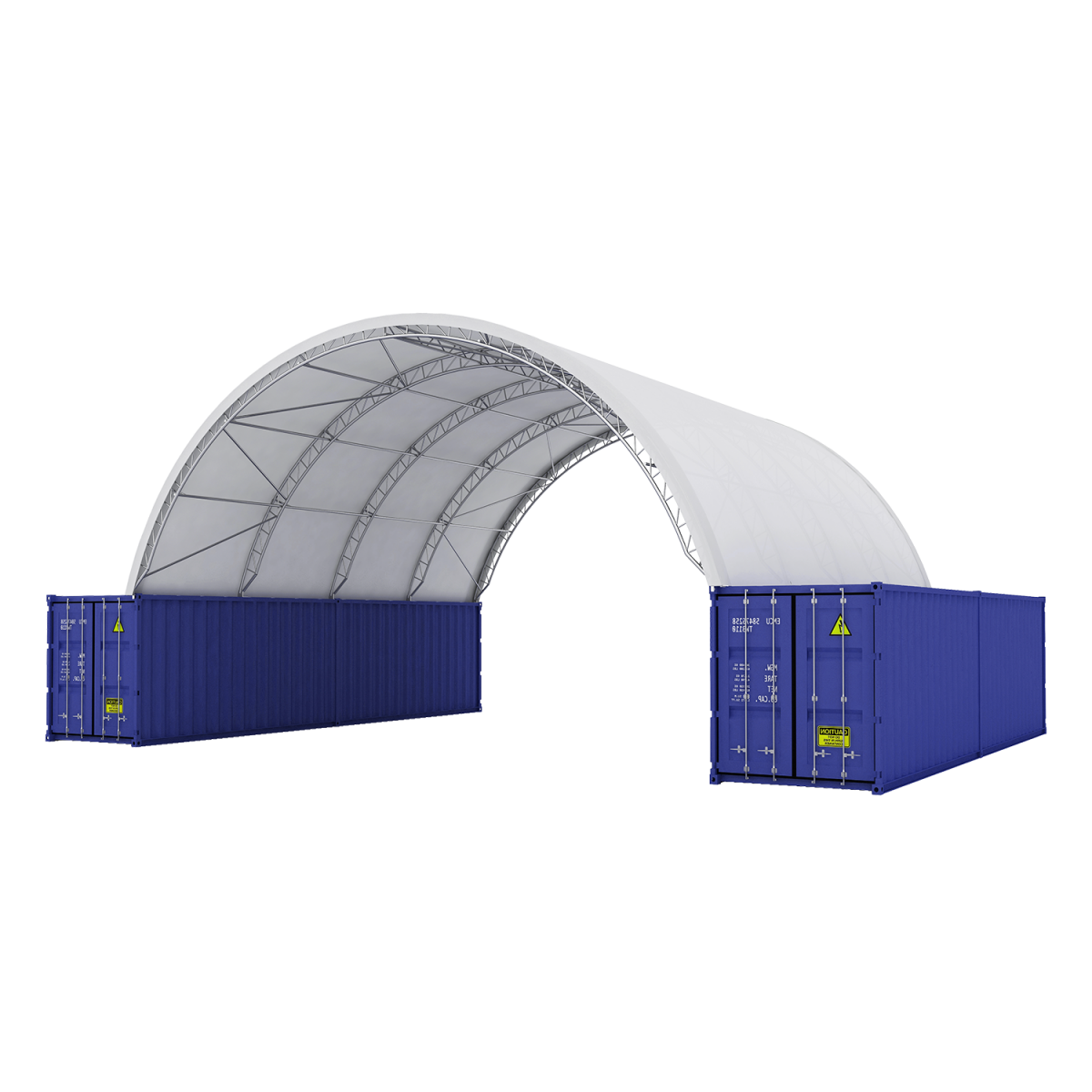

Reinforced 40FT x 40FT x 15FT Double Truss Container Shelter

Reinforced 40FT x 40FT x 15FT Double Truss Container Shelter

SHFDTCS18PVC02

$7,199.00 USD
$7,199.00 USD
Sale Sold out

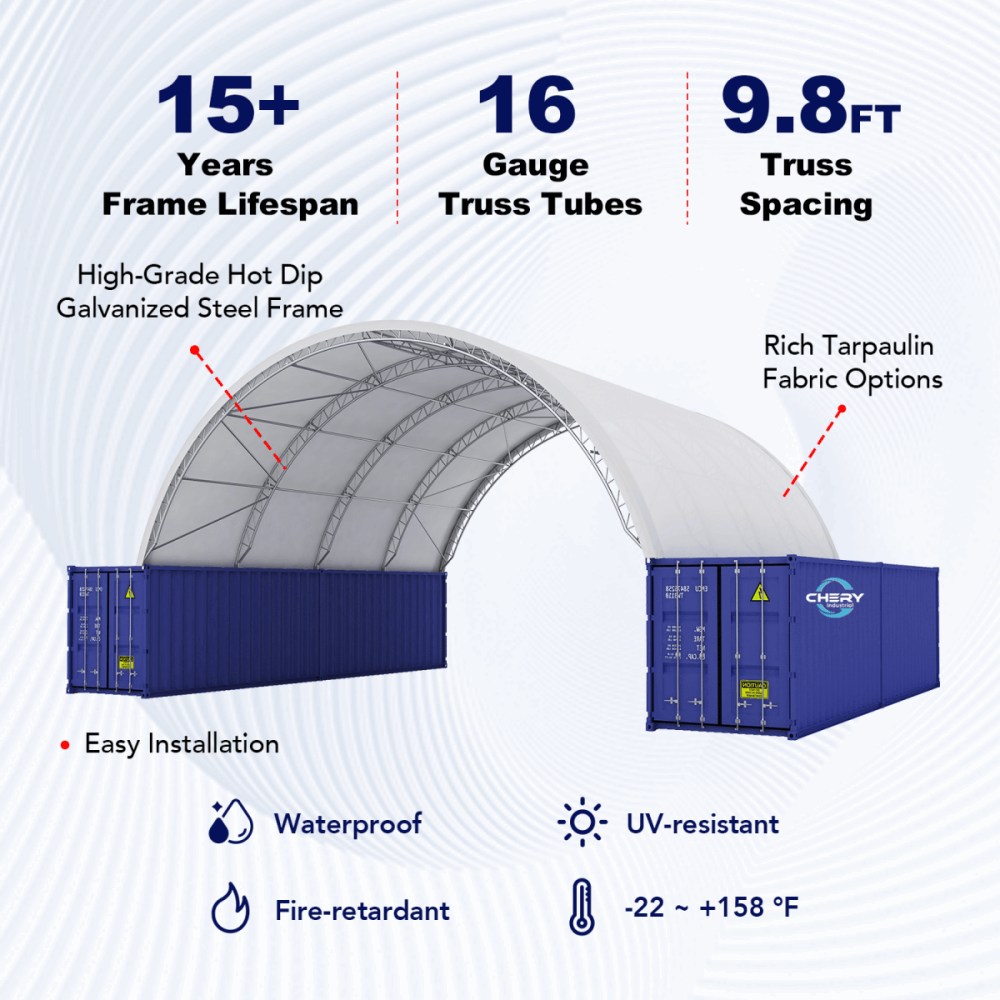

Designed for ultimate strength and durability, the Fortified 40'x40'x15' Double Truss Container Shelter offers unmatched protection for your equipment and materials. Featuring a robust frame with an arch flush with the head and jacket, this shelter is reinforced with diagonal support steel pipes on both sides of the arch, ensuring superior stability against wind and heavy loads. Perfect for industrial, agricultural, or commercial applications, the double truss structure enhances the shelter’s resilience, providing reliable, long-lasting shelter that can stand up to the toughest environments.

Installation Manual

Fortified 40'x40’'x15' Double Truss Container Shelter



Shelter-Certificate-Logo



Specification

Description Specifications
Model C404015 Fortified Container Shelter

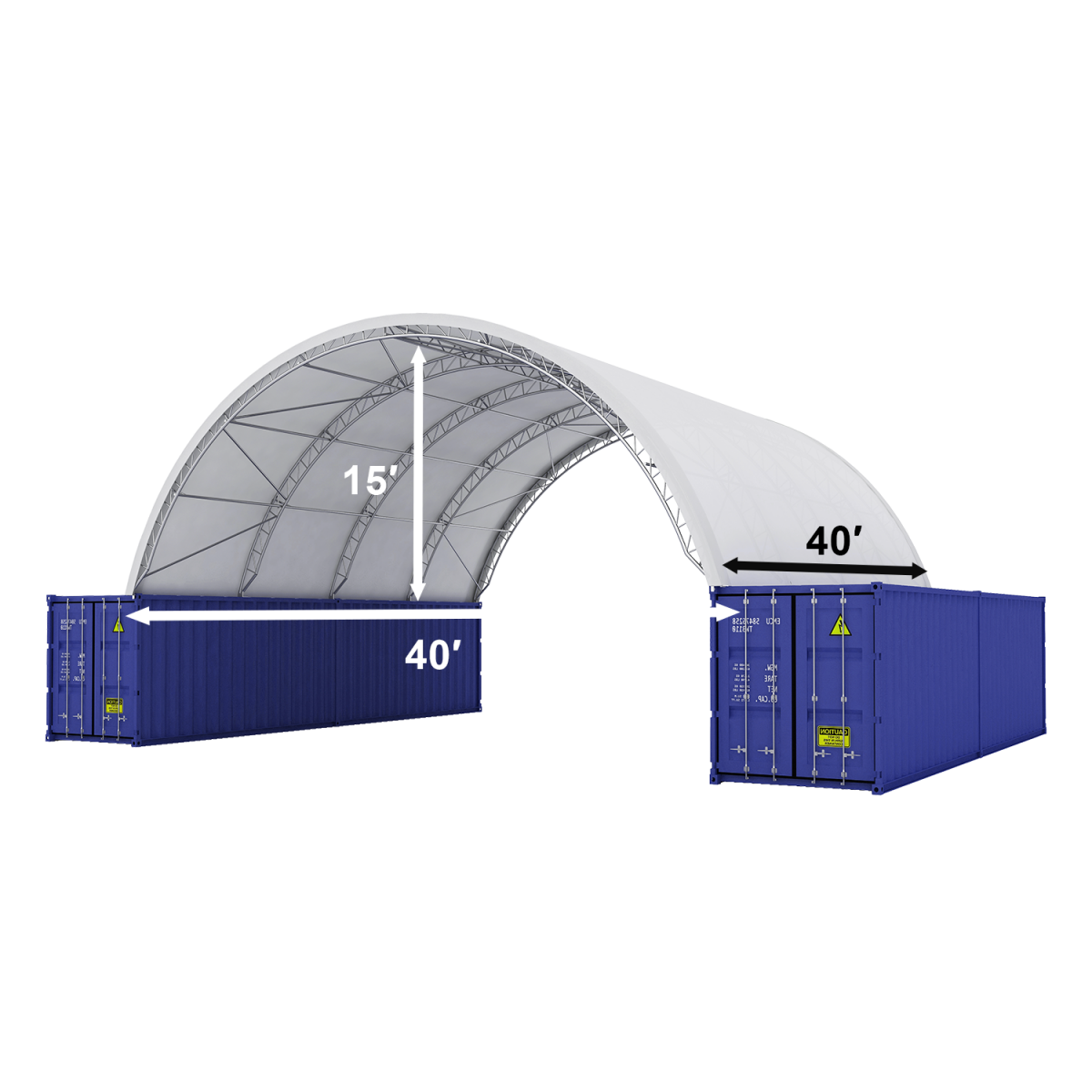

Dimension (ft) W40xL40xH15
Frame Double Truss Galvanized Tube
Steel Structure High-Grade Hot Dip Galvanized Steel
Fabric
  • Economical - 11oz/m²(300 gsm) Polyethylene (PE) Tarpaulin Fabric
  • Heavy Duty - 15oz/m²(450 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 22oz/m²(610 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
Fabric Feature Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property
Temperature Resistance -22 - +158 °F
Front/back walls (optional)
  • Front Panel
  • Rear Panel
Arch Interval 9.8 ft
Arch Ø (mm) Ø60x1.5
Purlin Ø (mm) Ø48x1.5
Tension System Pipe and Ratchet Tie-Down System
Easy Installation Twist lock and clamp installation
Weld Base plates need to be welded on the Containers.
Average assembly time for DIY with 4 persons
  • Shelter: 2 days
  • Front or back wall: ½ day per wall
Safety The tarpaulin is PFAS-free and EU REACH compliant.
Tarp Lifespan 7-10 years, depending on the type of fabric and environmental conditions.
Frame Lifespan 15+ years
Warranty
  • PE: 2 Years Warranty
  • PVC: 8 Years Warranty

Note

  • The term “lifespan” refers to the durability of the materials themselves, not to the installation of the canopy structure.
  • The assembled canopy's structural integrity may be impacted by sudden weather changes (e.g., high winds, heavy snow, rain). Always check the forecast and consider the described limitations.
  • Snow-state (Such as Alaska, Colorado, Vermont, etc)customers are strongly advised to opt for double-truss framing.

Package Size

  • LxWxH (inch):
  • Weight (lb):
  • A forklift or equivalent is required for unloading.

Part Service

  • Front Panel
  • Back Panel
  • Cover Replacement
