Rectangle Flat Burner Pan Kit - H Burner - 24V

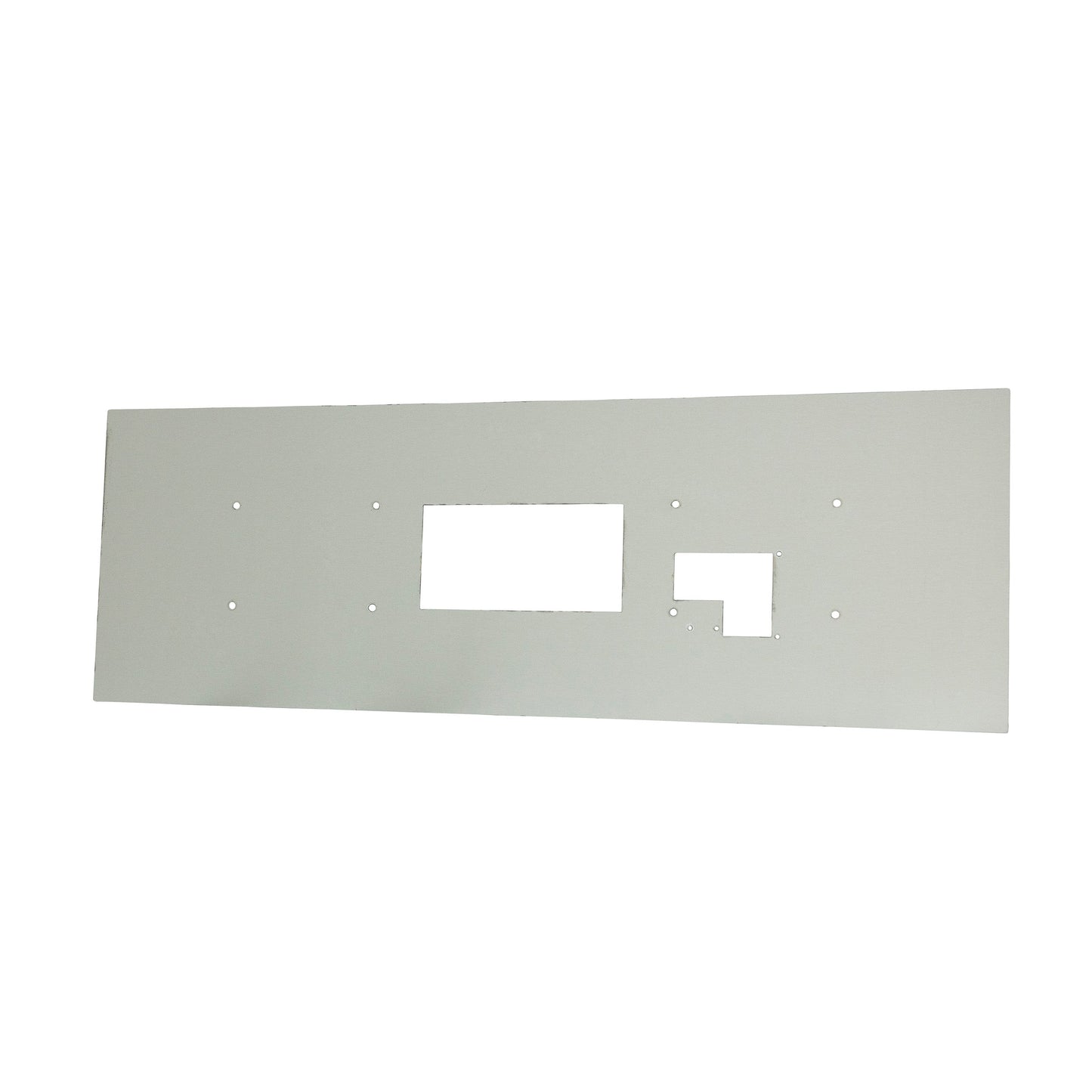

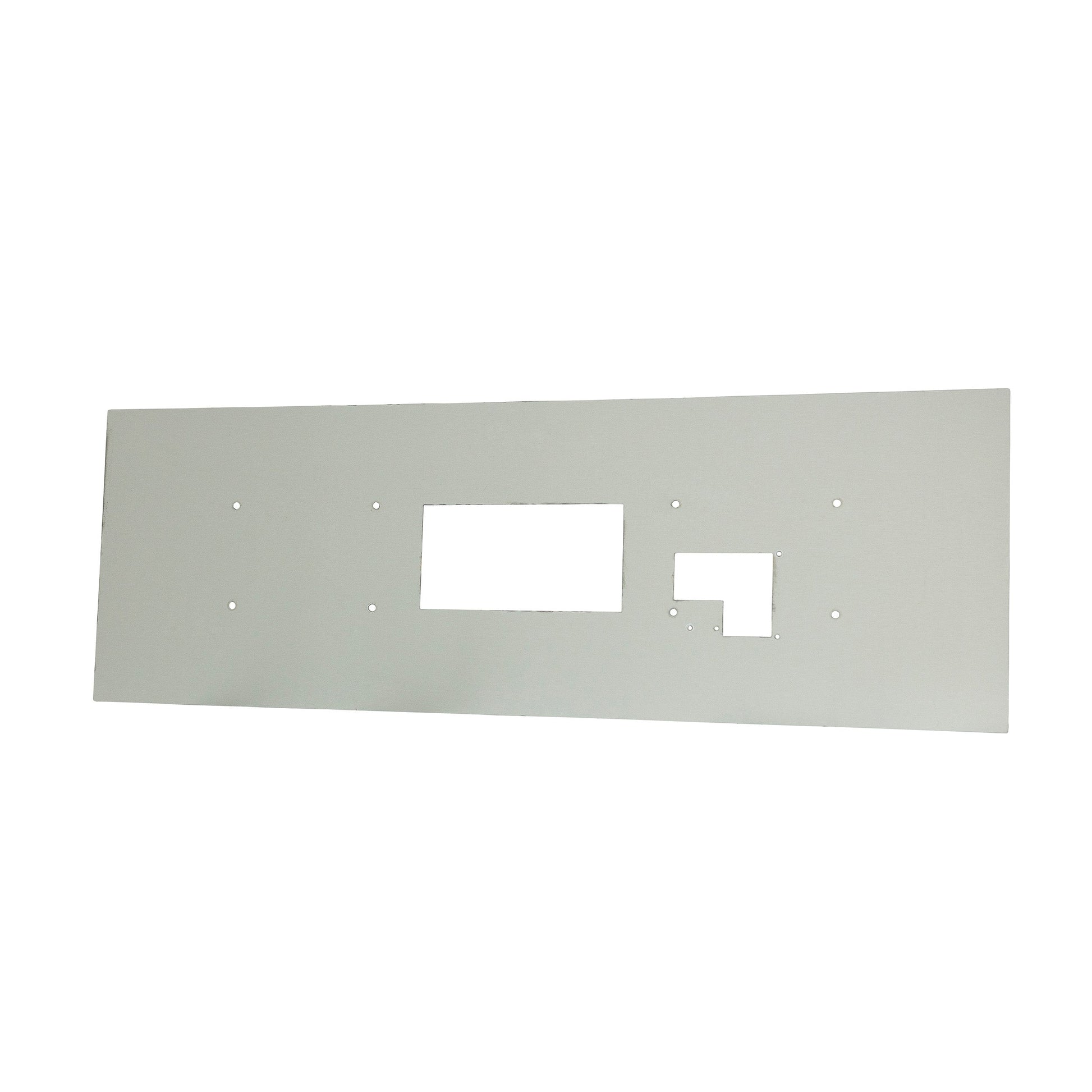

24" x 12" Rectangle Aluminum Flat Burner Pan with Opening for Pilot Burner

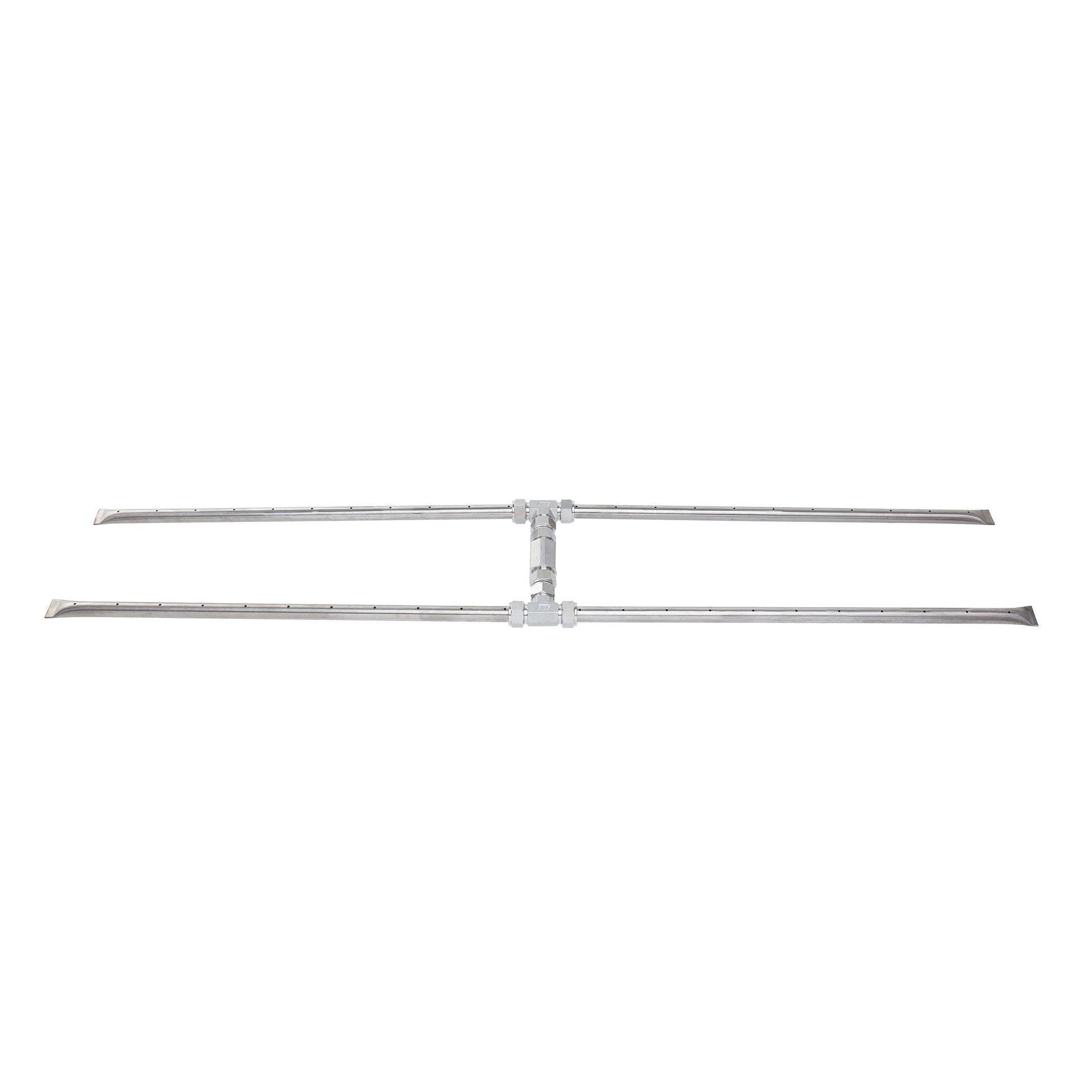

• 12" x 4" Retro "H" Burner - 34K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice of LP Air Mixer

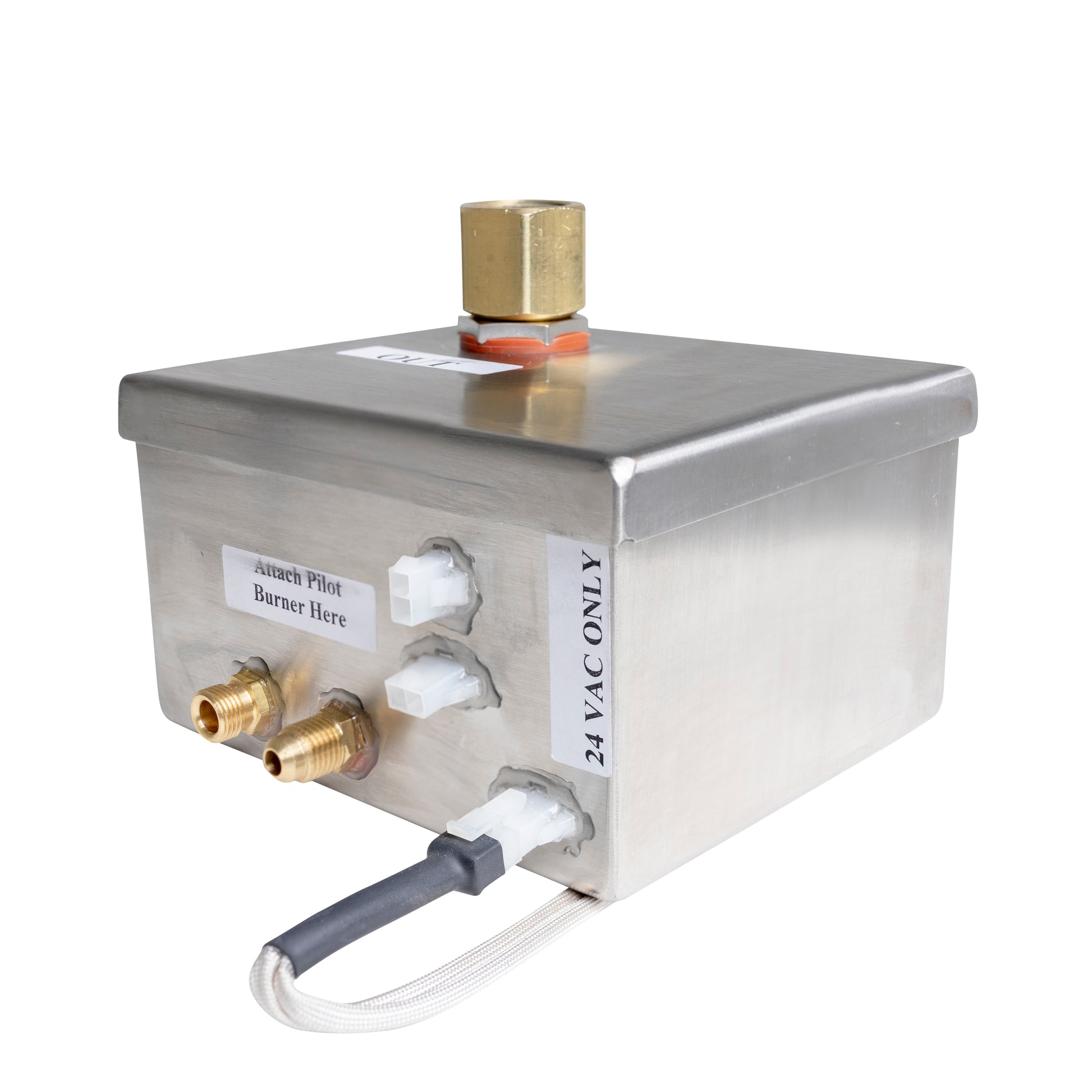

• AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Includes 24V Safety Backup Valve
• 24V Transformer; (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 25lbs of Fire Glass / 2 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

36" x 12" Rectangle Aluminum Flat Burner Pan with Opening for Pilot Burner

• 24" x 4" Retro "H" Burner - 68K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Includes 24V Safety Backup Valve
• Includes 24V Transformer; (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 38lbs of Fire Glass / 2 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

48" x 6" Rectangle Aluminum Flat Burner Pan with Opening for Pilot Burner

• 36" x 4" Retro "H" Burner - 102K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Includes 24V Safety Backup Valve
• Includes 24V Transformer; (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 51lbs of Fire Glass / 3 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

60" x 12" Rectangle Aluminum Flat Burner Pan with Opening for Pilot Burner

• 48" x 4" Retro "H" Burner - 136K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Includes 24V Safety Backup Valve
• Includes 24V Transformer; (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 63lbs of Fire Glass / 4 Bags of Lava Rock / 1 Bags of Rolled Lava Stone


72" x 12" Rectangle Aluminum Flat Burner Pan with Opening for Pilot Burner

• 60" x 4" Retro "H" Burner - 170K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Includes 24V Safety Backup Valve
• Includes 24V Transformer; (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 76lbs of Fire Glass / 4 Bags of Lava Rock / 2 Bags of Rolled Lava Stone


84" x 12" Rectangle Aluminum Flat Burner Pan with Opening for Pilot Burner

• 72" x 6" Retro "H" Burner - 204K BTU's (316 Stainless Steel)
• 3/4 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Includes 24V Safety Backup Valve
• Includes 24V Transformer; (1) 24" Flex Line 3/4" with 1/2" x 3/4" Reducer
• Note: Holds 89lbs of Fire Glass / 5 Bags of Lava Rock / 2 Bags of Rolled Lava Stone


96" x 12" Rectangle Aluminum Flat Burner Pan with Opening for Pilot Burner

• 84" x 6" Retro "H" Burner - 238K BTU's (316 Stainless Steel)
• 3/4 Gas Inlet with NG Orifice
• AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas
• Includes 24V Safety Backup Valve
• Includes 24V Transformer; (1) 24" Flex Line 3/4" with 1/2" x 3/4" Reducer
• Note: Holds 102lbs of Fire Glass / 6 Bags of Lava Rock / 2 Bags of Rolled Lava Stone
