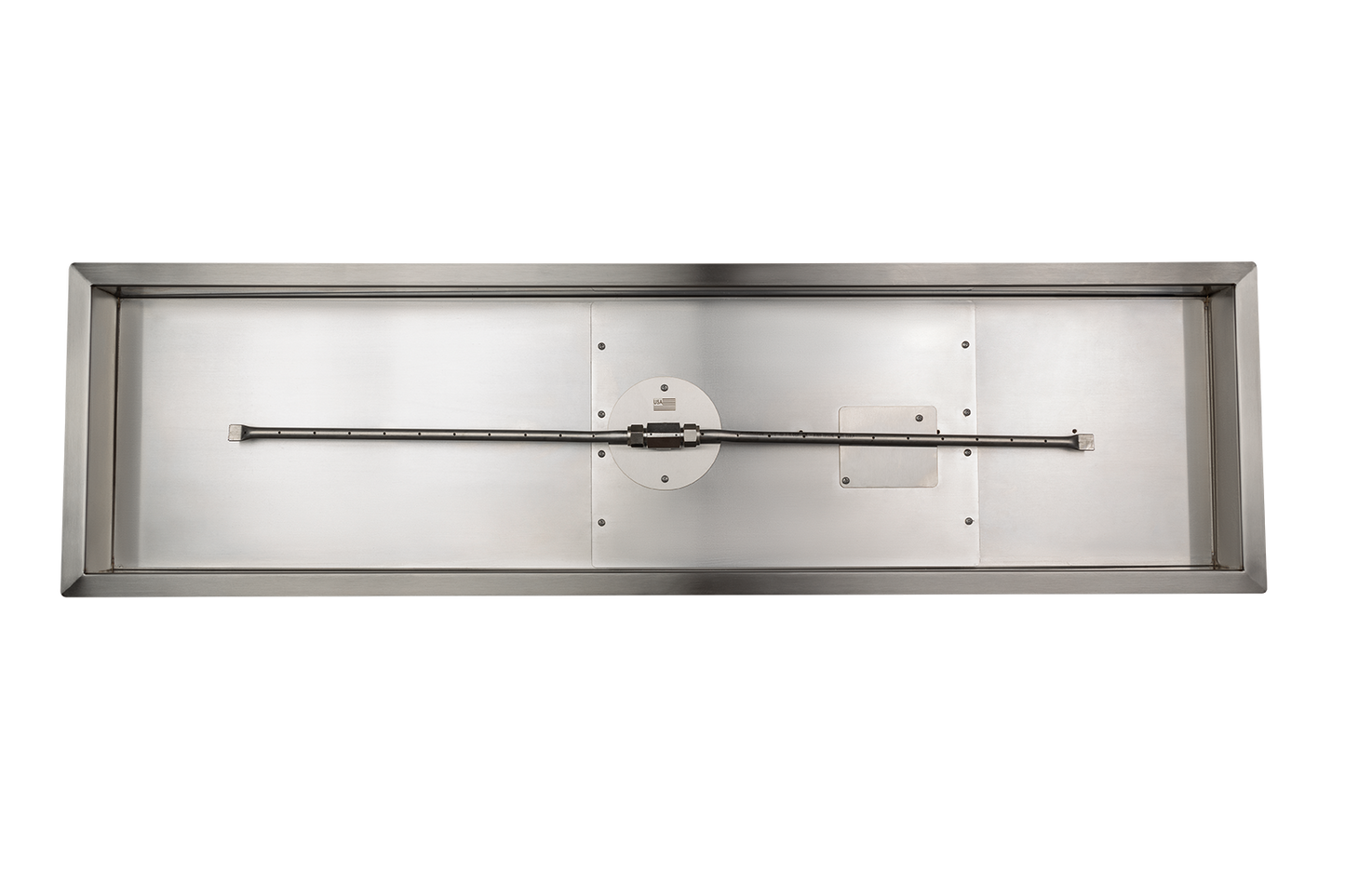

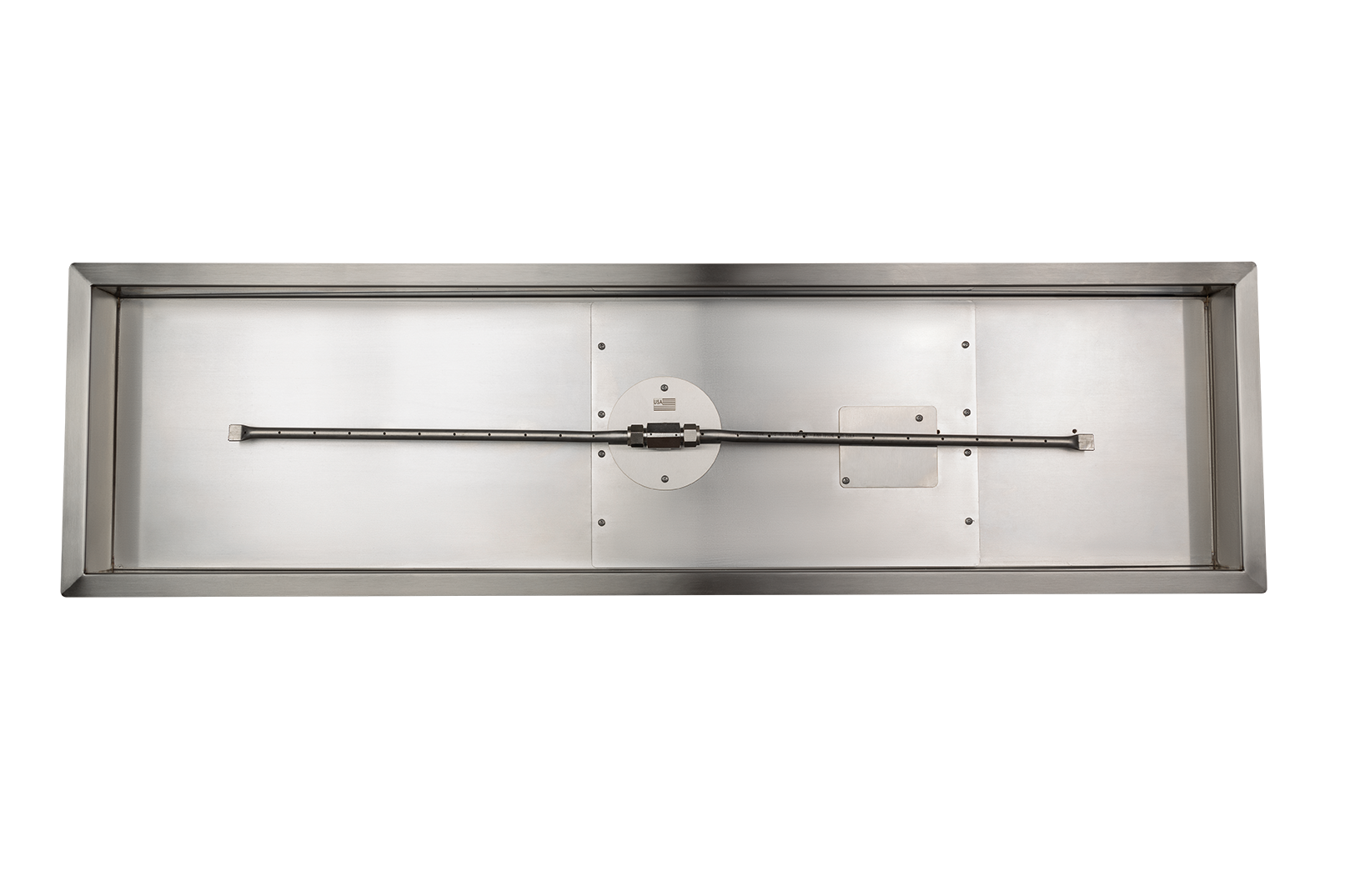

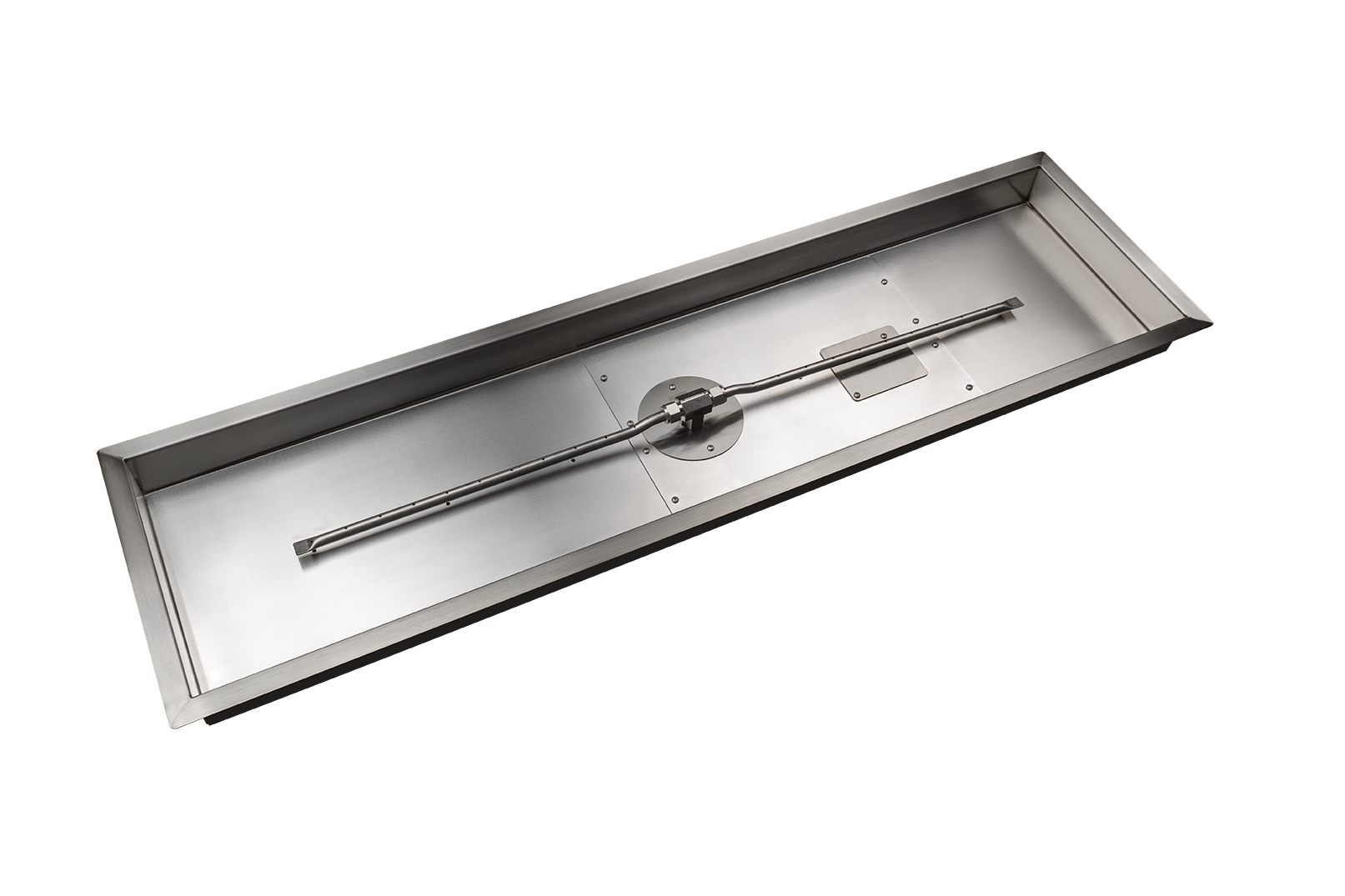

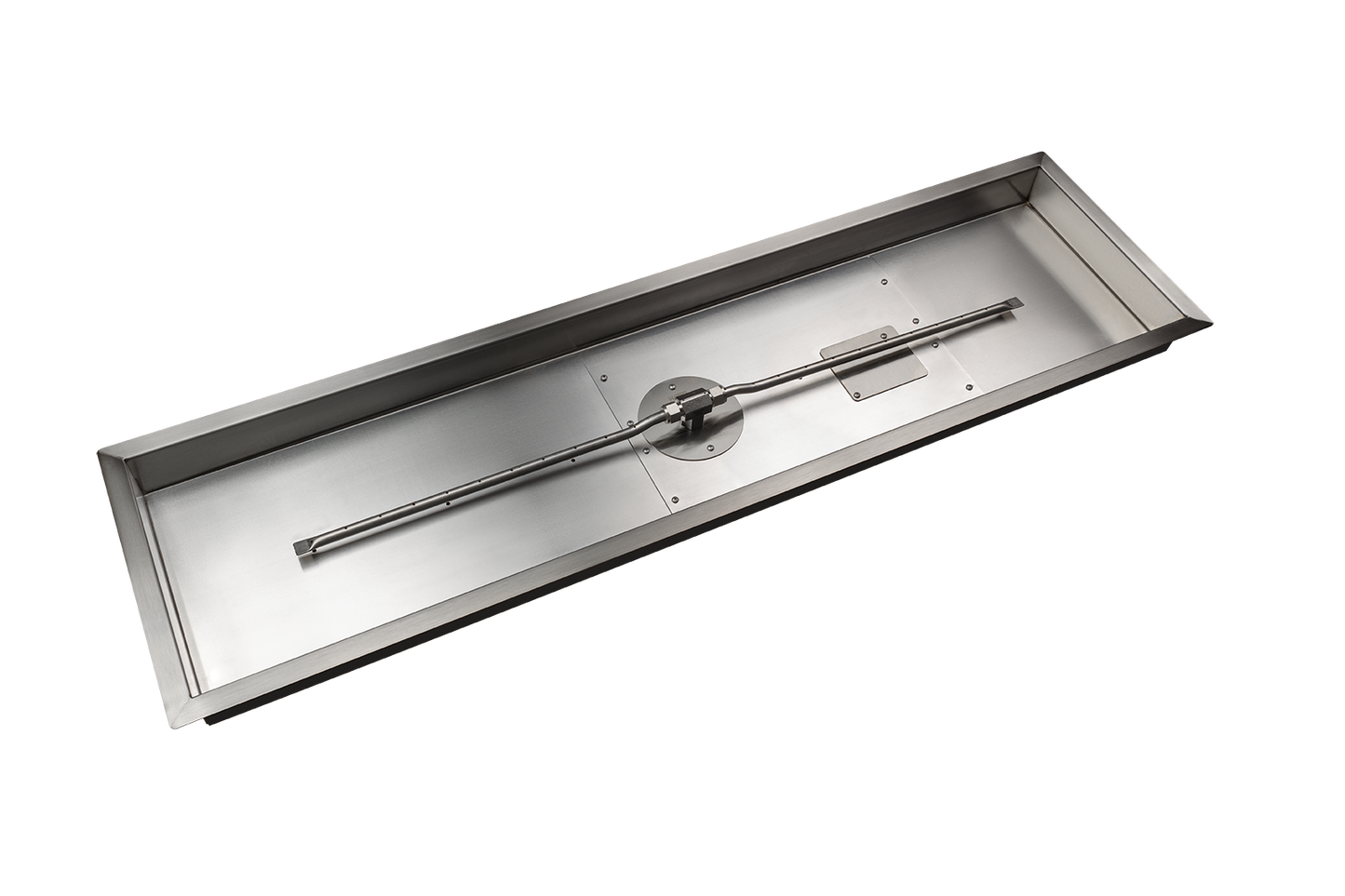

Rectangle Drop In Burner Pan Kit - T Burner - Battery Ignition

24" x 6" Rectangle Drop In Burner Pan with Opening for Pilot Burner (26" x 8" OD)

• 12" Single Linear Burner - 17K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• Battery Powered Ignition System Kit
• Natural Gas or Liquid Propane
• Includes (1)18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 12lbs of Fire Glass / 1 Bags of Lava Rock / 1 Bag of Rolled Lava Stone


36" x 6" Rectangle Drop In Burner Pan with Opening for Pilot Burner (38" x 8" OD)

• 24" Single Linear Burner - 34K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• Battery Powered Ignition System Kit
• Natural Gas or Liquid Propane
• Includes (1)18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 19lbs of Fire Glass / 1 Bags of Lava Rock / 1 Bag of Rolled Lava Stone


48" x 6" Rectangle Drop In Burner Pan with Opening for Pilot Burner (50" x 8" OD)

• 36" Single Linear Burner - 51K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• Battery Powered Ignition System Kit
• Natural Gas or Liquid Propane
• Includes (1)18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 26lbs of Fire Glass / 2 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

60" x 6" Rectangle Drop In Burner Pan with Opening for Pilot Burner (62" x 8" OD)

• 48" Single Linear Burner - 68K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• Battery Powered Ignition System Kit
• Natural Gas or Liquid Propane
• Includes (1)18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 32lbs of Fire Glass / 2 Bags of Lava Rock / 1 Bag of Rolled Lava Stone


72" x 6" Rectangle Drop In Burner Pan with Opening for Pilot Burner (74" x 8" OD)

• 60" Single Linear Burner - 85K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• Battery Powered Ignition System Kit
• Natural Gas or Liquid Propane
• Includes (1)18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 38lbs of Fire Glass / 2 Bags of Lava Rock / 1 Bag of Rolled Lava Stone


84" x 6" Rectangle Drop In Burner Pan with Opening for Pilot Burner (86" x 8" OD)

• 72" Single Linear Burner - 102K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• Battery Powered Ignition System Kit
• Natural Gas or Liquid Propane
• Includes (1)18" Whisper Free Flex Gas Line 1/2"

• Note: Holds 45lbs of Fire Glass / 3 Bags of Lava Rock / 1 Bags of Rolled Lava Stone



96" x 6" Rectangle Drop In Burner Pan with Opening for Pilot Burner (98" x 8" OD)

• 72" Single Linear Burner - 102K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• Battery Powered Ignition System Kit
• Natural Gas or Liquid Propane
• Includes (1)18" Whisper Free Flex Gas Line 1/2"

• Note: Holds 51lbs of Fire Glass / 3 Bags of Lava Rock / 1 Bags of Rolled Lava Stone


*** Burner Pan Note: Drop In Burner Pans have a depth of 2.5" and have a 1" Flange all the way around (unless specified as a different size by customer) to support itself inside the opening it is installed in. Opening Size should be no more than 1" larger than Pan Dimensions ***
