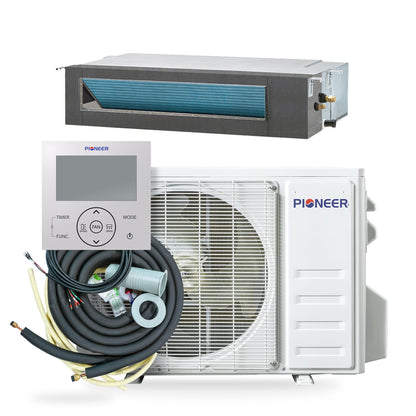

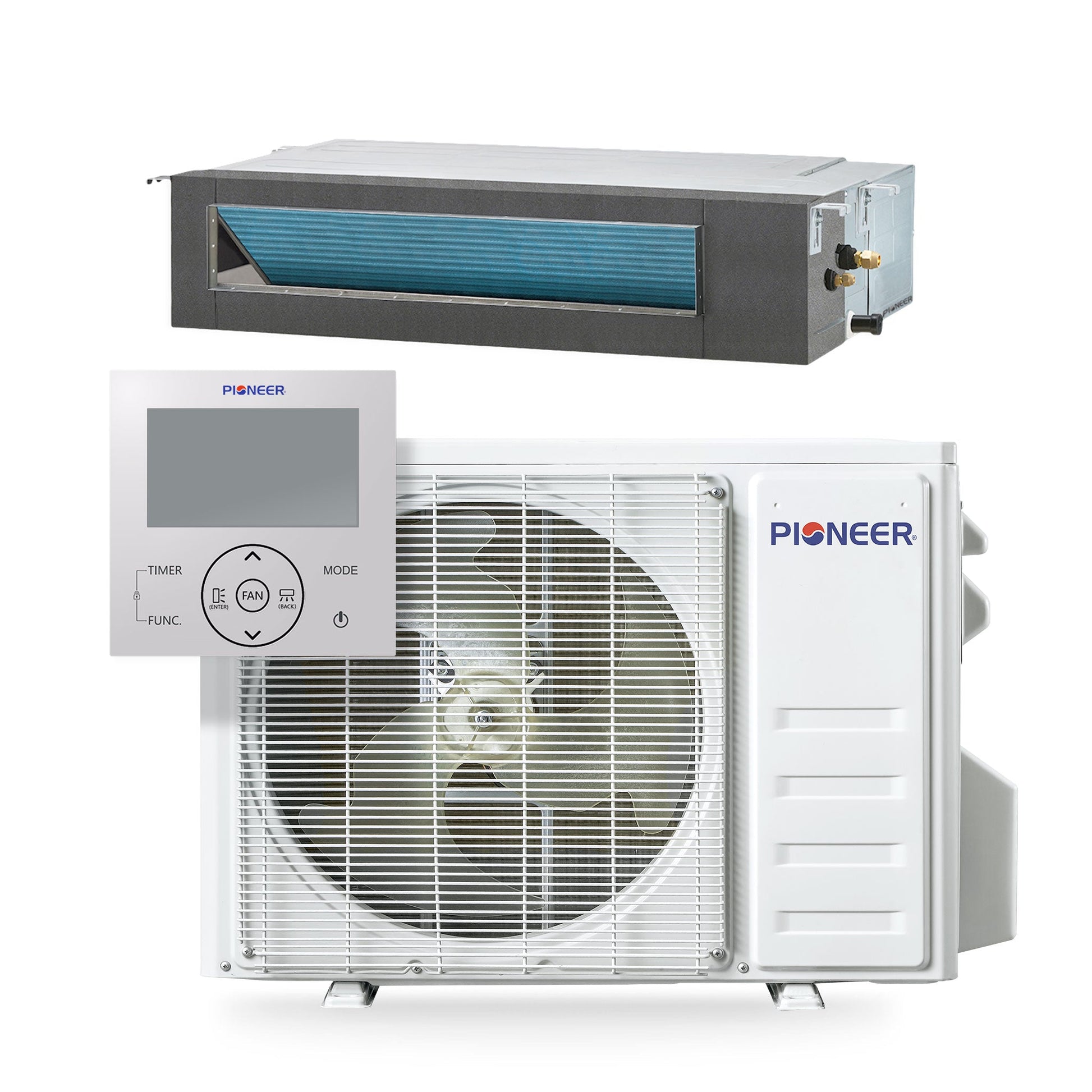

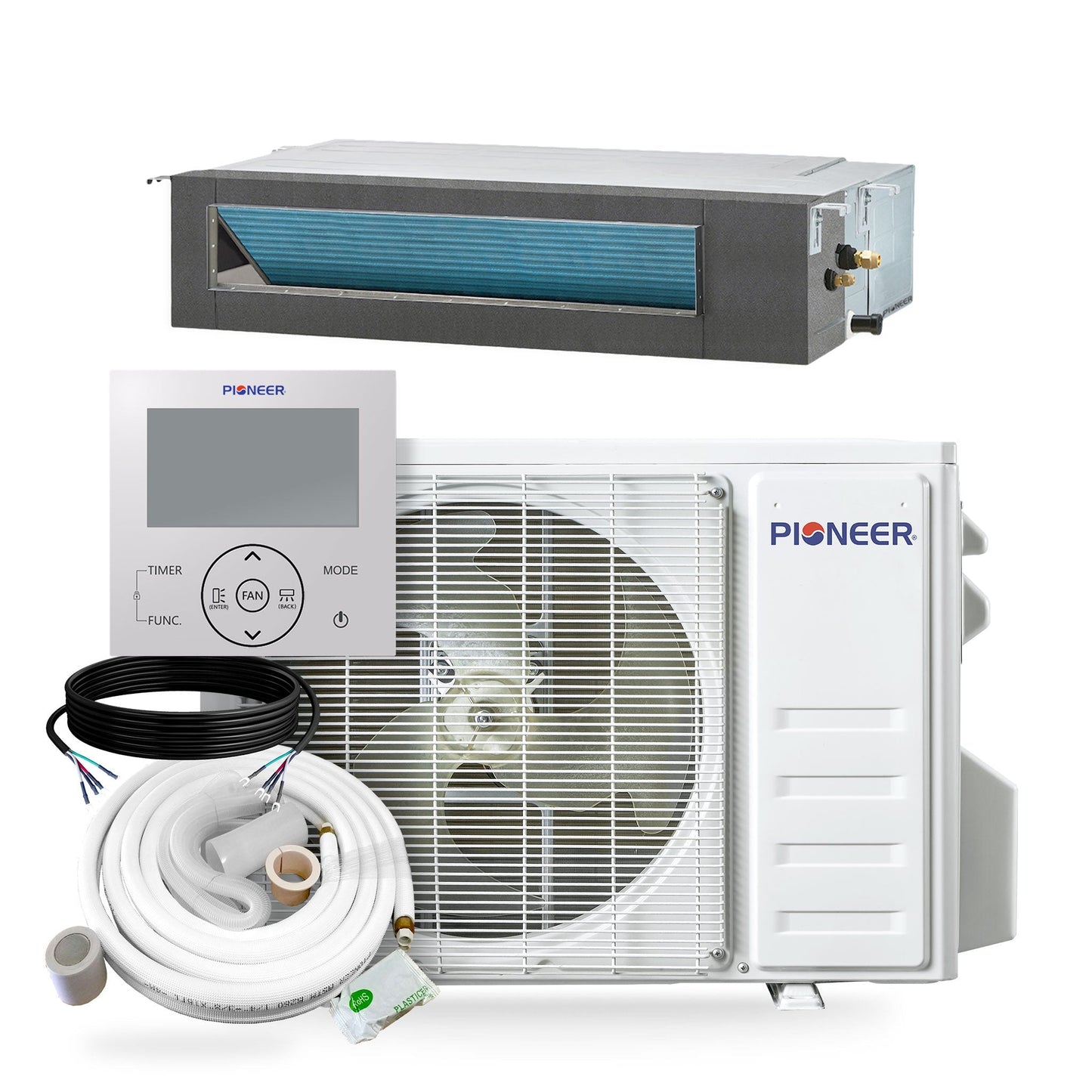

Pioneer® Quantum Ultra™ 9,500 BTU 19.6 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set
Pioneer® Quantum Ultra™ 9,500 BTU 19.6 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set
SKU:RYT009GLSI24RL-10S
Regular price
$1,363.00 USD
Regular price
$1,839.00 USD
Sale price
$1,363.00 USD
Unit price
/
per
Couldn't load pickup availability
Summary
- High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
- Cooling capacity: 9,500 BTU/H with 19.6 SEER2 / 12 EER2 efficiency
- Heating capacity: 9,500 BTU/H with 10 HSPF2 / 3.5 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

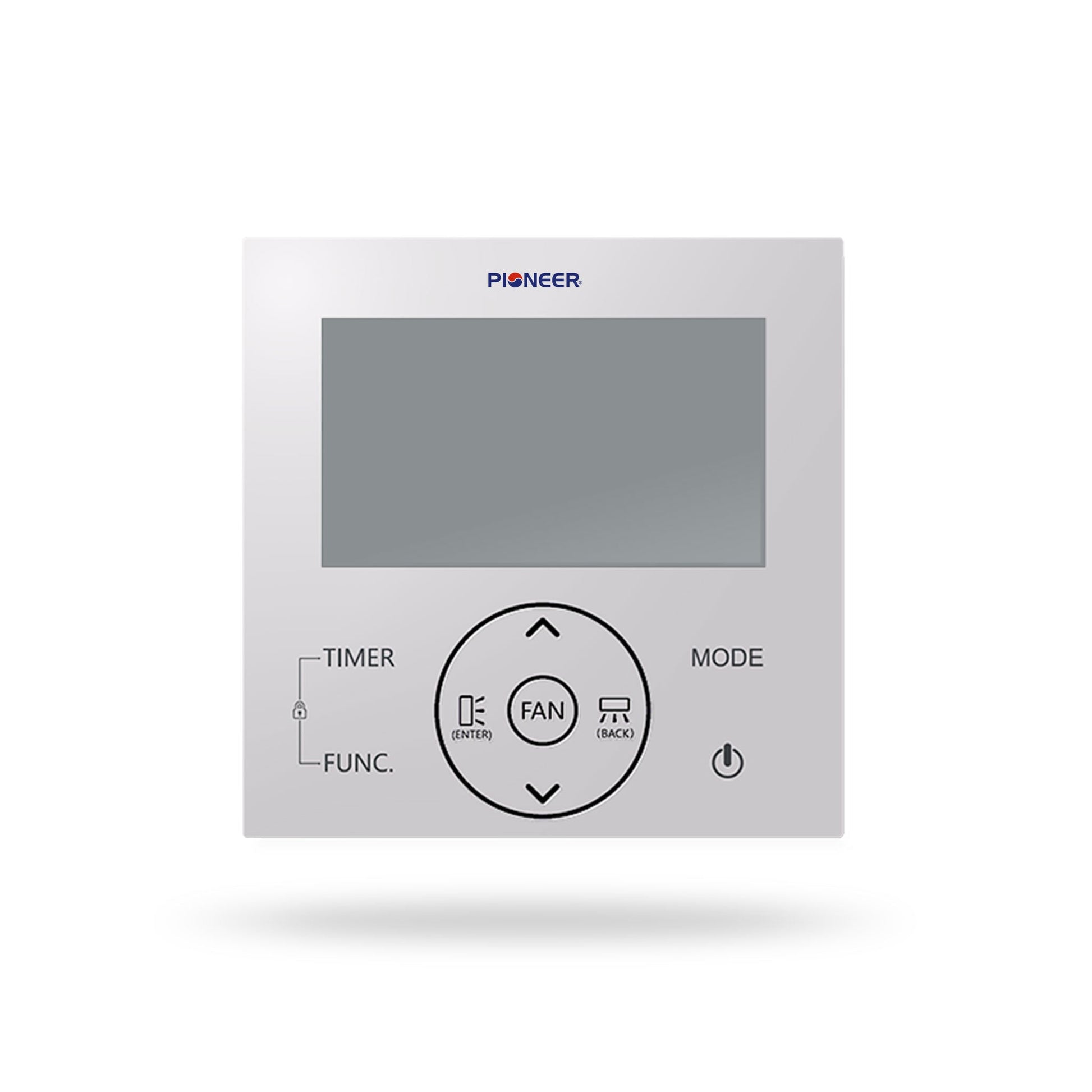

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,500 BTU/h
- Cooling Capacity Range: 2,000~10,400 BTU/h
- Cooling SEER2: 19.6 BTU/W.h
- Cooling EER2: 12.0 BTU/W.h
- Heating Rated Capacity: 9,500 BTU/h
- Heating Capacity Range: 2,500~12,300 BTU/h
- Heating HSPF2 (Region IV/V): 10.0 / 8.8 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.5 / 1.85 W/W
- Refrigerant Type: R454b
- Suitable Area: 250~350 sq ft
- AHRI Reference: 217048762
-
Indoor Unit
- Part Number: RT009GLSILCFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 335 / 305 / 276 / 182 / 182 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 43 / 41 / 39 dB(A)
- Product Dimensions (WDH): 27"-1/2 x 19"-1/4 x 7"-7/8 Inches
- Carton Dimensions (WDH): 35"-1/2 x 21"-7/8 x 9"-7/8 Inches
- Net / Gross Weight: 33.1 / 40.8 lbs
-

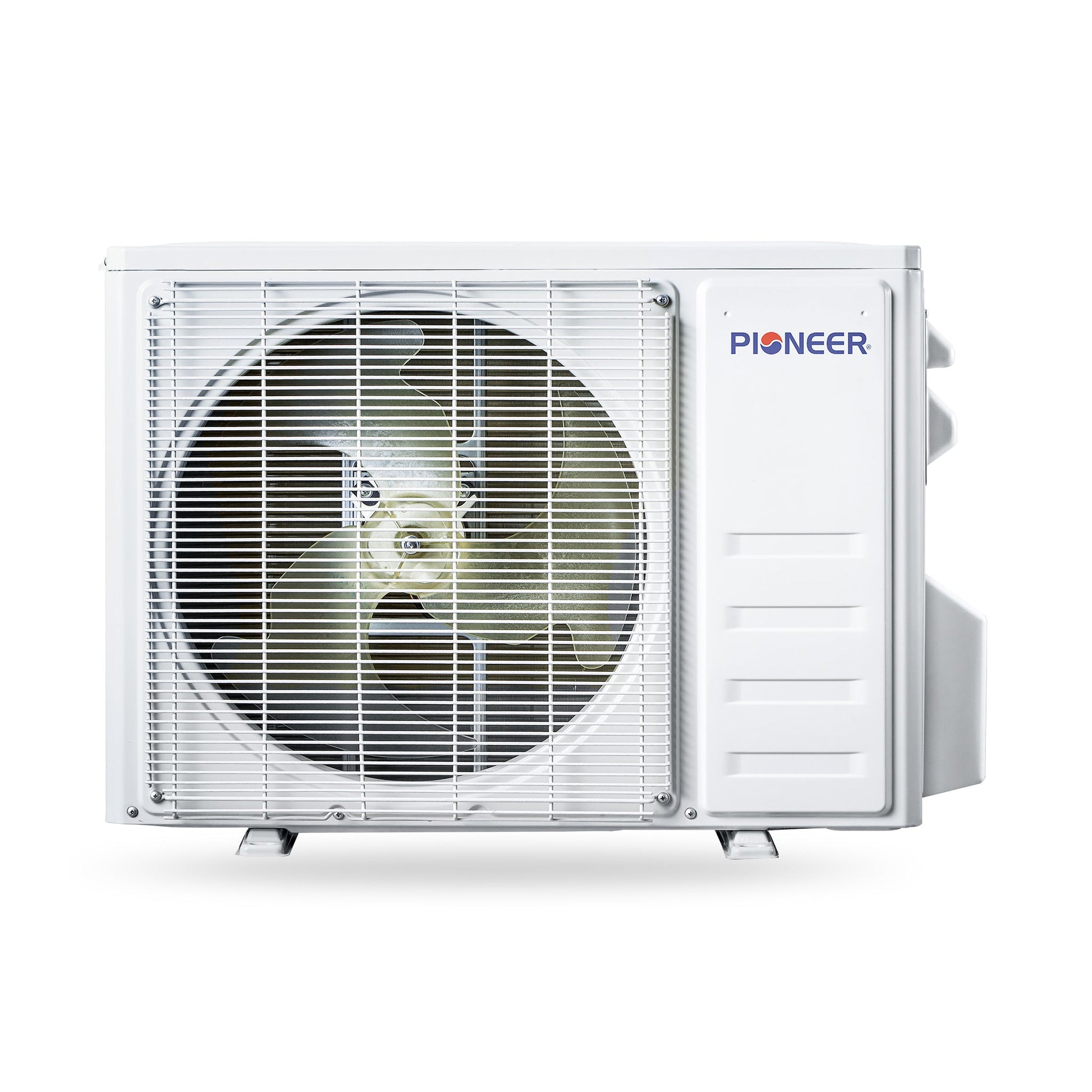

Outdoor Unit
- Part Number: YN009GLSI24RPG
- Breaker Needed: 15A (double-pole)
- Sound Level: 50 dB(A)
- Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
- Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
- Net / Gross Weight: 52.7 / 57.1 lbs
RYT-24
Dimension Chart
