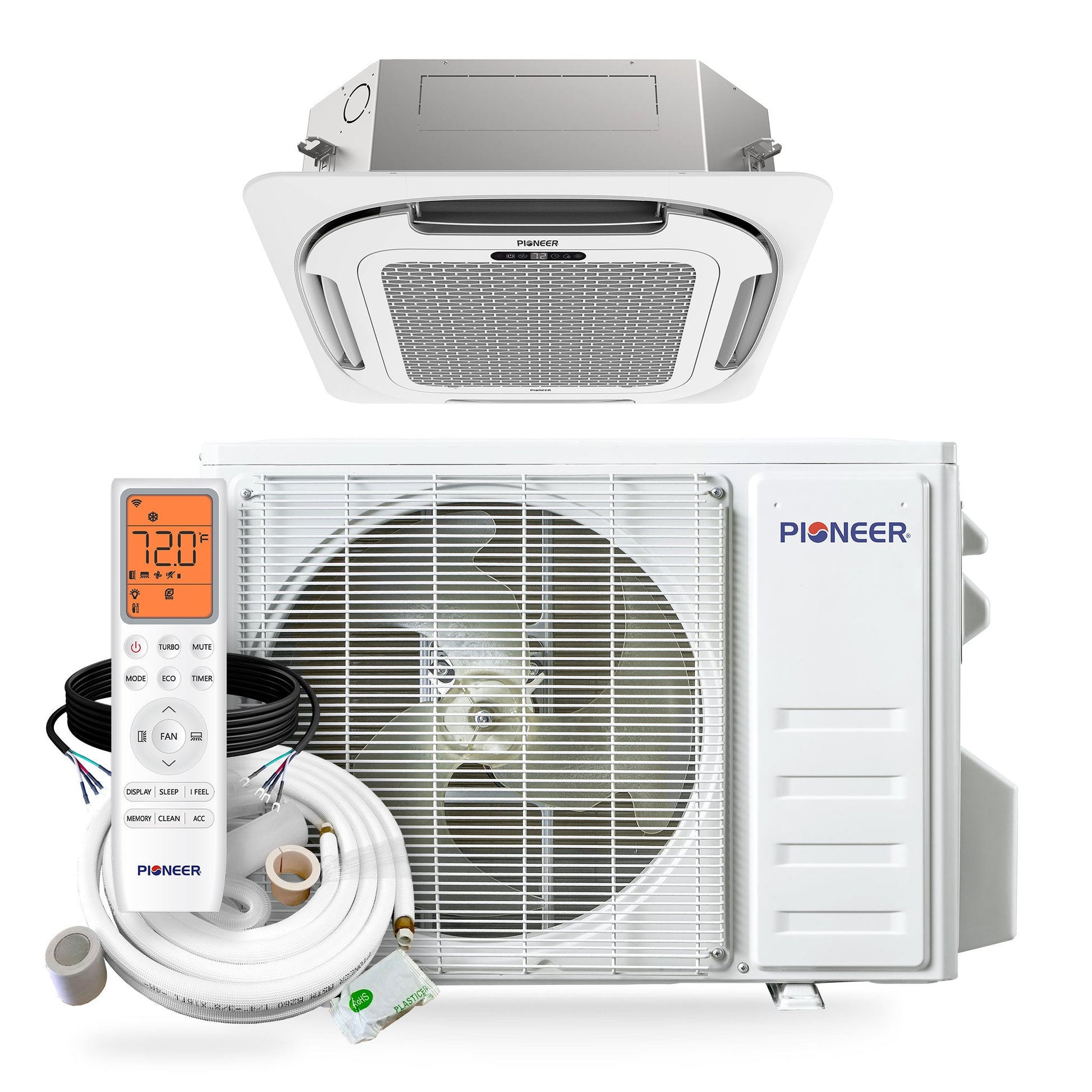

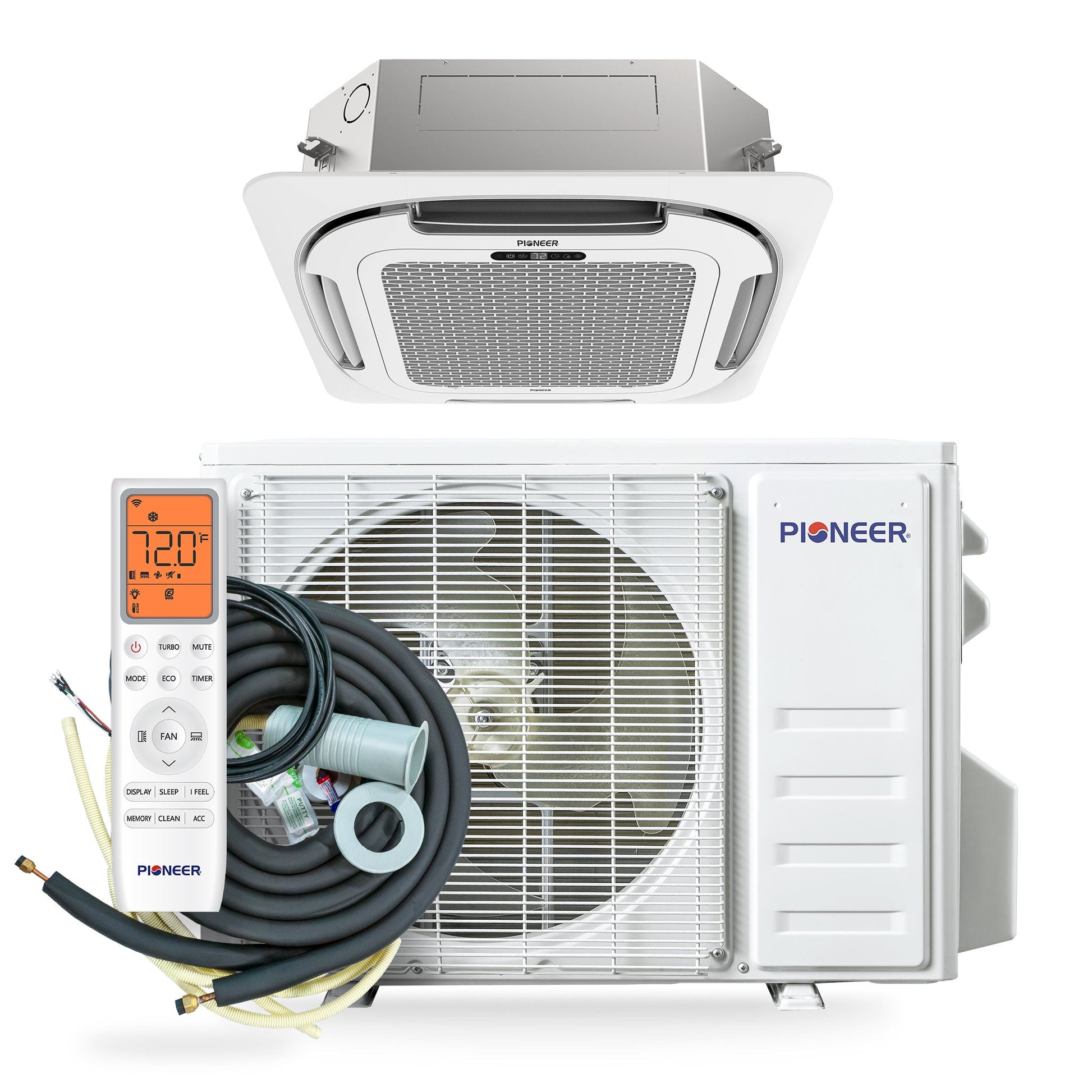

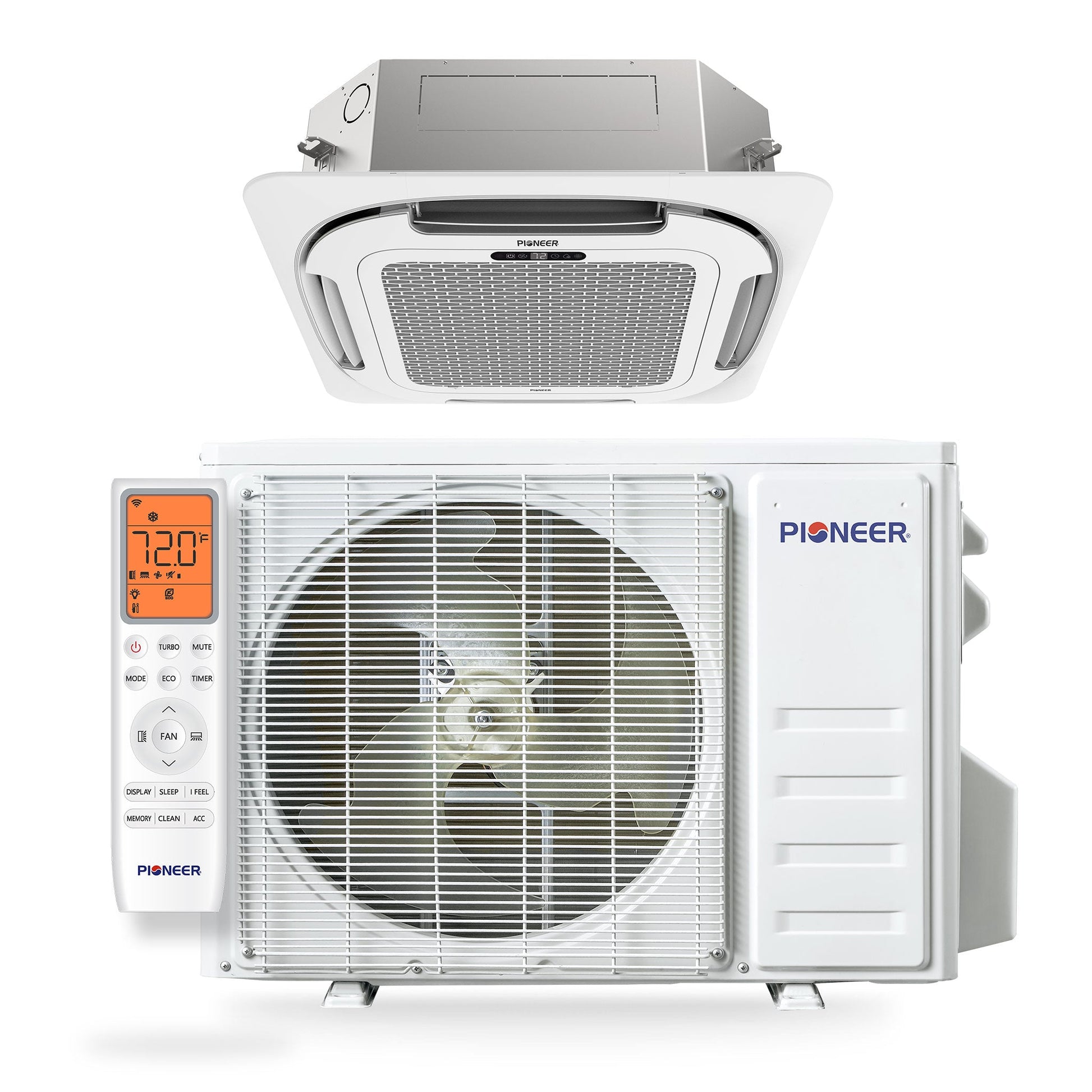

Pioneer® Quantum Ultra™ 12,000 BTU 21 SEER2 230V 8-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

Pioneer® Quantum Ultra™ 12,000 BTU 21 SEER2 230V 8-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

CYT012GLSI24RL-10S

$1,533.00 USD
$2,079.00 USD $1,533.00 USD
Sale Sold out

Summary

  • High Efficiency Quantum Ultra Ceiling Cassette Split Heat Pump System
  • Cooling capacity: 12,000 BTU/H with 21 SEER2 / 11.7 EER2 efficiency
  • Heating capacity: 12,000 BTU/H with 10 HSPF2 / 3.5 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

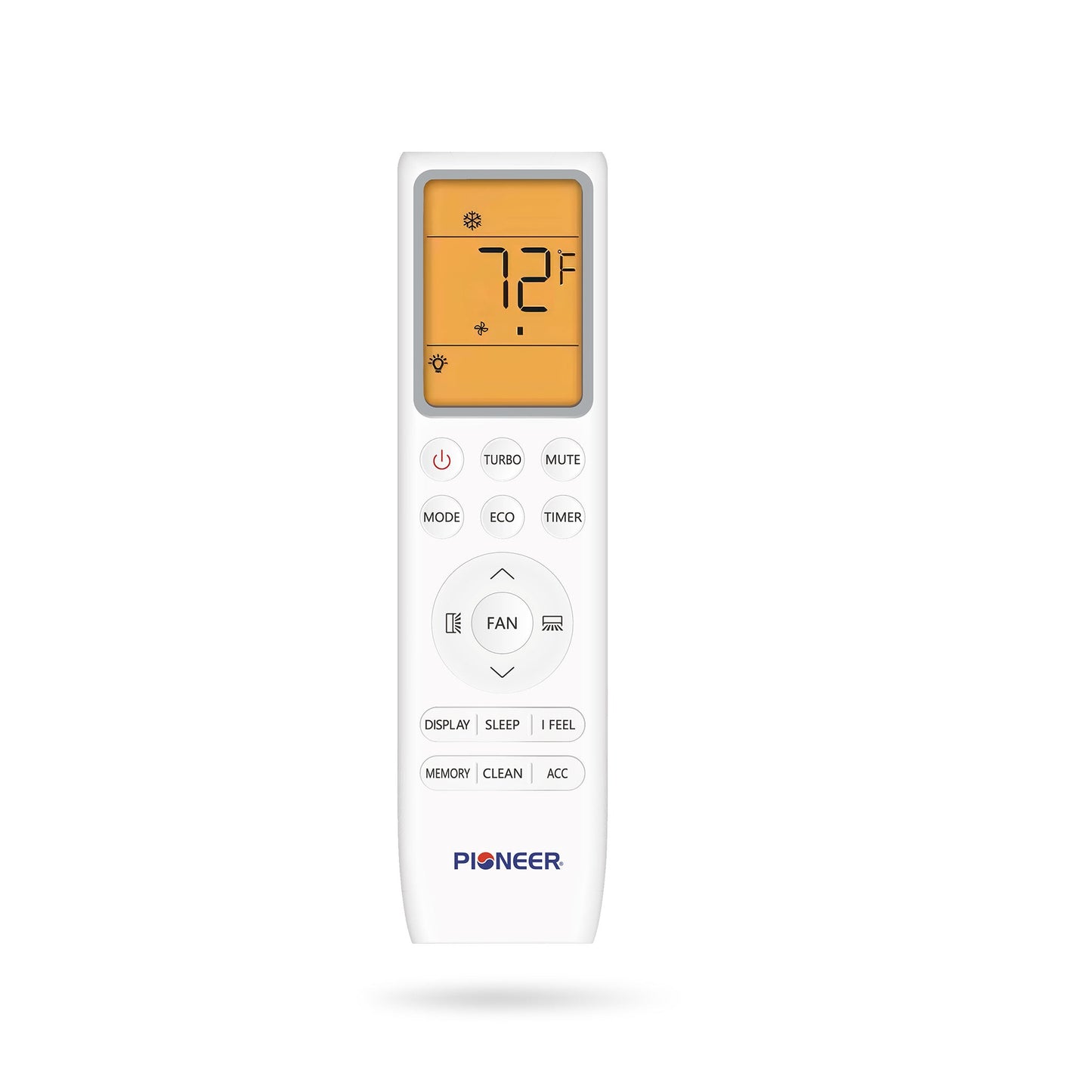

  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 12,000 BTU/h
    • Cooling Capacity Range: 2,000~13,600 BTU/h
    • Cooling SEER2: 21.0 BTU/W.h
    • Cooling EER2: 11.7 BTU/W.h
    • Heating Rated Capacity: 12,000 BTU/h
    • Heating Capacity Range: 3,100~12,700 BTU/h
    • Heating HSPF2 (Region IV/V): 10.0 / 8.9 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.5 / 1.9 W/W
    • Refrigerant Type: R454b
    • Suitable Area: 350~500 sq ft
    • AHRI Reference: 217048759

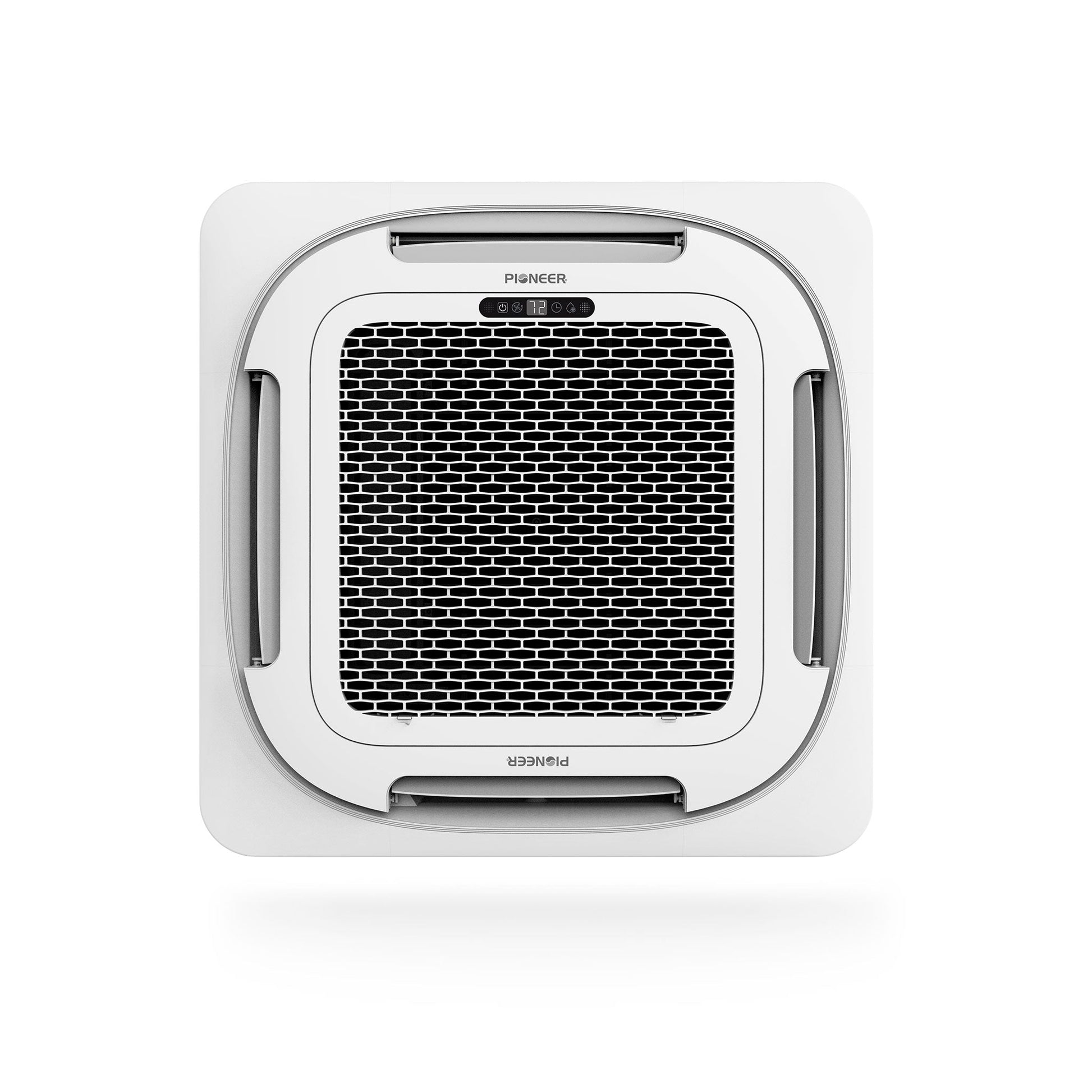

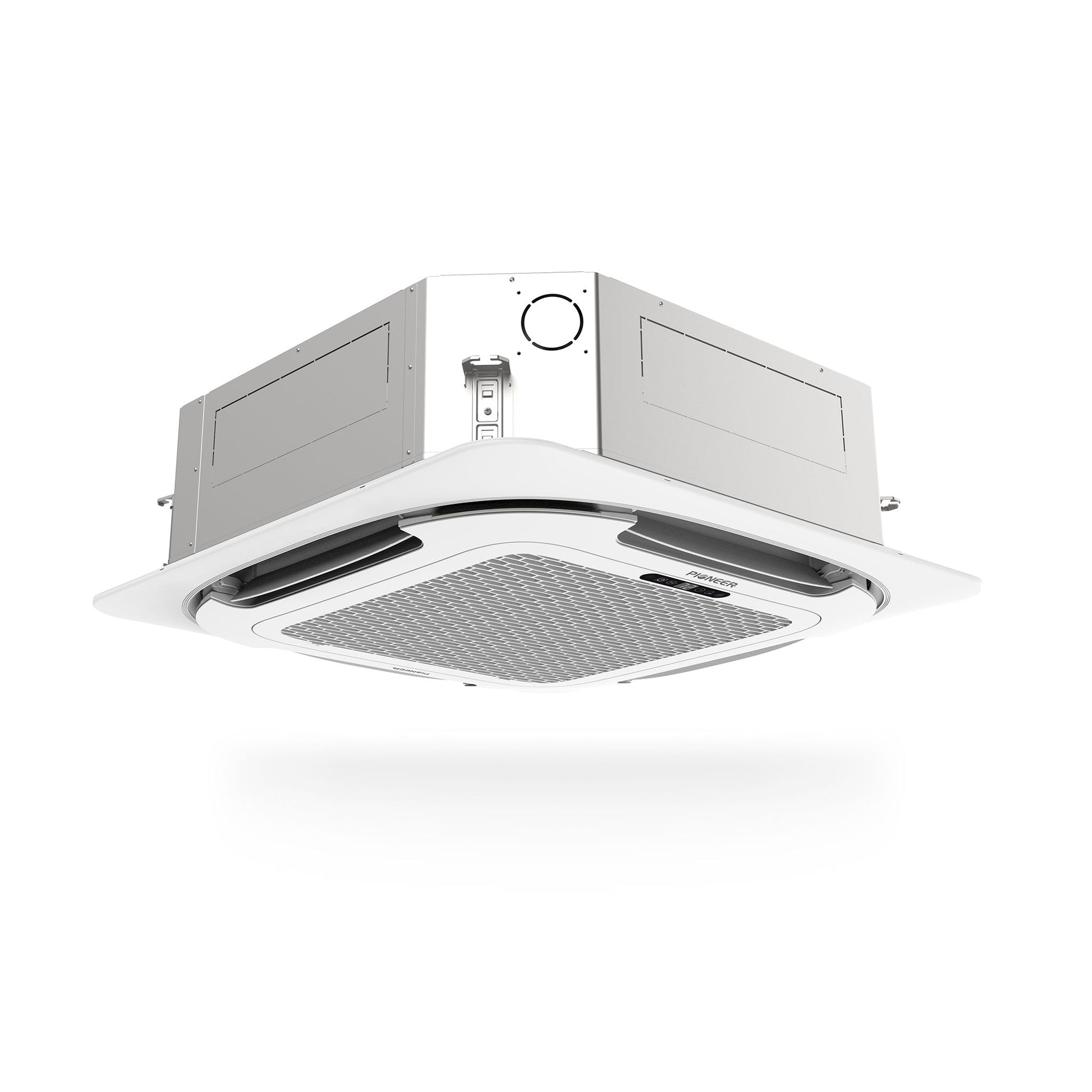

  • Indoor Unit
    • Part Number: CT012GLSILCFHG
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 500 / 470 / 411 / 323 / 205 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 46 / 44 / 36 / 32 / 30 dB(A)
    • Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
    • Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
    • Net / Gross Weight: 32.0 / 38.6 lbs
  • Decorative Panel
    • Part Number: CT0918DPNL
    • Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8
    • Carton Dimensions (WDH): 28"-7/8 x 28"-7/8 x 4"-3/8
    • Net / Gross Weight: 6.0 / 9.5 lbs

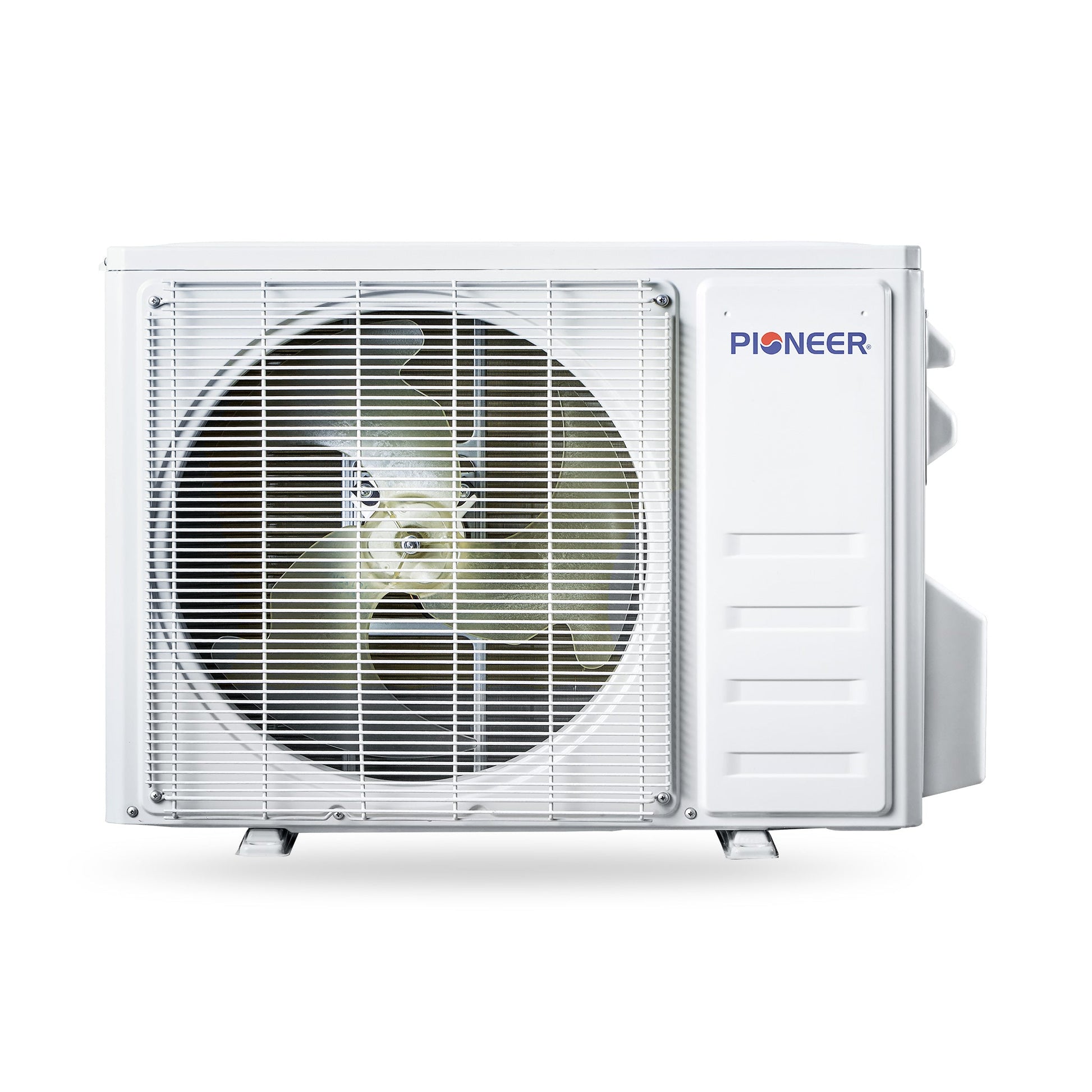

  • Outdoor Unit
    • Part Number: YN012GLSI24RPG
    • Breaker Needed: 15A (double-pole)
    • Sound Level: 52 dB(A)
    • Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
    • Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
    • Net / Gross Weight: 58.4 / 65.0 lbs.

CYT-24

Dimension Chart

22½ 22½ 9⅝ 25⅝ 25⅝ 2⅜ 31⅞ 12 21⅝ 2¼ ¾ 8½
