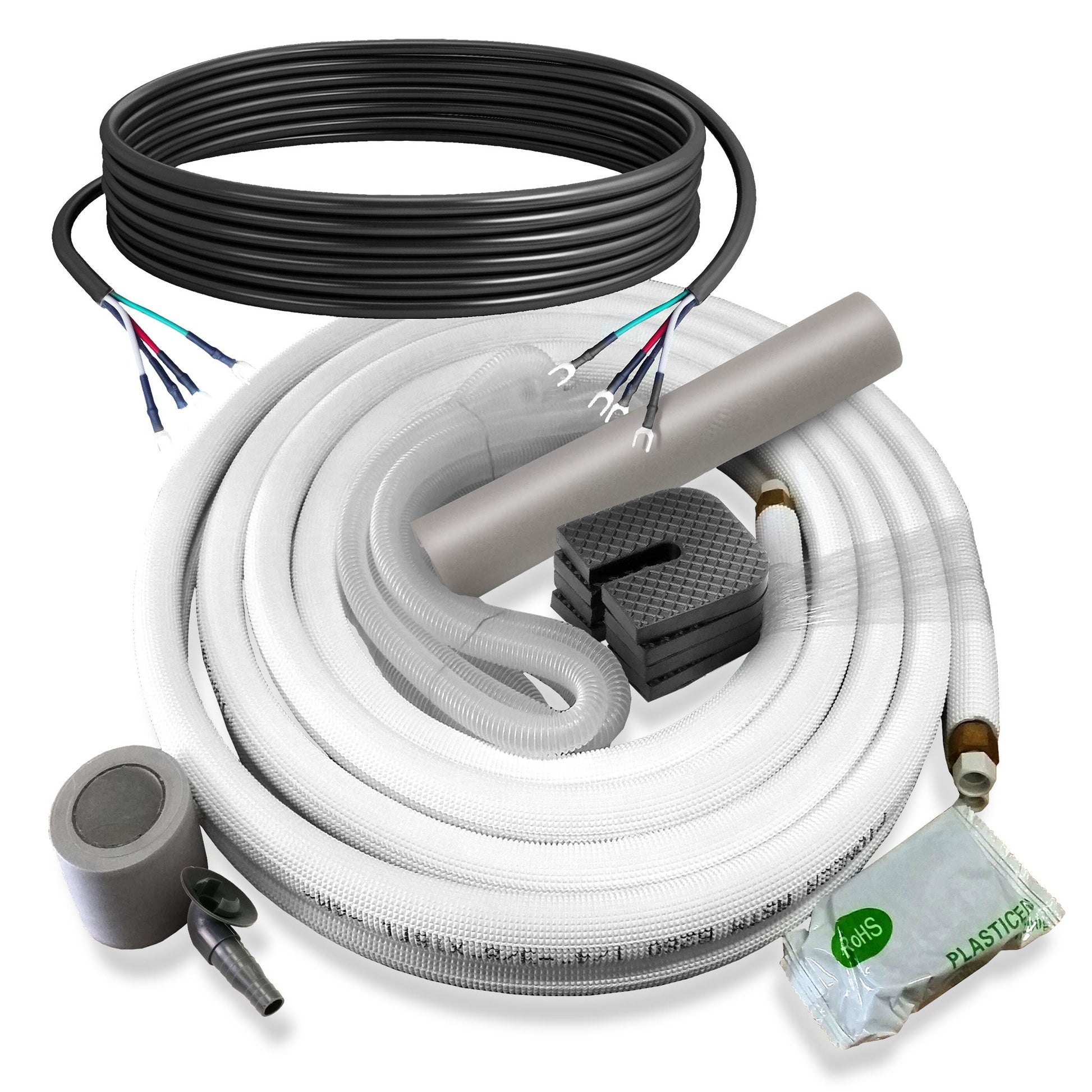

Pioneer® Diamante Pro™ 24,000 BTU 21 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit

Pioneer® Diamante Pro™ 24,000 BTU 21 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit

WYT024GLSI20RL

$1,438.00 USD
$2,049.00 USD $1,438.00 USD
Sale Sold out

Summary

  • High Efficiency Diamante Pro™ Ductless Mini Split Heat Pump System
  • Cooling capacity: 24,000 BTU/H with 21 SEER2 / 10.5 EER2 efficiency
  • Heating capacity: 24,000 BTU/H with 9.5 HSPF2 / 3.41 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

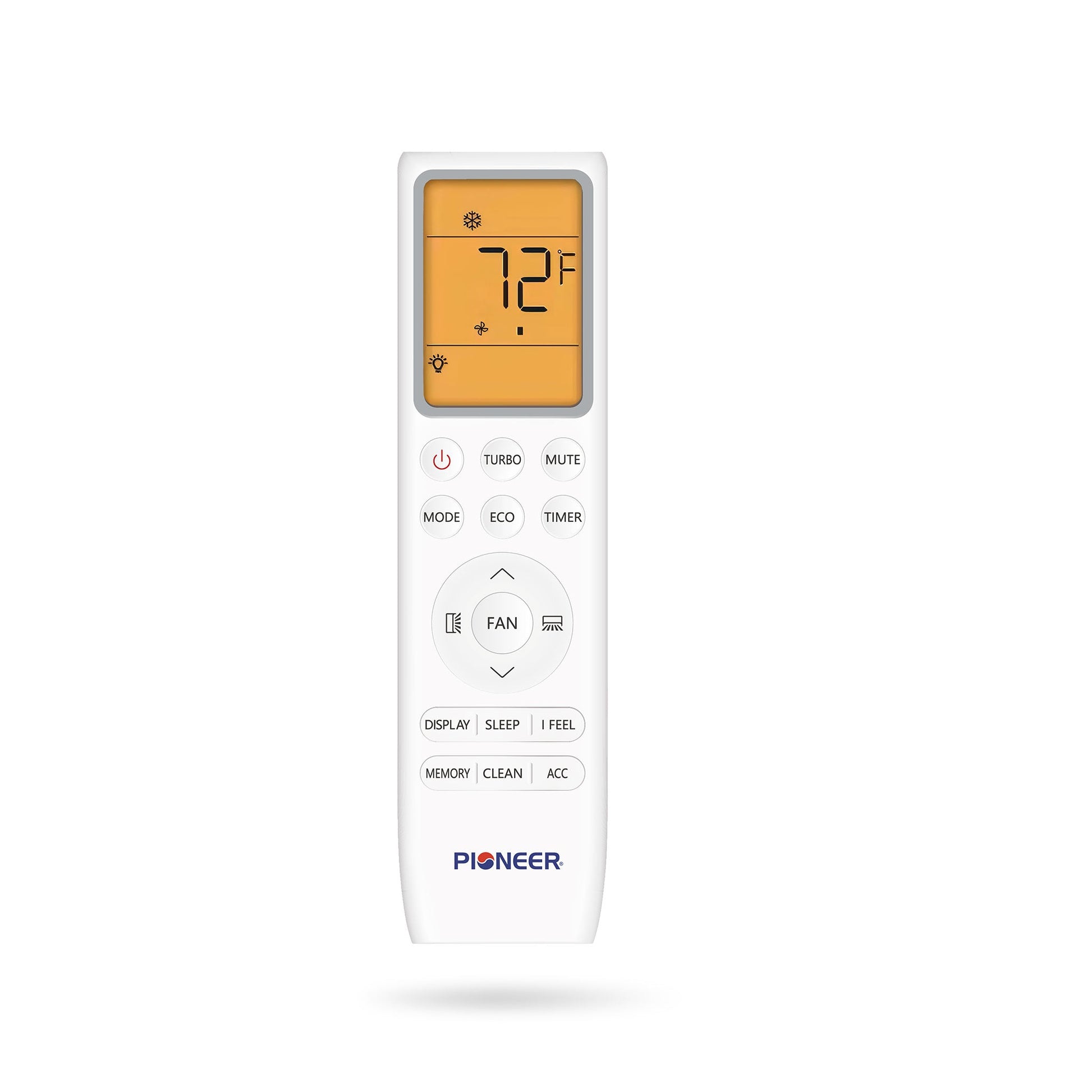

  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

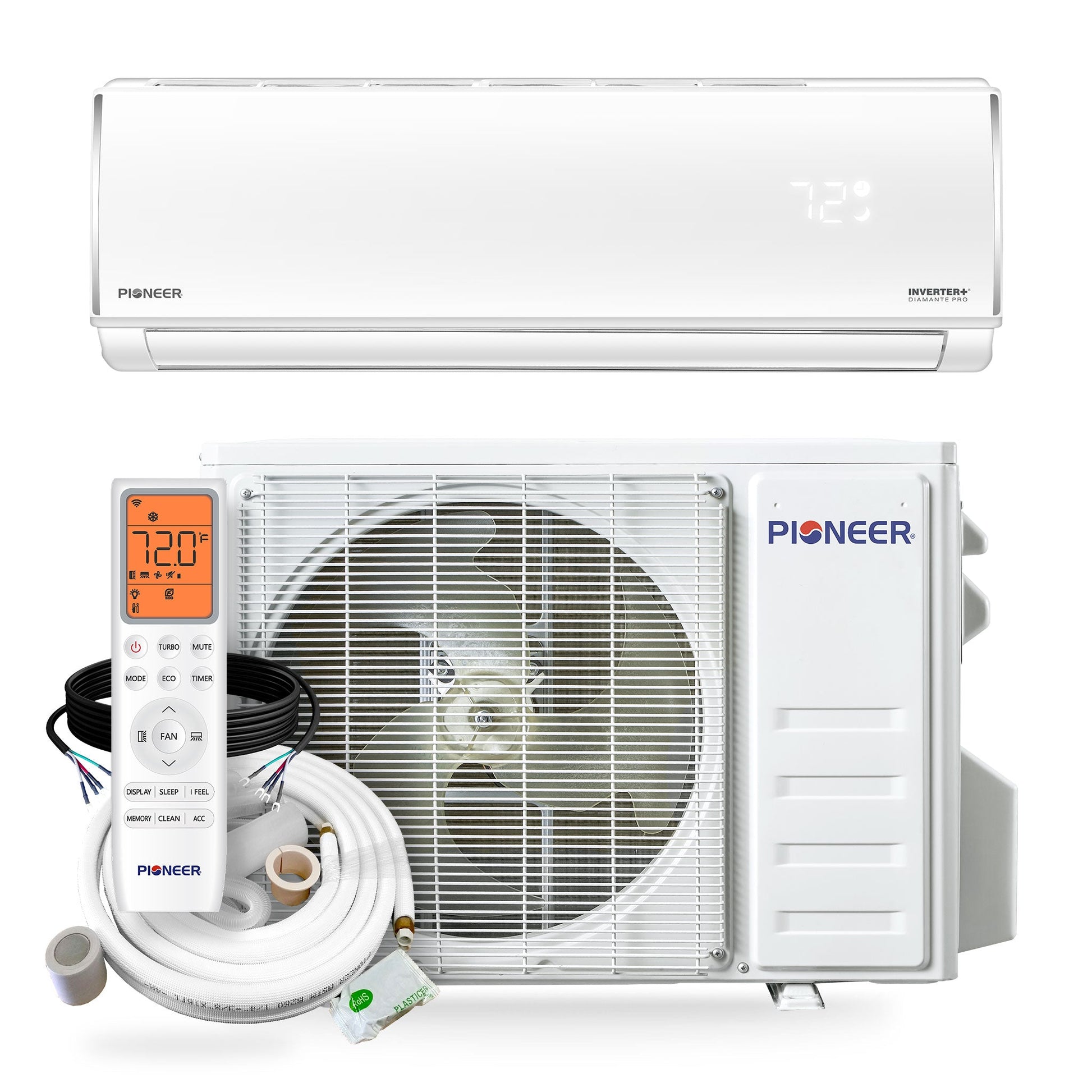

  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 24,000 BTU/h (2 Ton)
    • Cooling Capacity Range: 5,100~25,200 BTU/h
    • Cooling SEER2: 21.0 BTU/W.h
    • Cooling EER2: 10.5 BTU/W.h
    • Heating Rated Capacity: 24,000 BTU/h (2 Ton)
    • Heating Capacity Range: 5,100~25,900 BTU/h
    • Heating HSPF2 (Region IV/V): 9.5 / 8.2 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.41 / 2.1 W/W
    • Refrigerant Type: R454b
    • Recommended Room Size: 750~1,000 sq ft
    • Minimum Room Size: 51 sq ft
    • Piping Diameter: 1/2" (Gas) / 1/4" (Liquid)
    • AHRI Reference: 217048745

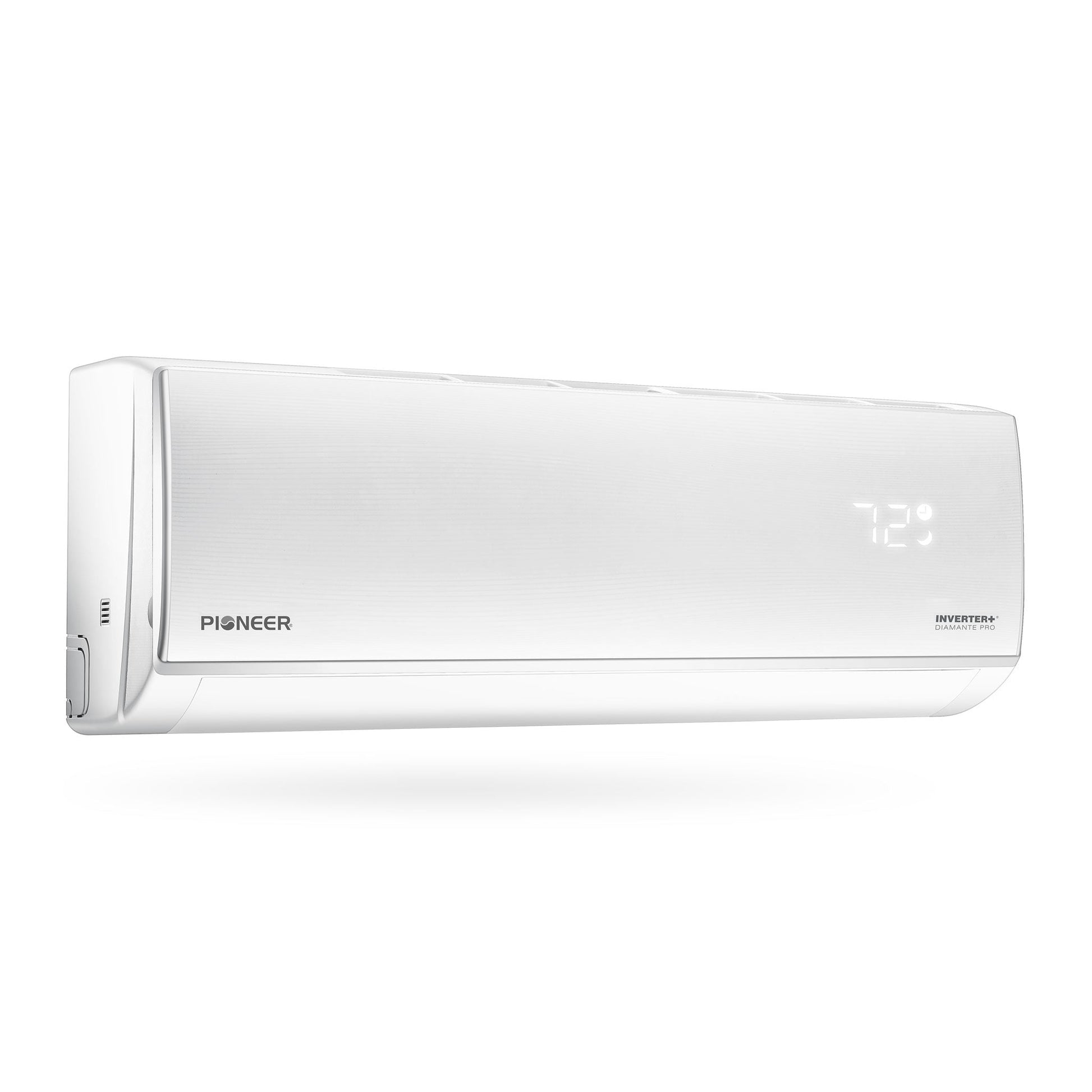

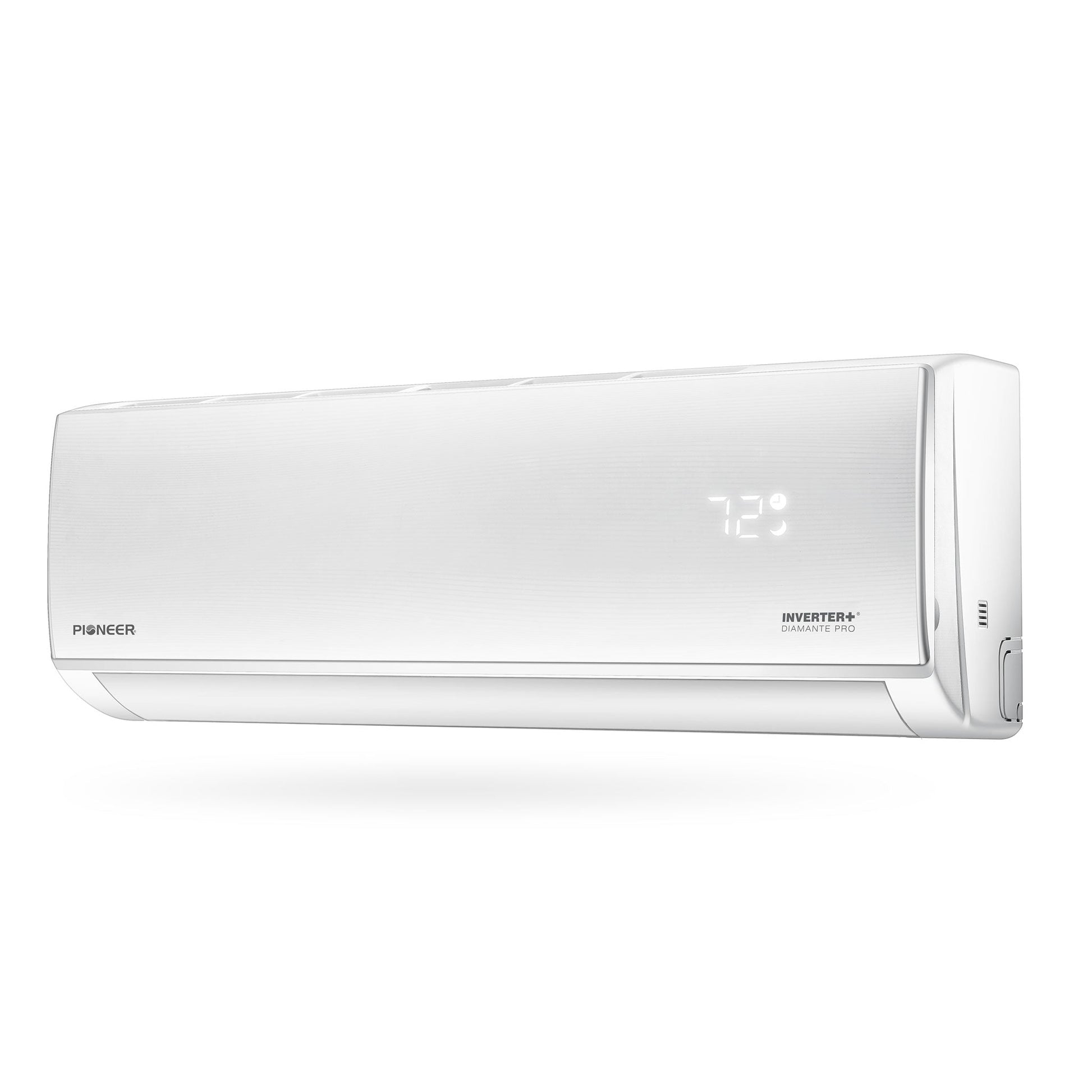

  • Indoor Unit
    • Part Number: WT024GLSI20HLF
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 847 / 705 / 588 / 470 / 412 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 52 / 50 / 44 / 38 / 36 dB(A)
    • Product Dimensions (WDH): 46"-7/8 x 10"-1/4 x 14"-1/4 Inches
    • Carton Dimensions (WDH): 49"-5/8 x 13" x 17" Inches
    • Net / Gross Weight: 36.4 / 43 lbs

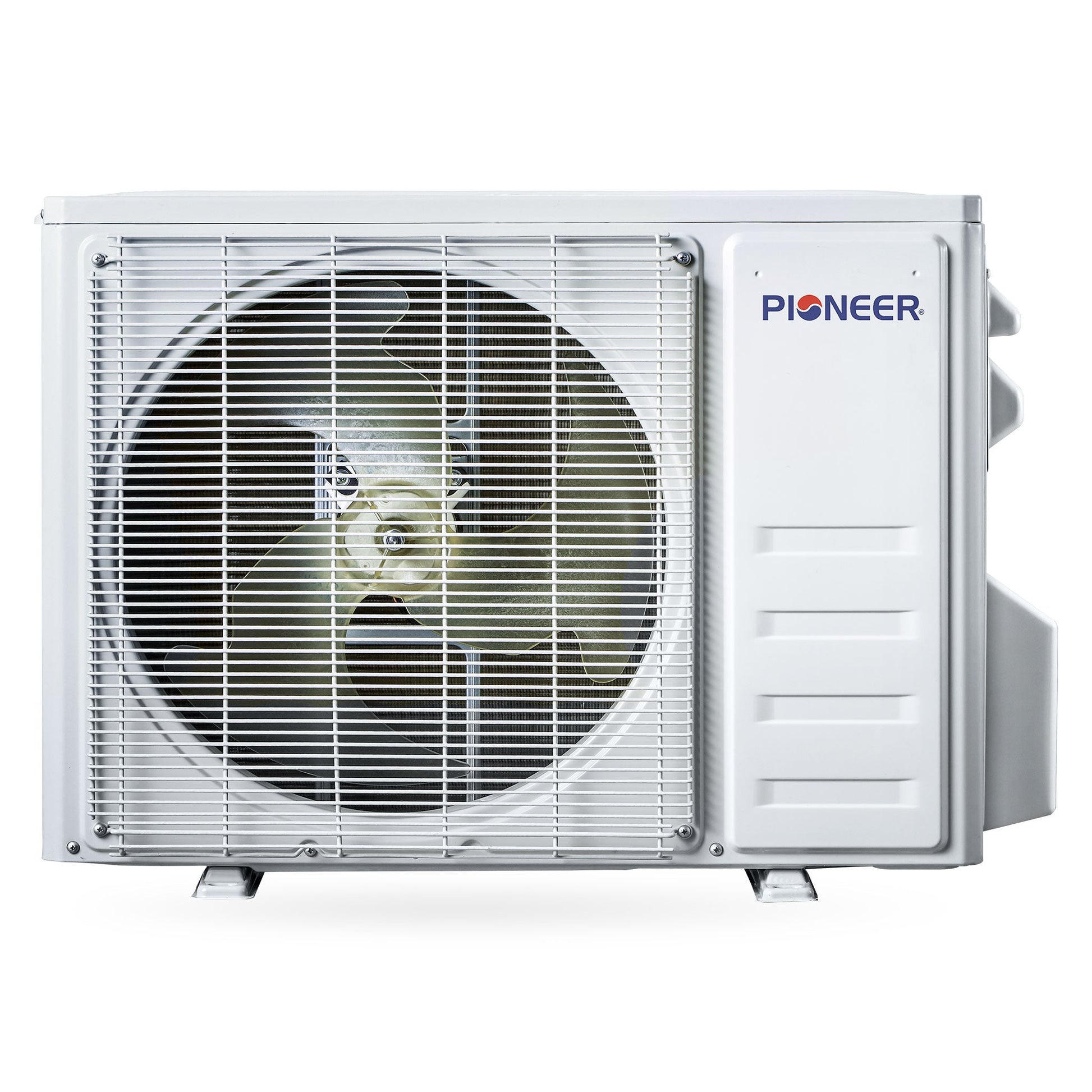

  • Outdoor Unit
    • Part Number: YN024GLSI20RPF
    • Breaker Needed: 25A (double-pole)
    • Sound Level: 58 dB(A)
    • Net Dimensions (WDH): 36"-1/2 x 14"-7/8 x 27"-1/2 Inches
    • Carton Dimensions (WDH): 37"-3/4 x 17"-1/8 x 30"-1/2 Inches
    • Net / Gross Weight: 88.2 / 103.6 lbs

WYT-20

Dimension Chart

46⅞ 10¼ 14¼ 36½ 14⅞ 27½ 2¼ ¾ 8½
