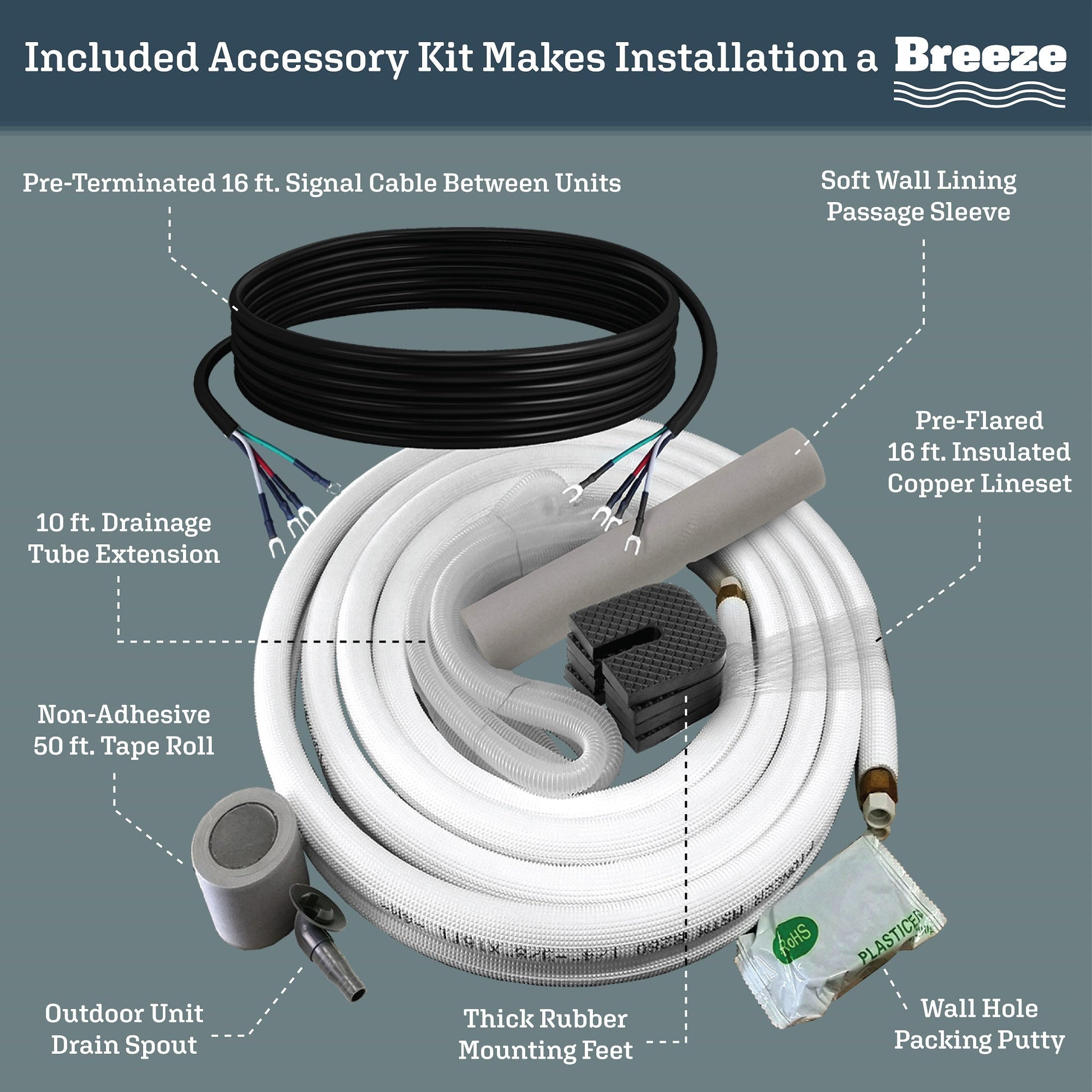

Pioneer® Diamante Essenza™ 17,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit

Pioneer® Diamante Essenza™ 17,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit

WYT018GLUI17RL

$998.00 USD
$1,429.00 USD $998.00 USD
Sale Sold out

Summary

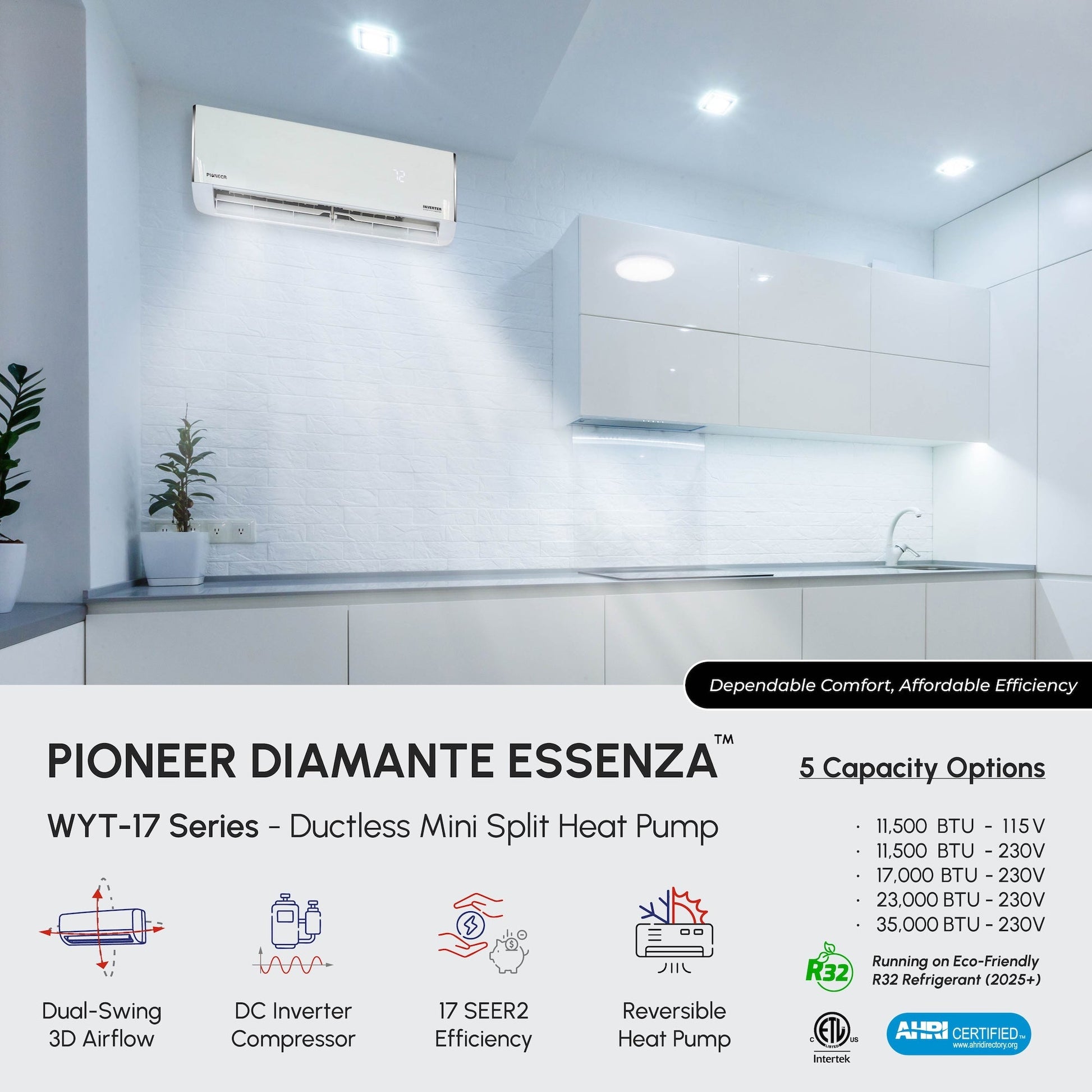

  • Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
  • Cooling capacity: 17,000 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
  • Heating capacity: 16,500 BTU/H with 8.5 HSPF2 / 3.2 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance

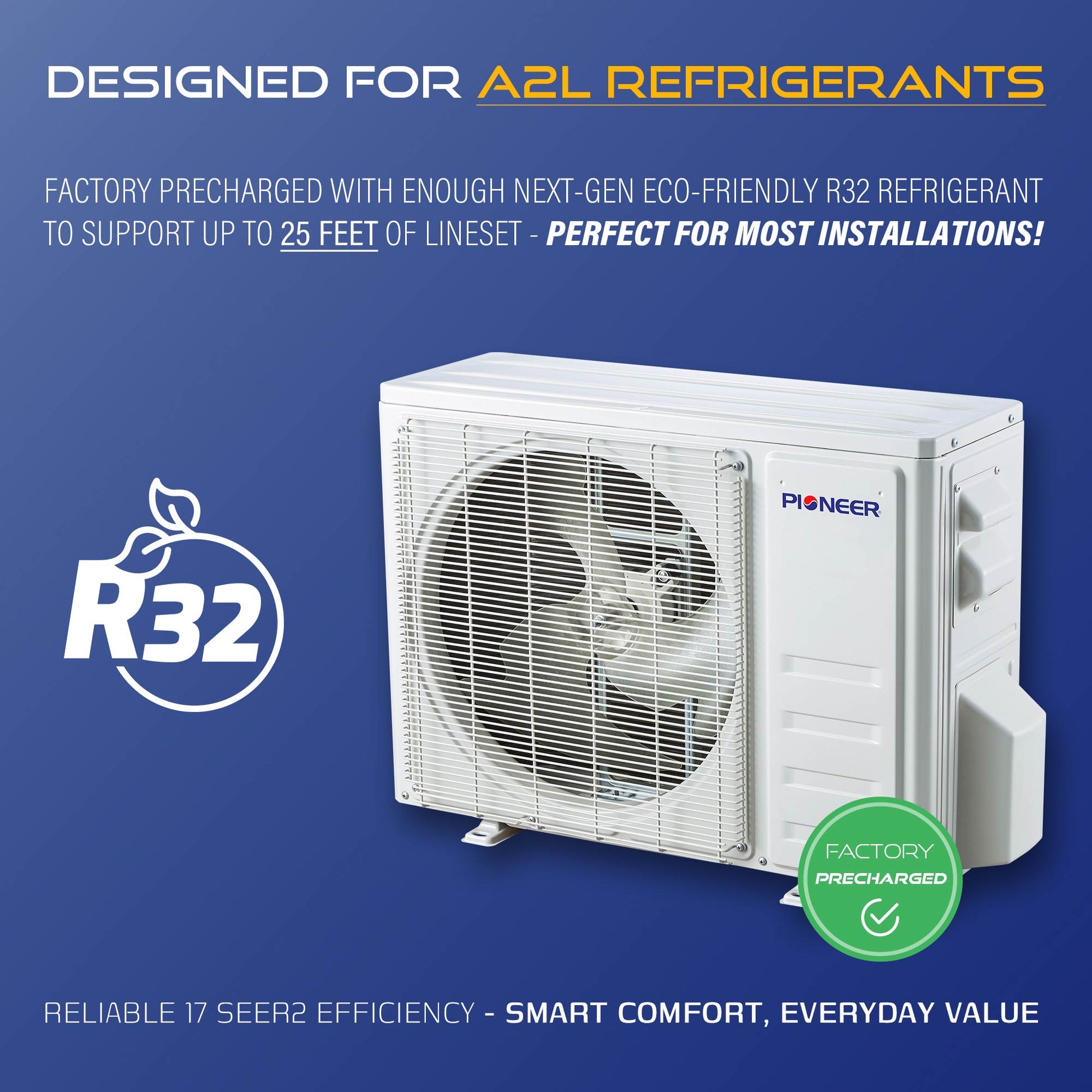

  • Factory-Precharged with Environmentally Friendly R-32 Refrigerant
  • Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 17,000 BTU/h
    • Cooling Capacity Range: 4,095~17,700 BTU/h
    • Cooling SEER2: 17.0 BTU/W.h
    • Cooling EER2: 9.5 BTU/W.h
    • Heating Rated Capacity: 16,500 BTU/h
    • Heating Capacity Range: 4,095~17,700 BTU/h
    • Heating HSPF2 (Region IV/V): 8.5 / 7.2 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.2 / 1.8 W/W
    • Refrigerant Type: R-32
    • Recommended Room Size: 500~750 sq ft
    • Minimum Room Size: 27 sq ft
    • Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)
    • AHRI Reference: 217048736
  • Indoor Unit
    • Part Number: WT018GLUI17HLD
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 412 / 364 / 294 / 235 / 208 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 49 / 45 / 40 / 34 / 32 dB(A)
    • Product Dimensions (WDH): 35"-3/4 x 8"-1/8 x 11"-1/2 Inches
    • Carton Dimensions (WDH): 38"-1/8  x 10"-7/8 x 14"-5/8 Inches
    • Net / Gross Weight: 20.9 / 27.6 lbs
  • Outdoor Unit
    • Part Number: YN018GLUI17RPD
    • Breaker Needed: 20A (double-pole)
    • Sound Level: 57 dB(A)
    • Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
    • Carton Dimensions (WDH): 33"-1/2 x 14"-1/4 x 25"-1/8 Inches
    • Net / Gross Weight: 57.3 / 68.8 lbs

WYT-17

Dimension Chart

35¾ 8⅛ 11½ 31⅞ 12 21⅝ 2¼ ¾ 8½
View full details

⚠️ California Prop 65 Warning - WARNING: This product can expose you to chemicals including Lead, Lead Compounds, and Carbon Monoxide which are known to the state of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
