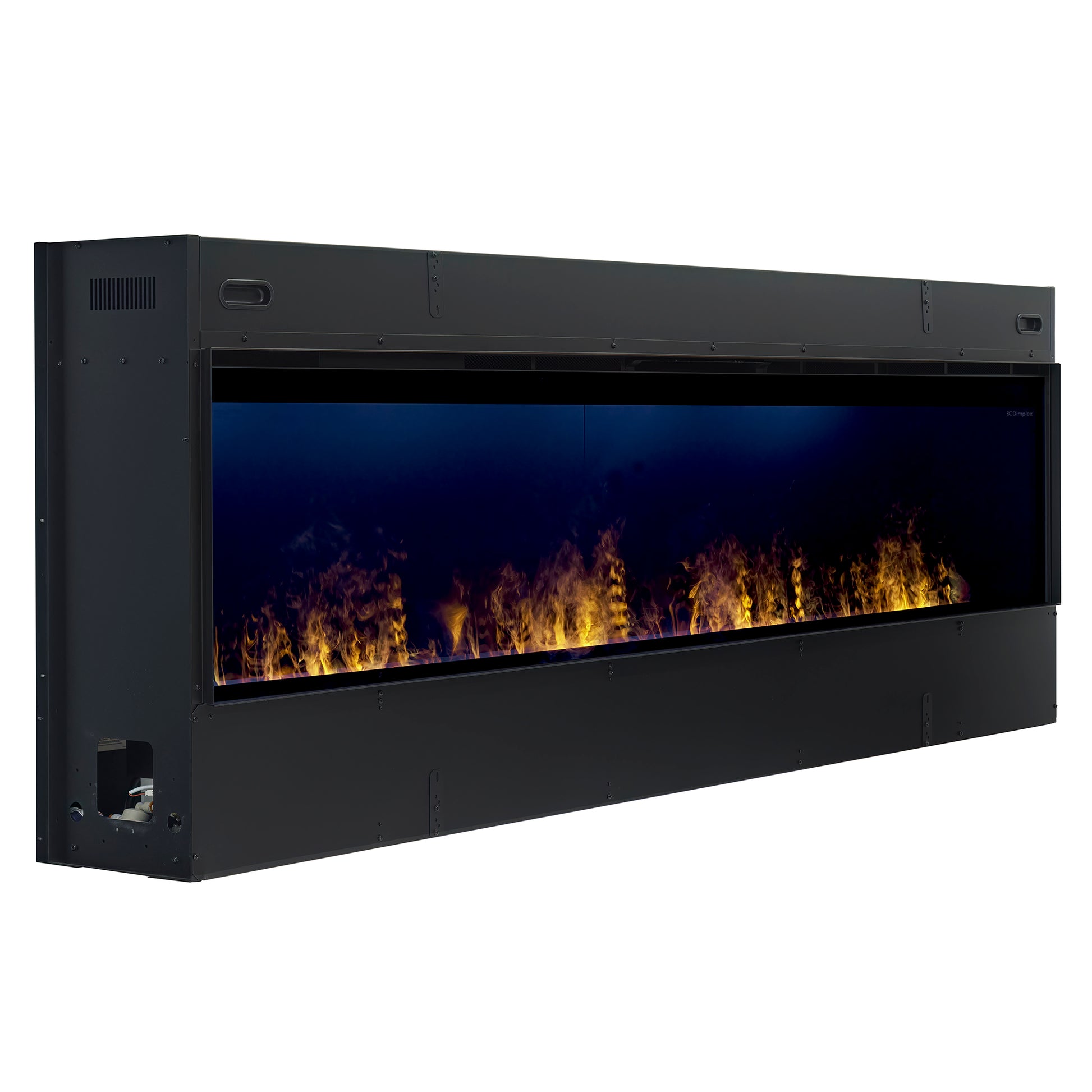

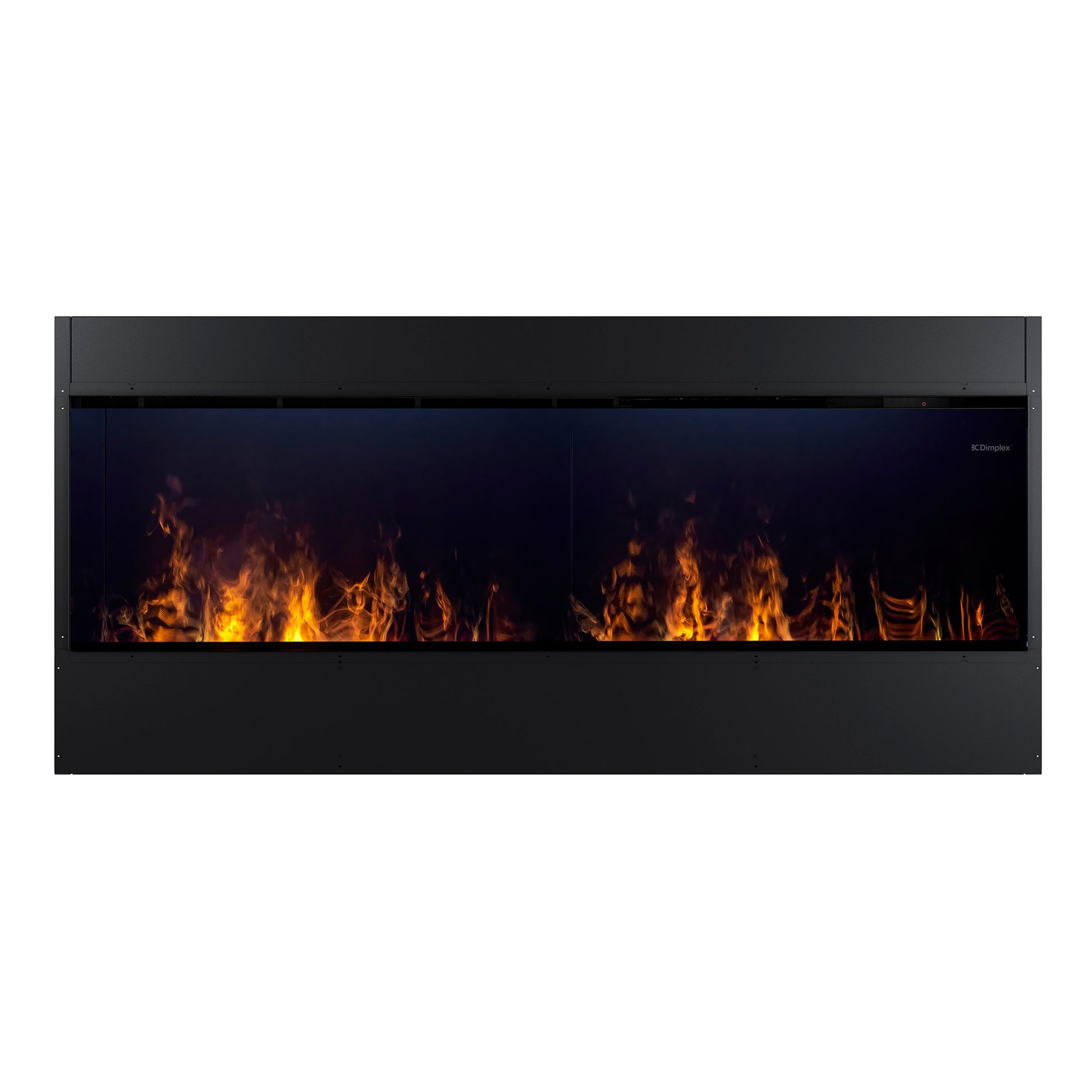

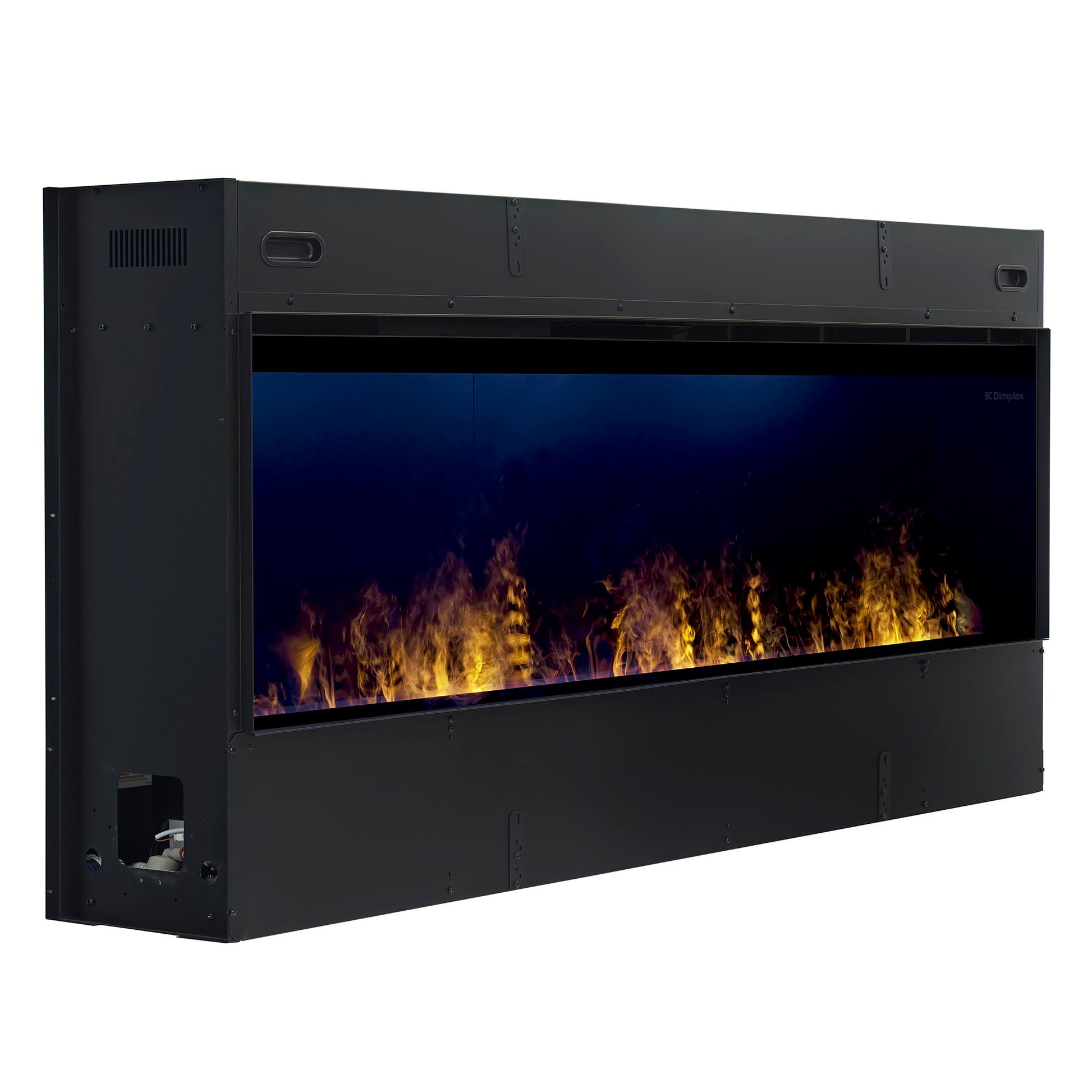

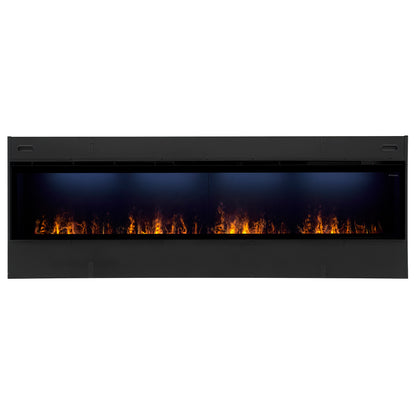

Optimyst® Linear Vapor Fireplace

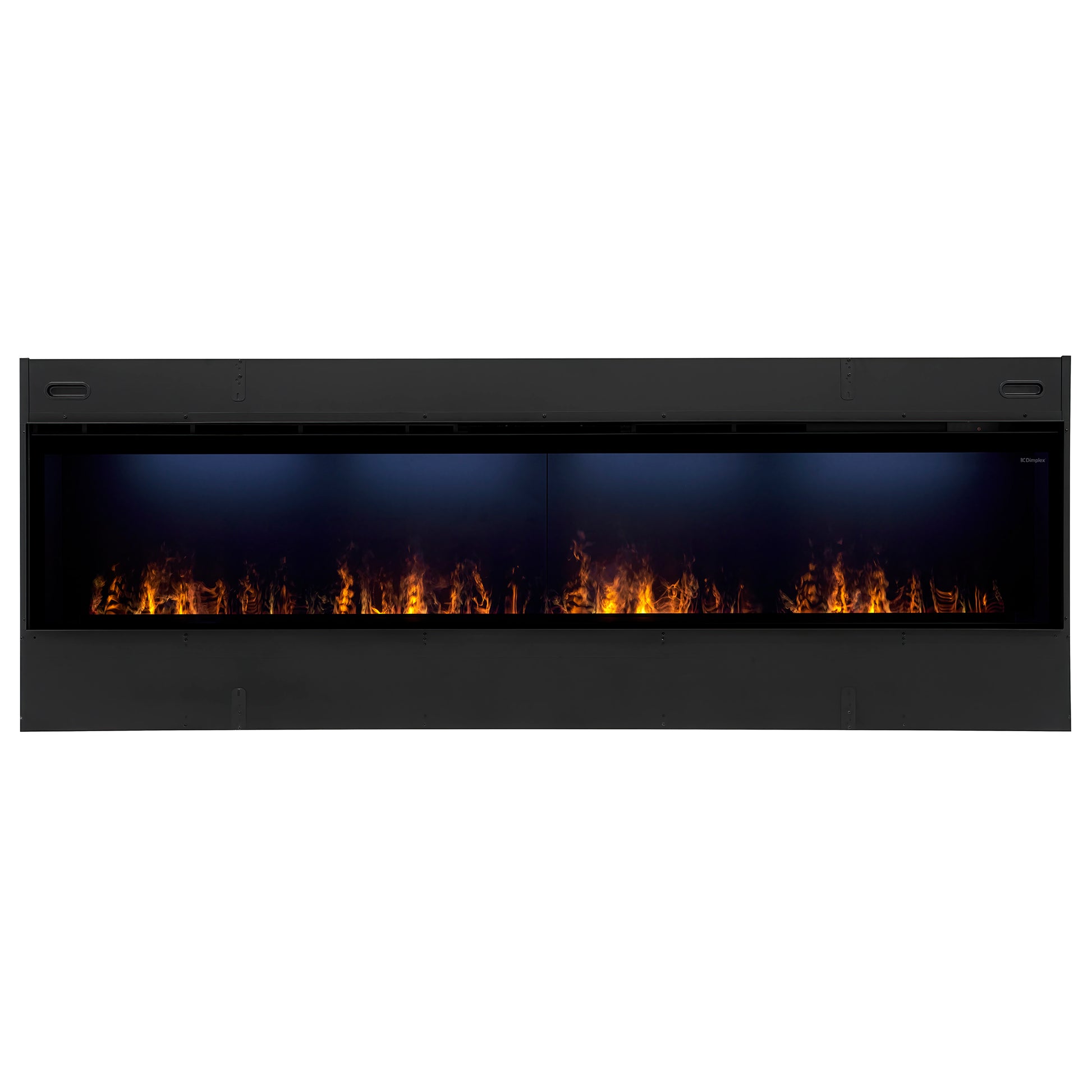

The Optimyst Linear redefines electric fireplaces by turning water into a captivating flame experience. Using advanced water vapor technology and LED light, it creates lifelike flames that move and glow naturally. With a slim zero-clearance design and continuous water supply option, this fireplace blends innovation and elegance, available in 46, 66, and 86 inch widths. Enjoy comfort, beauty, and clean operation every day.

The wonderful feel of a burning log fire. The place where you can relax, meet, recharge your batteries and share. When a gas fire or wood stove is impossible or undesirable, or for those who prefer individual design and specific choices, Experience the new e-MatriX; Astonishing fire... from water. Fire for anybody, anywhere.

Features

• Optimyst uses patented technology to produce water vapor that closely imitates true flames and smoke. As the flames do not generate heat, the glass is cool to touch, making it safe for everyone.
• Advanced, multicolor LED lighting projects onto the flames to help create the fire illusion.
• There are no harmful emissions with the Optimyst Linear; enjoy a sustainable, eco-friendly electric fireplace.
• The Optimyst can be placed anywhere to let your unique vision come to life. No chimney, gas lines, or venting required. Install the Optimyst wherever your heart desires—the options are limitless.
• The Optimyst Linear includes wi-fi enabled options. Control your fireplace from anywhere with the Dimplex Flame Connect App. Adjust the flame intensity, colors, heater, and sound all through your phone. A physical remote is included as well.
• Set the mood for you and your guests with new multicolor flame effects. The ability to control individual lights and mix different colors provide an added level of depth. Choose between a traditional amber glow or go contemporary using a full range of customizable colors—you also have the option to automatically rotate through colors.
• Adjustable spacers allow for customizable flame shapes, generating a unique fire experience.
• The Optimyst provides a complete sensory experience with the option to emit a crackling sound at your chosen volume level.
• The fully-sealed glass insert perfectly protects and stabilizes the fire—no need to worry about drafts disrupting the flames as it’s fully self-contained.
• Can be used as a supplemental heat source of up to 1000 sq. ft. with different temperature settings (normal and eco-mode). Enjoy the flames year-round without the heat if desired.

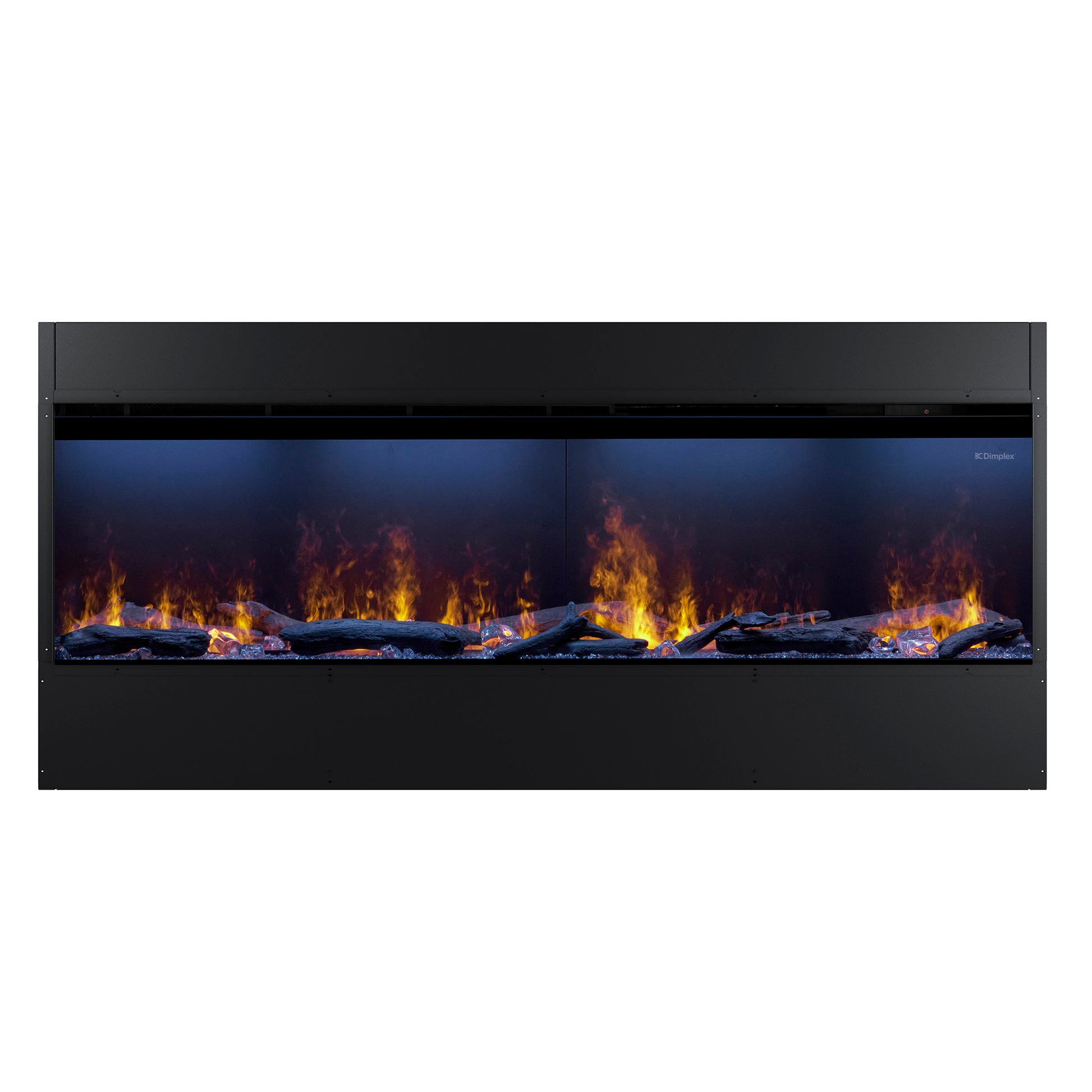

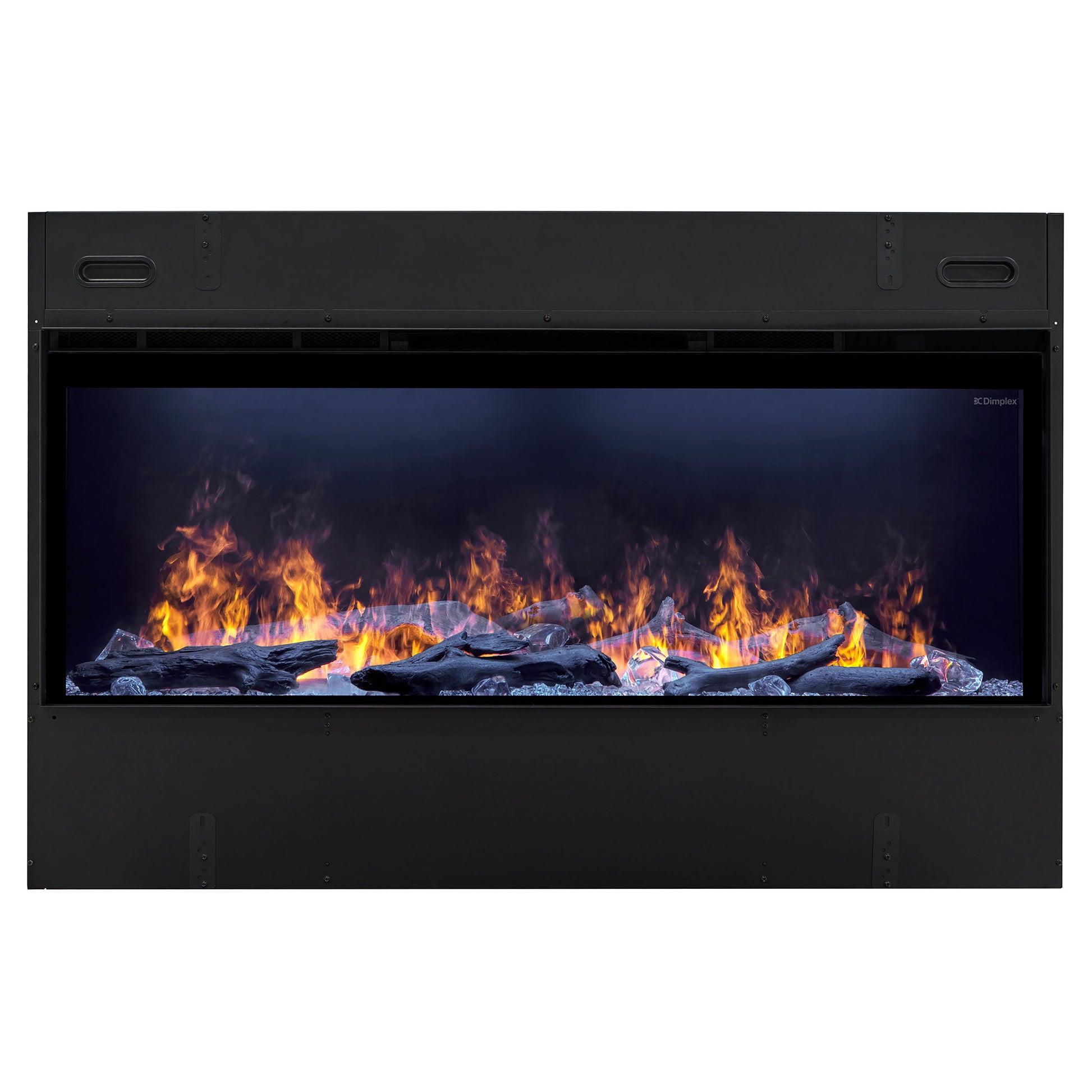

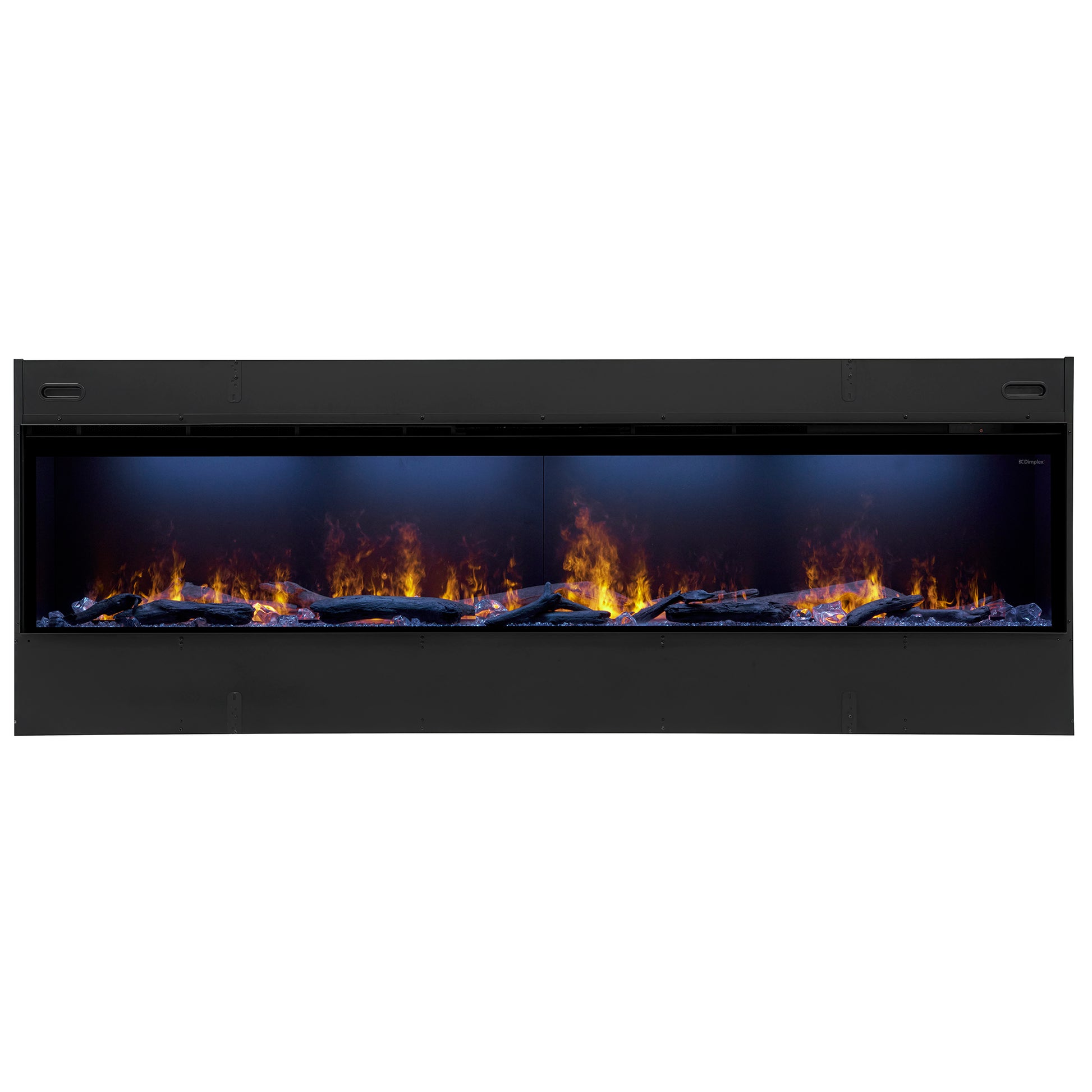

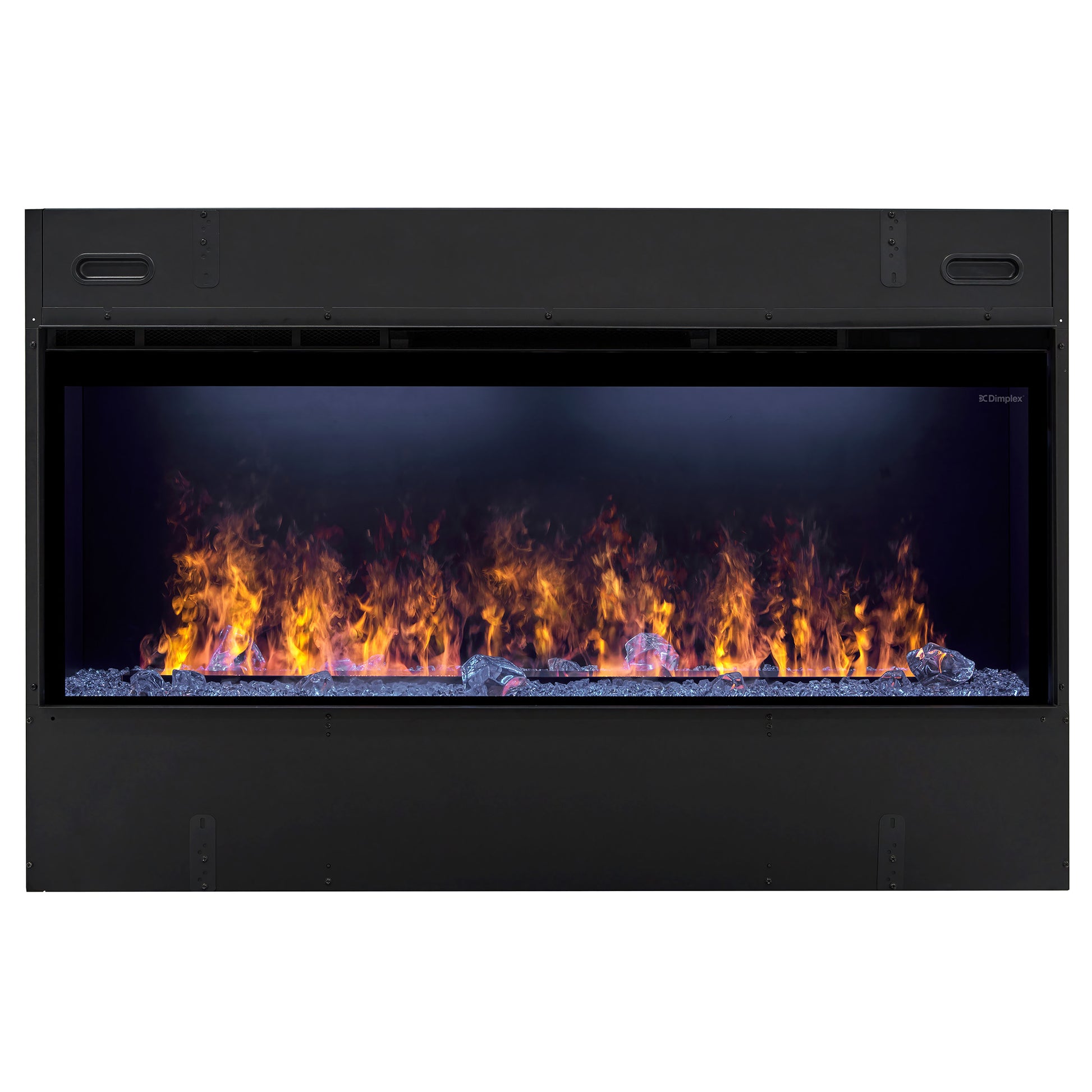

• Water vapor technology allows for flexible media bed choices—no fire hazard here. The Optimyst includes Acrylic Ice and Driftwood media kits. You can even add your own media for a distinct design.

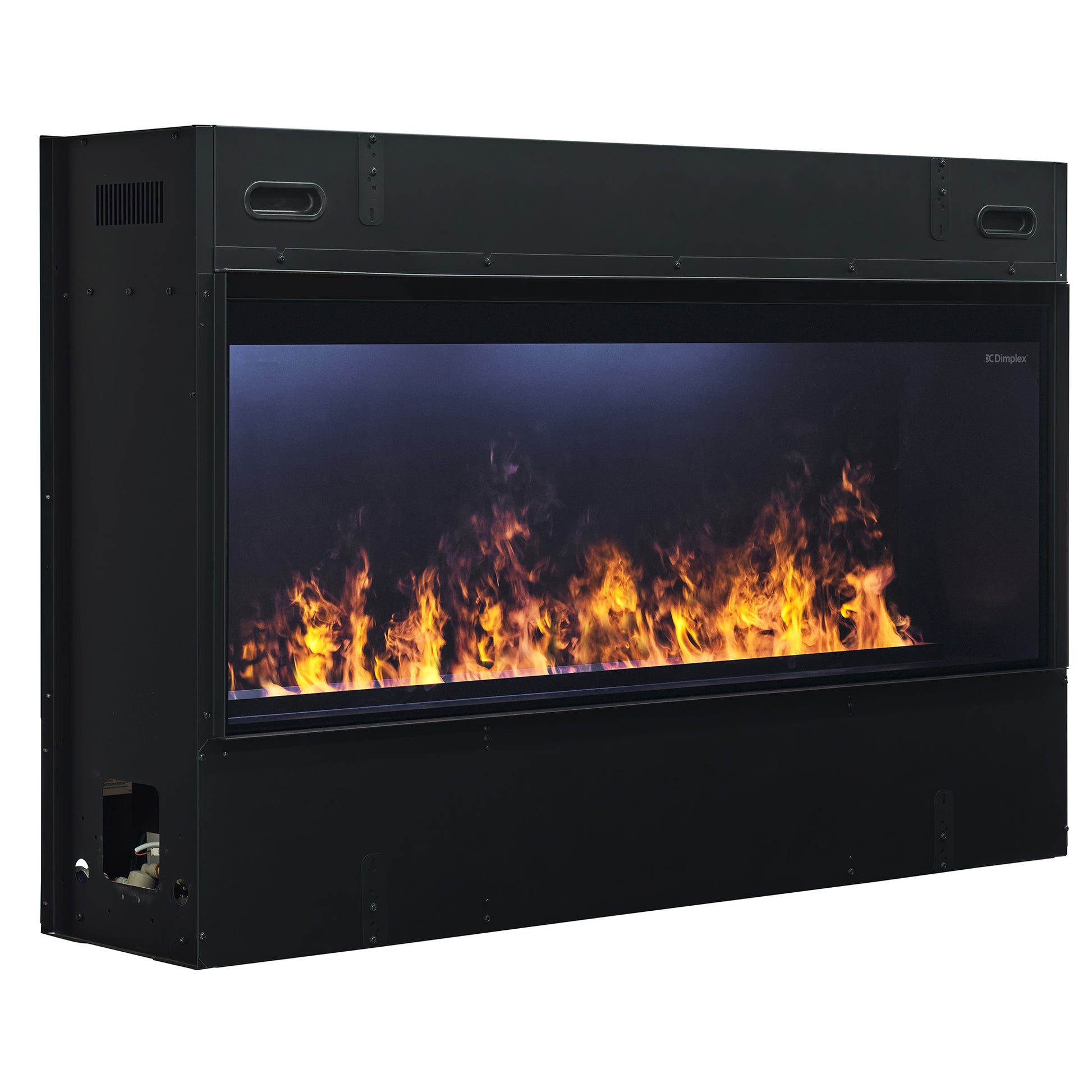

• Simple, worry-free installation—the Optimyst is zero clearance with a slimmer depth of under 12in.
• The hidden, integrated self-diagnostics reduce and simplify the trouble-shooting time and improve service.
• The optional plumbed water supply kit provides continuous operation without the need to refill water tanks. Compatible with copper piping only, the plumbing kit is easy to install to connect to existing waterlines.
• If this unit is installed in a bathroom, it must be protected by a GFCI receptacle or circuit. If a receptacle is used, it must be readily accessible. This electrical appliance is NOT watertight. To prevent electric shock, it must be installed to prevent water from entering the unit, or installed away from showers, tubs, etc. Never locate a fireplace where it may fall into a bathtub or other water container.

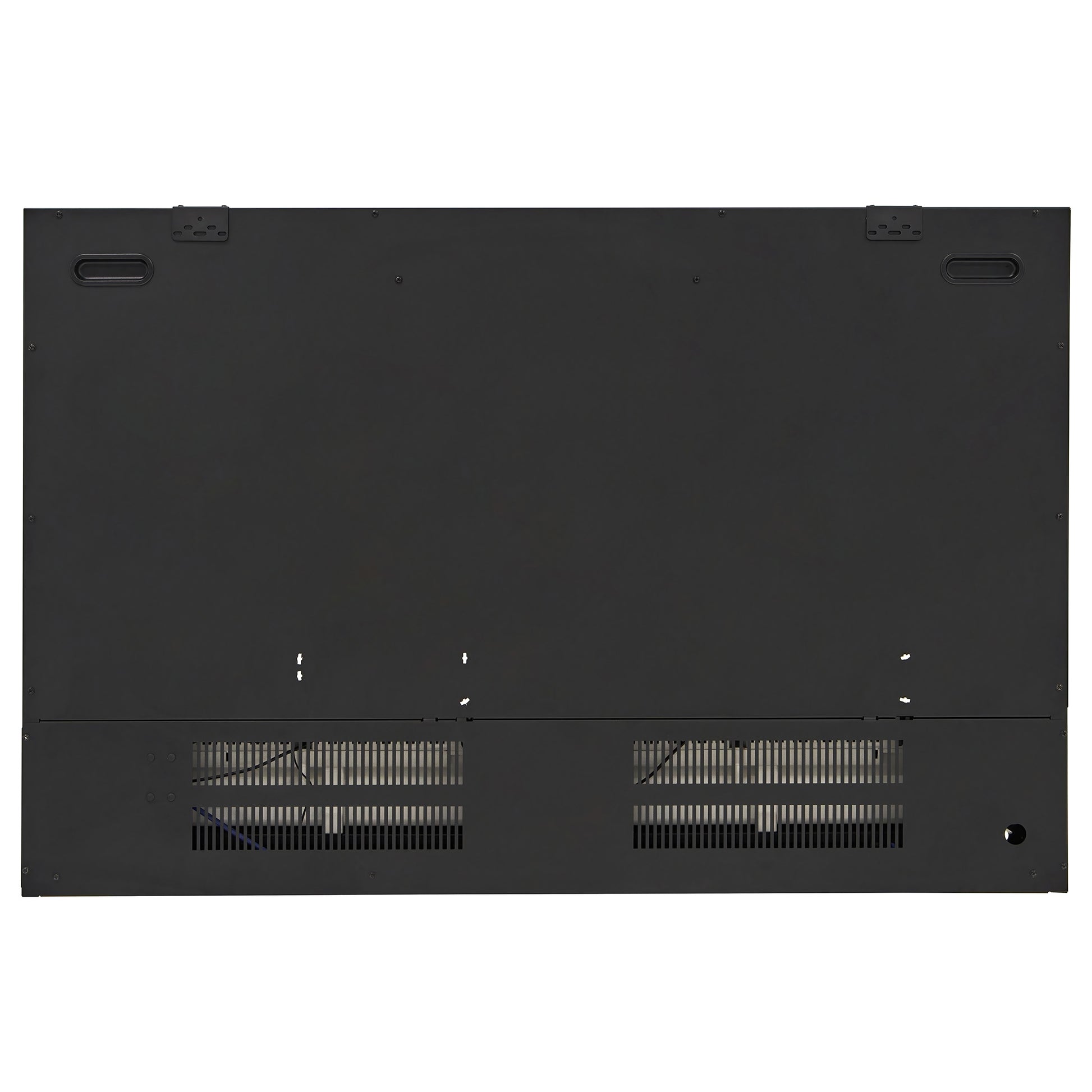

• Fresh air inlets are required for airflow to reach the underside unit. Failure to include a fresh air inlet may result in poor flame performance and damage to the fireplace.
• Included in the box: firebox, acrylic ice and driftwood media, remote control.


Key Technical Specifications

• Voltage: 120/240V
• BTU: 5050/7438
• Product Height: 31.50" (All Models)
• Product Depth/Length: 11.75"
• Product Width:

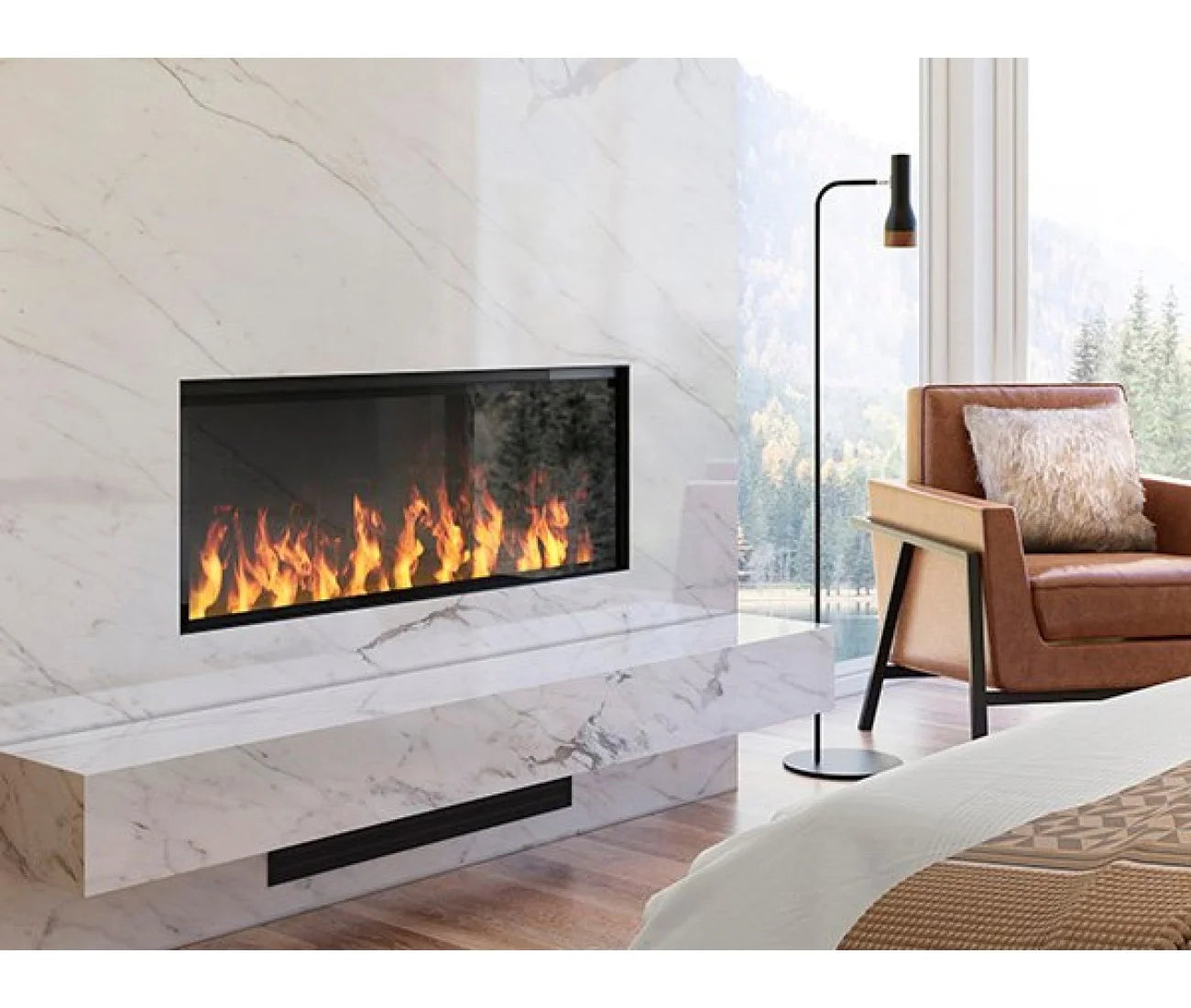

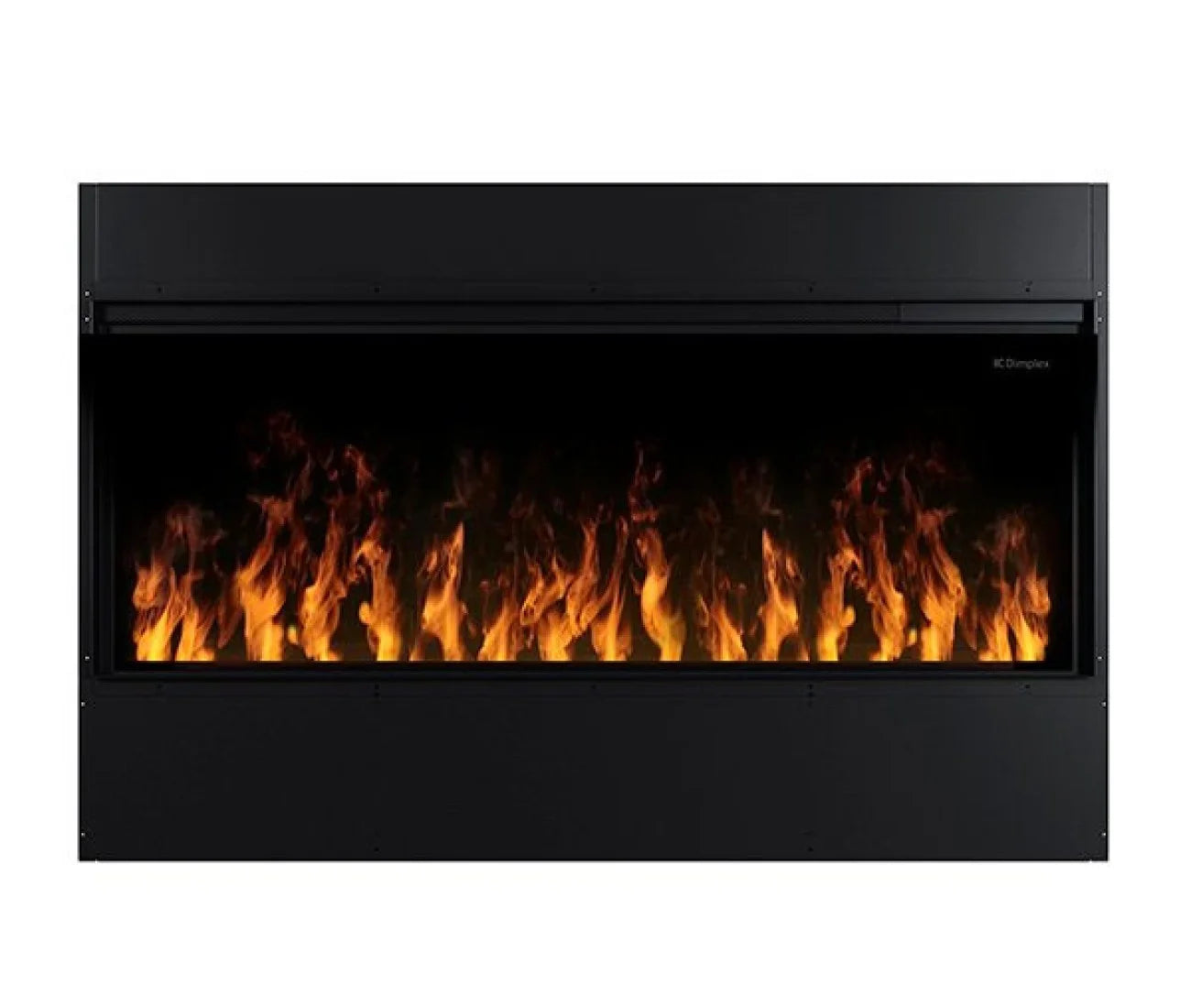

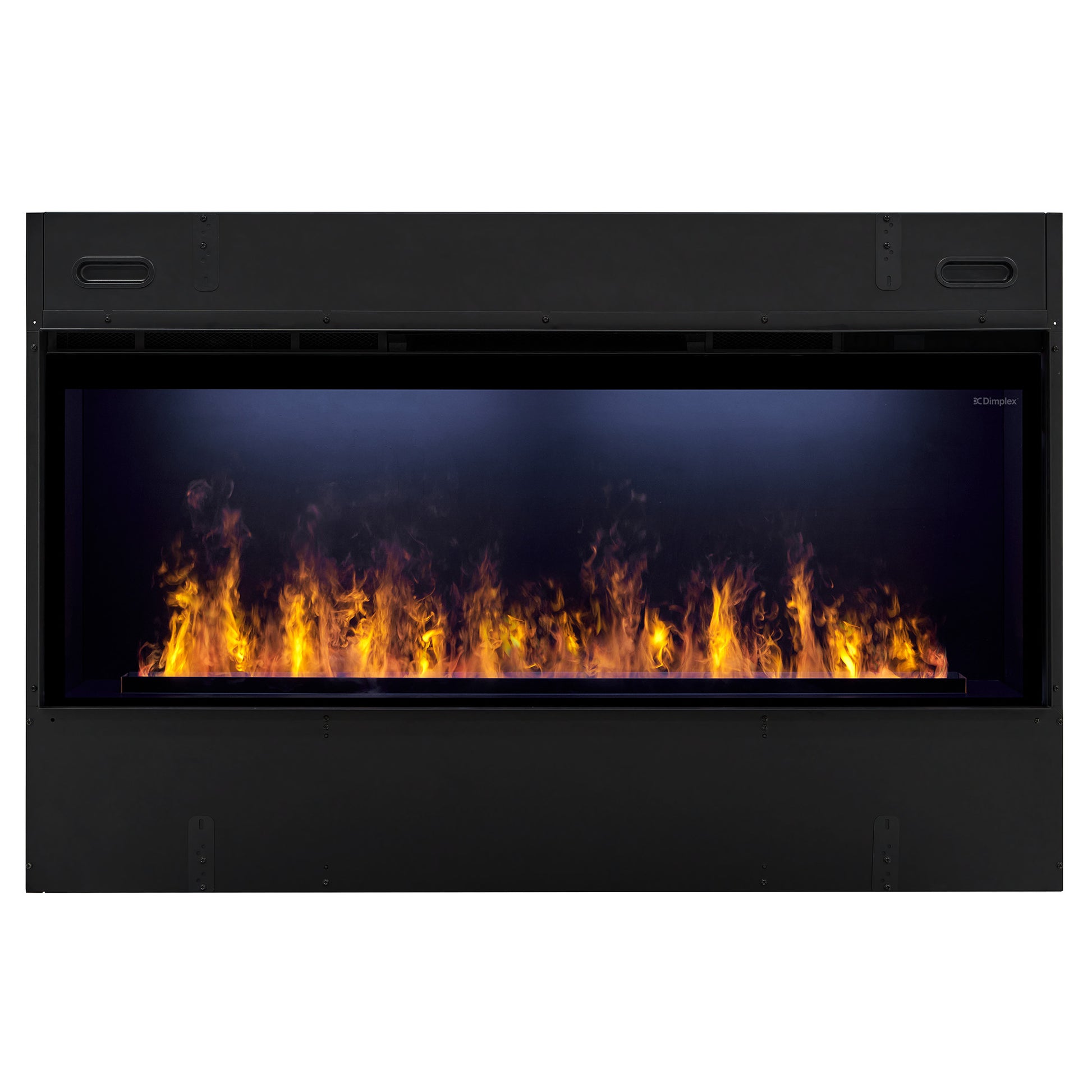

  • 46" Model: 47.50"

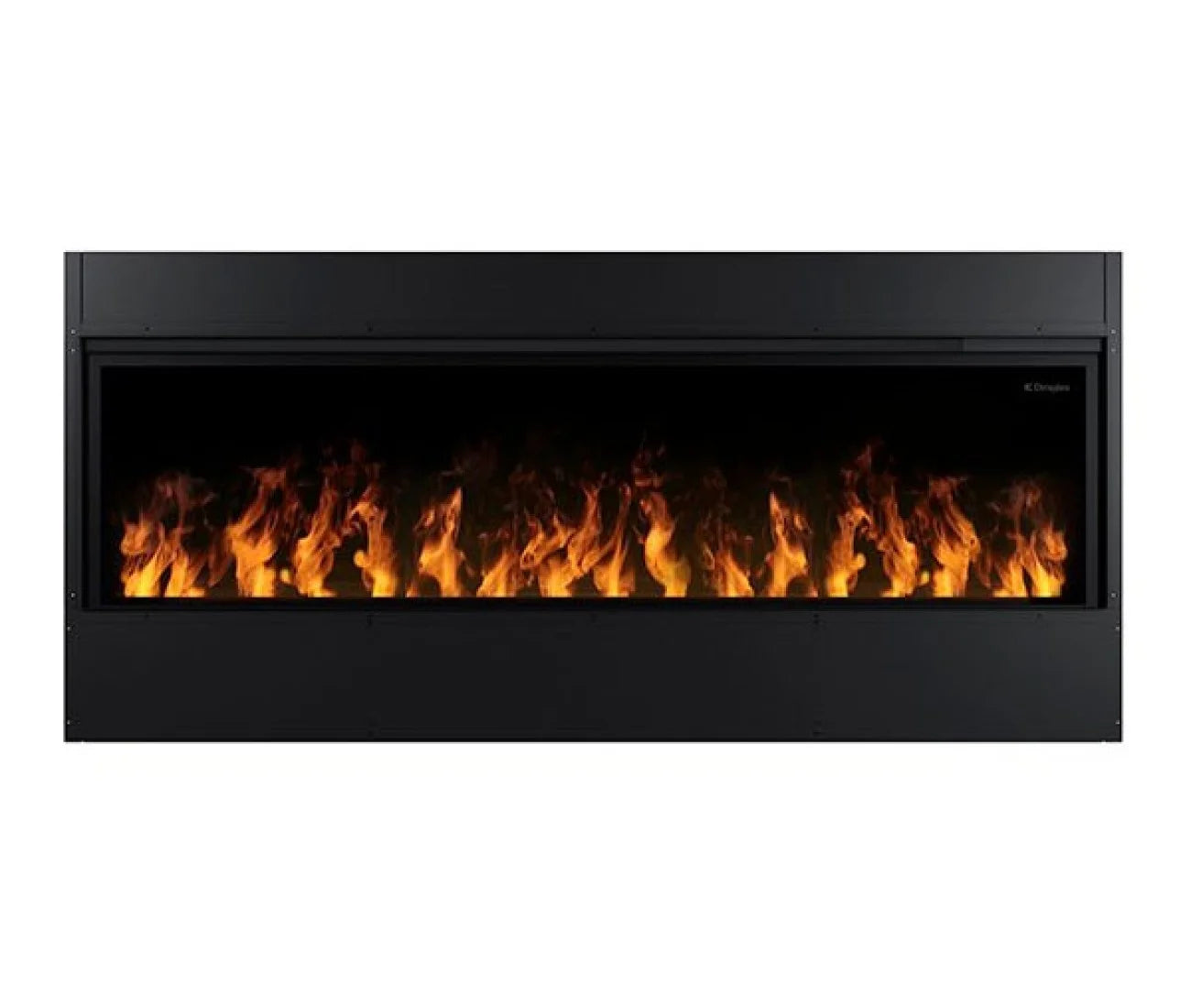

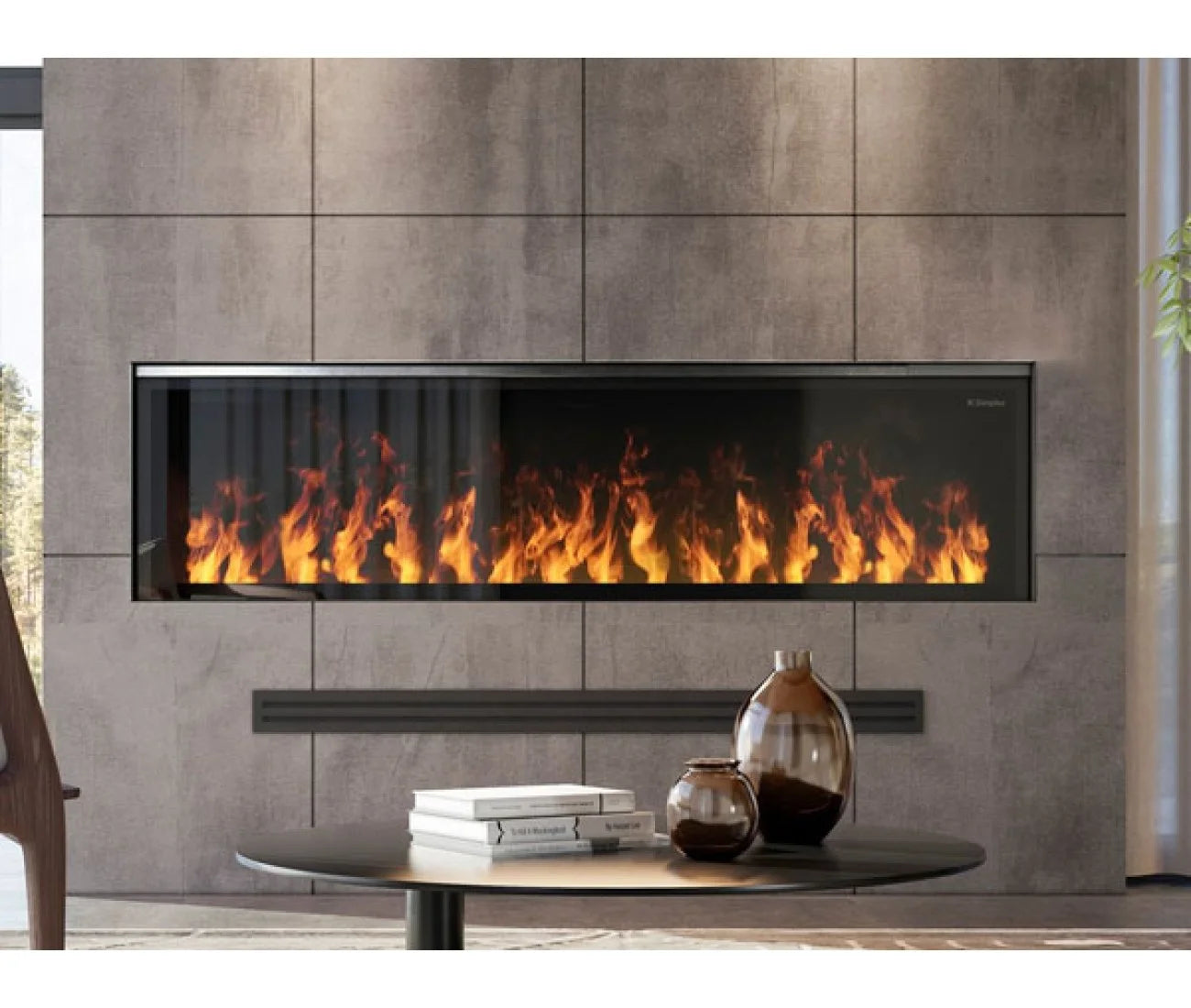

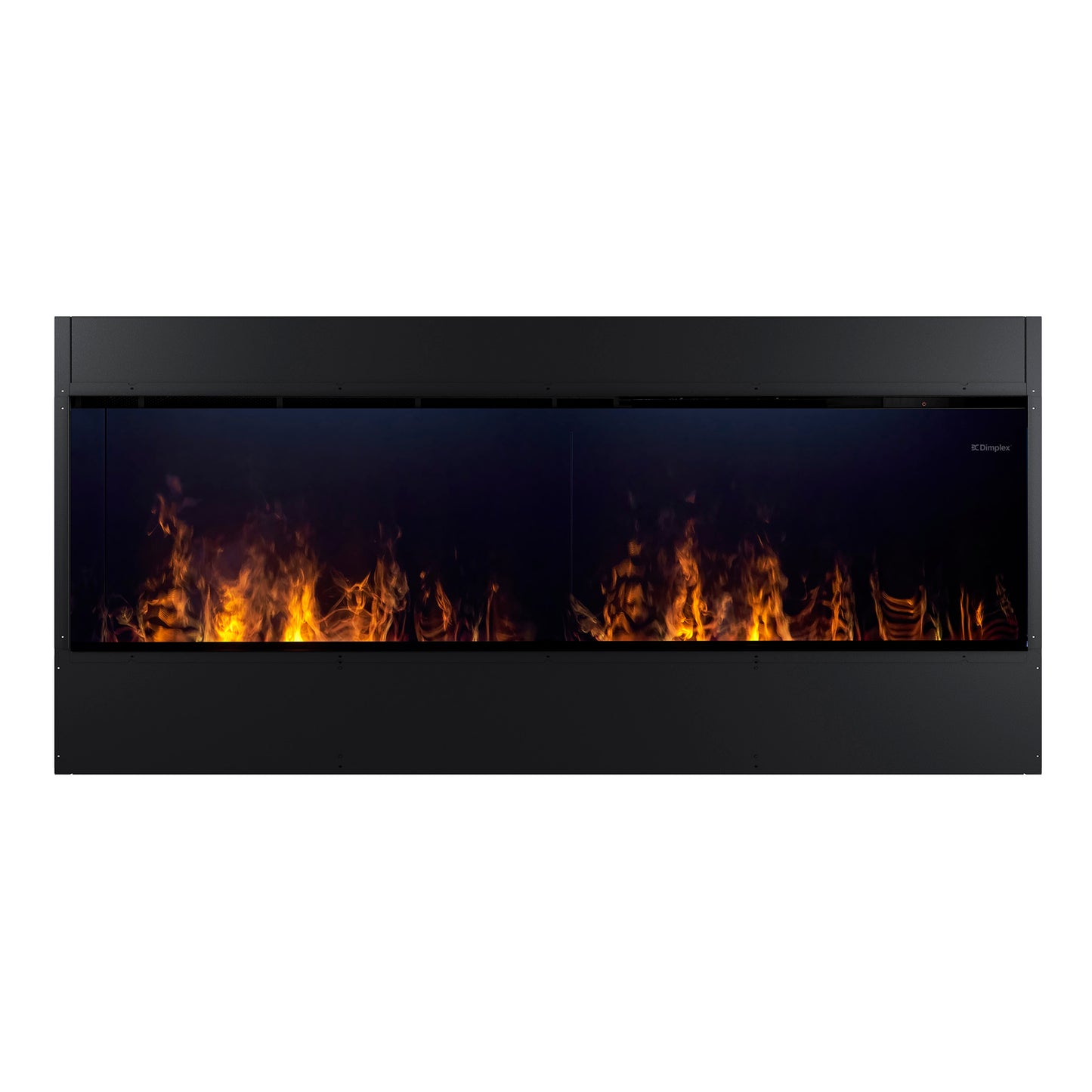

  • 66" Model: 67.50"

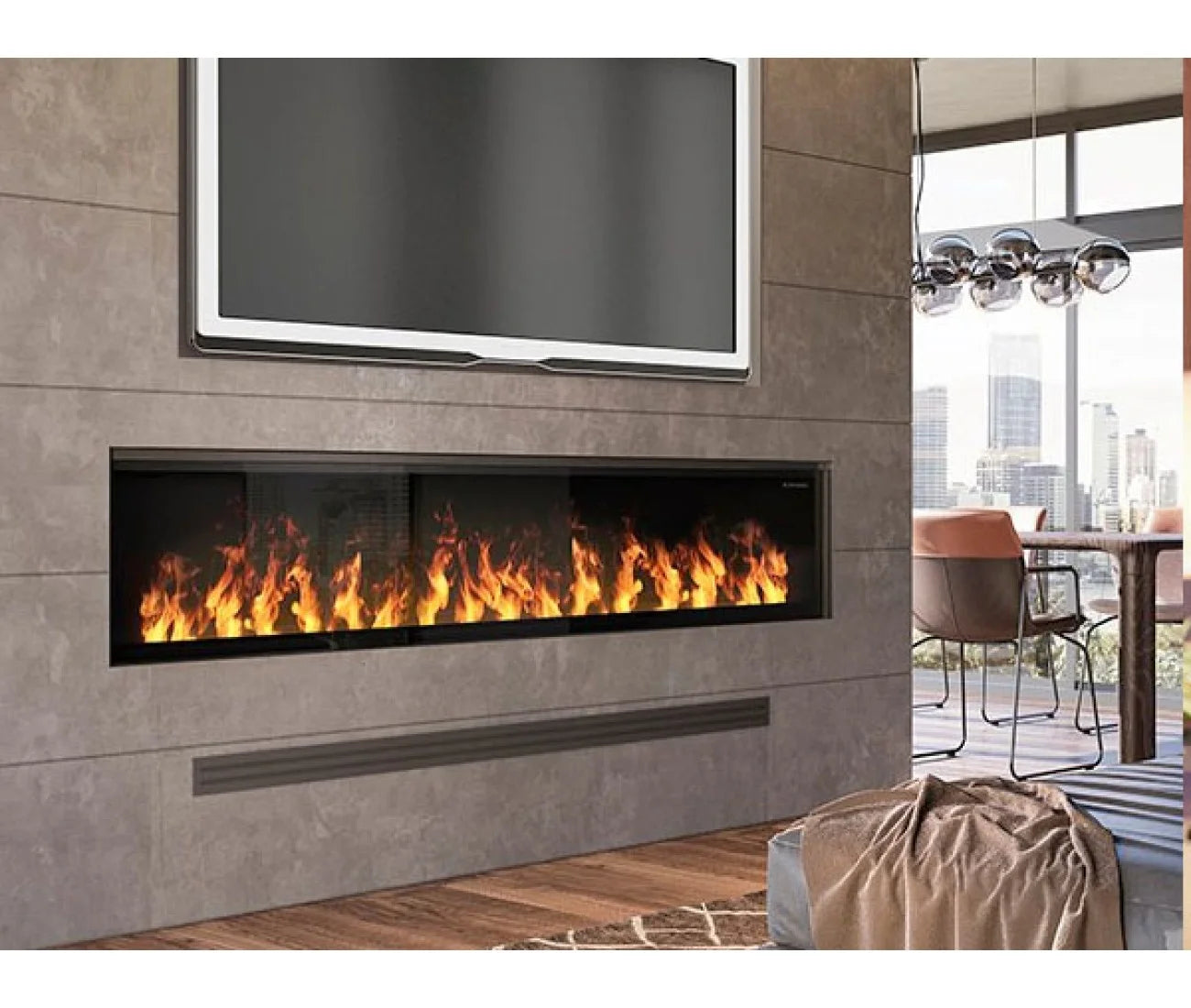

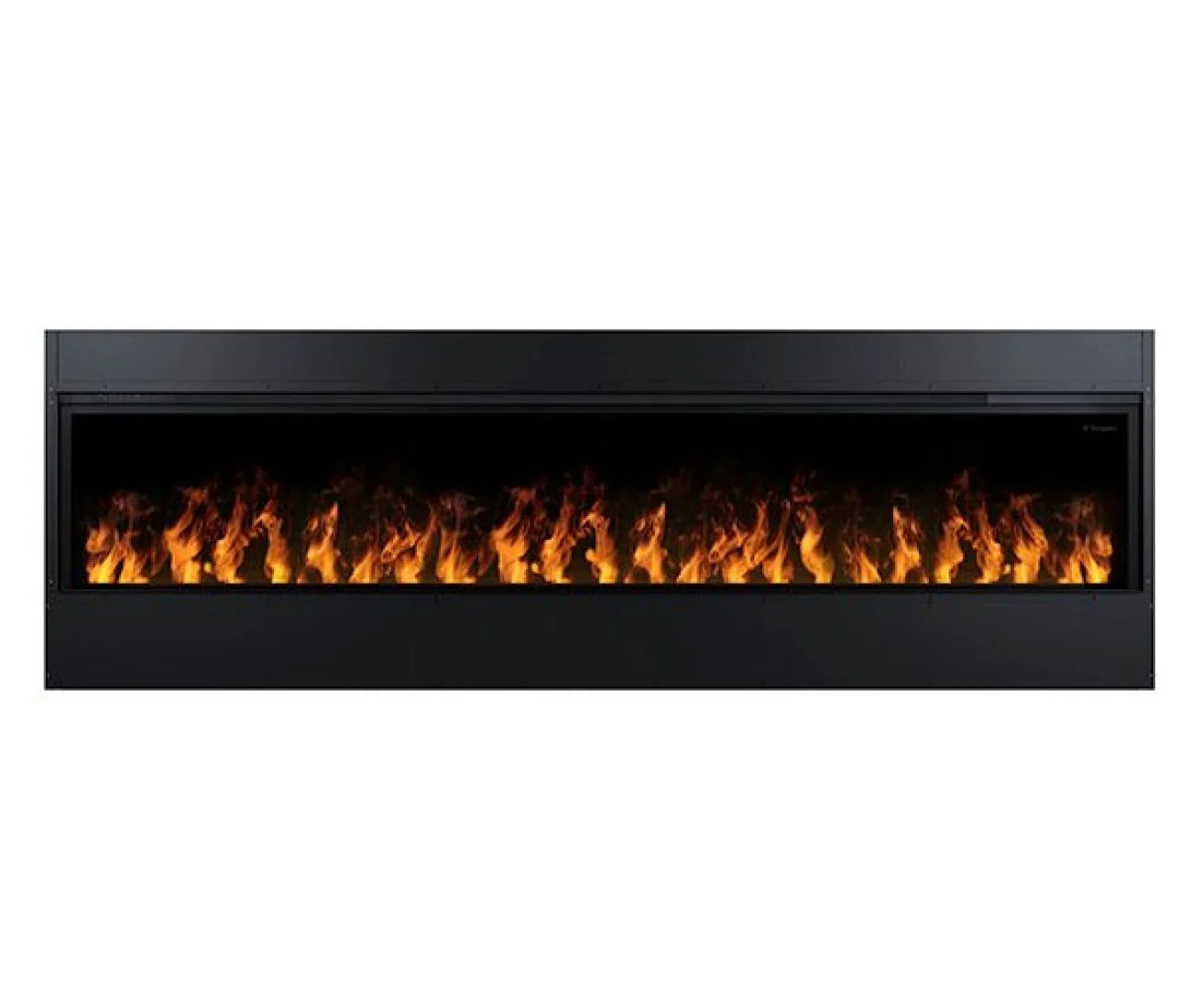

  • 86" Model: 87.50"
• Wattage / Amps:
  • 46" Model: 1220/1920 Watts / 10.2/8 Amps
  • 66" Model: 1480/2180 Watts / 12.3/9.1 Amps
  • 86" Model: 1020/2400 Watts / 8.5/10 Amps
• Timer: Yes
• Heat Vent Location: Front
• Adjustable Brightness: Yes
• Adjustable Flame Speed: Yes
• Remote Control: Yes
• Front Glass Type: Tempered
• Warranty: 2 Yr Limited

All Optimyst Linear Vapor Fireplace Specifications

• Decibels: 55
• Element Type: Ceramic
• Battery Size in Remote Control: CR2032
• Battery Technology in Remote Control: Lithium Ion
• Light Bulb Type: LED
