Optimyst - Linear Fireplace

Features

• Optimyst® uses patented water vapor technology to create ultra-realistic 3D flames and smoke without producing heat, making the glass safe to touch.
• Advanced multicolor LED lighting enhances the flame effect with customizable colors or automatic color rotation.
• Vent-free installation with no chimney, gas lines, or venting required, allowing installation almost anywhere.

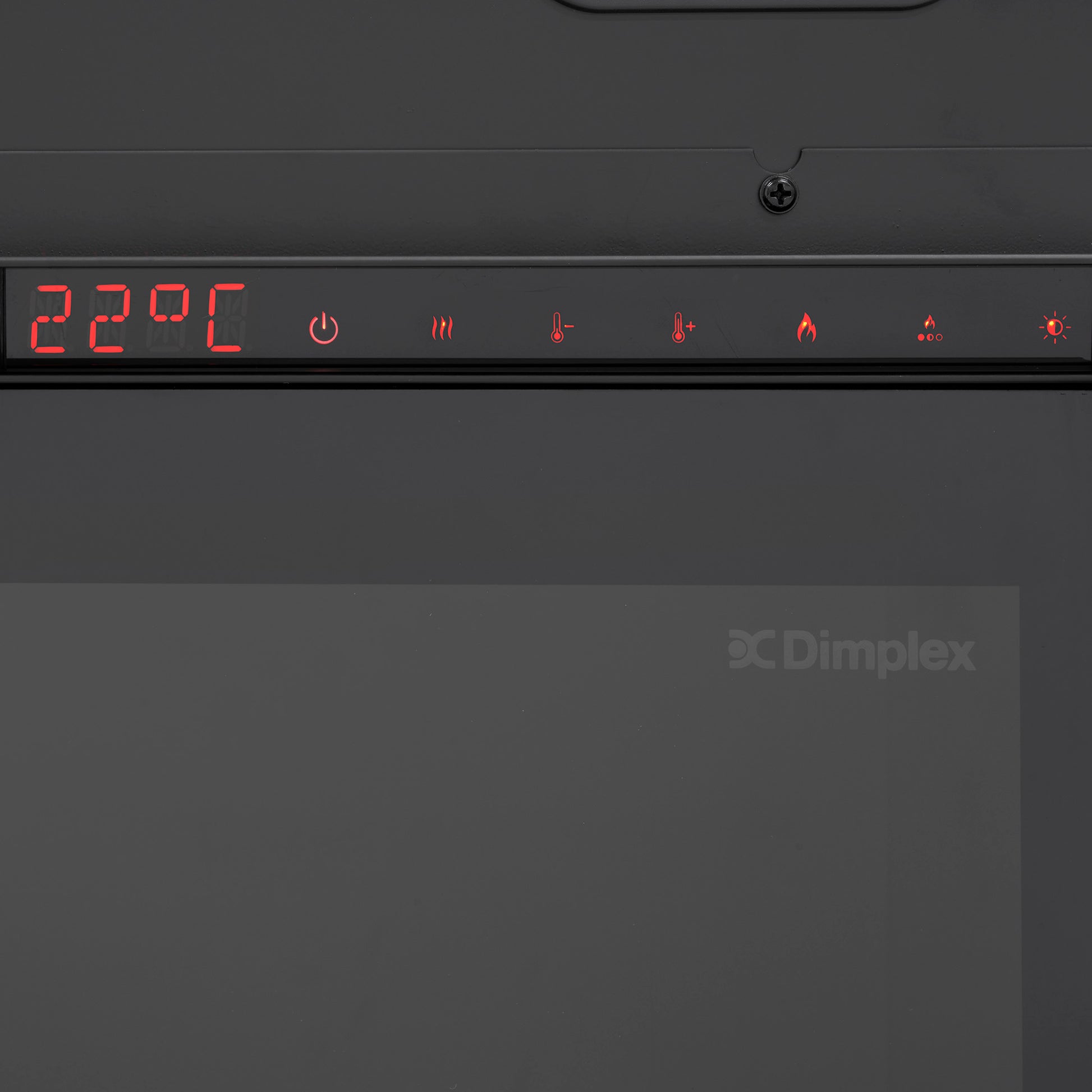

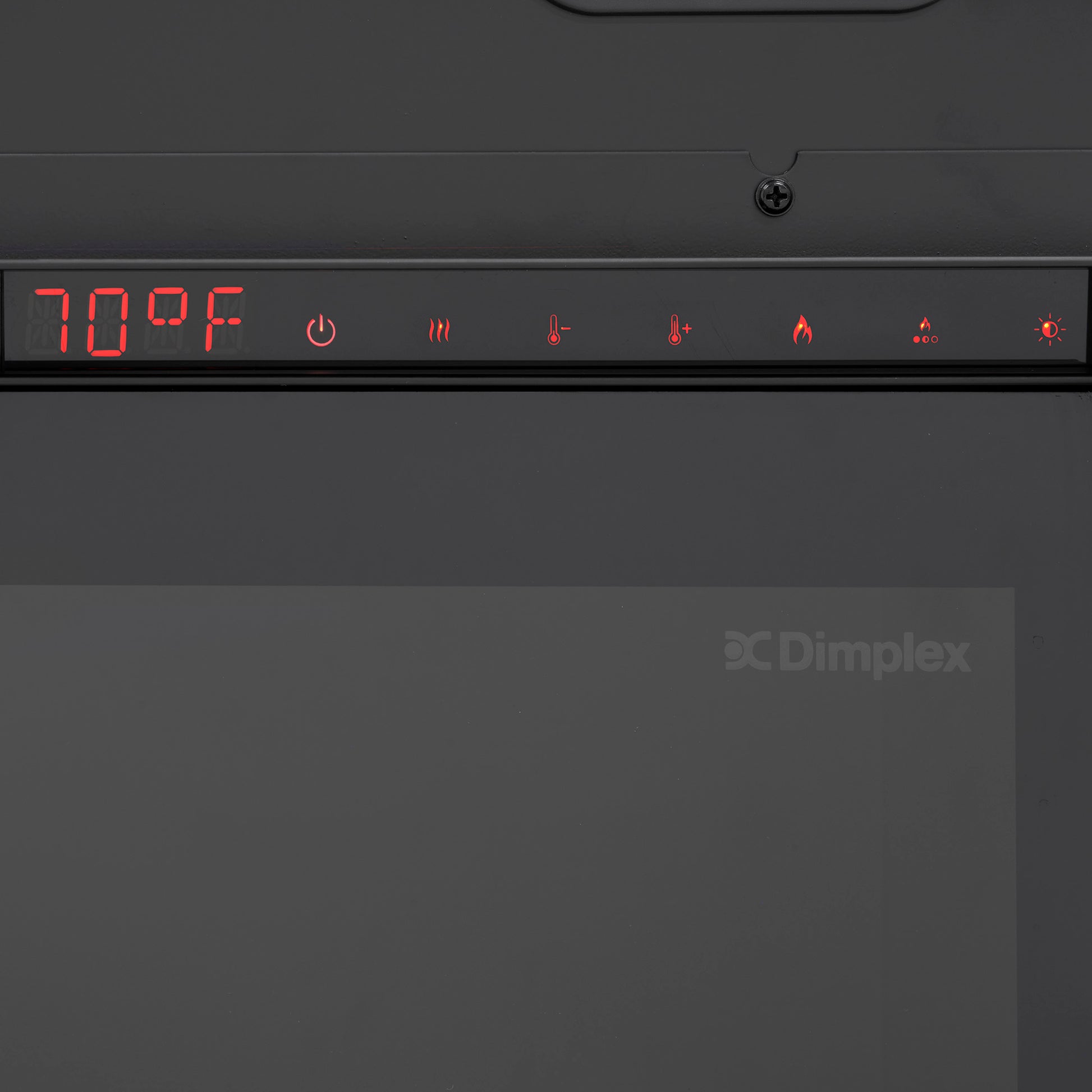

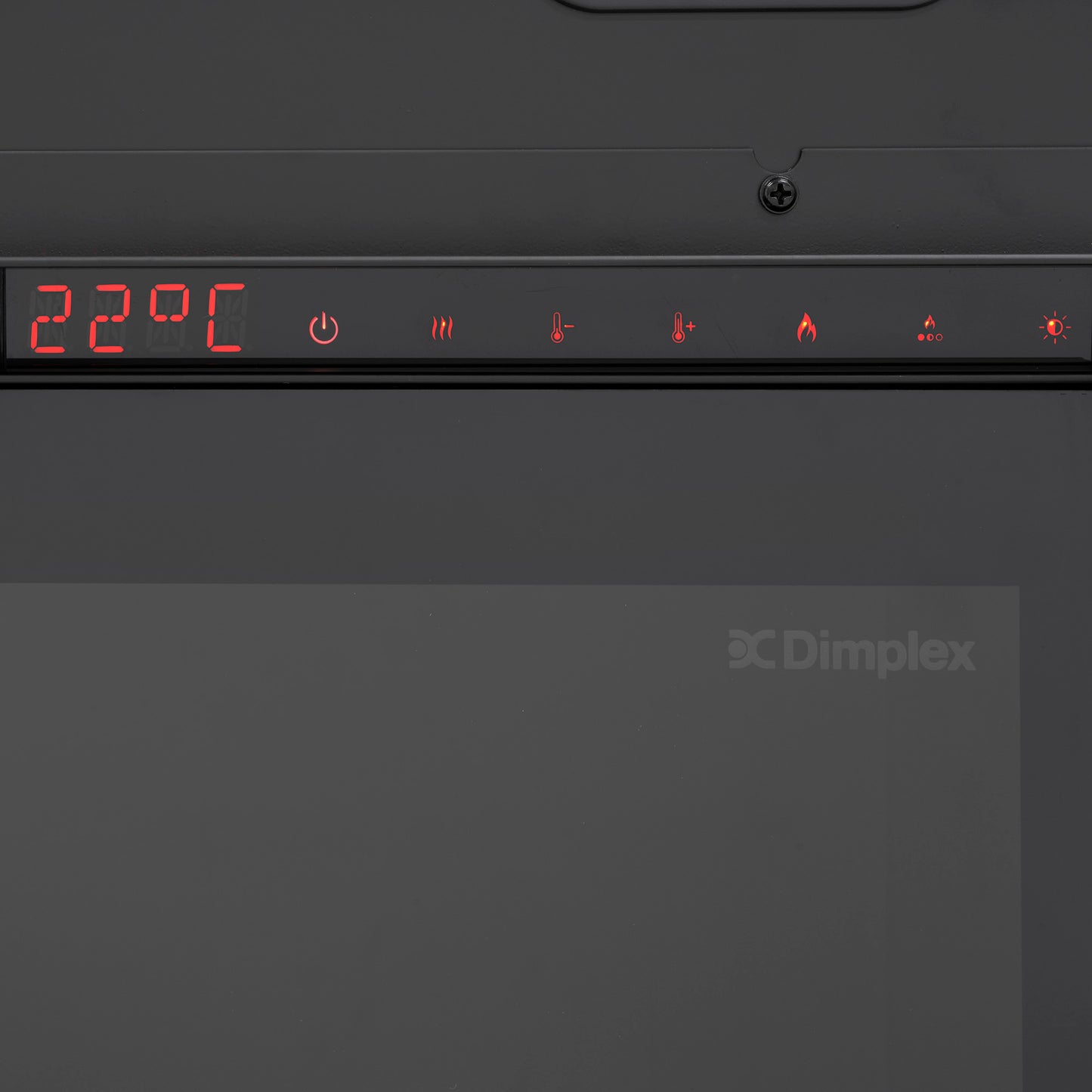

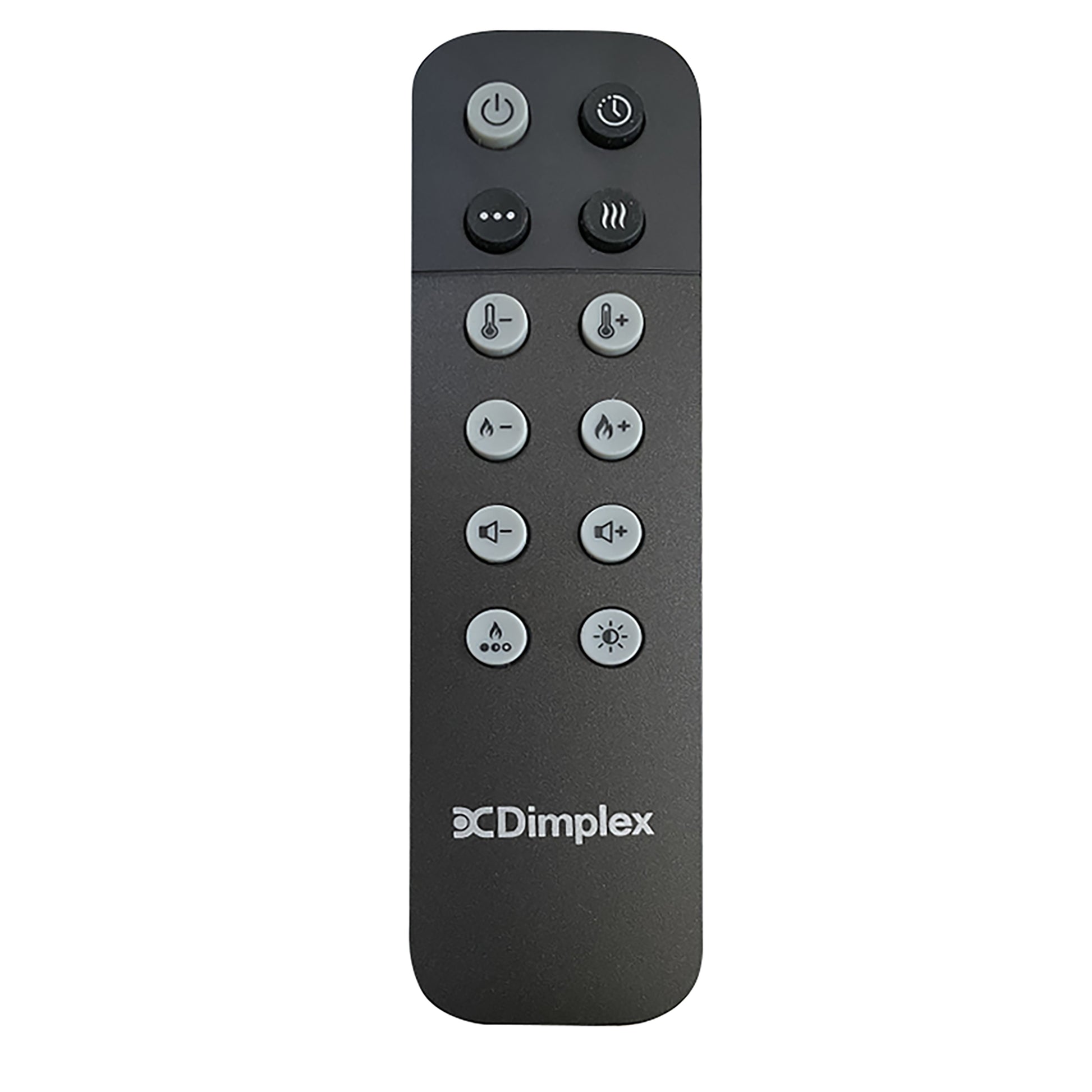

• Wi-Fi enabled with the Dimplex Flame Connect App for remote control of flame intensity, colors, heater, and sound. Includes a physical remote.
• Adjustable flame spacers create customizable flame shapes for a personalized fire experience.
• Built-in crackling sound effect with adjustable volume for a complete sensory experience.
• Fully sealed glass insert protects and stabilizes the flame effect from drafts.
• Supplemental heater warms spaces up to 1,000 sq. ft. with Normal and Eco modes. Flames can operate independently from the heater.
• Zero-clearance installation with a slim depth of less than 12 inches.

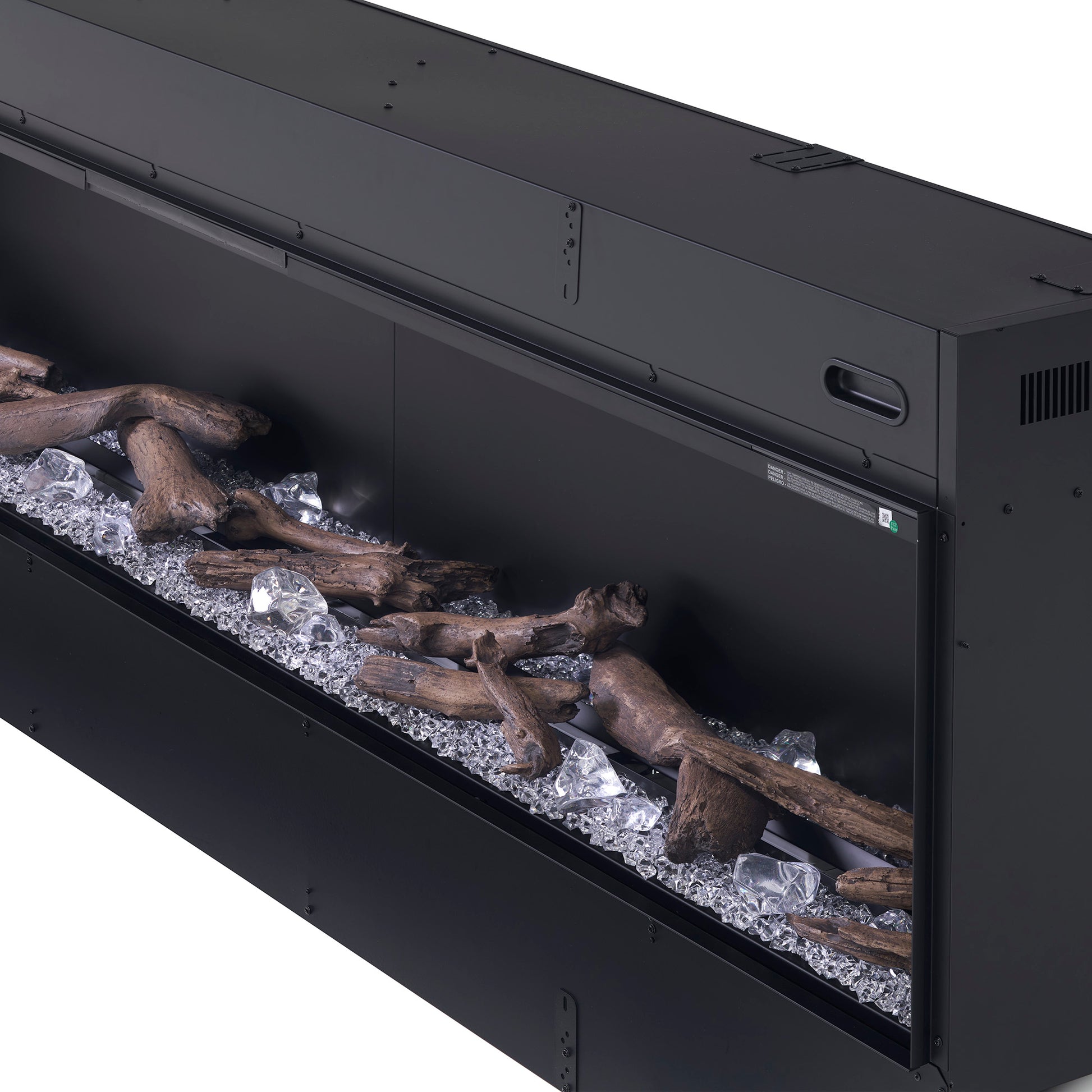

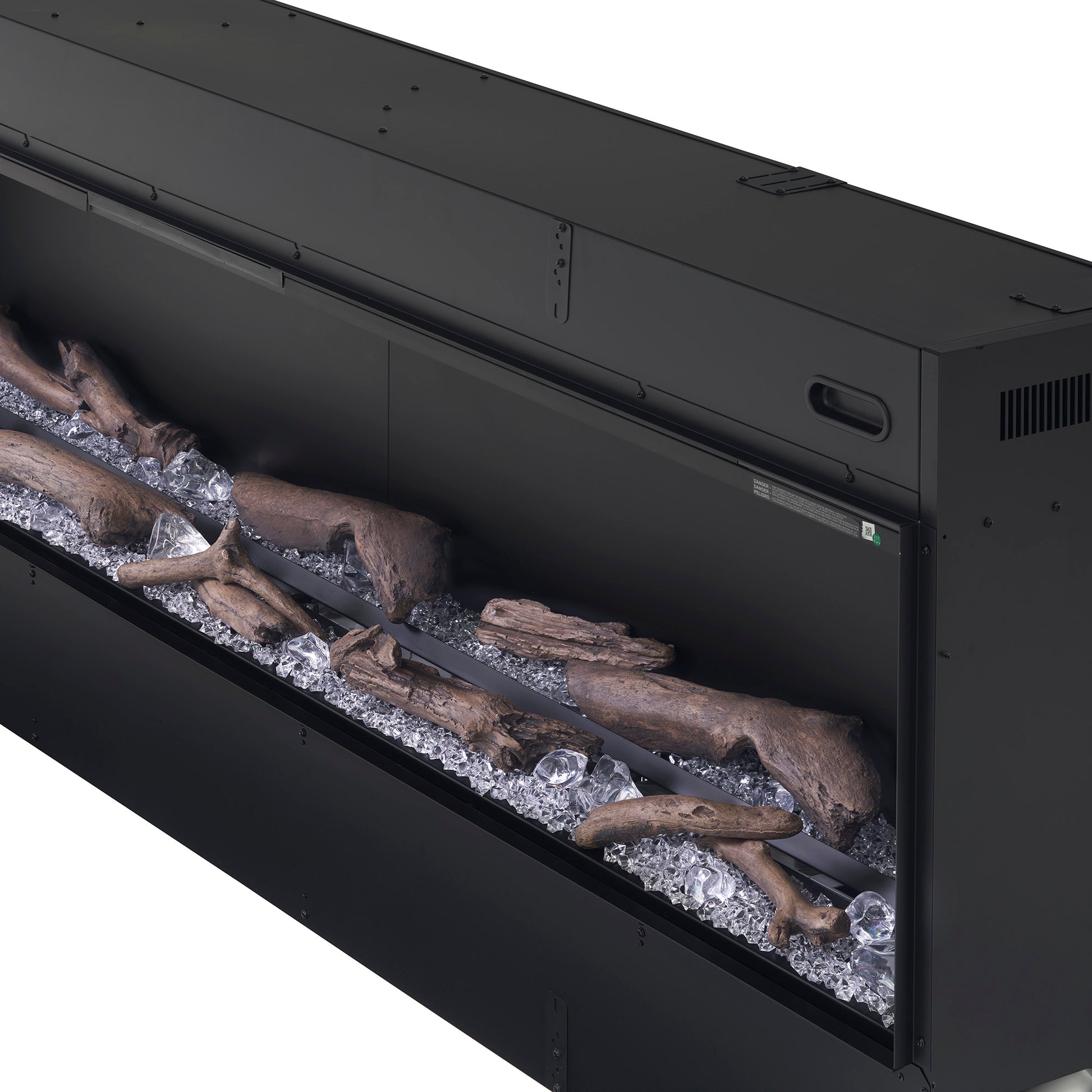

• Includes Acrylic Ice and Driftwood media kits, with the option to add your own decorative media.
• Hidden self-diagnostics simplify troubleshooting and servicing.
• Optional plumbed water supply kit enables continuous operation without refilling water tanks (compatible with copper piping only).

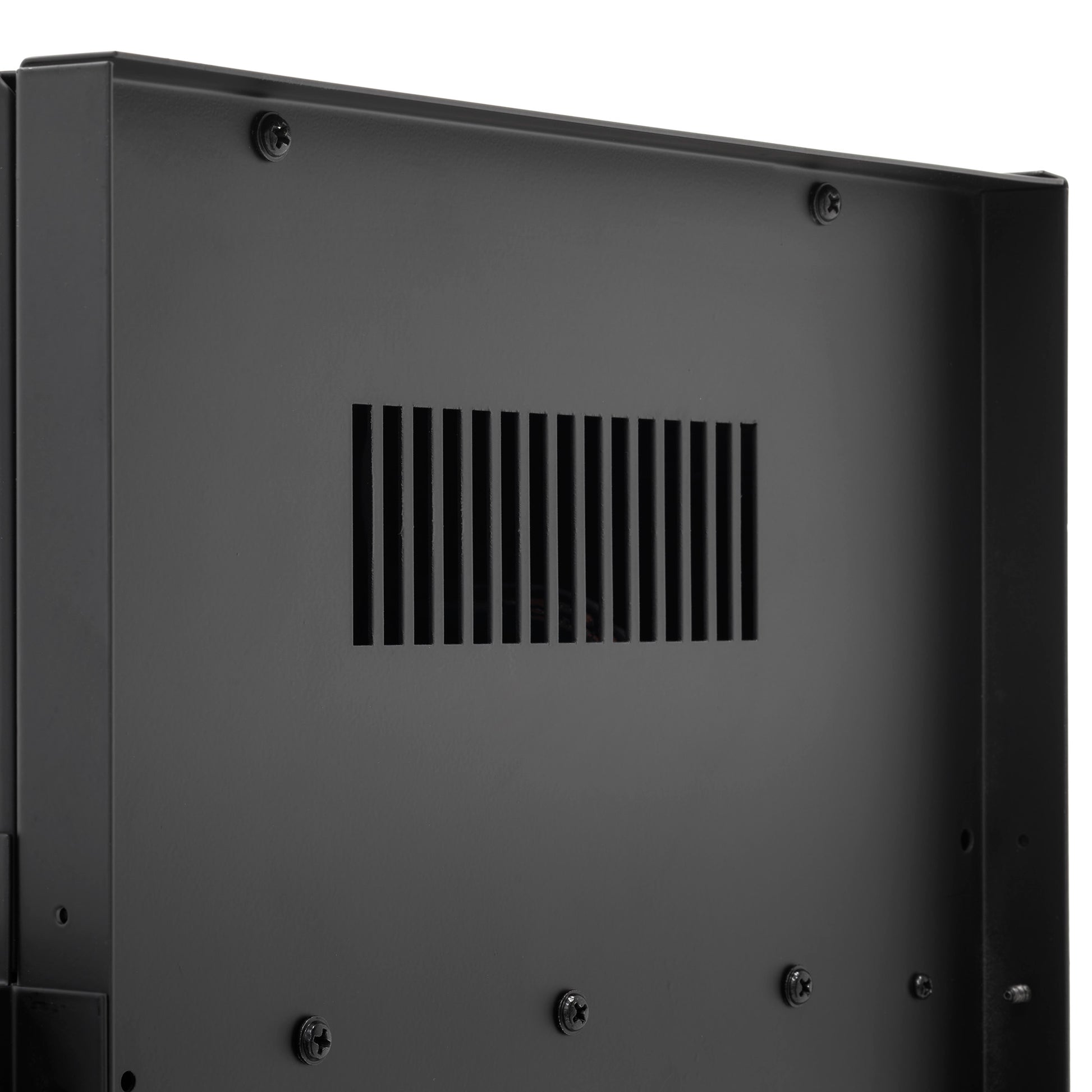

• Fresh air inlets are required beneath the unit for proper flame performance.
• Bathroom installations require GFCI protection and must prevent water exposure.
• Includes firebox, acrylic ice media, driftwood media, and remote control.

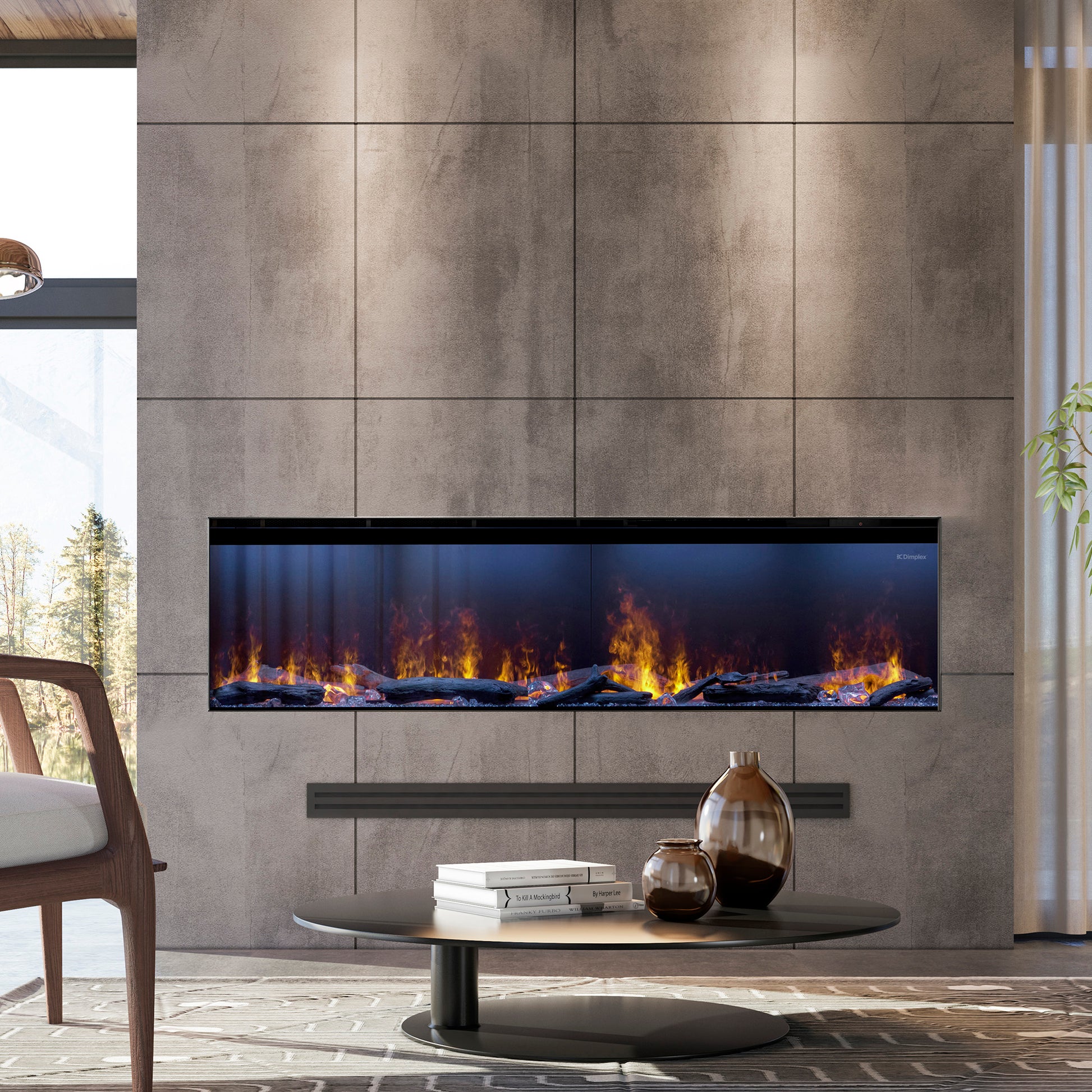

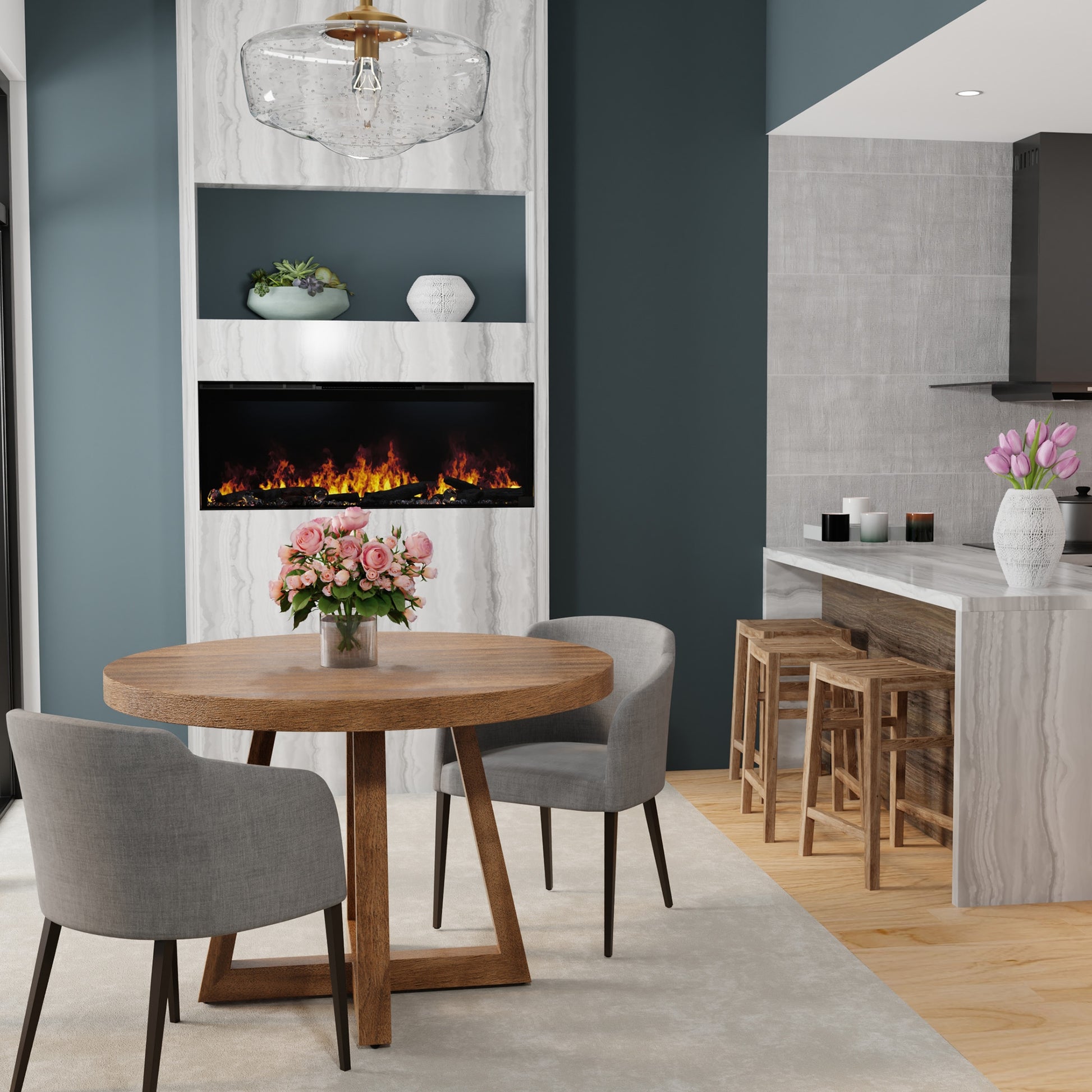

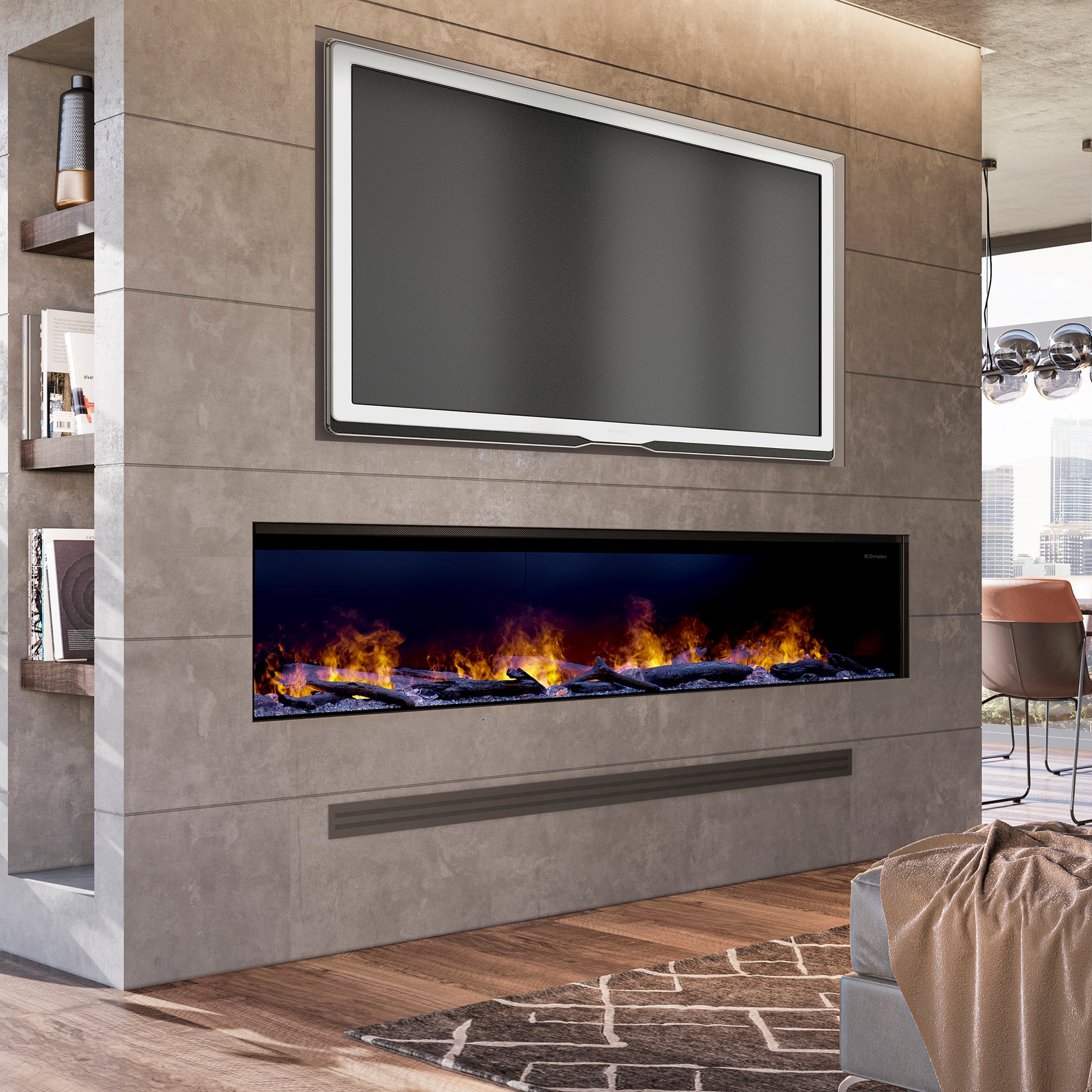

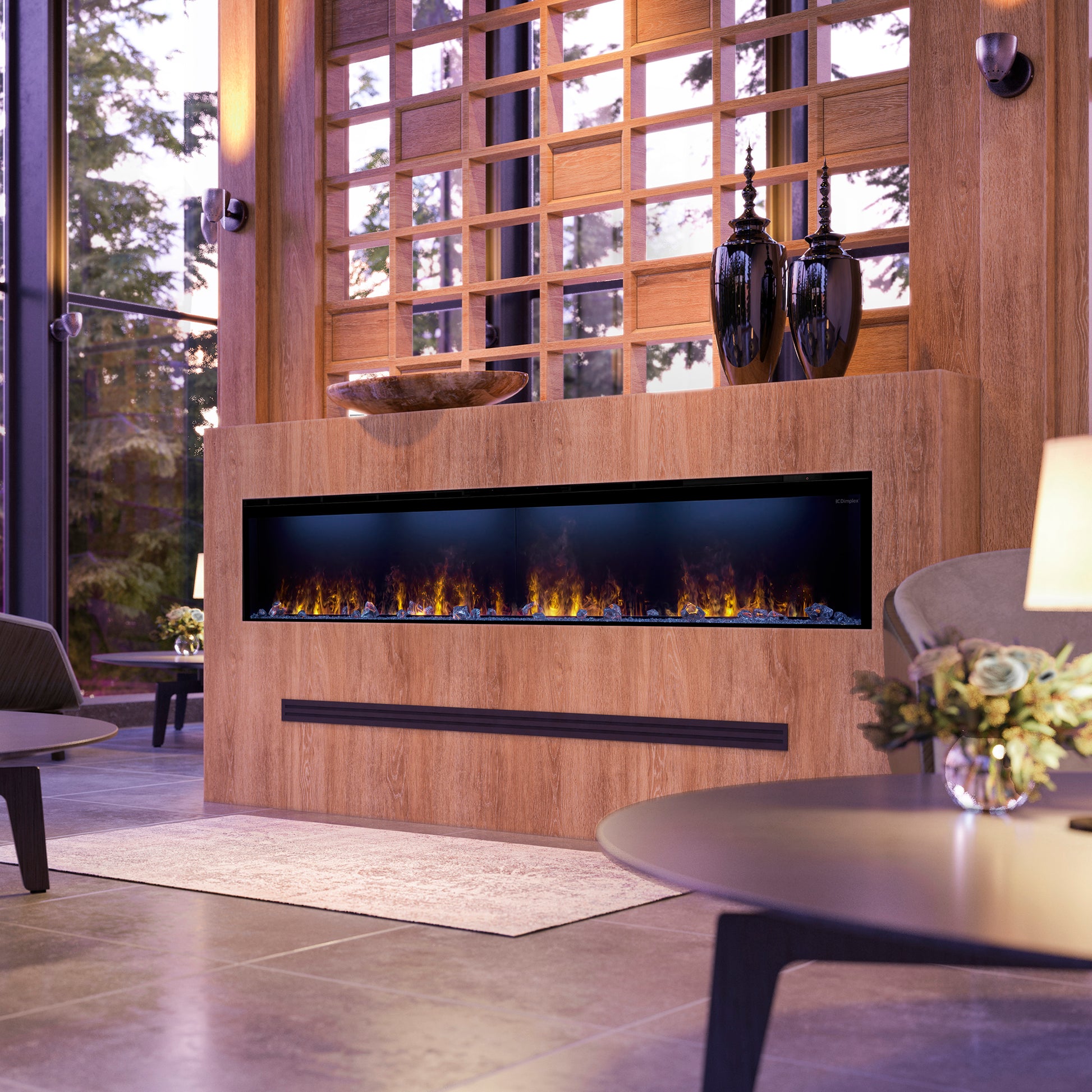

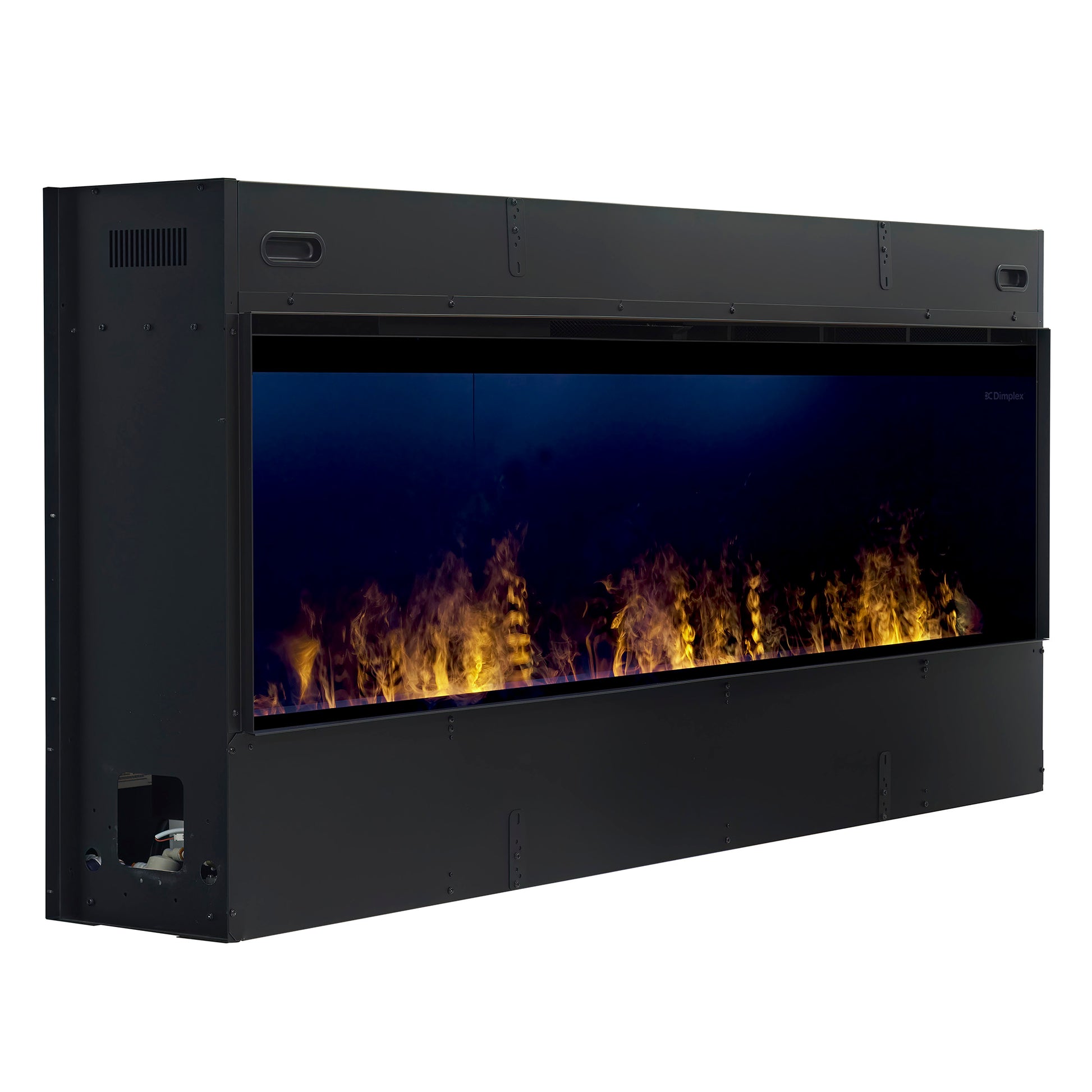

The Optimyst® Linear is a water vapor electric fireplace that creates ultra-realistic 3D flames and smoke using patented vapor technology and LED lighting. Designed for residential living spaces and feature walls, it delivers realistic, heat-free flame visuals while offering supplemental heating when desired. Available in widths from 46" to 86", the Optimyst Linear combines modern styling, customizable flame effects, smart controls, and flexible installation for virtually any room.

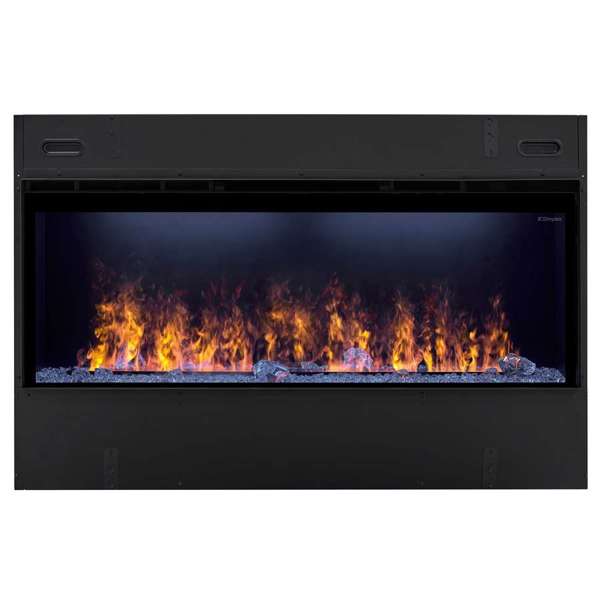

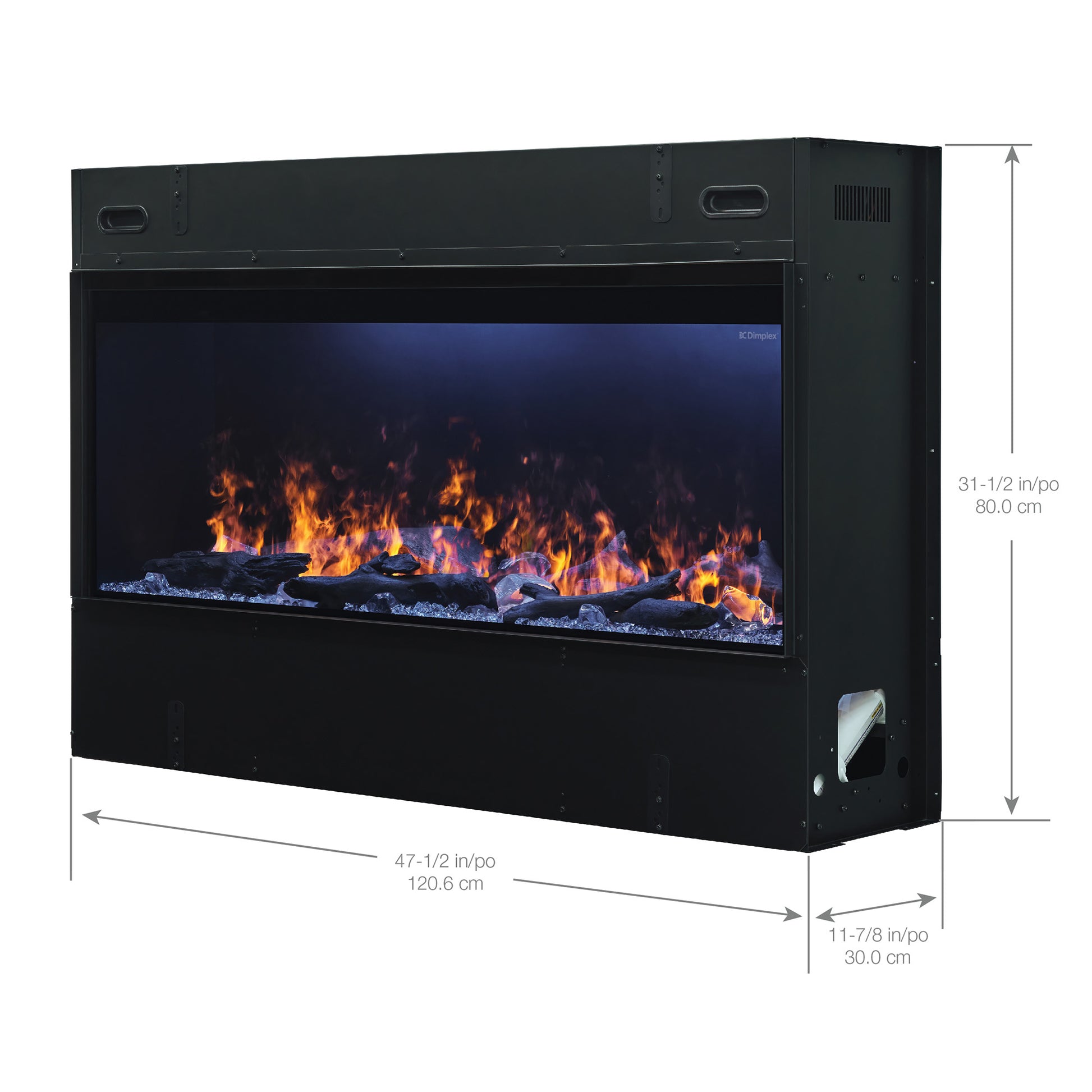

46" Optimyst Linear Key Technical Specifications

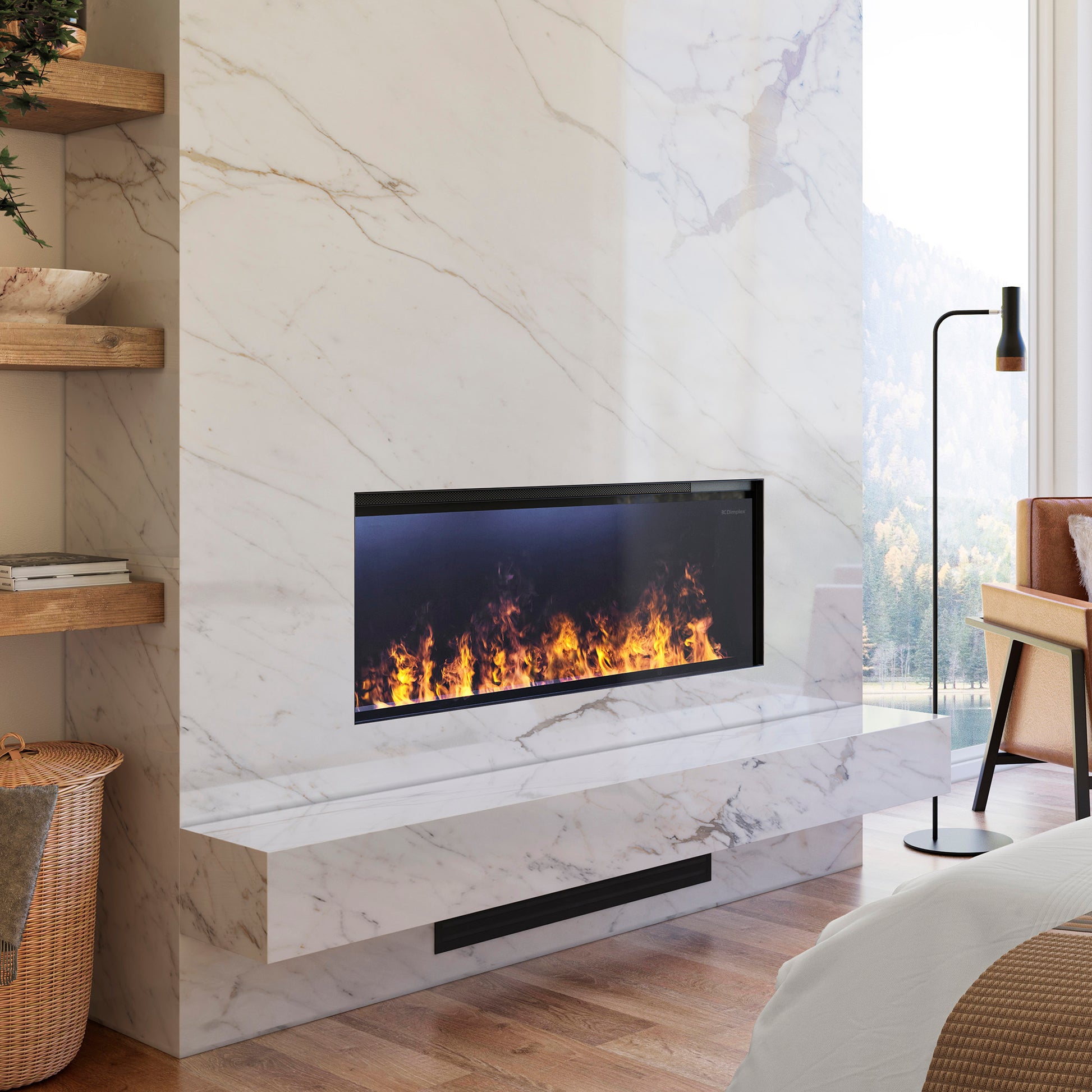

• Model: OLF46-AM
• BTU: Up to approximately 5,100
• Voltage: 120/240V
• Wattage: 1220 / 1920 W
• Amperage: 10.2 / 8 A
• Product Width: 47.50"
• Product Height: 31.50"
• Product Depth: 11.75"
• Product Weight: 127.6 lbs
• Adjustable Flame: Yes
• Adjustable Brightness: Yes
• Power Connection: Plug-In / Hard-Wired

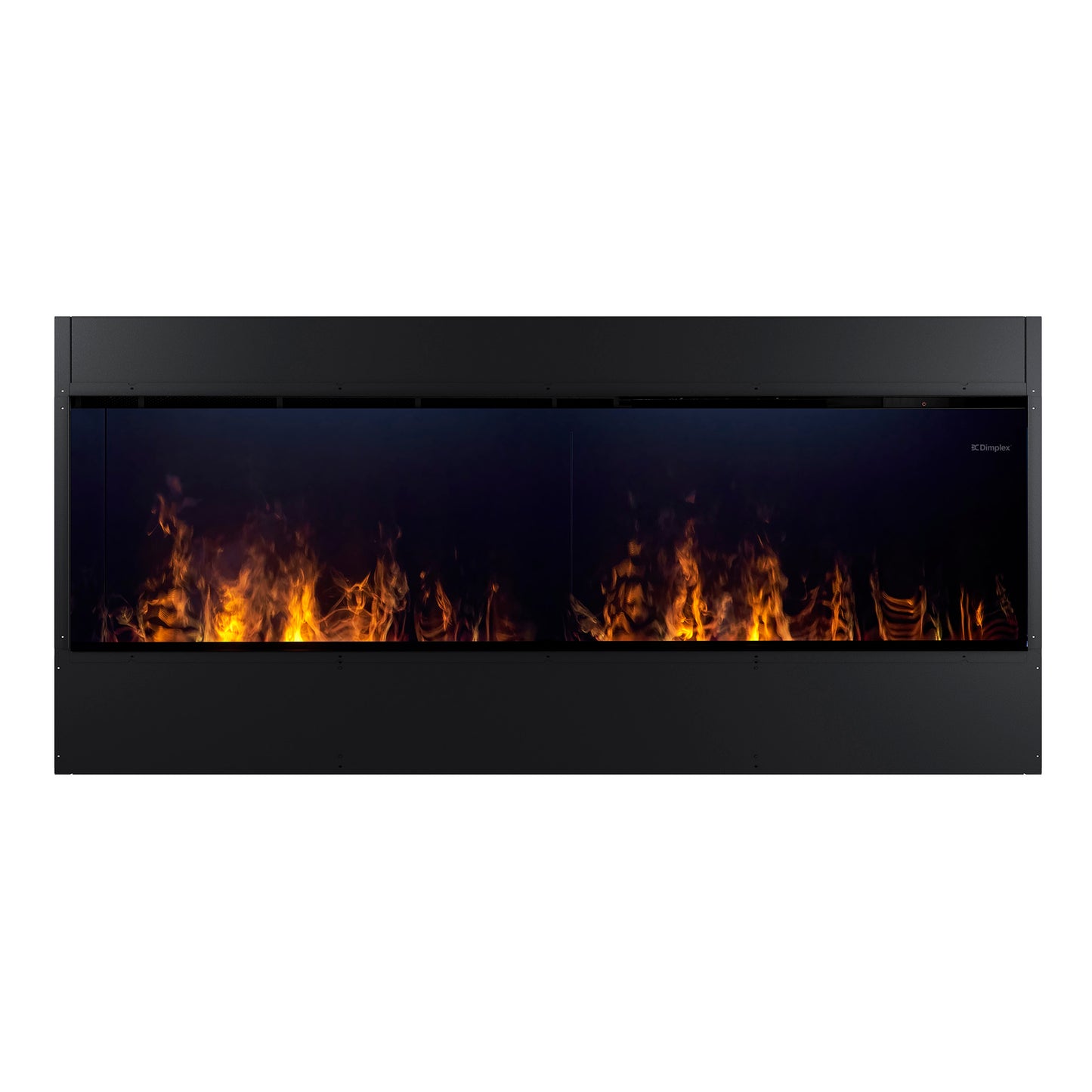

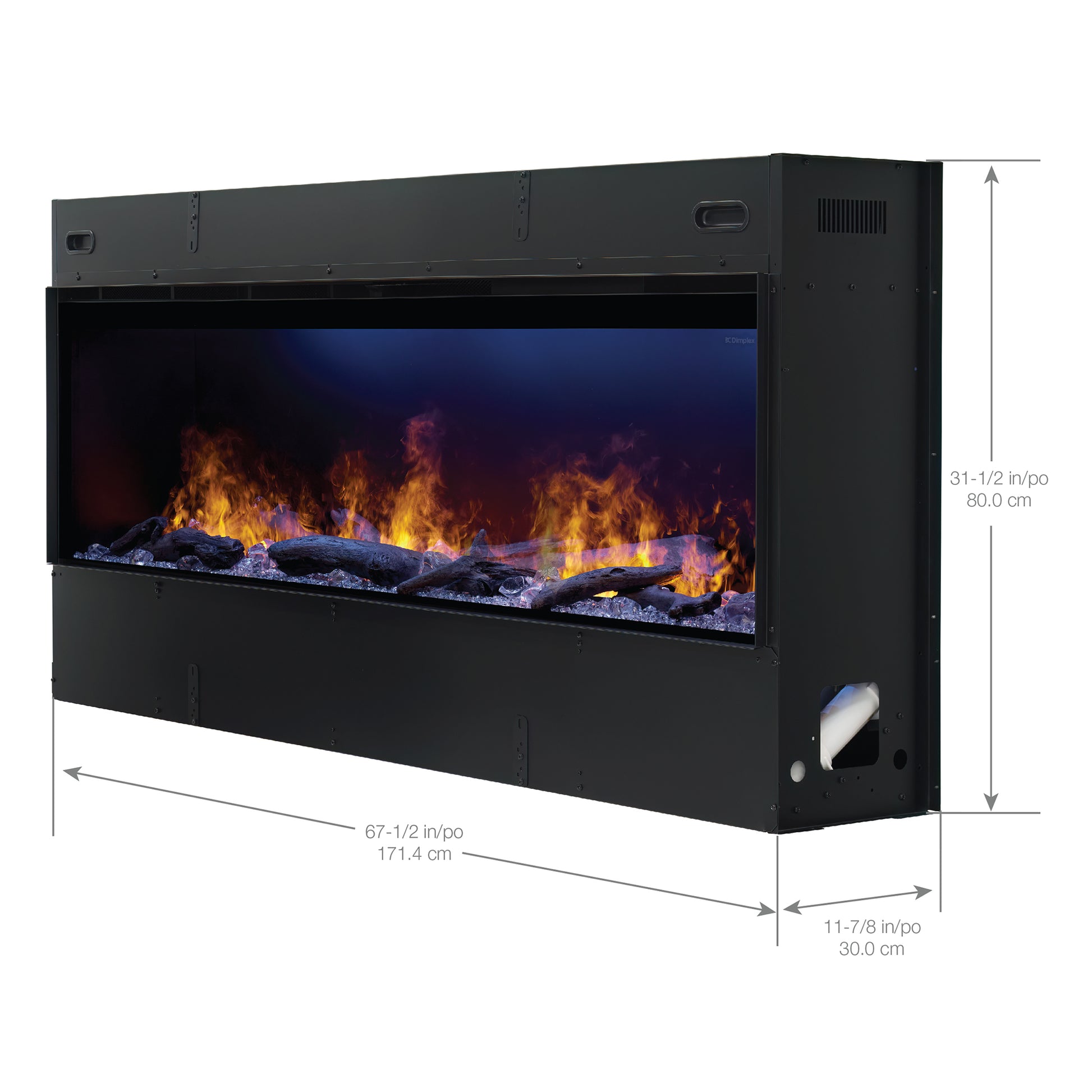

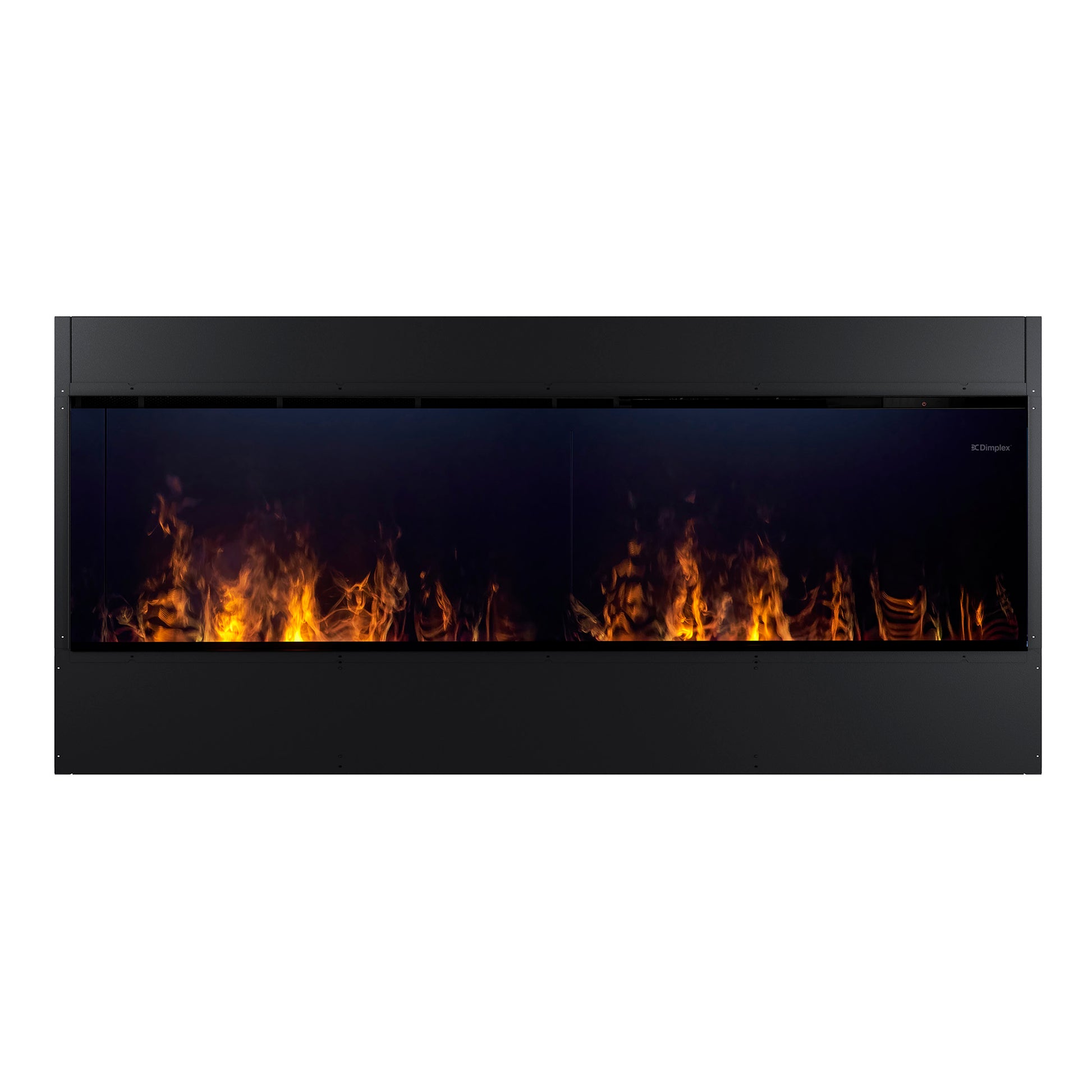

66" Optimyst Linear Key Technical Specifications

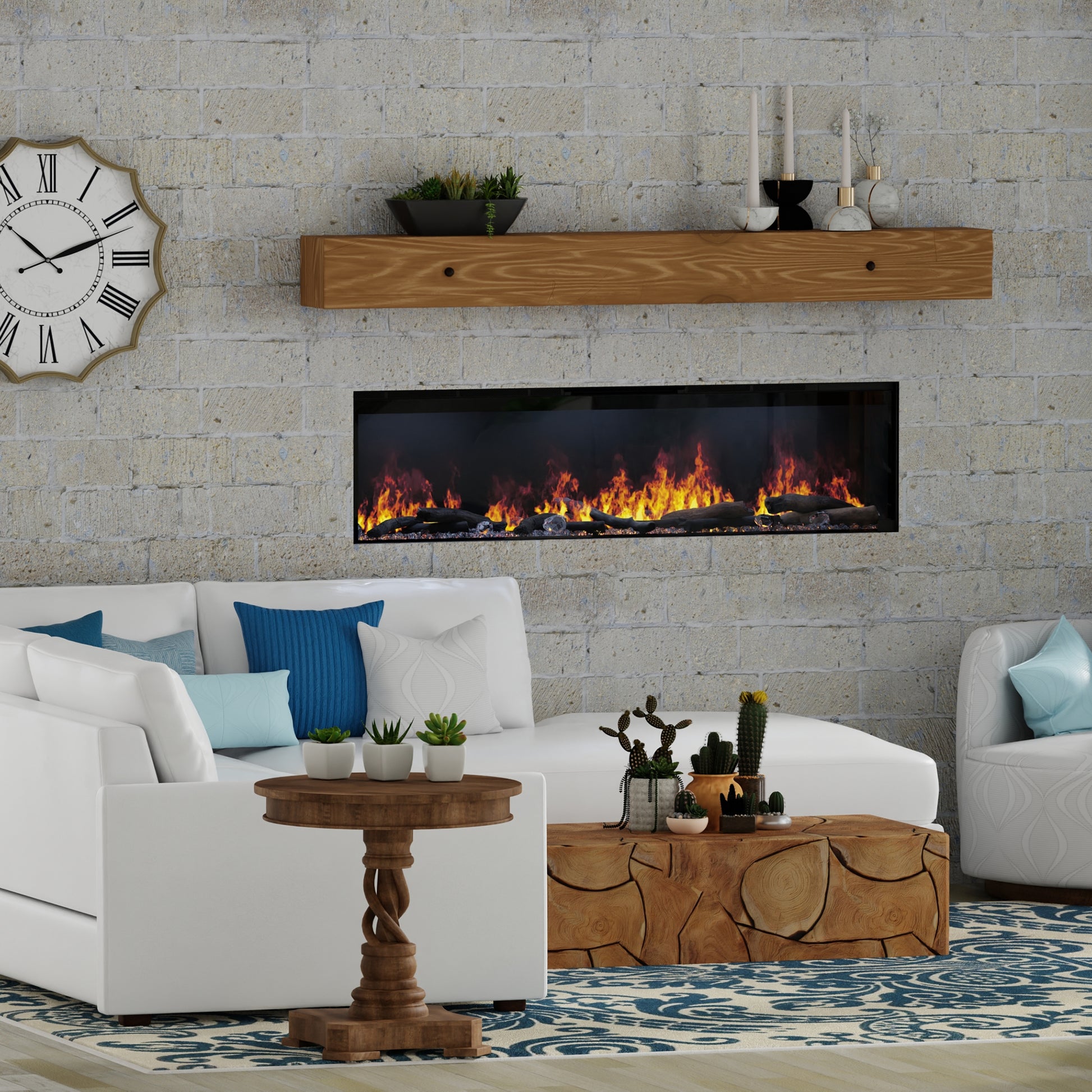

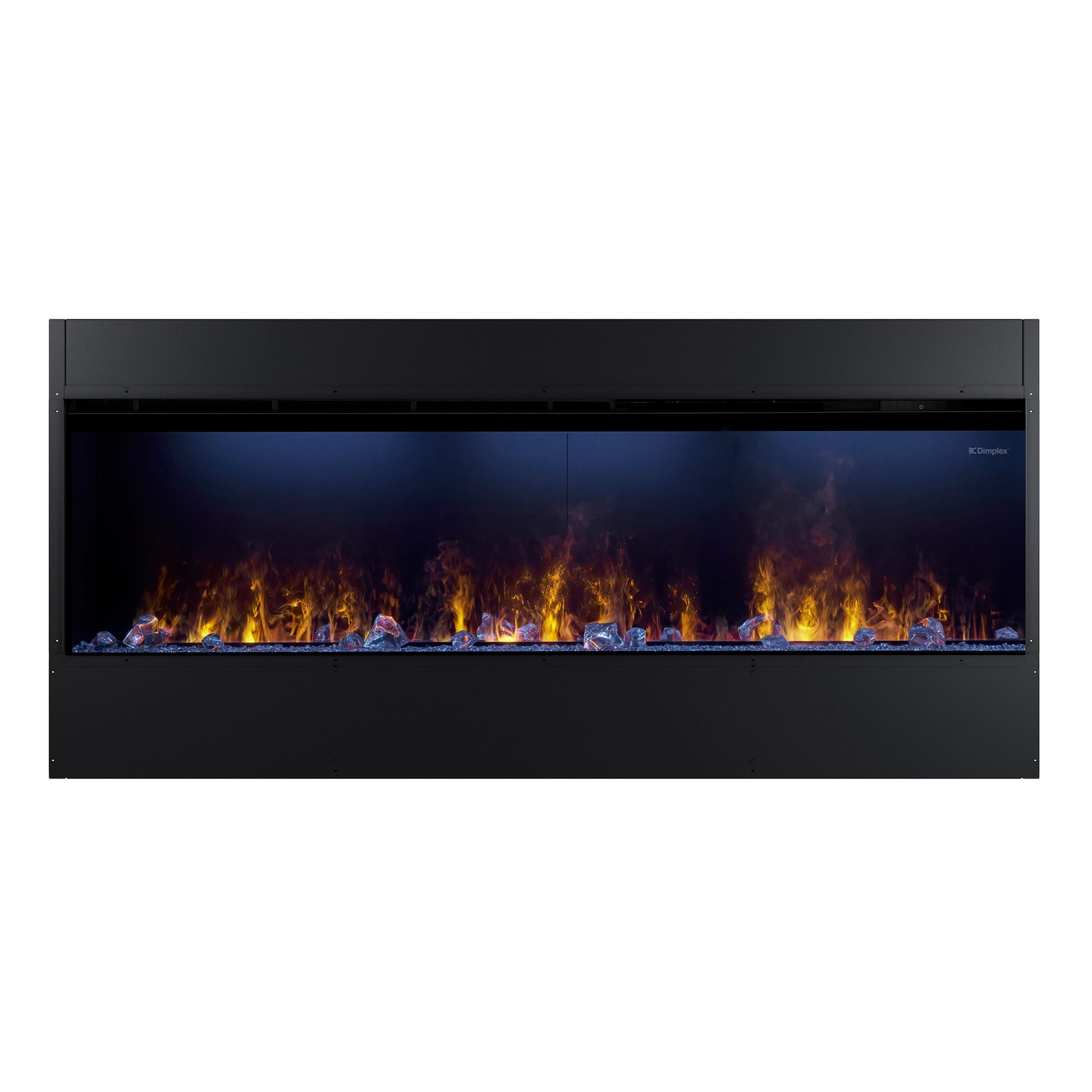

• Model: OLF66-AM
• BTU: Up to approximately 6,400
• Voltage: 120/240V
• Wattage: 1480 / 2180 W
• Amperage: 12.3 / 9.1 A
• Product Width: 67.50"
• Product Height: 31.50"
• Product Depth: 11.75"
• Product Weight: 173.8 lbs
• Adjustable Flame: Yes
• Adjustable Brightness: Yes
• Power Connection: Plug-In / Hard-Wired

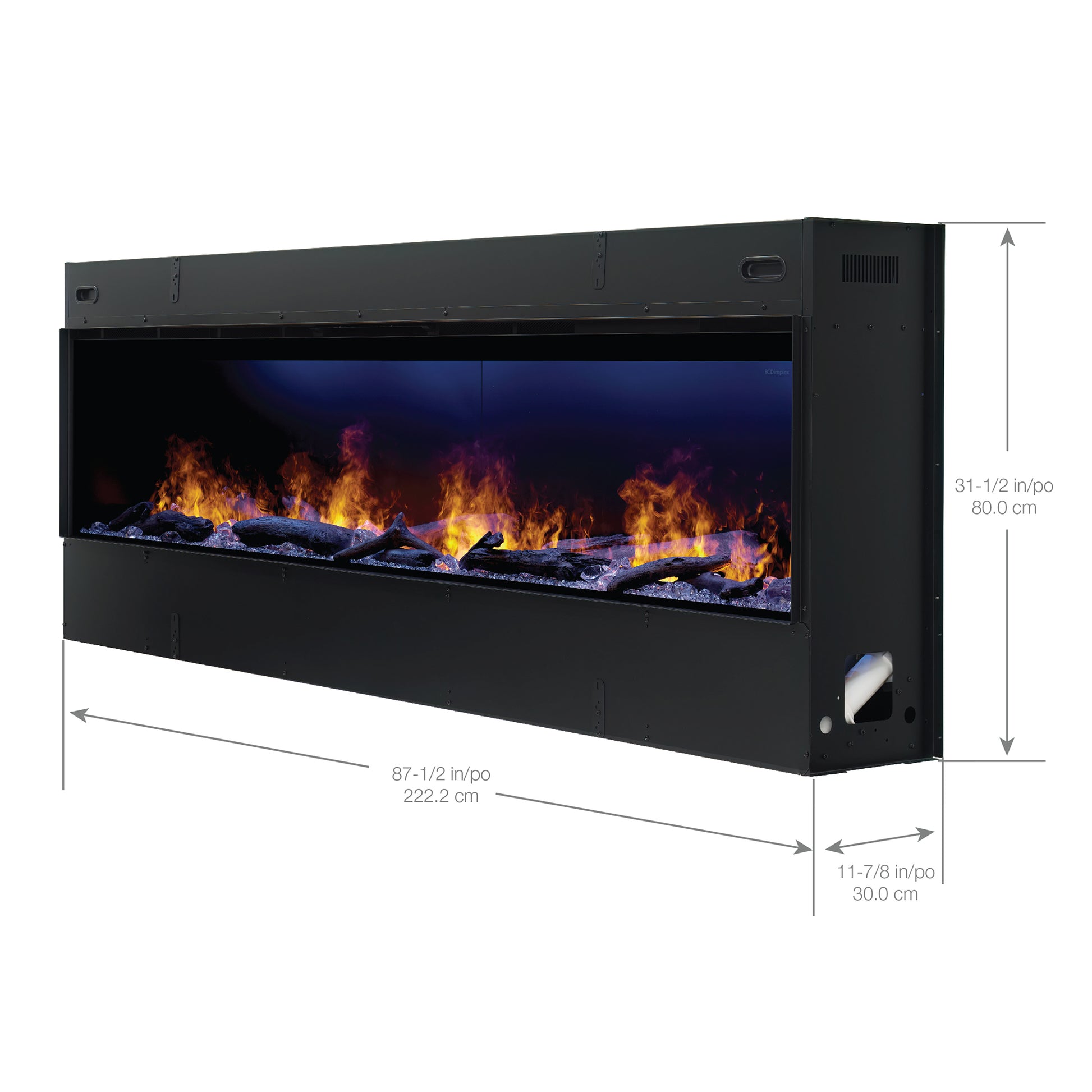

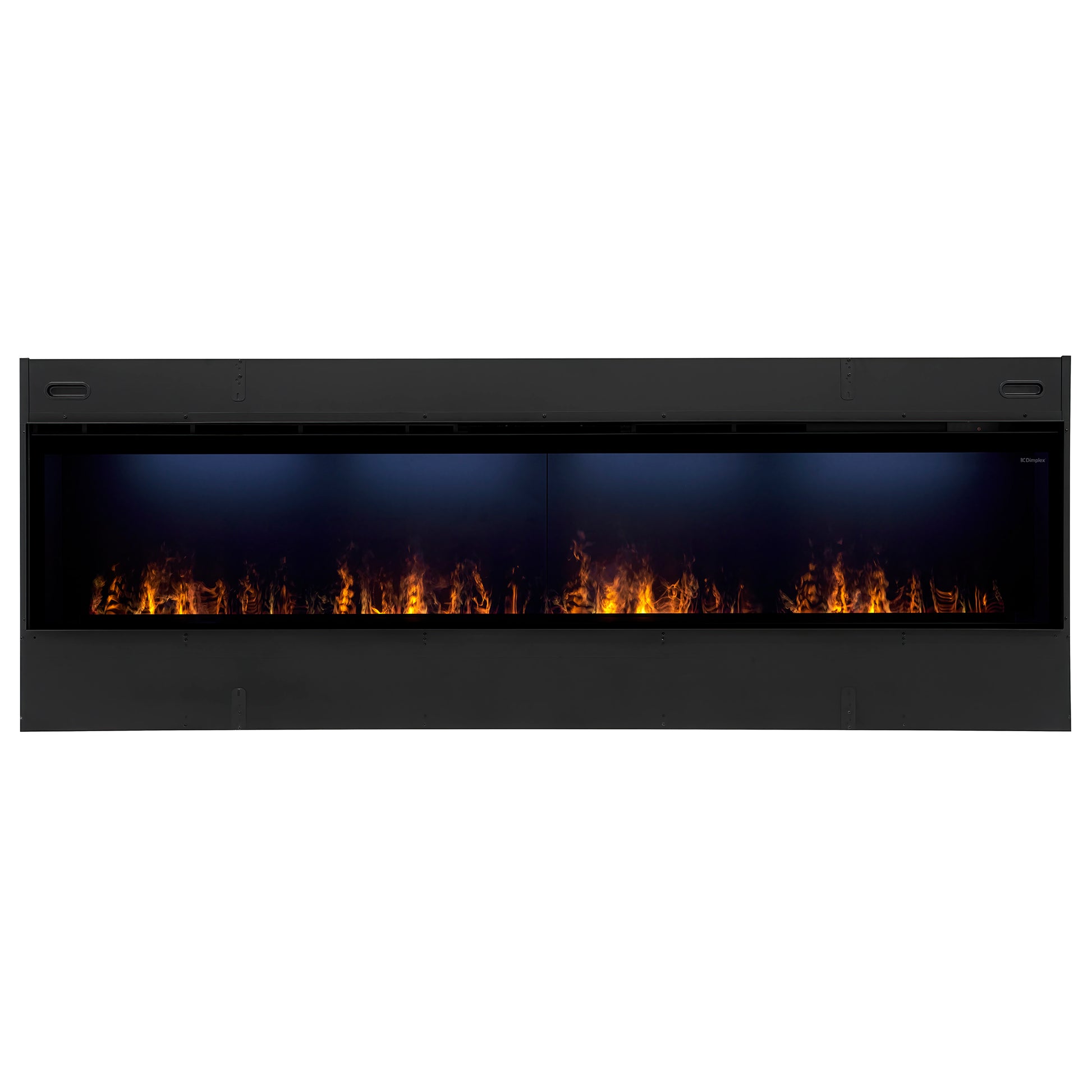

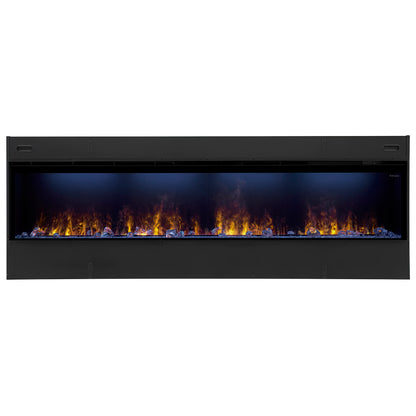

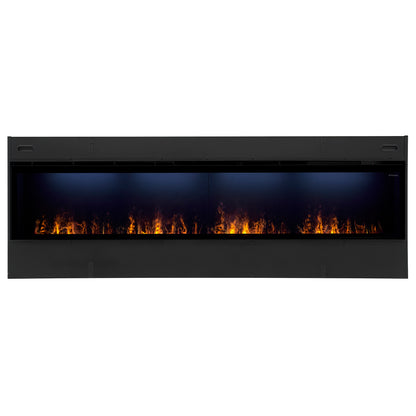

86" Optimyst Linear Key Technical Specifications

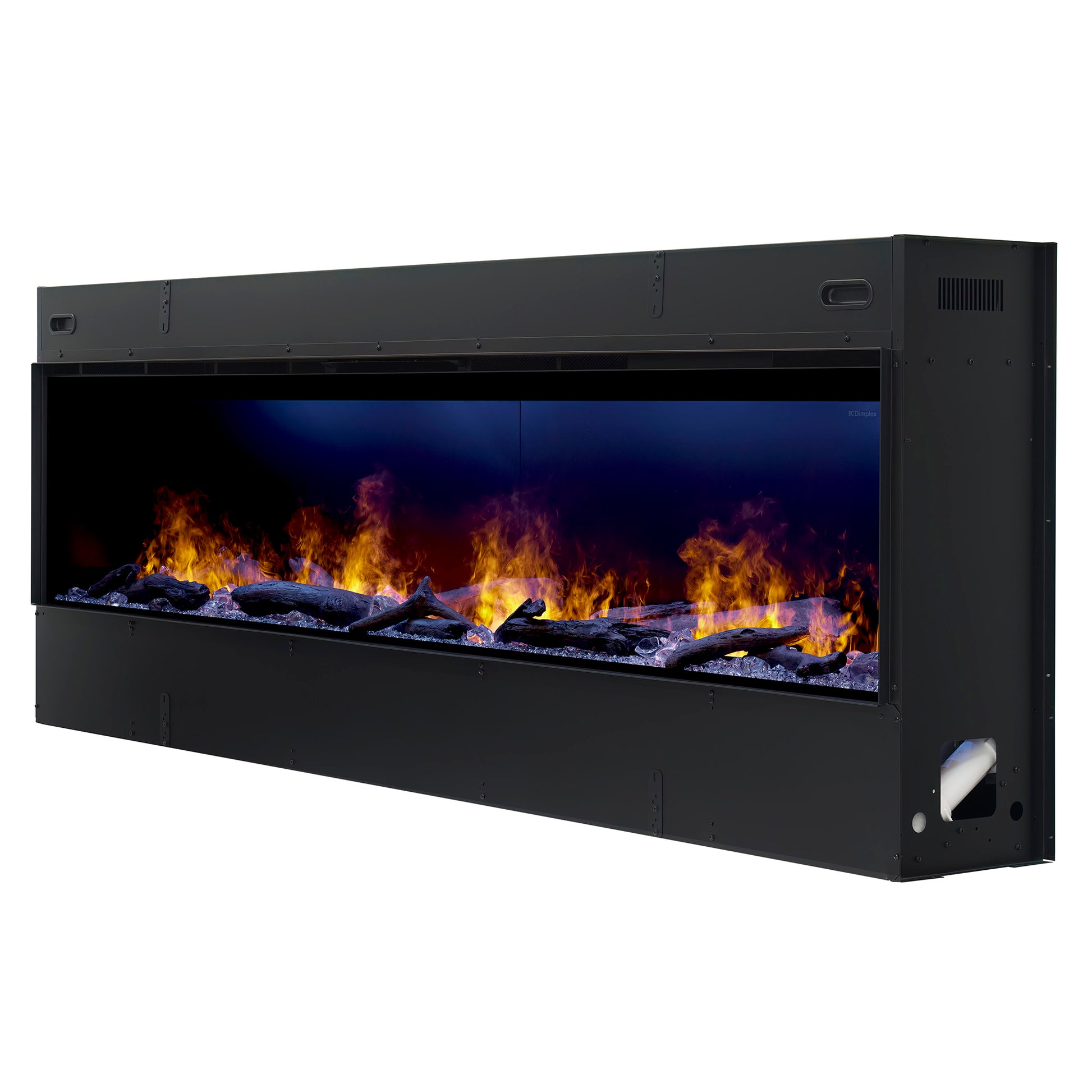

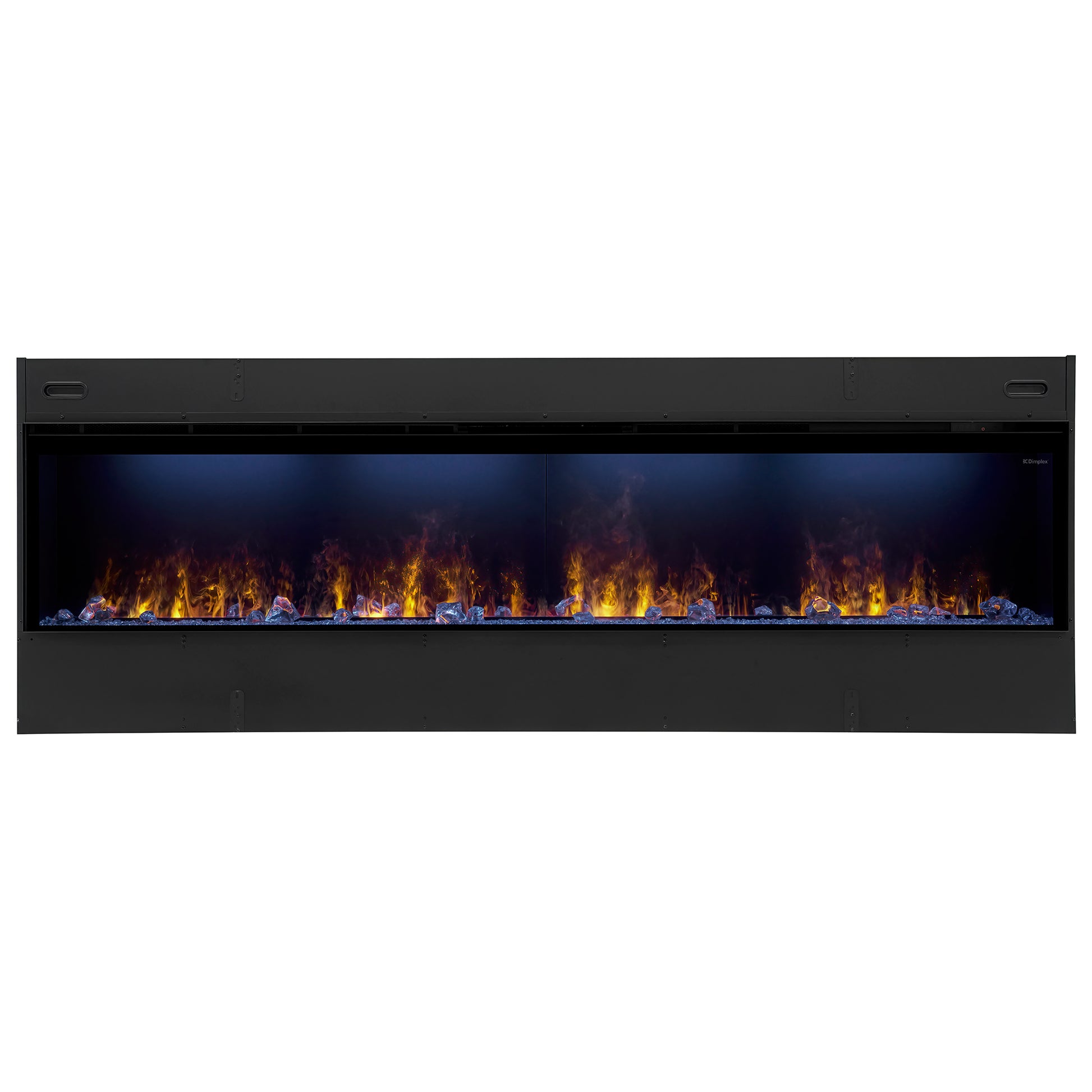

• Model: OLF86-AM
• BTU: Up to approximately 8,200
• Voltage: 120/240V
• Wattage: 1020 / 2400 W
• Amperage: 8.5 / 10 A
• Product Width: 87.50"
• Product Height: 31.50"
• Product Depth: 11.75"
• Product Weight: 242.0 lbs
• Adjustable Flame: Yes
• Adjustable Brightness: Yes
• Power Connection: Plug-In / Hard-Wired
