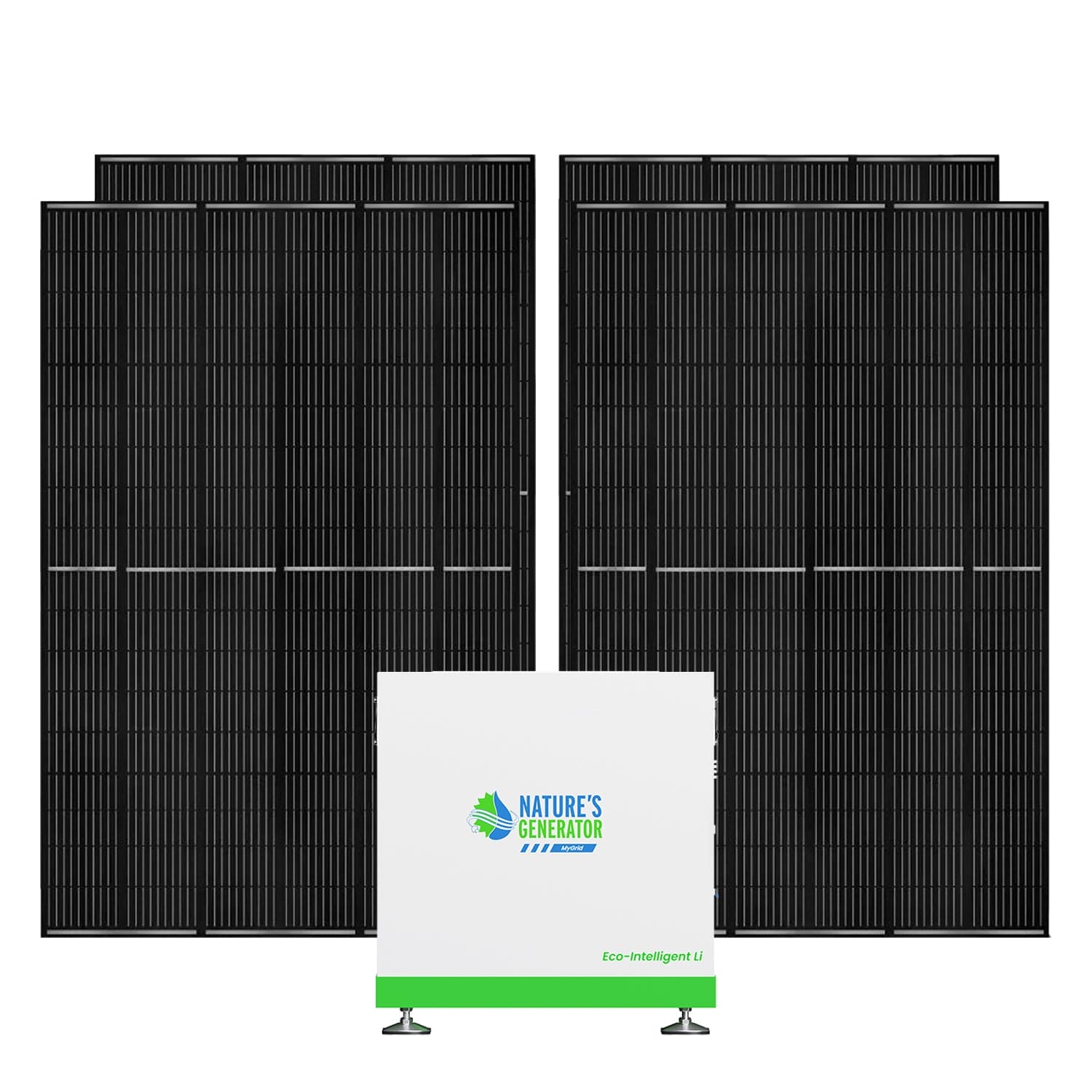

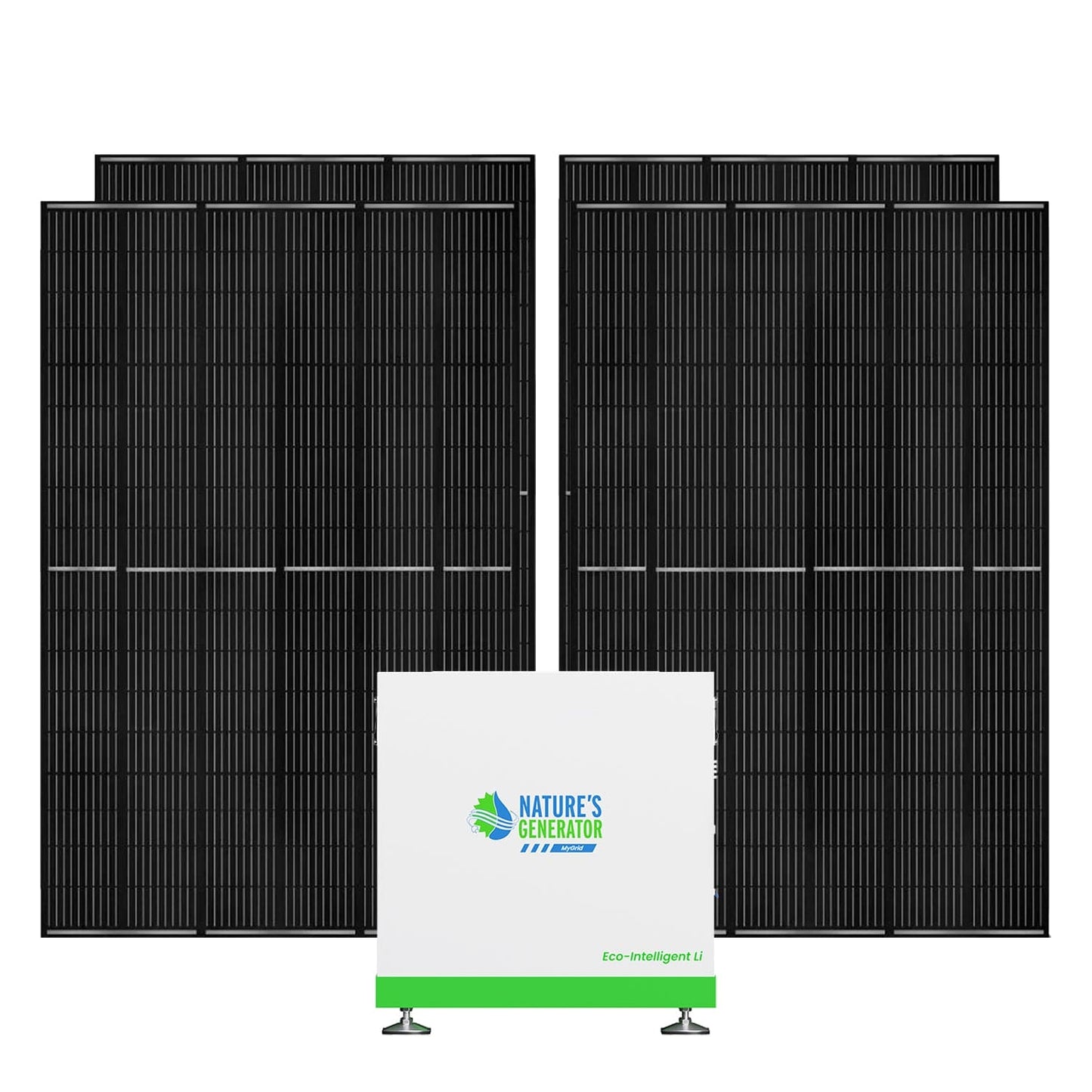

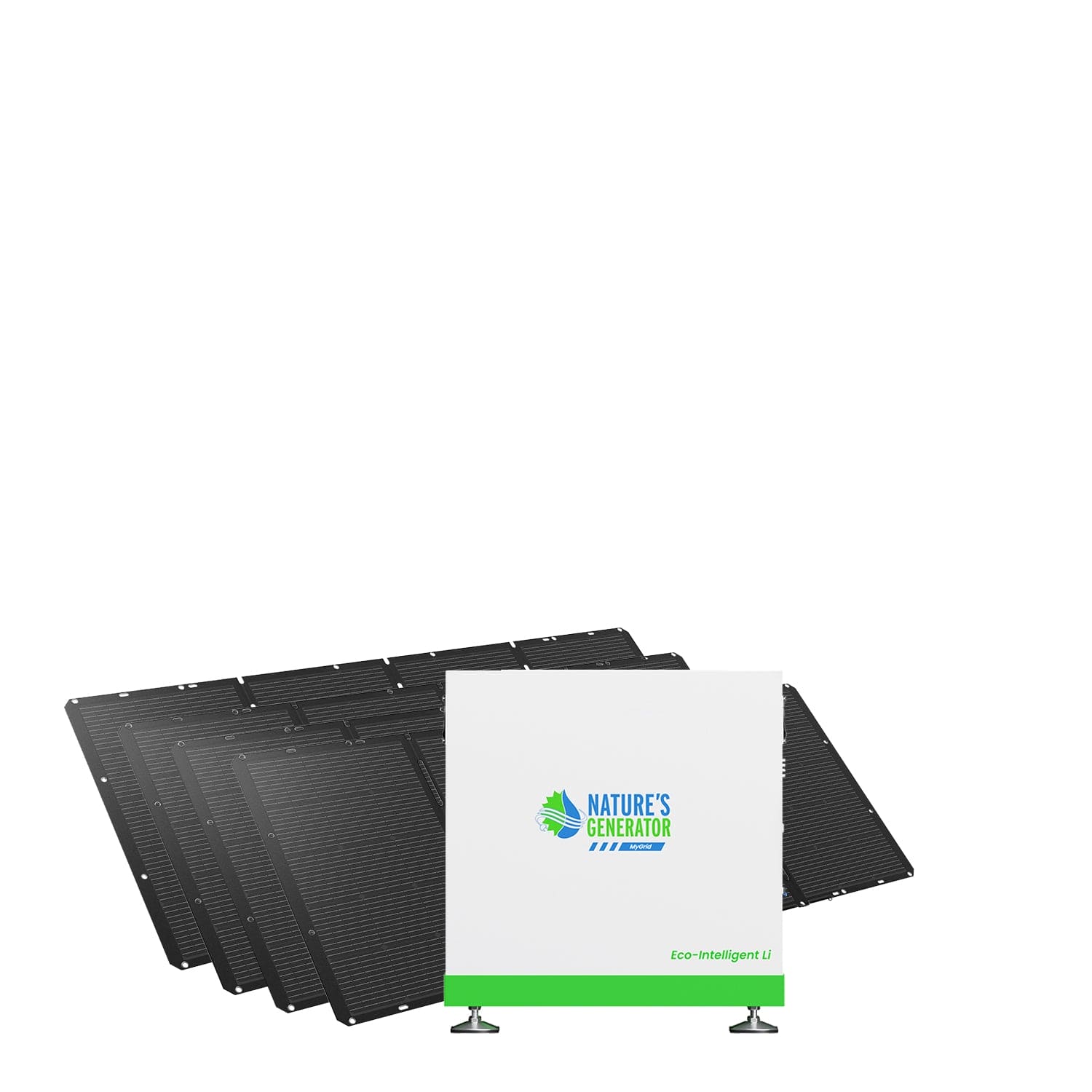

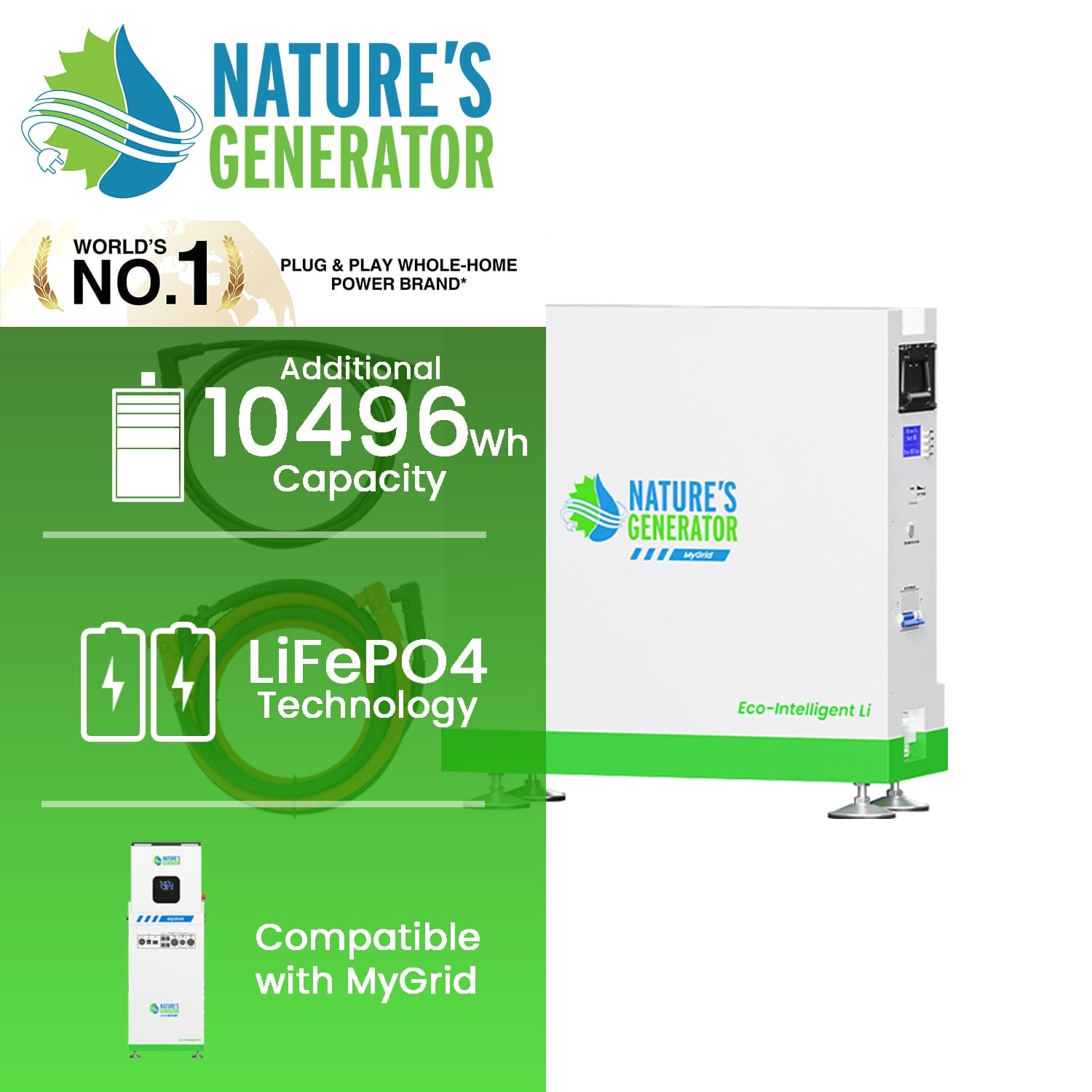

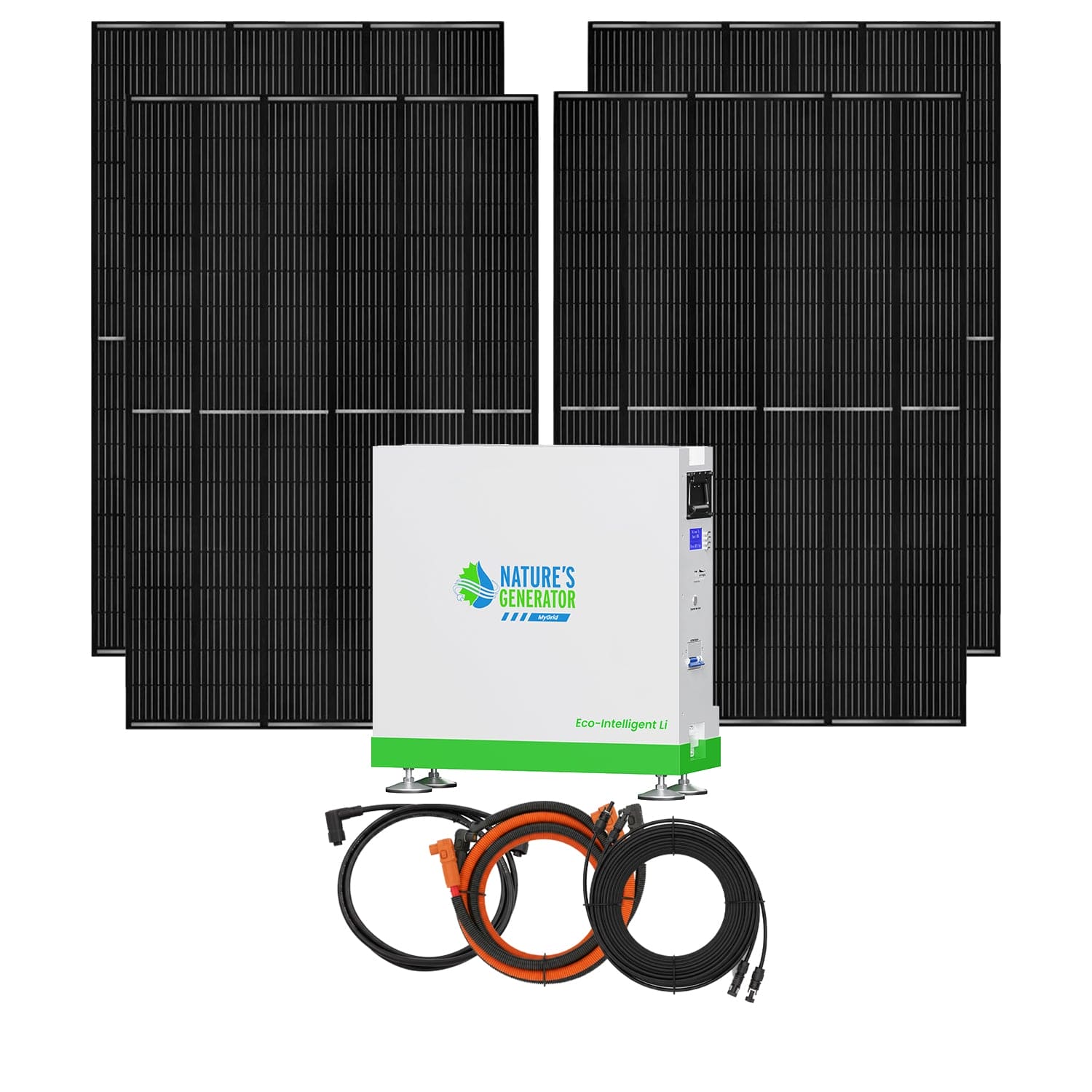

10kWh Capacity for Reliable Backup: Our 10kWh LiFePO4 Solar Battery is designed to provide dependable power storage for home backup and off-grid living. Customizable Solar Panel Options: Choose between 410W rigid or 400W folding solar panels to tailor your solar energy storage system to your specific energy needs.
Efficient Solar Energy Storage: Store solar electricity efficiently with advanced LiFePO4 technology, ensuring long-lasting performance and reliability.

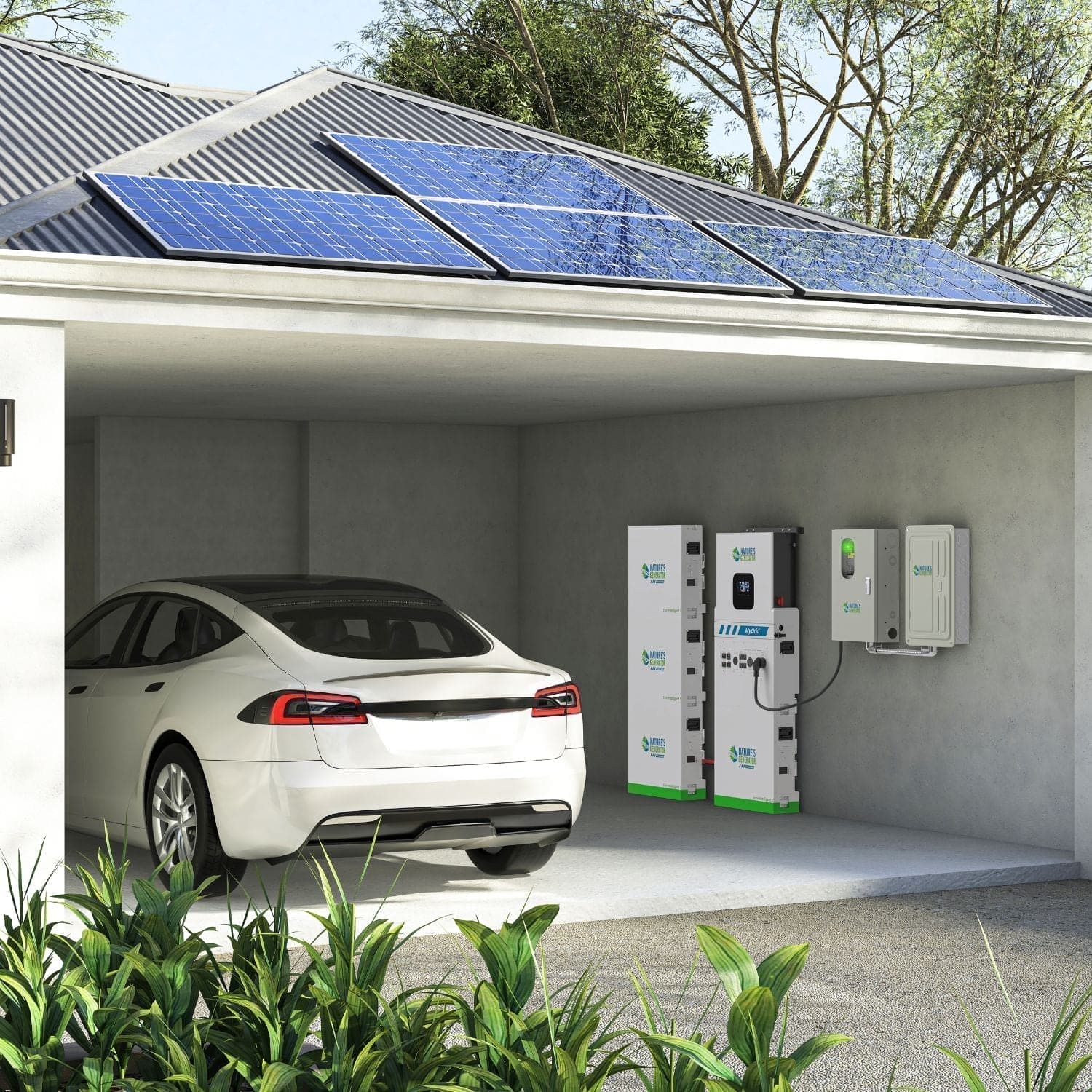

Perfect for Whole Home Backup: Ideal for powering your entire home during longer outages or when off-grid, ensuring uninterrupted energy.
Durable and Eco-Friendly Design: Built to last with sustainable materials, making it one of the best batteries for solar power storage.
Supports Sustainable Living: Reduce reliance on the grid with a solar battery pack that stores clean energy for a greener tomorrow.

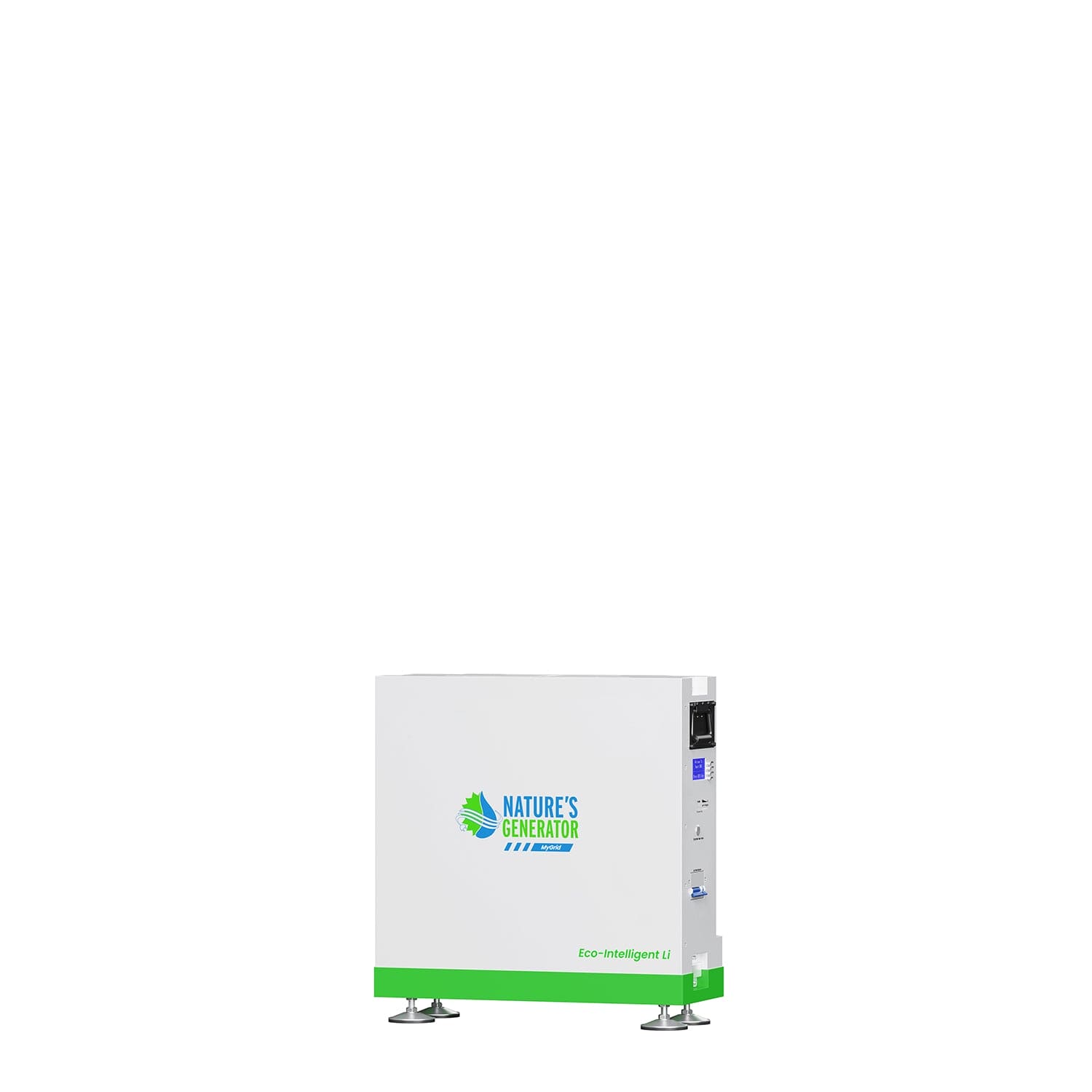

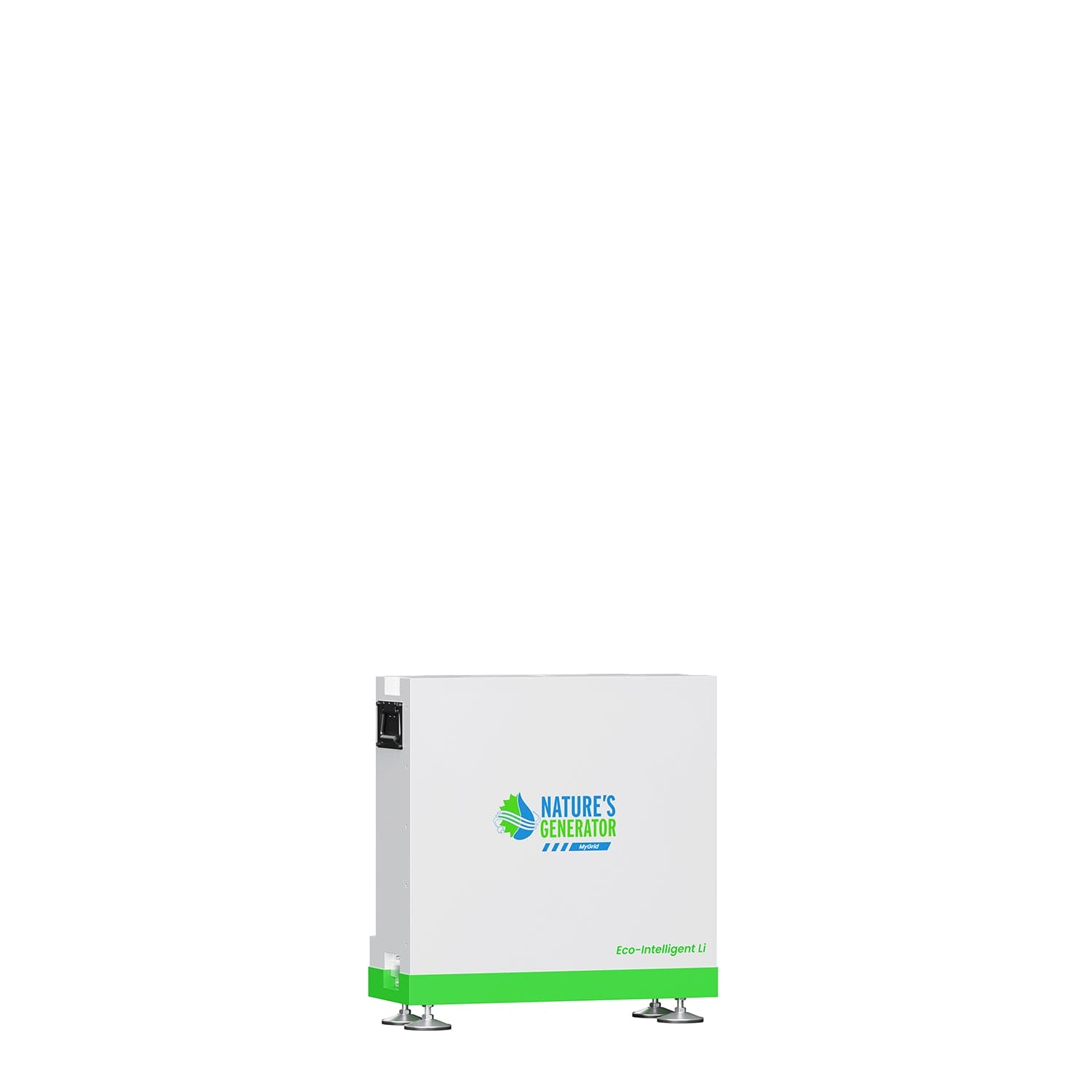

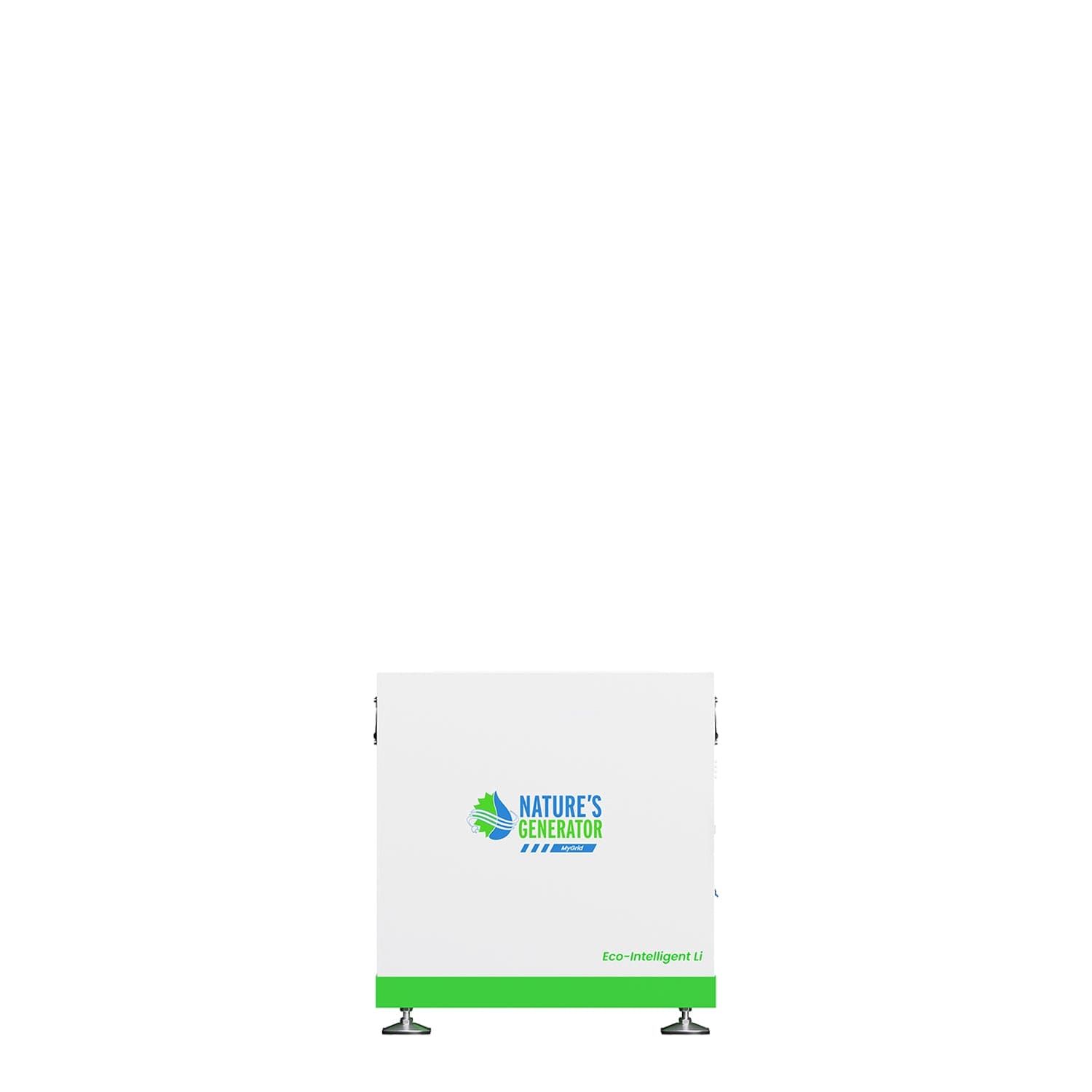

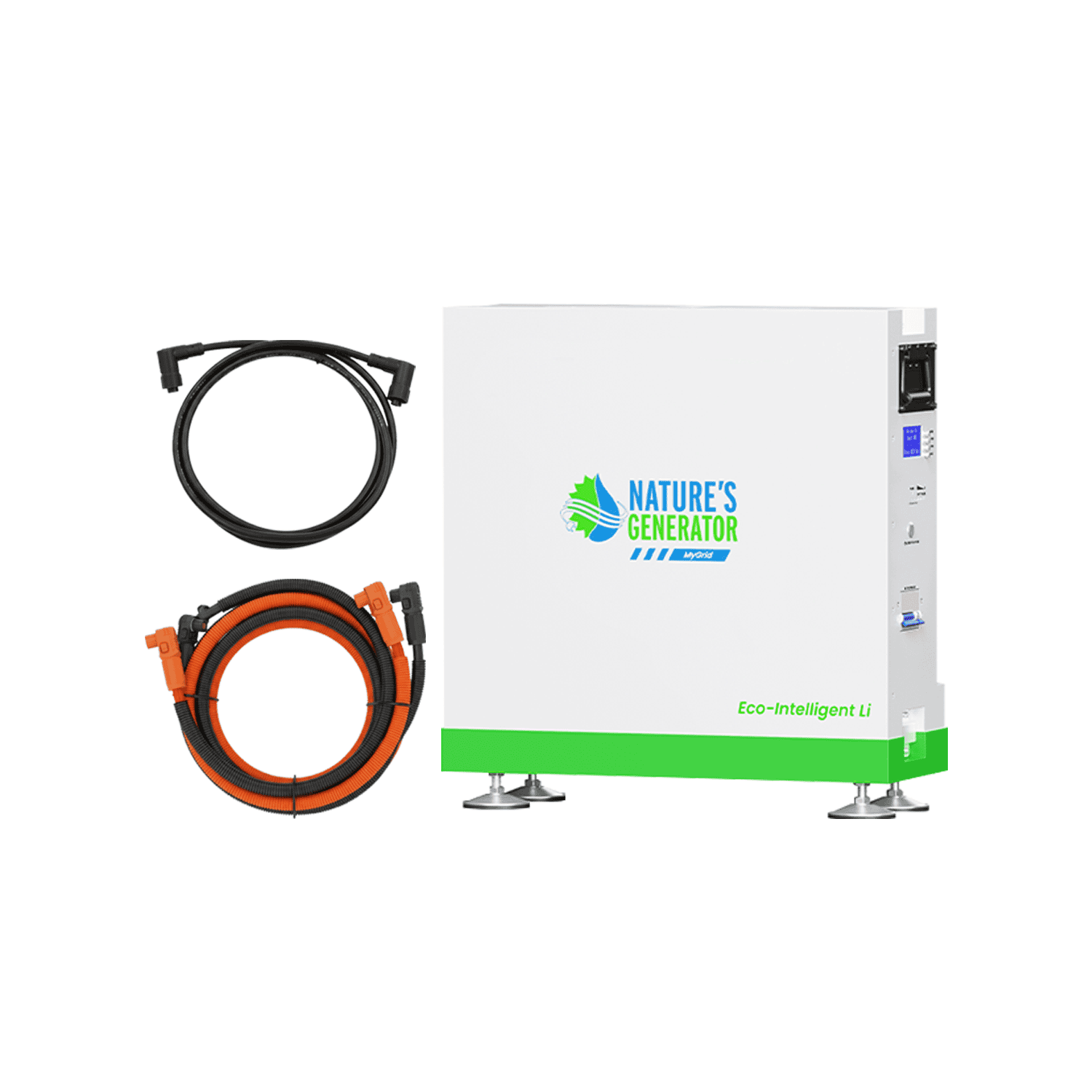

Solar Battery Specs
Battery:
Type: Lithium Iron Phospate (LiFePO4)
Capacity: 51.2V 205Ah (10496Wh)
Life Cycles: >6000 Cycles
Self Discharge: Recommended recharging every 6 months
General:
Battery Dimensions: 21.8 x 8.5 x 23.4 inches (555.4 x 216 x 596 mm) not counting mounting bar
Optimal Operating temperature: 68 – 86°F (20 – 30°C)
Storage Temperature: 14 – 113°F (-10 – 45°C)
Battery Charging Temperature: 32 – 113°F (0 – 45°C)
Battery Discharging Temperature: 14 – 113°F (-10 – 45°C)
Battery Weight: 213 lbs (96.6 kg)

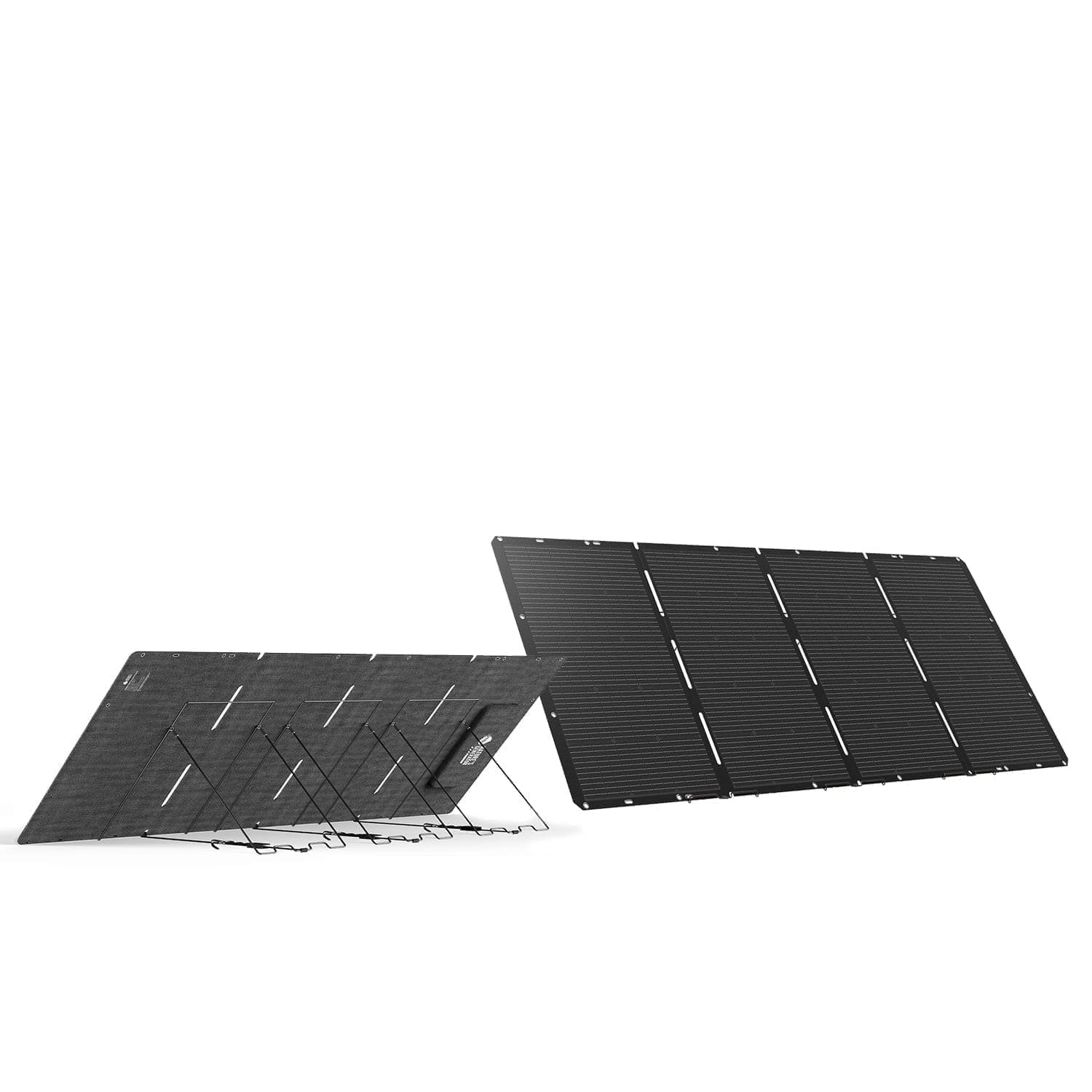

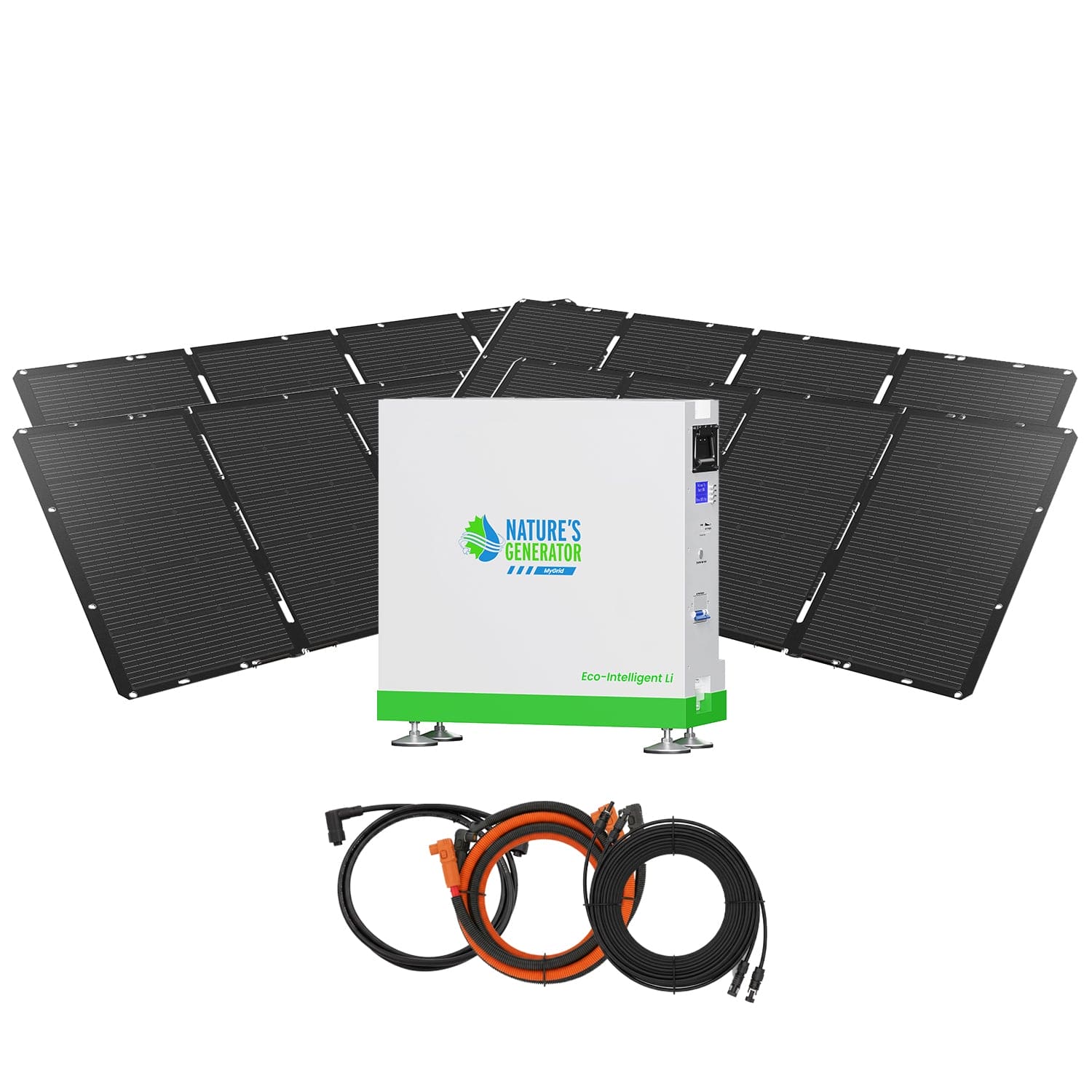

400W Folding Solar Panels Specs
General:
Silicon Material : Mono crystalline
Connector: MC4
Waterproof Level: IP67
Operating Temperature: -20℃ to +60 ℃

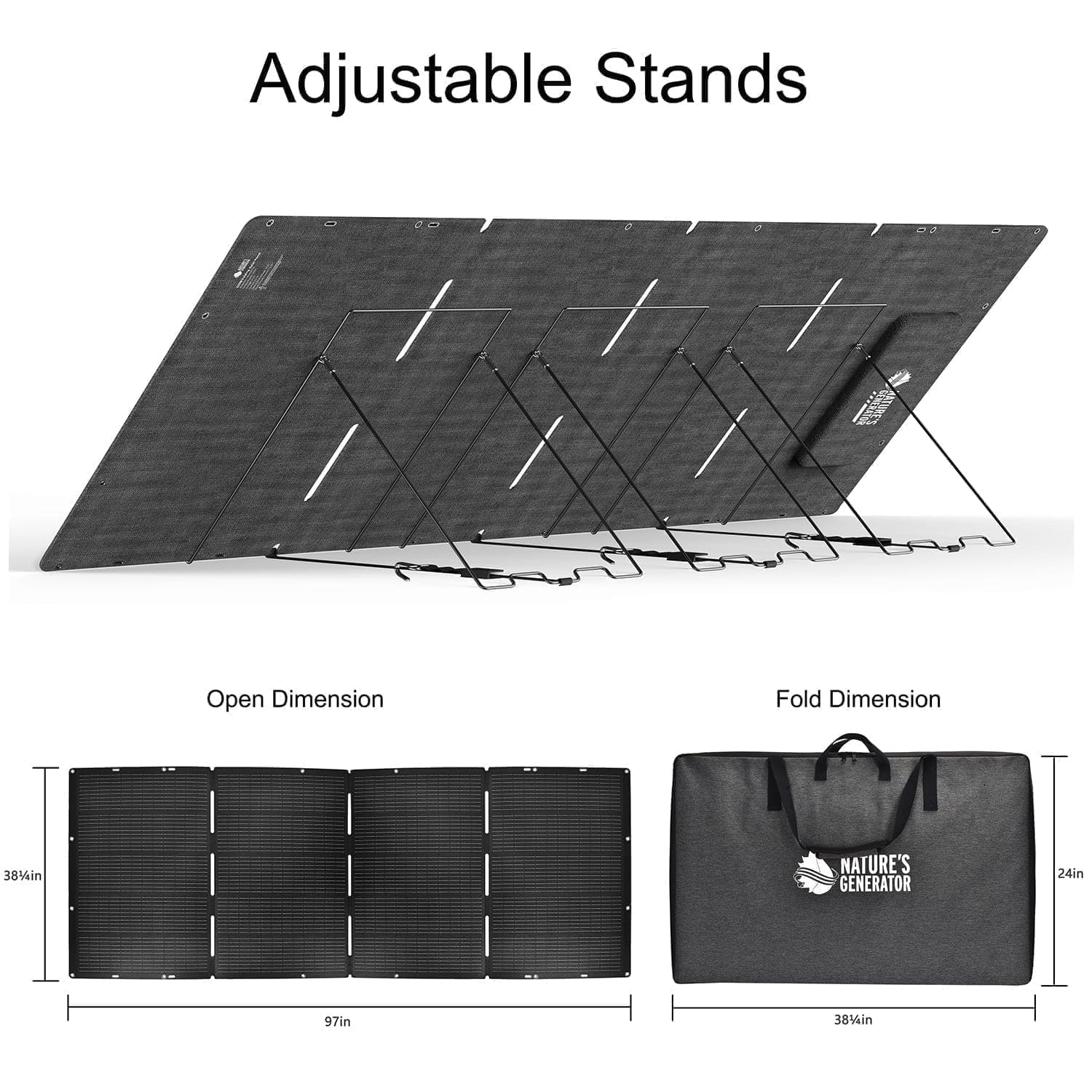

Dimension & Weight:
Folded: 38.3*24*3.4inch (972*605*85mm)
Unfolded: 97*38.3*1.4inch (2462*972*35mm)
Weight: 17Ib (7.8kg)
Power Rating:
Max. Power Output Pmax (@STC): 400W
Cell transfer efficiency: 23%
Power Voltage: 34.41V
Power Current: 11.62A
Open Circuit Voltage: 39.77V
Short Circuit Current: 12.21A

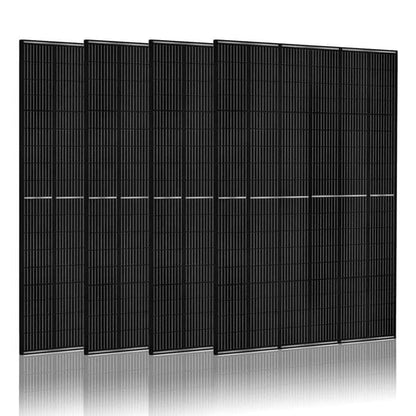

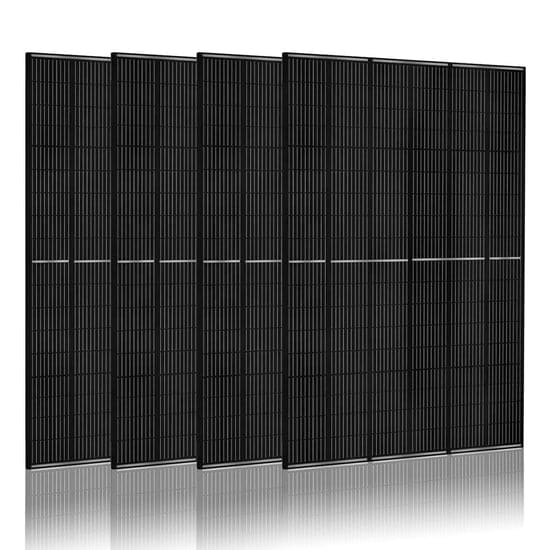

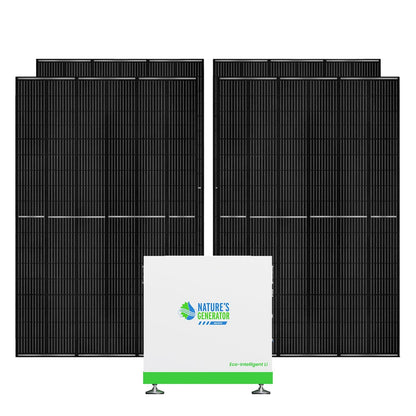

410W Rigid Solar Panels Specs
Power Rating
Maximum Power (Pmax): 410W
Maximum Power Voltage (Vmp): 31.35
Maximum Power Current (Imp): 13.08
Open-circuit Voltage (Voc): 37.12
Short-circuit Current (Isc): 13.96
Module Efficiency STC (%): 20.97%

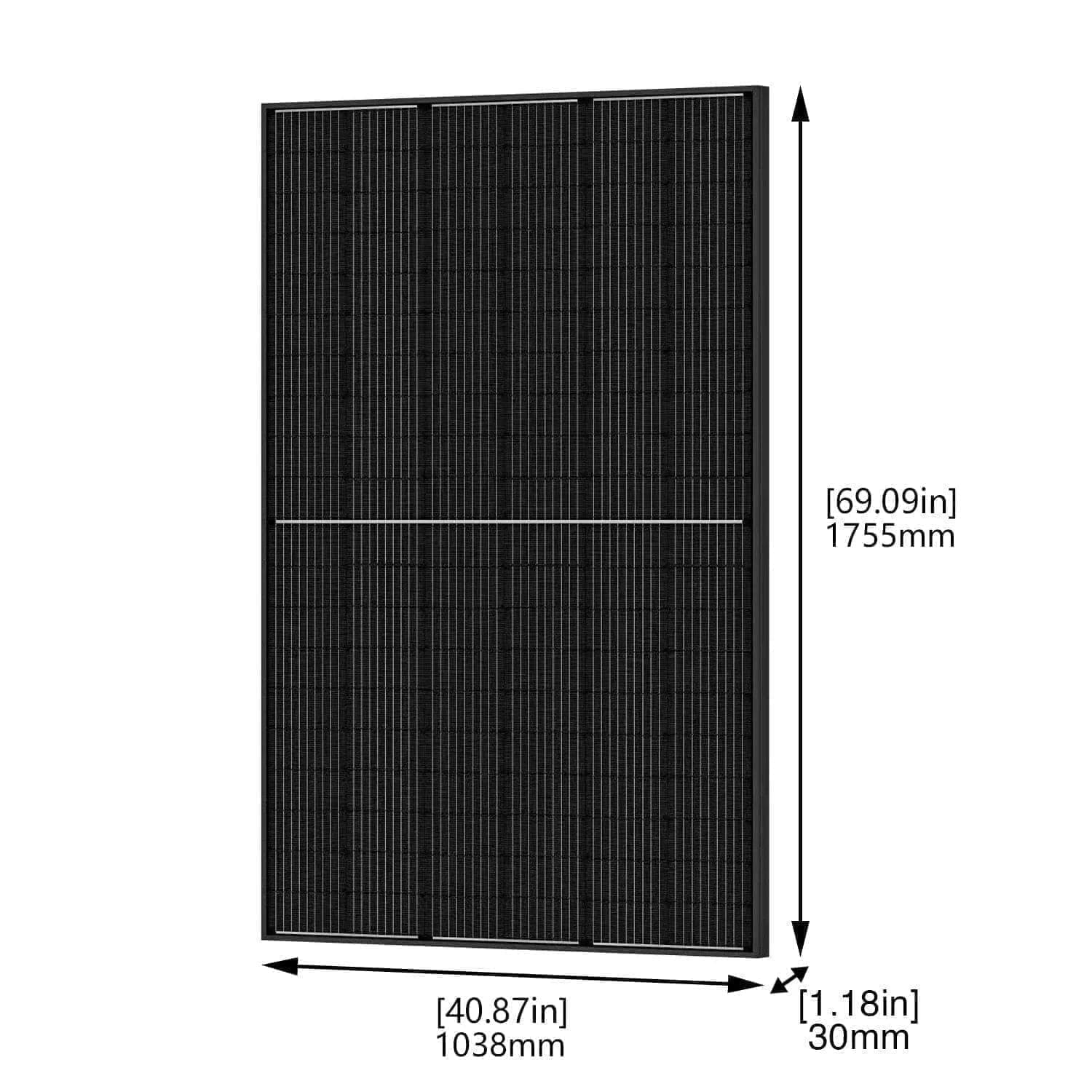

Dimensions & Characteristics
1755*1038*30mm (69.09*40.87*1.18 inch)
Cell Type: Mono PERC 182×91mm
No. of Half-cells: 108 (6×18)
Frame: Anodized Aluminum Alloy
Front Glass
3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Operation Temperature
-40℃~+85℃ (-40°F ~+185°F )
Junction Box
IP68 Rated, connector compatible with MC4
Output Cables
1200mm (47.24 inch)
Fire Rating
UL: Type 1, IEC: Class C
Weight
20.5 kg (45.19 lbs)
