Nature's Generator

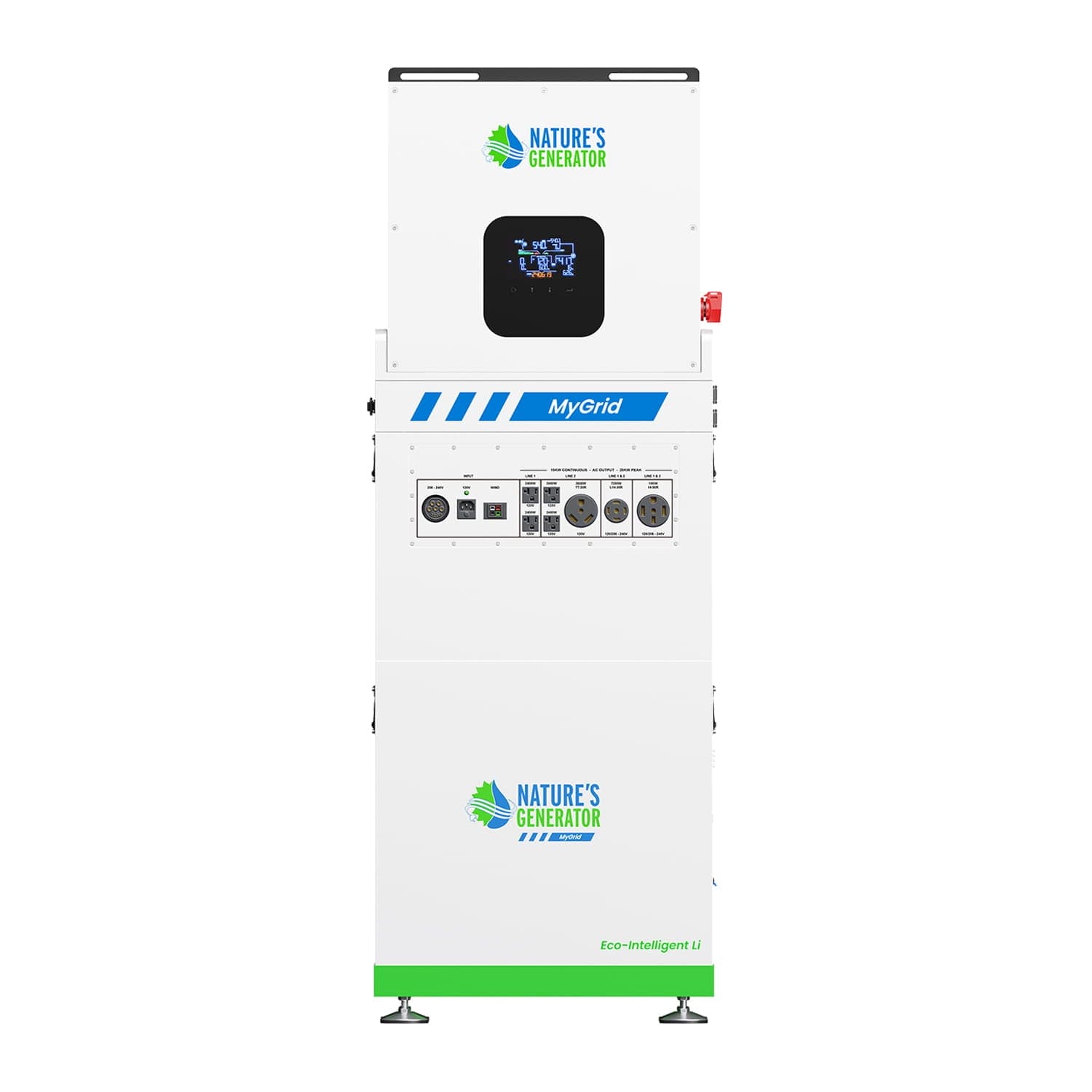

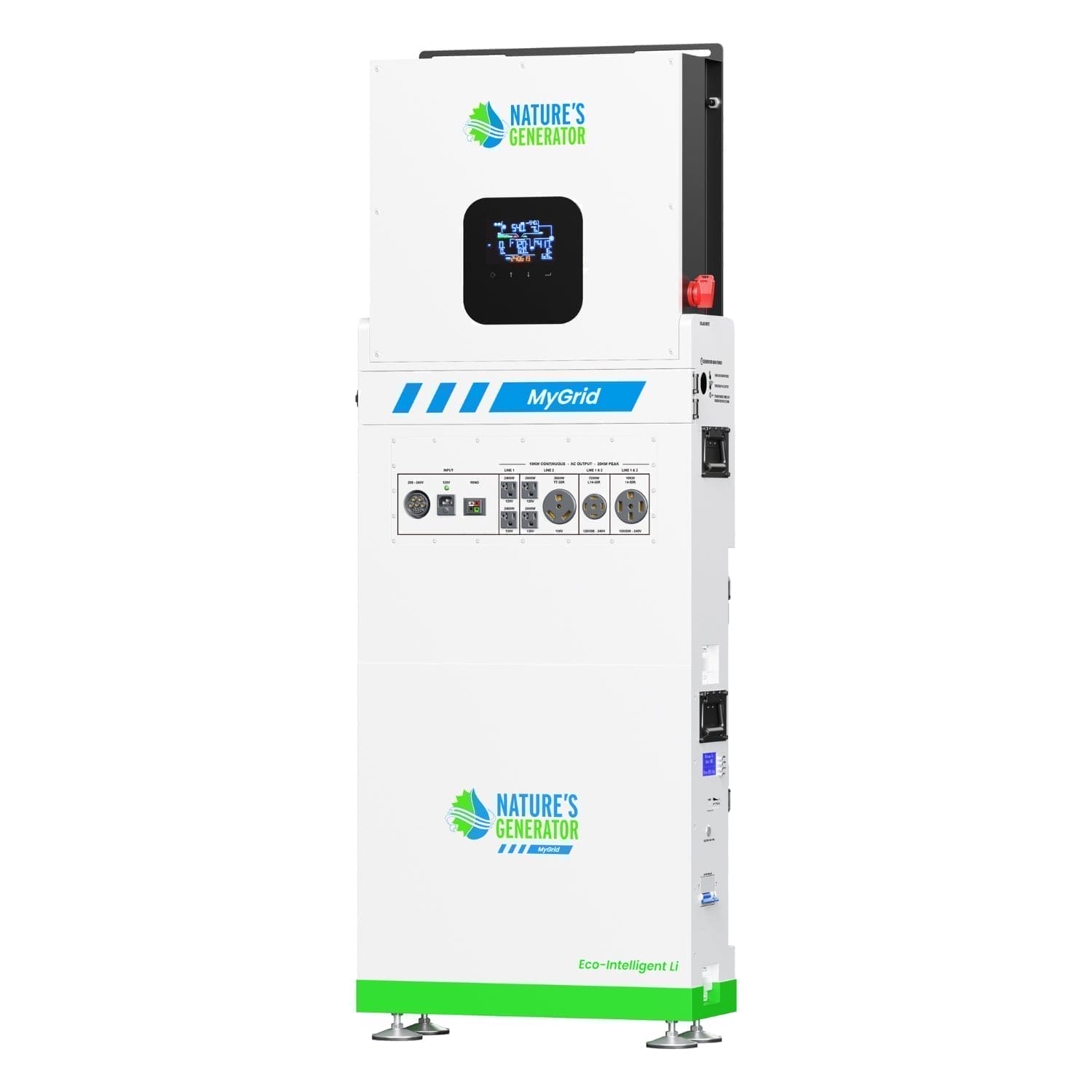

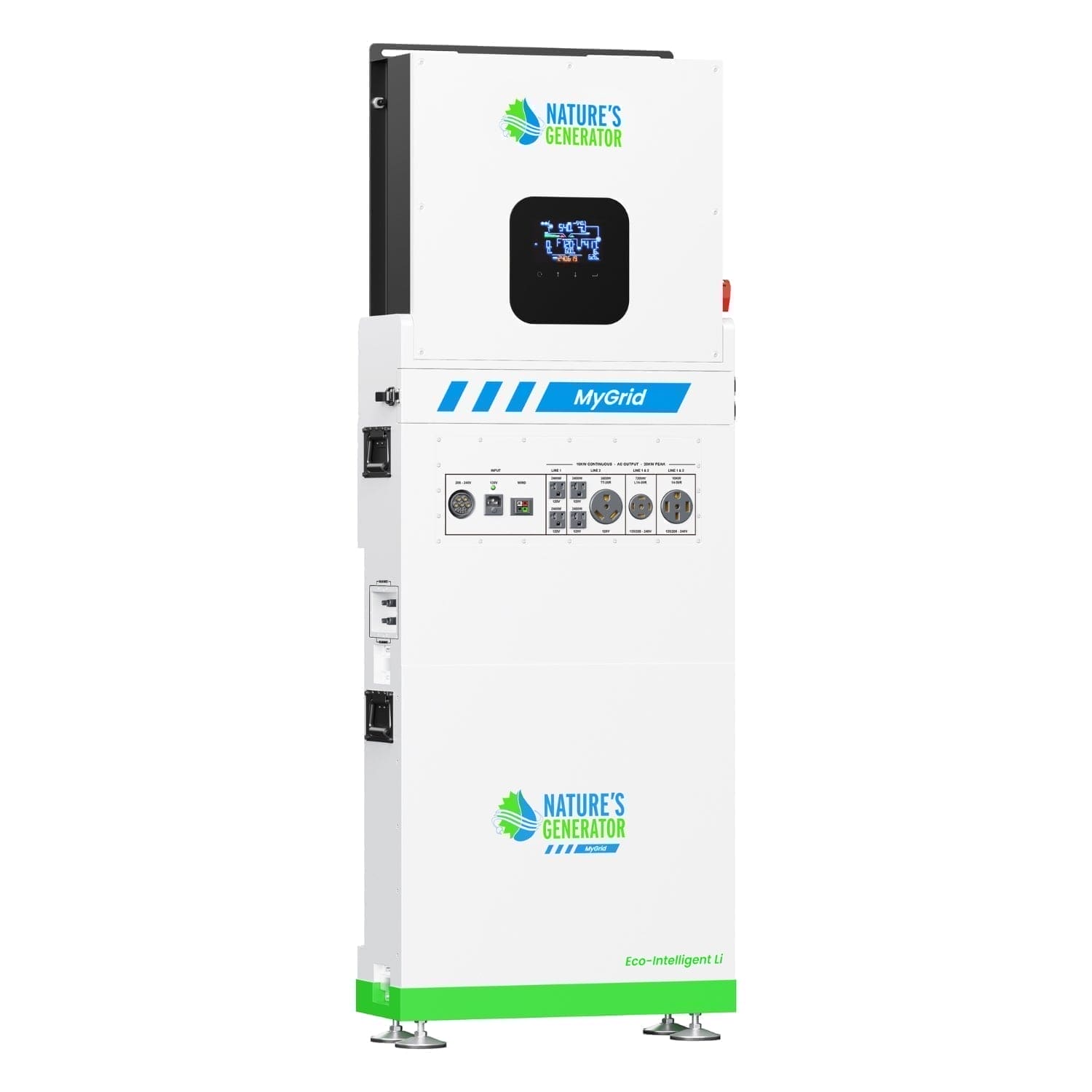

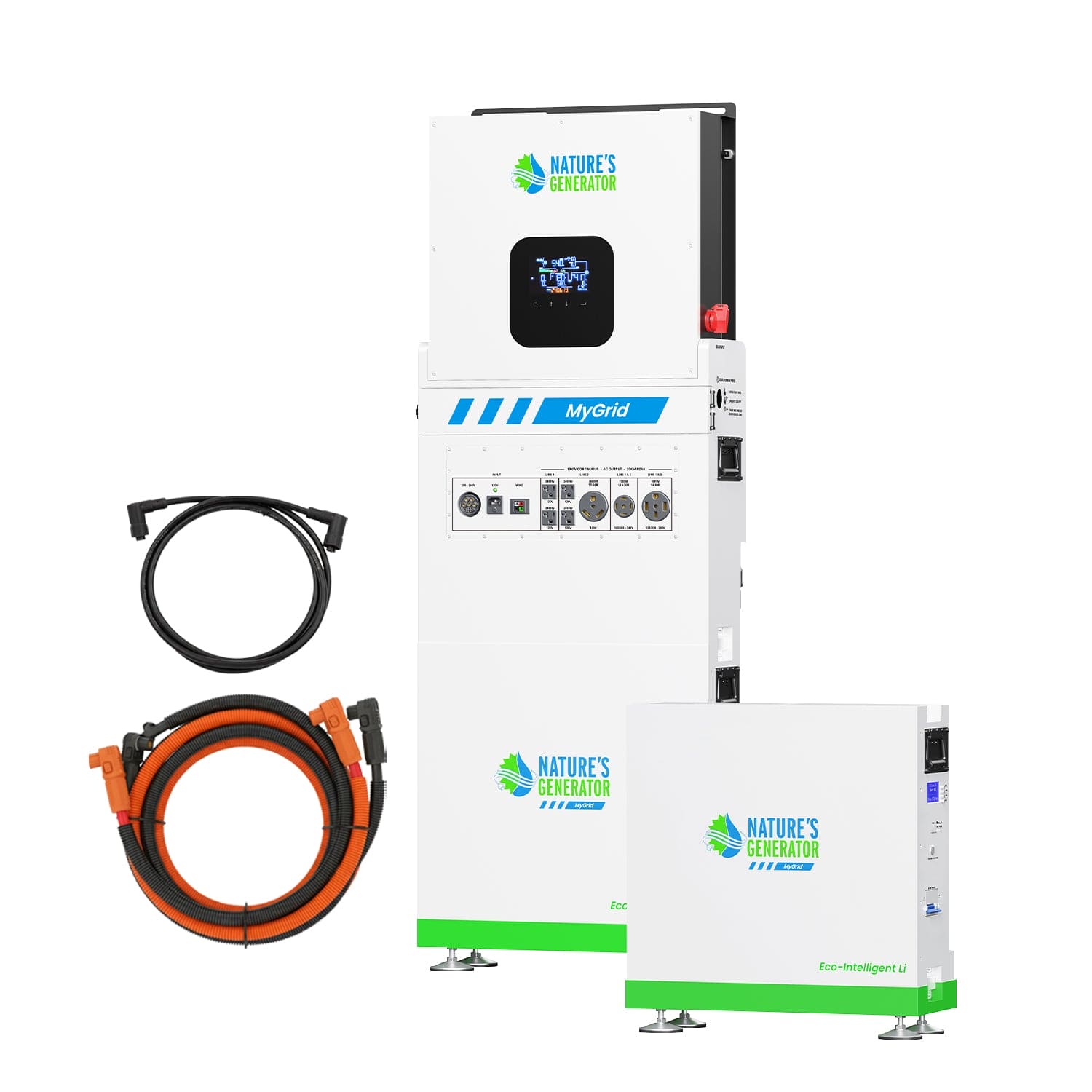

MyGrid 10K Whole Home Generator

MyGrid 10K Whole Home Generator

NGMGTN

$5,999.99 USD
$5,999.99 USD
Sale Sold out

Fast & Easy Installation: Plug-and-play design ensures quick setup and hassle-free relocation, providing flexibility for homeowners, renters, and temporary spaces.

Powerful Performance: 10kW output with a 10,496Wh LiFePO4 battery ensures reliable whole home backup during outages.

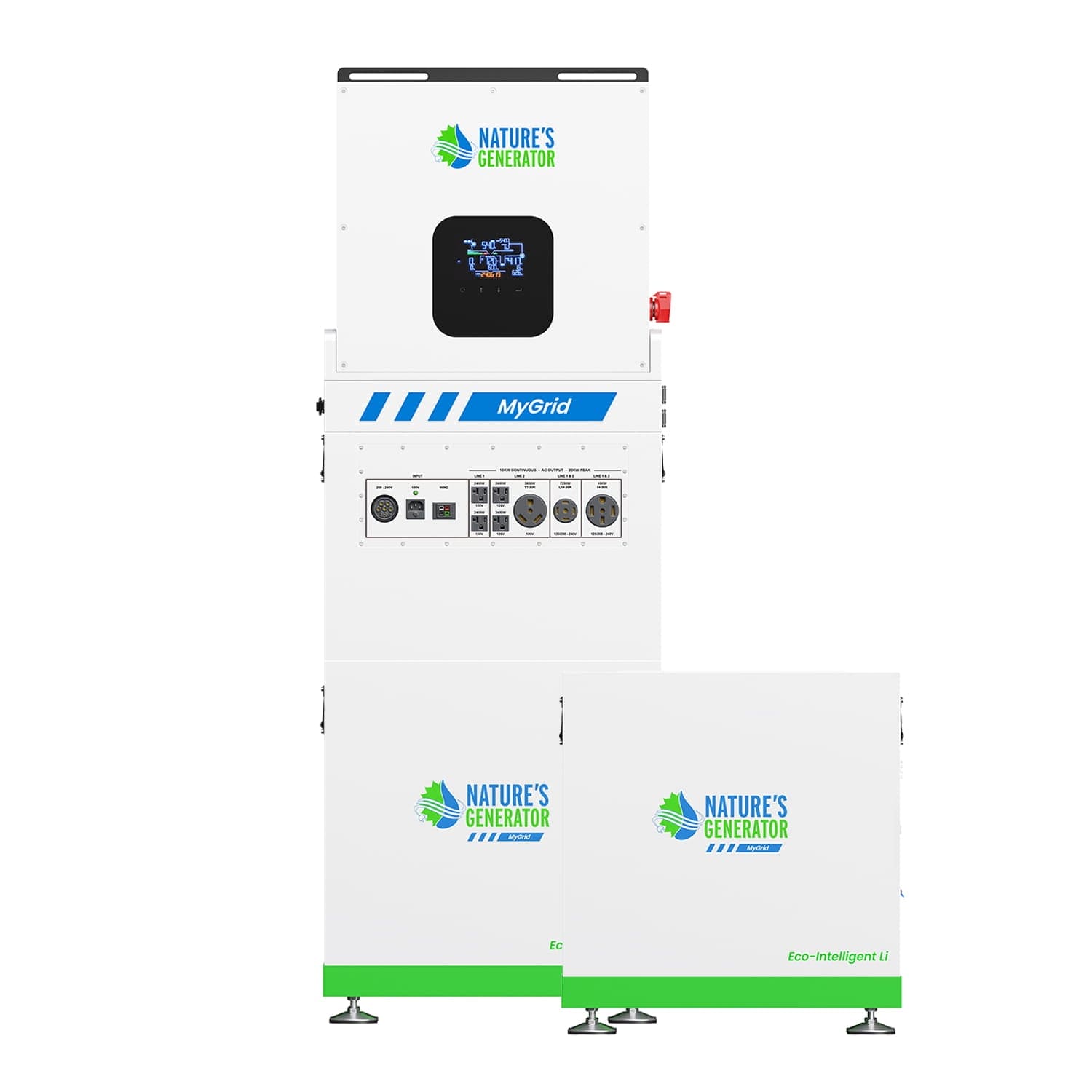

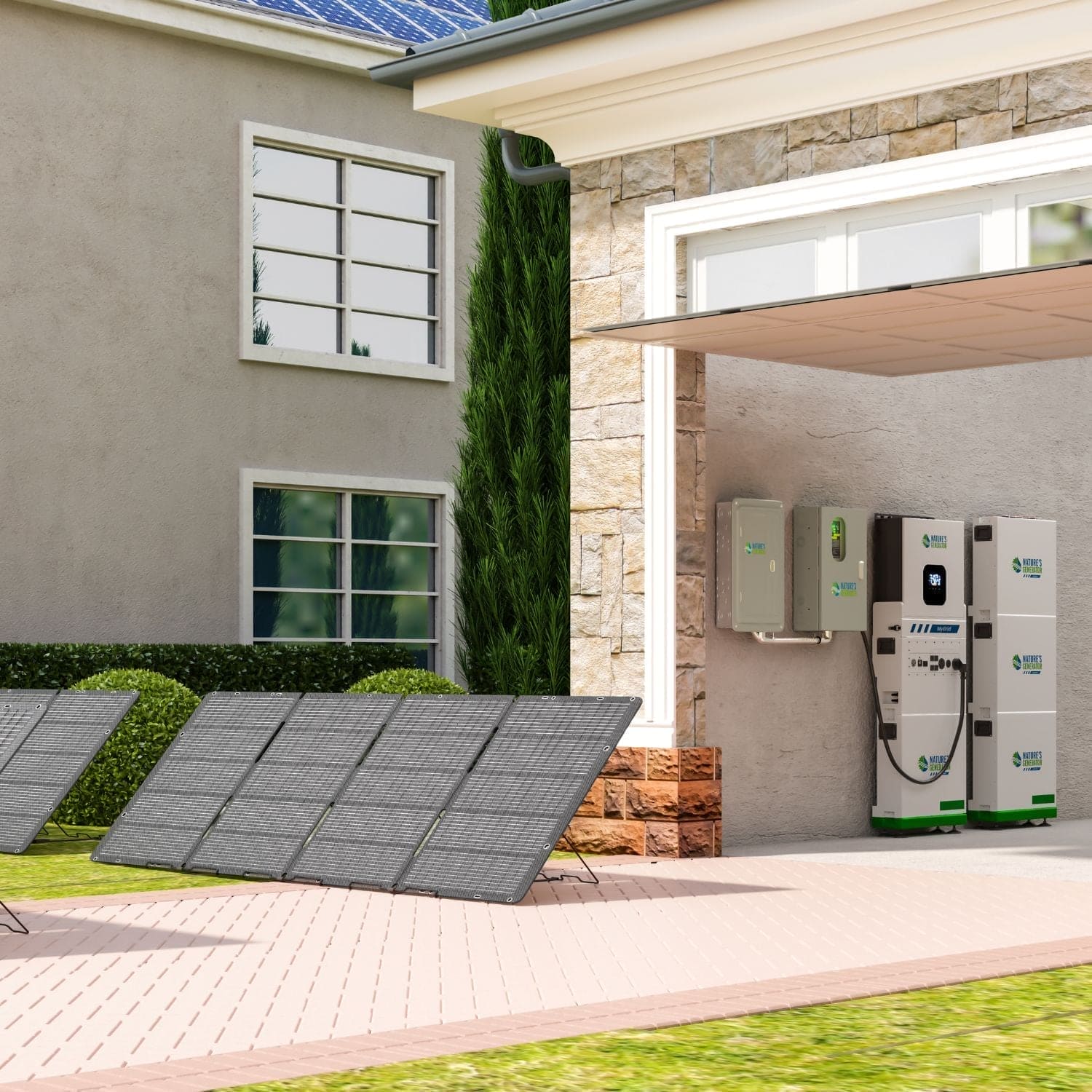

Expandable: Add batteries or solar panels to customize your energy system as needs grow.

Compact Design: Slim, space-saving form factor fits perfectly in homes, apartments, RVs, or workplaces.

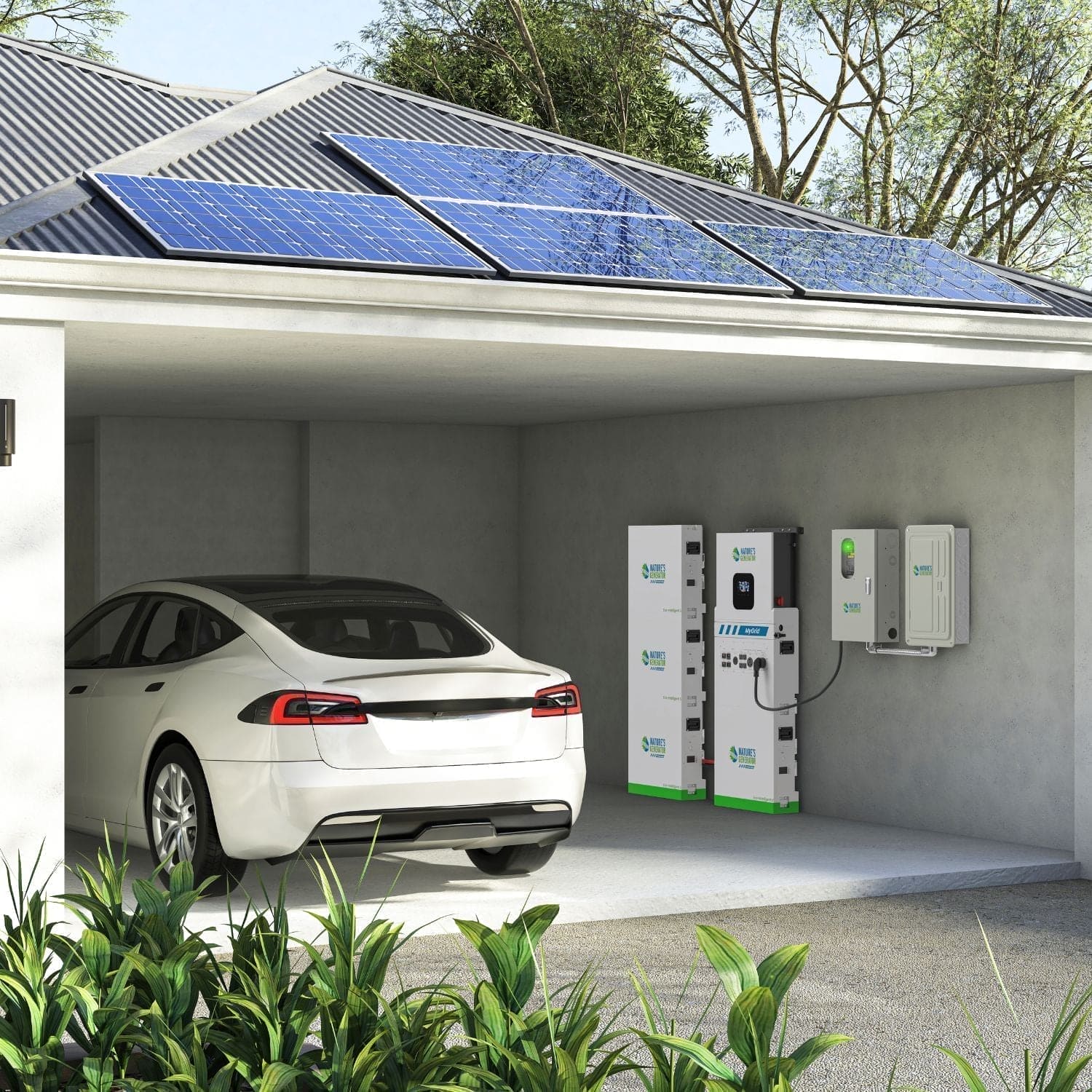

Seamless Integration: Works with our 50A or 125A automatic transfer switches and inlet boxes for smooth operation during outages.

Eco-Friendly & Versatile Charging: Supports solar, wind, AC, and generator charging options, providing sustainable and flexible energy backup solutions.

Dual Voltage Input: Handles both 120V and 240V for standard and fast charging.

Easy Monitoring: LED display tracks battery levels and power usage for complete control.



Technical Specifications

Battery:

Type: Lithium Iron Phospate (LiFePO4)

Capacity: 51.2V 205Ah (10496Wh)

Life Cycles: >6000 Cycles

Self Discharge: Recommended recharging every 6 months

Inverter:

Output Continuous Power: 10,000W

Output Peak Power: 20,000W

Output Voltage: 120V/240V Split Phase or 120V/208V 2 of 3 Phases

Output Frequency: 60Hz

Output Power Form: Pure Sine Wave

Auto Switching: <20ms

Output Ports:

4x NEMA 5-20R Outlet

1x NEMA TT-30R Outlet

1x NEMA L14-30R Outlet

1x NEMA 14-50R Outlet

Input Ports:

2x Solar Input Ports

1x Wind Input Port

1x 120Vac Input Port

1x 208Vac or 240Vac Input Port

Charges:

120Vac Charger: 1000W

208Vac or 240Vac Charger: 4500W

Wind Charger: 350W

Solar Charger: 12,000W 120Vdc-550DVdc

Solar Charge Mode: MPPT

Dimension and Weight:

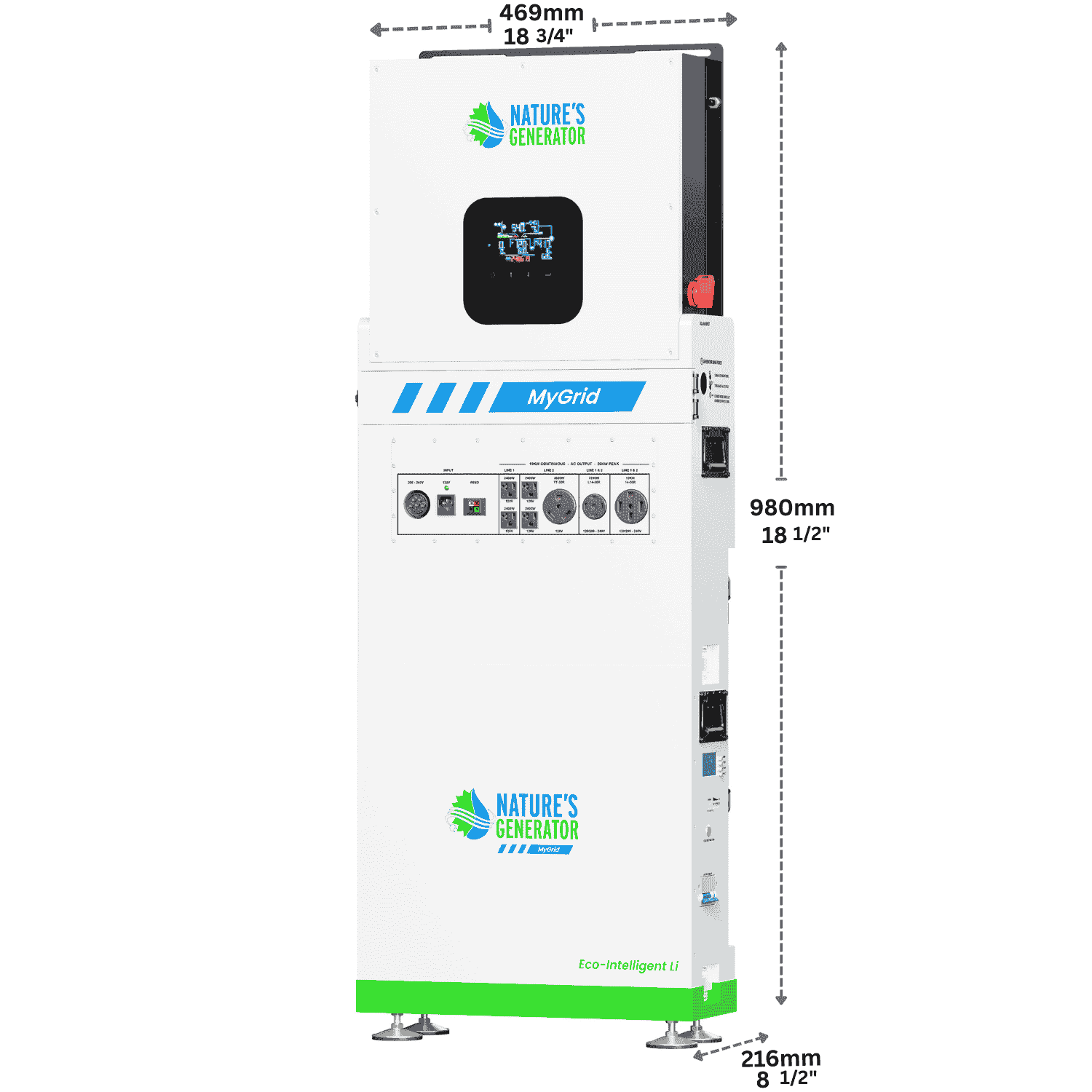

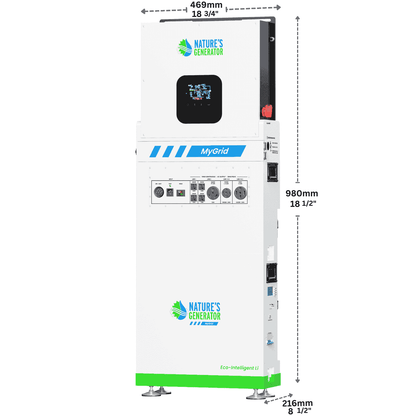

Generator Dimensions: 21.8 x 8.5 x 38.5 inches (555.4 x 216 x 980 mm) not counting mounting bar

Battery Dimensions: 21.8 x 8.5 x 23.4 inches (555.4 x 216 x 596 mm) not counting mounting bar

Generator Weight: 152 lbs (69 kg)

Battery Weight: 213 lbs (96.6 kg)

General:

Optimal Operating temperature: 68 – 86°F (20 – 30°C)

Storage Temperature: 14 – 113°F (-10 – 45°C)

Battery Charging Temperature: 32 – 113°F (0 – 45°C)

Battery Discharging Temperature: 14 – 113°F (-10 – 45°C)

Certification:

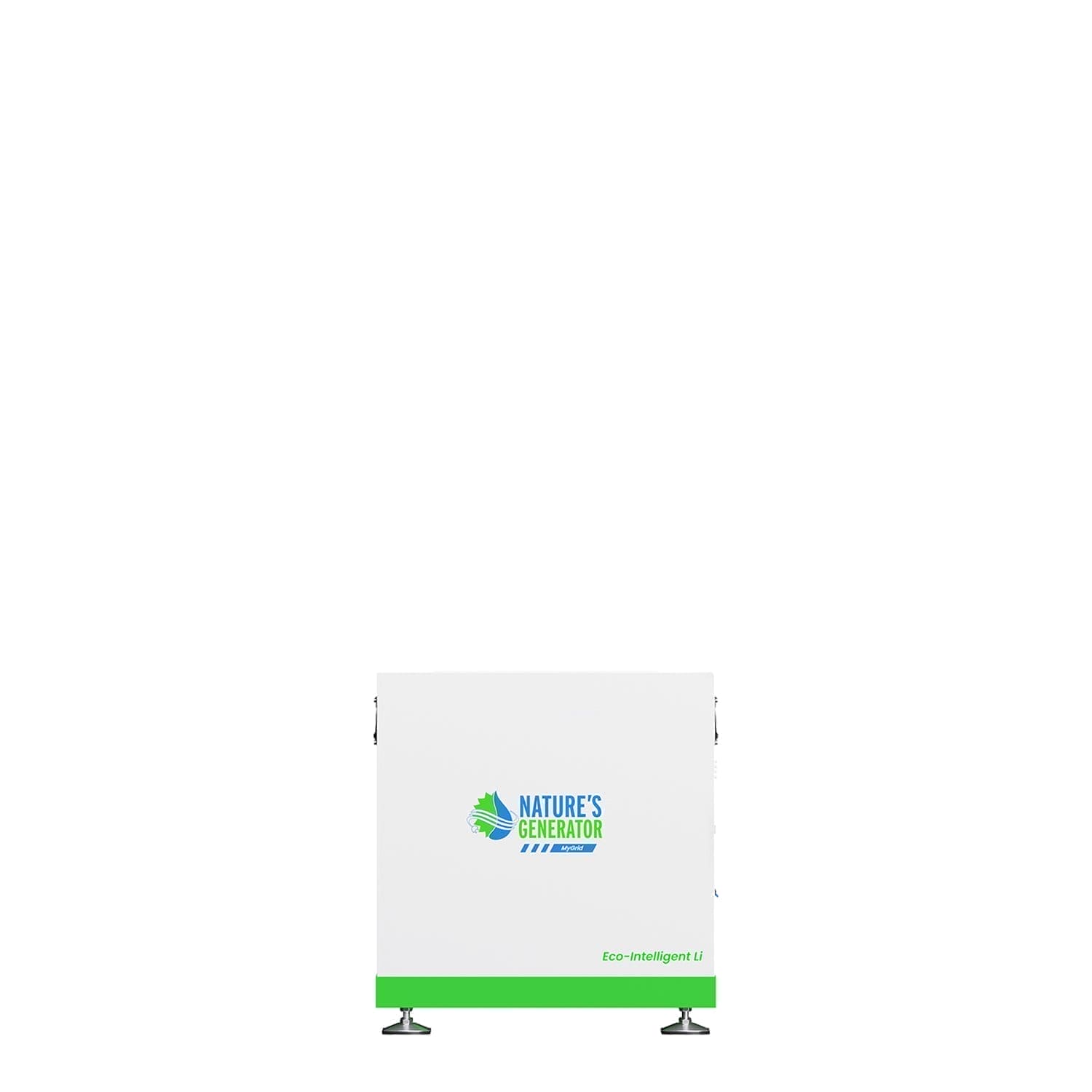

Solar Battery Specs

Battery:

Type: Lithium Iron Phospate (LiFePO4)

Capacity: 51.2V 205Ah (10496Wh)

Life Cycles: >6000 Cycles

Self Discharge: Recommended recharging every 6 months

General:

Battery Dimensions: 21.8 x 8.5 x 23.4 inches (555.4 x 216 x 596 mm) not counting mounting bar

Optimal Operating temperature: 68 – 86°F (20 – 30°C)

Storage Temperature: 14 – 113°F (-10 – 45°C)

Battery Charging Temperature: 32 – 113°F (0 – 45°C)

Battery Discharging Temperature: 14 – 113°F (-10 – 45°C)

Battery Weight: 213 lbs (96.6 kg)
