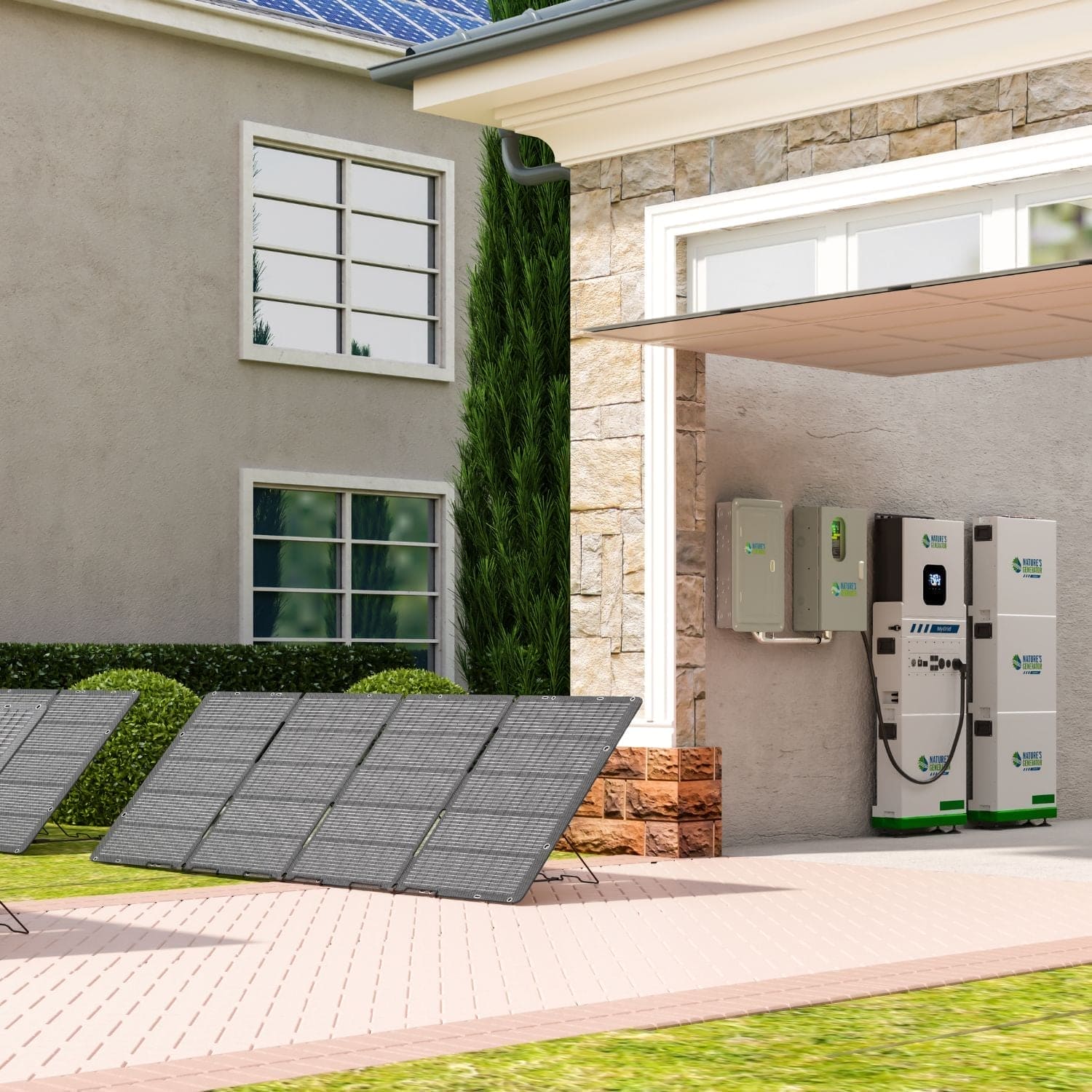

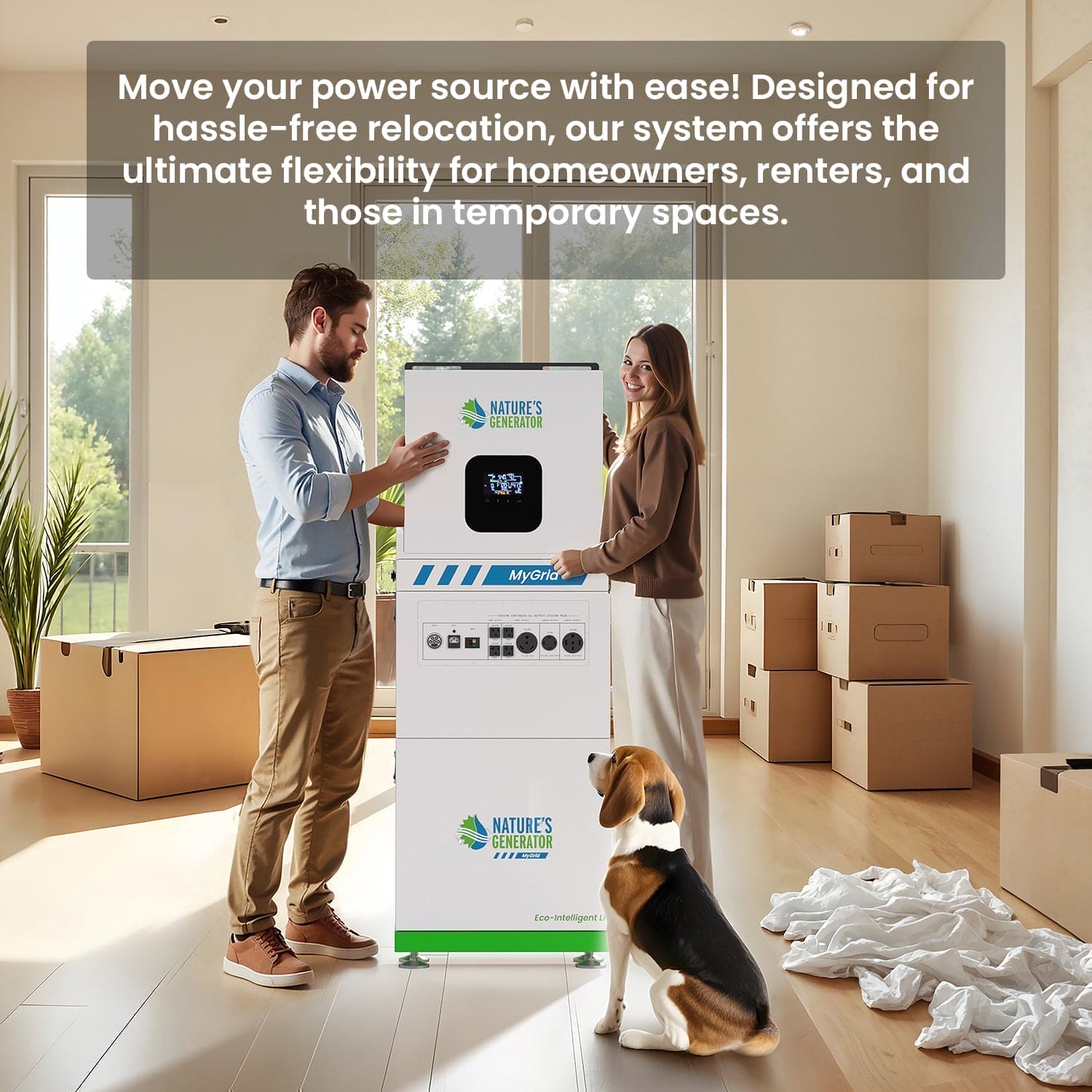

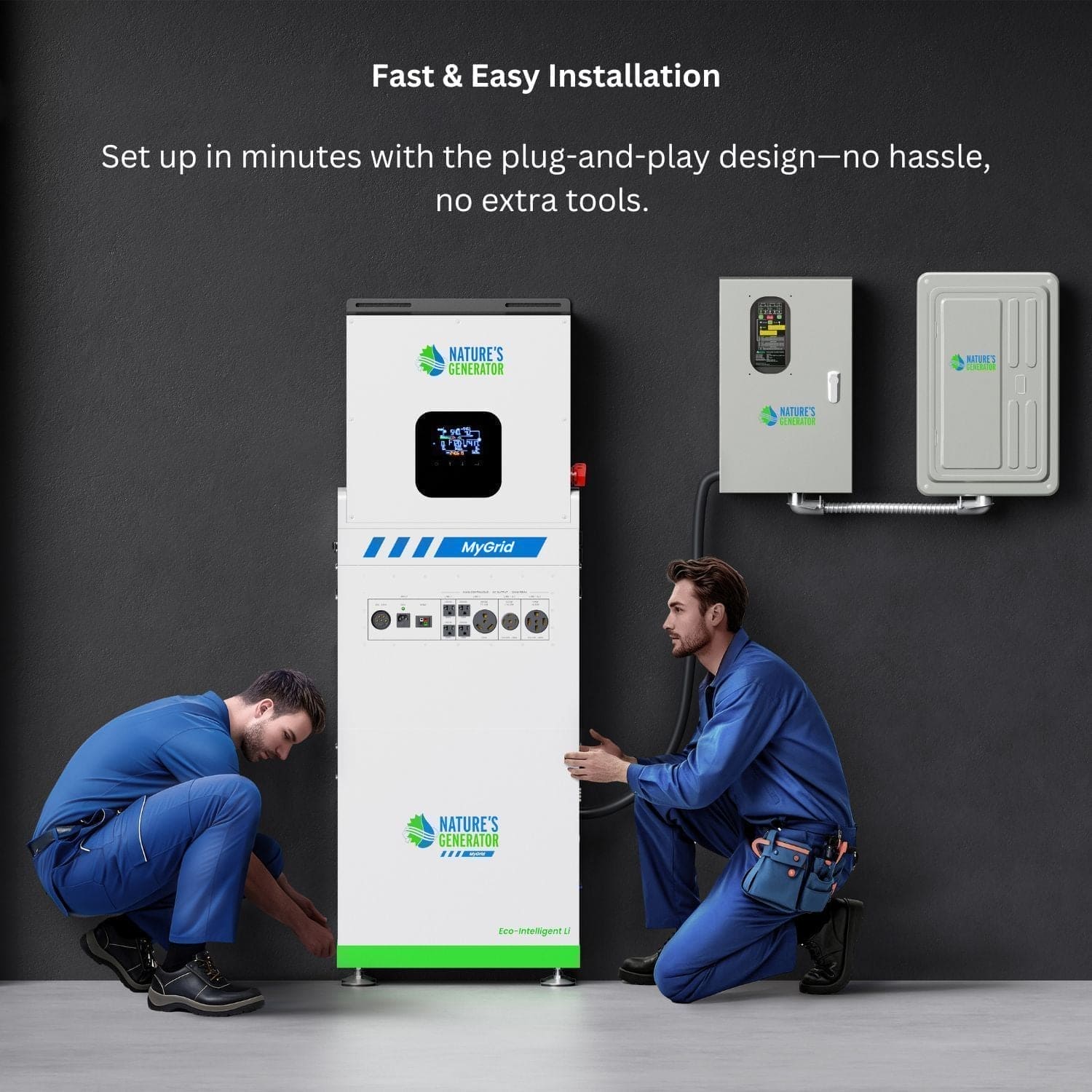

Fast and Easy Setup: Plug-and-play design for hassle-free installation and relocation, ensuring flexibility and convenience.

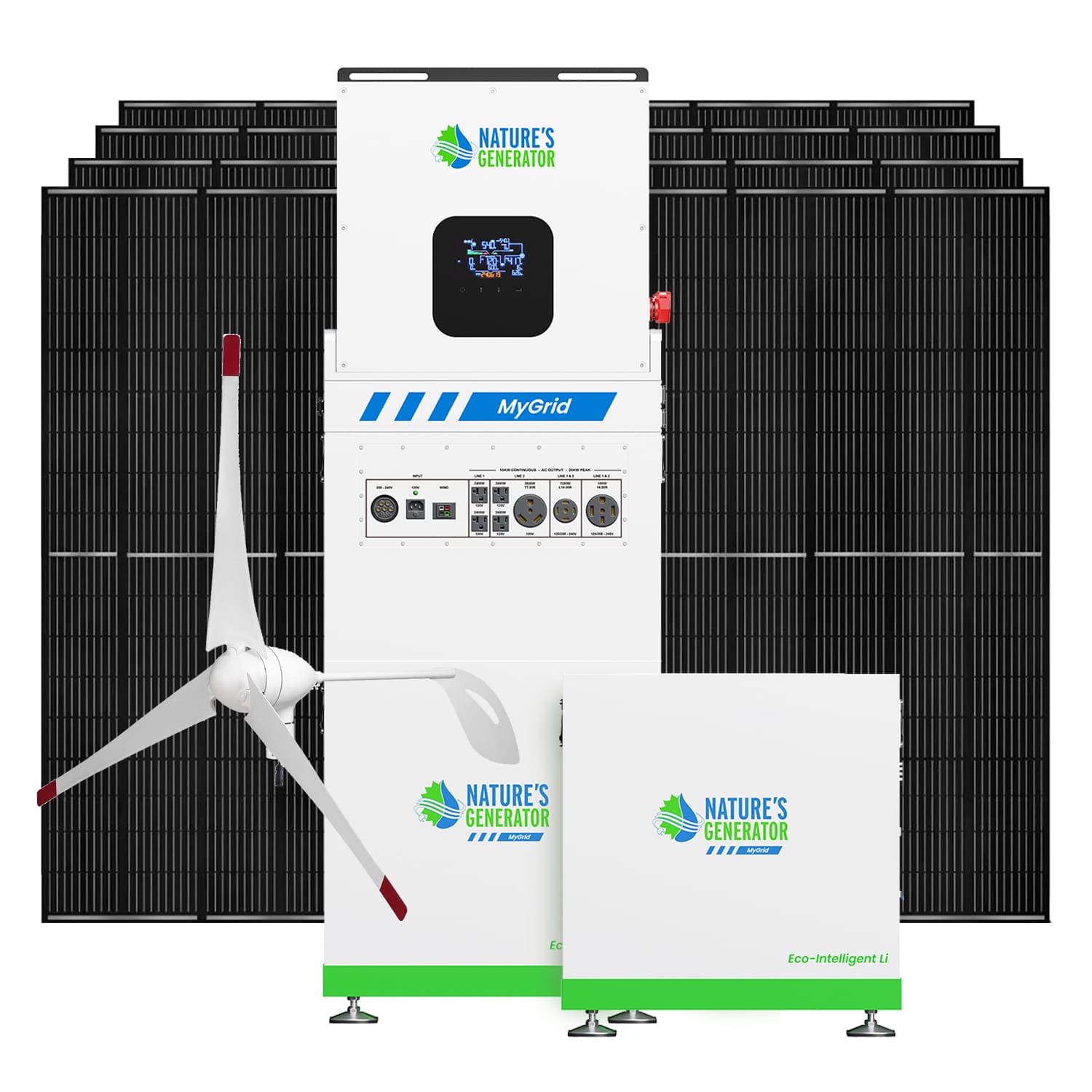

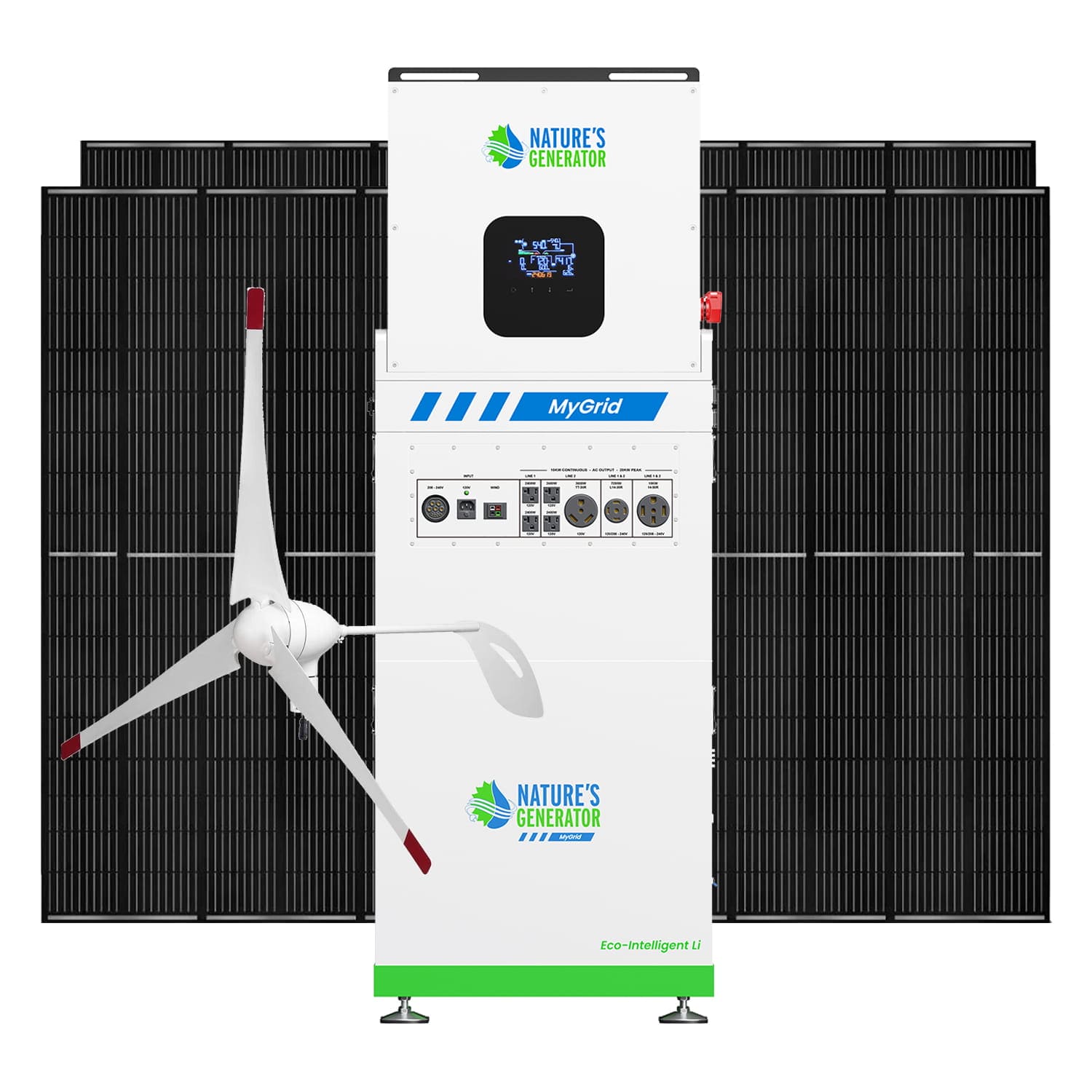

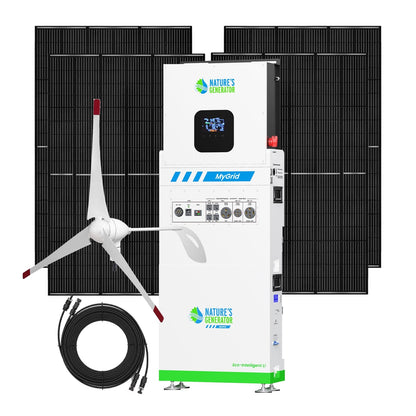

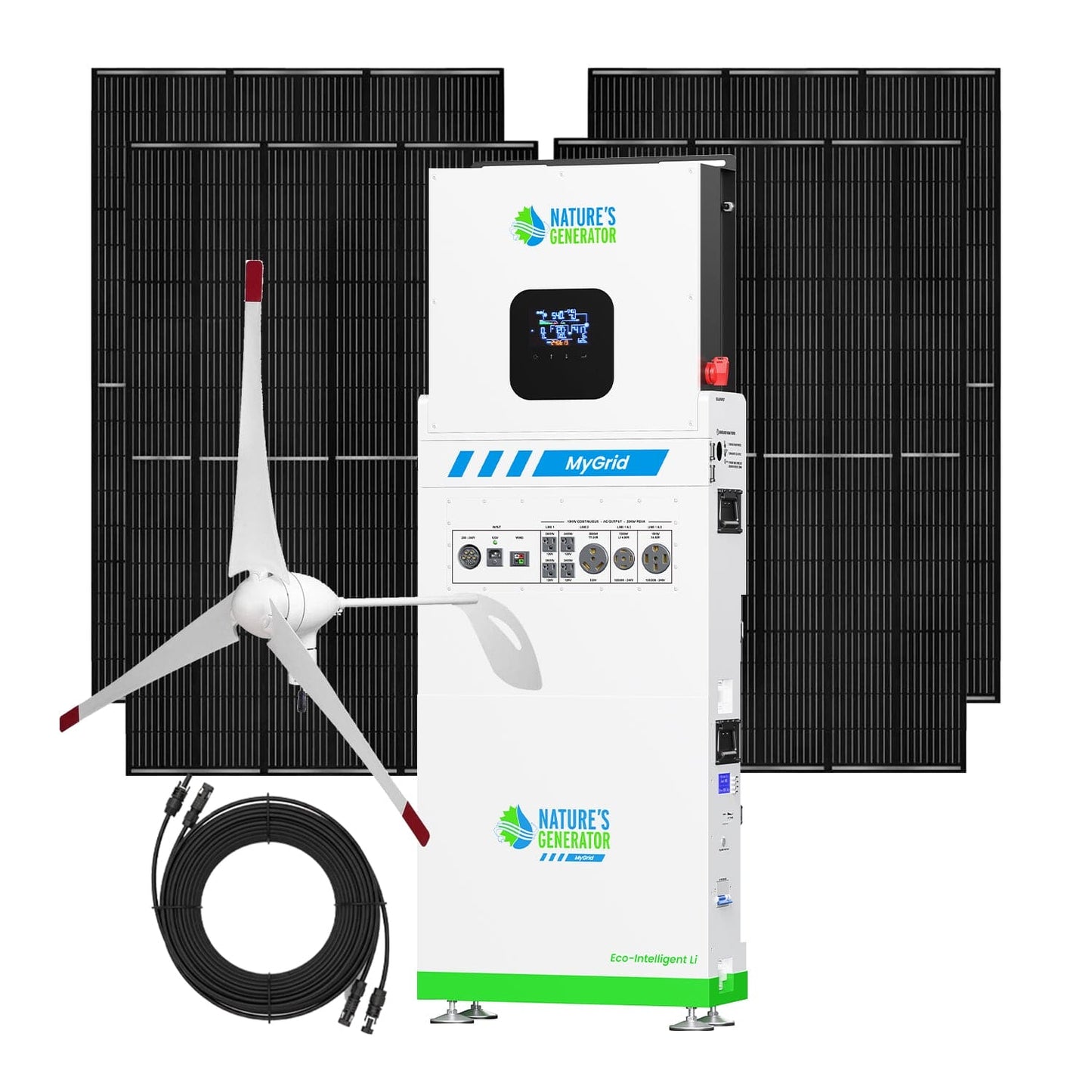

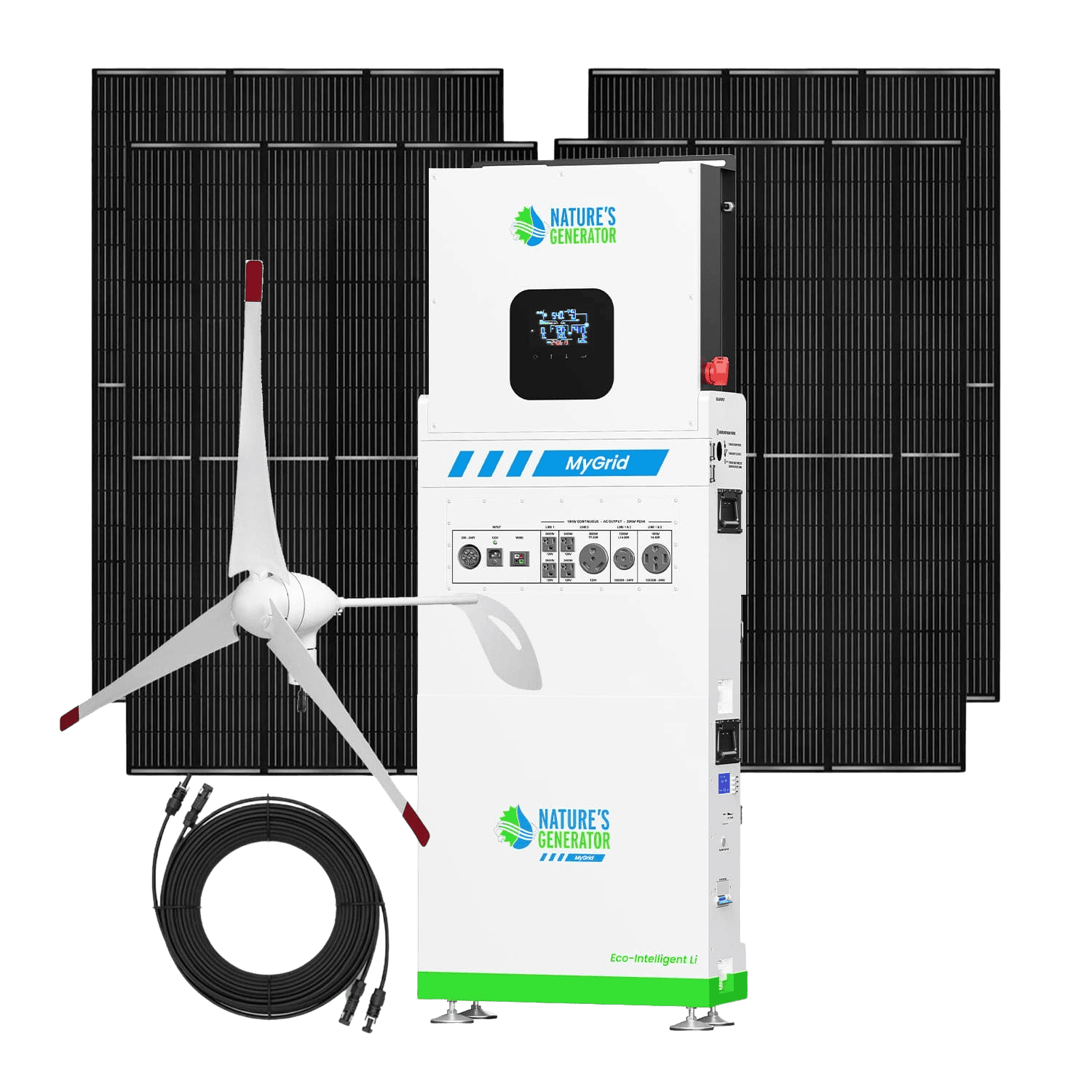

Powerful 10kW Solar and Wind Generator: Combines solar and wind energy with a 120V/240V output and a 10,496Wh battery for reliable whole-home or off-grid power.

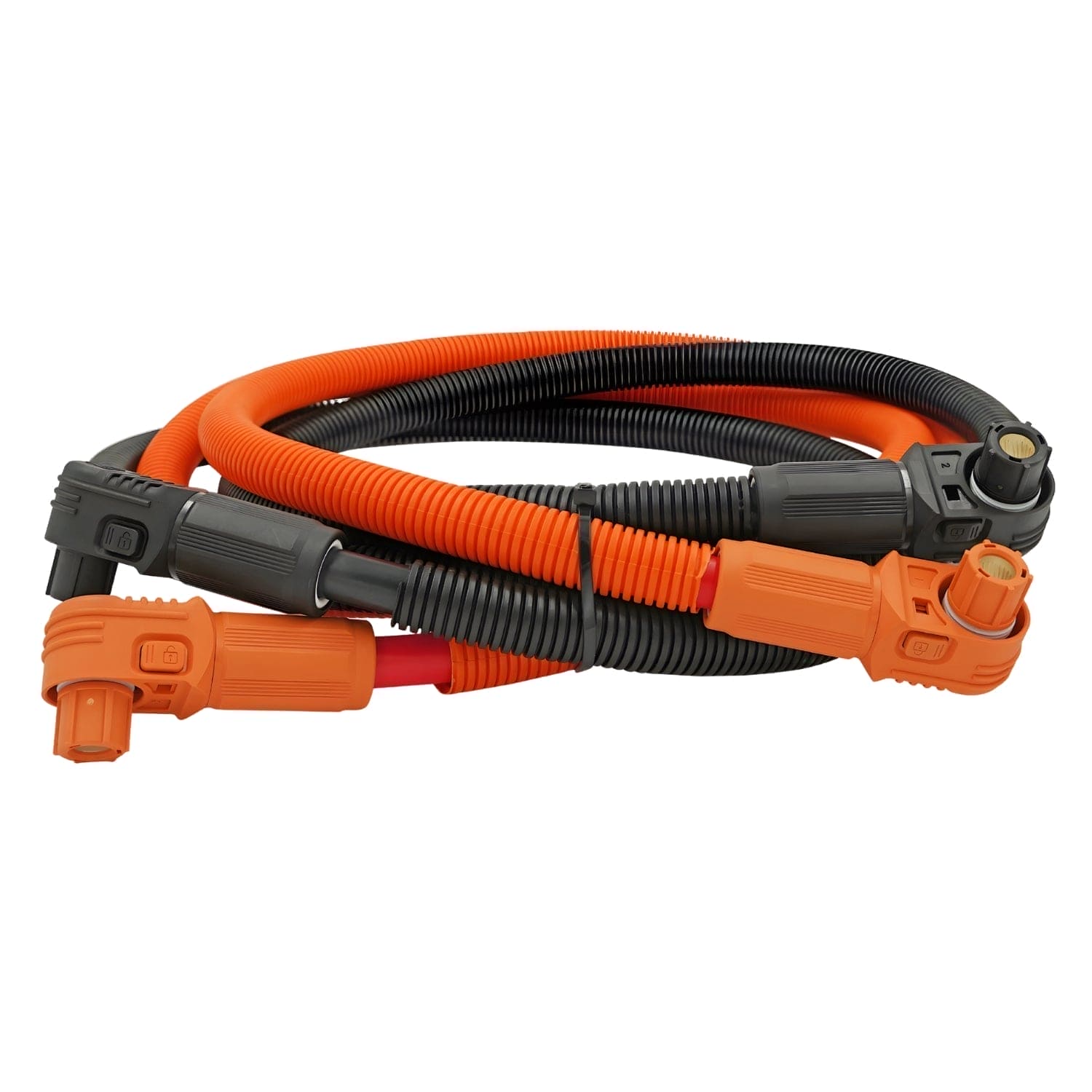

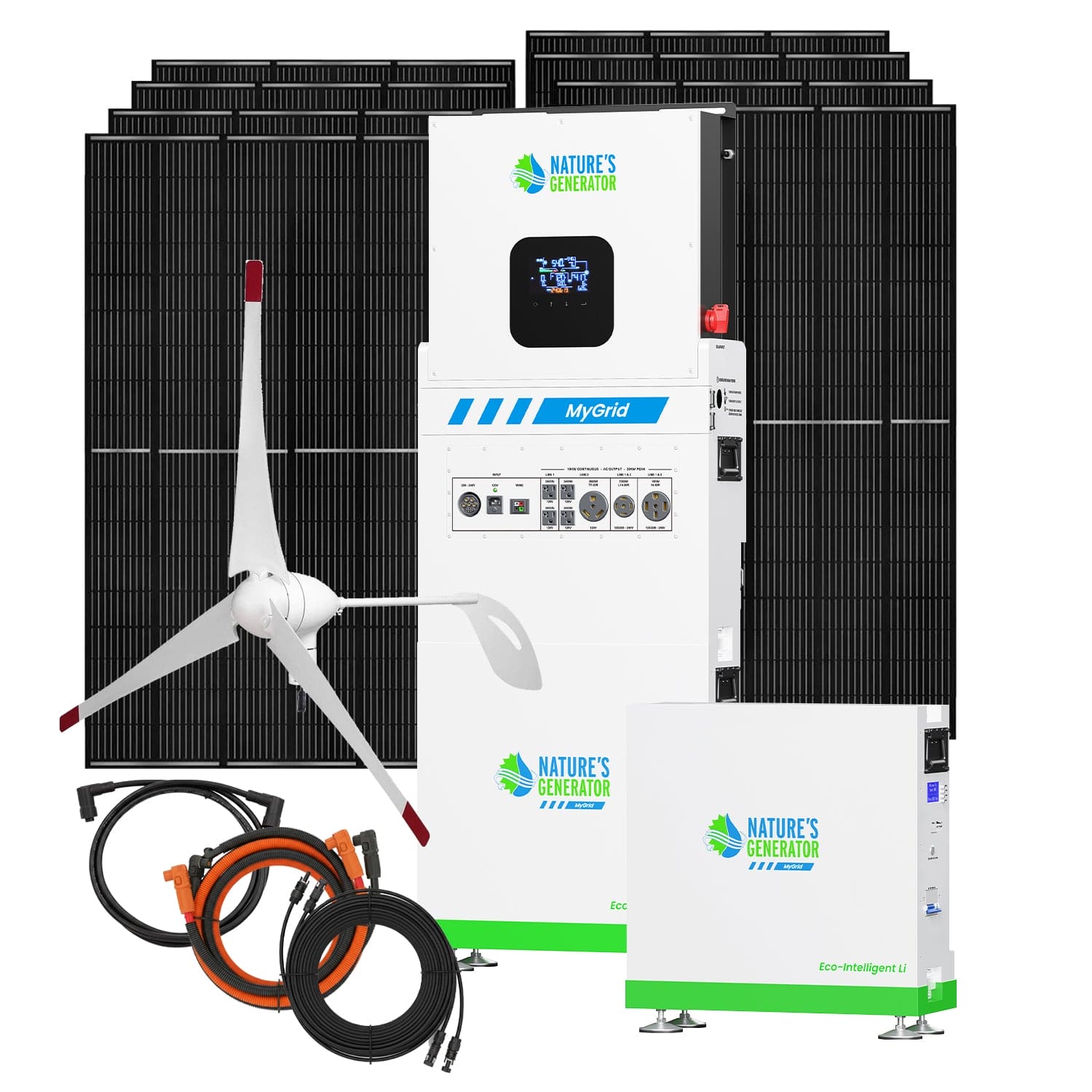

Expandable and Scalable: Add batteries, solar panels, or combine two MyGrid 10K units for up to 20kW of power to meet growing energy demands.

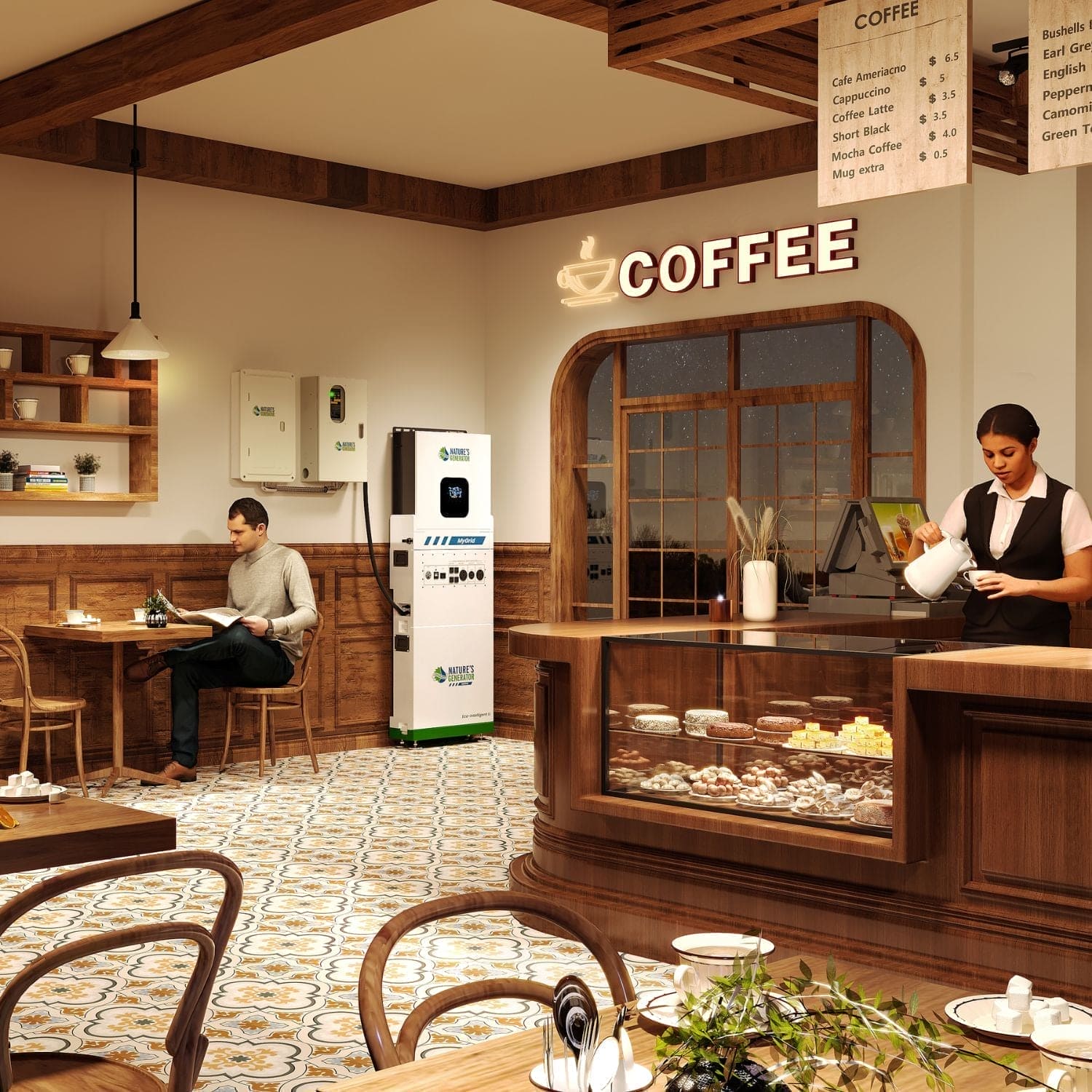

Compact and Space-Saving: Slim form factor fits seamlessly into homes, apartments, RVs, or workplaces without sacrificing performance.

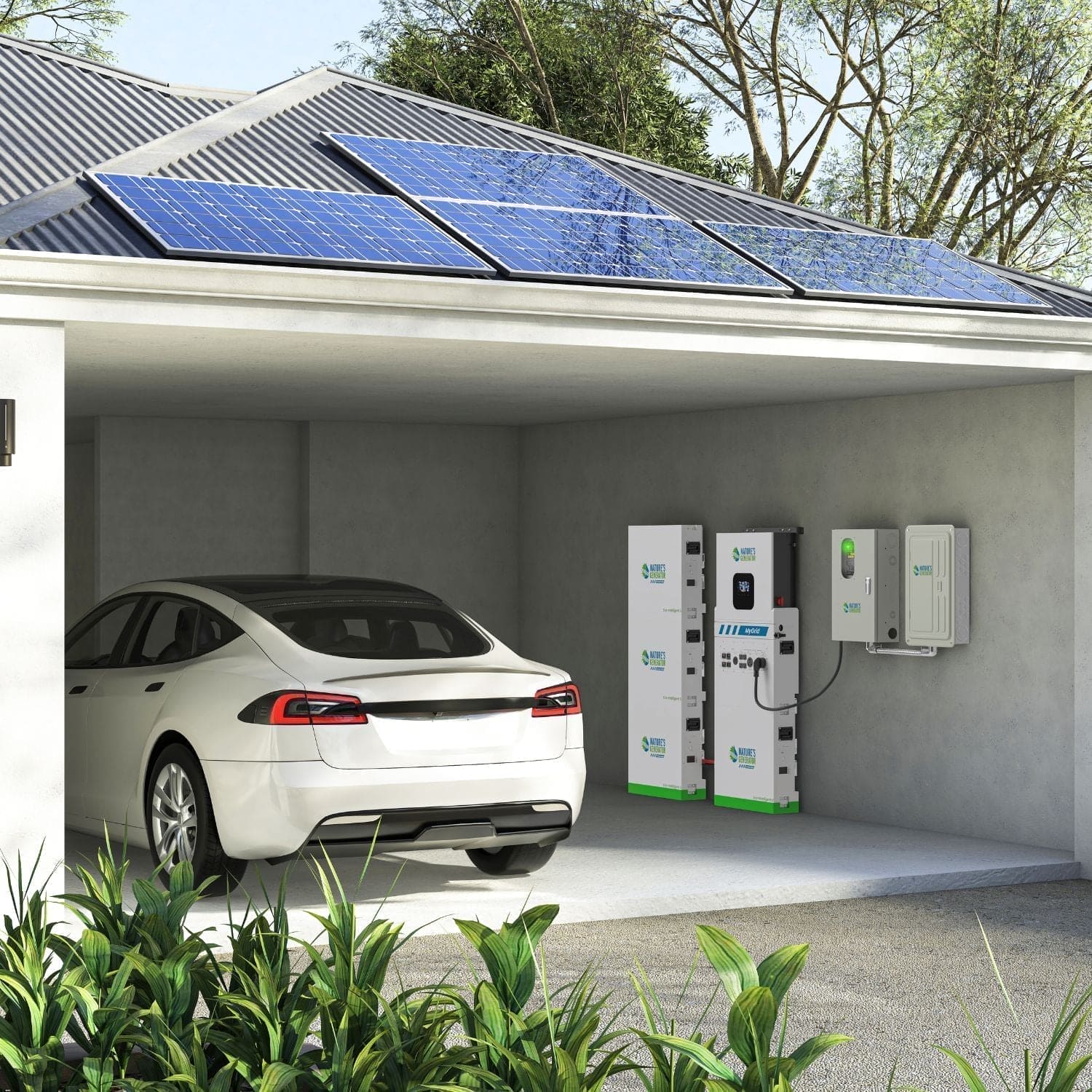

Off-Grid Energy Solution: Ideal for independent energy needs, providing consistent power in remote locations with its solar and wind capabilities.
Eco-Friendly & Versatile Charging: Supports solar, wind, AC, and generator charging options for sustainable whole home energy solutions.
Dual Voltage Input: Handles both 120V, 208V and 240V for standard and fast charging.
Intuitive Monitoring: LED display tracks battery levels, power usage, and energy reserves, keeping you in full control of your system.
Technical Specifications
Battery:
Type: Lithium Iron Phospate (LiFePO4)
Capacity: 51.2V 205Ah (10496Wh)
Life Cycles: >6000 Cycles
Self DIscharge: Recommended recharging every 6 months
Inventer:
Output Continous Power: 10,000W
Outpeak Peak Power: 20,000W
Output Voltage: 120V/240V Split Phase or 120V/208V 2 of 3 Phases
Output Frequency: 60Hz
Output Power Form: Pure Sine Wave
Auto Switching: <20ms
Output Ports:
4x NEMA 5-20R Outlest
1x NEMA TT-30R Outlet
1x NEMA L14-30R Outlet
1x NEMA 14-50R Outlet
Input Ports:
2x Solar Input Ports
1x Wind Input Port
1x 120Vac Input Port
1x 208Vac or 240Vac Input Port
Charges:
120Vac Charger: 1000W
208Vac or 240Vac Charger: 4500W
Wind Charger: 350W
Solar Charger: 12,000W 120Vdc-550DVdc
Solar Charge Mode: MPPT
Dimension and Weight:

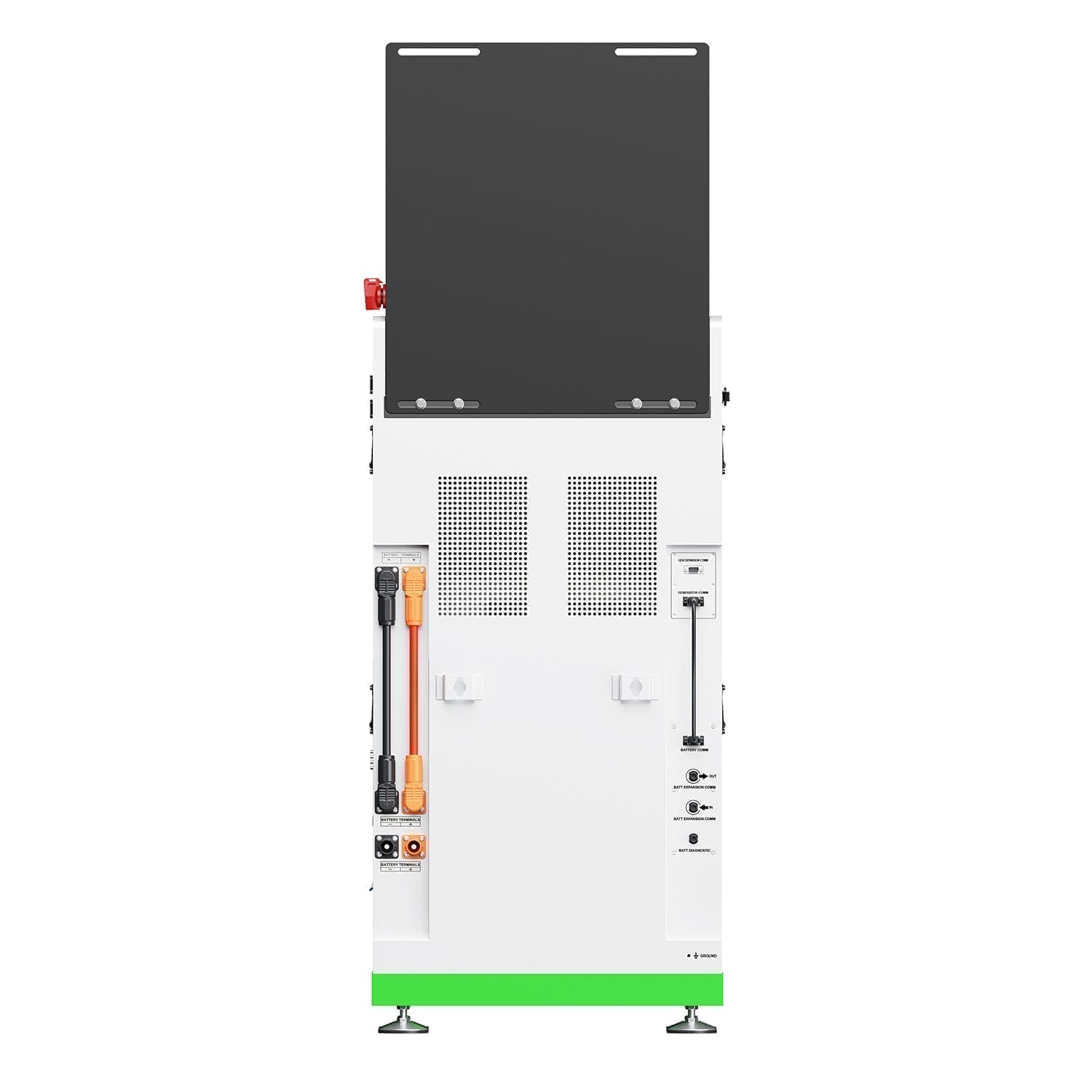

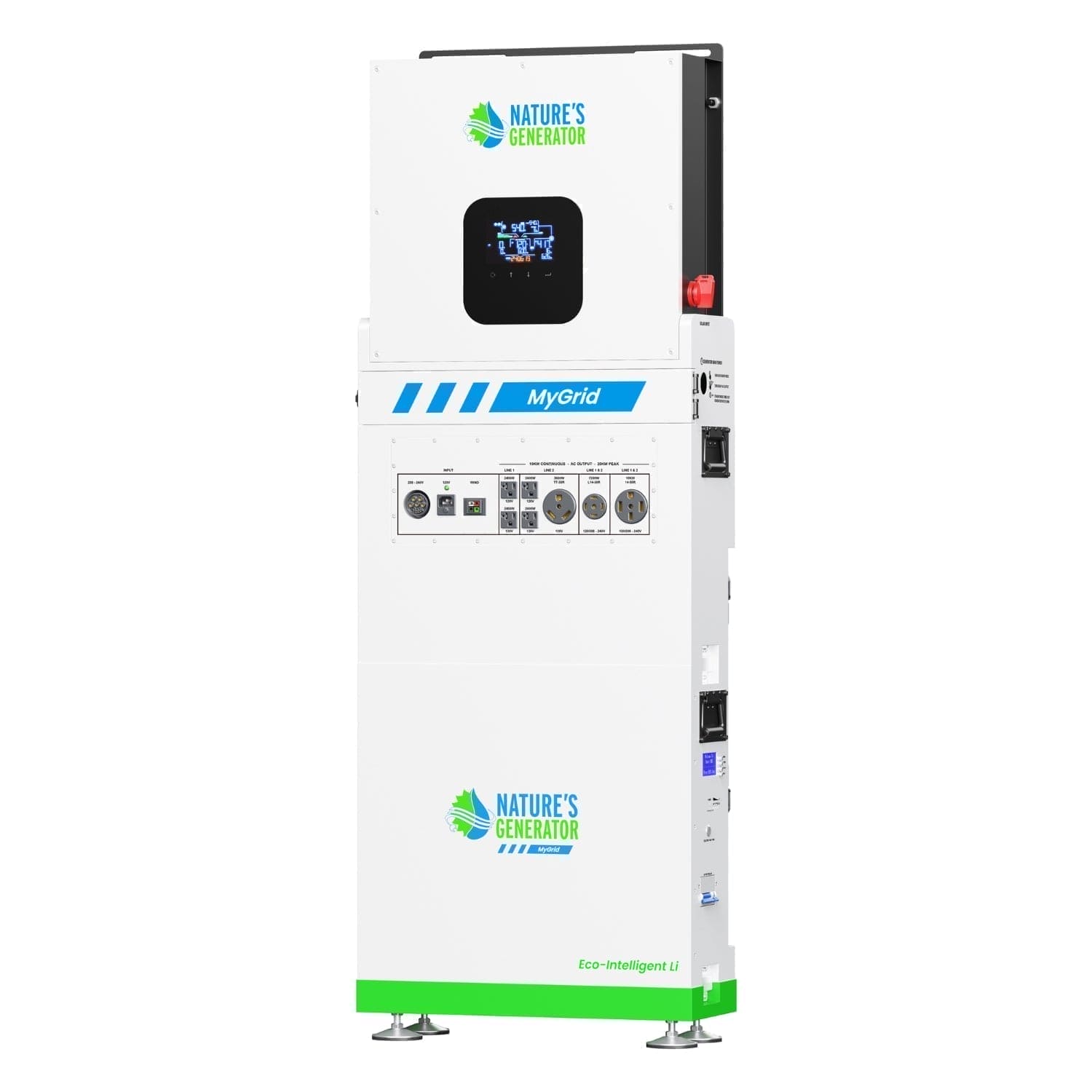

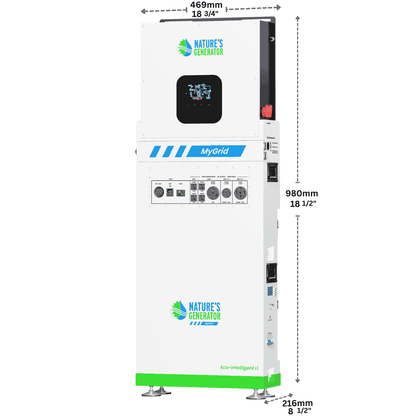

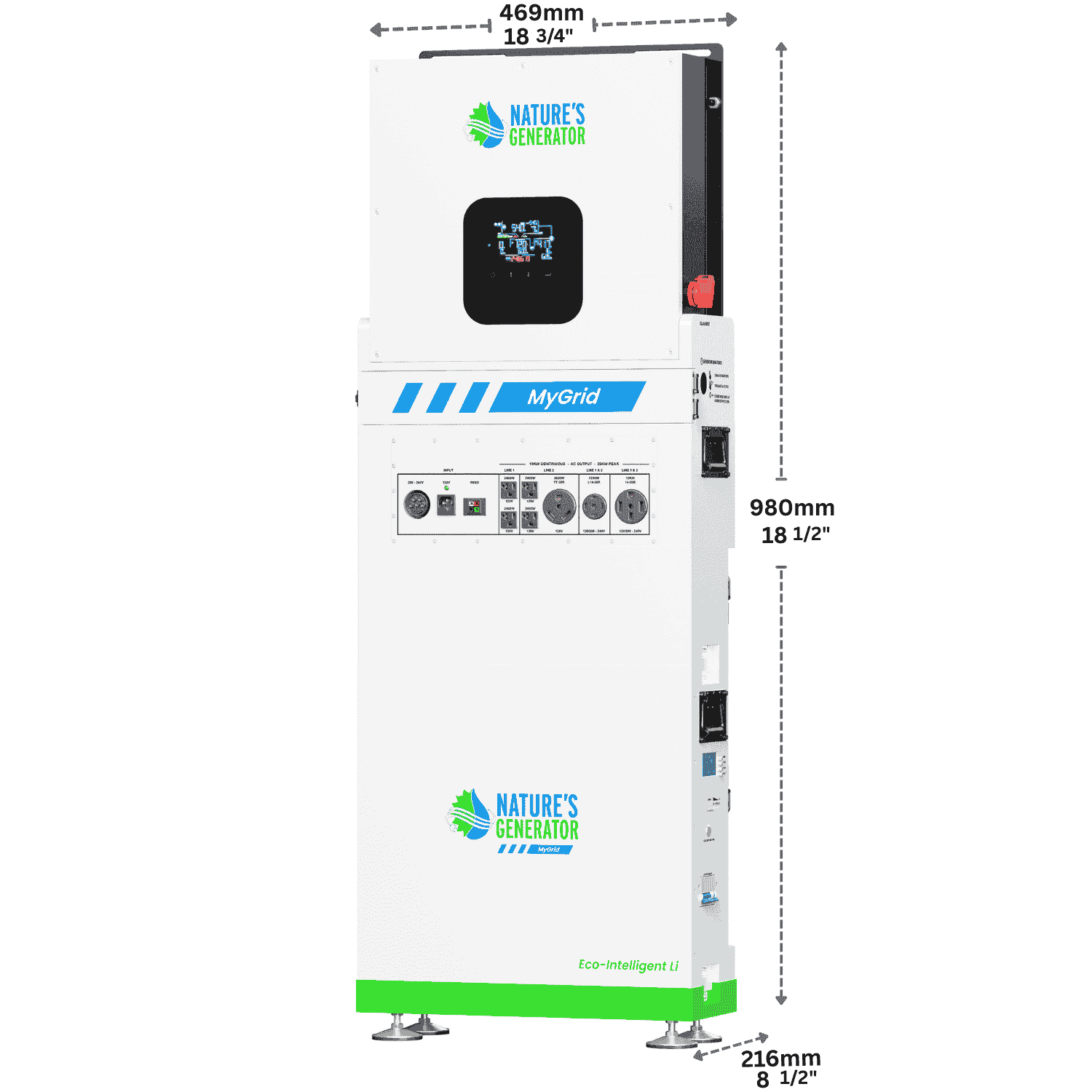

Generator Dimensions: 21.8 x 8.5 x 38.5 inches (555.4 x 216 x 980 mm) not counting mounting bar

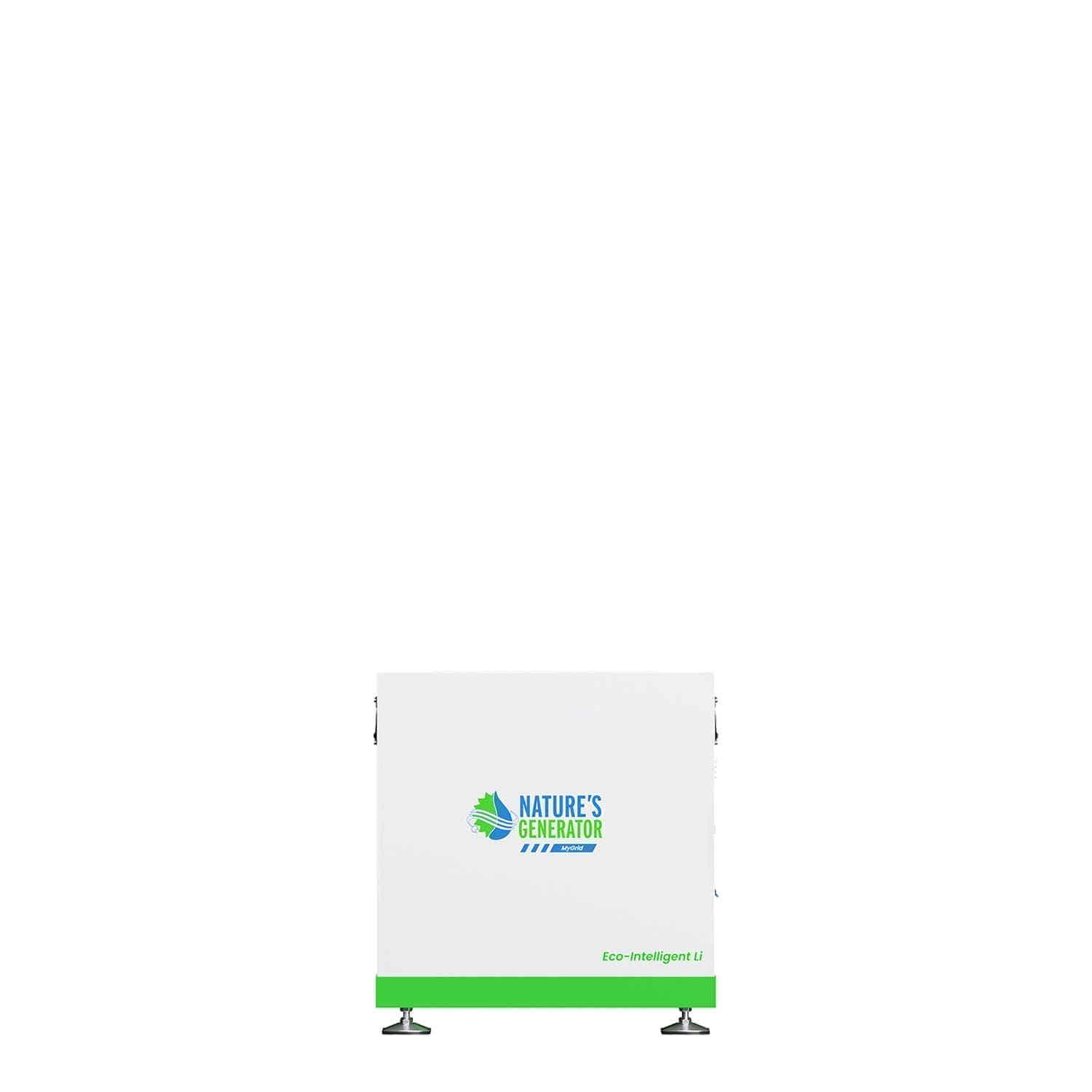

Battery Dimensions: 21.8 x 8.5 x 23.4 inches (555.4 x 216 x 596 mm) not counting mounting bar
Generator Weight: 152 lbs (69 kg)
Battery Weight: 213 lbs (96.6 kg)
General:
Optimal Operating temperature: 68 – 86°F (20 – 30°C)
Storage Temperature: 14 – 113°F (-10 – 45°C)
Battery Charging Temperature: 32 – 113°F (0 – 45°C)
Battery Discharging Temperature: 14 – 113°F (-10 – 45°C)
Certification:

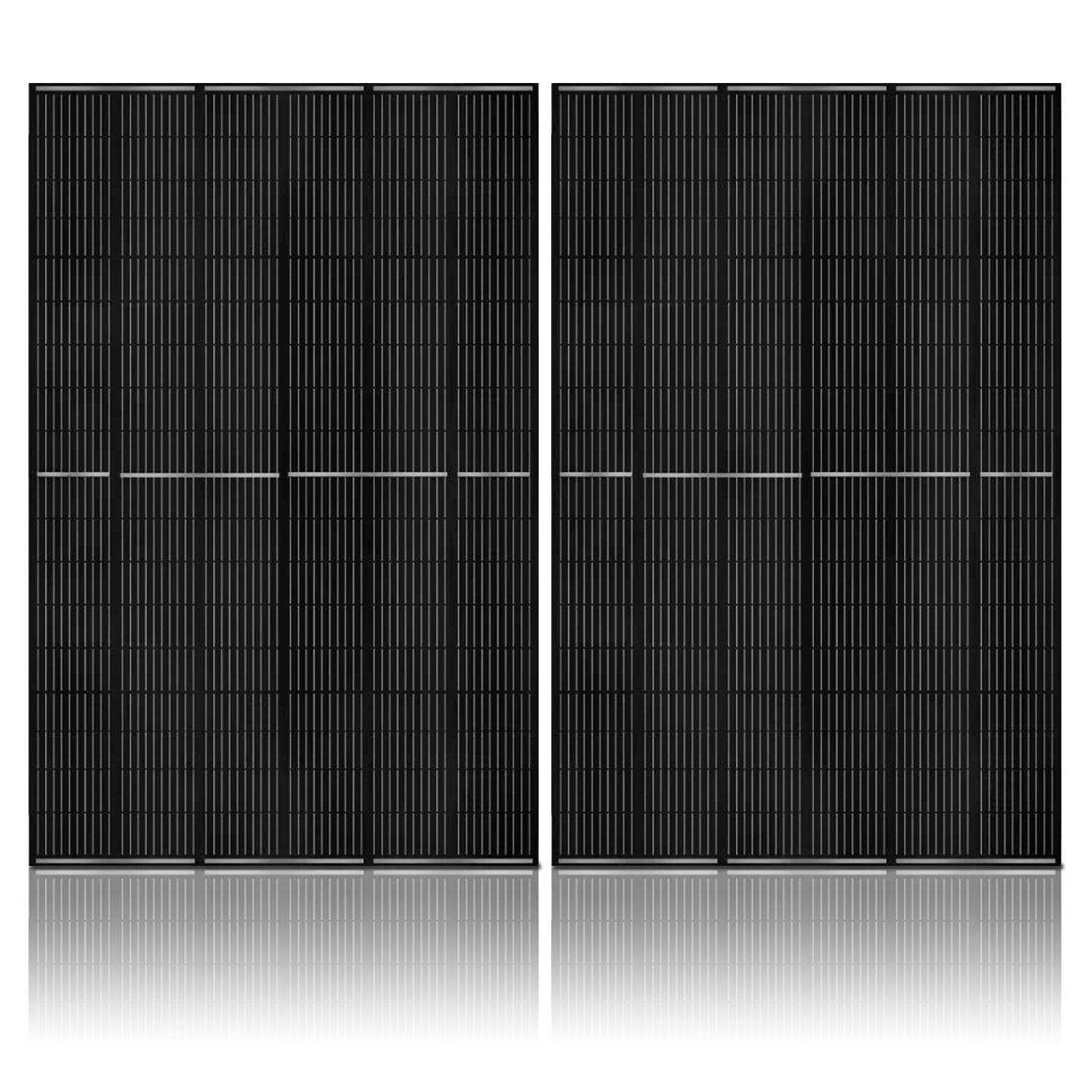

410W Rigid Solar Panels Specs
Power Rating
Maximum Power (Pmax): 410W
Maximum Power Voltage (Vmp): 31.35
Maximum Power Current (Imp): 13.08
Open-circuit Voltage (Voc): 37.12
Short-circuit Current (Isc): 13.96
Module Efficiency STC (%): 20.97%
Dimensions & Characteristics

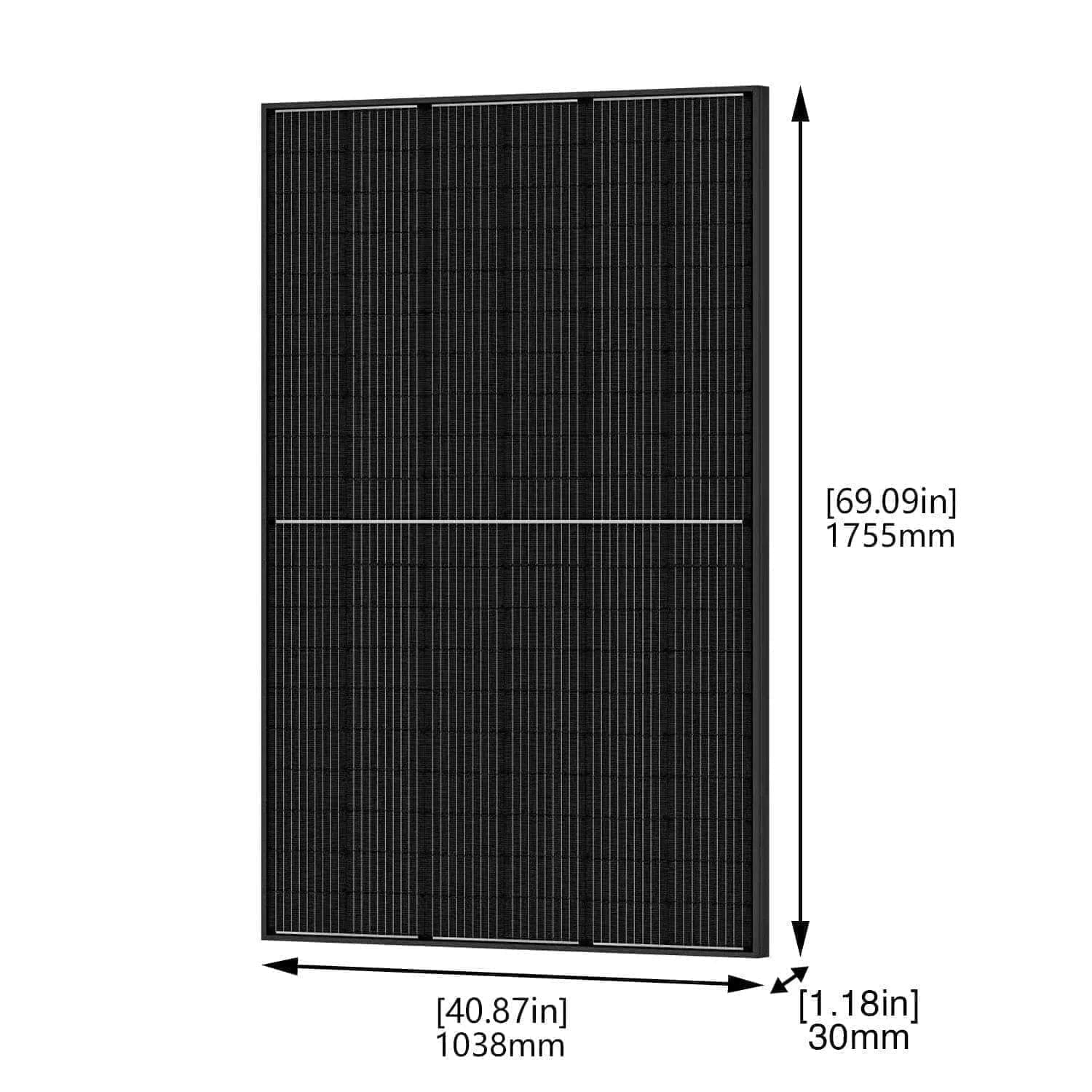

1755*1038*30mm (69.09*40.87*1.18 inch)
Cell Type: Mono PERC 182×91mm
No. of Half-cells: 108 (6×18)
Frame: Anodized Aluminum Alloy
Front Glass
3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Operation Temperature
-40℃~+85℃ (-40°F ~+185°F )
Junction Box

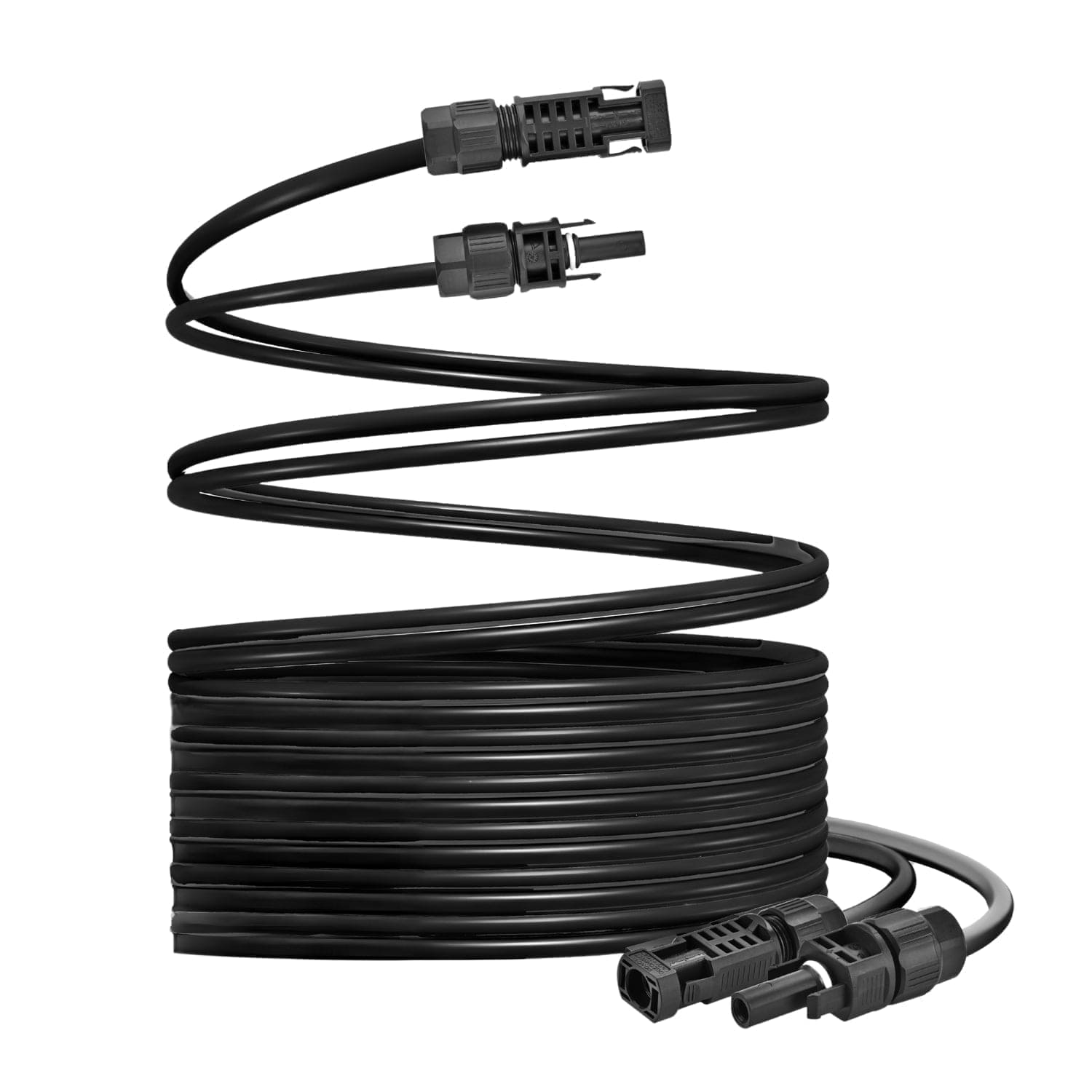

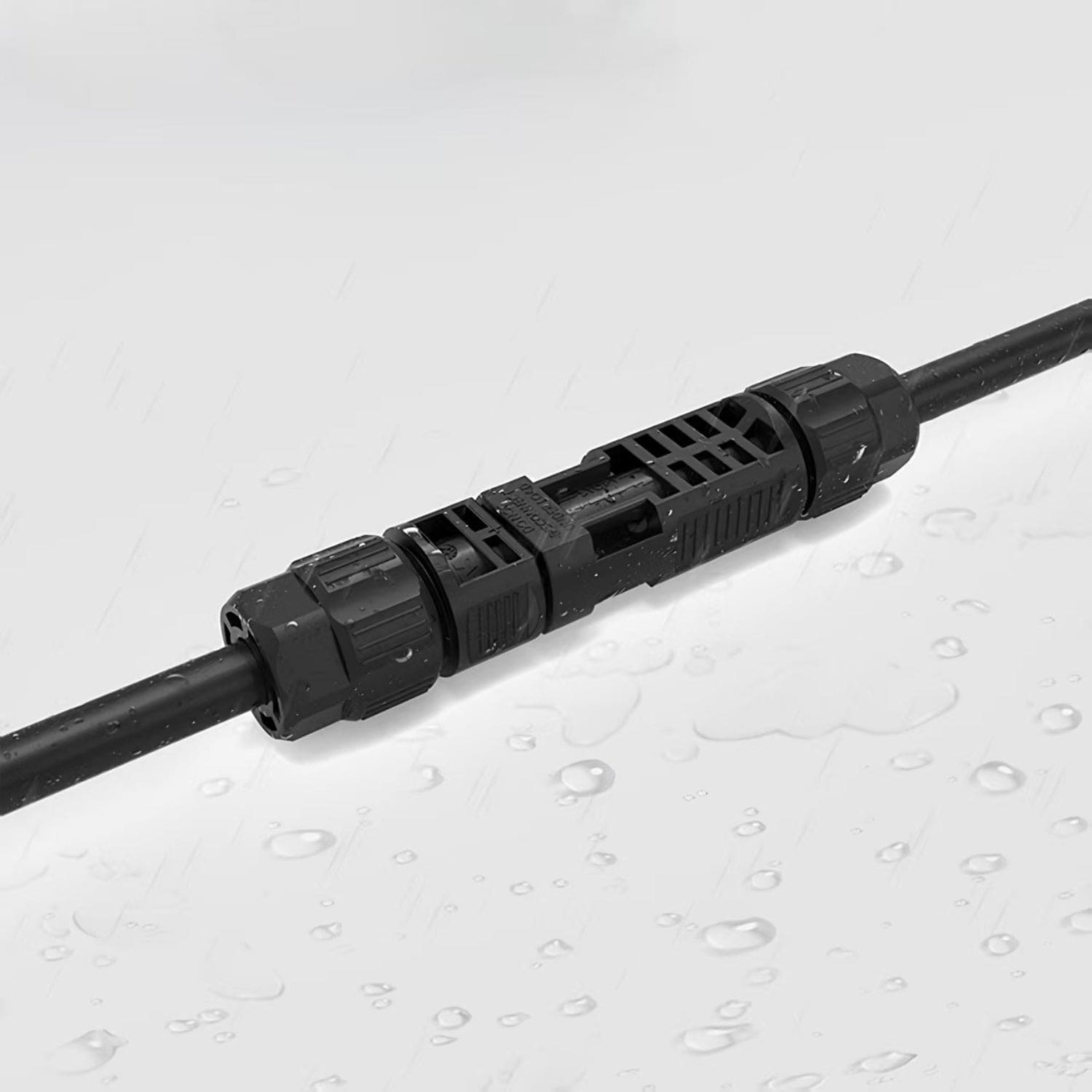

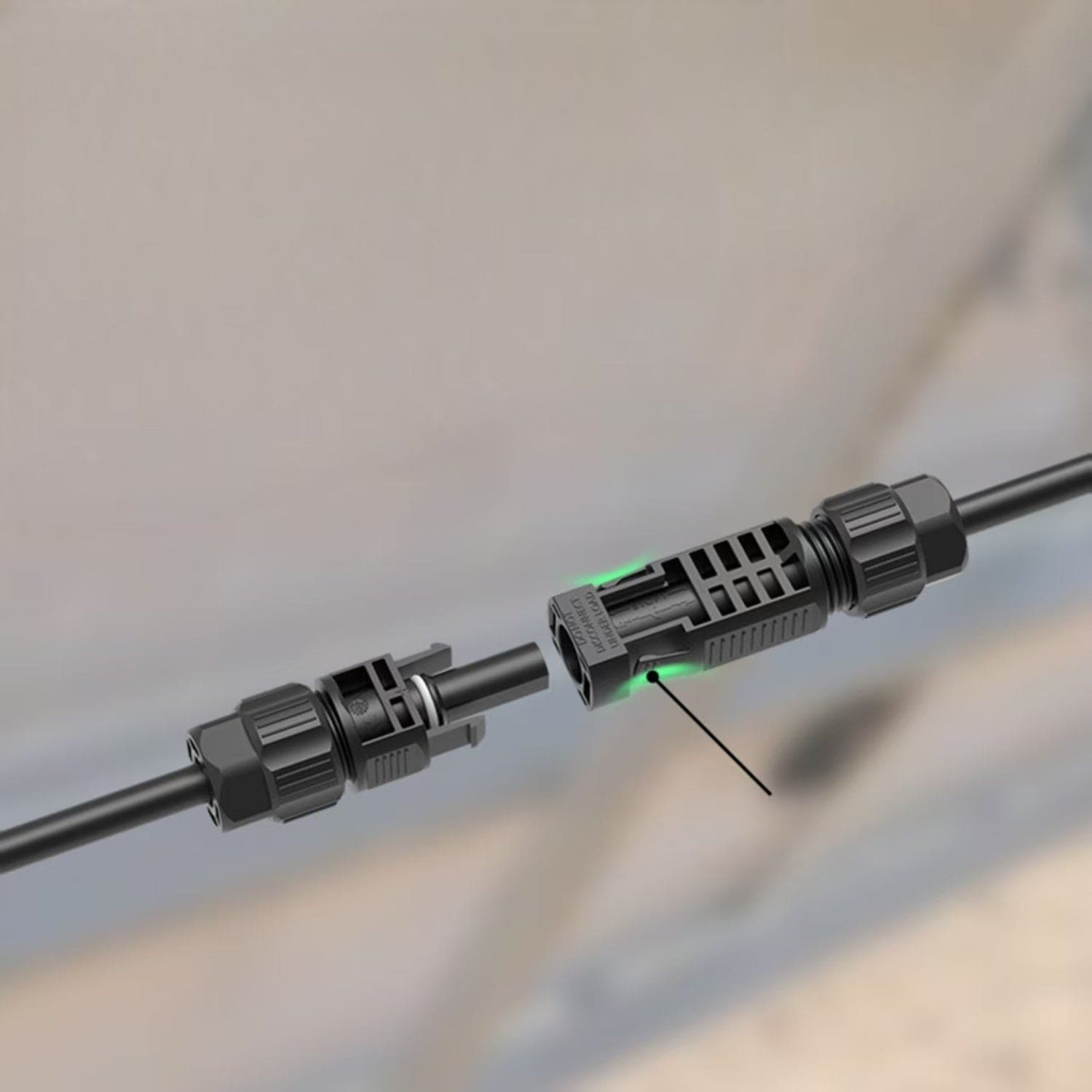

IP68 Rated, connector compatible with MC4
Output Cables
1200mm (47.24 inch)
Fire Rating
UL: Type 1, IEC: Class C
Weight
20.5 kg (45.19 lbs)

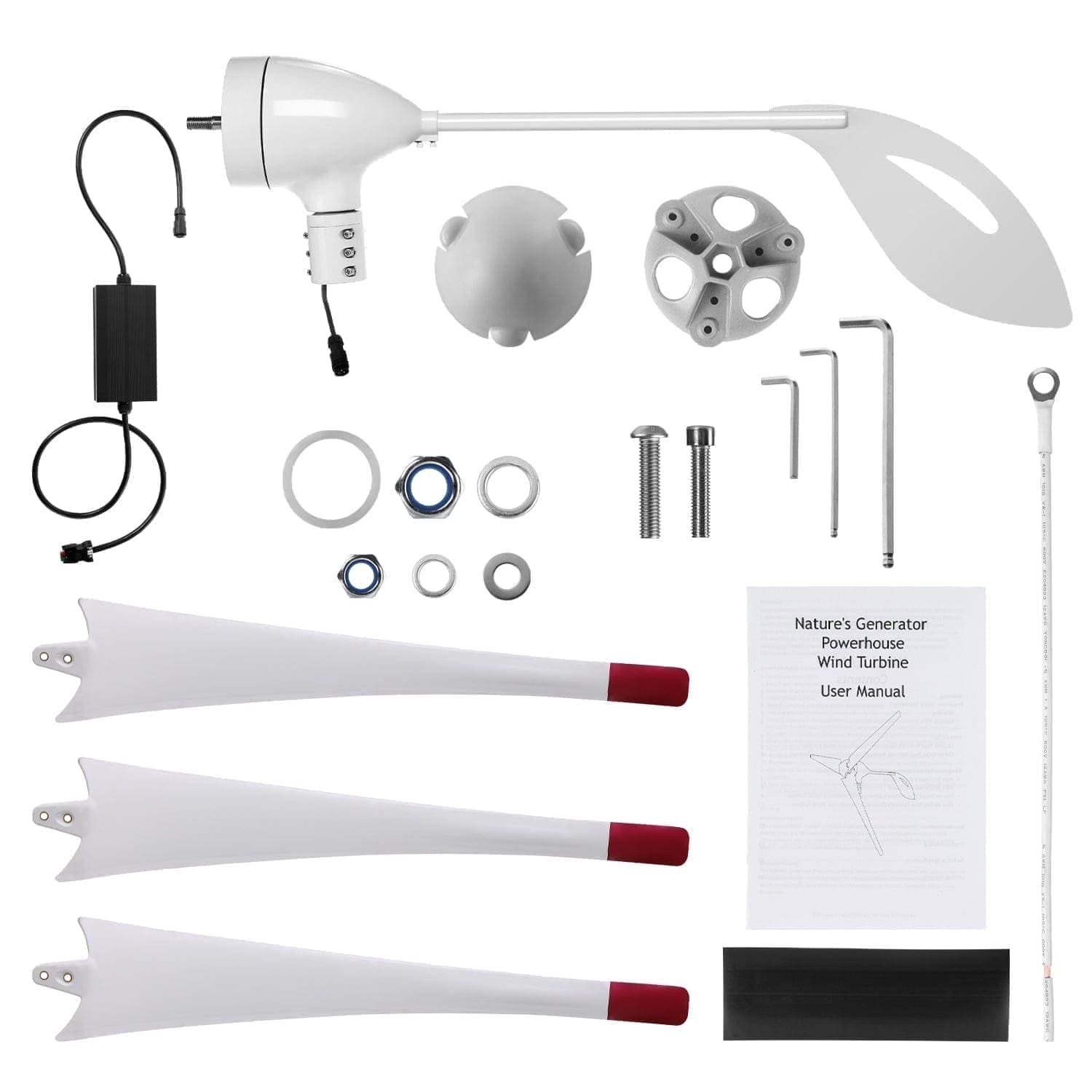

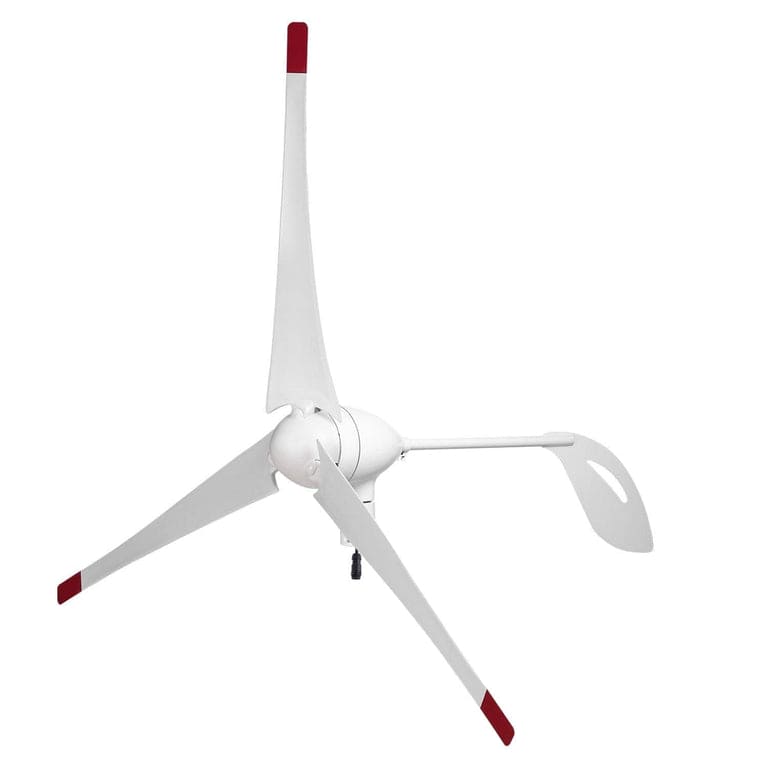

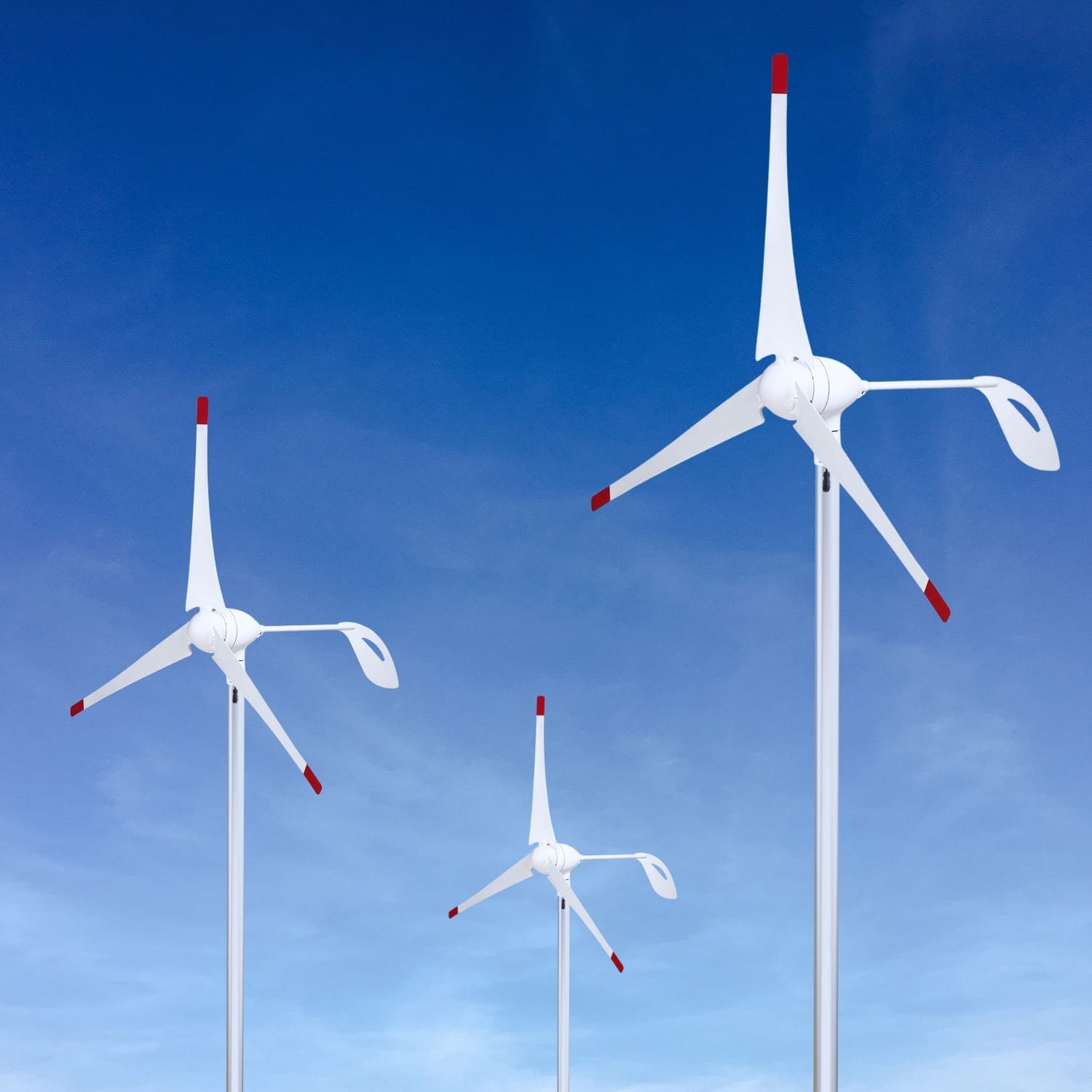

350W Wind Turbine Specs
Power Rating
Rated power: 350 watts @ 27 MPH
Maximum wind speed: 110 mph
Material
Wind turbine blades: fiberglass nylon composite
Wind turbine body: cast aluminum alloy with powder coating
Wind turbine cable: 12AWG pure copper cable
Connectors
Wind turbine cable connectors: weatherproof M19 3P connectors
Wind input connectors: Anderson connectors
Yaw: fits 1.5 Inch schedule 40 pipes or towers
General

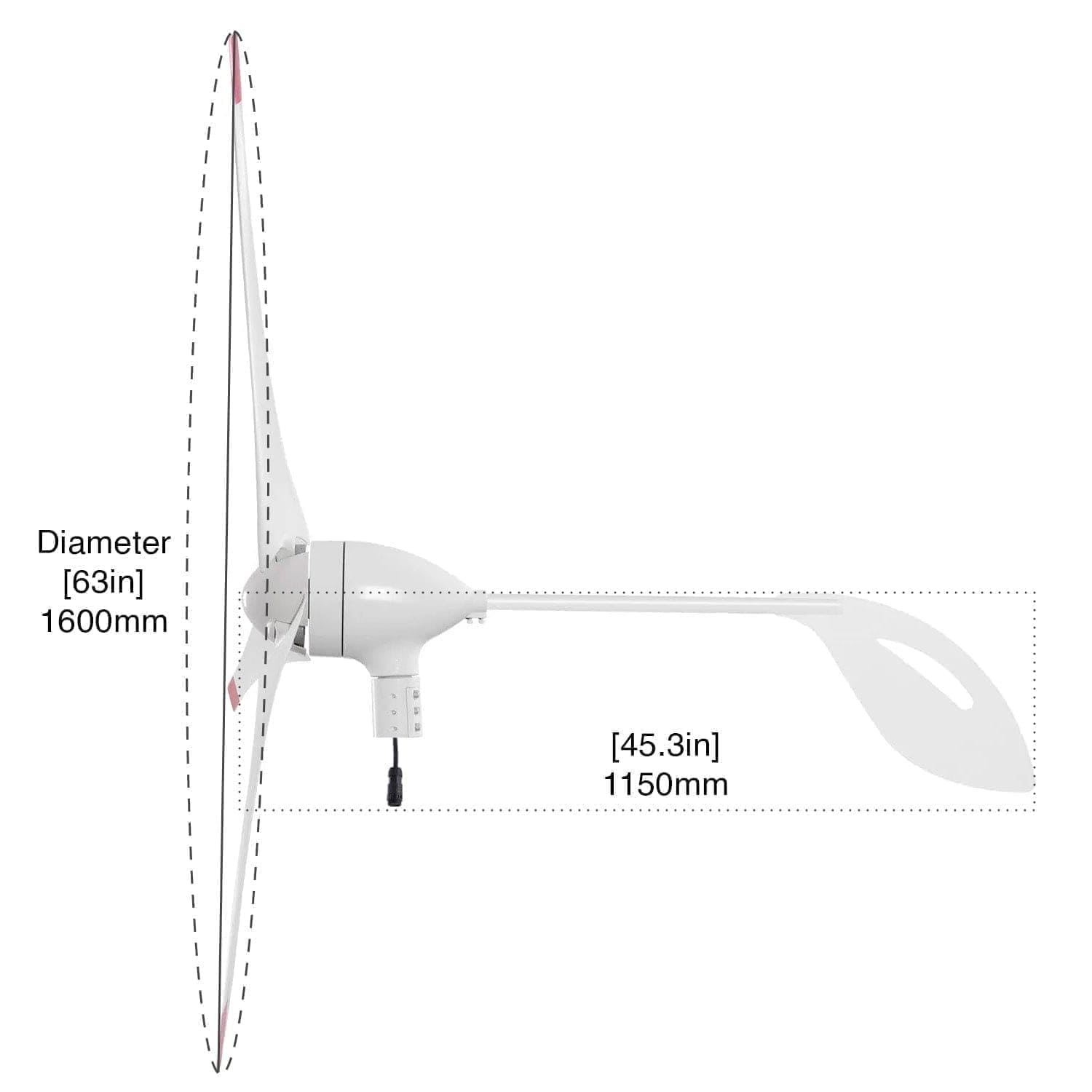

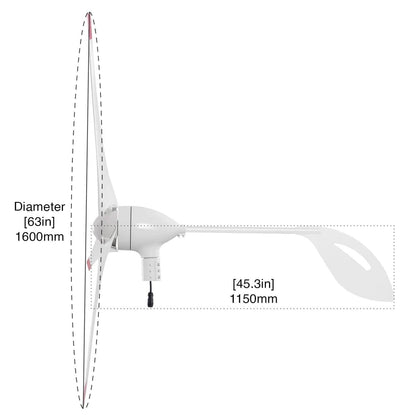

Rotor diameter: 63 in / 1.6 m
Weight: 37 lbs./17 kg wind turbine boy
Certifications: CE Rohs
