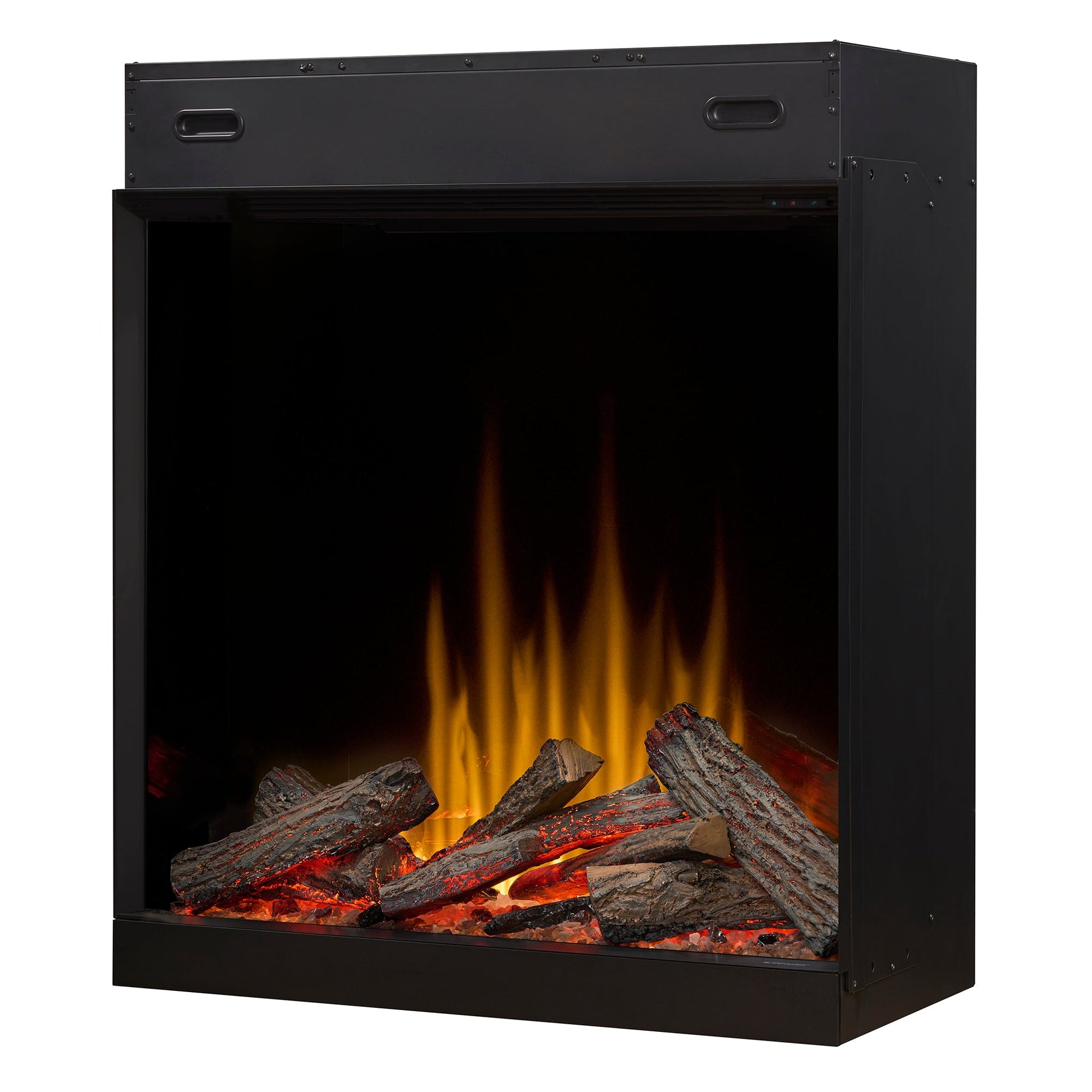

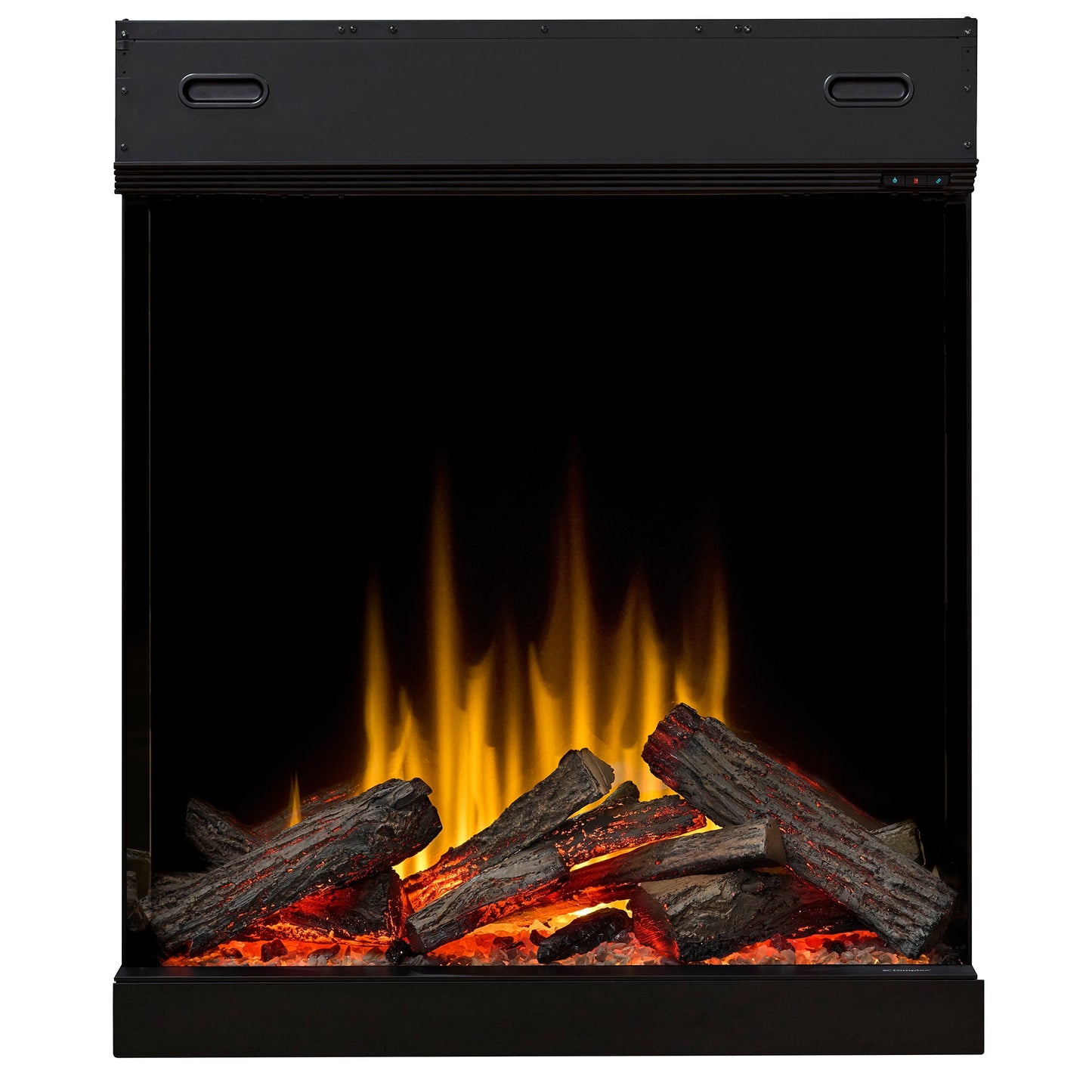

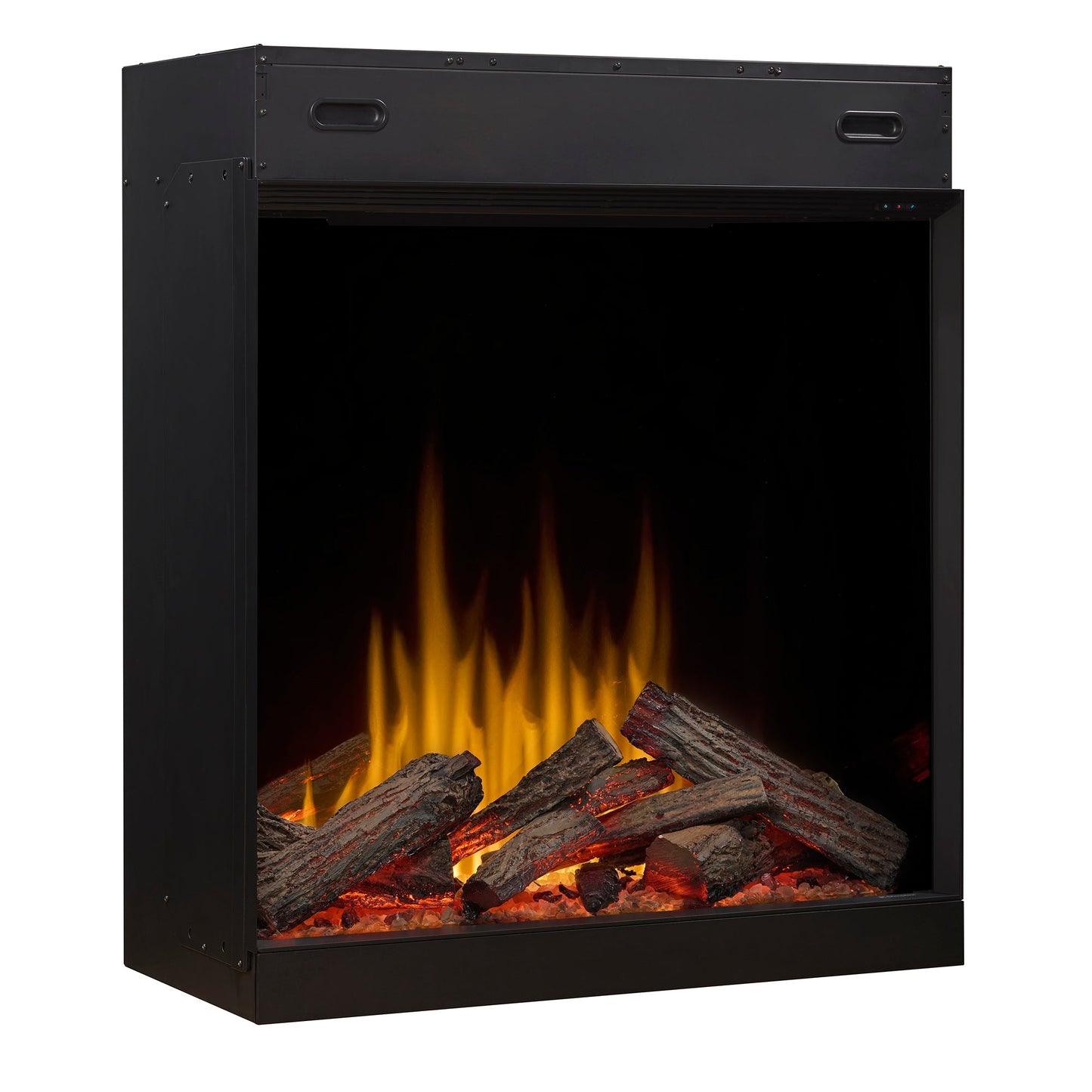

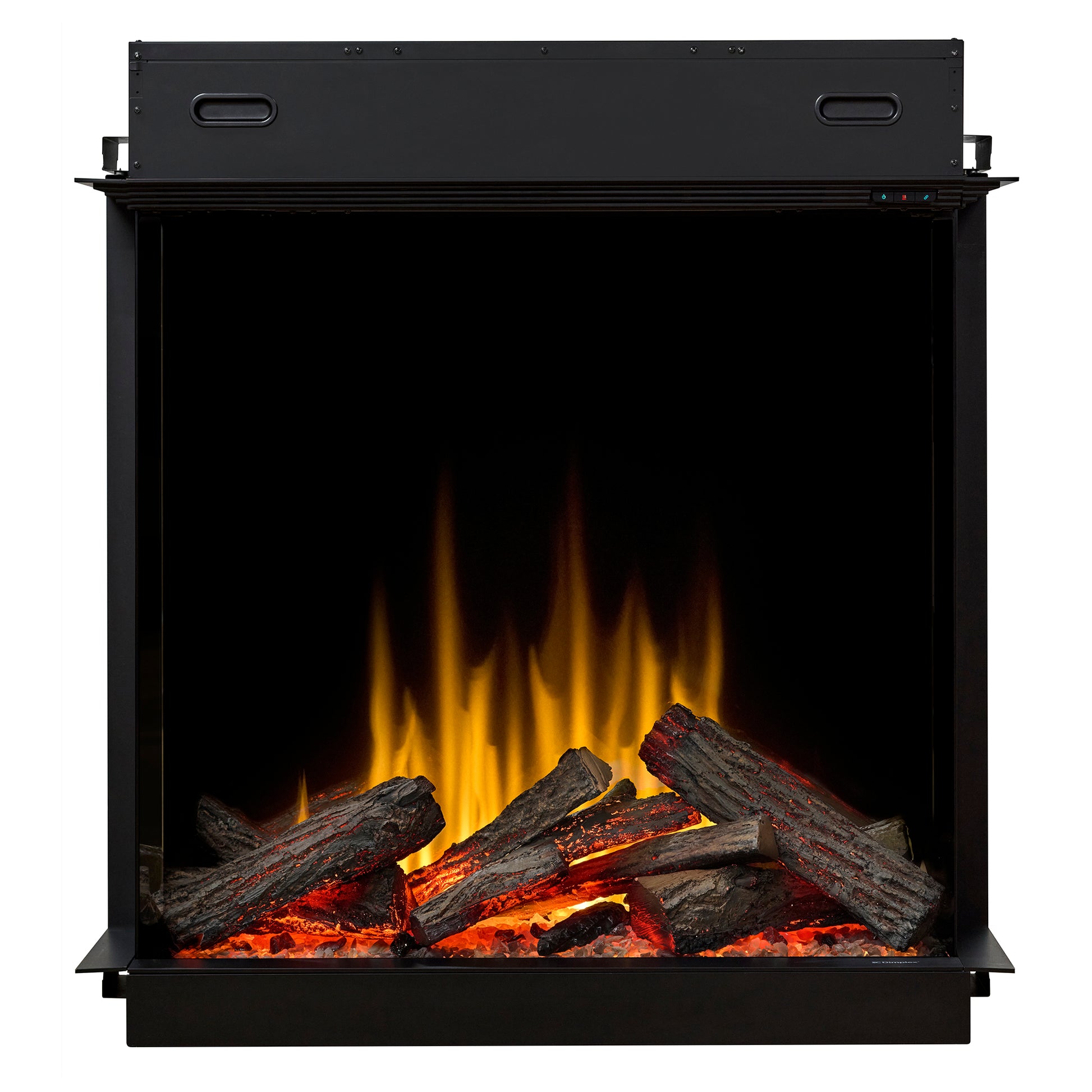

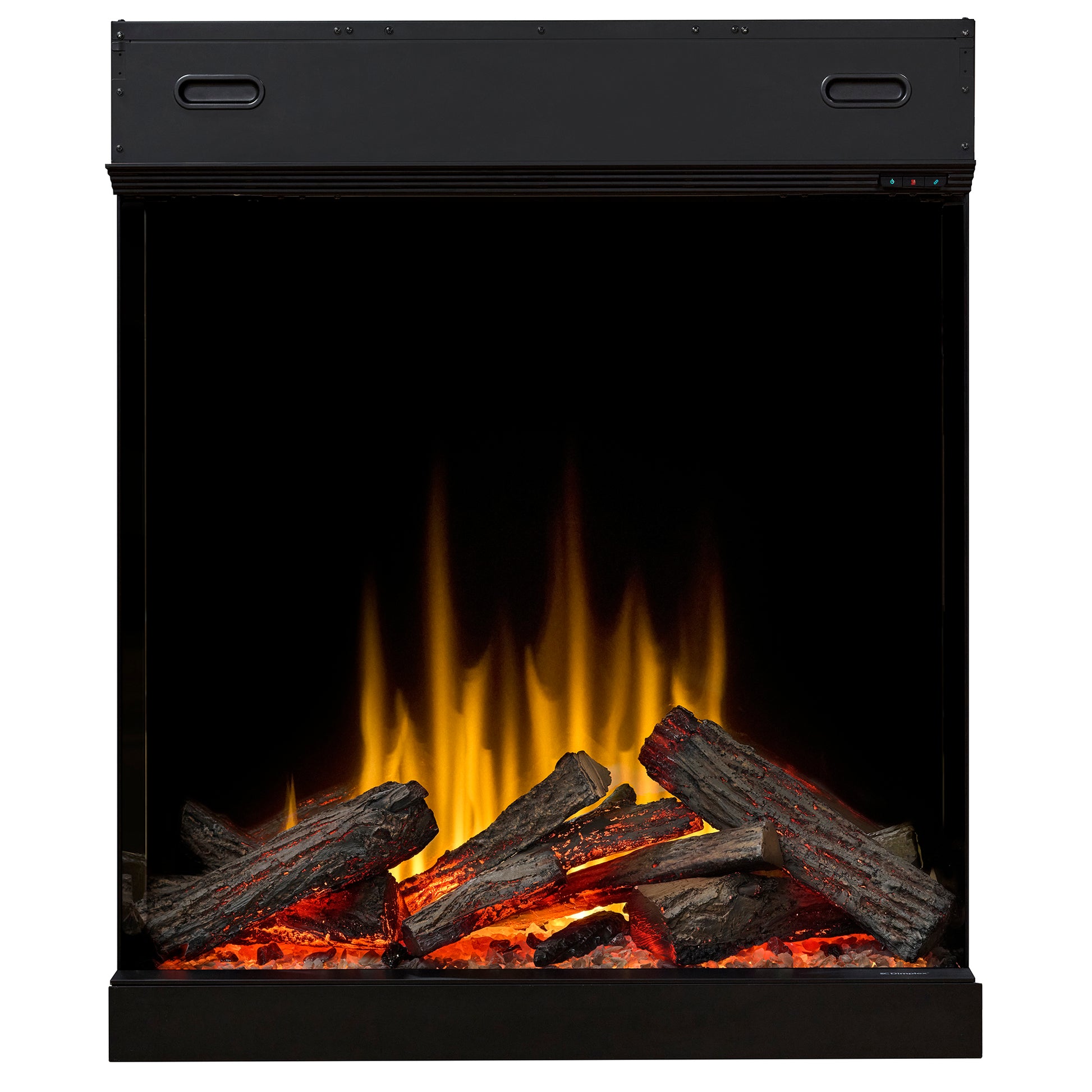

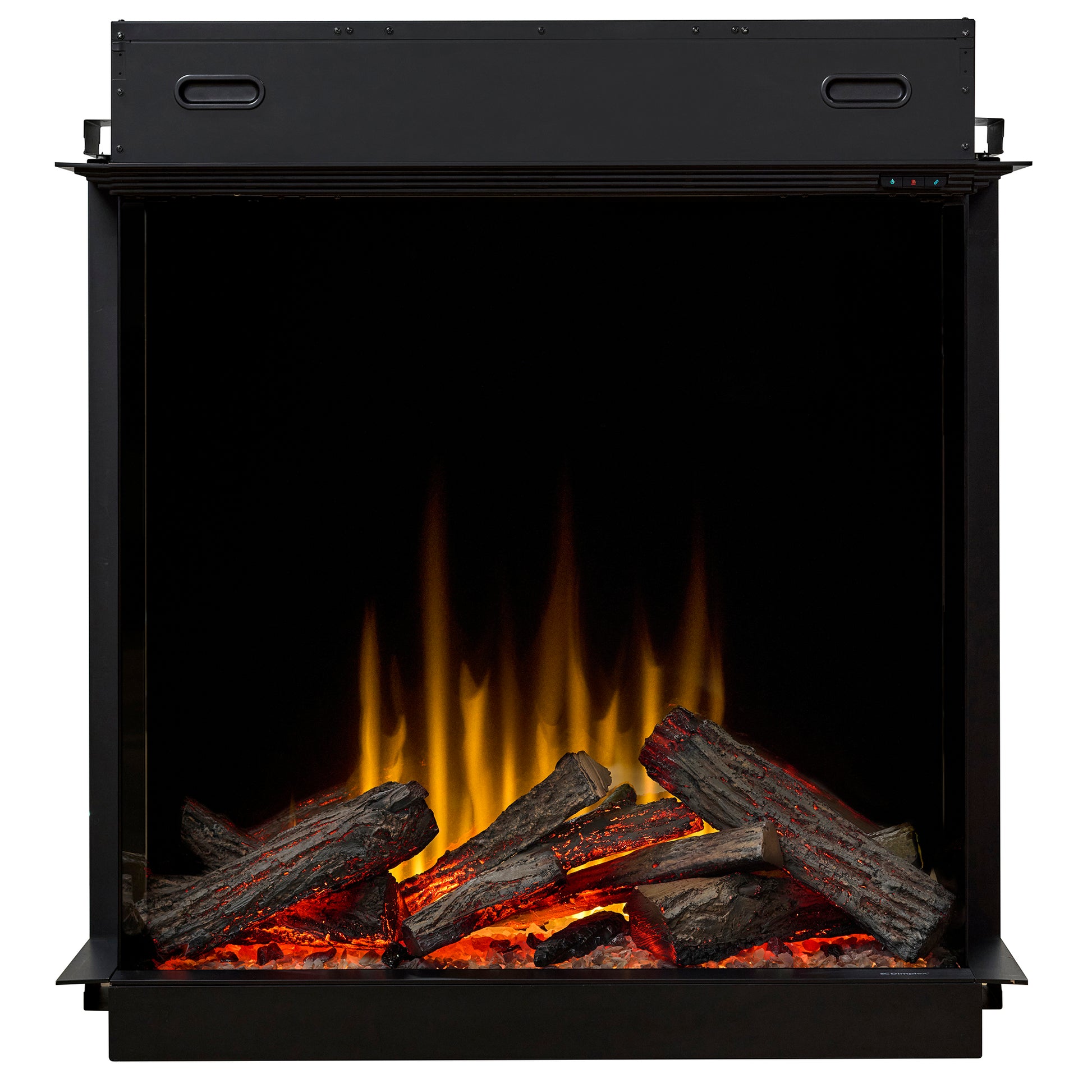

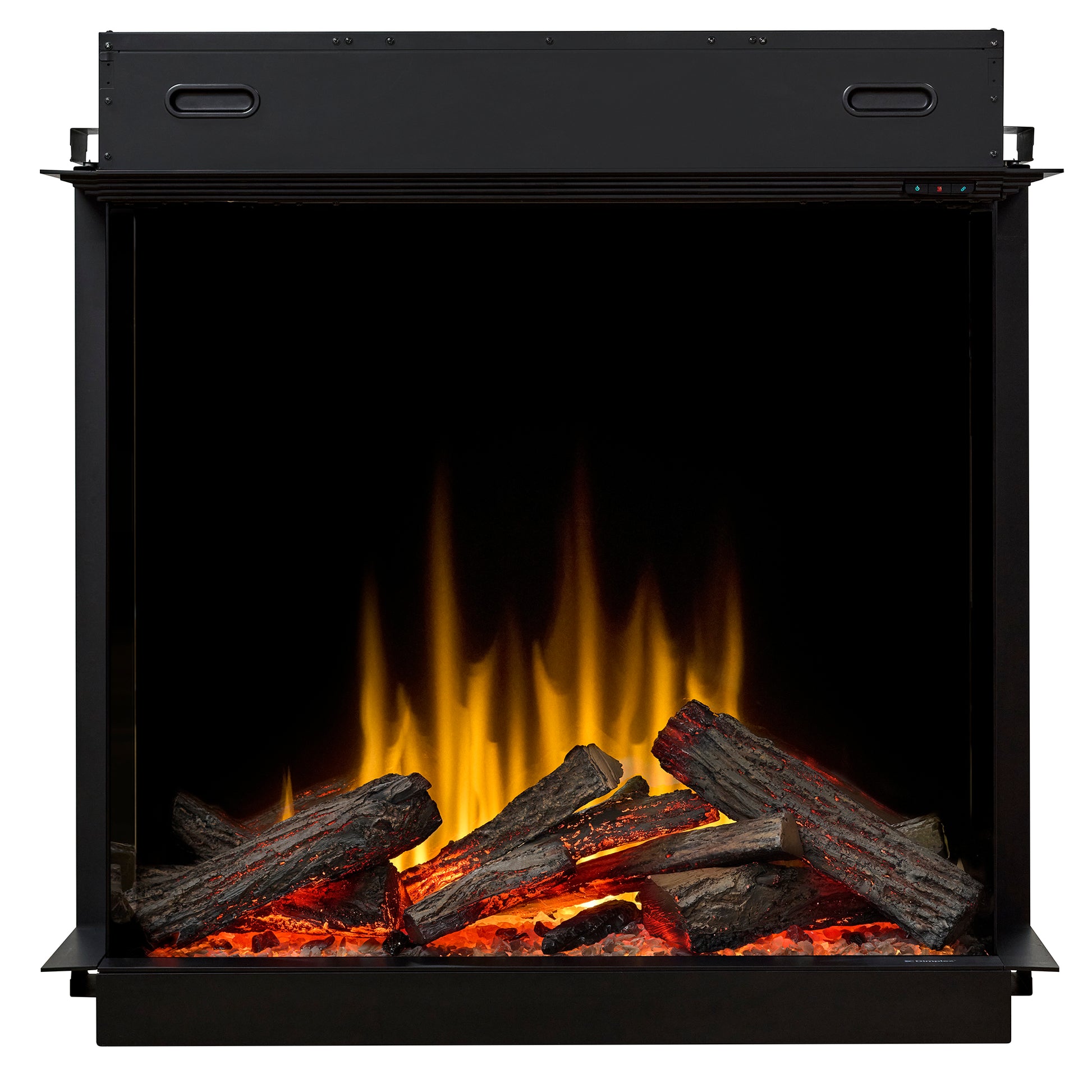

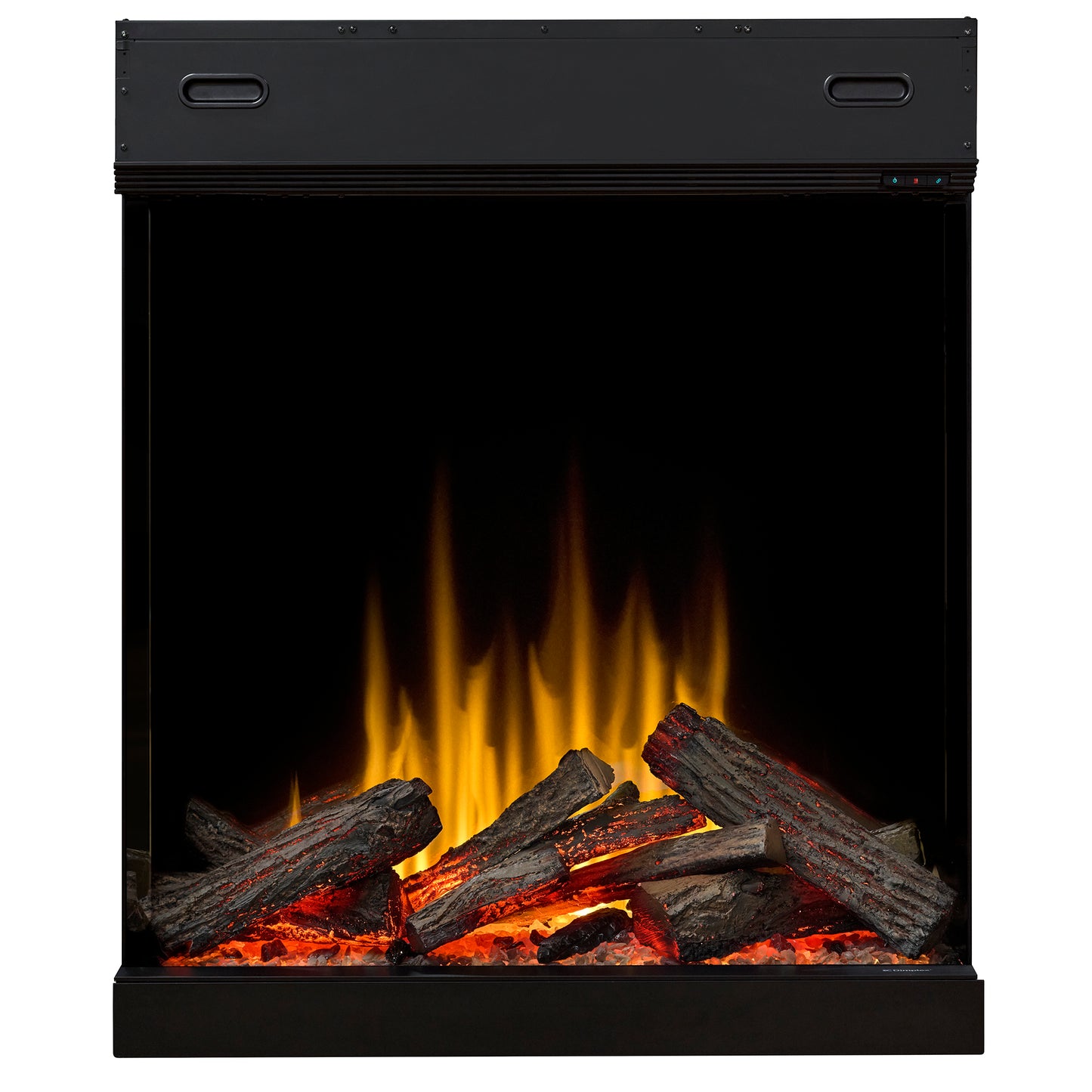

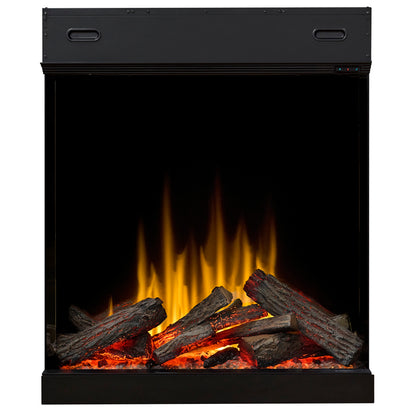

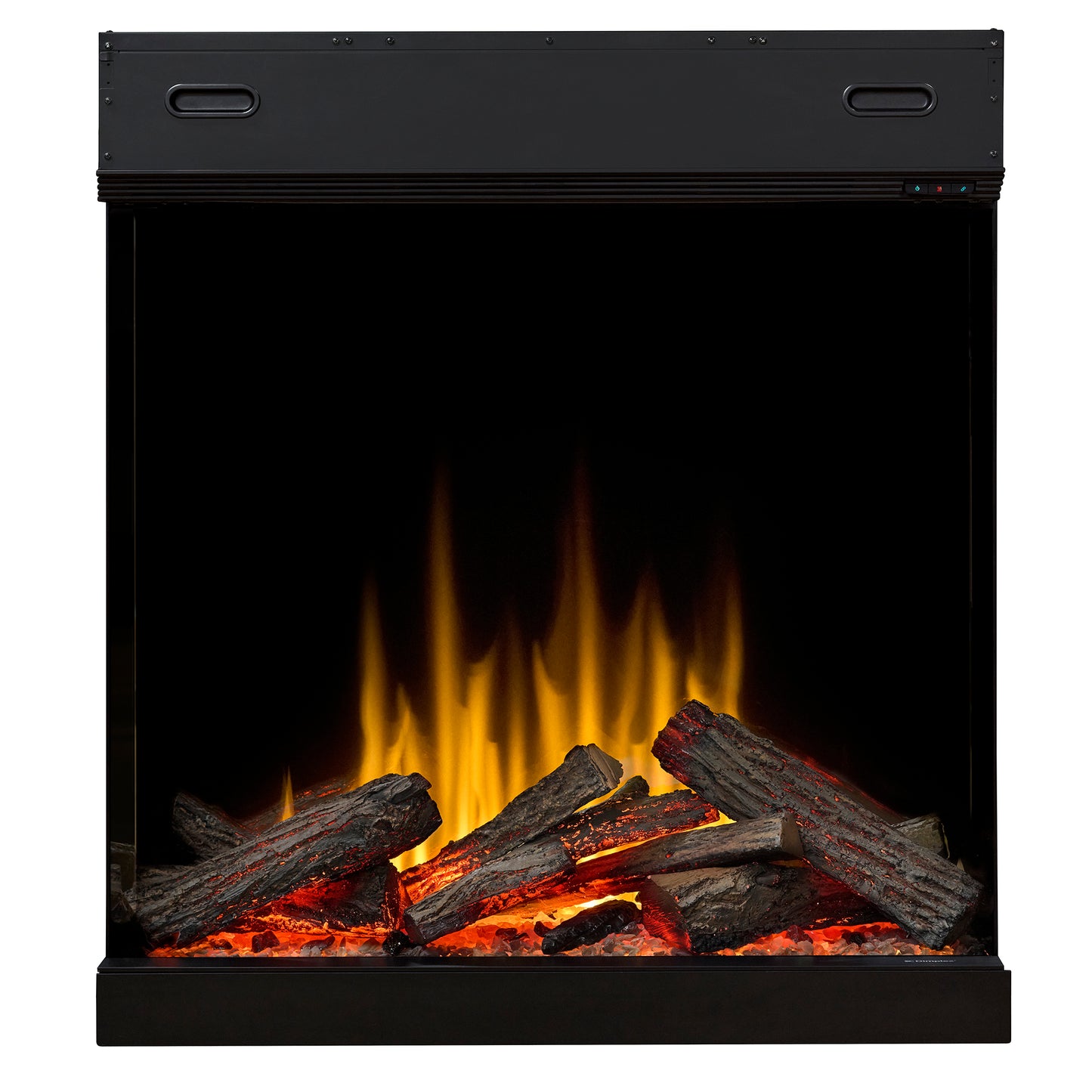

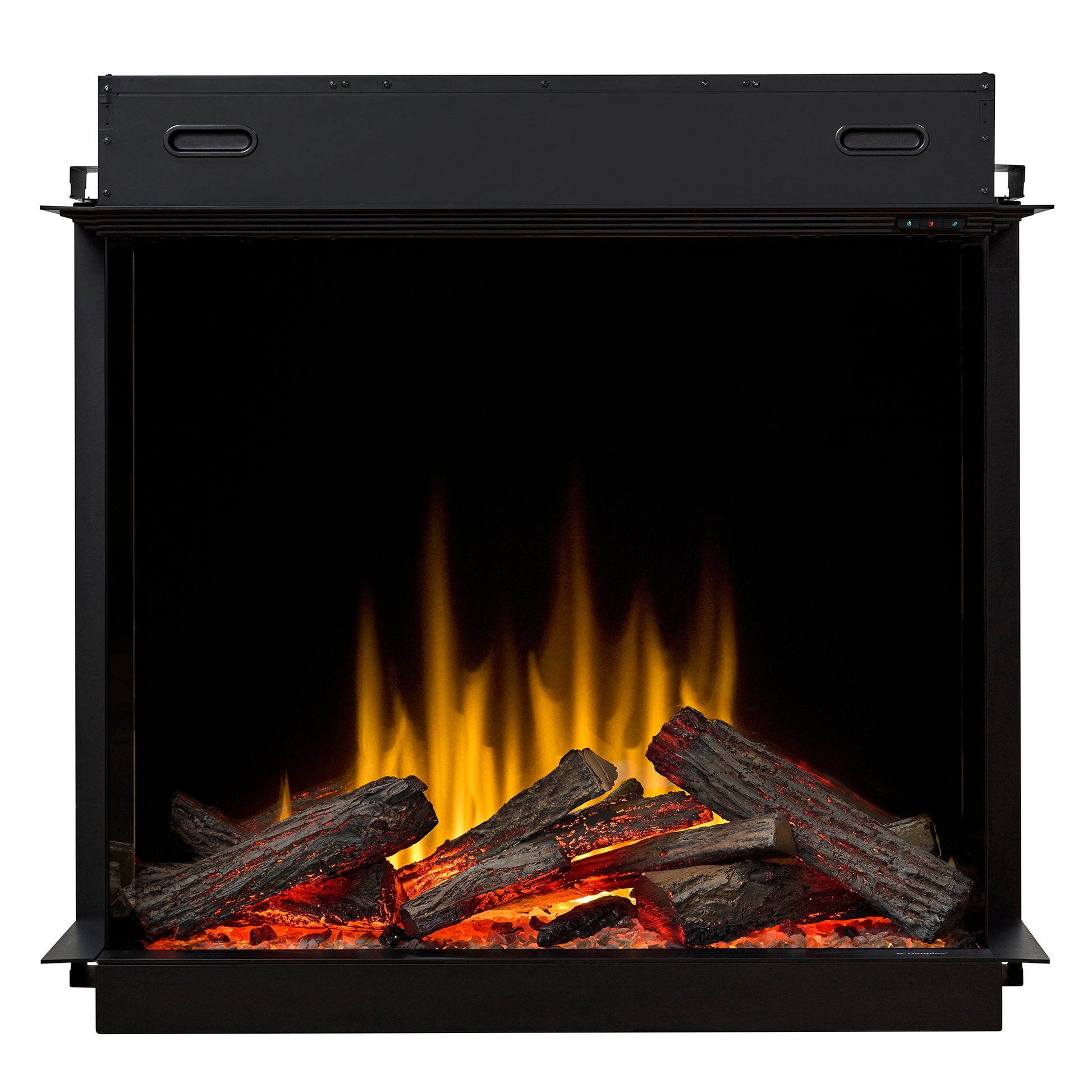

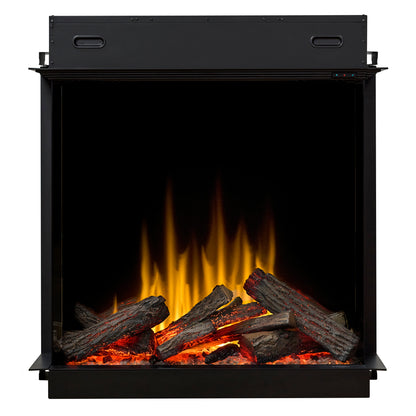

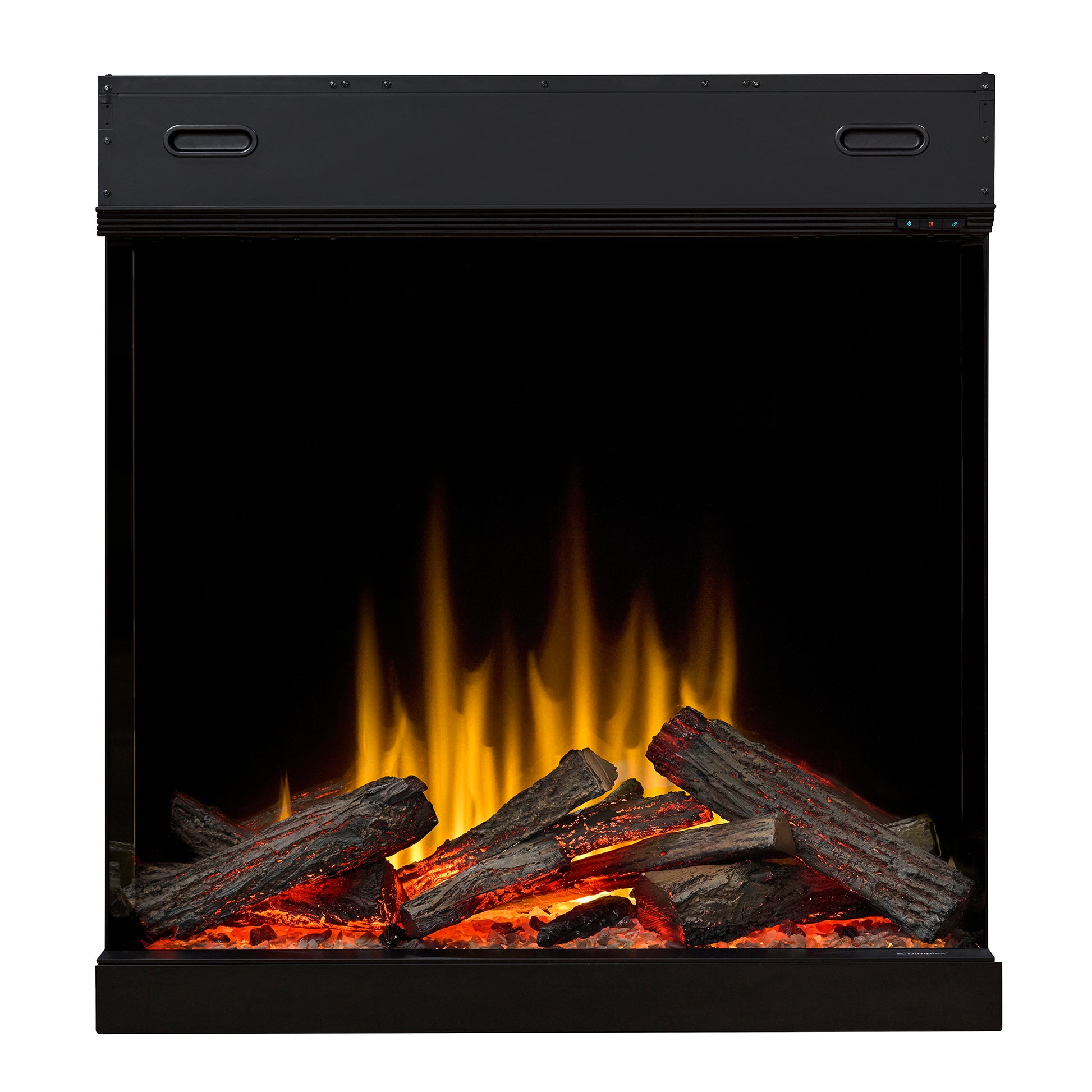

Ignite Aspire® Built-In Electric Firebox

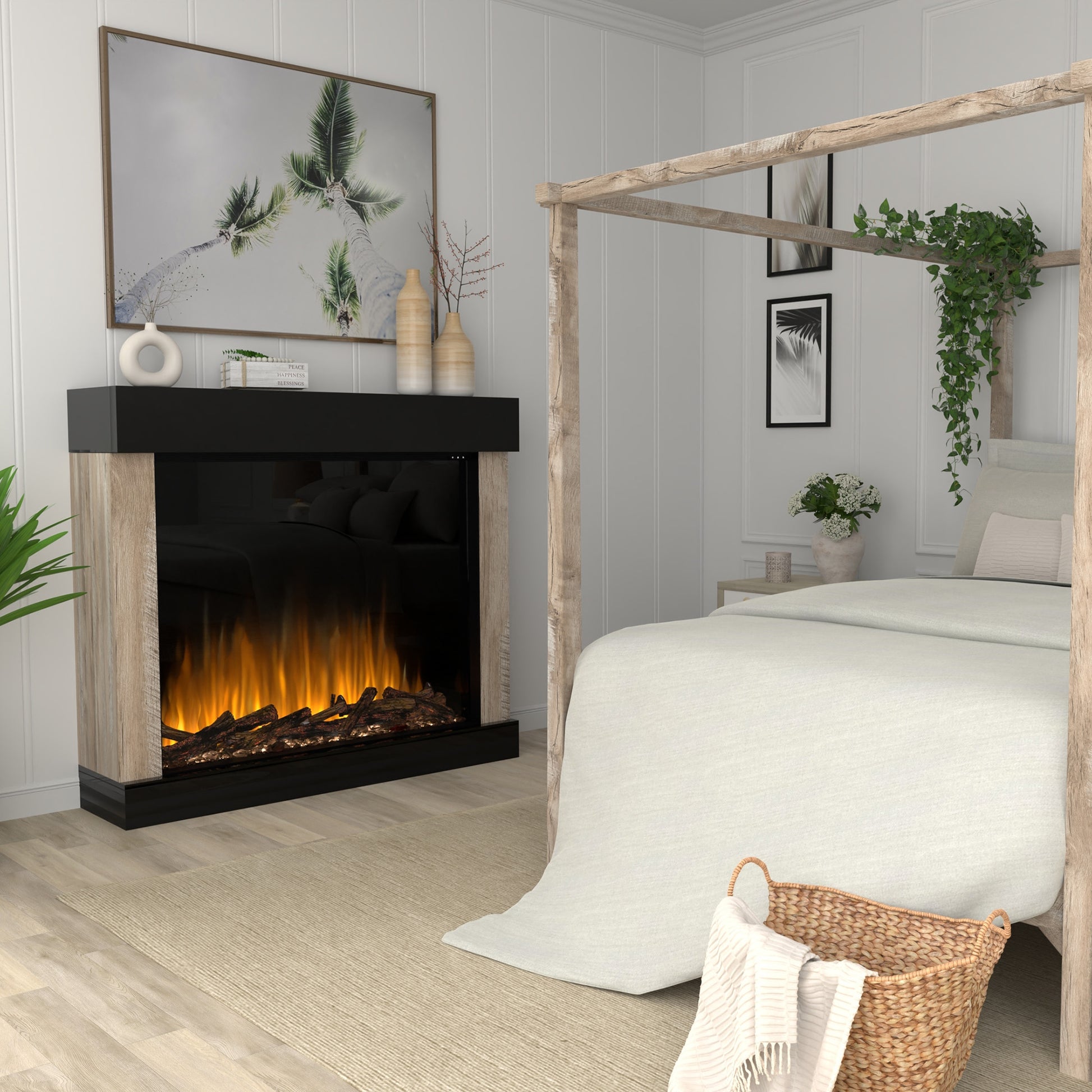

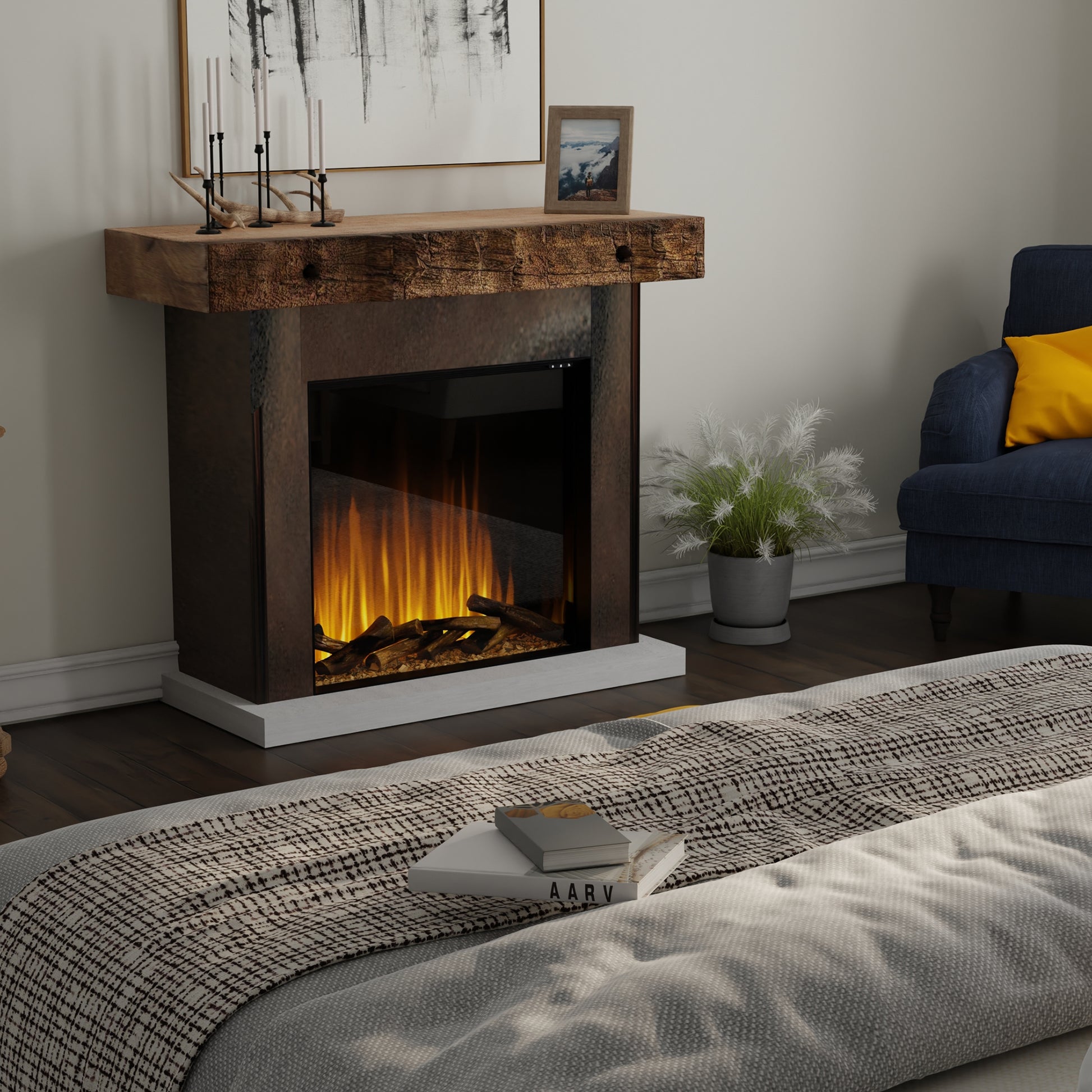

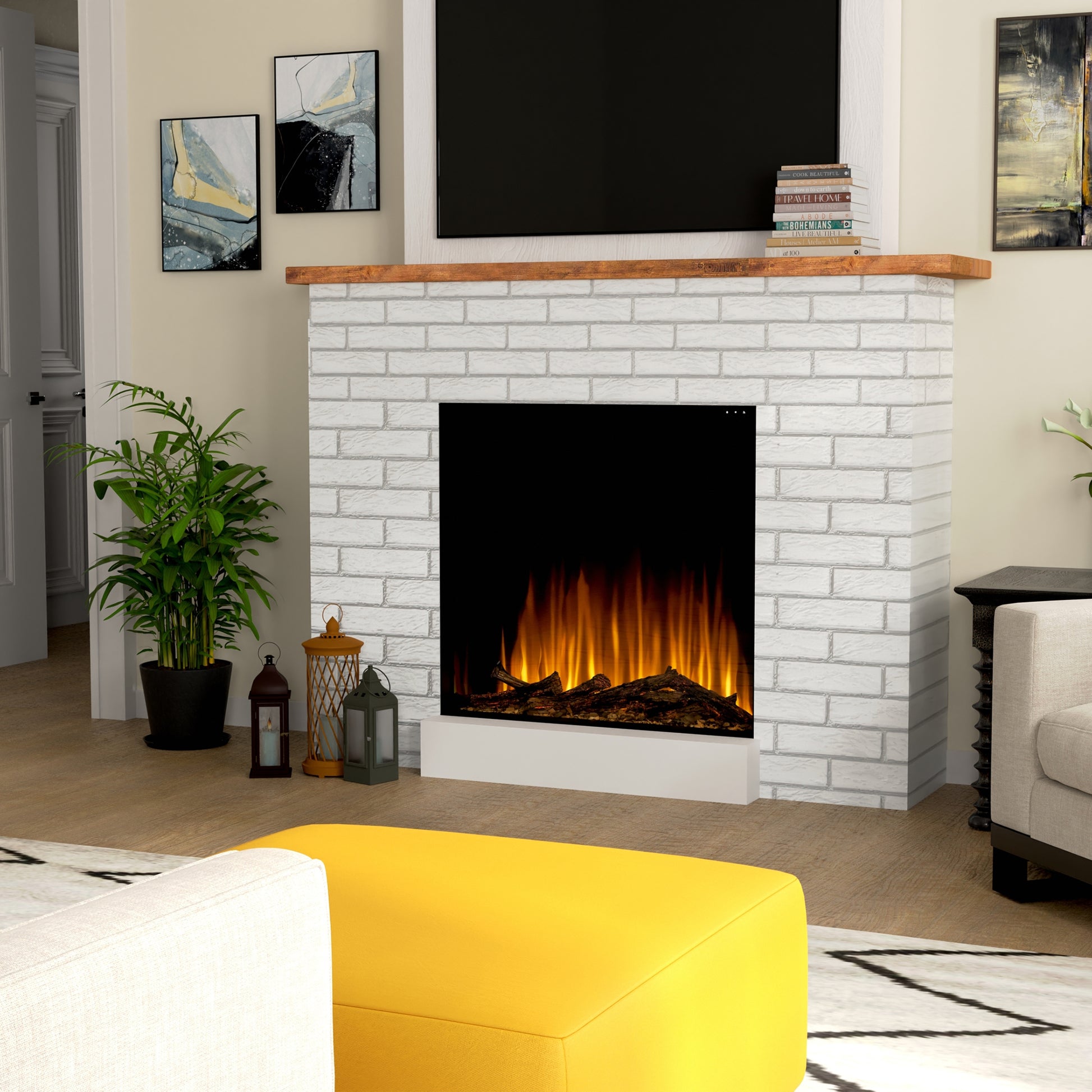

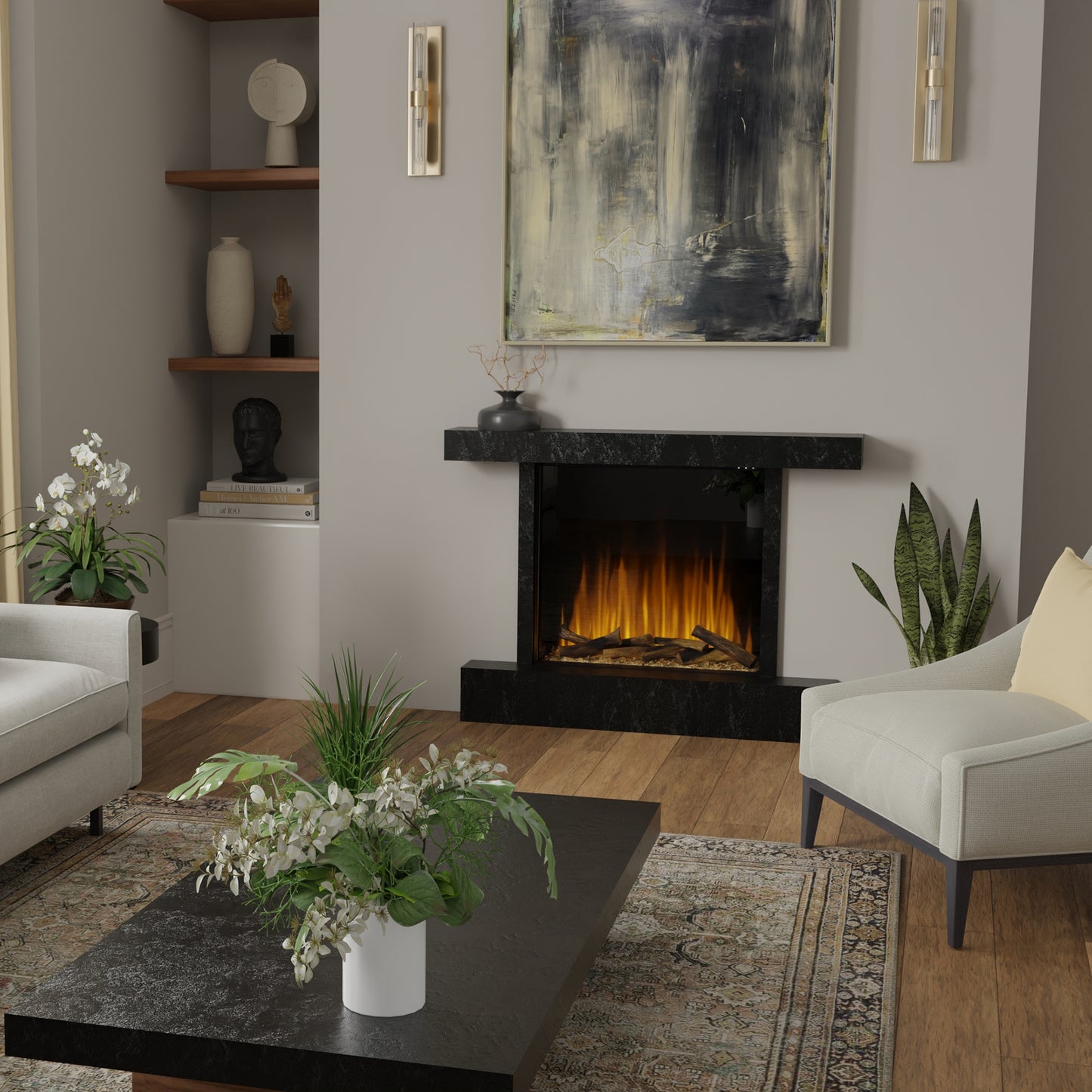

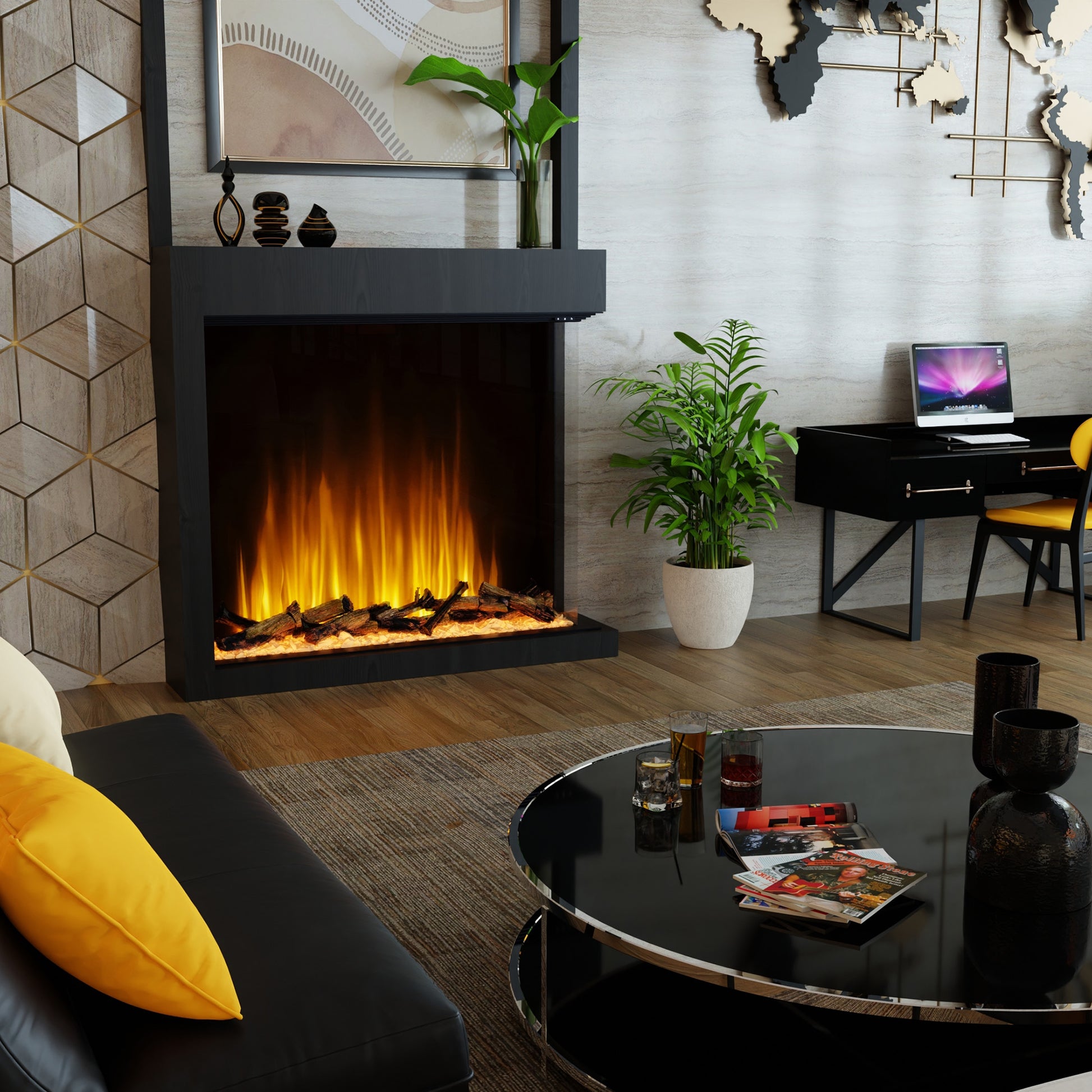

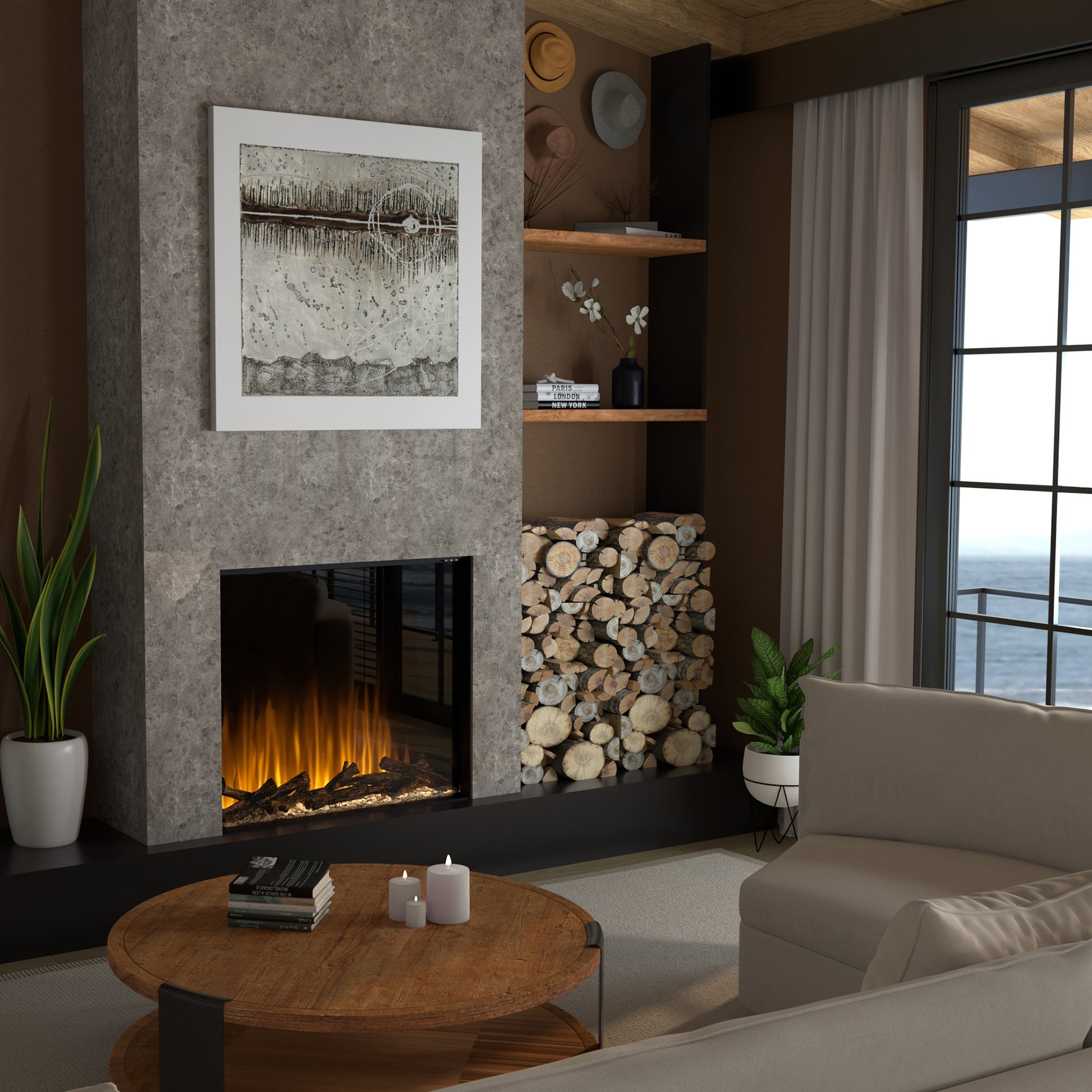

The Ignite Aspire built-in electric fireplace delivers a highly realistic fire experience with synchronized flames, glowing logs, and ember effects. It provides visual ambiance with optional heat, making it ideal for living rooms, great rooms, and other residential spaces where a modern built-in fireplace is desired.

The Ignite Aspire Electric Firebox redefines the traditional fireplace. Users will enjoy a true fire experience with lifelike logs and embers that pulse in sync, new natural flame colors, and authentic crackling wood sounds. Smartly designed in four typical gas fireplace sizes, Ignite Aspire is a simple, environmentally friendly replacement to natural gas units.

Features

• NEW Dynamic-Fire Flame Effect for a remarkably realistic flame experience

• NEW inner glow log technology that pulses in rhythm with the flames and ember bed

• NEW wall-mountable magnetic remote control so users never lose their remote again

• 3 natural crackling fire sound options to enhance the ambiance of the fire

• Quick-connect logs allow users to place and connect them wherever they’d like for a more custom look

• 3 natural flame colors that can be combined for added multi-color depth

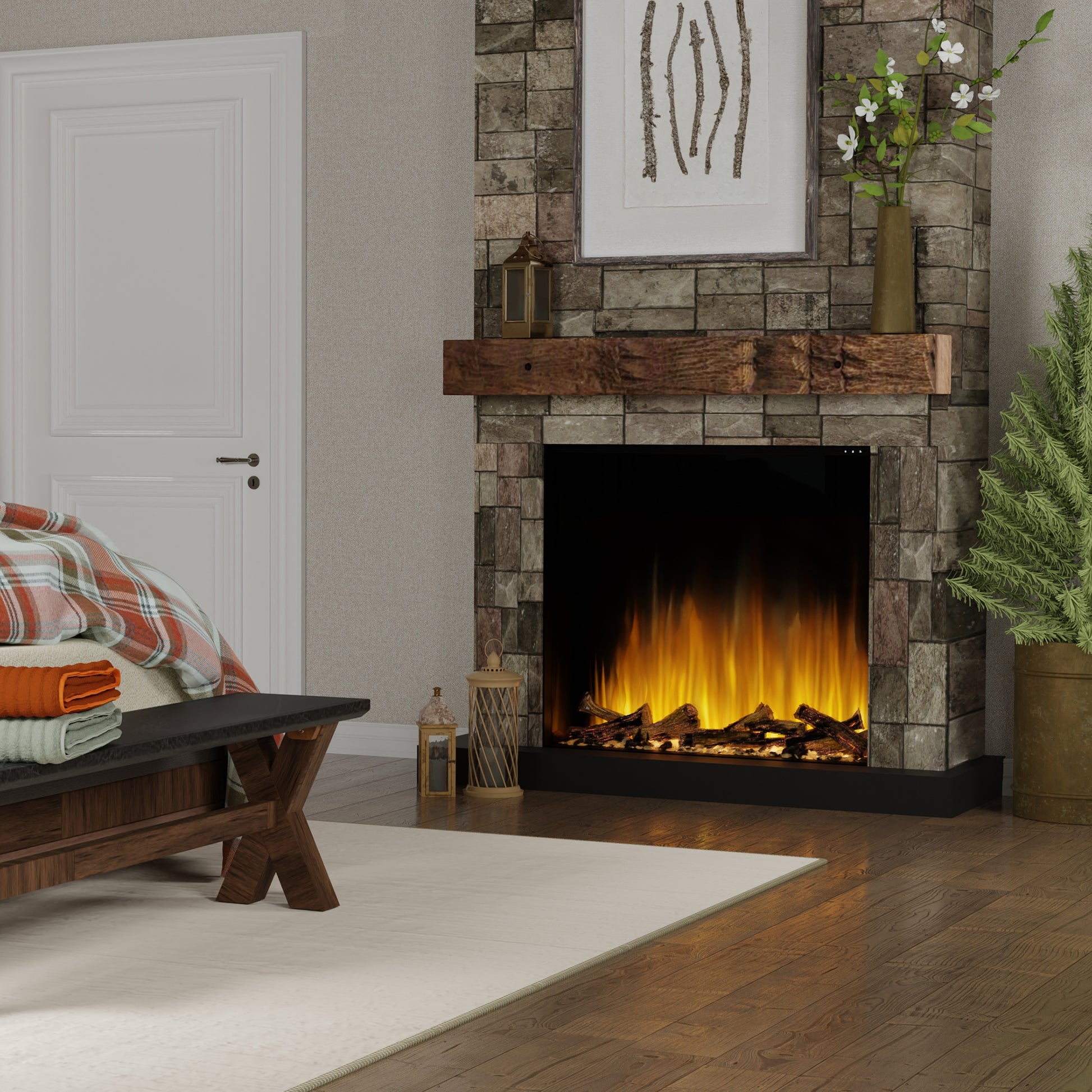

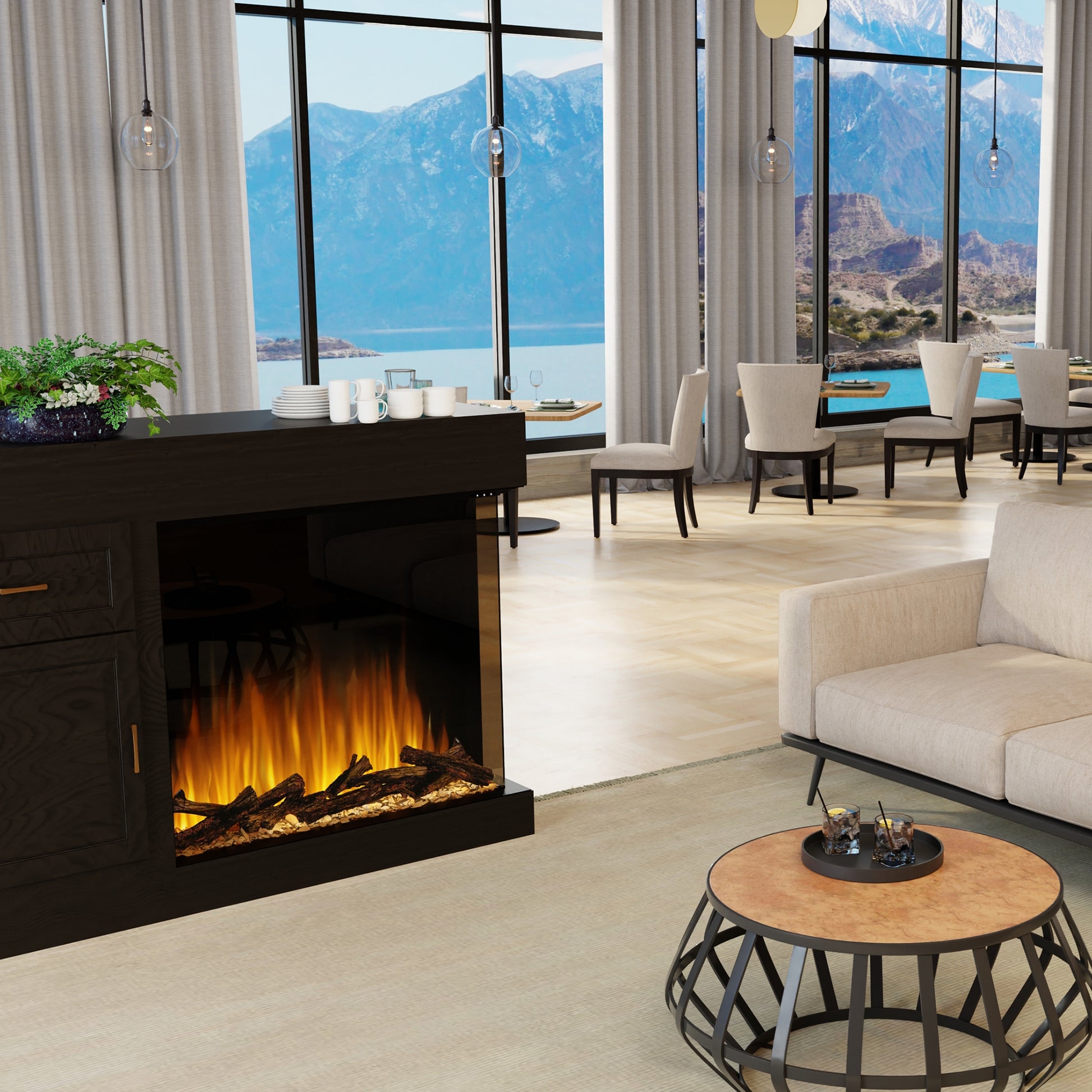

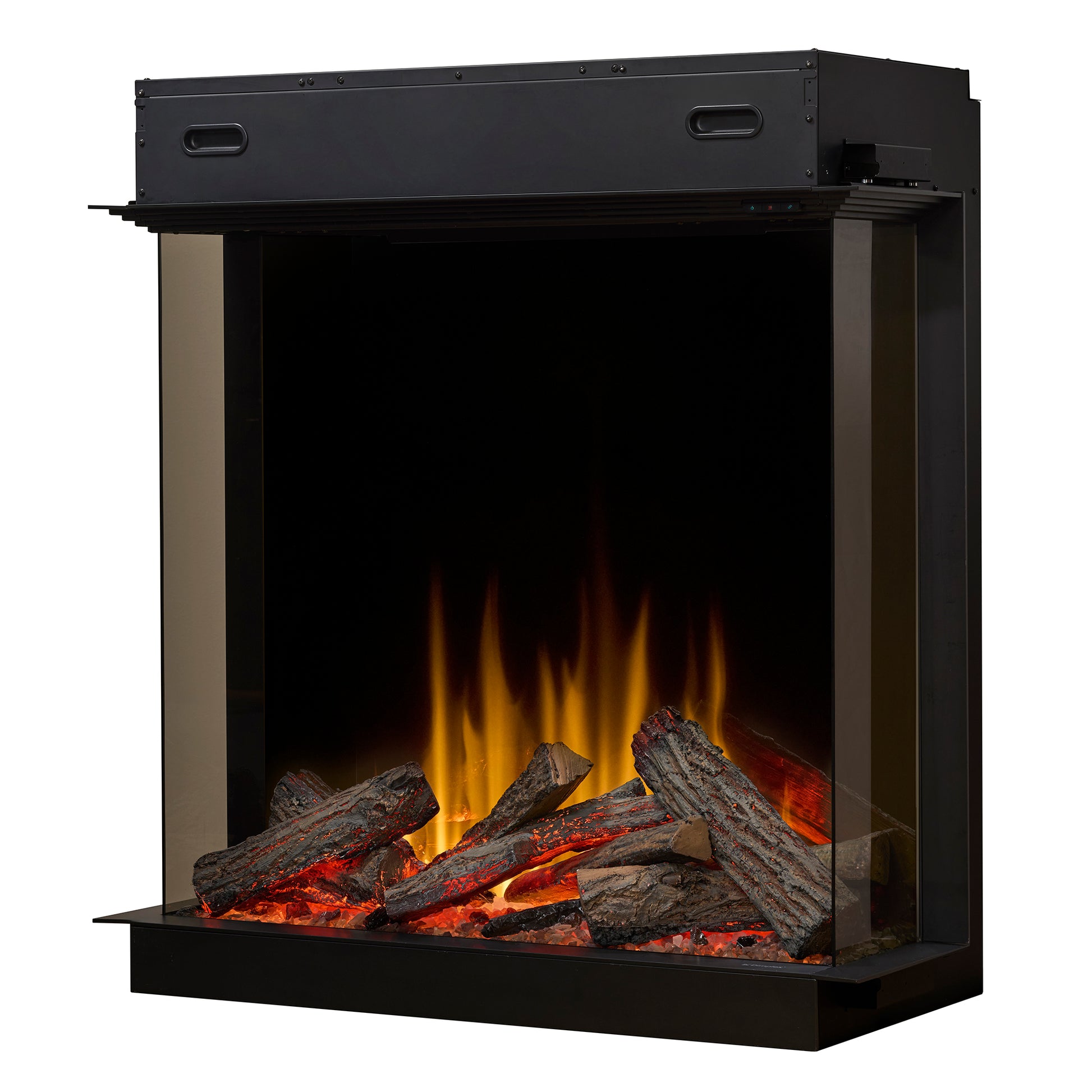

• True design versatility with your choice of four installation options in one fireplace: front-facing, left-corner, right-corner, or bay-style. Simply remove the side panel(s) to customize to your needs. Trim Kit required (sold separately).

• Flame Connect App compatible for increased personalization’s and control

• Integrated smart self-diagnostic technology works behind the scenes to assist in diagnosing issues by indicating a particular code on the Flame Connect App

• Built-in heat control with option to turn off the heat (temporarily or permanently) and still use the flame effect


Key Technical Specifications

• Voltage:
  • 30" / 36" / 48" Models: 120/240V
  • 42" Models: 240V
• BTU: 5118/8530
• Product Height:
  • 30" Model: 37.53"
  • 36" Model: 43.53"
  • 42" Model: 46.53"
  • 48" Model: 49.53"
• Product Depth/Length: 18.38"
• Product Width:
  • 30" Model: 30.59"
  • 36" Model: 36.59"

  • 42" Model: 42.59"
  • 48" Model: 48.59"
• Wattage / Amps:
  • 30" / 36" / 48" Models: 2500/1500 W / 12.5/10.4 AMPs
  • 42" Models:  2000 W / 12.5/10.4 AMPs

• Cut Out Wall dimensions - Height (in)

  • 30" Model: 38"
  • 36" Model: 44"

  • 42" Model: 47"
  • 48" Model: 50"

• Display Type: LED
• Timer: Yes
• Heat Vent Location: Front
• Adjustable Brightness: Yes
• Adjustable Flame Speed: Yes
• Remote Control: Yes
• Front Glass Type: Tempered
• Warranty: 5 Yr Limited

All Ignite Aspire Built-In Fireplace Specifications

• Decibels: 55
• Element Type: Ceramic
• Battery Size in Remote Control: AAA
• Battery Technology in Remote Control: Alkaline
• Light Bulb Type: LED

Documents

Ignite Aspire Brochure

Ignite Aspire Installation User's Guide

Ignite Aspire Service Manual

30" Model Spec Sheet

36" Model Spec Sheet

42" Model Spec Sheet

48" Model Spec Sheet
