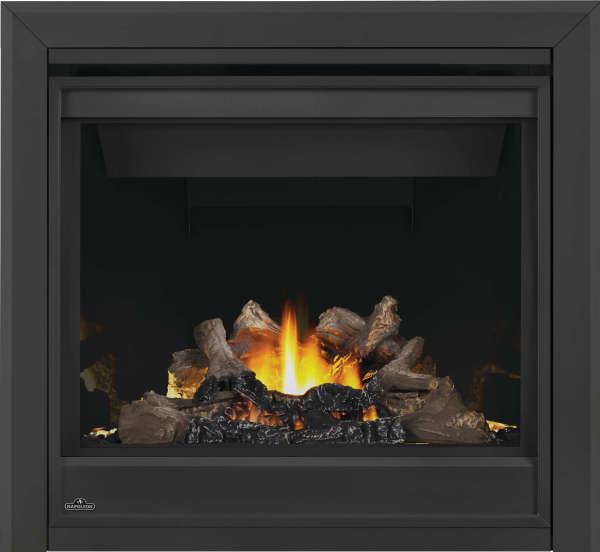

Ascent BX Series Direct Vent Gas Fireplaces

Ascent BX Series BX42 and BX36

Completing the line logic of the Ascent family, comes the new AscentTM BX. An upgrade from the Ascent B series fireplace, the BX offers premium options of ceramic glass, a remote, blower and lights in the same footprint. Framing width and depth stays the same, making it an easy transition to upgrade a discerning customer looking for more bells and whistles. Available in 36" and 42" widths the AscentTM BX offers the same versatility of designer options as the rest of the AscentTM family – from brick panels to trims and fronts. The added benefit of an optional heat management system means the fireplace is truly designed for sensitive items like TV’s and artwork. Ensuring that Napoleon’s Ascent BX really is the heart of any home.

Dimensions: BX36 - BX42

BX36 Height: 34 5/8" / BX42 Height: 34 5/8"
BX36 Width: 35" / BX42 Width: 42"
BX36 Depth: 15 3/4"  / BX42 Depth: 18 5/16"
Glass Viewing Height: 23 11/16"
Glass Viewing Width: 30 11/16 and 37 11/16"

Model  (1 of the following styles is necessary to continue or finish unit order)

• Natural Gas Electronic Ignition Direct Vent - BX36NTRE or BX42NTRE
• Propane Electronic Ignition Direct Vent - BX36PTRE or BX42PTRE

Features

• Up to 30,000 BTU's (BX42) and Up to 26,000 BTU's (BX36)
• Premium Safety Barrier
• Heat Radiating Ceramic Glass
• Pan Style Burner
• Flame / Heat Adjustment
• Flex or Rigid Venting
• Blower Included
• Remote Included
• NIGHT LIGHT™ Included
• Oak Log Set Included

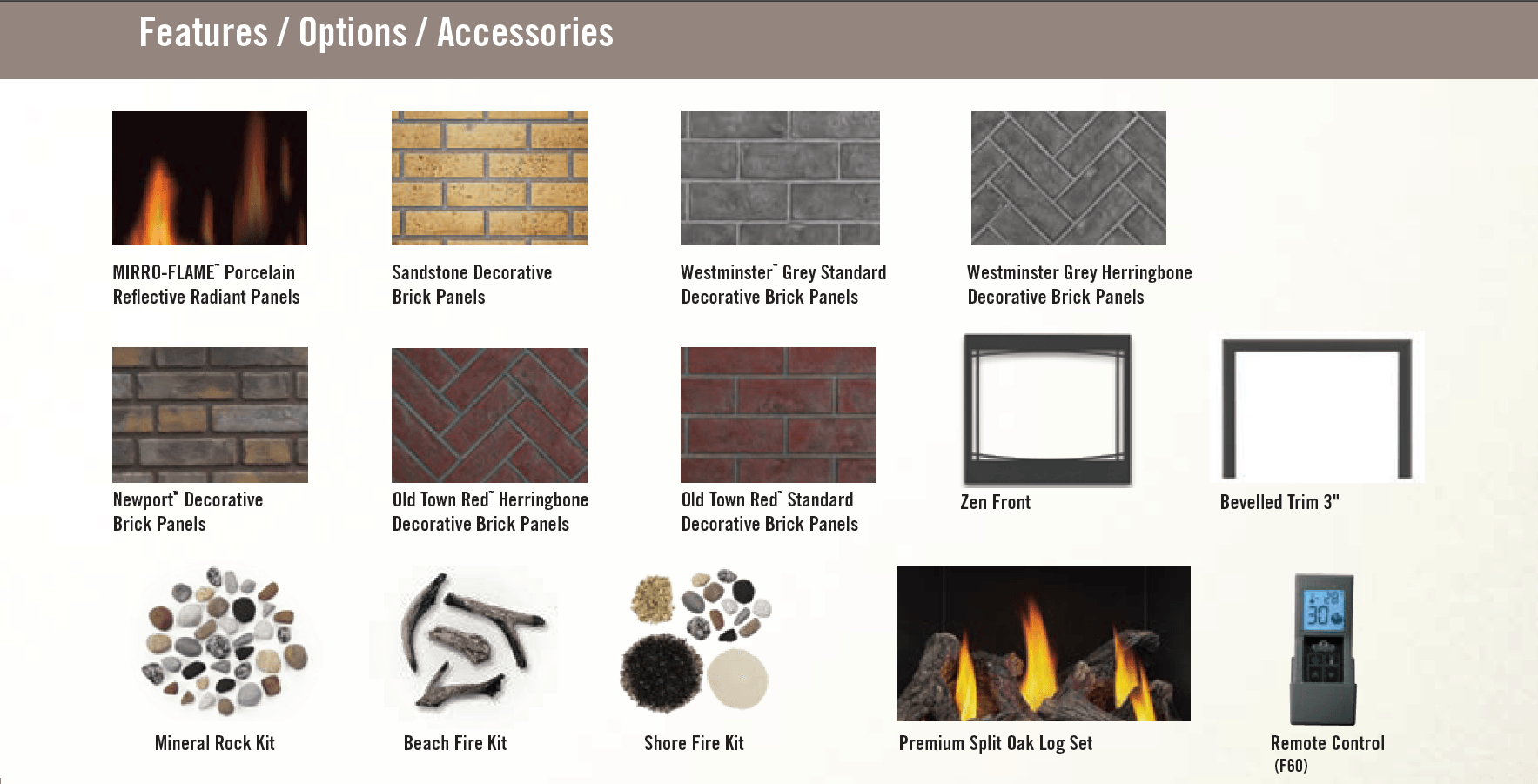

• Optional Heat Management: LHAD, UHM

Documents

Ascent Series Brochures
Ascent Series Featured Card BX36
Ascent Series Featured Card BX42
Ascent Series BX36 Specification Sheet
Ascent Series BX42 Specification Sheet
Ascent Series BX36-BX42 Owner Manual
Ascent Series BX36 Installation Manual
Ascent Series BX42 Installation Manual
