Alturi U-Tube Series Built-In Grills 30"

Alturi Build In Grill 30"

The Alturi Series can be summed up in one word: Luxury. Designed with elegance, made in the U.S., fueled with power, and loaded with every feature, this grill sets the bar for luxury outdoor cooking.

Ultimate Convenience.

Details like the angle-mounted interior lights, rotisserie storage, and spring-assisted hood provide ultimate convenience

while its #304 stainless steel construction and high BTU burners, the most durable on the market and guarantee lasting performance. When it comes to quality, style, and functionality, Alturi truly stands alone.

Features

• Stainless Steel Construction - Complete #304 stainless steel construction for a quality construction
• Captured Briquette Trays - Unique ceramic briquettes sit above the burner to provide radiant heat and eliminate hot/cold zones across the 855in² cooking surface
• Heavy Duty 9mm Cooking Grates - 9mm thick stainless steel cooking grates provide superior heat retention and durability
• Double Lined Hood - Thick, double-lined and spring assisted hood ensures consistent cooking environment
• Analog Temperature Gauge - Built in 3-inch temperature gauge embedded into the hood's exterior monitors your grilling temperature
• Flame Thrower Ignition - Unique technology shoots a burst of flame to light the tube burners more reliably than traditional spark ignitions

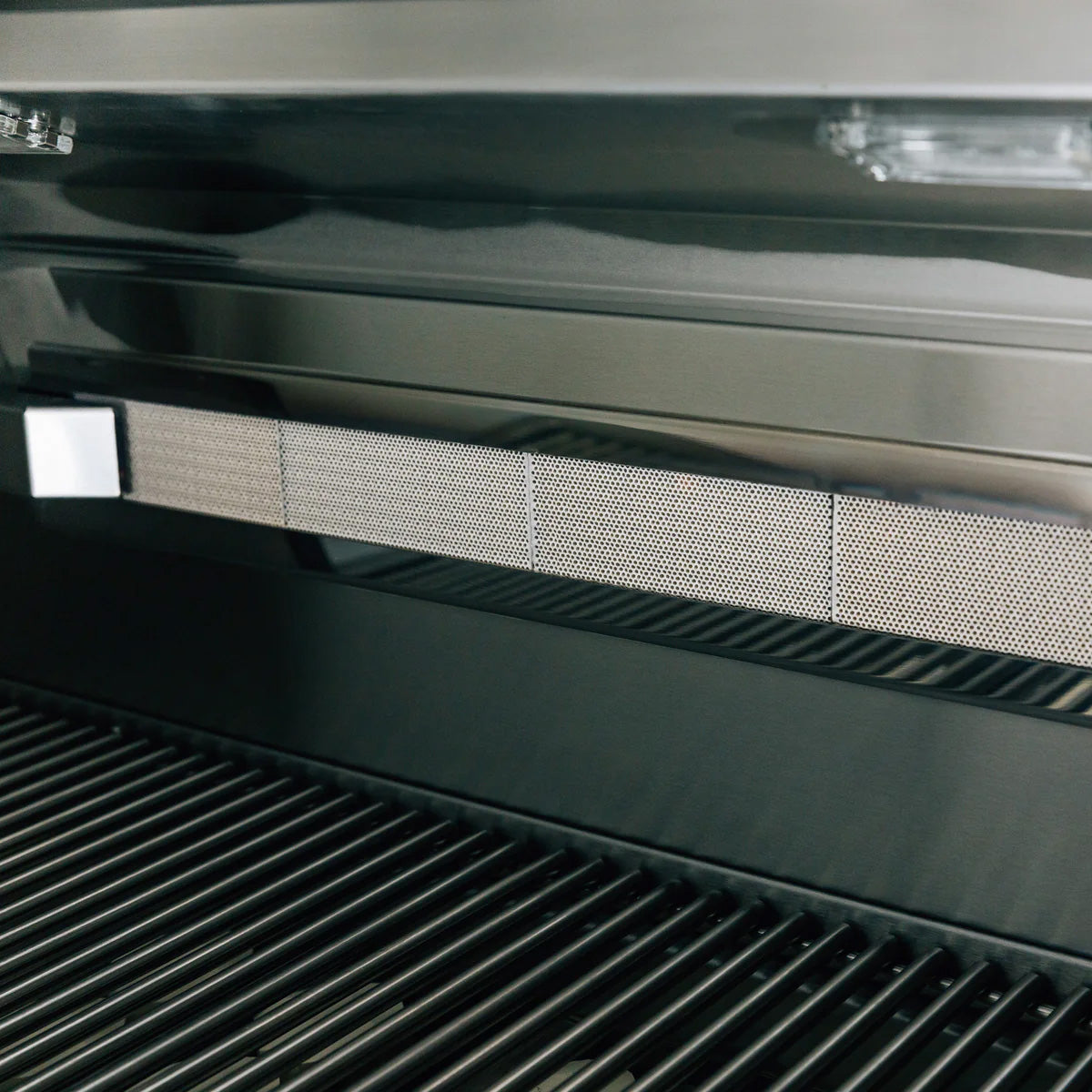

• Infrared Back Burner - 11,000 BTU infrared back burner for professional style rotisserie cooking (rotisserie kit included)
• Built In Lighting - Interior halogen lights shine on the cooking surface while the LED front panel lighting adds aesthetic appeal
• Heat Zone Separators - Integrated heat zone separators allow independent zone cooking by keeping the heat from each burner confined to its own area

 Specifications

• Type: Built-In
• Fuel Type: Propane | Natural Gas
• Overall Width: 30"
• Main Burner Configuration: Conventional
• Number of Main Burners: 2 Burners
• Certification: ANSI | PFS #20-026 Certified
• Material: 304 Stainless Steel
• Ignition: Flame Thrower Ignition | Manual
• Overall Depth: 28 1/8"
• Overall Height: 25 1/2"
• Cut-Out Width: 28 3/4"
• Cut-Out Depth: 21 5/8"
• Cut-Out Height: 10 1/4"
• Cooking Grid Width: 27 1/2"
• Cooking Grid Depth: 19 1/2"
• Cooking Grid Shape: Rectangle
• Cooking Grid Material: Stainless Steel | 9mm Stainless Steel
• Burner Material: 18 Gauge Stainless U-Tube Burner
• Warming Rack Material: Stainless Steel
• Main Grilling Area: 543 sq. in.
• Secondary Grilling Area: 212 sq. in.
• Total Grilling Area: 755 Sq. In.
• BTU Output: 64,000 BTUs
• Cooking Power: 64,000 BTUs
• Infrared Burner: Optional
• Infrared Cooking Power: 26,000 BTUs
• Rotisserie Burner: Included
• Rotisserie Cooking Power: 12,000 BTUs
• Side Burner: Optional
• Smoker: Included | Optional
• Hood Thickness: 18 & 14 Gauge Double-Lined Stainless Steel
• Burger Count: 35 Burgers
• Assembly Required: Yes
• Item Weight: 219 lbs.

Alturi Documents

Alturi 30" Draw - Lines
Alturi Owner Manual
