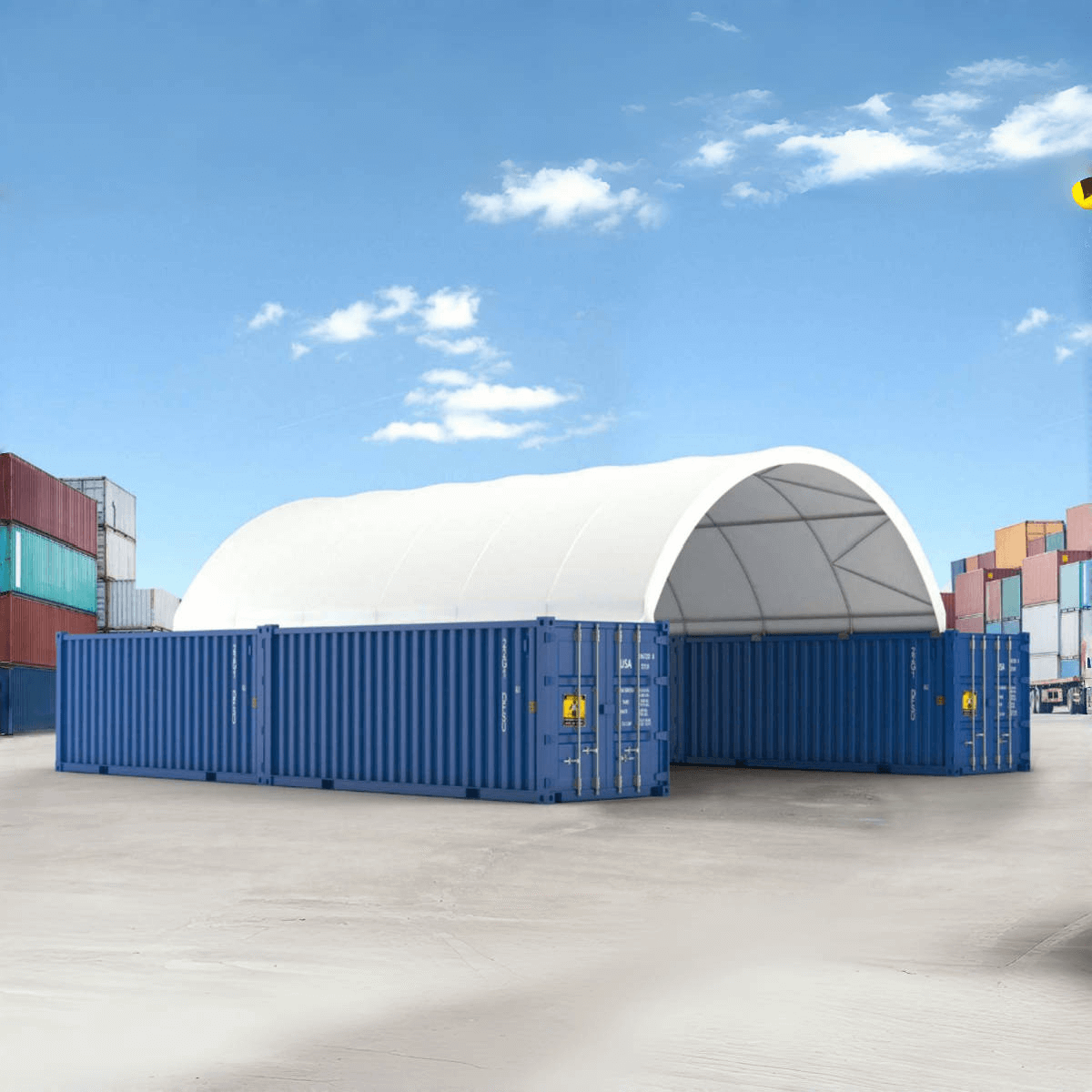

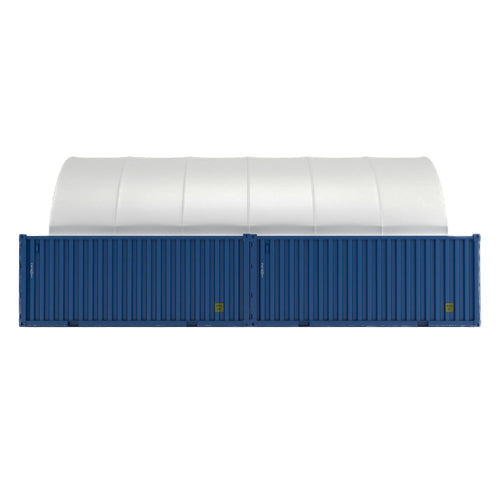

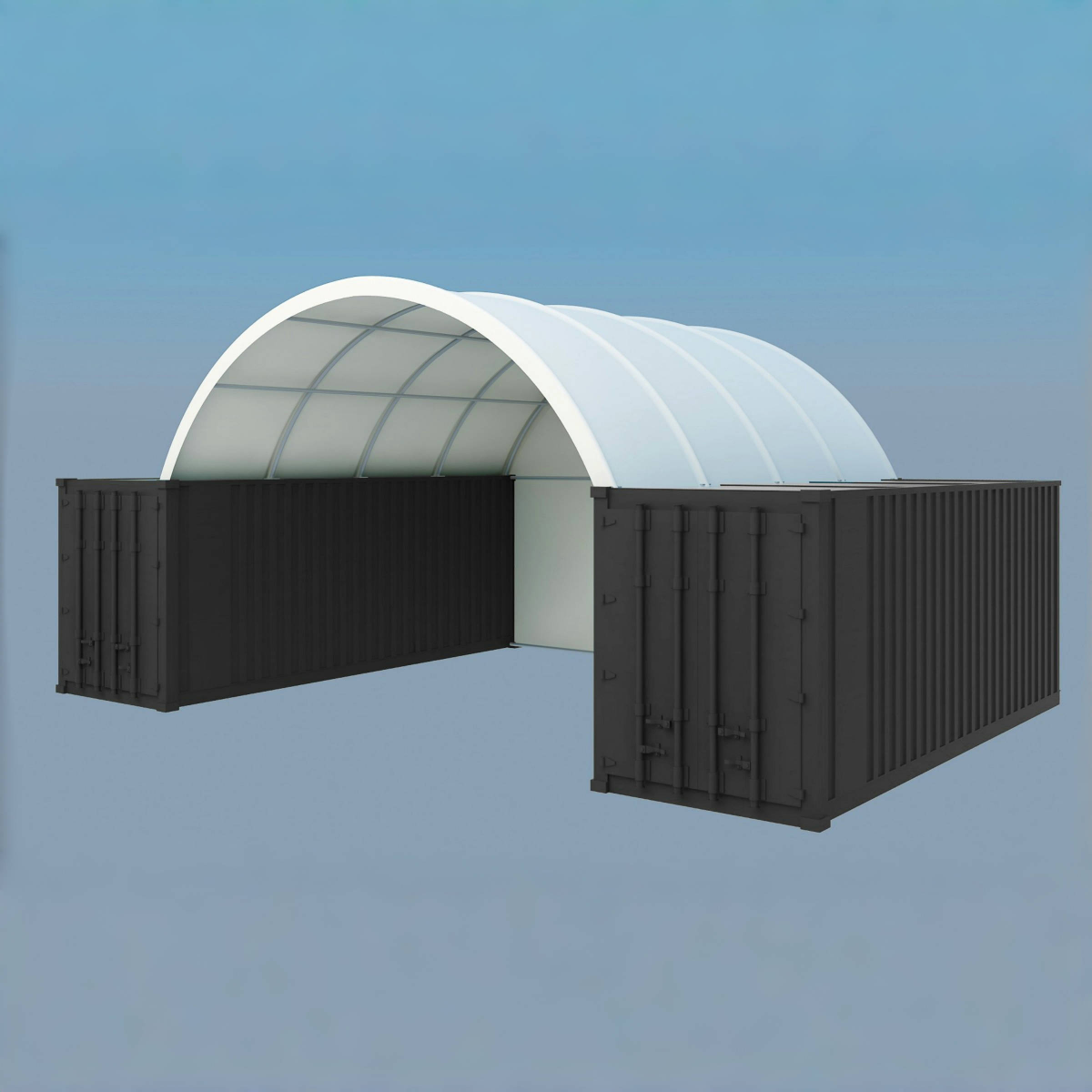

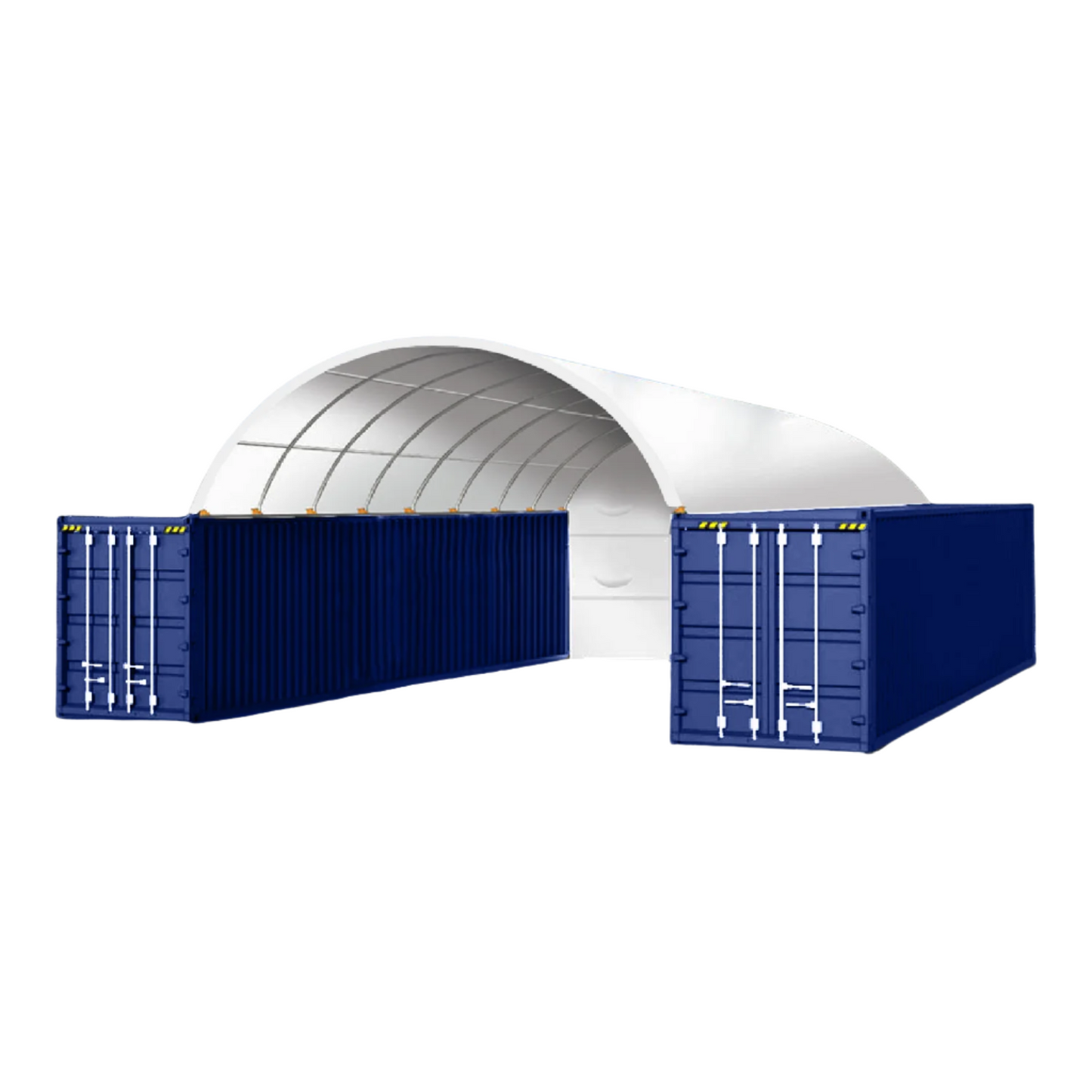

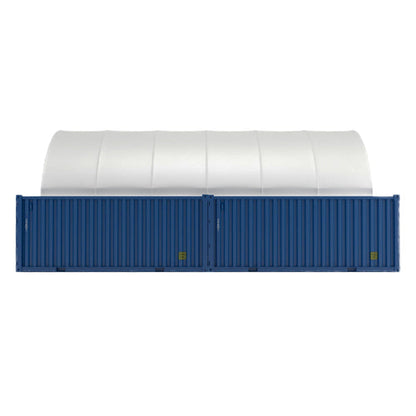

20FT x 40FT Container Shelter with Closed Back Panel

20FT x 40FT Container Shelter with Closed Back Panel

SUICS2040OZ11WBP

$2,690.00 USD
$3,299.00 USD $2,690.00 USD
Sale Sold out

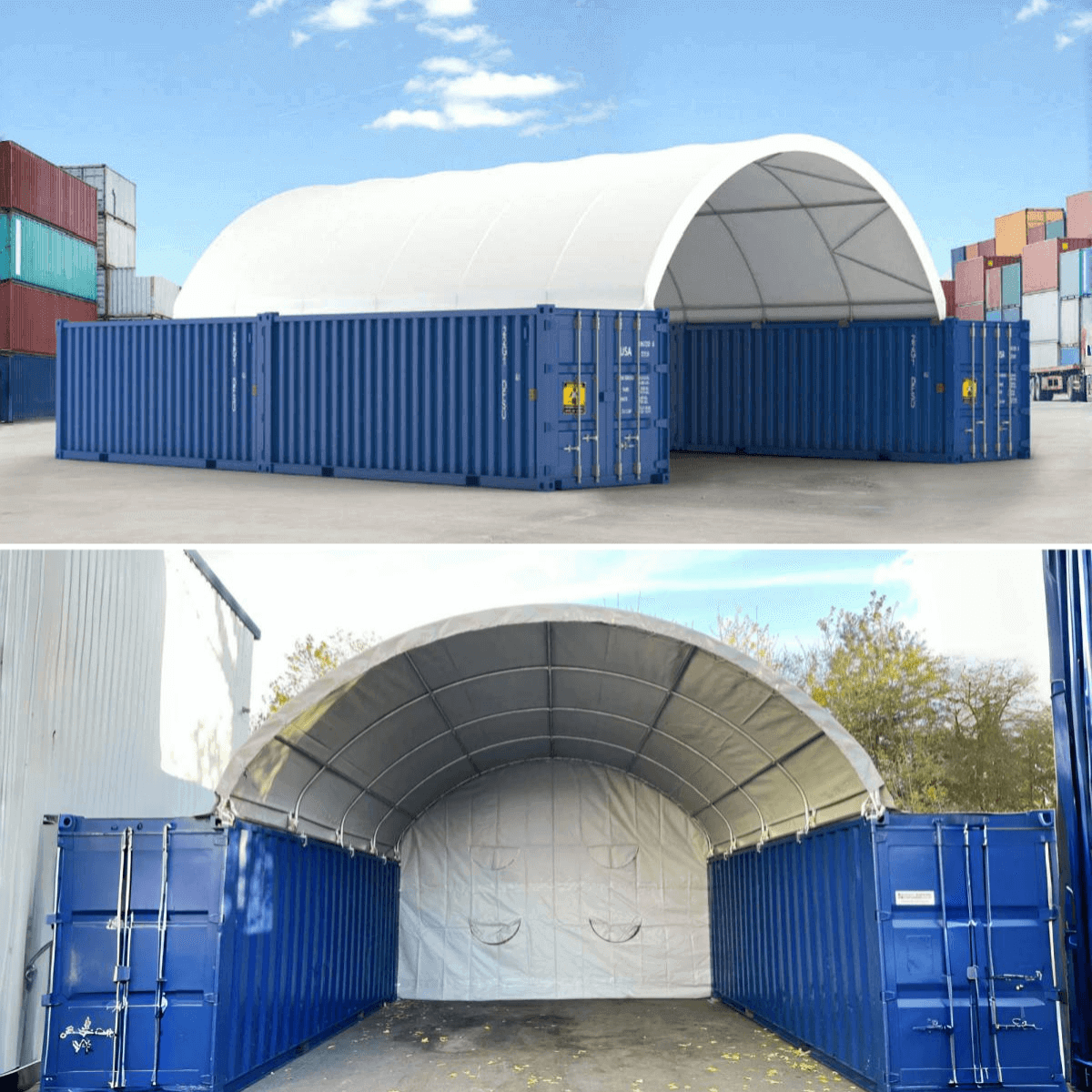

The 20x40 ft Container Shelter with Closed Back Panel boasts versatile tarpaulins in various materials and a robust PE back panel. This spacious, durable shelter provides excellent protection, making it ideal for diverse applications in any environment.

Installation Manual


Shelter-Certificate-Logo

Specification

Description Specifications
Model C2040 Dome Container Shelter

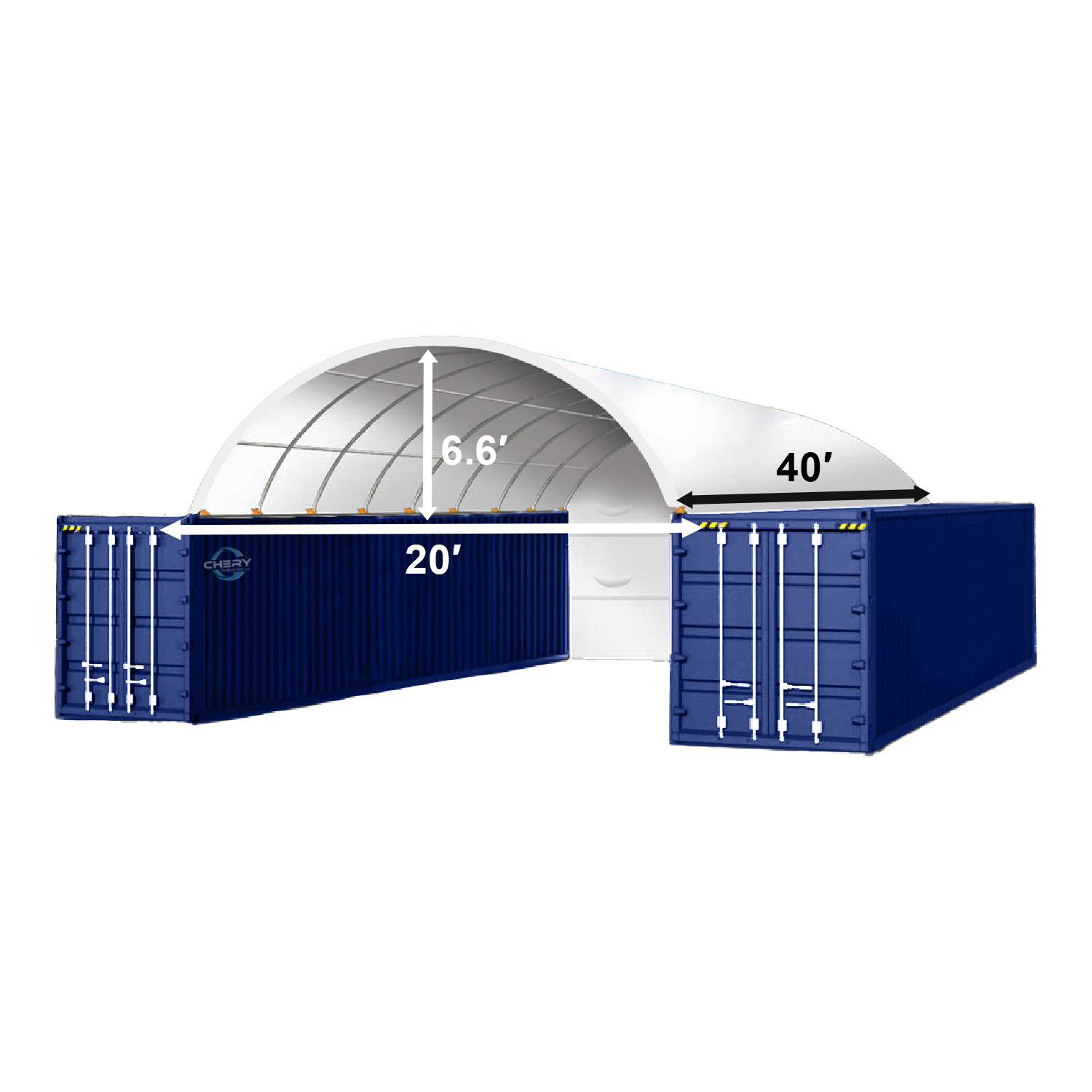

Dimension (ft) W20xL40xH6.6
Frame Single Truss Galvanized Tube
Steel Structure High-Grade Hot Dip Galvanized Steel
Fabric
  • Economical - 11oz/m²(300 gsm) Polyethylene (PE) Tarpaulin Fabric
  • Heavy Duty - 15oz/m²(420 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 22oz/m²(610 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
Fabric Feature Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property
Temperature resistance -22 - +158 °F
Front/back walls (optional)
  • Front Panel
  • Half Panel
  • Rear Panel
Arch Interval 5 ft
Arch Ø (mm) Ø45x1.5
Purlin Ø (mm) Ø32x1.2
Tension System Pipe and Ratchet Tie-Down System
Easy Installation Twist lock and clamp installation

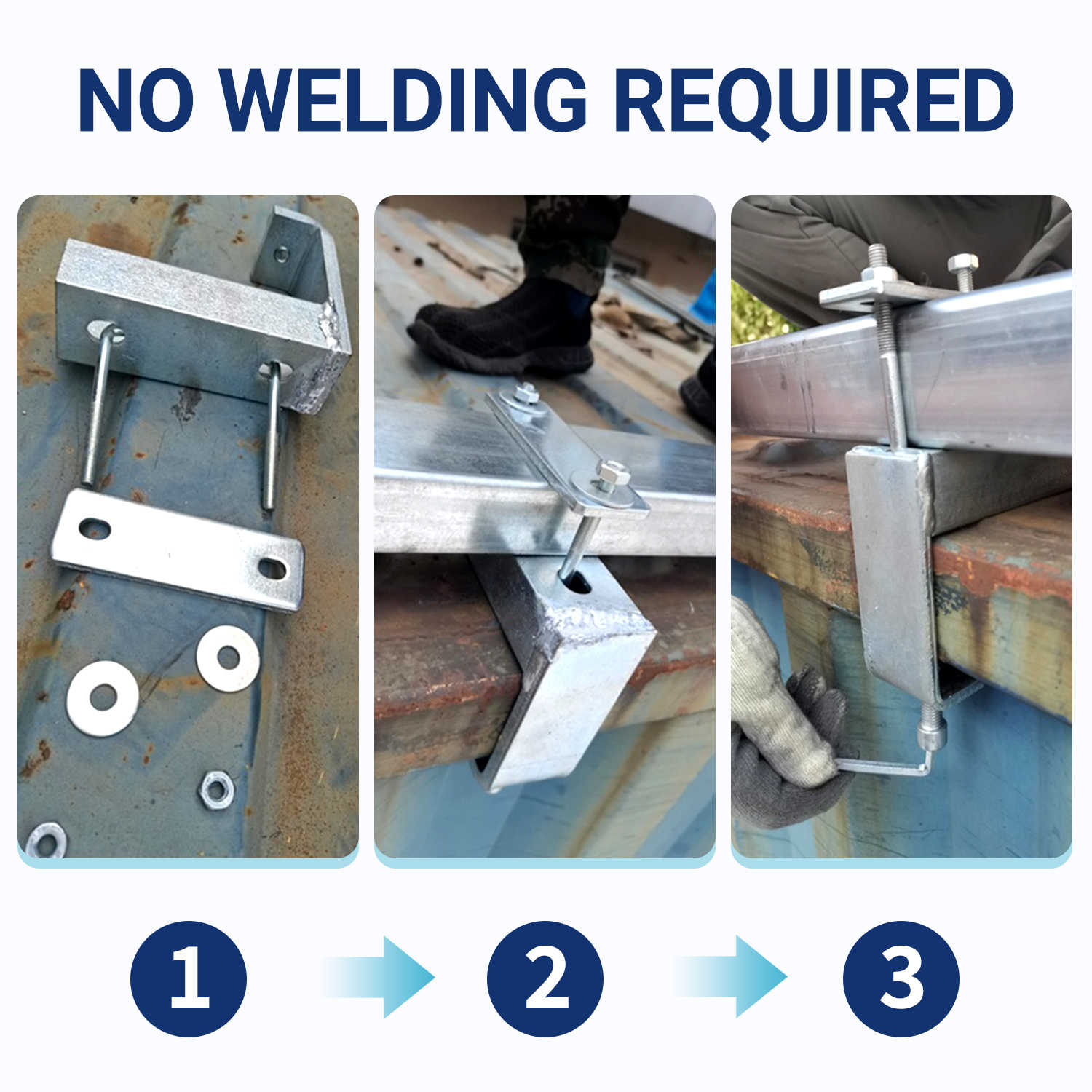

Weld No welding required
Snow Load 48 lbs/ft²
Wind Load 50 miles/h
Average assembly time for DIY with 4 persons Max. 1 day
Safety The tarpaulin is PFAS-free and EU REACH compliant.
Tarp Lifespan 7-10 years, depending on the type of fabric and environmental conditions.
Frame Lifespan 15+ years
Warranty
  • PE: 2 Years Warranty
  • PVC: 8 Years Warranty

Note

  • The term “lifespan” refers to the durability of the materials themselves, not to the installation of the canopy structure.
  • The assembled canopy's structural integrity may be impacted by sudden weather changes (e.g., high winds, heavy snow, rain). Always check the forecast and consider the described limitations.

Feature

  • Style: Pony Wall.
  • The tarpaulin is PFAS-free and EU REACH compliant.
  • CSA/TUV Snow Rating Report.
  • SGS fabric Certificate.
  • No pole inside, and 100% of the interior space is available.

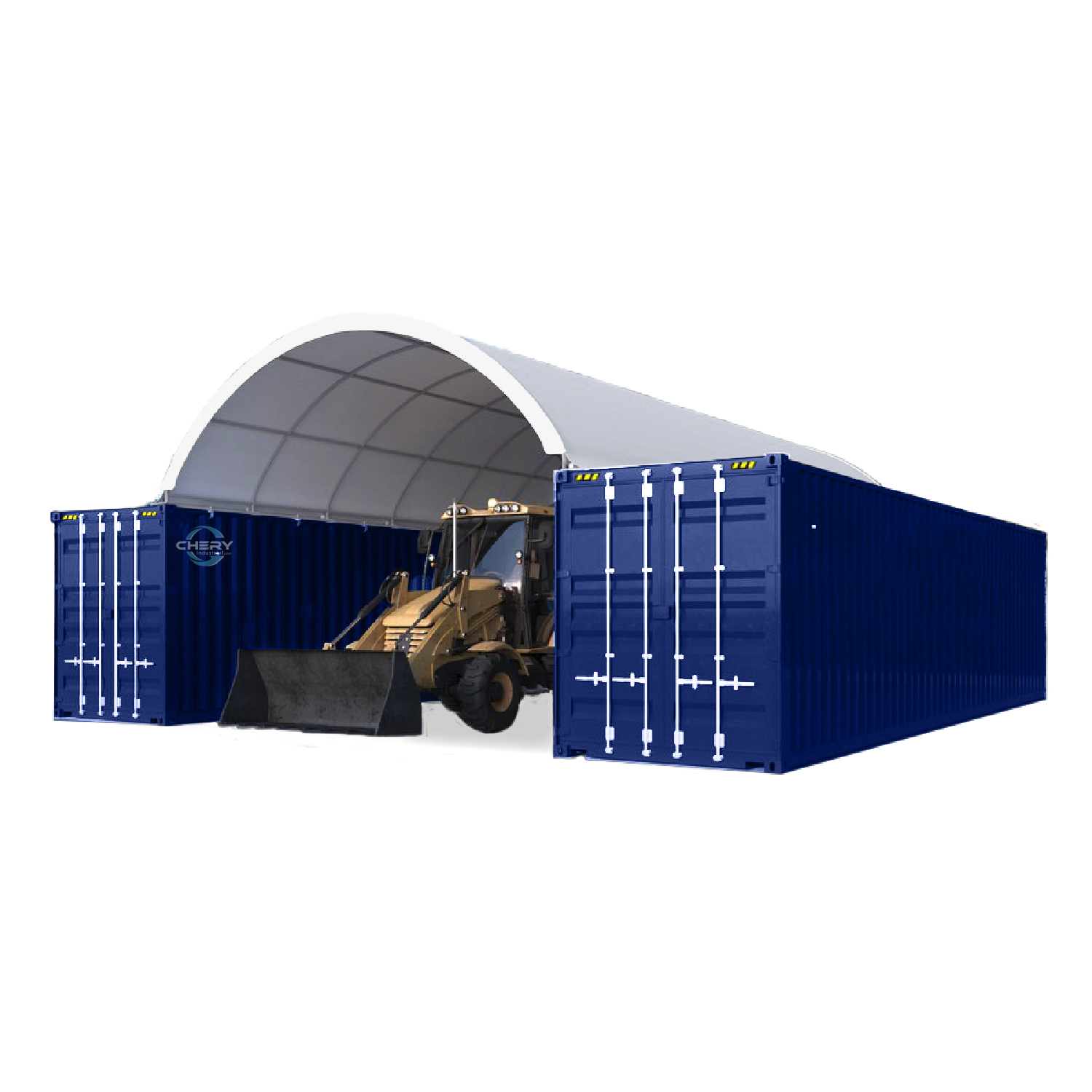

  • Usage: Warehouse, farm tent, equipment storage, car lot, temporary office, livestock house, workshop, parties, big event.

Package Size

Box A:

  • LxWxH (inch): 75x30x20
  • Weight (lb): 805
  • A forklift or equivalent is required for unloading

Box B:

  • LxWxH(inch): 76x28.5x6
  • Weight(lb): 86

A forklift or equivalent is required for unloading.

Parts

  • Cover replacement
  • Front Panel
  • Rear Panel
  • Half Panel
    Shipping Container Canopy Shelter 20'x40'
