Grand Canyon Gas Logs

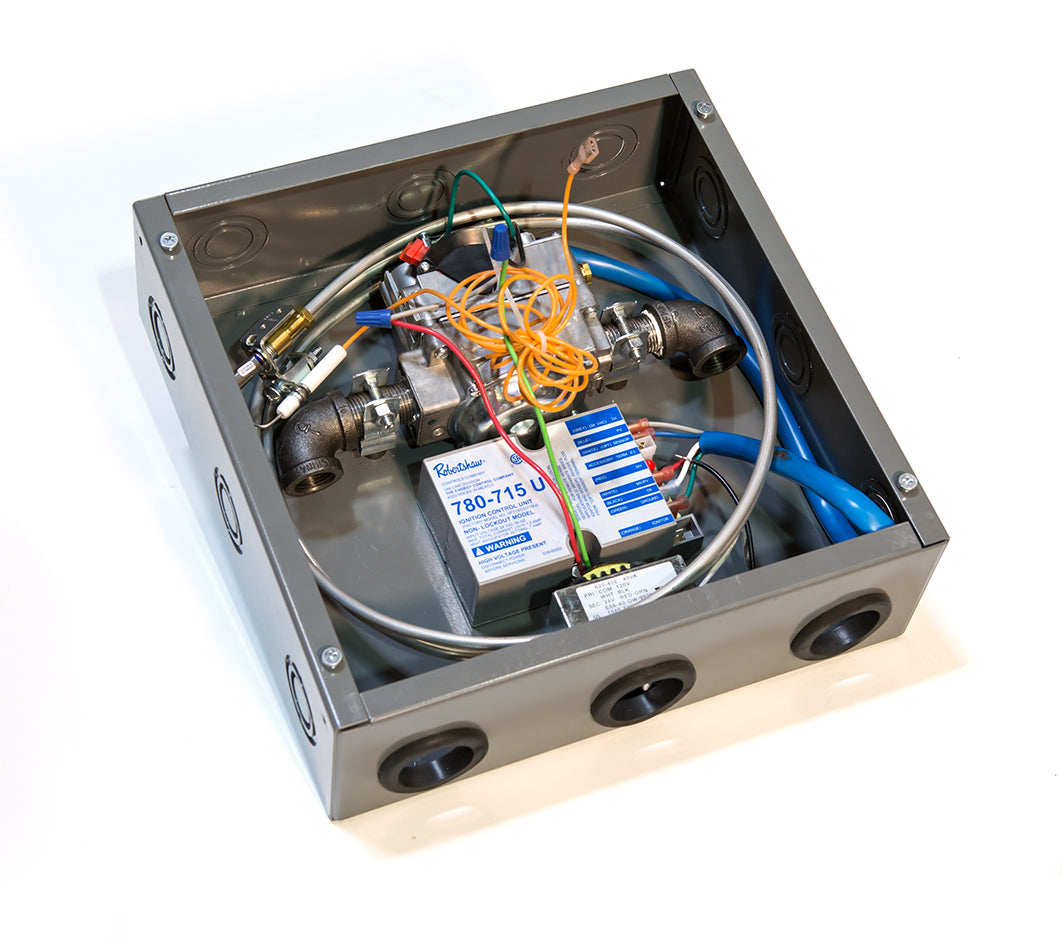

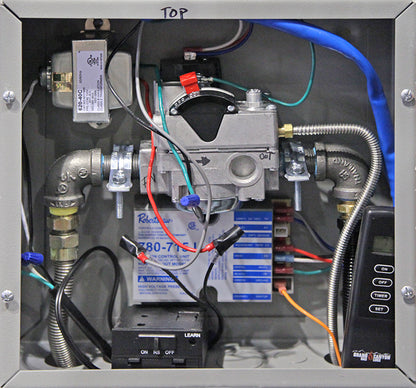

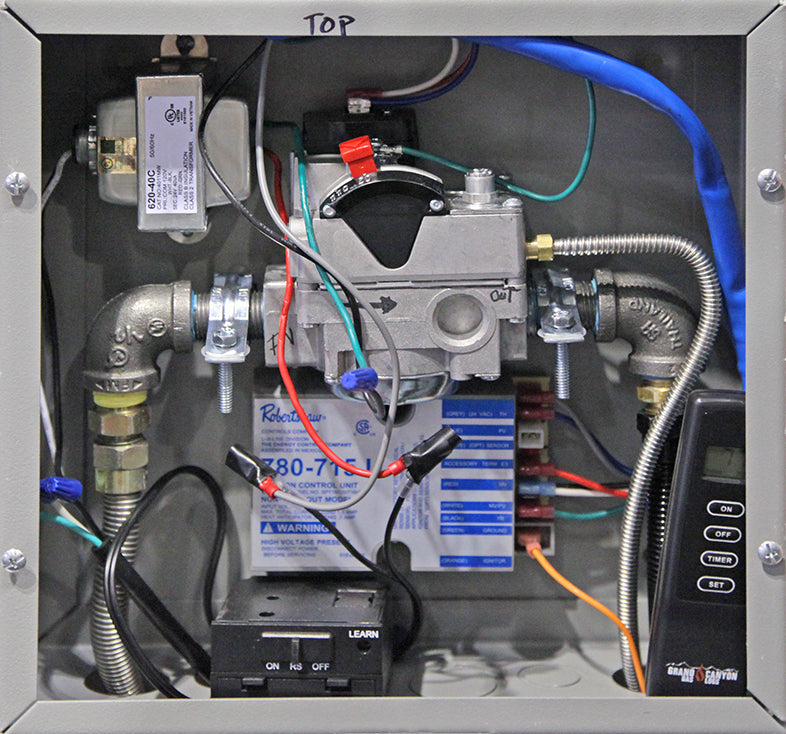

110V Indoor Electronic Ignition System - Grand Canyon Gas Logs
110V Indoor Electronic Ignition System - Grand Canyon Gas Logs
SKU:EIS
Regular price
$1,226.00 USD
Regular price
$1,472.00 USD
Sale price
$1,226.00 USD
Unit price
/
per
Couldn't load pickup availability
Features
- Part Number: EIS/EIS-LP
- Pilot: Non-Standing Pilot
- On-Demand System: Pilot On-Demand System
- Power: 24V Electronic Ignition
- Design: In-Wall Design
- Assembly: 6’-10’ Pilot Assembly
- Operations: On/Off Operations ONLY
- Max Inlet 14” W.C.
- Valve: Valve Temp Rating 175°
- NG: (NG) 3”-7” W.C. 200,000 BTU’s
-
LP: (LP) 8”-14” W.C. 110,000 BTU’s
CSA DESIGN CERTIFIED TO APPLICABLE A.N.S.I. STANDARD
Z21.71-1993 FOR FIELD INSTALLATION
|
Module Electrical Specifications |
| Spark rate 3 to 4 sparks per second |
3 to 4 sparks per second |
| Relay contact ratings | |
| Pilot valve | 1 amp at .5 PF |
| Main valve | 1 amp at .5 PF |
| Combined load | 1.5 at .4 PF |
| Flame sense current | .7 µA DC @ 25°C / 24 VAC |
| Maximum total current load | 1.5 amp |
| Flame failure re-ignition time | .8 seconds maximum |
| Thermostat anticipator setting | .7 amp |
| Ambient rating | - 40°F to 175°F (- 40°C to 80°C) |
| Relative humidity | 95% non-condensing at 104°F |
Product Manuals
