Jackery

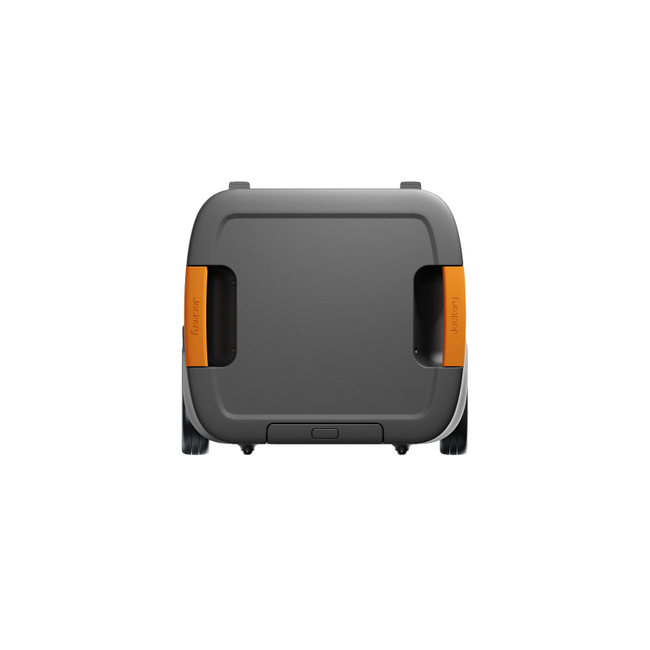

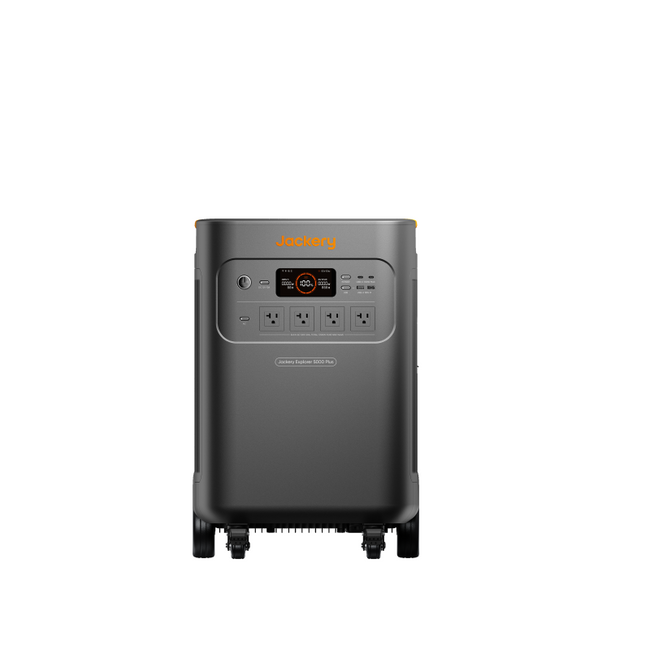

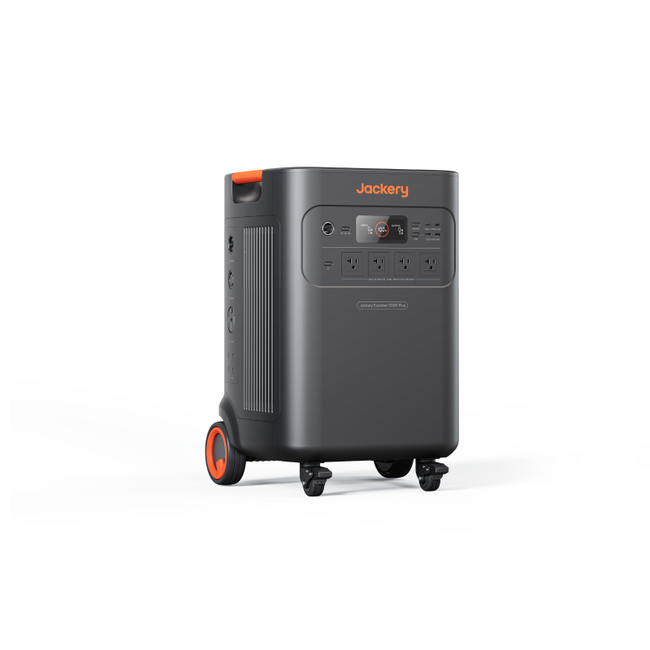

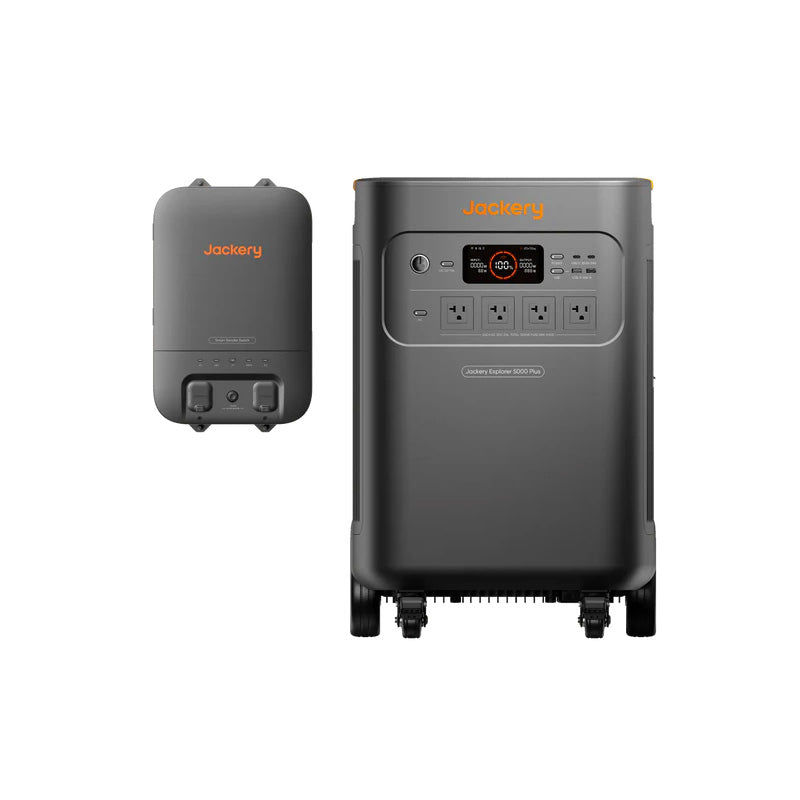

Jackery Explorer 5000 Plus Power Station

Jackery Explorer 5000 Plus Power Station

E5000Plus

$2,999.00 USD
$4,299.00 USD $2,999.00 USD
Sale Sold out

Note: Not sure which Solar Panel is Compatible? Feel free to contact us and we will assist you!

Explorer 5000 Plus

  • No More Spoiled Food or Wet Clothes Even During Hurricanes, Thunderstorms, and Blackouts: 5-60kWh capacity & 7200-14400W output supports multiple devices for up to 30 days
  • Your Fridge Stays Cold, Your Zoom Call Stays On: 0ms Power Transition, Zero Worries

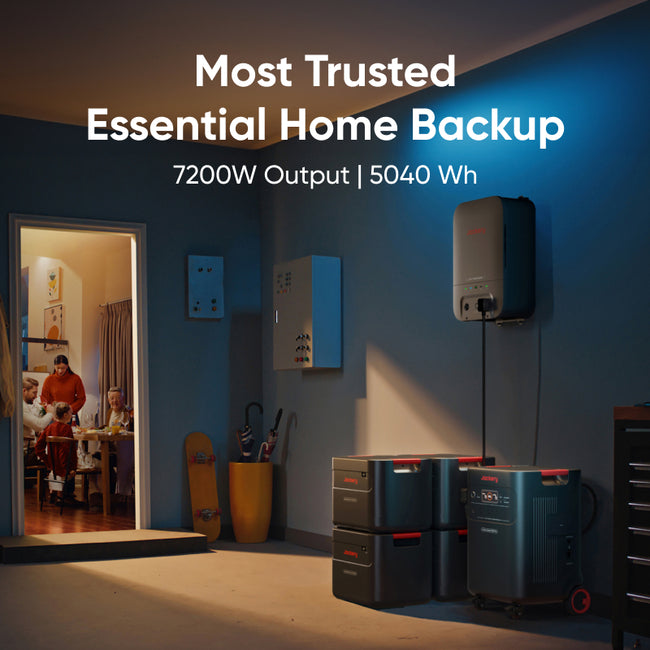

  • Always Power Your Essential Rooms: Smart Transfer Switch Ensures Uninterrupted Power Where It Matters Most.
  • From Indoors to Outdoors: 120V/240V Dual Voltage Enhances Compatibility, Supporting More Loads and More Scenarios
  • Fully Charged in 1.7 Hours: 4000W Solar Input, 5 Ways to Charge, Never Run Out of Power

- What's In The Box? -

  • Explorer 5000 Plus
  • AC Charging Cable
  • MC4 Wrench

Smart Transfer Switch

  • Seamless Power Switch: Provides UPS backup within ≤20ms during power outages, ensuring uninterrupted operation.

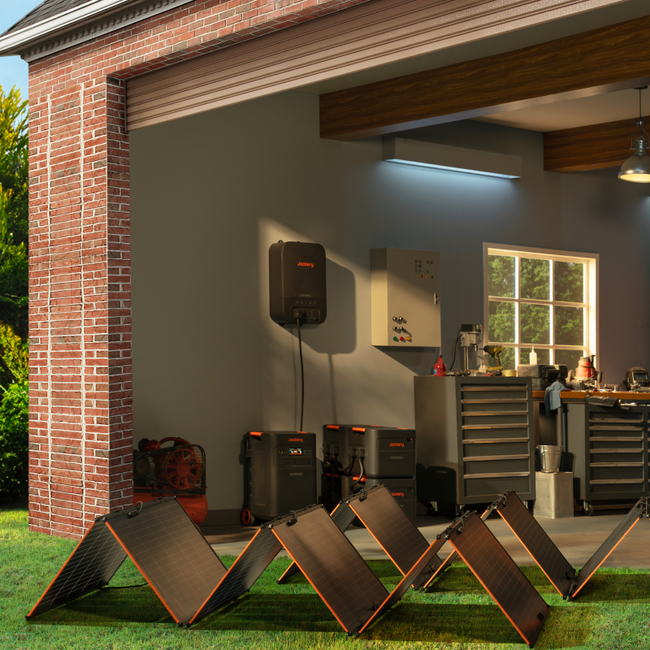

  • Eco-Friendly & Silent: Designed to integrate with solar panels and rooftop PV systems via Jackery Explorer 5000 Plus for sustainable energy use.
  • Energy Savings: Charging-discharging mode helps reduce electricity costs.
  • Compact & Maintenance-Free: Lightweight, easy to install, and requires no maintenance.

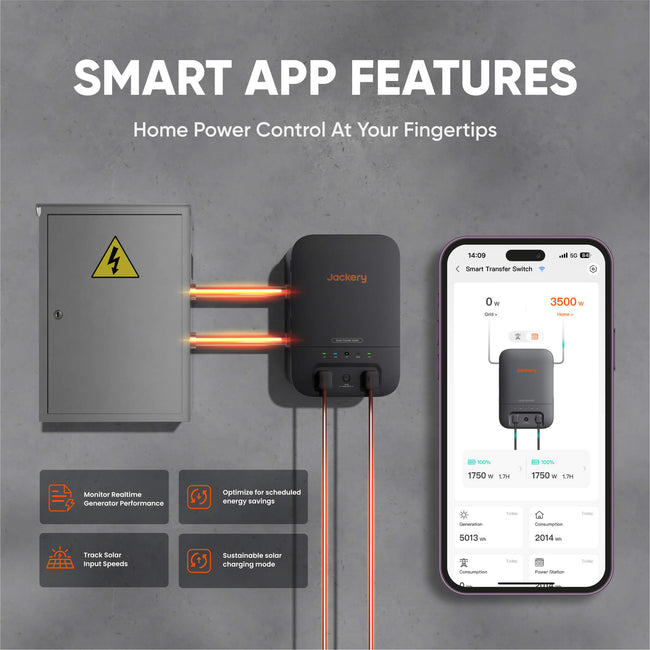

  • Smart App Control: Enables real-time monitoring and energy management.
  • Note: The Smart Transfer Switch is only compatible with the Jackery 5000 Plus Series.
Power Station Specs
General
  • Weight: About 134.5 lbs (61 kg)
  • Dimensions: 16.5×15.5×25 in/41.8×39.5×63.5 cm
  • Charge Temperature: 32~113 °F (0~45°C)
  • Discharge Temperature: 5~113°F (-15~45°C)

Battery

  • Capacity: 45Ah/112V DC (5040 Wh)
  • Cell Chemistry: LiFePO4

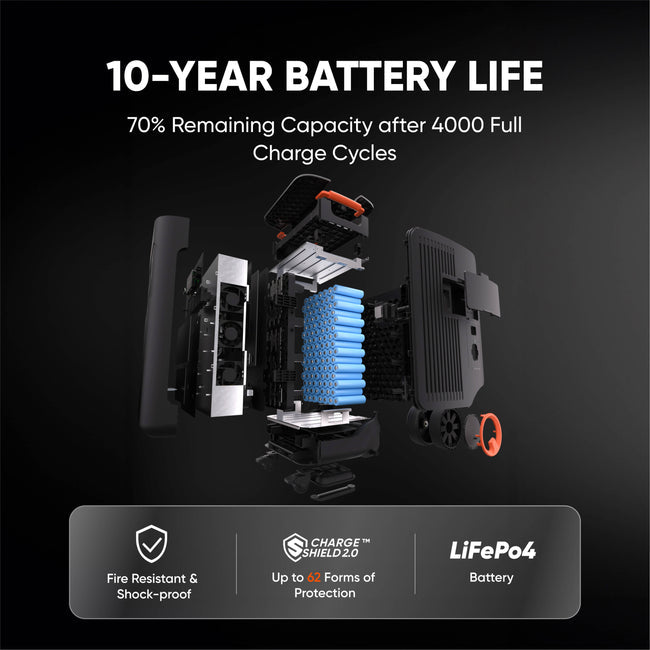

  • Cycle Life: 4000 cycles to 70%+ capacity

Output Ports

  • AC Output:
    • (4x) 120V, 20A, 2400W
    • (1x) NEMA L14-30R/14-50：120V/240V~60Hz, 30A, 7200W Max
  • AC Total Output: 7200W Max, 14400W Surge
  • USB-C Output: (2x) 100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A
  • USB-A Output: (2x) 18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A
  • Car Port: 12V⎓10A
  • AC Expansion Port: 240V~60Hz, 30A, 7200W
  • DC Expansion Port: 80.5V-126V⎓41A Max

Input Ports

  • Charge Mode AC Input: 120V~60Hz, 15A Max
  • Bypass Mode AC Input/Output: 120V~60Hz, 12A Max; 240V~60Hz, 16.7A Max
  • AC Expansion Port (Input): 240V~60Hz, 16.7A Max
  • DC Input:
    • DC Expansion Port (Input)：80.5V-126V⎓98A Max
  • High-PV: 135V-450V⎓15A Max
  • Low-PV:
    • (2x) DC 8mm Ports; 16V-60V⎓10.5A Max, Double to 21A/1200W Max
    • 11V-16V(Working Voltage)⎓8A Max, Double to 8A Max

Charging Time

  • AC Adapter: 3.5 Hours
  • Car Adapter: No

Other Specifications

  • UPS: Backup UPS: ＜20ms, Onine UPS: 0ms
  • Inverter Topology: Non-isolated
  • Power Factor: ≥0.98
  • Entire Unit: Type 1
Smart Transfer Switch Specs
  • AC Voltage (Nominal): 120V/240V~ 60Hz
  • Feed-In Type: Split Phase
  • Maximum Input Current: 100A Grid / 60A Power Station
  • Maximum Output Current: 60A Home Load / 33.4A Power Station
  • Maximum Input Short Circuit Current: 10KA
  • Overvoltage Category: IV
  • UPS: ≤20ms
  • Enclosure Type (Distribution Panel): NEMA Type 1
  • Number of Load Branches: 12
  • Main Circuit: 2 AWG
  • Branch Circuit: 14 AWG 12 AWG 10 AWG
  • Communication: Wi-Fi and Bluetooth
  • Operating Temperature: -20°C~40°C (-4°F~104°F)
  • Weight: About 25.57 lbs/11.6 kg
  • Dimensions: 22 x 14.7 x 7.87 in/56 x 37.4 x 20 cm
