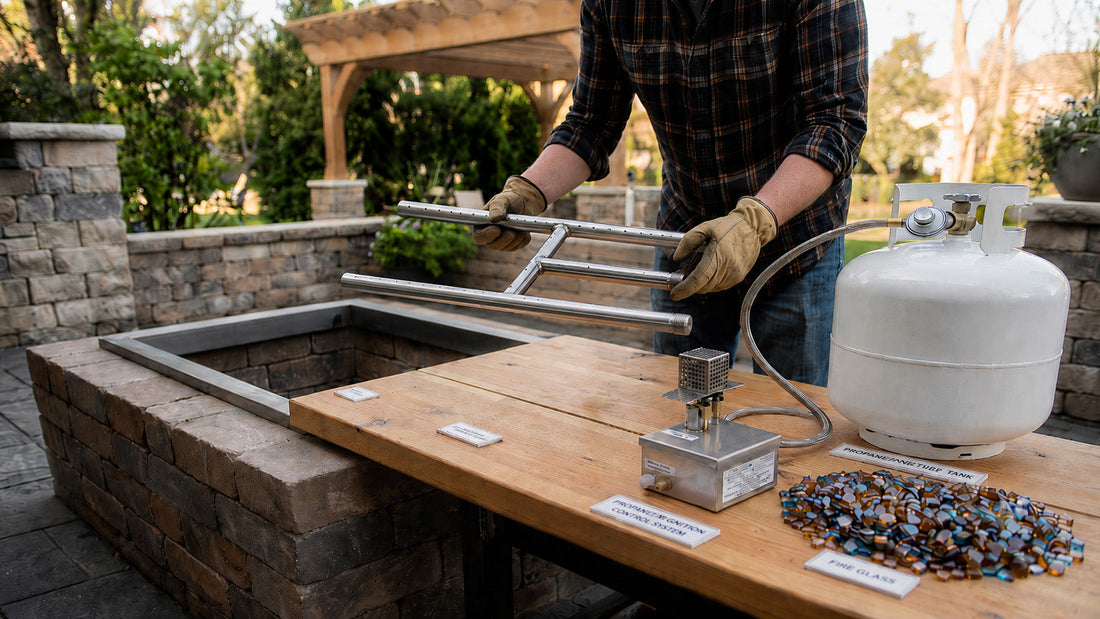

How to Build the Right Gas Fire Pit: Choosing a Burner, Pan, Fuel Type, Ignition, and Fire Glass
Share
A finished gas fire pit can look simple from above: a clean enclosure, a bed of decorative media, and a steady flame. Underneath that finished surface, however, several components must work together as one system. The enclosure must support the burner pan, the gas supply must be capable of feeding the burner, the ignition must match the fuel and available power, and the enclosure must provide the ventilation, drainage, and service access required by the manufacturer.
This guide will help you plan those decisions in the right order. It is intended for homeowners, contractors, designers, and other customers choosing components for a custom outdoor gas fire pit. It is not a substitute for the installation manual, local codes, permits, or the work of a qualified gas or electrical professional.
Ready to Start Planning Your Fire Pit?
Skip ahead to calculate your fire glass requirements or begin selecting a compatible burner and pan configuration.
Important: Always follow the instructions and clearances for the exact burner, pan, ignition system, and fuel configuration being installed. Requirements can vary substantially between manufacturers and even between products from the same manufacturer.
Start With the Complete Fire Pit System
It is tempting to begin with the burner because it creates the flame. In practice, a successful project begins with the installation conditions and available fuel supply. Those decisions determine which burner, pan, ignition system, controls, and accessories can be used.
A practical planning sequence is:
- Choose the installation location and intended use.
- Determine the fire pit shape and inside opening dimensions.
- Select natural gas or propane and confirm the available gas capacity.
- Choose the burner pan shape and installation style.
- Select a compatible burner layout, size, and BTU rating.
- Choose the ignition and control system.
- Plan enclosure ventilation, drainage, support, and service access.
- Select manufacturer-approved fire media.
- Calculate the amount of fire glass required.
- Use the Burner & Pan Builder to narrow the available products.
Making these decisions in sequence helps prevent common problems, such as selecting a high-output burner before confirming gas-line capacity or constructing an enclosure before allowing space for the ignition control box.
1. Decide Where and How the Fire Pit Will Be Used
Before choosing components, consider what you want the fire pit to do and where it will operate. A fire feature designed mainly for ambiance may have different flame and seating goals than one intended to provide noticeable warmth to a large gathering area.
Questions to answer during the planning stage
- Will the fire pit be used mainly for ambiance, warmth, or both?
- How many people should comfortably sit around it?
- Will it be installed in a fully open area or near a wall, roof, pergola, screen, overhang, railing, tree, or other structure?
- Is the surrounding surface noncombustible, or is the project being considered for a wood or composite deck?
- How exposed is the location to prevailing winds?
- Where will rainwater drain?
- How will a technician reach the valve, regulator, flex line, pilot, transformer, or ignition control box later?
- Where will the required manual or emergency shutoff be located?
Clearances should never be selected from one universal rule. They can change with the appliance, BTU rating, enclosure design, overhead conditions, and nearby combustible materials. Use the product manual and local requirements as the controlling documents. For general placement considerations, see How Far Should a Fire Pit Be From a House? and Can You Put a Fire Pit on a Wood Deck?.
Plan access before construction. A finished enclosure should not permanently trap the gas connections, controls, batteries, transformer, or ignition components. Service access is part of the design—not an afterthought.
2. Choose the Fire Pit Shape and Measure the Correct Area
The overall fire pit shape affects seating, flame presentation, available tabletop space, and the types of pans and burners that will fit. Common choices include round, square, rectangular, and linear designs.
| Fire pit shape | Common design benefit | Possible burner layouts |
|---|---|---|
| Round | Balanced seating and a central flame visible from every side | Ring, penta, cross, or other radial configurations |
| Square | Symmetrical design with defined corners and ledge space | Ring, penta, cross, or square-pattern configurations |
| Rectangular | Works well with sofas, long seating areas, and fire tables | H-style, T-style, linear, tree-style, or manifold configurations |
| Linear | Creates a long, narrow flame for contemporary installations | Single-line, double-line, H-style, or specialized linear burners |
| Custom | Fits unusual architecture or a specific flame presentation | Manufacturer-approved custom pan and burner assemblies |
These burner layouts are examples, not fixed rules. The final burner must be compatible with the selected pan, ignition system, fuel type, available gas supply, and manufacturer specifications.
Know which dimensions you are measuring
Three measurements are often confused:
- Overall enclosure dimensions: the full outside width, length, or diameter of the finished fire pit.
- Inside opening dimensions: the usable opening inside the surrounding ledge or capstone.
- Burner pan or media-tray dimensions: the actual area that supports the burner and holds the decorative media.
The outside dimensions of the enclosure do not tell you which pan will fit or how much fire glass is required. Use the manufacturer’s cut sheet to verify the required opening, support ledge, pan lip, burner clearance, and control-box space.
Measurement rule: Size the burner-pan assembly from the actual inside opening and product cut sheet. Calculate fire glass from the inside dimensions of the pan or media tray—not from the outside dimensions of the fire pit.
3. Choose the Fuel Source and Confirm Available BTU Capacity
The burner can only perform as well as the fuel system supplying it. A large burner may physically fit the enclosure but still produce a weak or inconsistent flame if the gas line, regulator, meter, or propane supply cannot deliver the required volume at the specified inlet pressure.
Natural gas
Natural gas is supplied through fixed piping connected to the building’s gas system. It avoids portable-cylinder refills and is convenient for a permanently installed fire pit. The available capacity depends on the meter, regulator, pipe diameter, pipe length, elevation, pressure system, and other appliances sharing the supply.
Propane supplied by a portable cylinder
A portable propane cylinder can be useful where permanent gas piping is unavailable, but not every burner or ignition system is approved for small-cylinder use. The cylinder, hose, regulator, enclosure, ventilation, and distance from the flame must match the exact product instructions. High-output burners can also consume portable-cylinder fuel quickly or exceed the practical delivery capacity of the selected tank and regulator.
Propane supplied by a permanent tank and fixed piping
This is still liquid propane; the difference is how the fuel is stored and delivered. A larger permanent tank with properly sized fixed piping may support applications that are not approved for a small portable cylinder. The tank regulator, downstream regulators, pipe sizing, and appliance requirements must be designed as one system.
BTU rating versus available gas capacity
A burner’s BTU rating describes its maximum gas input under the required conditions. It does not guarantee that the installation can supply that output. A qualified professional should account for:
- The burner’s maximum BTU input
- Total pipe length and fitting losses
- Pipe diameter and material
- Available inlet pressure under operating demand
- Meter or propane-regulator capacity
- Other appliances operating from the same supply
- Any manufacturer-required appliance regulator or gas-conversion components
Do not apply one “standard” pressure range to every fire pit. Required natural-gas and propane pressures vary by manufacturer, burner, ignition system, and configuration. For a deeper explanation of line sizing and pressure loss, read Ensuring Proper Gas Pressure for a Fire Pit, then verify the exact values in the current product manual.
Bigger is not automatically better. Select the flame coverage and heat output appropriate for the space, then confirm that the gas system can support the selected burner before ordering or building the enclosure.
4. Choose the Burner Pan Shape and Installation Style
The pan or plate supports the burner, defines the media area, and interfaces with the enclosure. Pan shape describes its geometry—such as round, square, rectangular, or linear. Pan style describes how it is constructed and supported.
Flat plate or flat pan
A flat plate normally rests on a properly constructed support ledge inside the enclosure. It offers a low-profile, integrated appearance and can be useful for custom openings. The enclosure must provide the support, drainage, clearances, and open space required beneath the plate.
Drop-in pan
A drop-in pan normally includes vertical walls and a perimeter flange or lip. It lowers into a prepared opening and is supported by the lip. The pan creates a defined media tray, but the opening dimensions and support surface must match the product cut sheet.
| Consideration | Flat plate / flat pan | Drop-in pan |
|---|---|---|
| Typical support | Rests on an enclosure ledge, collar, brackets, or other approved support | Perimeter lip rests on the prepared opening |
| Media area | Often visually integrated with the surrounding opening | Defined by the pan bottom and sidewalls |
| Opening accuracy | Must provide the required ledge and component clearances | Cutout must match the flange and body dimensions |
| Drainage | Depends on plate, enclosure, and manufacturer design | Depends on pan drains and enclosure drainage |
| Best use | Often selected for customized or low-profile installations | Often selected for straightforward placement into a defined cutout |
Some manufacturers also use terms such as raised-lip, lipless, trough, or bowl pan. Treat the manufacturer’s drawing and cut sheet—not the marketing name—as the final dimensional reference.
Pan details that should be confirmed before construction
- Outside pan dimensions and required opening dimensions
- Width and thickness of the supporting flange or plate edge
- Required support method and load-bearing surface
- Clearance beneath any valve or ignition box
- Drain locations and a path for water to leave the enclosure
- Gas and electrical entry points
- Access for installation, leak testing, battery replacement, and future service
- Compatibility with a burner cover, weather cover, or wind guard
5. Choose the Burner Layout, Size, and Flame Performance
The burner should complement the pan shape, but shape alone is not enough. Its overall dimensions, port or jet arrangement, BTU input, gas type, ignition compatibility, and required media coverage must all be considered.
Common Burner Layouts
- Ring Burners: commonly used in round pans and central flame presentations.
- Penta or Crossfire Burners: extend flame coverage toward multiple directions in round or square areas.
- H-style Burners: provide parallel flame lines for wider rectangular pans.
- T-style or Linear Burners: create directional coverage in narrow or elongated pans.
- Tree-style or Branch Burners: distribute flame over a broader rectangular area.
- Jet Burners and Specialty manifolds: use manufacturer-specific designs to create a particular flame pattern or performance profile.
The burner must leave the clearances required by the manufacturer between the active flame area, pan edge, capstone, pilot, and enclosure. There is no universal rule stating that every burner should be a particular number of inches smaller than its pan.
What a burner upgrade may change
| Upgrade category | Possible benefit | What must still be verified |
|---|---|---|
| Burner material | Different corrosion resistance, durability, or construction characteristics | Outdoor rating, warranty, fuel, and media requirements |
| Port or jet technology | Different flame height, distribution, or visual character | Required pressure, BTU supply, and manufacturer-approved configuration |
| Additional branches or flame lines | Broader flame coverage across a large pan | Pan clearances and increased gas demand |
| Higher-output model | More potential heat and flame presence | Gas-line capacity, clearances, wind conditions, and intended use |
| Custom burner and pan | Better fit for unusual dimensions or architectural designs | Manufacturer engineering, lead time, serviceability, and certification needs |
| Advanced ignition or controls | Flame monitoring, automatic relight, high/low control, timers, or remote operation | Fuel restrictions, electrical requirements, enclosure space, and system compatibility |
Brand-specific options vary. Examples available through FirePits.Store include Warming Trends brass CROSSFIRE® burners, HPC stainless-steel burner systems, Fire by Design stainless-steel burner kits and ignition systems, and American Fire Products pan-and-burner assemblies. The best option is often the one that matches the project’s performance goals and installation conditions.
For additional examples, see Choosing the Right Fire Pit Burner and the Fire Pit Replacement Parts & Upgrades Guide.
6. Choose the Ignition and Control System
Ignition affects more than how the fire pit starts. It can change the required fuel arrangement, electrical work, control-box space, service access, flame-monitoring capability, and available user controls.
The term “battery operated” deserves special attention. In one product, the battery may only create a spark while the user manually opens a gas valve. In another, batteries may power a complete electronic system that lights the pilot, monitors the flame, shuts off the gas when necessary, and attempts to relight. Always identify what the battery actually powers.
| Ignition category | How it generally works | Primary considerations |
|---|---|---|
| Match lit | The user places a long lighter or match at the burner and manually opens the gas valve. | Simple operation and no electrical supply, but standard systems usually require manual lighting and may not include flame monitoring. |
| Push-button spark | A piezo or battery-powered button creates a spark while the user operates a manual gas valve. | Convenient spark generation; confirm whether the system includes flame sensing or is spark-only. |
| Flame-sense or safety-pilot system | A thermocouple or other sensor verifies flame and closes the gas valve if the pilot or burner flame is lost. | Added safety functionality, specific lighting procedure, pilot placement, and required media clearance. |
| Battery-powered electronic ignition | A complete battery-powered control system may automatically ignite, monitor, and relight the flame. | Battery access, approved BTU range, fuel arrangement, weather protection, and replacement schedule. |
| Wired electronic ignition | An electronic control system uses the specified low-voltage or line-voltage supply to ignite and monitor the fire feature. | Electrical supply, transformer or power supply, GFCI and switching requirements where applicable, control-box ventilation, and service access. |
Electronic systems may offer simple on/off control, high/low flame control, wall switches, timers, remotes, smartphone control, or integration with a broader automation system. Those features are product-specific. Confirm that every control is approved for the selected ignition system rather than combining unrelated components.
For a more detailed comparison, read Ignition Types for Gas Fire Pits: Match Lit vs. Spark vs. Electronic.
7. Plan the Controls, Ventilation, Drainage, and Service Access
The visible pan and burner are only part of the installation. The enclosure may also need to accommodate a manual valve, appliance regulator, flex line, ignition valve box, pilot assembly, transformer or power supply, timer, emergency stop, wiring, and drainage path.
Controls and shutoffs
Depending on the system, the project may include:
- A manual key valve or control knob
- An exterior gas shutoff for emergency use and maintenance
- A wall switch, timer, emergency-stop button, remote receiver, or automation interface
- A transformer or power supply installed in the location required by the manufacturer
- An access door or removable panel for service
The main shutoff should not be treated as the everyday flame-adjustment control unless the manufacturer specifically designs it for that purpose.
Enclosure ventilation
Ventilation allows heat and any residual fuel to leave the enclosure and supplies airflow around internal components. Major manufacturers commonly require cross-ventilation through openings on opposing sides, but the number, free area, height, and location of those openings are product-specific. Portable-cylinder compartments can have additional ventilation and separation requirements.
Do not copy a vent specification from a different brand or fire pit. Follow the exact manual for the installed system and account for whether the fuel is natural gas or propane.
Drainage and water management
The pan, control box, and enclosure should not become a basin that traps rainwater. Plan:
- Pan drain holes where supplied or required
- A clear route from the pan into the lower enclosure
- Drainage from the enclosure to an approved location
- Clearance beneath control and valve boxes
- A burner cover or weather cover when recommended
- Protection for electrical components without blocking required ventilation
Structural support
The enclosure must support the pan or plate on the surfaces identified by the manufacturer. The weight should not rest on the gas valve, ignition box, or piping. Use noncombustible construction and preserve the empty space required around the controls and fuel connections.
For a broader discussion of enclosure airflow and media placement, see Burning Media and Proper Ventilation for Fire Pits and Fire Features. The specific appliance manual remains the final authority.
8. Choose the Fire Media
Fire media finishes the appearance of the fire pit and can influence flame behavior. Common options include fire glass, lava rock, ceramic logs, fire stones, and other media specifically manufactured and approved for gas fire features.
Before purchasing media, verify:
- The media types and minimum particle sizes approved for the burner
- The required depth above and around the burner
- Whether the burner ports or jets may be covered
- Which pilot openings, cooling holes, blowout-box vents, or ignition components must remain exposed
- Any propane-specific installation or back-pressure test required by the manufacturer
- Whether a less expensive approved base media may be used beneath a decorative top layer
Never use ordinary landscaping rock, gravel, river rock, or other material that is not specifically approved for high-temperature fire-feature use. Moisture trapped in unsuitable material can create hazardous cracking or popping when heated.
There is also no universal media-depth rule. One burner may permit a shallow layer over the burner while another requires a different placement. Follow the exact burner and ignition instructions, especially around pilots and flame-sensing components.
9. Calculate How Much Fire Glass You Need
Once the pan or media area has been selected, use the Fire Glass Calculator below to estimate the quantity required. Select the appropriate shape and enter the inside dimensions of the pan or media tray. For fire pits, do not enter the outside dimensions of the enclosure.
The calculator estimates pounds of fire glass based on the dimensions entered. It does not calculate burner BTU demand, gas consumption, pipe size, regulator capacity, or propane runtime. Those items must be determined from the selected burner and fuel system.
Round the calculated amount upward when purchasing so there is enough material for complete coverage, and always reconcile the result with the media depth and placement allowed by the manufacturer.
